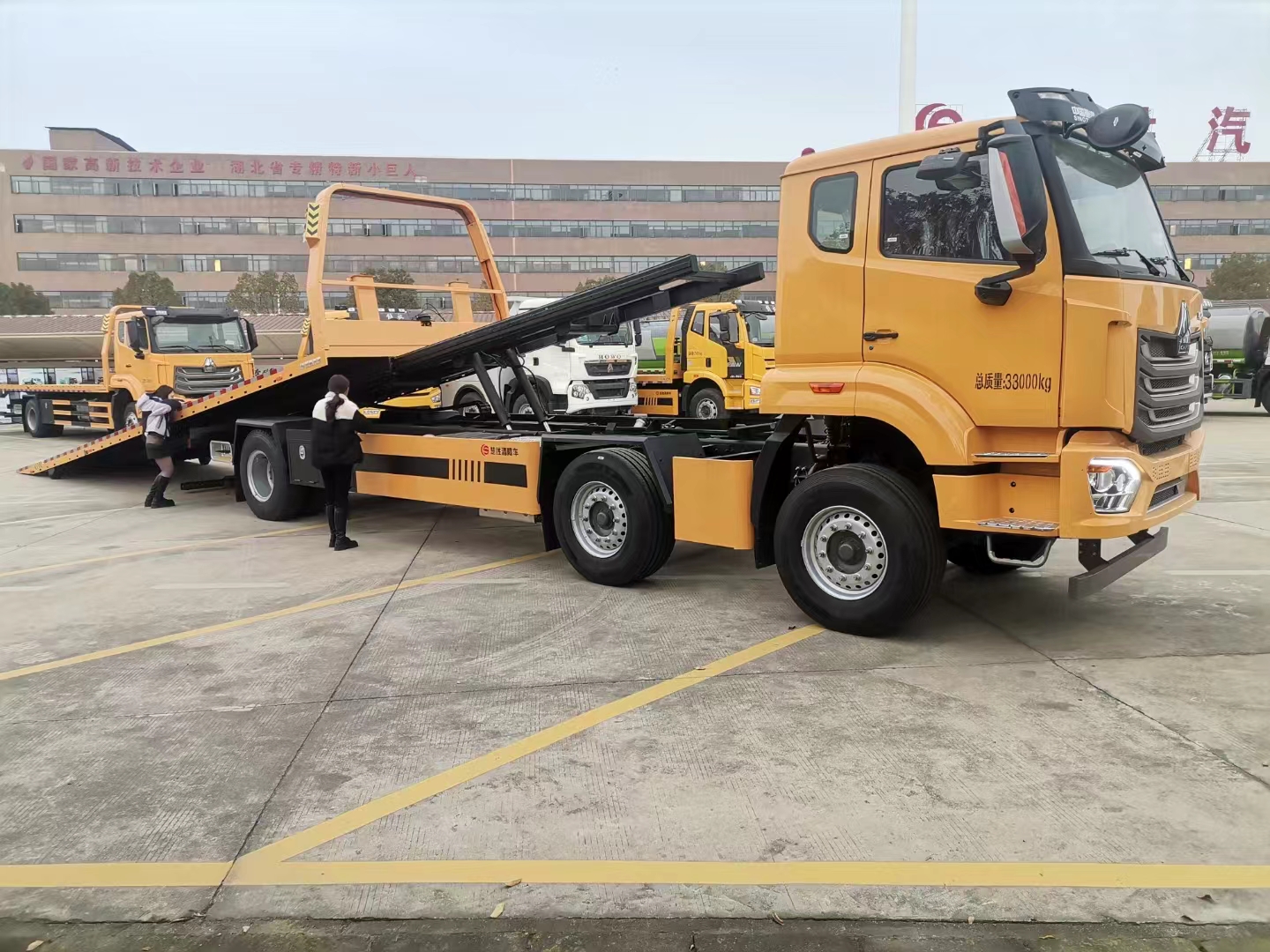

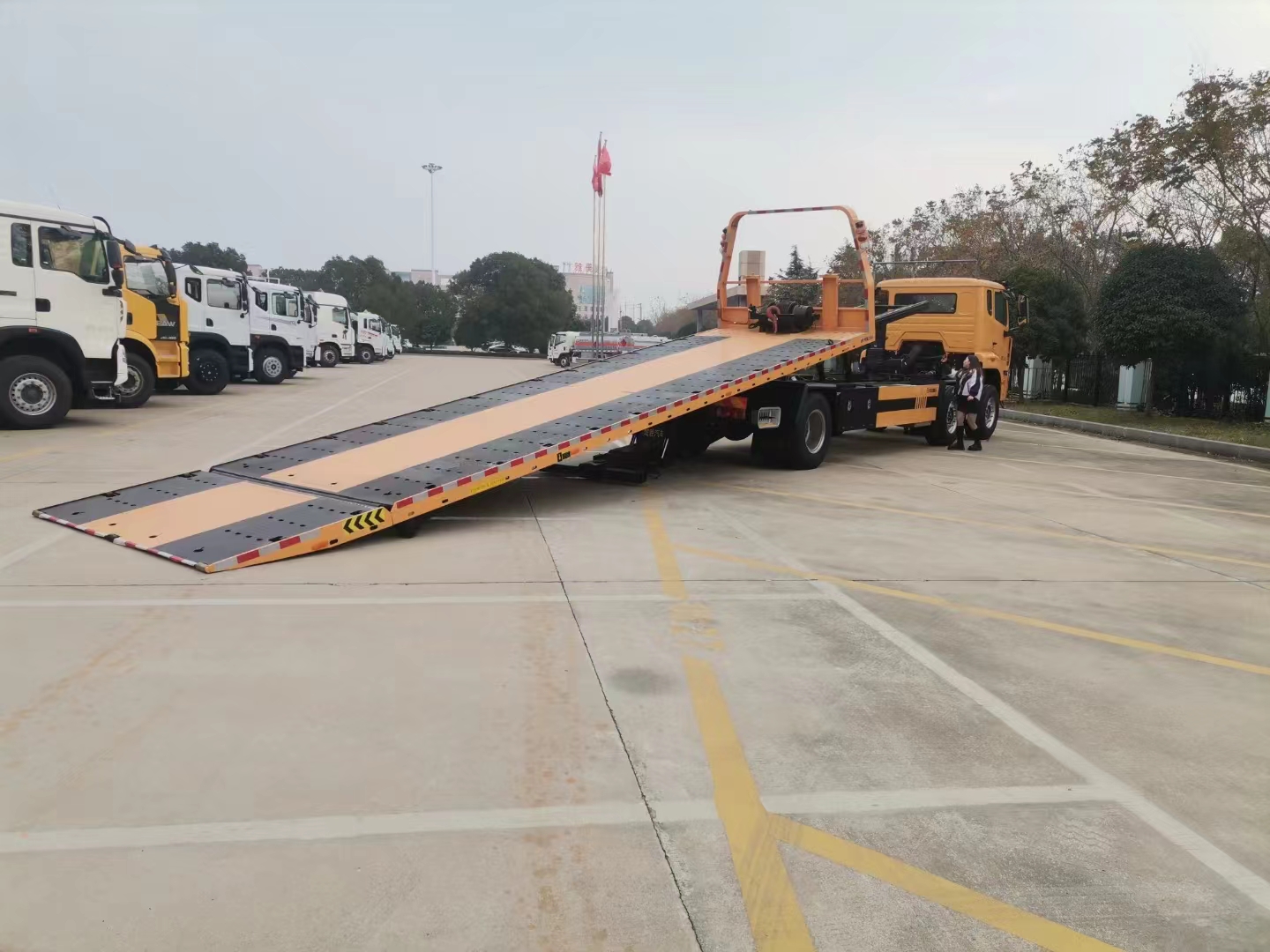

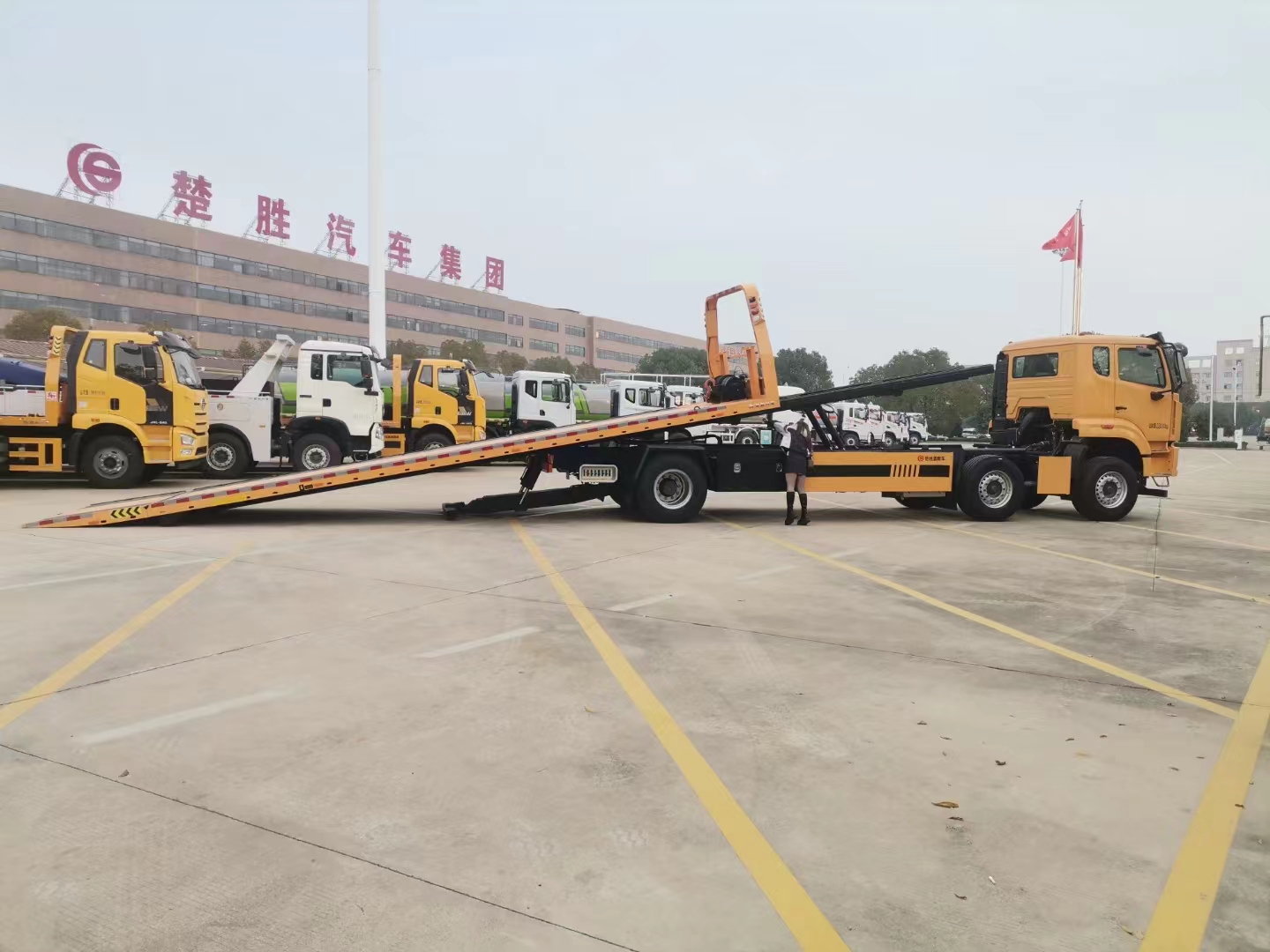

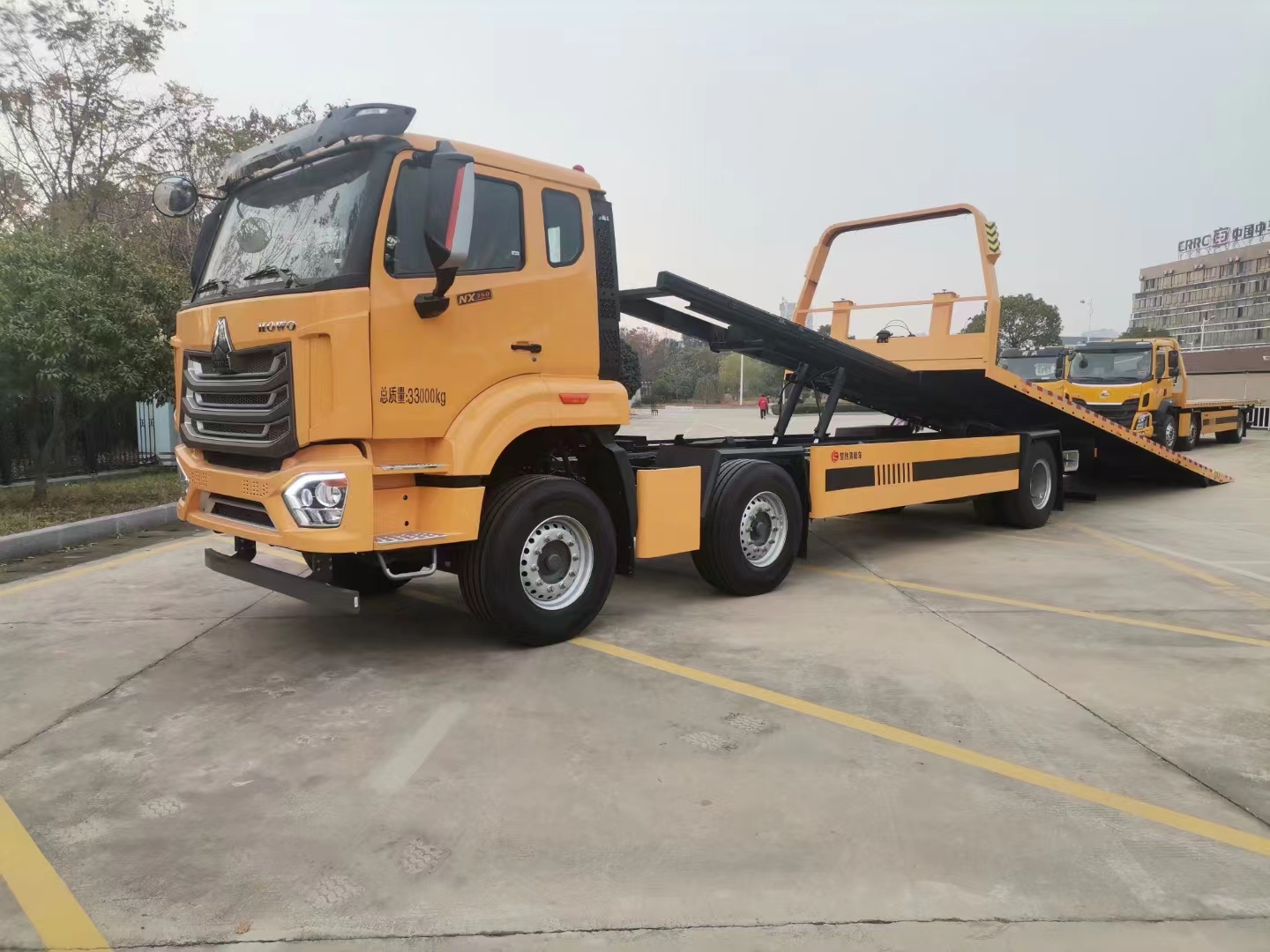

Sinotruk HOWO 6X2 wrecker truck
2024-10-07 09:54:11 Source：chusheng
Sinotruk HOWO 6X2 wrecker truck
Chassis configuration:
1. Engine: MC07.29-61, Sinotruk 290ph
2.Transmission type: 8-speed or 9-speed with original power take-off
3.Tyre: 385/65R22.5 front and 11.00R20 rear tires
4.Wheelbase: 2100+5300mm
5 Other: HOWO NX wide body and wide sleeper cab, front width 2350mm 700mm sleeper, four point suspension airbag seats, comfortable and spacious mobile home
Installation configuration:

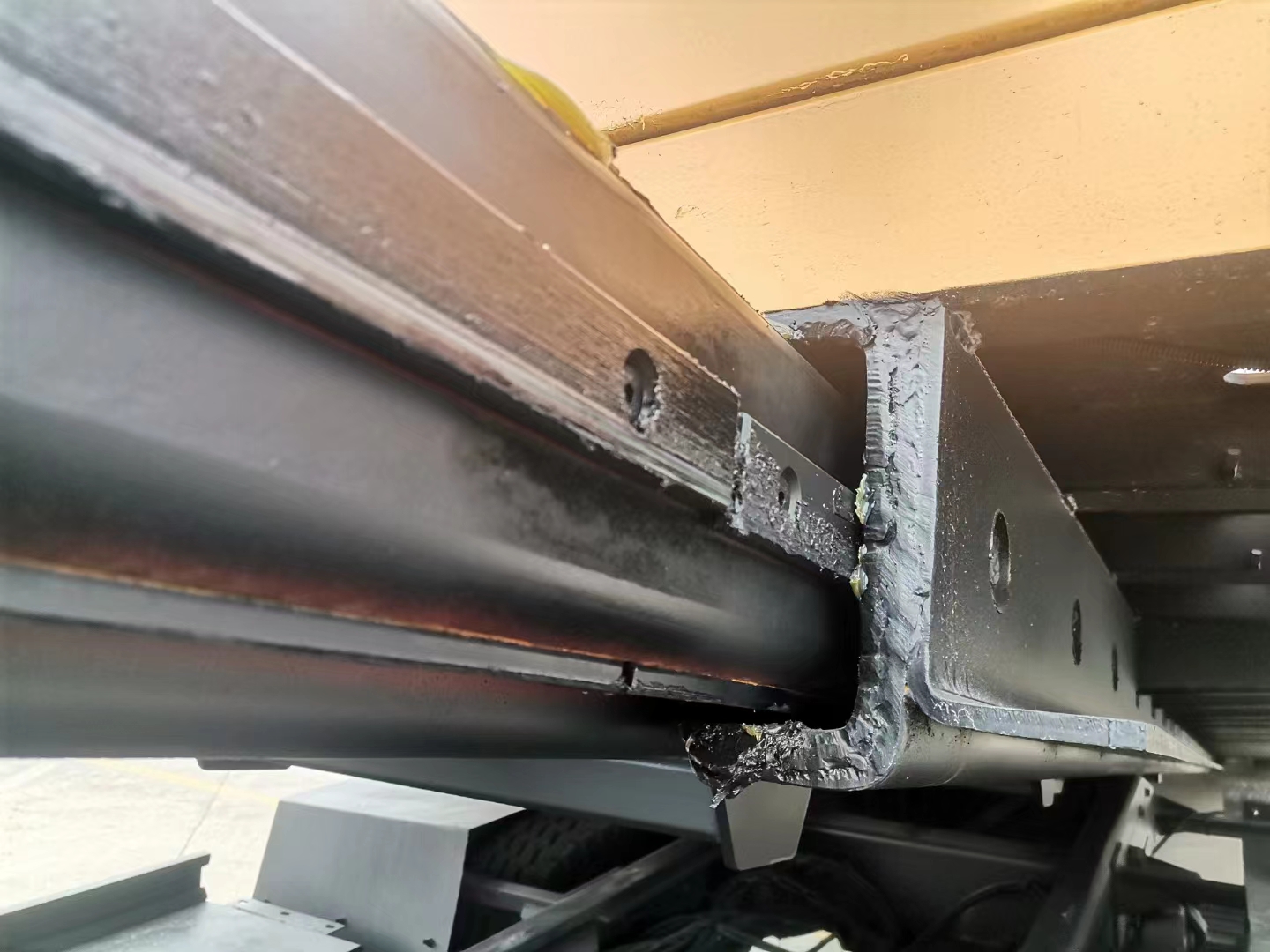

1-12 ton large plate, sunken flat plate, double auxiliary beams, 8mm thick patterned plate, with a length of 10 meters (8.7 meters+1.3 meters hydraulic flip). Four 60 * 120 * 6 square tubes are horizontally welded in the middle of the plate, with a width of 2.55 meters, 16mm thick steel plate frame, and double 10mm thick sliding grooves,

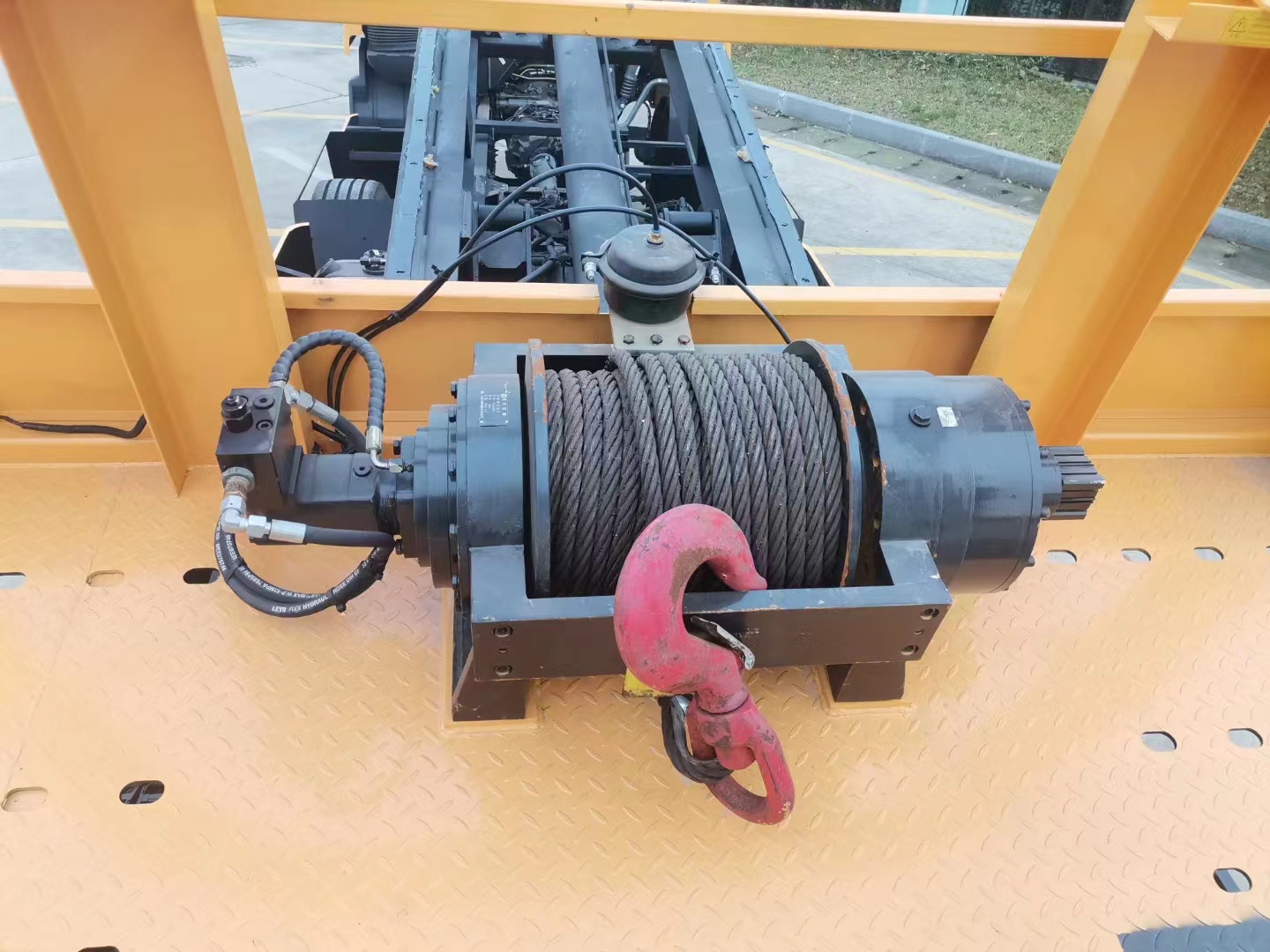

2-12 ton three section rear support arm, 10 ton mid mounted winch, HZLI oil cylinder, Heidelberg multi way valve, using double-sided linkage device, equipped with 2 rear work lights, 1 toolbox, 4 binding straps, 1 pair of towing forks, 1 pair of towing fork seats, hydraulic parts warranty for two years, and other standard equipment.
| Product Name |
Sinotruk HOWO 6X2 wrecker truck |
| Driving Type |
6X2 |
| Weight /Classification |
|
| Type |
wrecker truck |
| Lift weight(kg) |
15670 |
| Dimensions |
|
| Wheelbase(mm) |
2100+5300 |
| Overall Dimension(mm) |
12450,11450×2550×3090 |
| Engine |
|
| Engine brand & model |
MC07.29-61 |
| Displacement(L)/Power(kw) |
6.87L/213KW |
| Chassis |
|
| Axle Quantity |
3 |
| Transmission Type |
8-speed or 9-speed with original power take-off |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
385/65R22.5 front and 11.00R20 rear tires |
| Cab |
|
| Standard configuration |
HOWO NX wide body and wide sleeper cab, front width 2350mm 700mm sleeper, four point suspension airbag seats, comfortable and spacious mobile home |
| Air conditioning |
Have |
| Performance parameter |
|
| Platform |
8mm thick patterned plate, with a flat plate length of 10 meters |
| Crane specification |
without crane |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Sinotruk HOWO 6X2 wrecker truck
A tow truck (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
