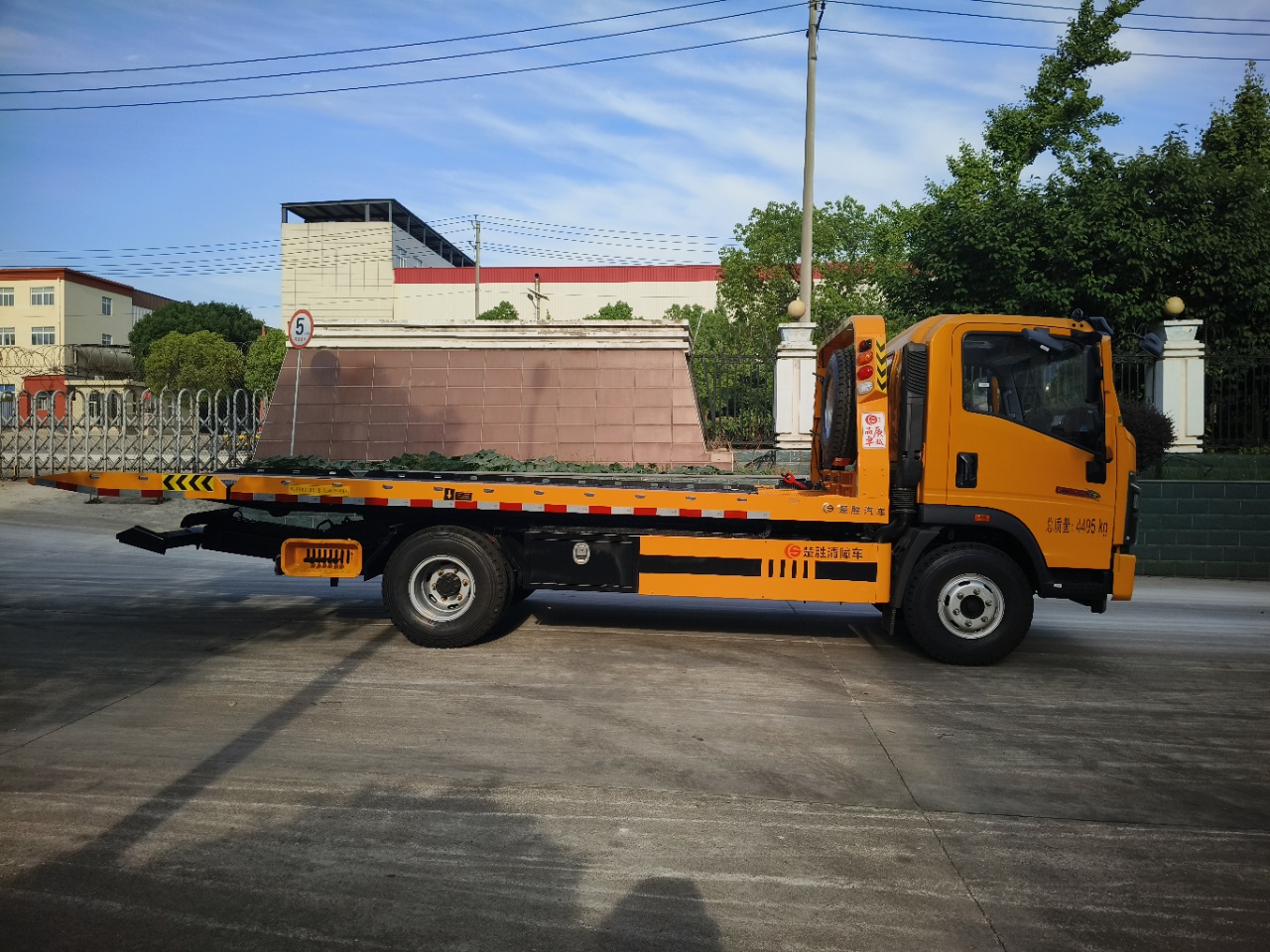

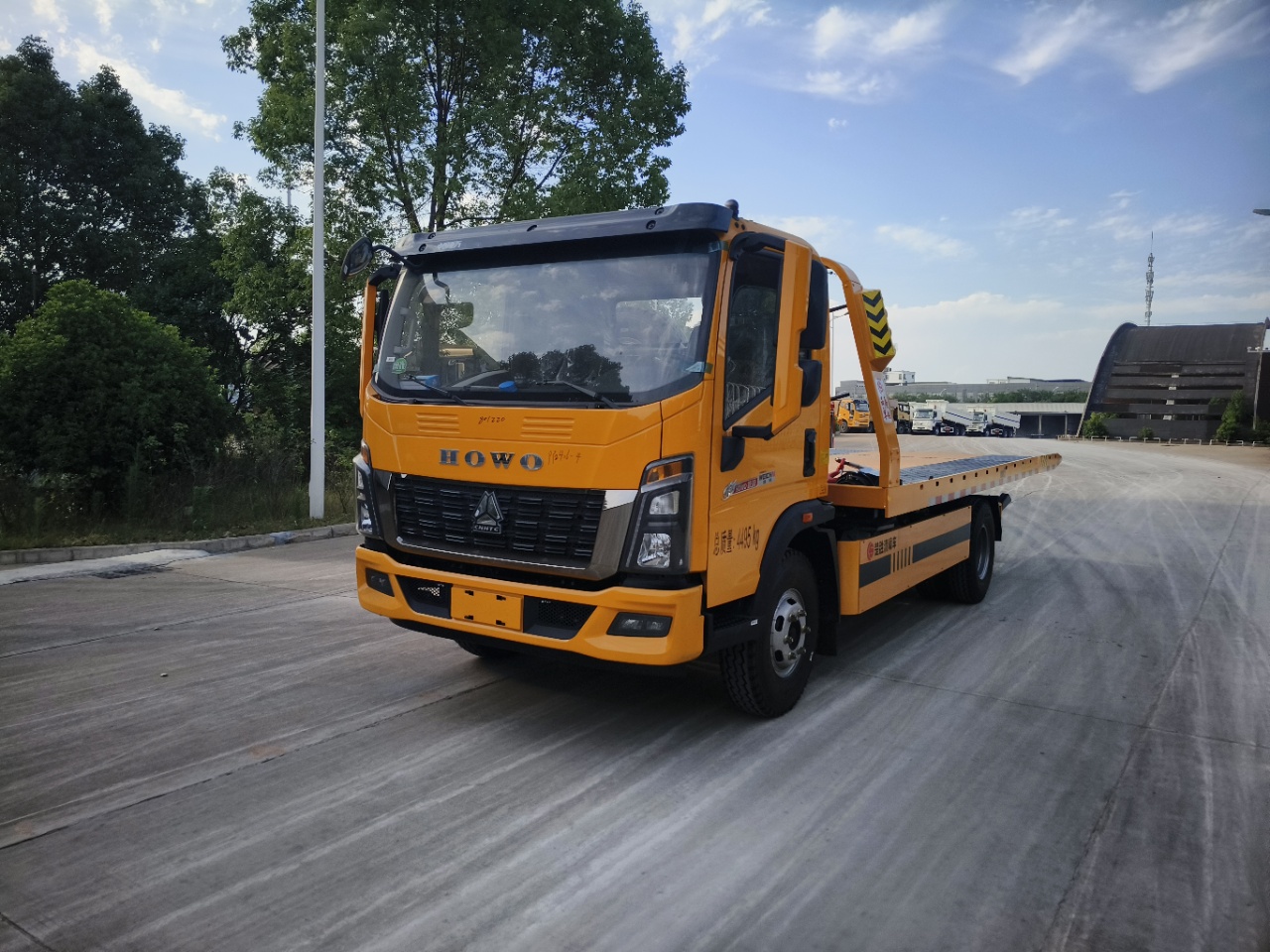

Sinotruk HOWO one drive two wrecker truck
2024-10-07 09:54:11 Source：chusheng
Sinotruk HOWO one drive two wrecker truck
Chassis configuration:
1. Engine: WP4.6NQ220E62
2.Transmission type: 8-speed with original power take-off
3.Tyre:750R16 steel wire tire
4.Wheelbase: 3600mm
5 Other: Mechanical shock absorber seat, original LCD display screen
Installation configuration:
8-ton heavy-duty plate:
1. One pull two, using 6MM thick high-quality patterned plate, with a flat plate length of 5.6 meters or 5.8 meters, a hydraulic flip plate at the tail, a through axis hinge, a width of 2.3 meters, and a 60 * 120 * 5 square tube double splicing for the auxiliary beam. The crossbeam is encrypted, the triangular support is lengthened and encrypted, and the grid is printed under the plate. The standard sinking design is equipped with a 10mm thick slide rail and a 16MM thick solid steel plate frame, ensuring a wider inner width without affecting the load-bearing capacity,
2. One 60KN winch, equipped with a 25 meter steel wire rope, one toolbox, with one 8-ton 2-section rear support arm, two auxiliary carts, one pair of L-shaped tire racks, four binding straps, and one chain hook.
3. The flat telescopic oil cylinder has an inner diameter of 100 (which can easily lift vehicles weighing less than 10 tons on a flat plate), while the flat lifting oil cylinder has an inner diameter of 80, and the trailing arm lifting oil cylinder has an inner diameter of 90.
| Product Name |
Sinotruk HOWO one drive two wrecker truck |
| Driving Type |
4×2 |
| Weight /Classification |
|
| Type |
one pull two wrecker truck |
| Capable of carrying weight(kg) |
10000 |
| Dimensions |
|
| Wheelbase(mm) |
3600 |
| Overall Dimension(mm) |
10185×2550×3650,3750,3850 |
| Engine |
|
| Engine brand & model |
WP4.6NQ220E62 |
| Displacement(L)/Power(kw) |
4.58L/162KW |
| Chassis |
|
| Axle Quantity |
2 |
| Transmission Type |
8-speed with original power take-off |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
750R16 steel wire tire, 6 with a spare |

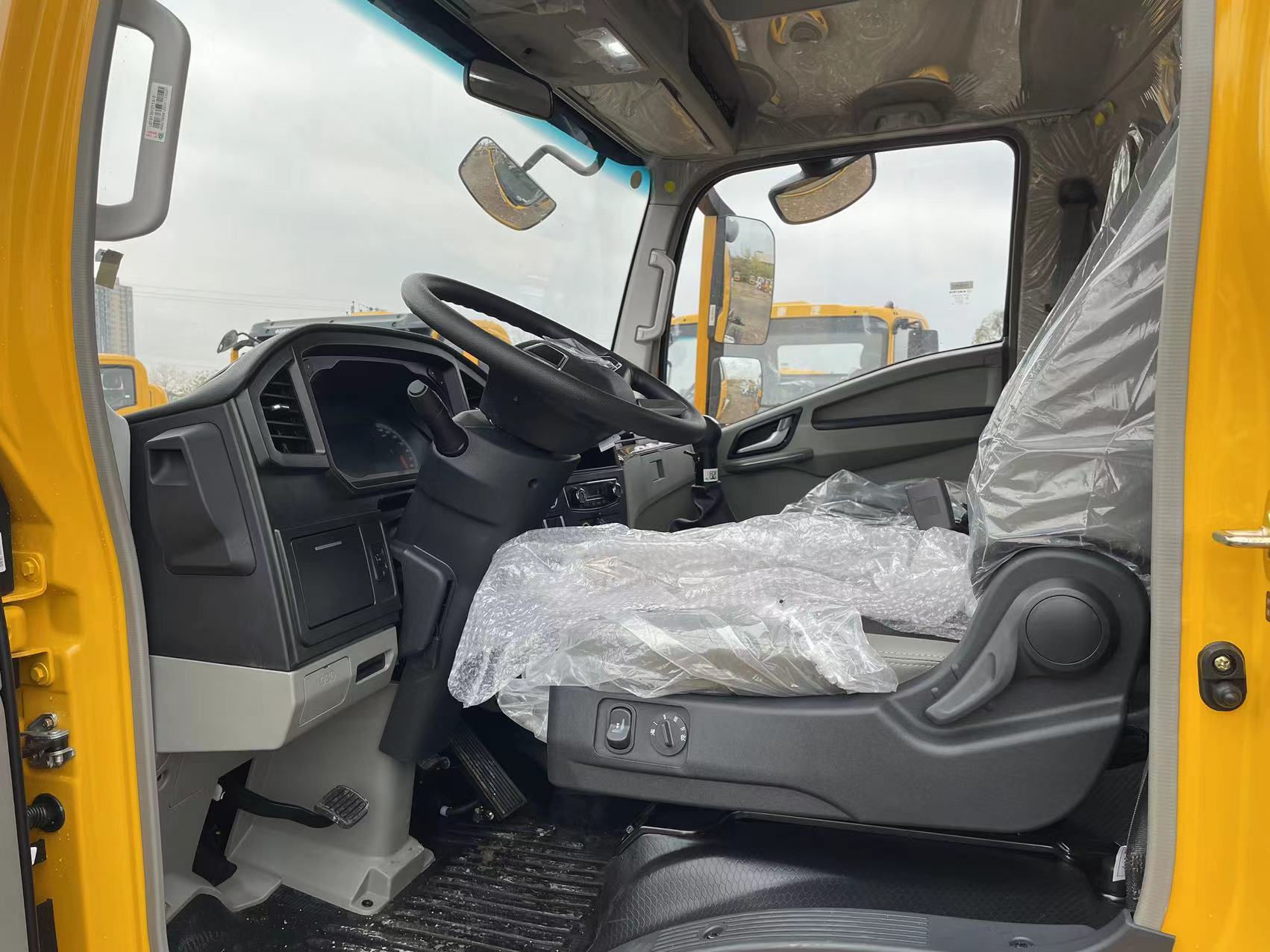

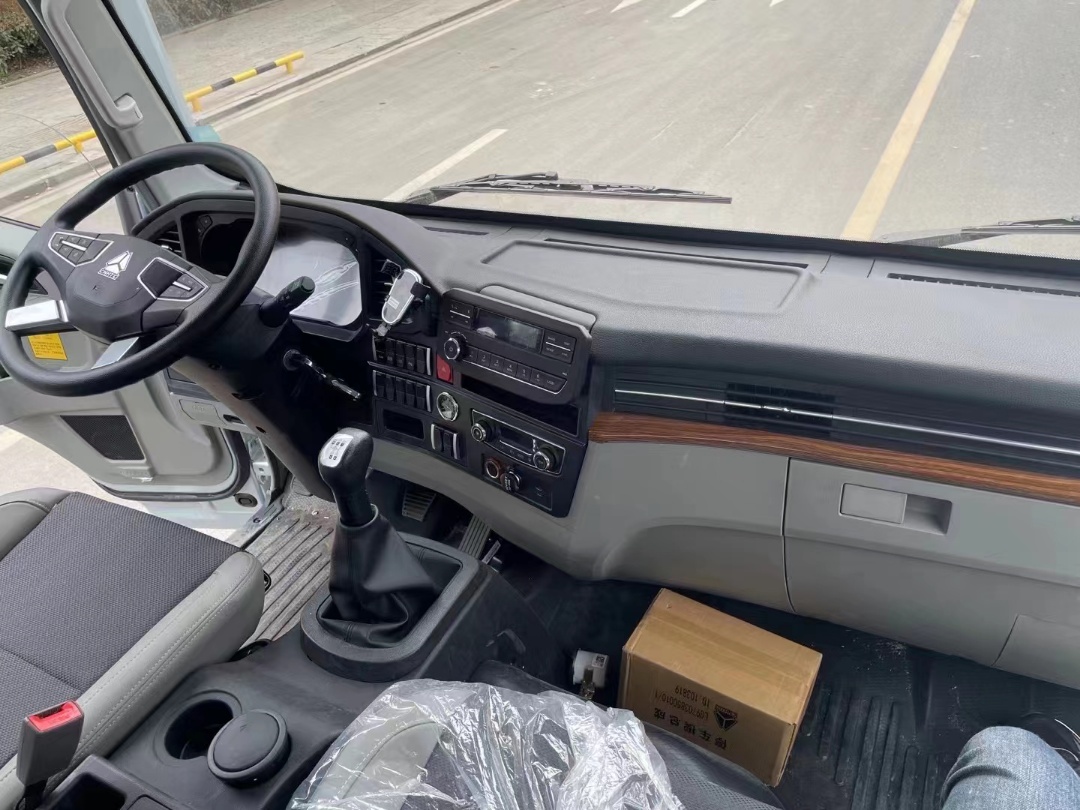

| Cab |
2080 wide body luxury cab |
| Standard configuration |
1. The same quartz clock as Rolls Royce! 2. Four multifunctional steering wheels! 3. Same LCD instrument panel as Mercedes Benz! 4. Original phone holder! 5. Penetrating ambient light! 6. 10.1-inch central control LCD screen! 7. Digital adjustable air conditioner! 8. Luxurious welcome lights! 9. Leather airbag comfortable seat! 10. Central control door lock with electric rearview mirror heating |
| Air conditioning |
Have |
| Performance parameter |
|
| Platform size |
Using high-quality patterned board with a thickness of 6MM, the flat plate is 5.6 meters or 5.8 meters long |
| Crane specification |
/ |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Sinotruk HOWO one drive two wrecker truck
A tow truck (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
Product parameters
