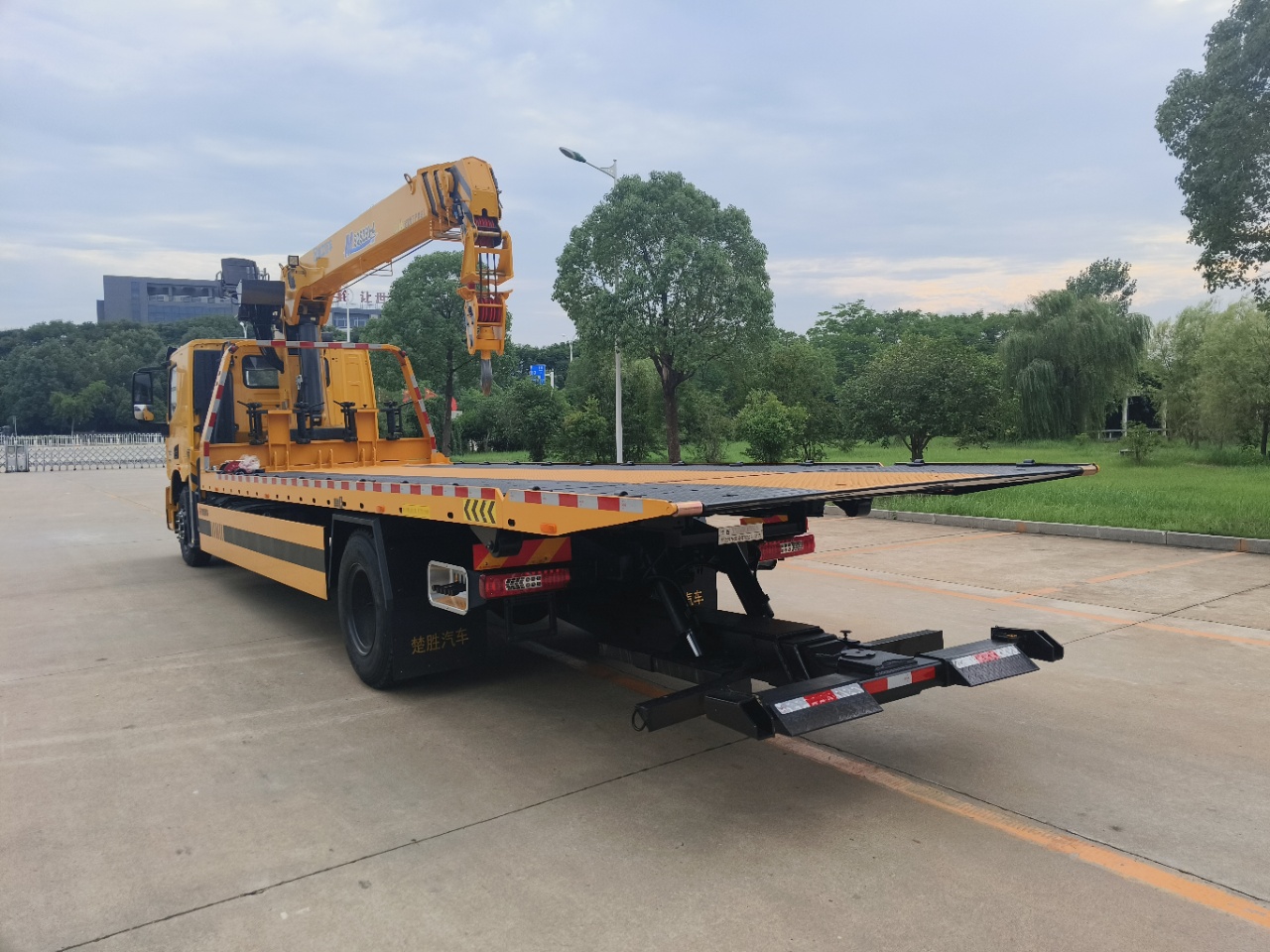

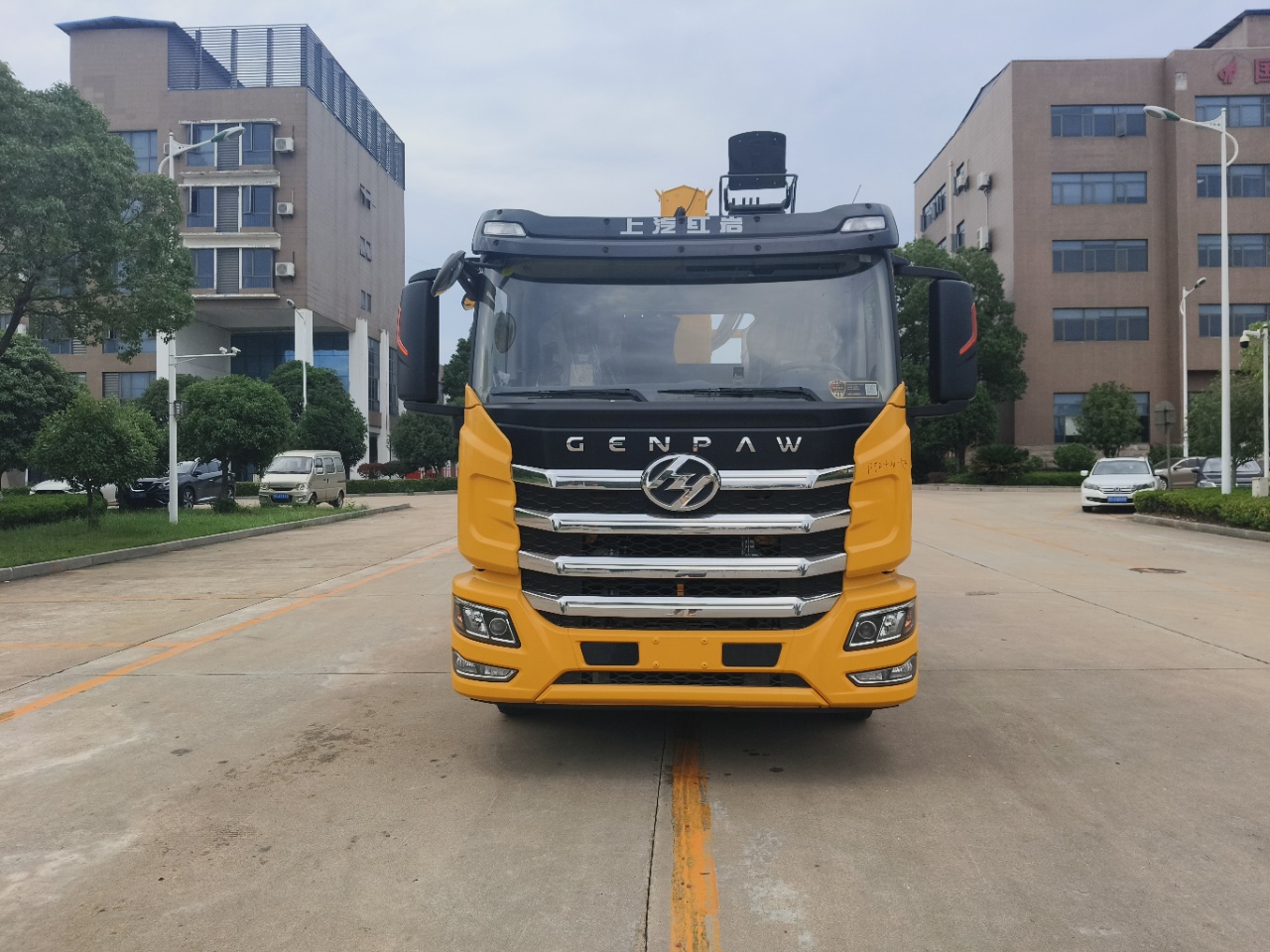

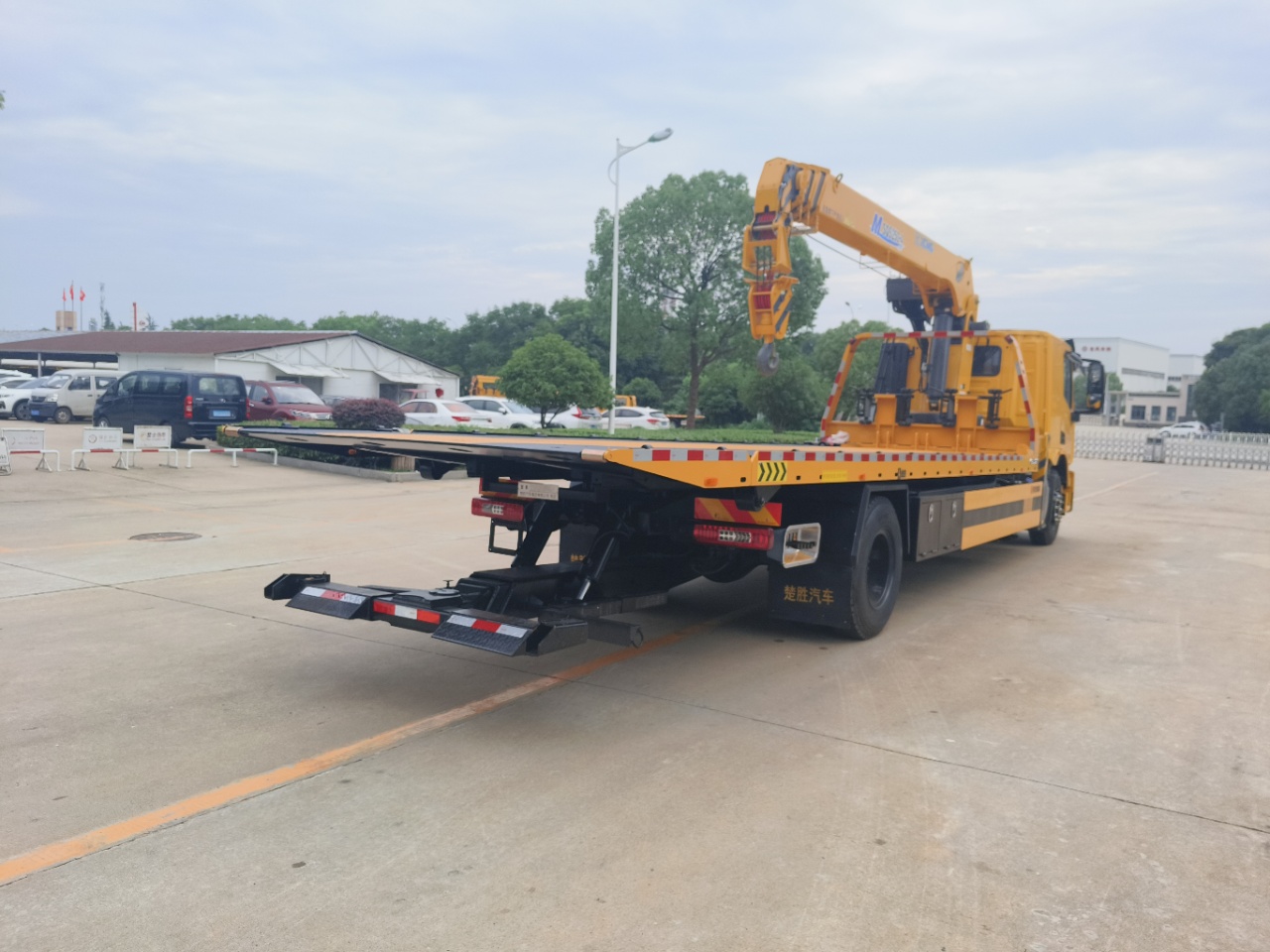

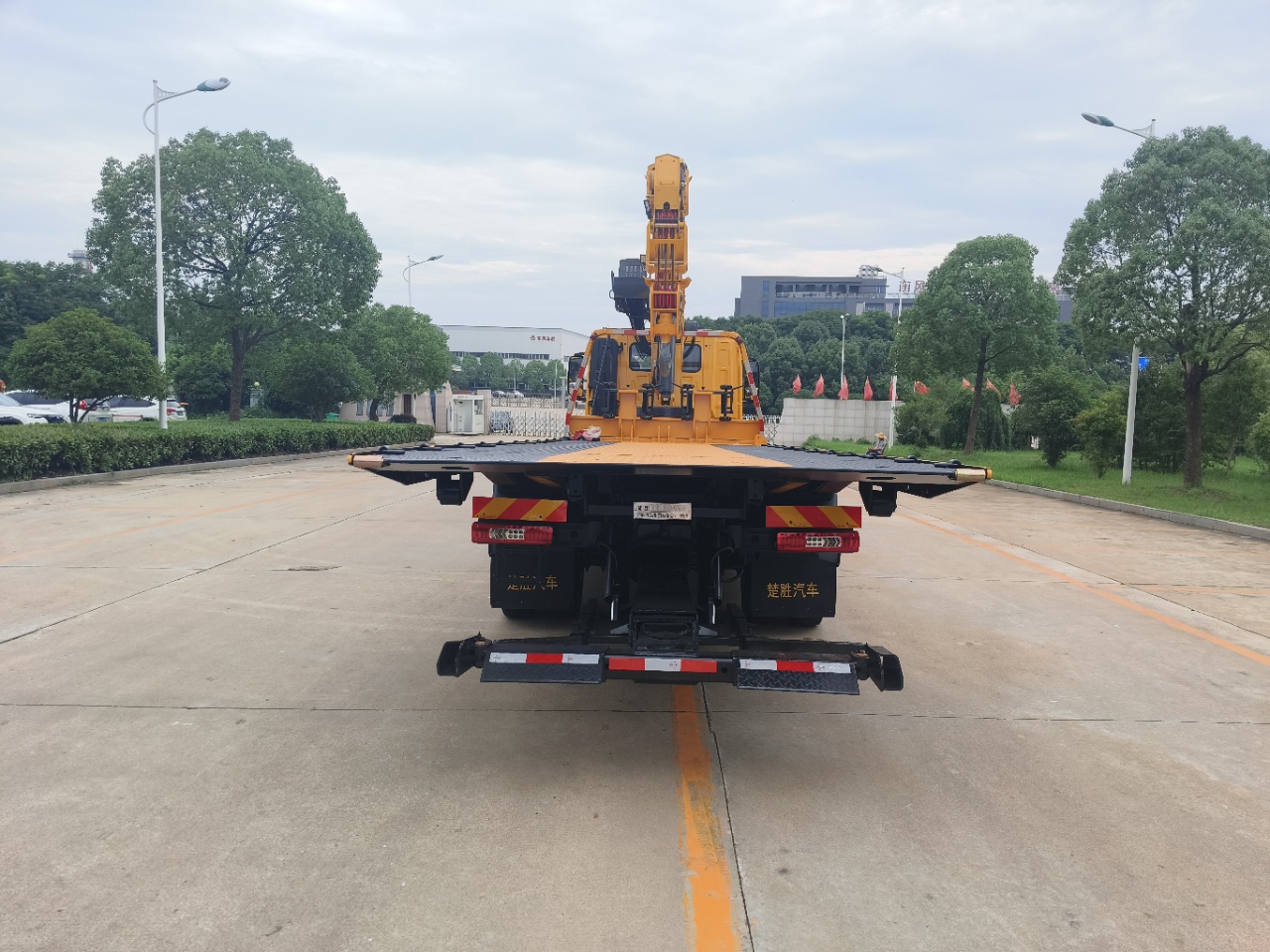

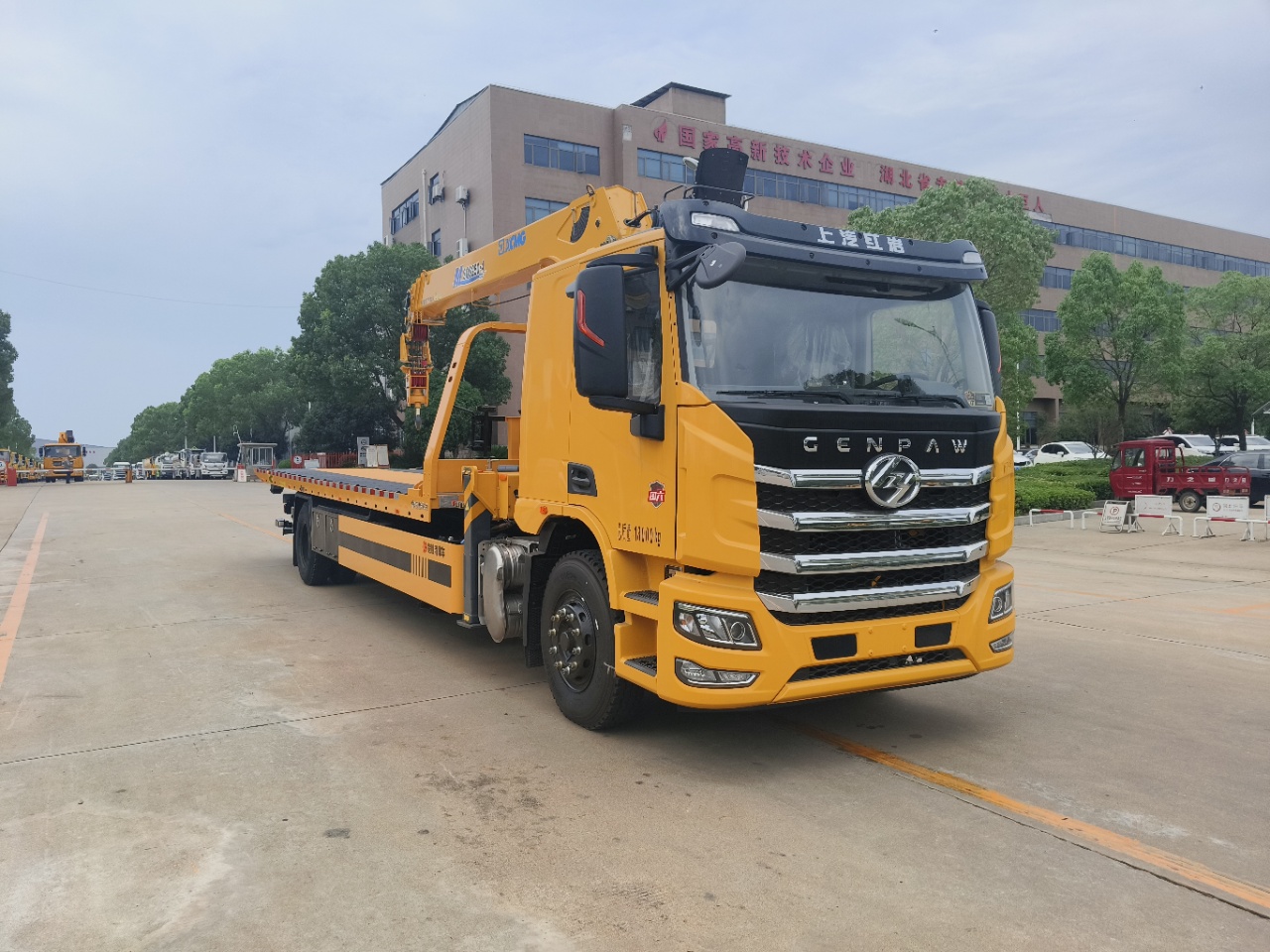

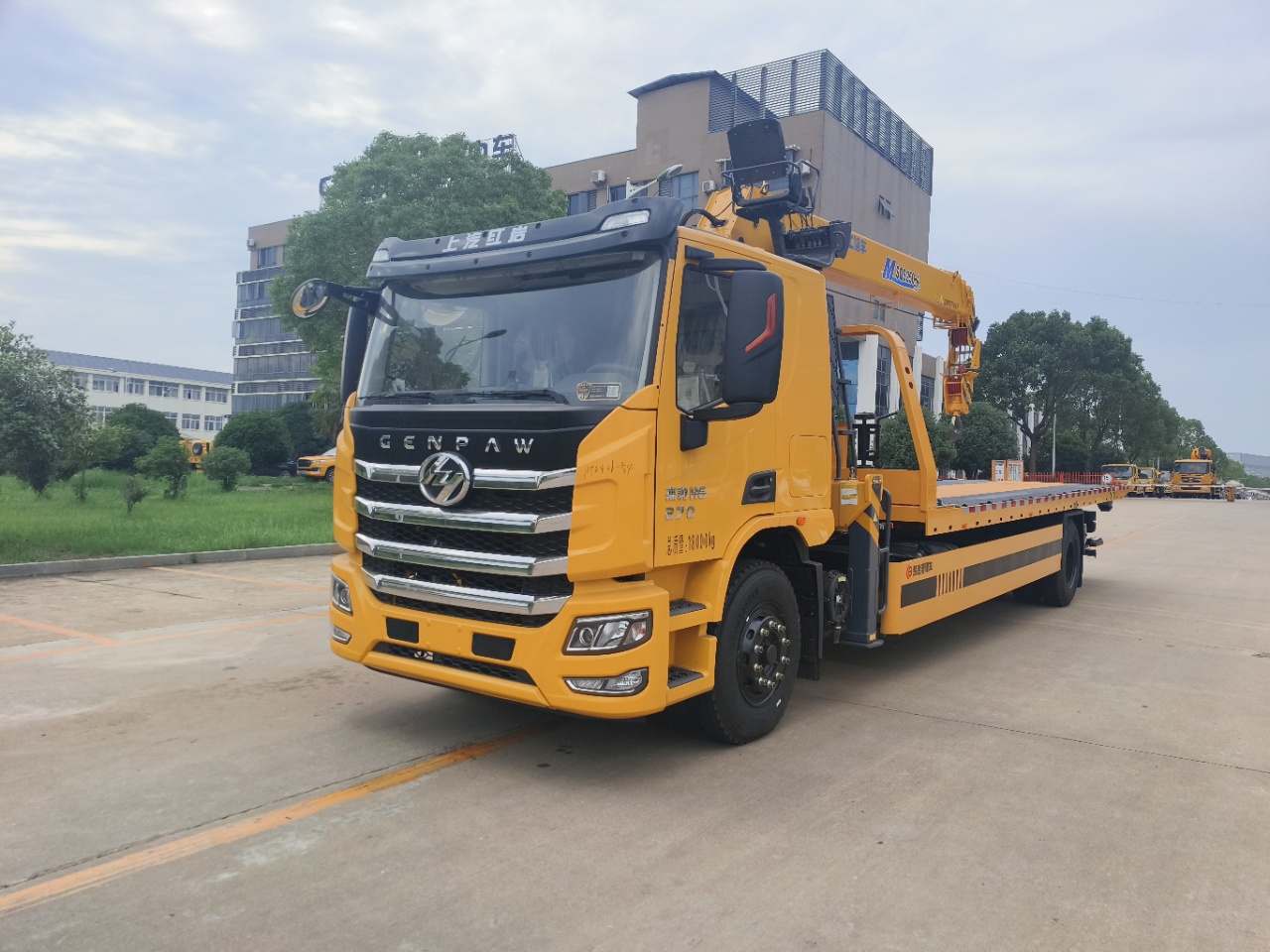

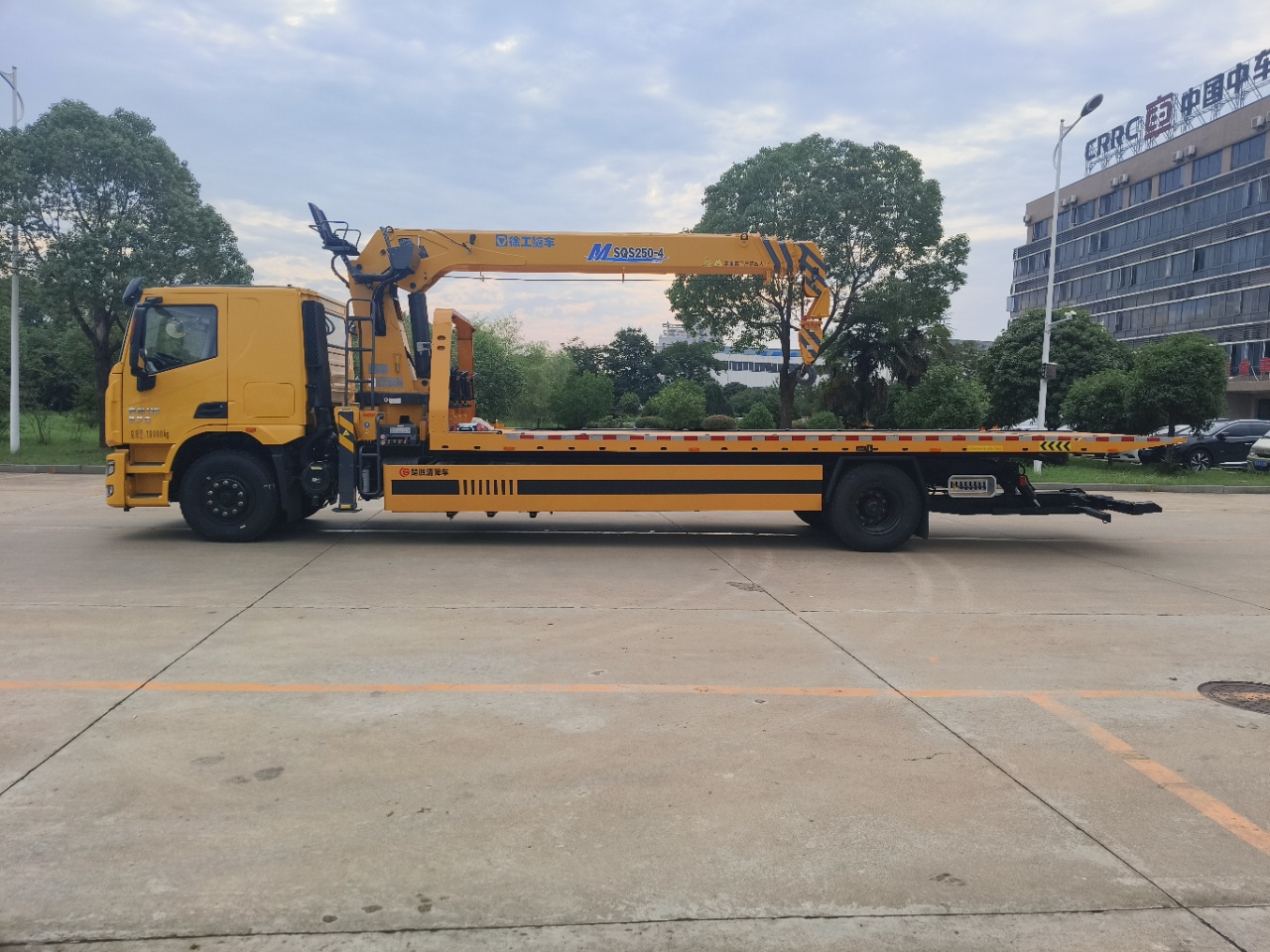

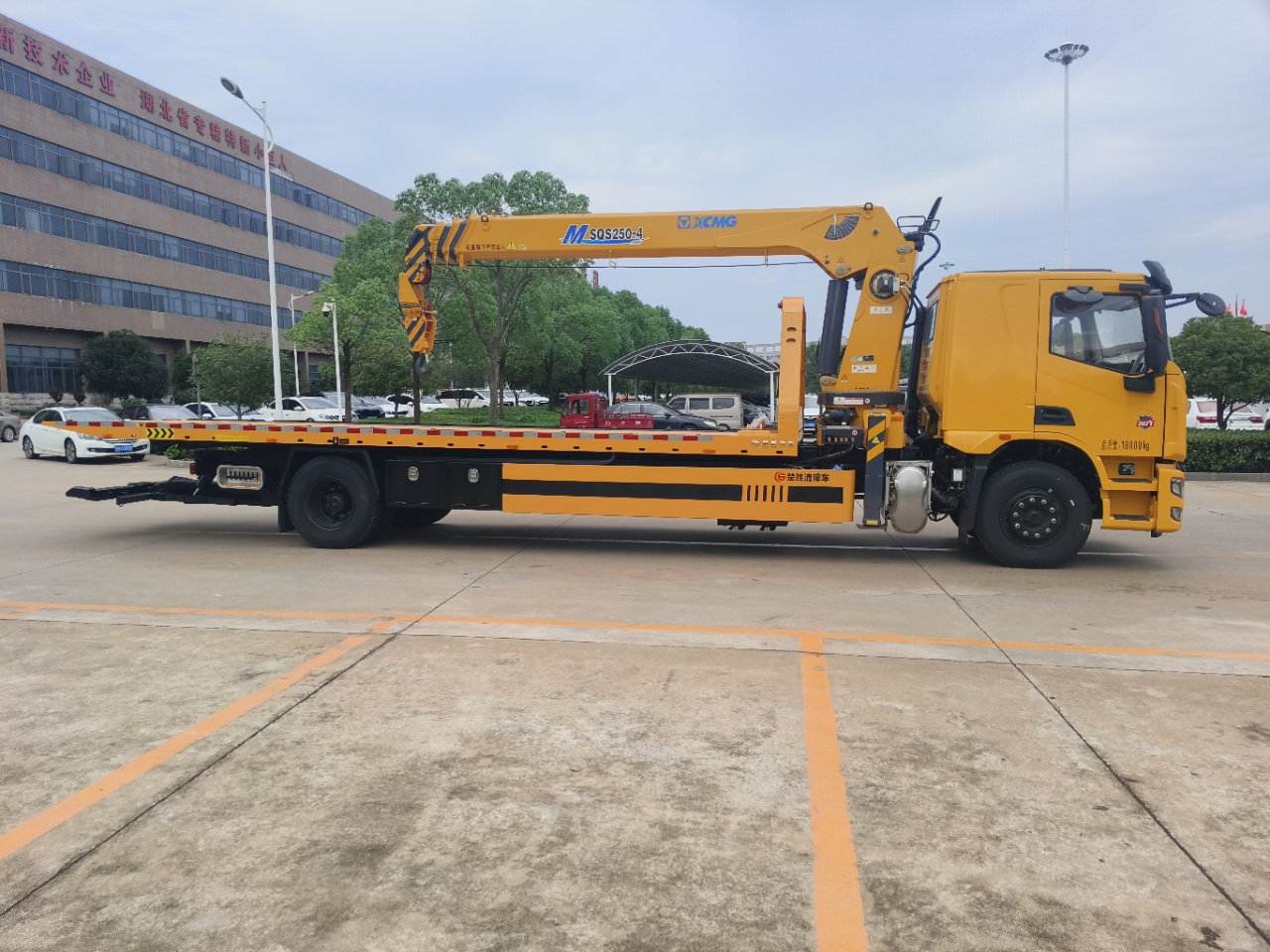

Saic Hongyan Genpaw one tow two wrecker truck with crane
2024-10-07 09:54:11 Source：chusheng
Saic Hongyan Genpaw one tow two wrecker truck with crane
Chassis configuration:
1. Engine: YCS06270-60, Yuchai 270ph
2.Transmission type: 8-speed with original power take-off
3.Tyre: 10.00R2018PR
4.Wheelbase: 7150,5800,6000,5600,6300mm
5 Other: 135Ah battery, remote control central locking, automatic heating and cooling air conditioning, metal bumper, electric cab flip, luxury manual rearview mirror.
Installation configuration:
1. Pattern flat plate (6mm), the tail of the main board can be hydraulically flipped;
2-1 80KN winches (with 35 meter steel wire rope), 1 toolbox, 2 trolleys, 1 pair of L-shaped tire racks, 4 binding straps, 2 pairs of forks (one high and one low), 1 pair of fork seats, and 1 chain hook.
3. Naval battle power oil cylinder, Hefei hydraulic pump, Italian Ward hydraulic valve, original/Suizhou power take-off, center of gravity lowering, auxiliary air pipe assembly, rear support arm installed on the main beam, optional cross shaped bottom plate layout. 110 oil cylinder, lifting 90, rear support arm 110.
| Product Name |
Saic Hongyan Genpaw one tow two wrecker truck with crane |
| Driving Type |
4×2 |
| Weight /Classification |
|
| Type |
one tow two wrecker truck |
| Lift weight(kg) |
2805 |
| Dimensions |
|
| Wheelbase(mm) |
7150,5800,6000,5600,6300 |
| Overall Dimension(mm) |
12020,10670,10870,10470,11170×2550,2500×3850,3800,3750,3700,3650 |
| Engine |
|
| Engine brand & model |
YCS06270-60 |
| Displacement(L)/Power(kw) |
6.23L/199KW |
| Chassis |
|
| Axle Quantity |
2 |
| Transmission Type |
8-speed with original power take-off |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
10.00R2018PR, 6 with a spare |
| Cab |

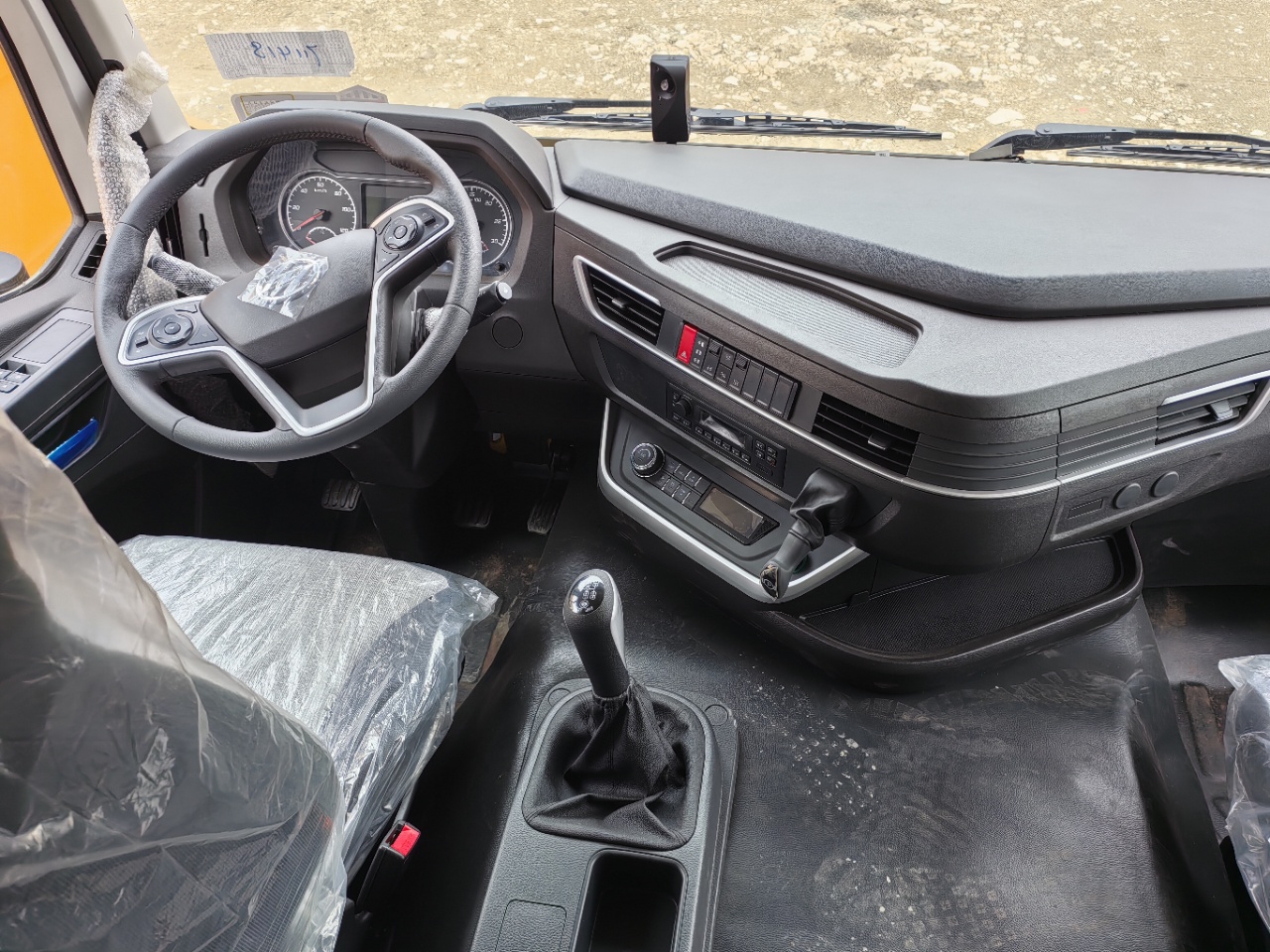

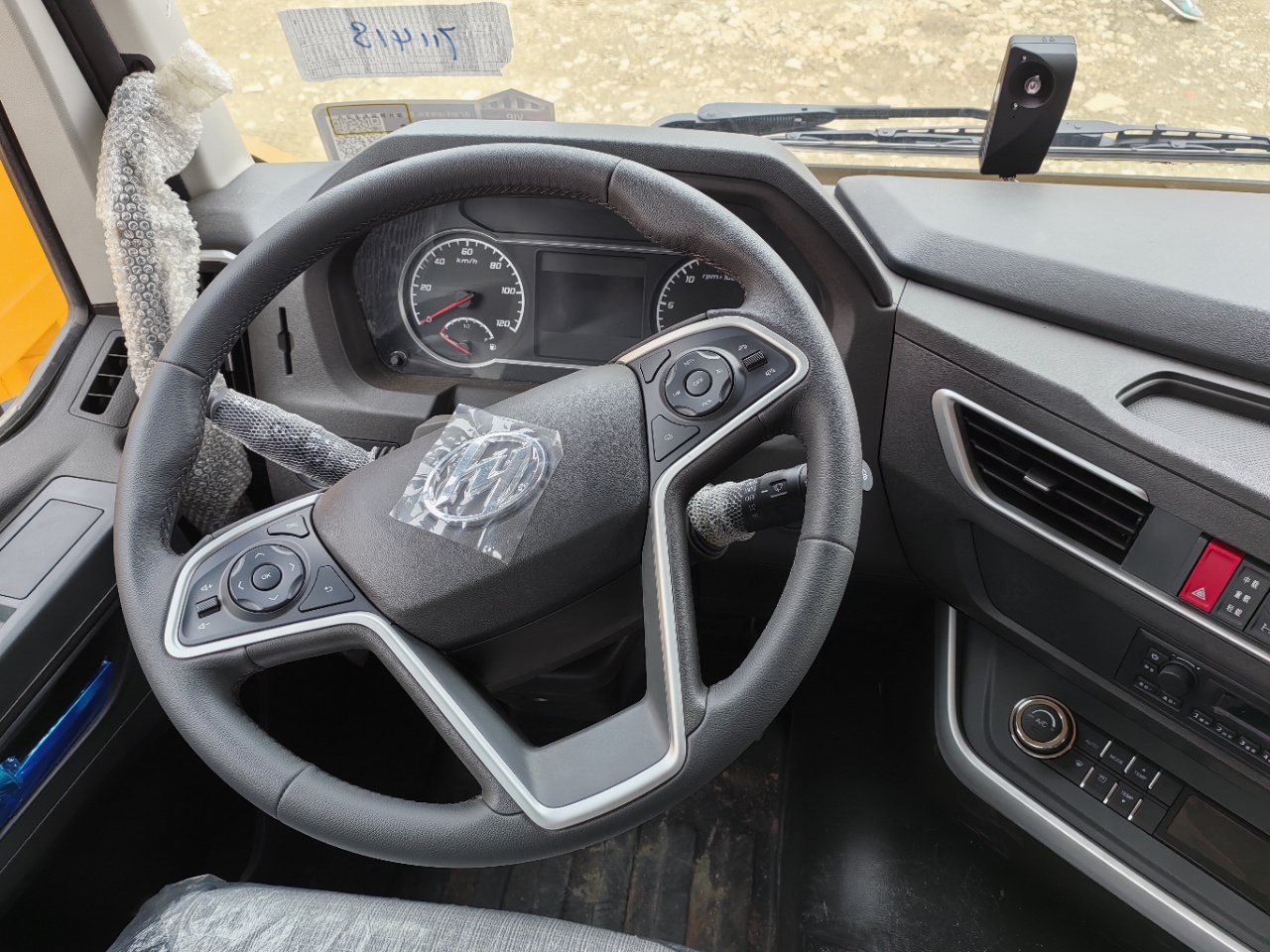

Genpaw flat top standard length cab, cab width 2300mm |
| Standard configuration |
135Ah battery, remote control central locking, automatic heating and cooling air conditioning, metal bumper, electric cab flip, luxury manual rearview mirror. |
| Air conditioning |
Have |
| Performance parameter |
|
| Platform |
Using high-quality patterned board with a thickness of 6MM, the flat plate is 5.6 meters or 5.8 meters long |
| Crane specification |
/ |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Saic Hongyan Genpaw one tow two wrecker truck with crane
A tow truck (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
