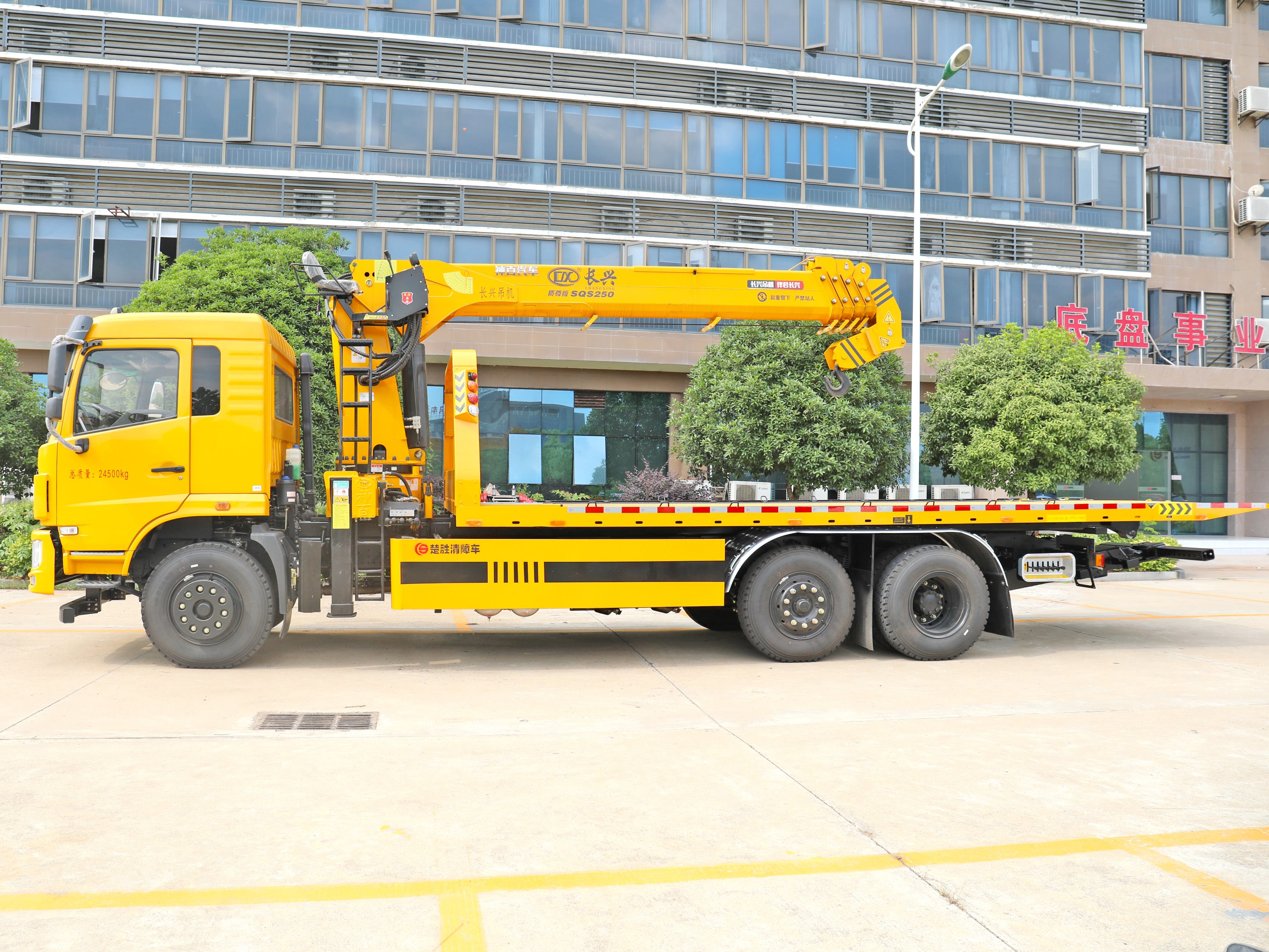

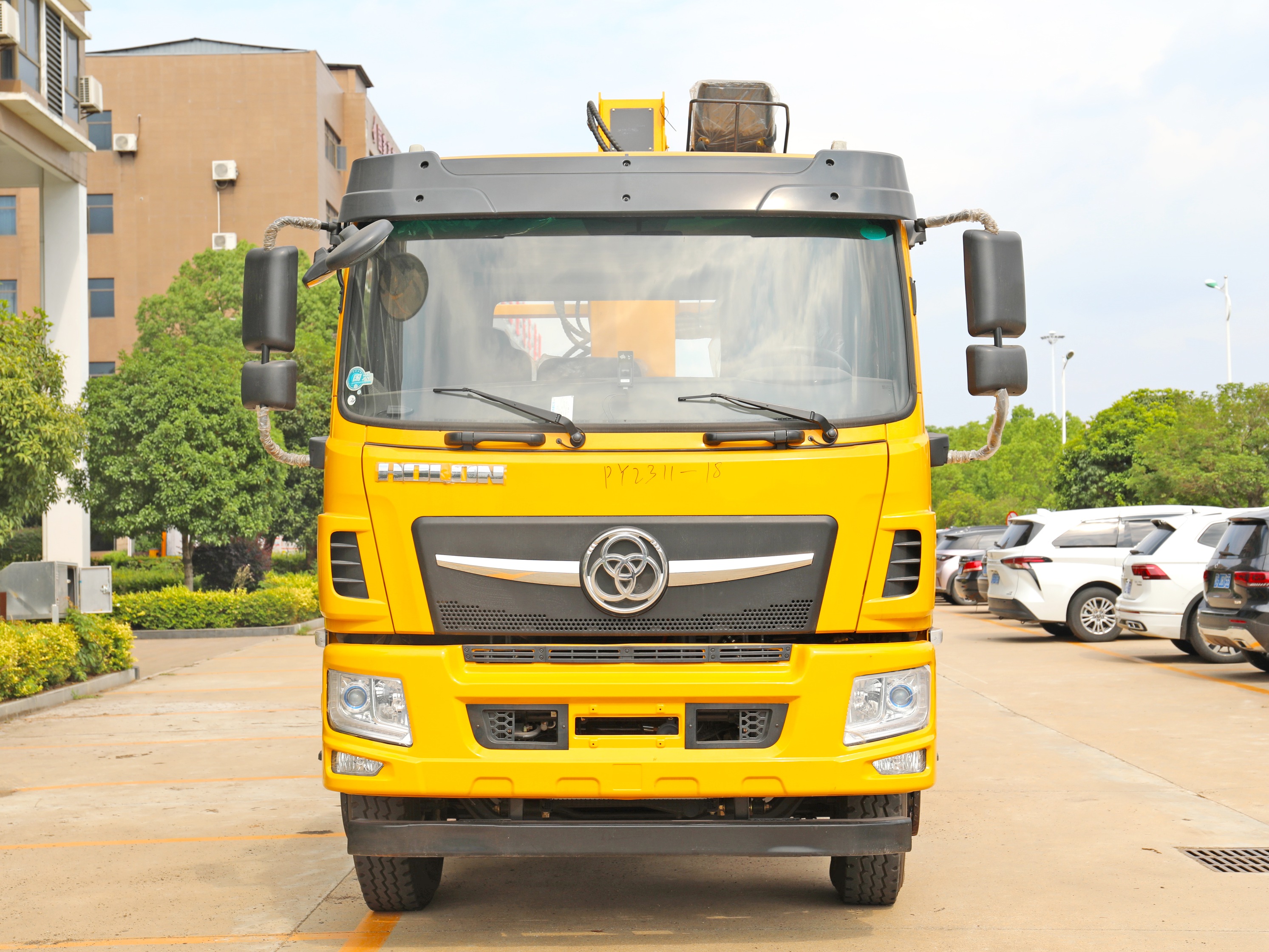

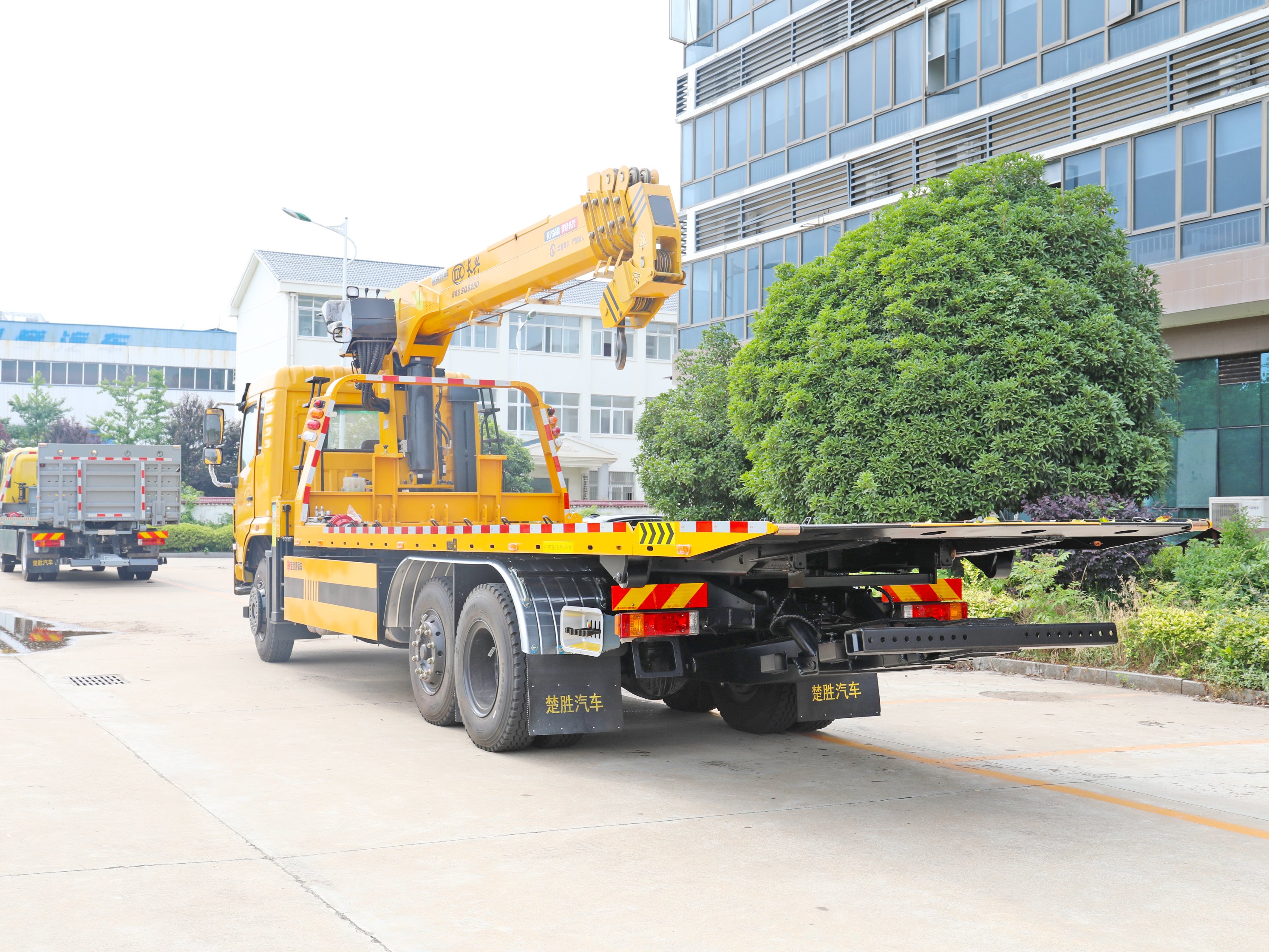

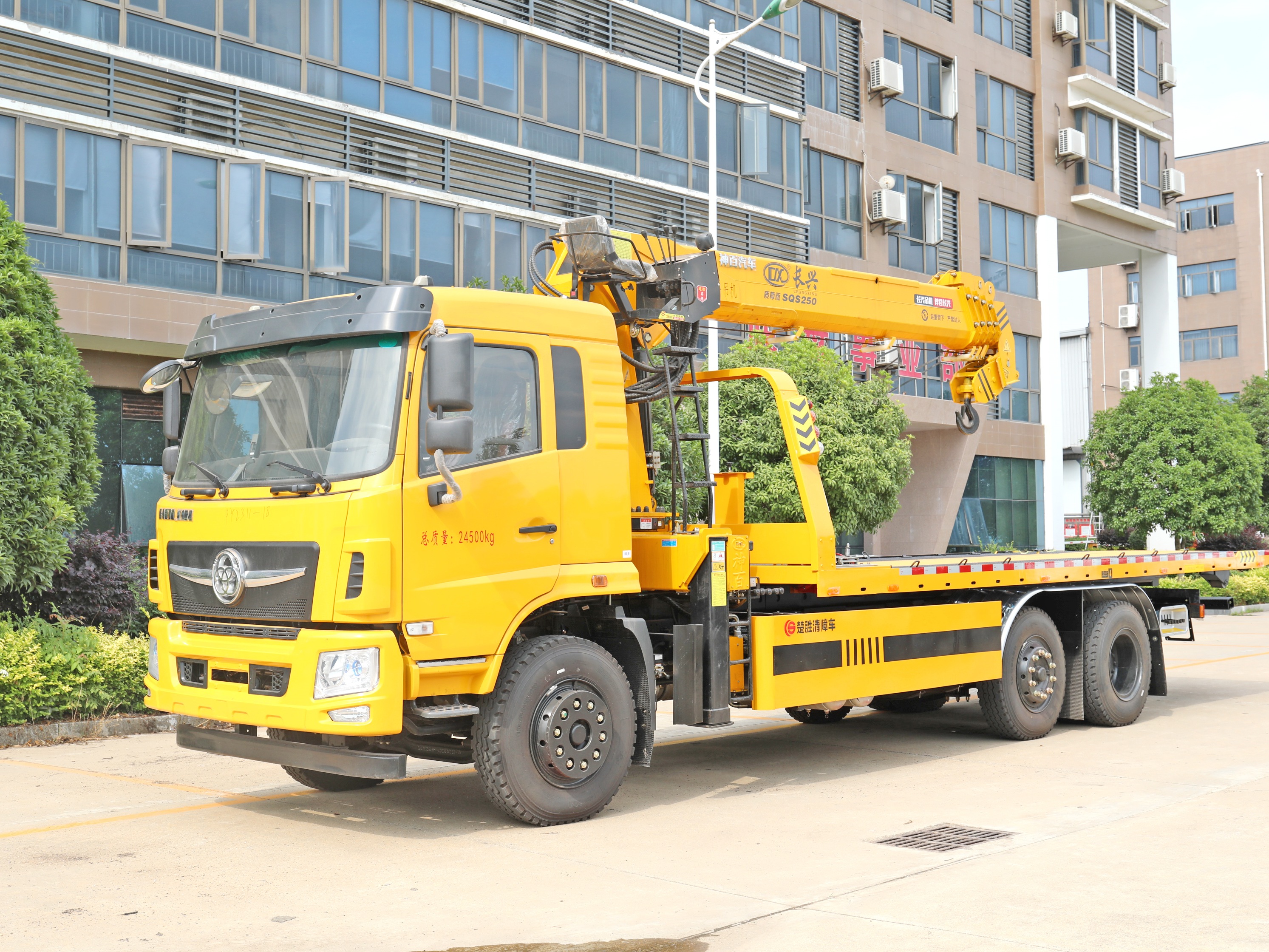

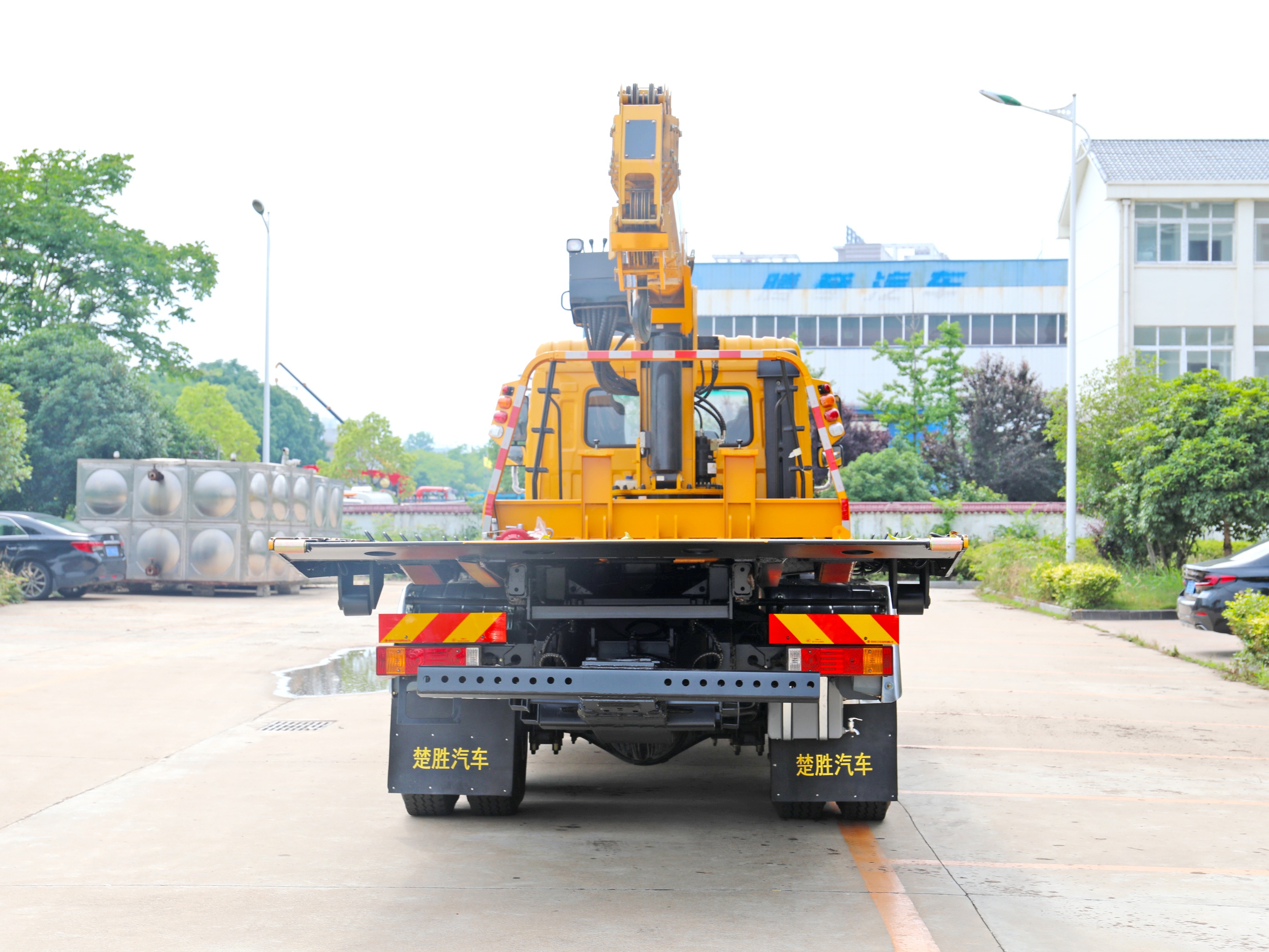

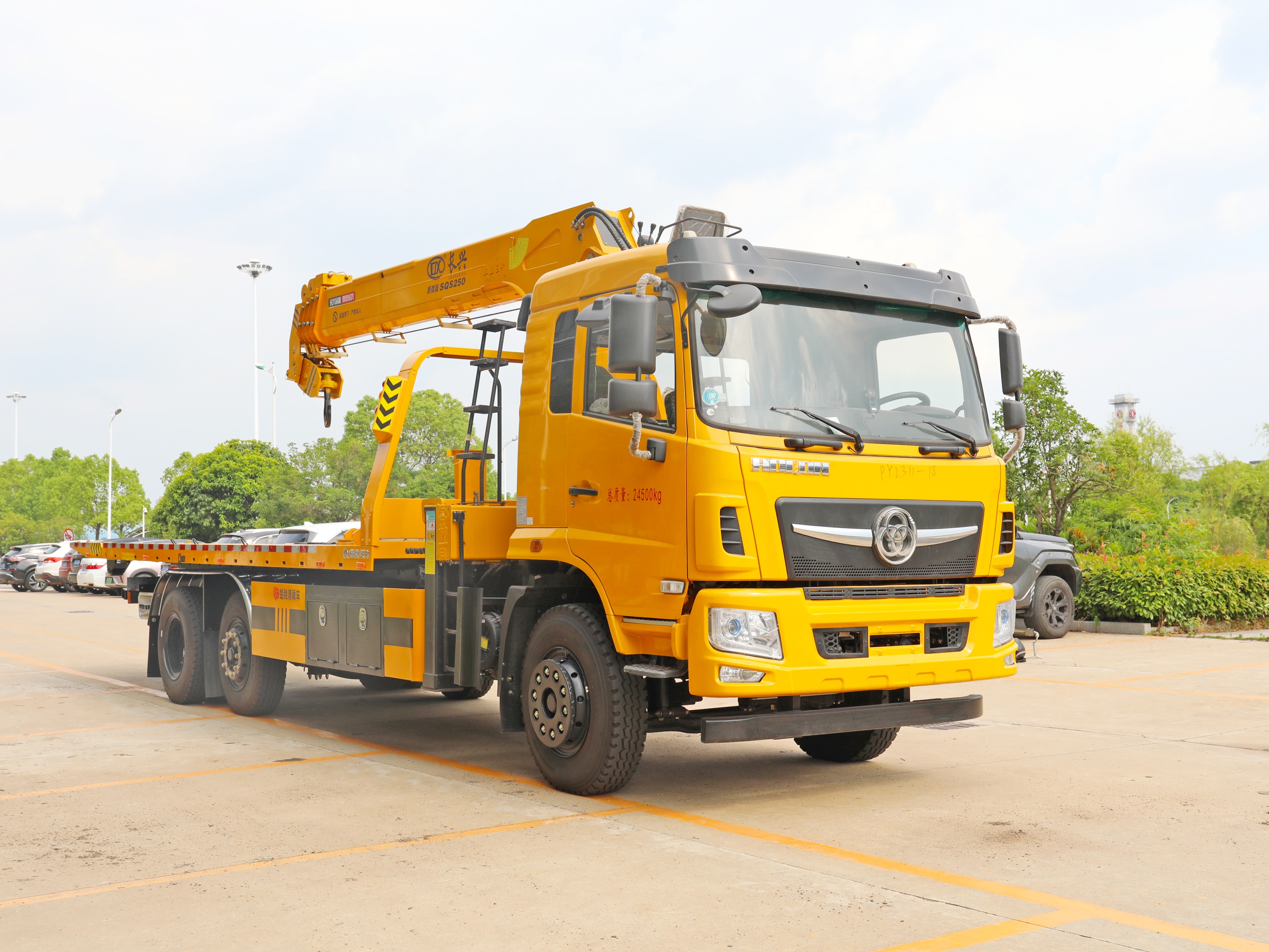

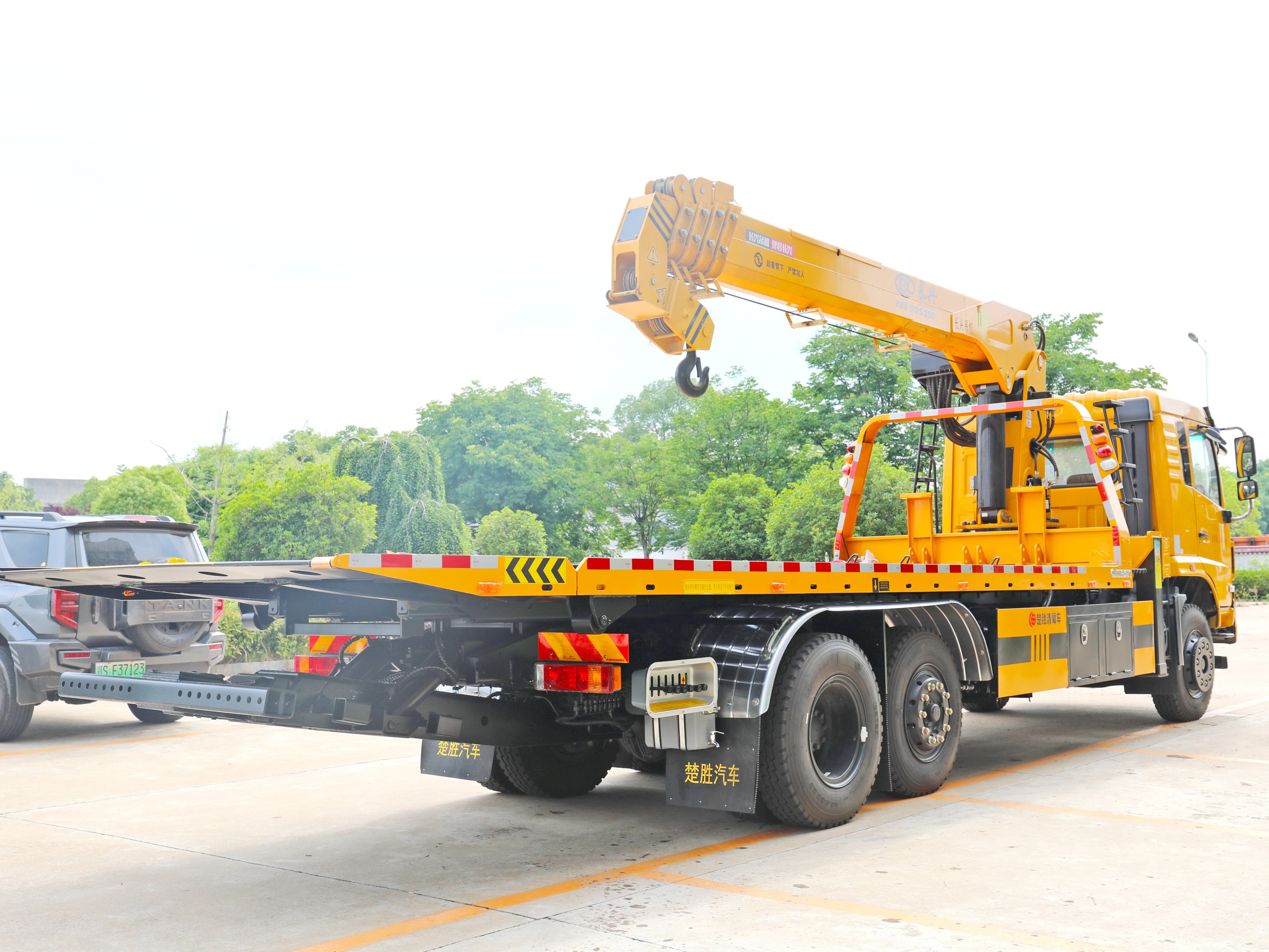

Tri-Ring 6X2 wrecker truck with crane
2024-10-07 09:54:11 Source：chusheng
Tri-Ring 6X2 wrecker truck with crane
Chassis configuration:
1. Engine: Yuchai 245hp
2.Transmission type: 8 forward gears and 1 reverse gear
3.Tyre:10.00R20,
4.Wheelbase:5000+1250mm
5 Other: Air brake, electric doors and windows, central locking system, ABS, remote key, original air conditioning, airbag seats
Installation configuration:

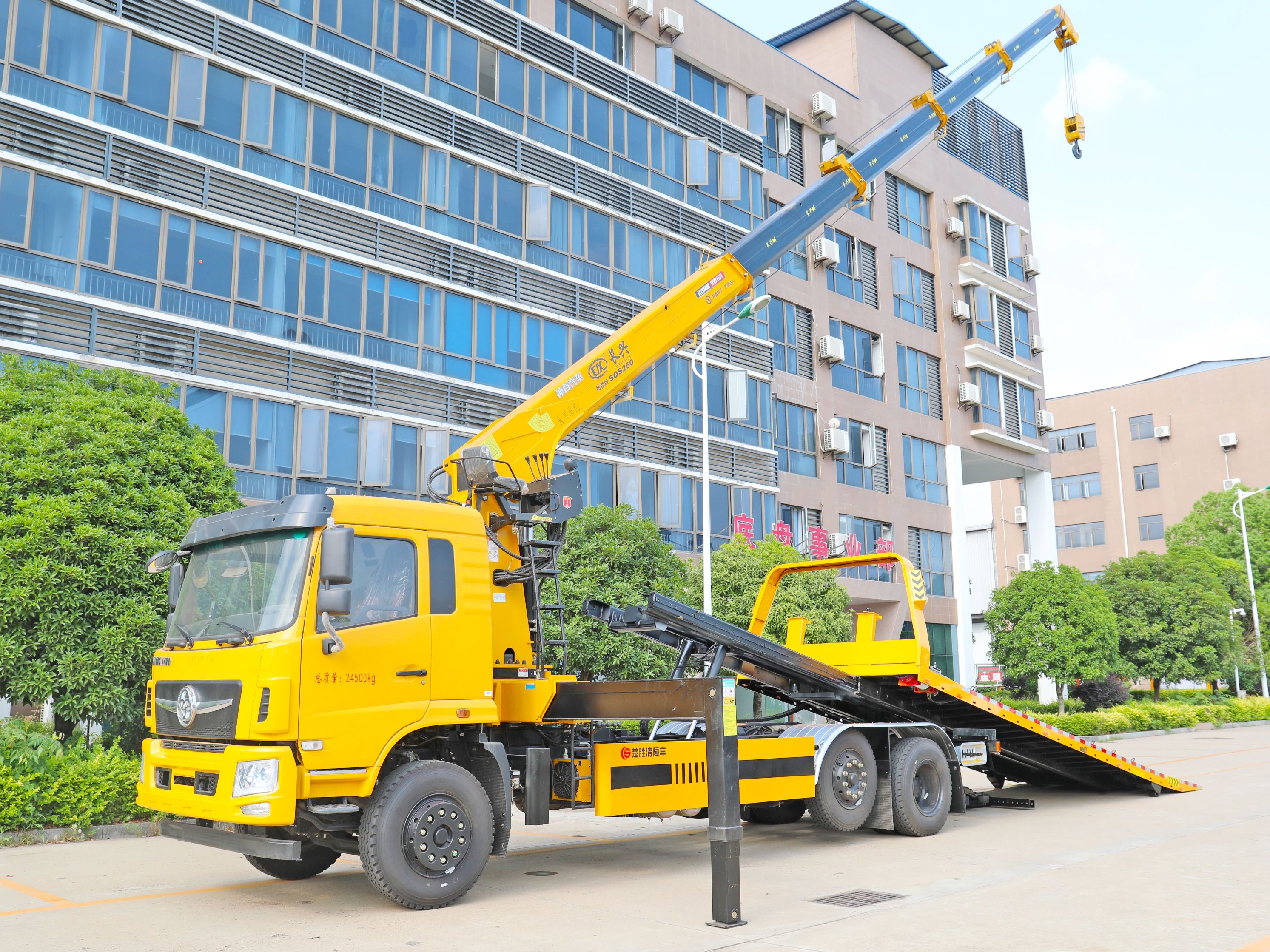

1. Adopting a 6mm thick patterned flat plate, with a main board length of 6.7 meters and a hydraulic flip at the tail end of 1.3 meters; The total length is 8 meters,
2. One 80KN winch (equipped with a 35 meter steel wire rope), one toolbox, two trolleys, one pair of L-shaped tire racks, four binding straps, two pairs of forks (one high and one low), one pair of fork seats, and one chain hook.
3. Naval battle power oil cylinder, Hefei hydraulic pump, Italian Ward hydraulic valve, original power take-off, center of gravity lowering, auxiliary air pipe assembly, rear support arm installed on the main beam, optional cross shaped bottom plate layout. 110 flat telescopic oil cylinder, lifting oil cylinder 90, rear support arm oil cylinder 110.
4. Changxing 10 ton 5-section crane is used. Other brands of cranes can be optionally installed
| Product Name |
Tri-Ring 6X2 wrecker truck with crane |
| Driving Type |
6×2 |
| Weight /Classification |
|
| Type |
wrecker recovery truck with crane |
| Rated payload weight(kg) |
8000 |
| Dimensions |
|
| Wheelbase(mm) |
5000+1250 |
| Overall Dimension(mm) |
10240,11240,9820,9490×2550×3760,3800,3840,3880(mm) |
| Engine |
|
| Engine brand & model |
Yuchai,YCS06245-60 |
| Displacement(L)/Power(kw) |
6.23L/180kw |
| Chassis |
|
| Axle Quantity |
2 |
| Transmission Type |
8 forward gears and 1 rear gear |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
10.00R20, 8 with a spare |
| Cab |
|
| Standard configuration |
Haolong 2200 semi high roof cab |
| Air conditioning |
Have |
| Performance parameter |
|
| Platform size |
6.7 meters long, 2.5 meters wide, 6mm thick patterned flat plate |
| Crane specification |
Changxing 10 ton 5-section crane (other brands of cranes can be selected) |
| Standard configuration |
Adopting a 6mm thick patterned flat plate, with a main board length of 6.7 meters and a hydraulic flip at the tail end of 1.3 meters; Total length of 8 meters, 1 80KN winch (with 35 meter steel wire rope), 1 toolbox, 2 small cars, 1 pair of L-shaped tire racks, 4 binding straps, 2 pairs of fork supports (one high and one low), 1 pair of fork supports, and 1 chain hook. Naval battle power oil cylinder, Hefei hydraulic pump, Italian Ward hydraulic valve, original power take-off, center of gravity lowering, auxiliary air pipe assembly, rear support arm installed on the main beam, optional cross shaped bottom plate layout. 110 flat telescopic oil cylinder, lifting oil cylinder 90, rear support arm oil cylinder 110, using Changxing 10 ton 5-section crane. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Tri-Ring 6X2 wrecker truck with crane
A tow truck (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to adrivablesurface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
