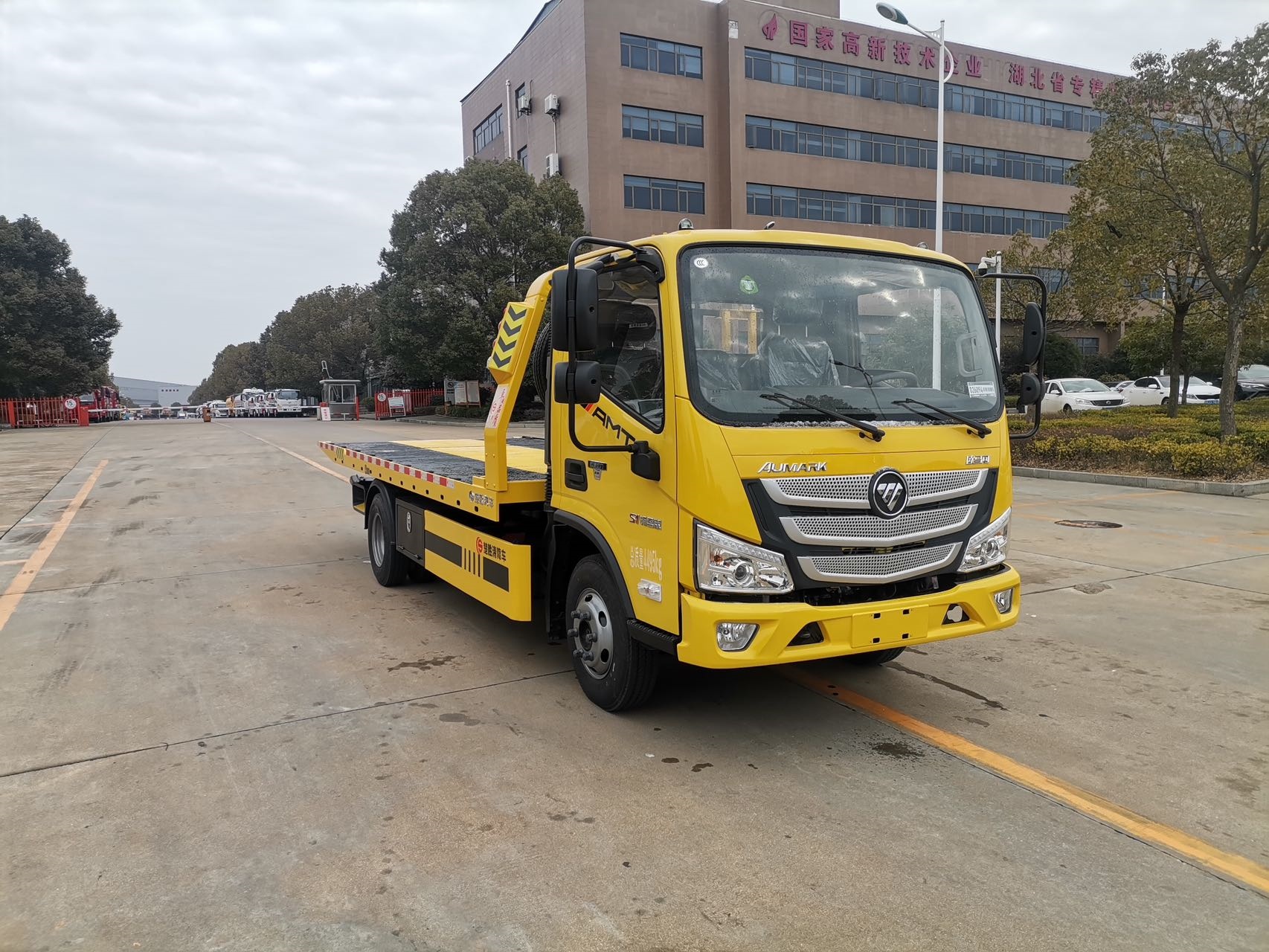

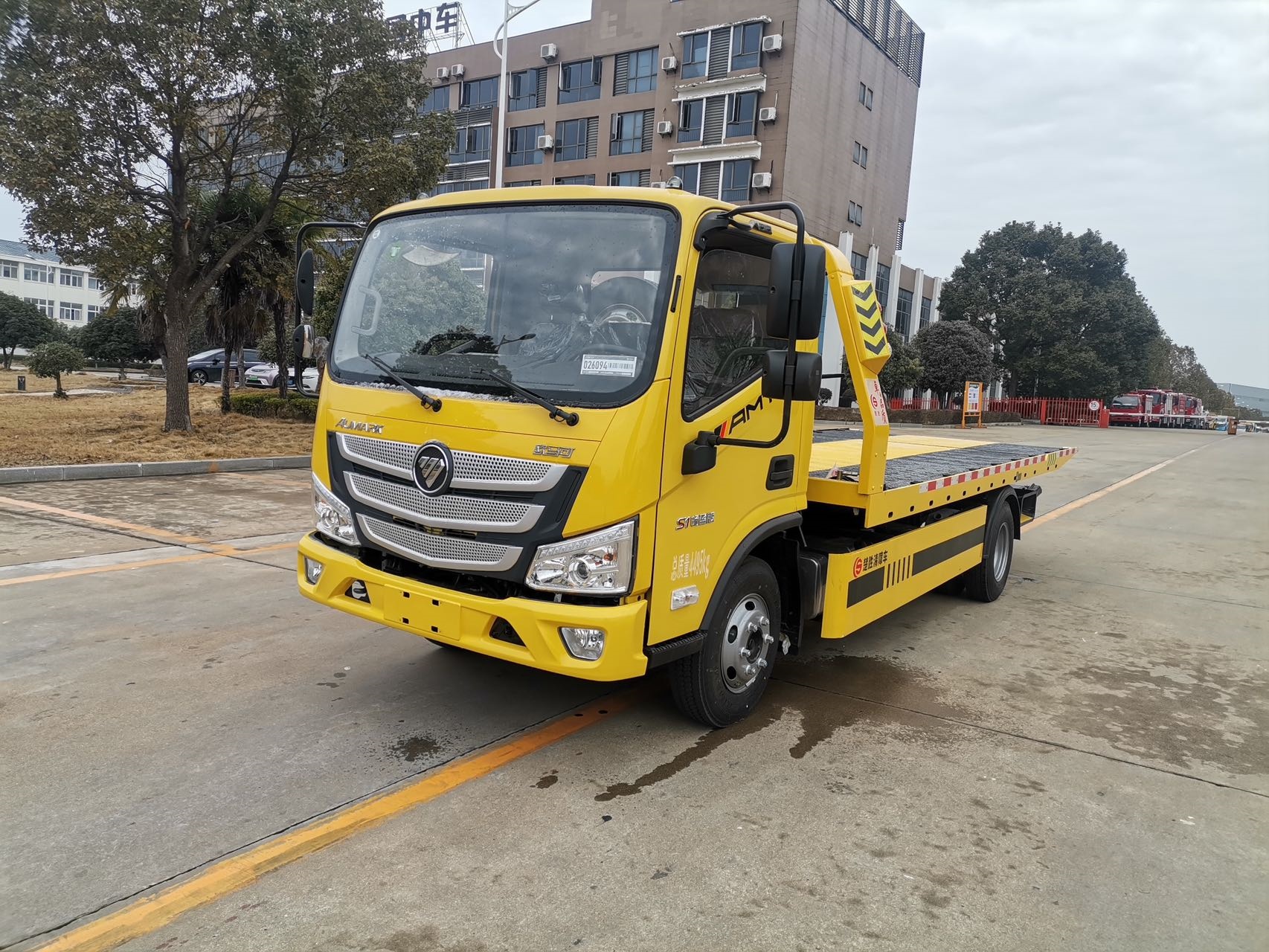

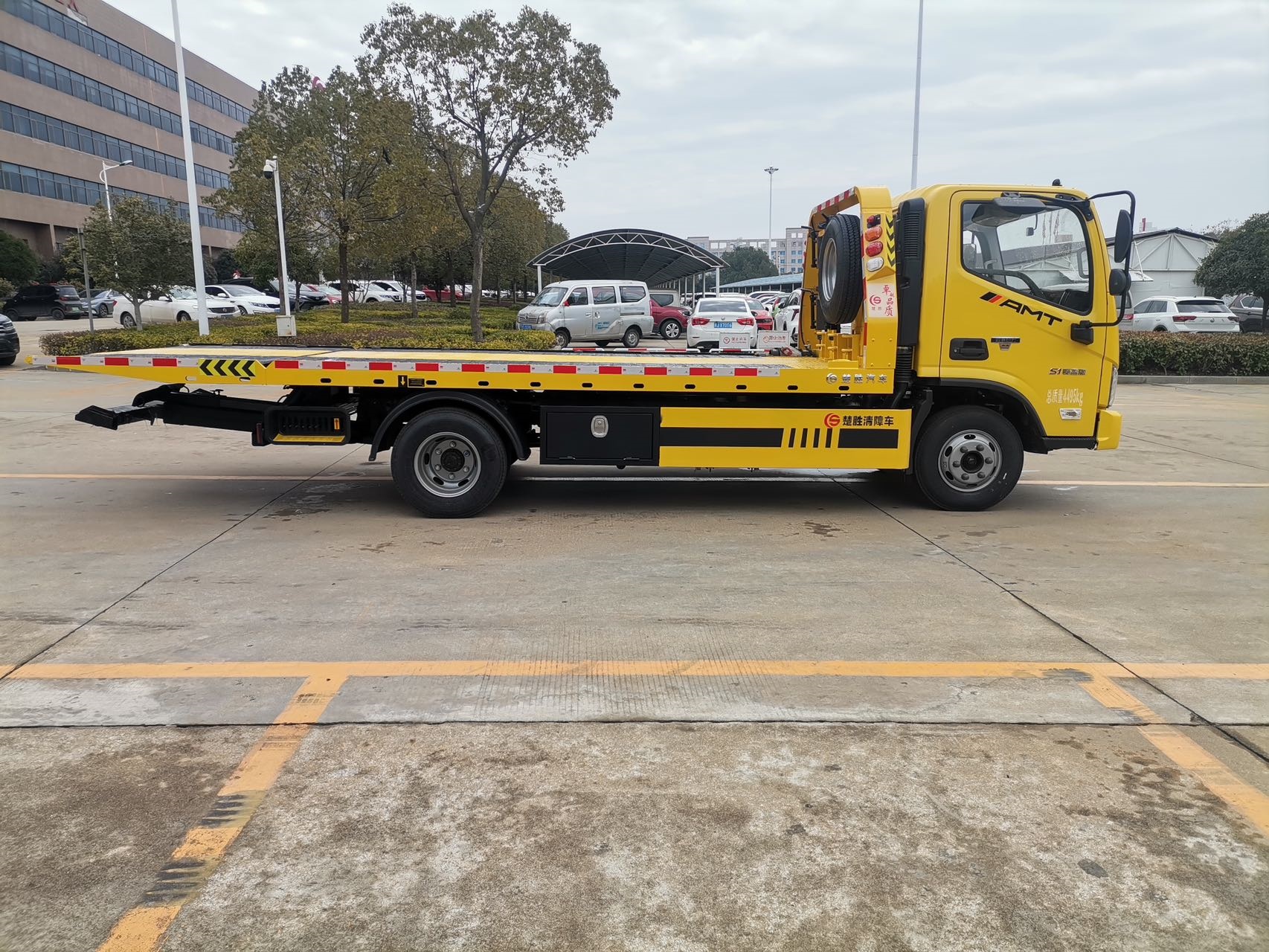

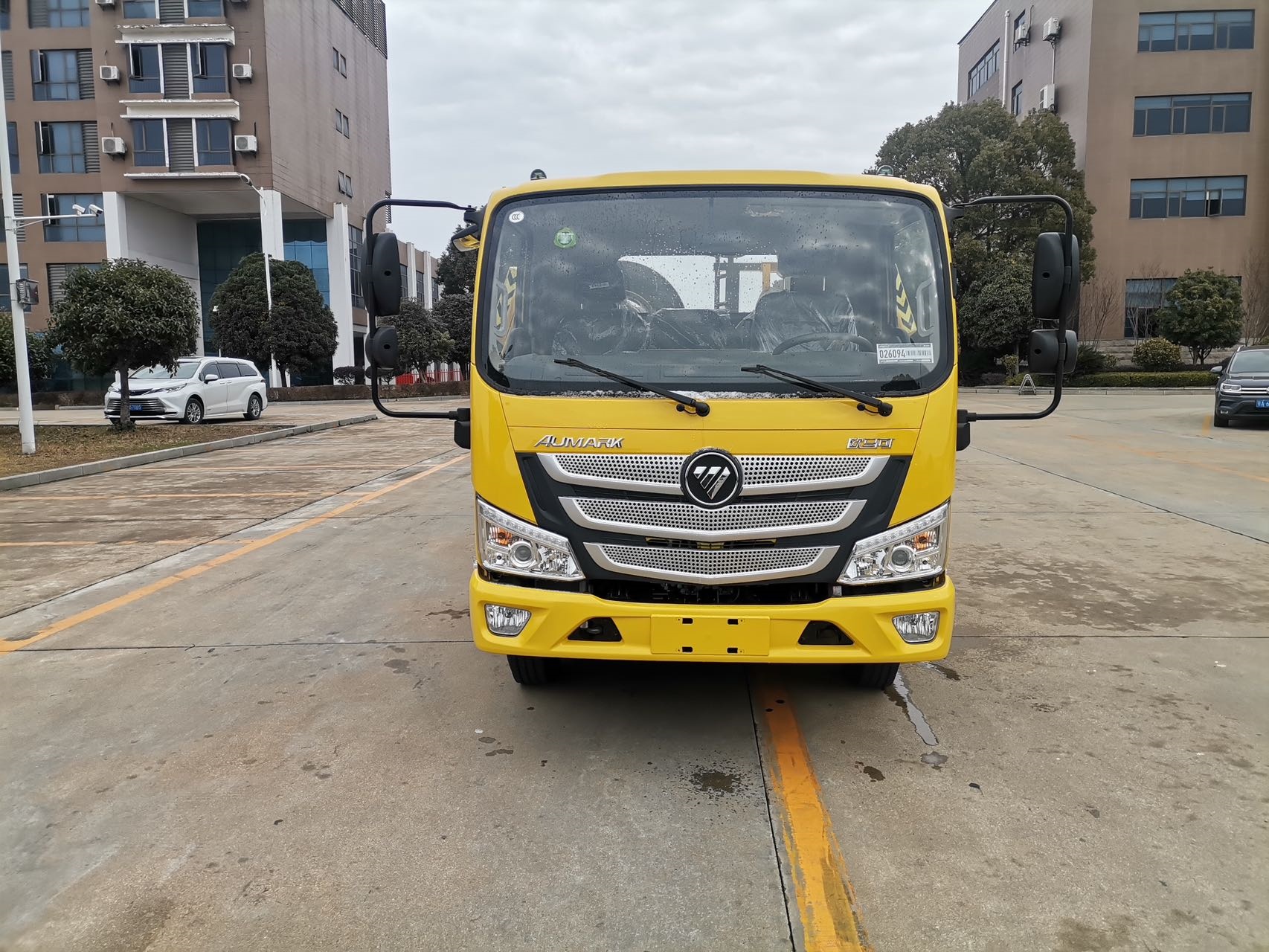

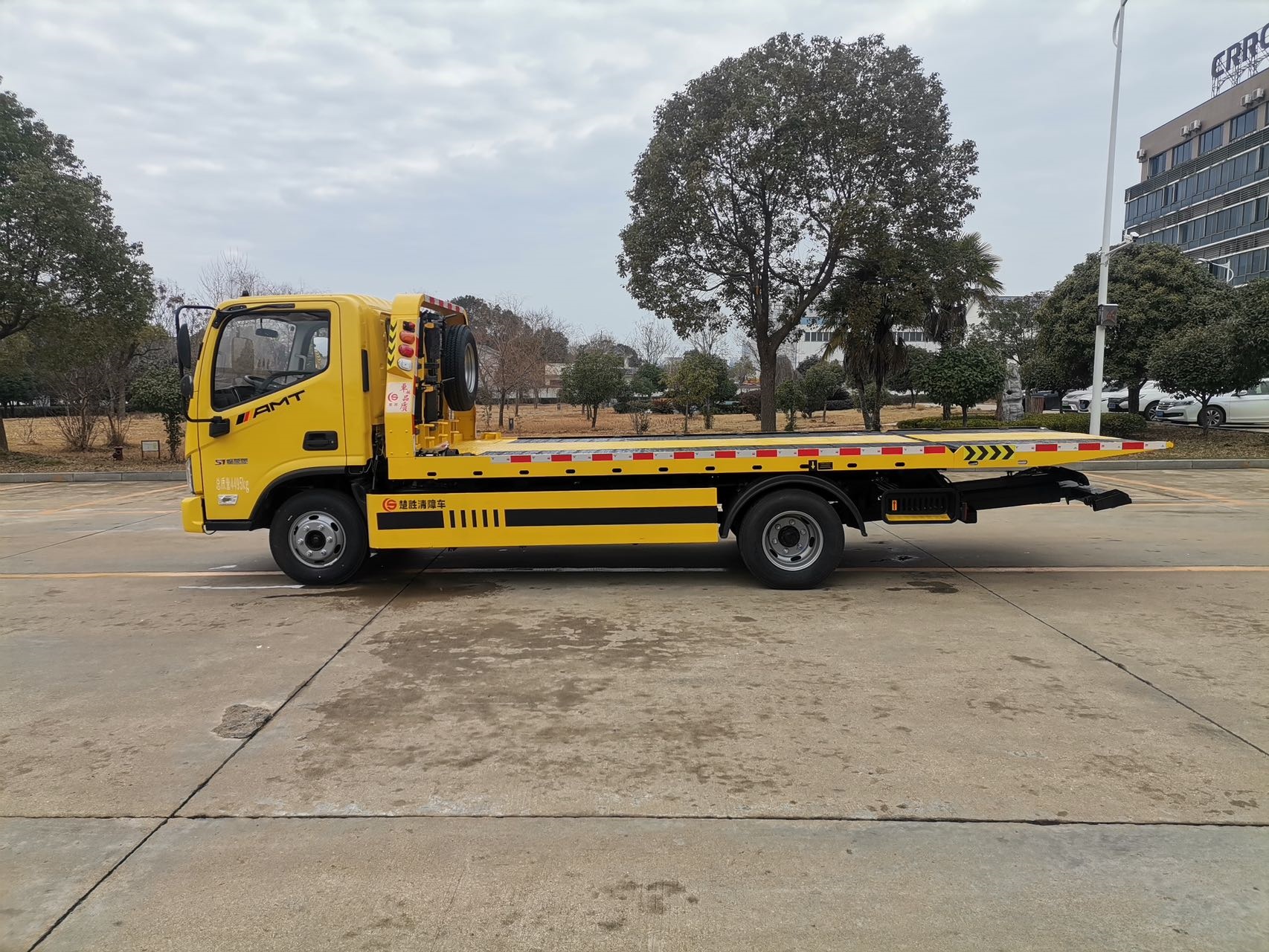

Foton Aumark 4x2 automatic transmission breakdown truck
Chassis configuration:
1. Engine: 4F25TC26
2.Transmission type: 6 forward gears and 1 reverse gear
3.Tyre: 7.00R16LT
4.Wheelbase: 3600mm

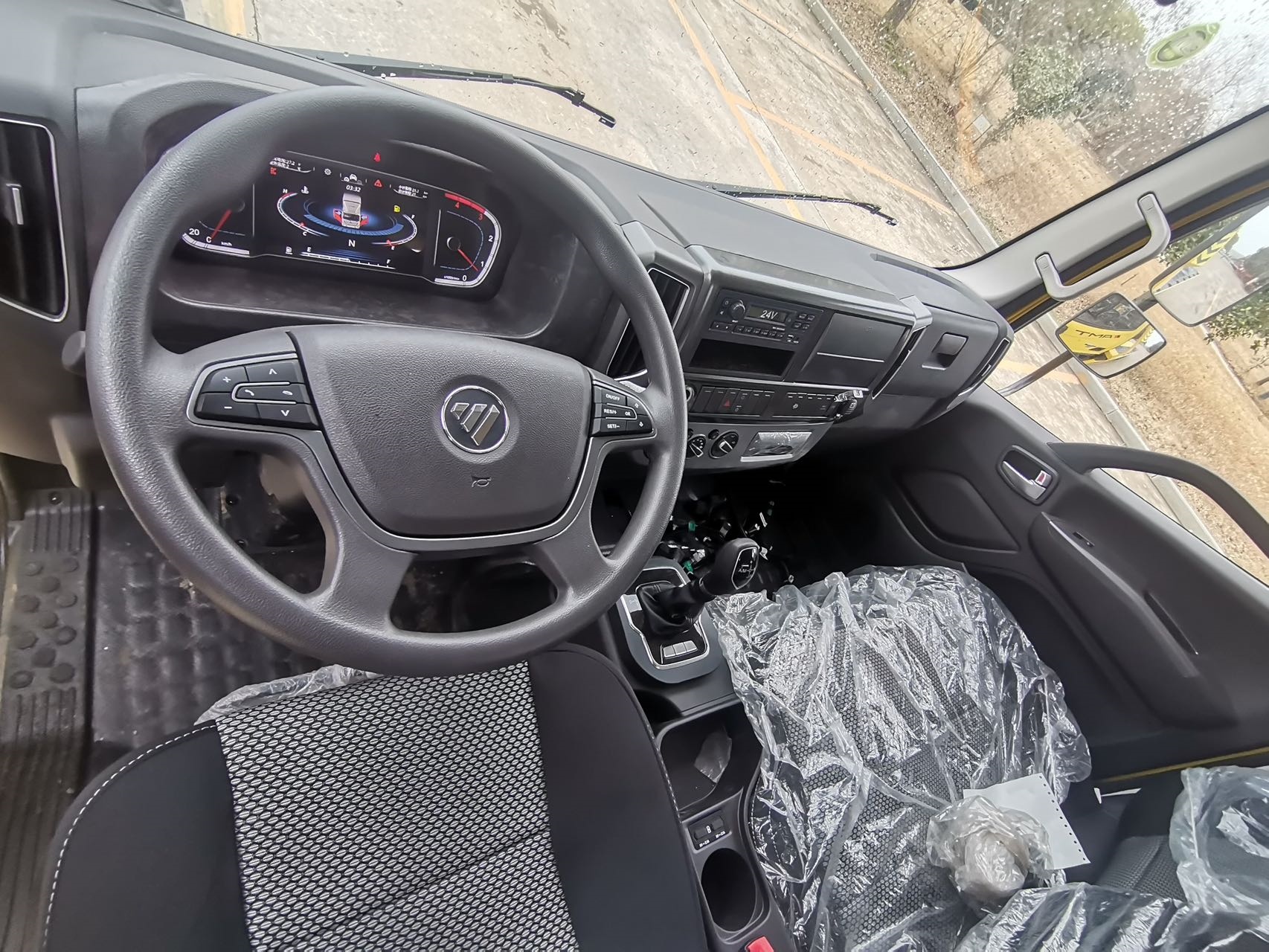

5 Other: Mechanical shock absorber seat, original LCD display screen
Installation configuration:
6-ton heavy-duty configuration
(1) The chassis adopts Foton Aumark, with a wheelbase of 3600mm.

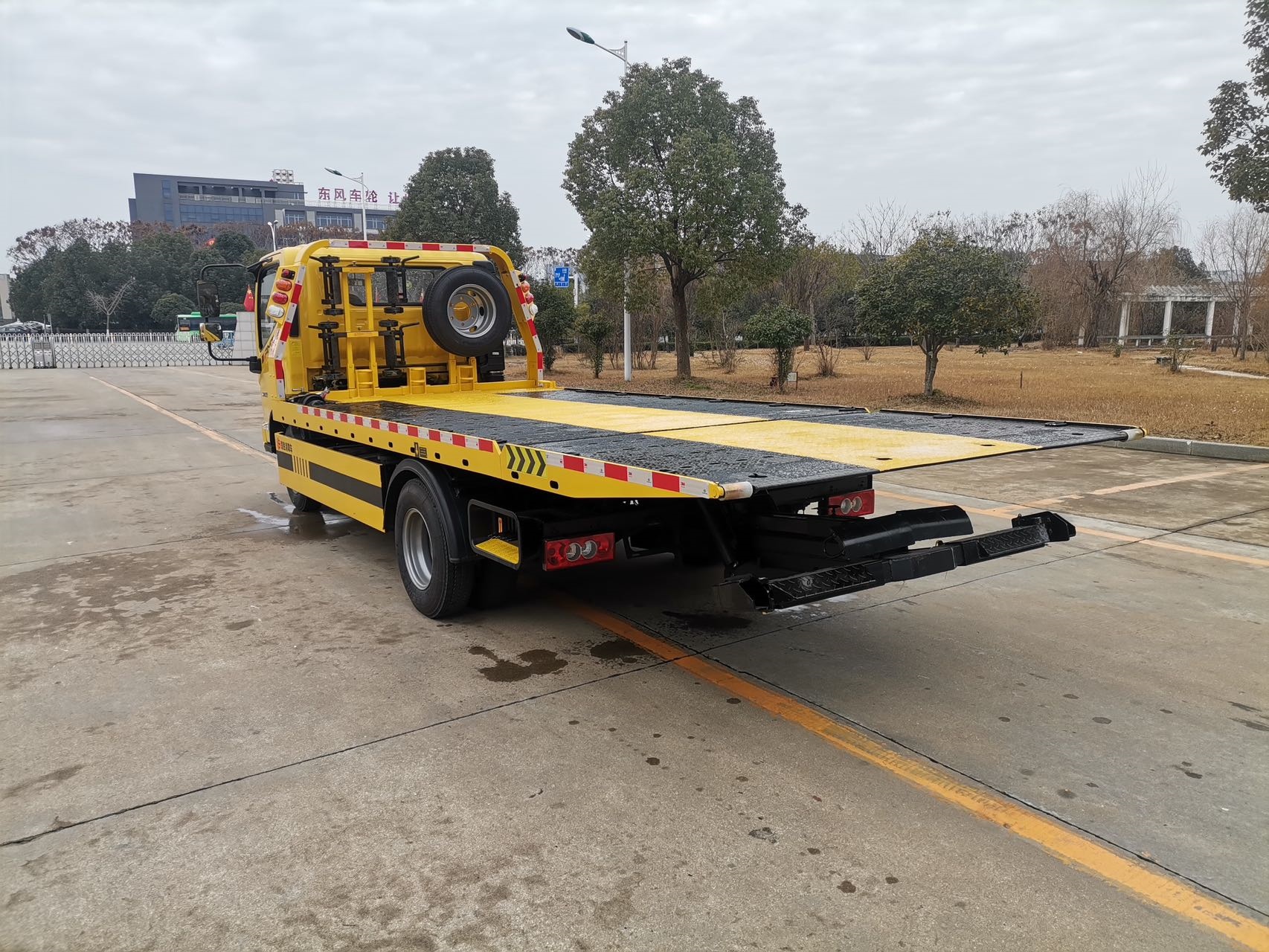

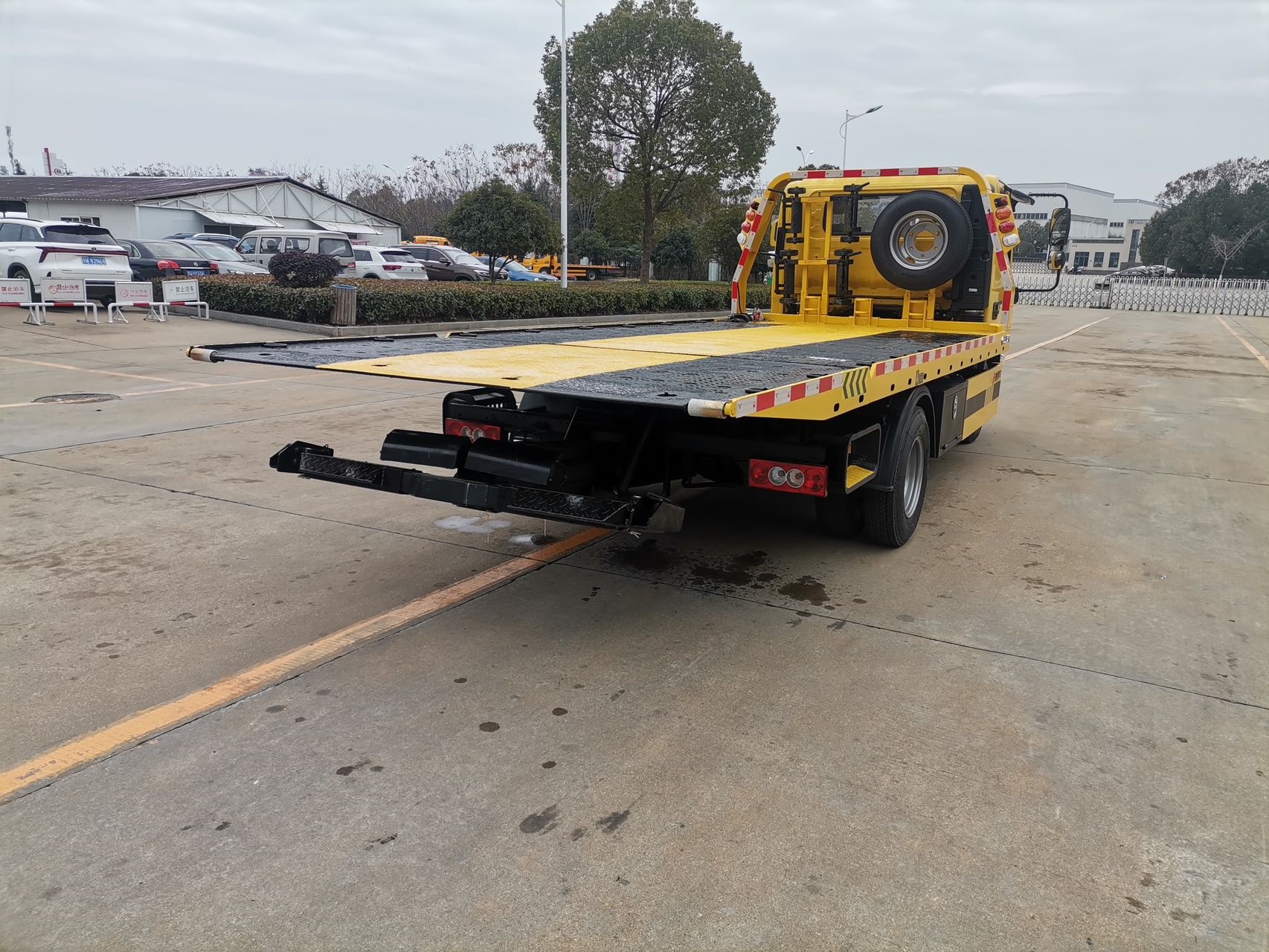

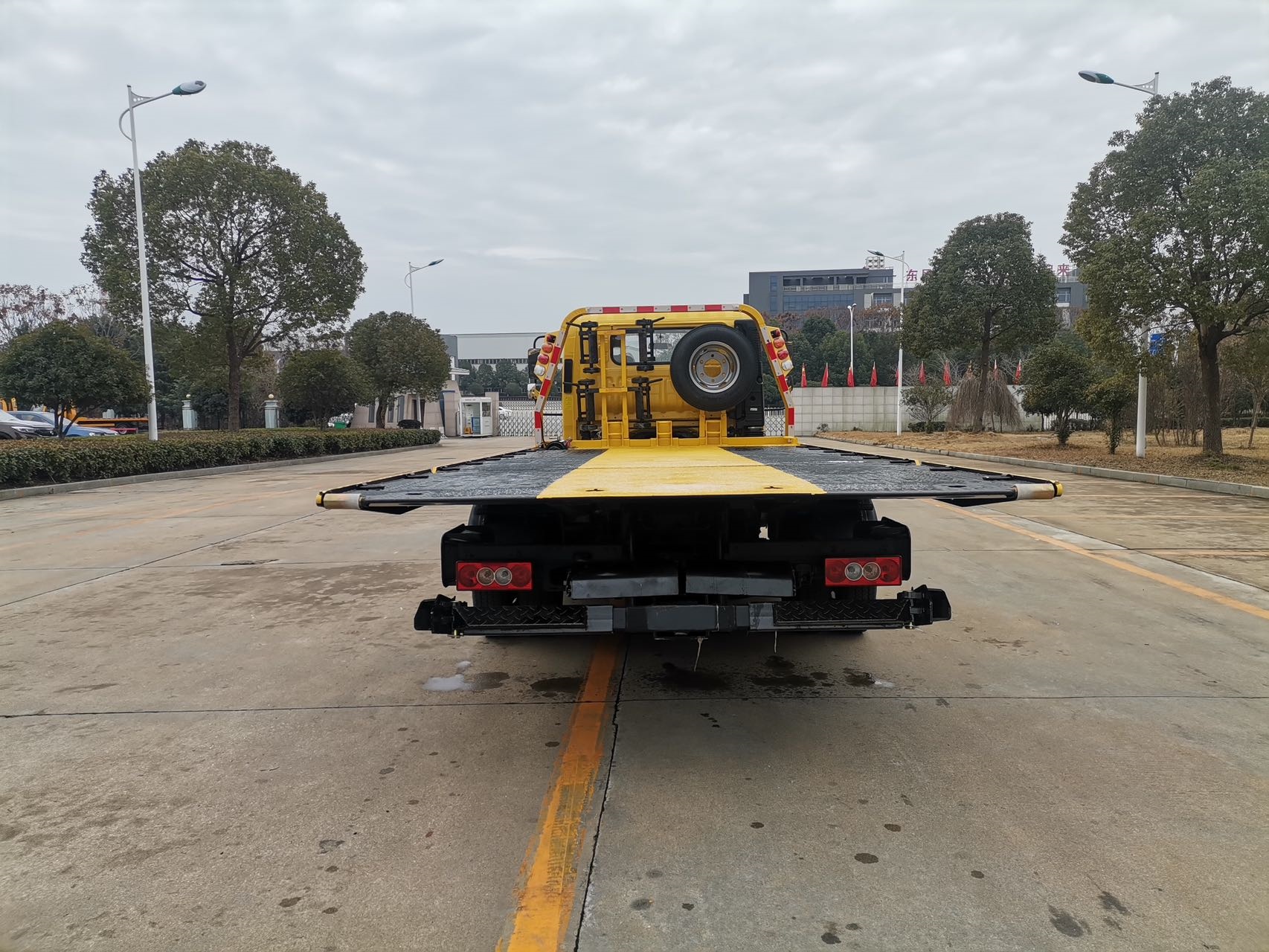

(2) Obstacle clearing vehicle: Integrated board with hydraulic flip, main board 4.1 meters, hydraulic flip 1.5 meters, through axis hinge, flat plate made of 5MM thick patterned plate, flat plate frame made of 16MM thick steel plate, crossbeam encrypted, triangle iron support encrypted, auxiliary beam made of 60 * 120 * 5 square tube double splicing, slide rail 8mm thick, one four ton planetary winch.
(3) Use Suizhou oil cylinder and domestically produced valve. The flat telescopic oil cylinder adopts an inner diameter of 90, and the flat lifting oil cylinder adopts an inner diameter of 80. (4) The inner wall of the trailing arm is 8mm thick.
(5) One trailer two type, 2 rear work lights, 1 toolbox, 1 wash basin, 4 binding straps, with rear support arm, 1 pair of L-shaped tire racks, equipped with 2 small cars, 1 chain hook, and the rest are standard.
| Product Name |
Foton Aumark 4x2 automatic transmission breakdown truck |
| Driving Type |
4×2 |
| Weight /Classification |
|
| Type |
one pull two wrecker truck |
| Rated payload weight(kg) |
1500 |
| Dimensions |
|
| Wheelbase(mm) |
3600 |
| Overall Dimension(mm) |
5995×2300,2500,2525,2450,2400×2220,2290,2550,2520,2480 |
| Engine |
|
| Engine brand & model |
4F25TC26 |
| Displacement(L)/Power(kw) |
2.49L/132kw |
| Chassis |
|
| Axle Quantity |
2 |
| Transmission Type |
6 forward gears and 1 rear gear, automatic transmission |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
7.00R16LT, 6 with a spare |
| Cab |
Aumark cab |
| Standard configuration |

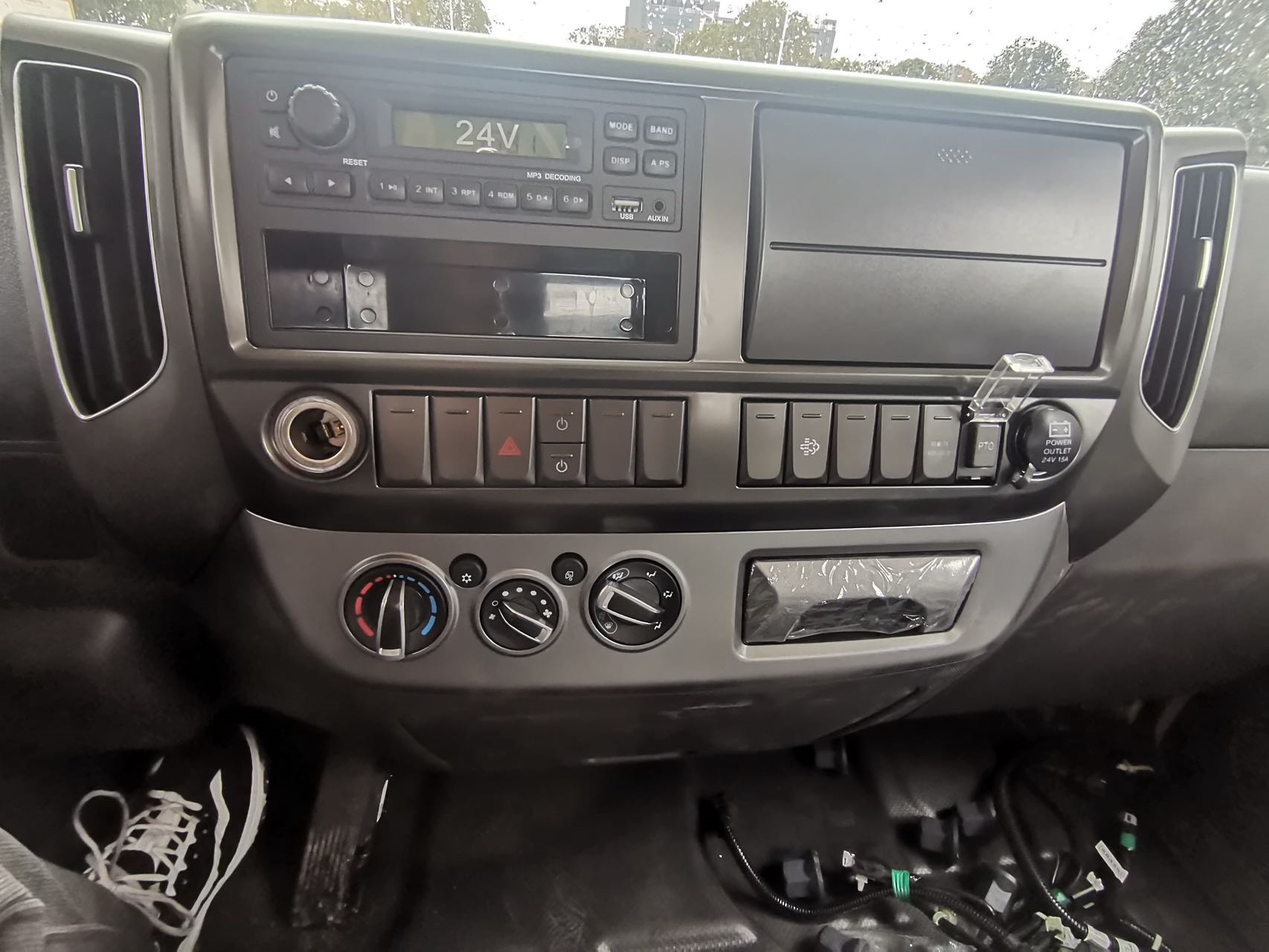

Mechanical shock absorber seat, original LCD display screen, |
| Air conditioning |
Have |
| Performance parameter |
|
| Platform size |
flat plate frame made of 16MM thick steel plate, crossbeam encrypted, triangle iron support encrypted, auxiliary beam made of 60 * 120 * 5 square tube double splicing, slide rail 8mm thick, |
| Crane specification |
/ |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Foton Aumark 4x2 automatic transmission breakdown truck
A tow truck (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
