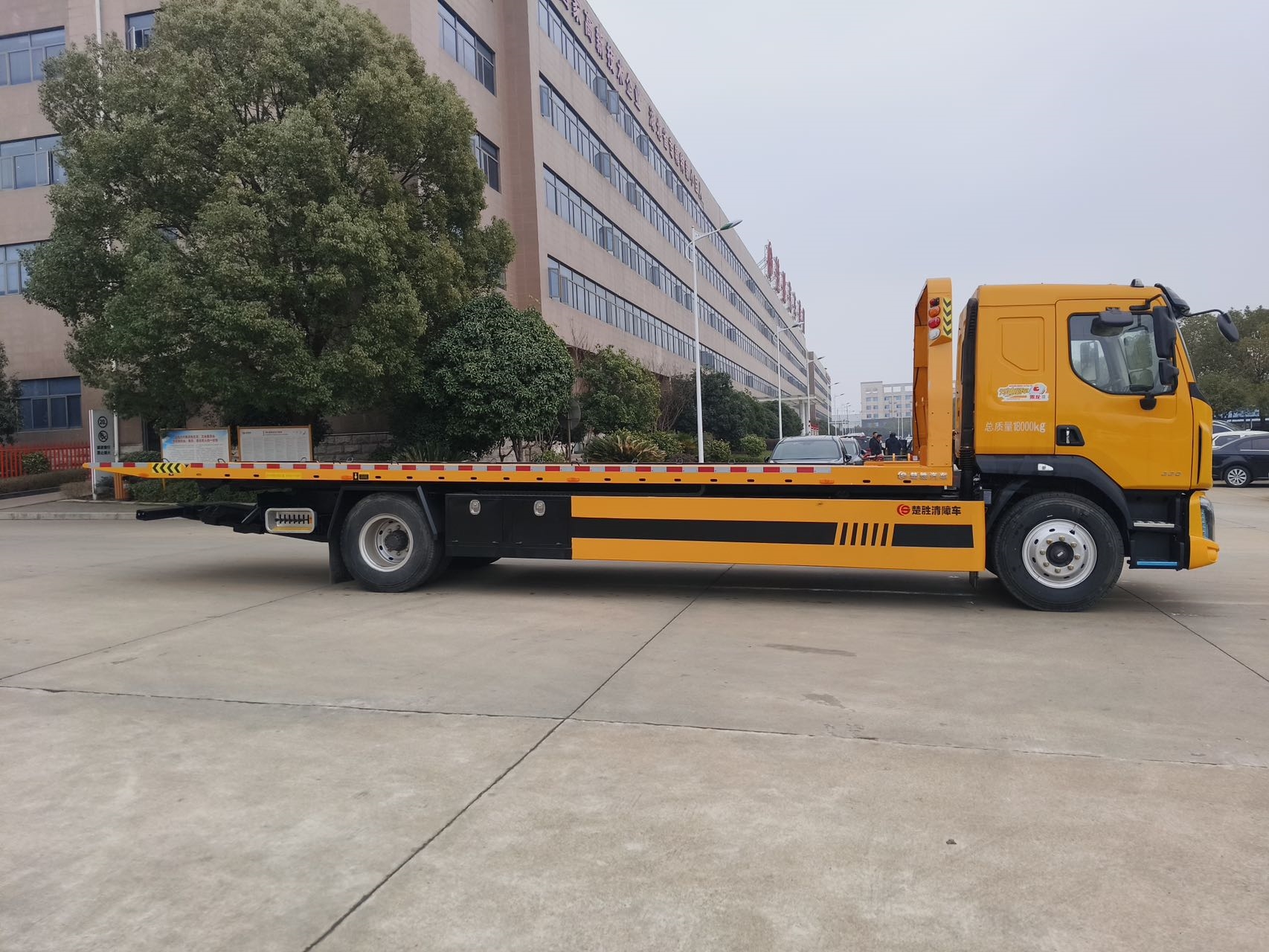

Liuqi 4x2 road-block removal truck
2024-10-07 09:54:11 Source：chusheng
Liuqi 4x2 road-block removal truck
Chassis configuration:
1. Engine: Yuchai,YCS04220-61A

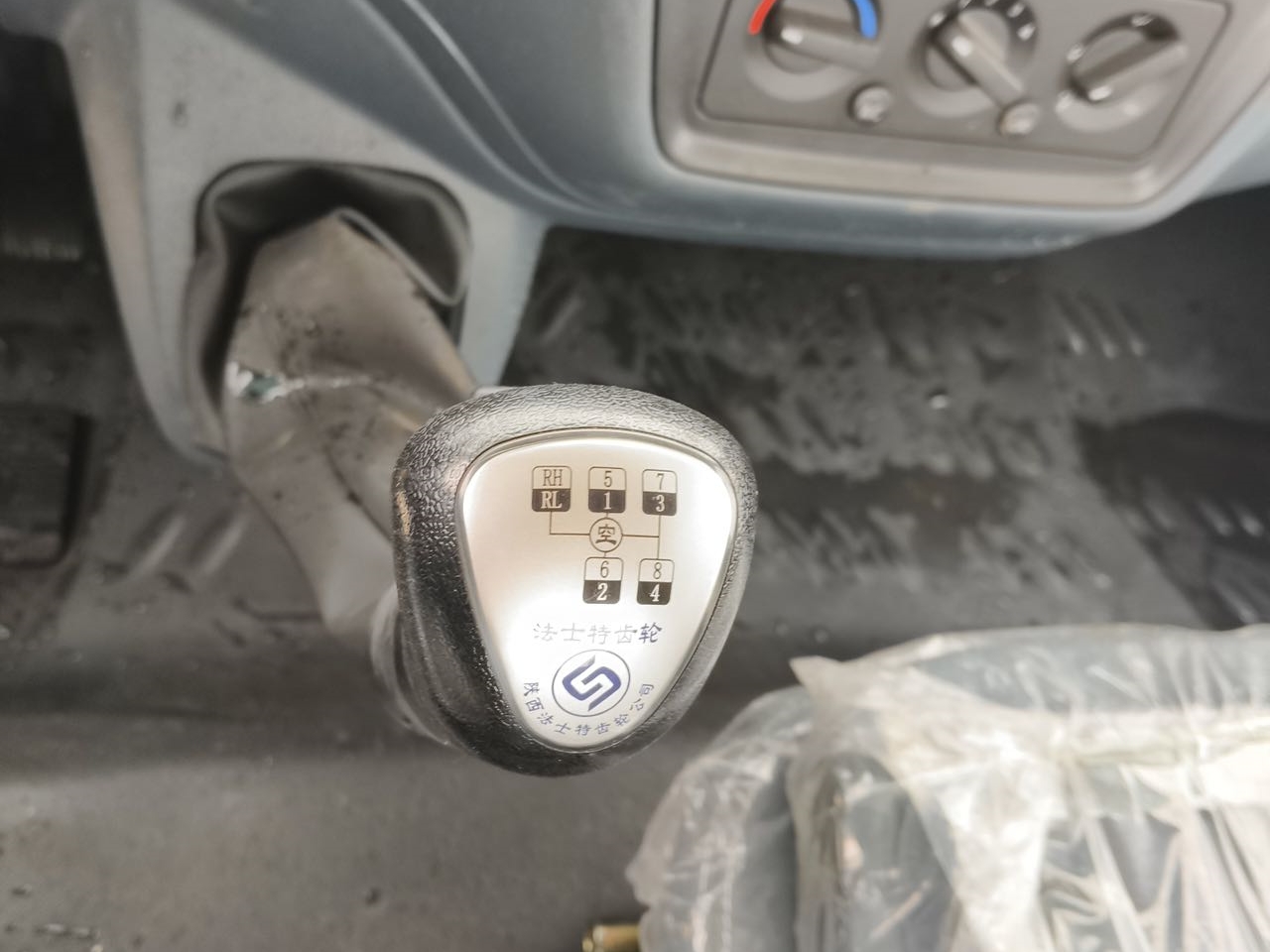

2.Transmission type: 8 forward gears and 1 reverse gear
3.Tyre: 10.00R20-/18PR, 6 with a spare
4.Wheelbase:6300mm
5 Other: Semi floating cab suspension, hydraulic mechanical flip, laminated glass, electric glass lifter, airbag shock absorber driver's seat, silicone oil fan, LCD instrument panel, MP3+radio, air conditioning, cruise control, ABS, in car terminal (driving recorder+compatible with Beidou GPS), remote control center lock, self-adjusting arm, right turn prompt sound, Chenglong V+car networking 3.0 system, speed limit of 89Km/h, car lock treasure
Installation configuration:

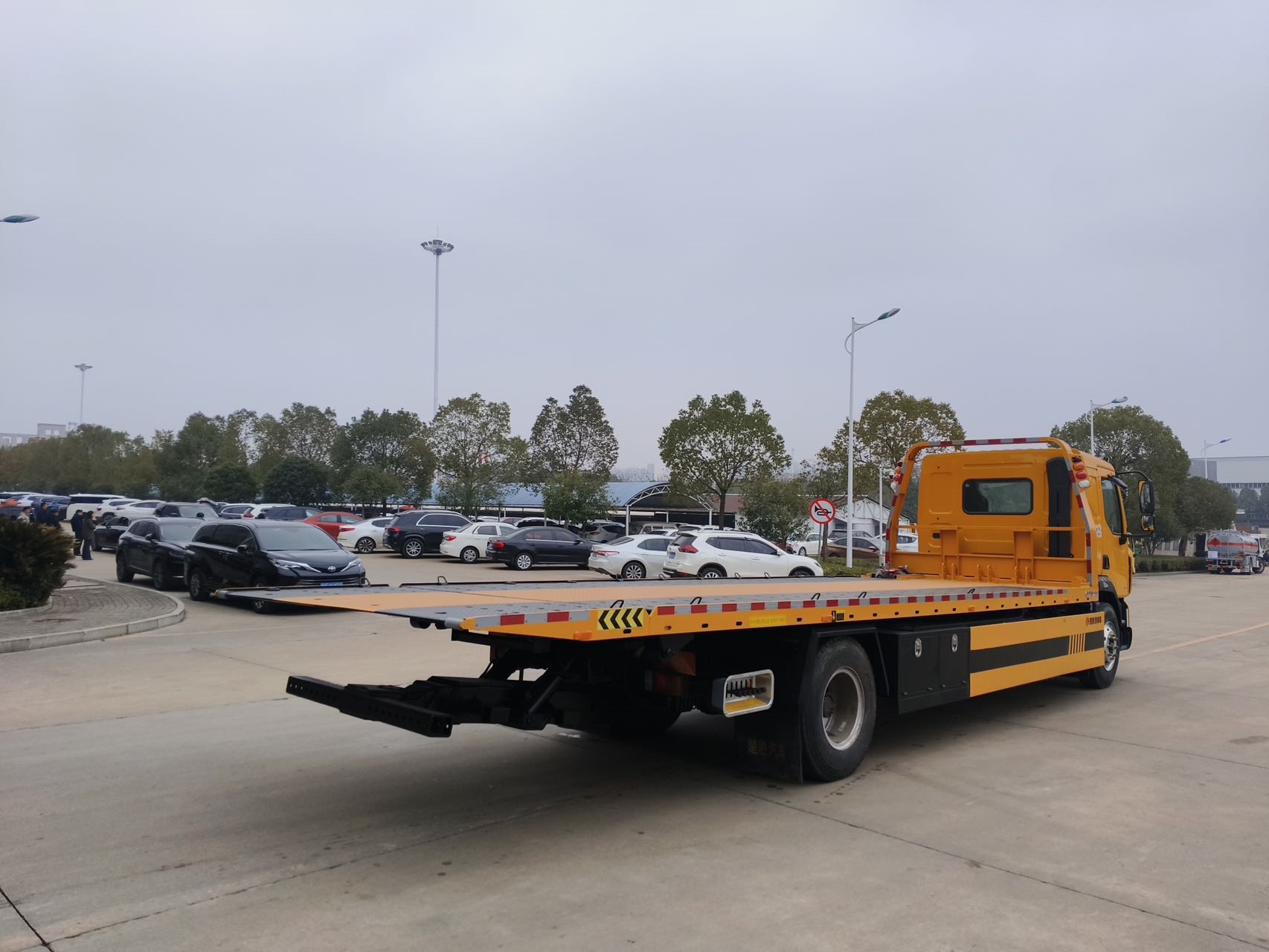

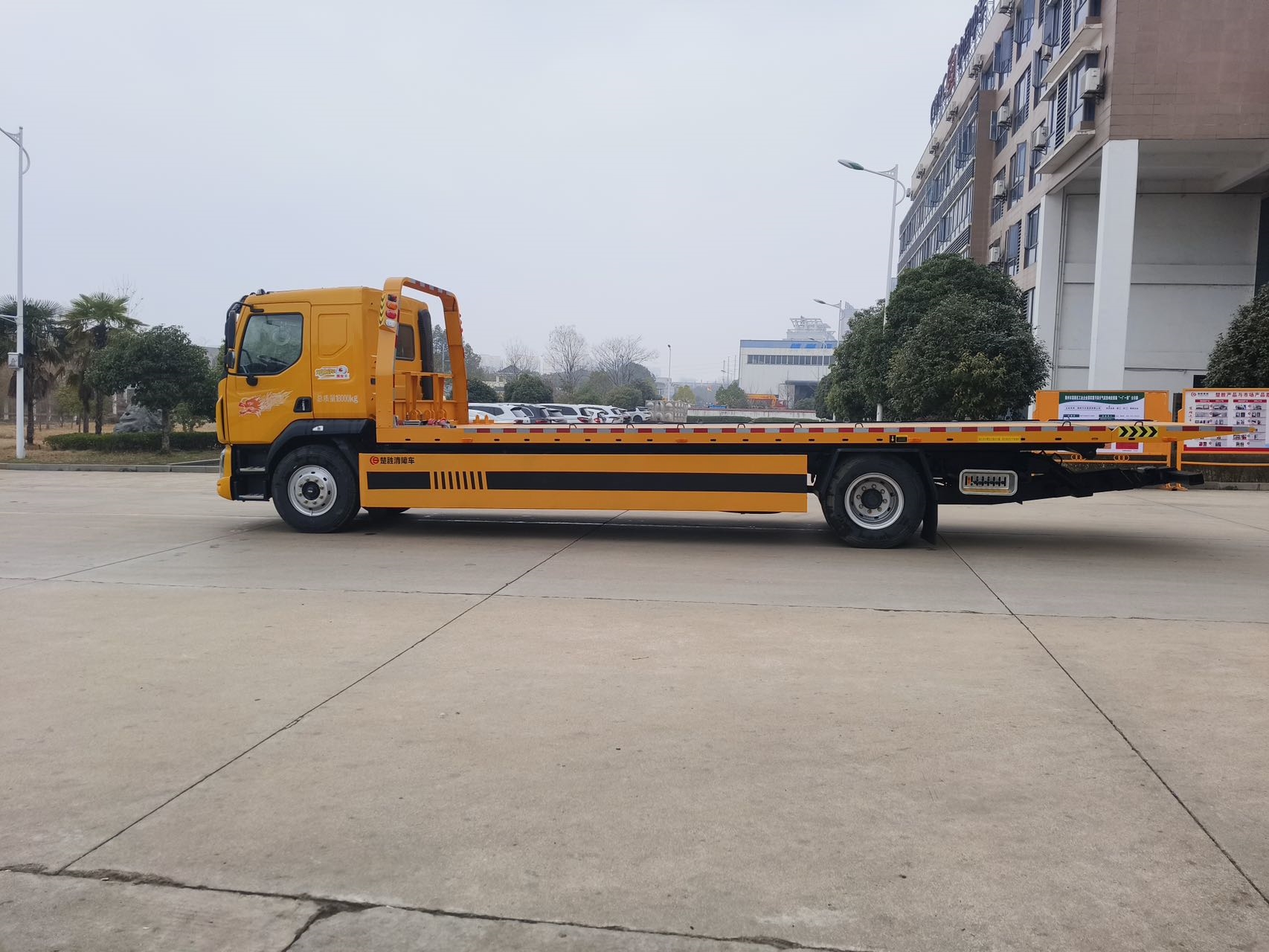

1. 10P12 patterned flat plate (6mm), the rear of the main board can be hydraulically flipped; The board length is 7.6 meters for the main board, 1.3 meters for the hydraulic flip board, with steel plates attached to the frame and a cross shaped chassis layout,

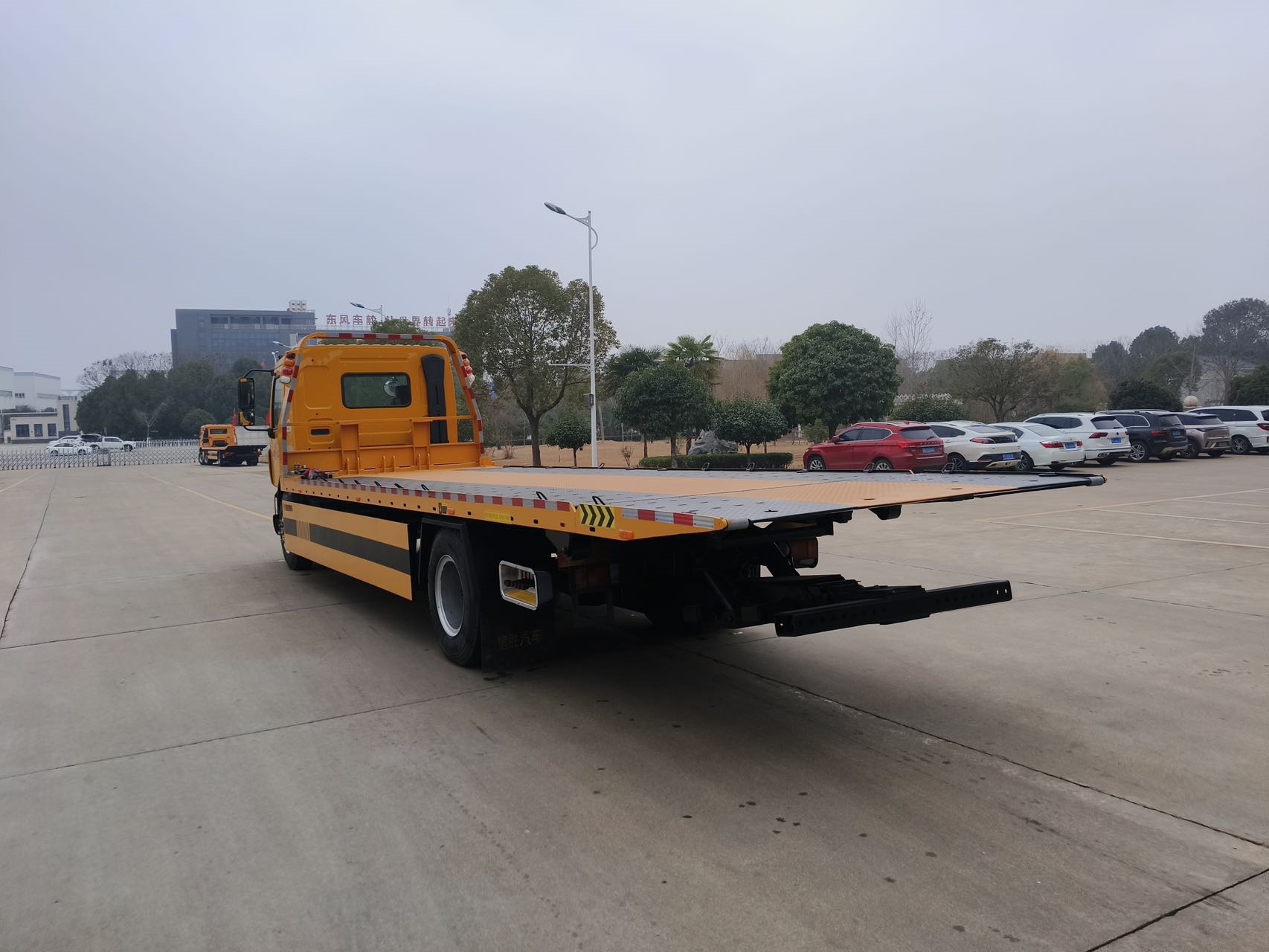

2. One 80KN winch (equipped with a 45 meter steel wire rope), a 12 ton 3-section rear support arm hanging beam, double-sided linkage operation device, one toolbox, equipped with two small cars, one pair of L-shaped tire racks, four binding straps, two pairs of fork supports, one pair of fork seats, and one chain hook.,
3. Naval battle power oil cylinder, Hefei Wanye hydraulic pump, Italian Ward hydraulic valve, original/Suizhou power take-off, center of gravity lowering, auxiliary air pipe assembly, rear support arm mounted on the main beam,
4. Optional cross shaped bottom plate layout. Add square pipes under the board for reinforcement.
| Product Name |
Liuqi 4x2 road-block removal truck |
| Driving Type |
4×2 |
| Weight /Classification |
|
| Type |
wrecker recovery truck |
| Rated payload weight(kg) |
17000 |
| Dimensions |
|
| Wheelbase(mm) |
6300 |
| Overall Dimension(mm) |
12045,11945,11145,11245×2550,2500×2950,3250,3300 |
| Engine |
|
| Engine brand & model |
Yuchai,YCS04220-61A |
| Displacement(L)/Power(kw) |
4.29L/162kw |
| Chassis |
|
| Axle Quantity |
2 |
| Transmission Type |
8 forward gears and 1 rear gear |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
10.00R20-/18PR, 6 with a spare |
| Cab |
M31B cab |
| Standard configuration |

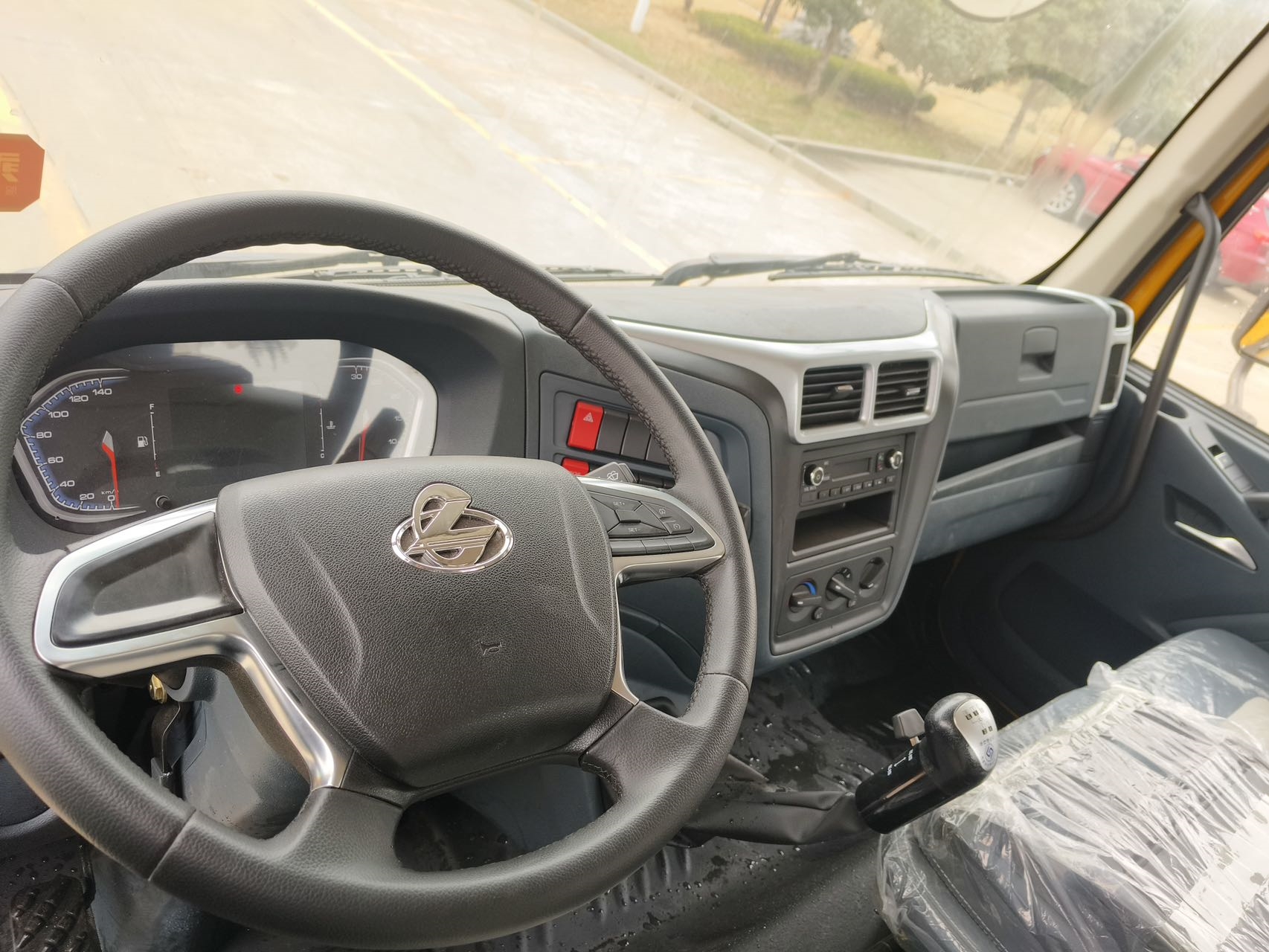

Hydraulic mechanical flip, laminated glass, electric glass lifter, airbag shock absorber driver's seat, silicone oil fan, LCD instrument panel, MP3+radio, air conditioning, cruise control, ABS, in car terminal (driving recorder+compatible with Beidou GPS), remote control central locking, self-adjusting arm, right turn prompt sound |
| Air conditioning |
Have |
| Performance parameter |
|
| Platform size |
The board length is 7.6 meters for the main board, and it is a 6mm thick patterned flat plate |
| Crane specification |
/ |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Liuqi 4x2 road-block removal truck
A tow truck (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
Product parameters
