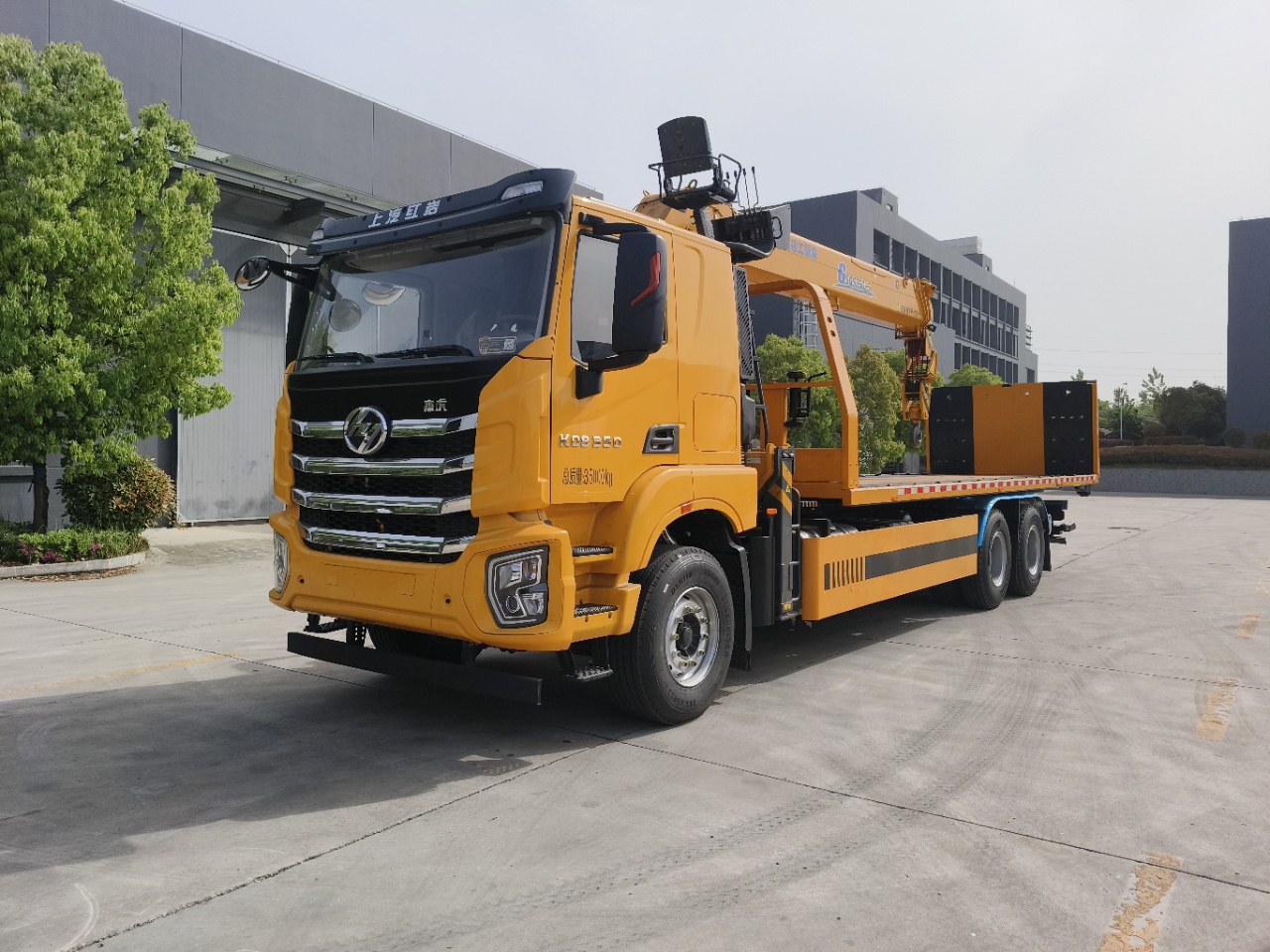

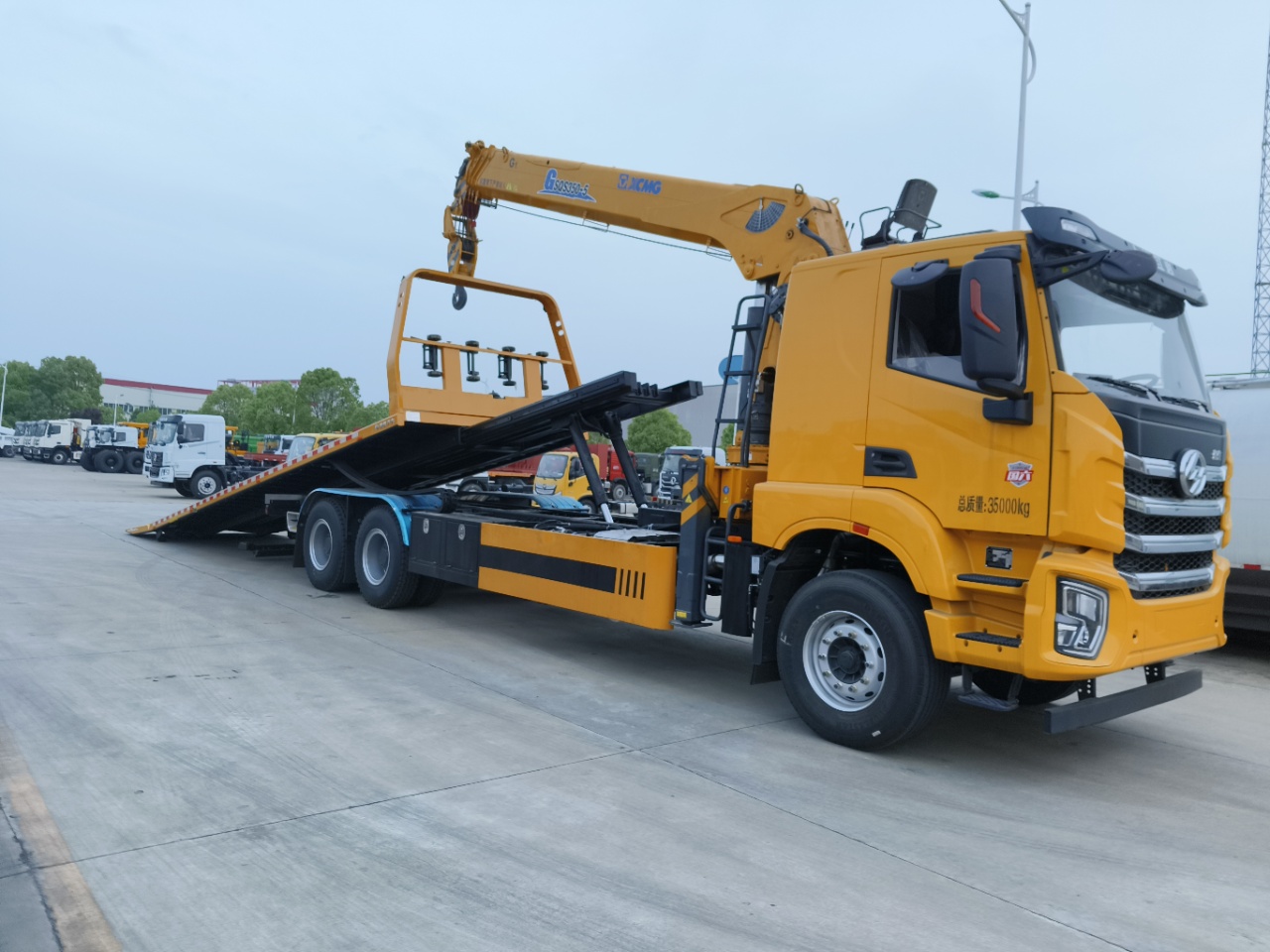

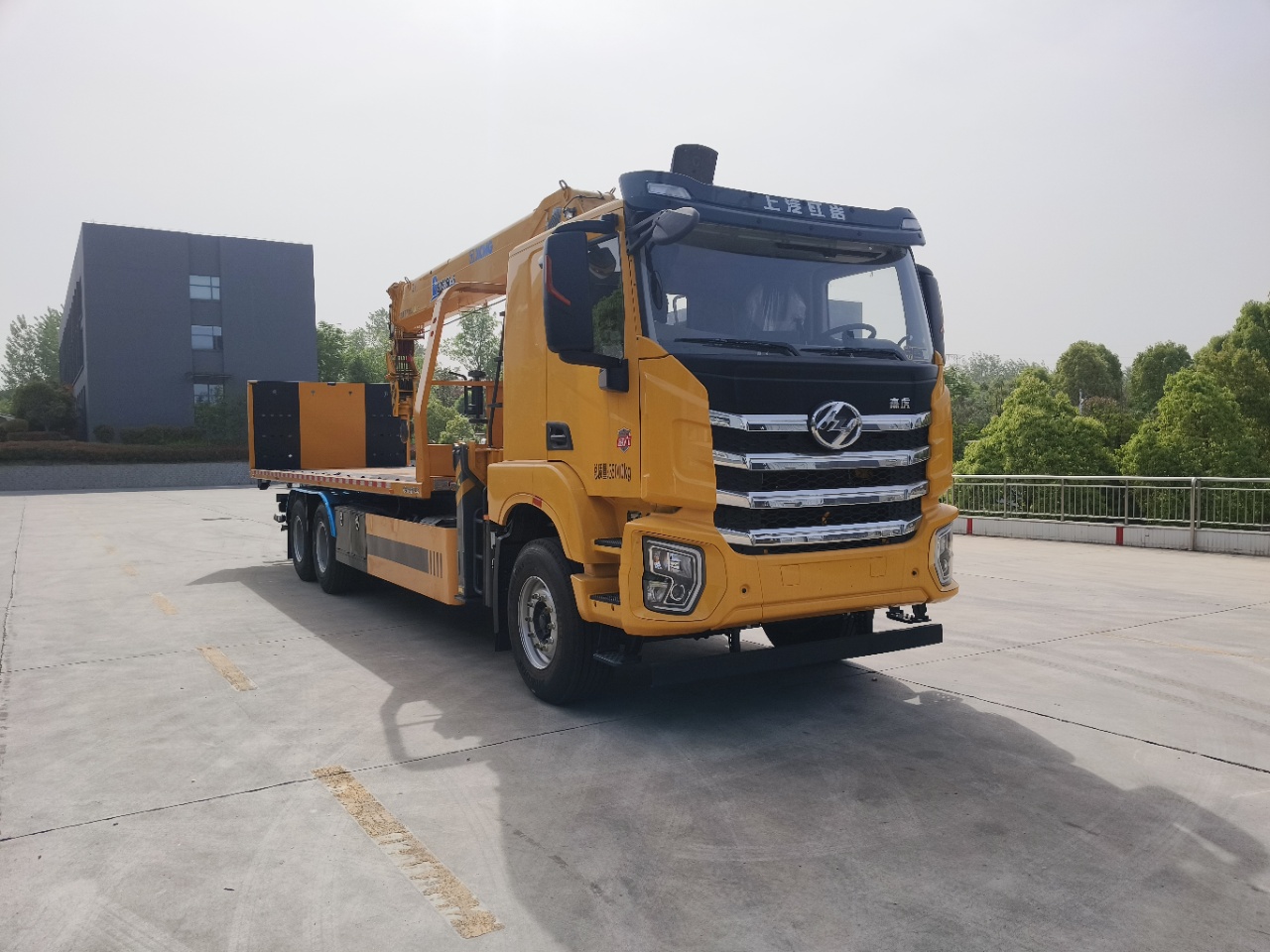

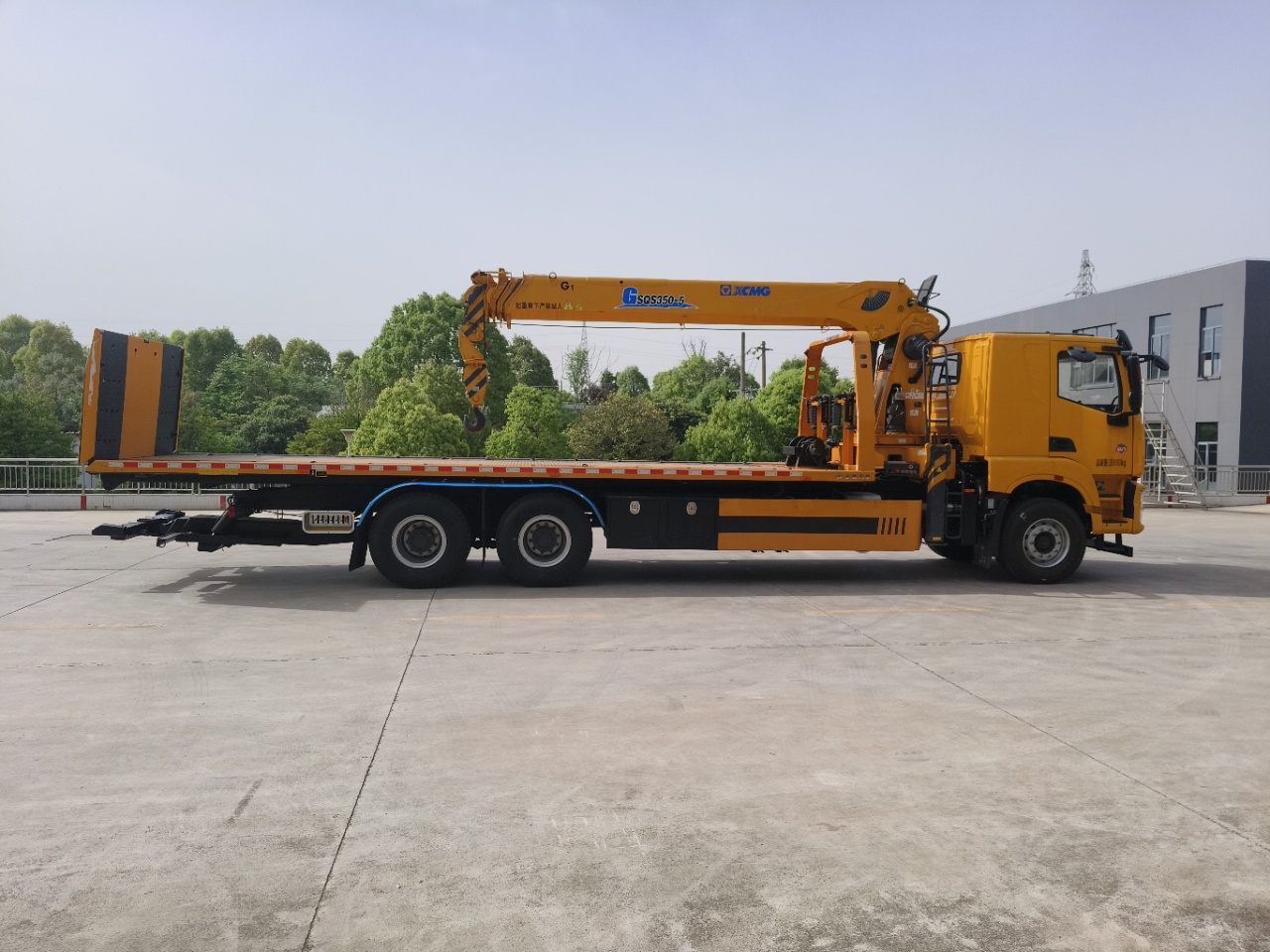

Saic Hongyan 6X4 one tow two wrecker truck with crane
2024-10-07 09:54:11 Source：chusheng
Saic Hongyan Genpaw one tow two wrecker truck with crane
Chassis configuration:
1. Engine: YCK08-350-60,Yuchai 350ph
2.Transmission type: 12-speed with original power take-off
3.Tyre: Front tire 385/65R22.5, rear tire 12.00R20 18PR
4.Wheelbase: 4800+1400,4600+1400,4400+1400,6000+1400mm

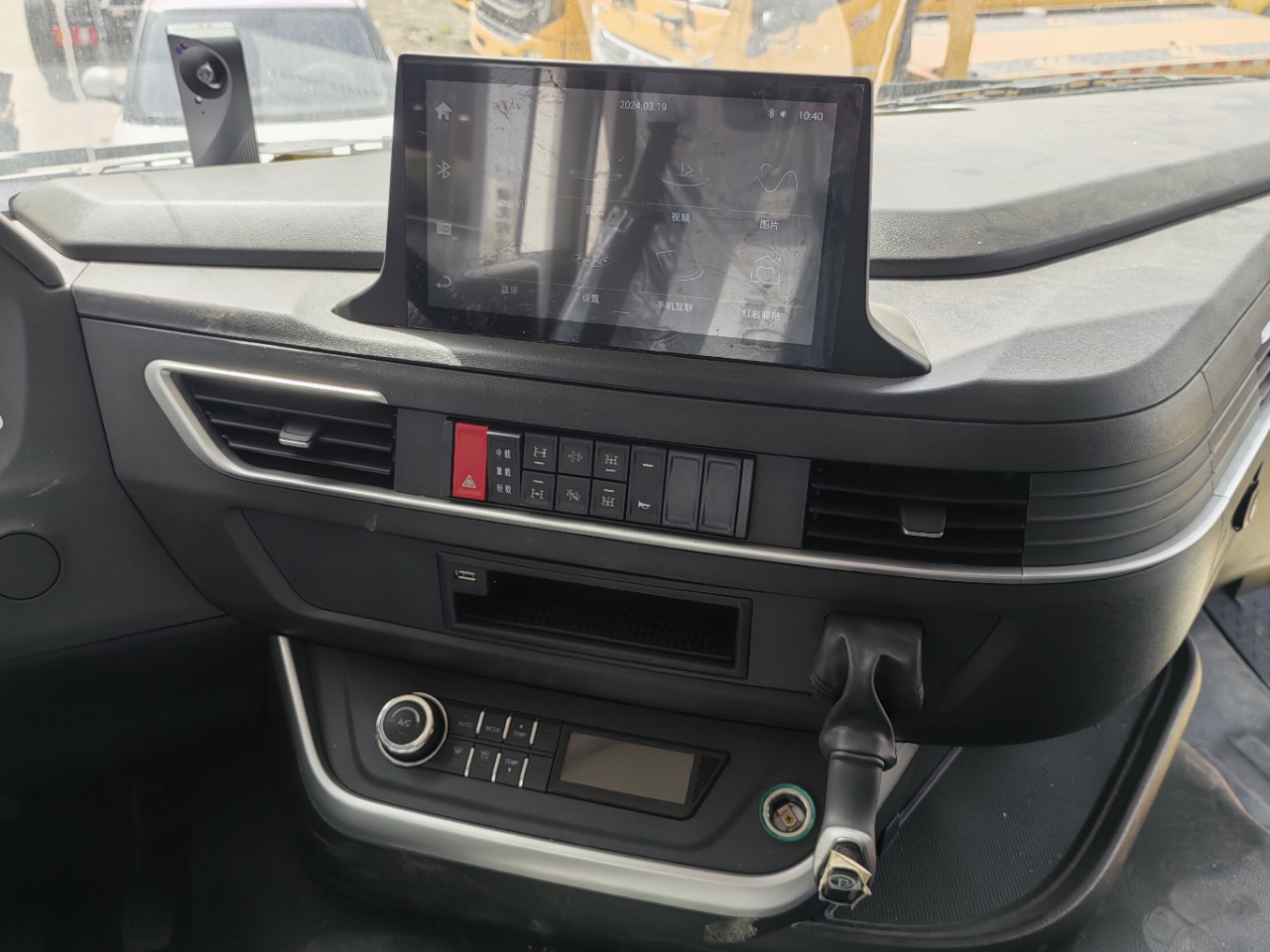

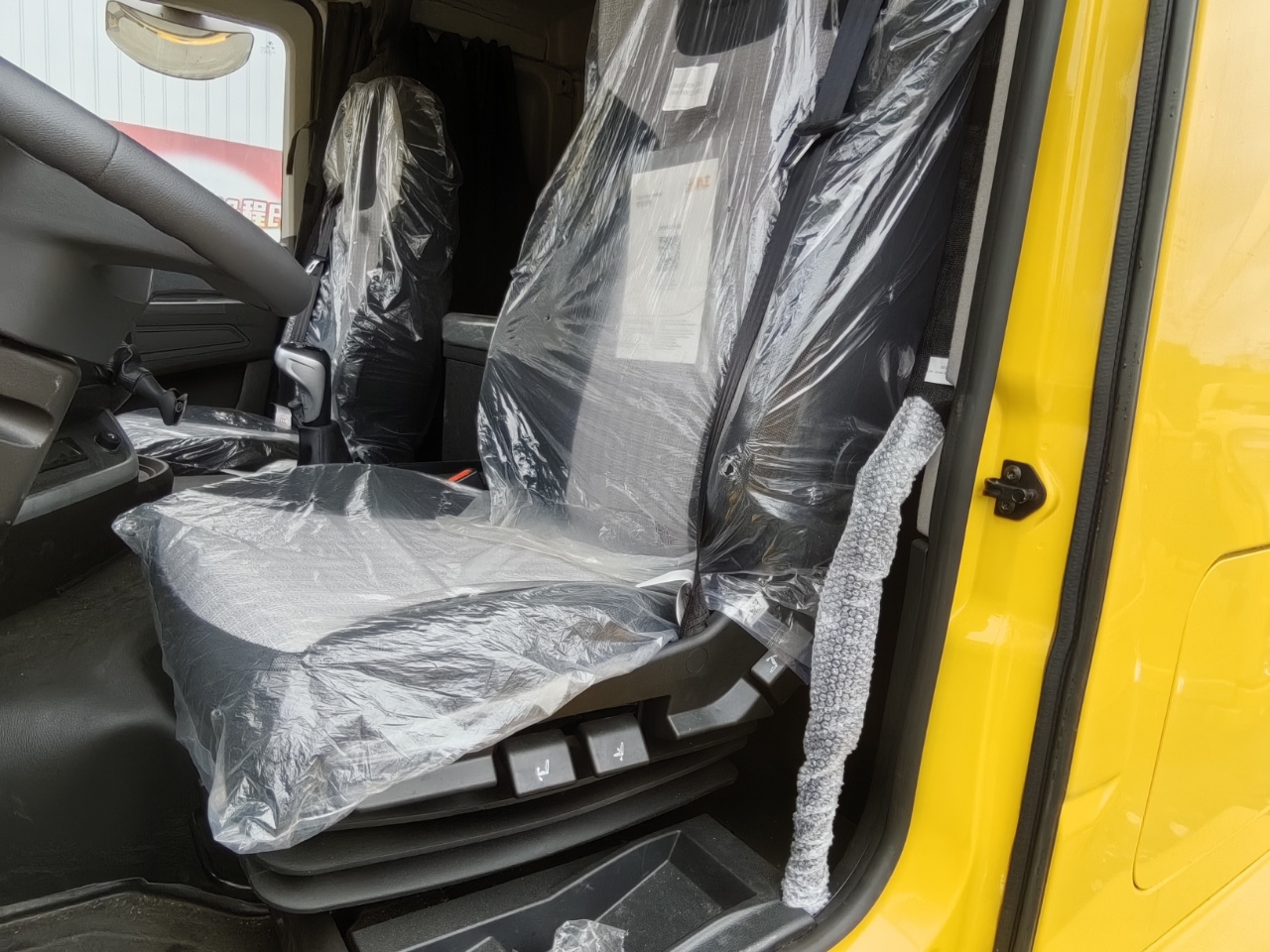

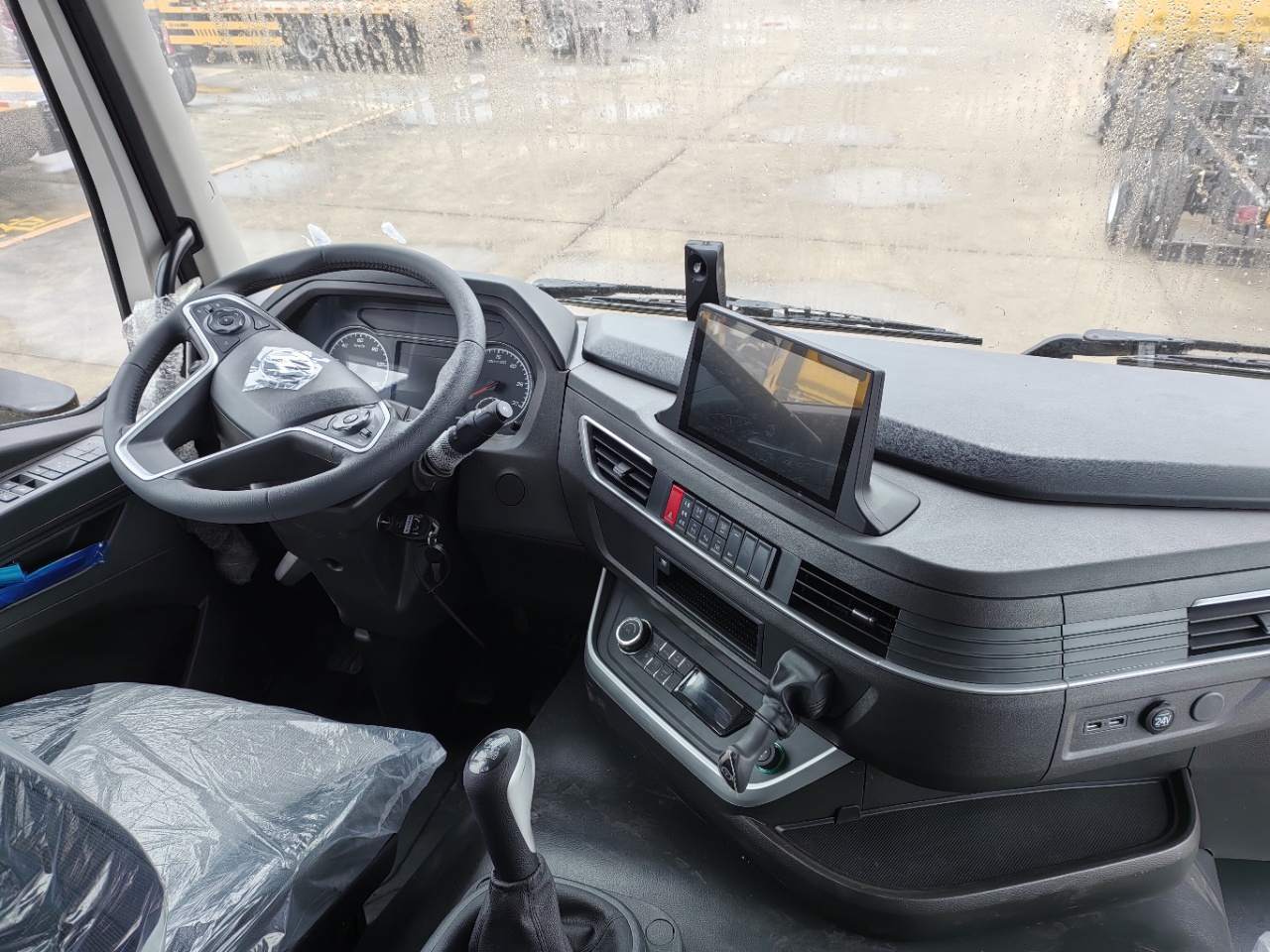

5 Other: 165Ah battery, remote control central locking, driver's cab electric flip, hydraulic shock absorber suspension, electric doors and windows, driver's air seat, 10 inch central control screen (with reverse image).
Installation configuration:

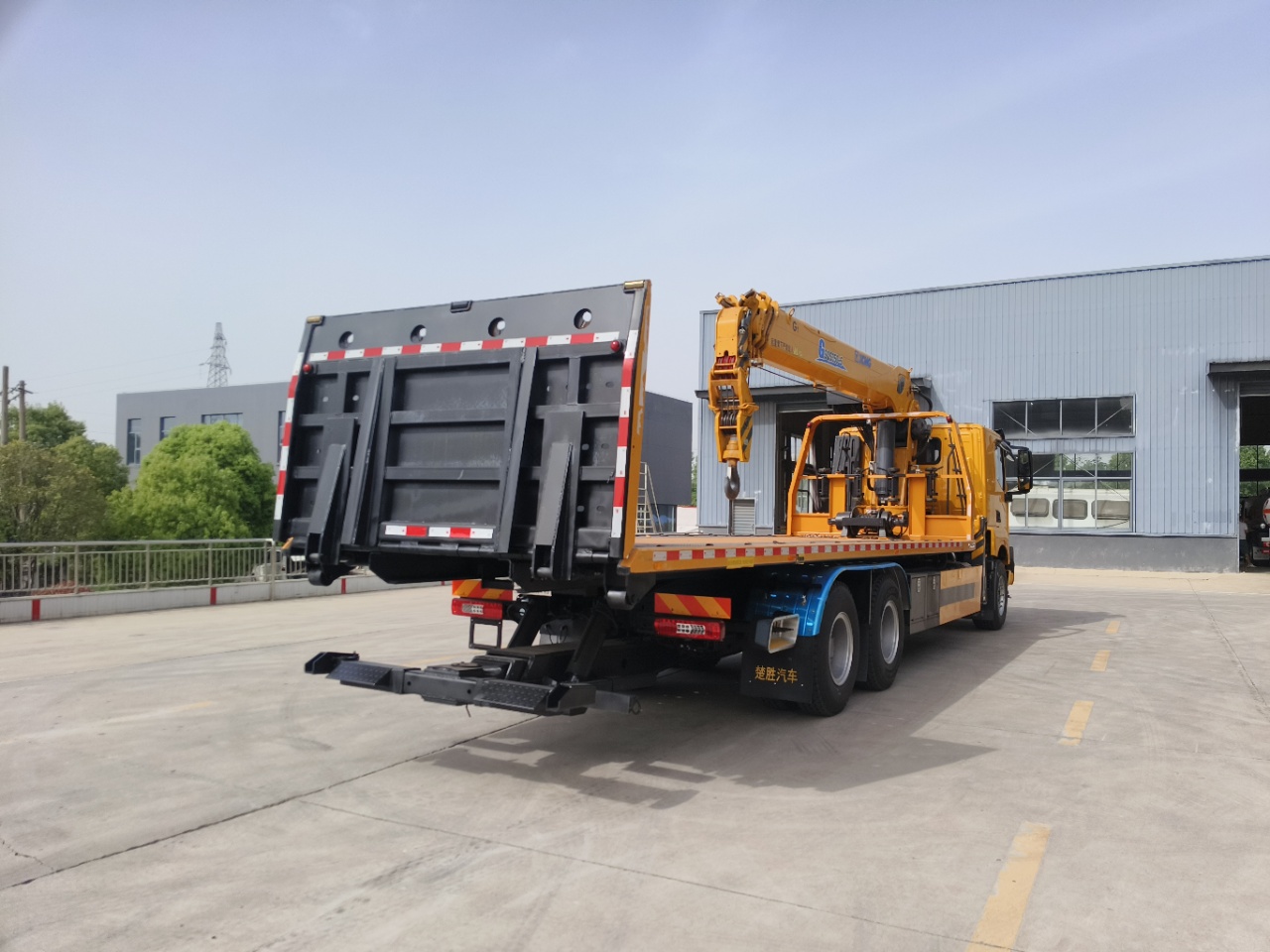

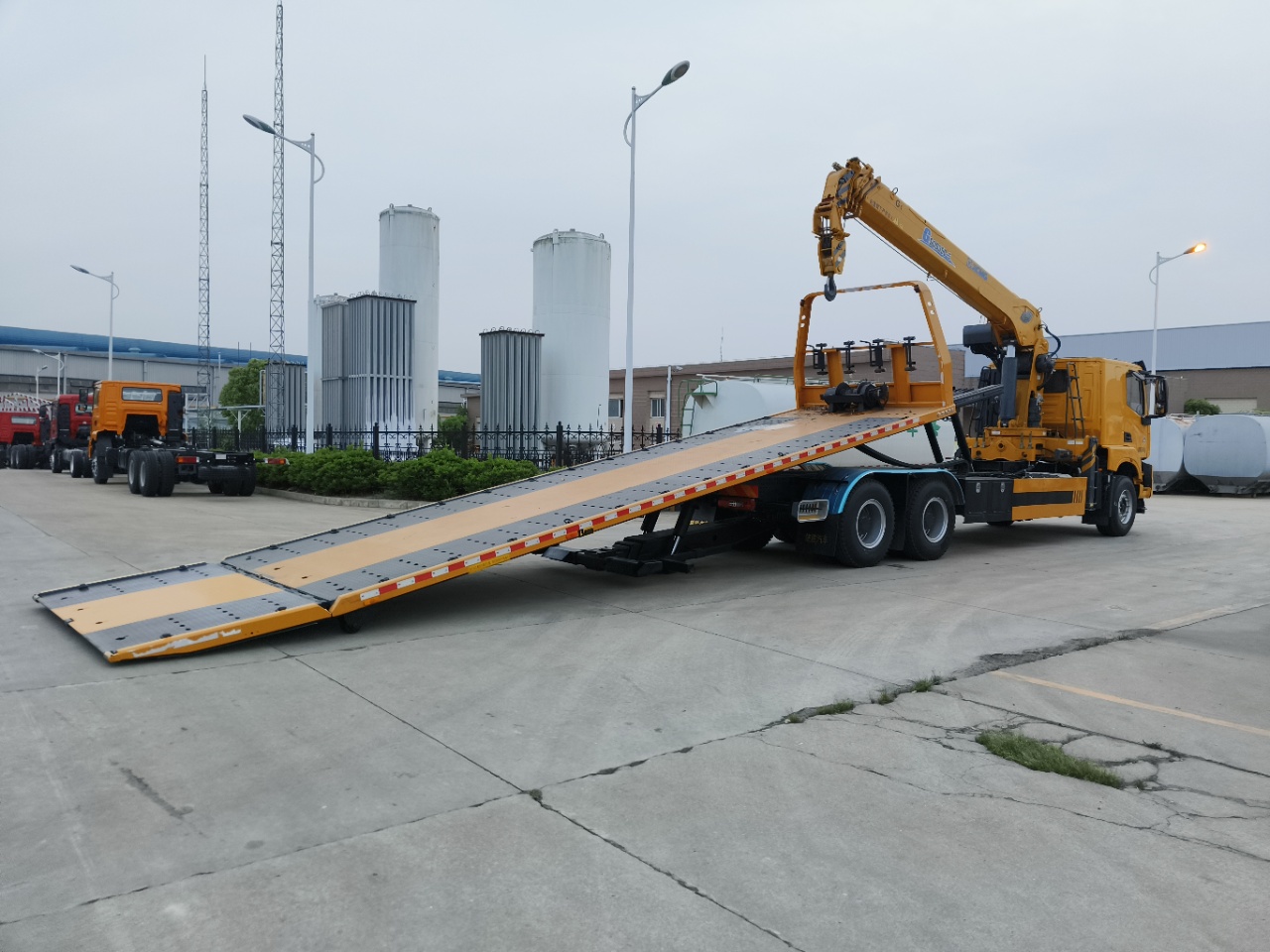

1. Pattern flat plate (8mm), the tail of the main board can be hydraulically flipped;
2. 1 150KN winch (equipped with 45 meter steel wire rope), 1 toolbox, 2 trolleys, 4 binding straps, 2 pairs of fork supports, 1 pair of fork seats, 1 chain hook, auxiliary air pipe assembly, support arm mounted on the main beam, and center of gravity lowering structure.
3. Naval power oil cylinder, Hefei Wanye hydraulic pump, Italian Ward hydraulic valve, double-layer flat slide groove, standard cross shaped bottom plate layout. Add square pipes under the board for reinforcement.
| Product Name |
Saic Hongyan 6X4 one tow two wrecker truck with crane |
| Driving Type |
6X4 |
| Weight /Classification |
|
| Type |
one tow two wrecker truck |
| Lift weight(kg) |
18000 |
| Dimensions |
|
| Wheelbase(mm) |
4800+1400,4600+1400,4400+1400,6000+1400 |
| Overall Dimension(mm) |
12360,11160×2550,2500×3150,3100,3050 |
| Engine |
|
| Engine brand & model |
YCK08-350-60,Yuchai 350ph |
| Displacement(L)/Power(kw) |
7.7L/253KW |
| Chassis |
|
| Axle Quantity |
3 |
| Transmission Type |
12-speed with original power take-off |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
Front tire 385/65R22.5, rear tire 12.00R20 18PR |
| Cab |
|
| Standard configuration |

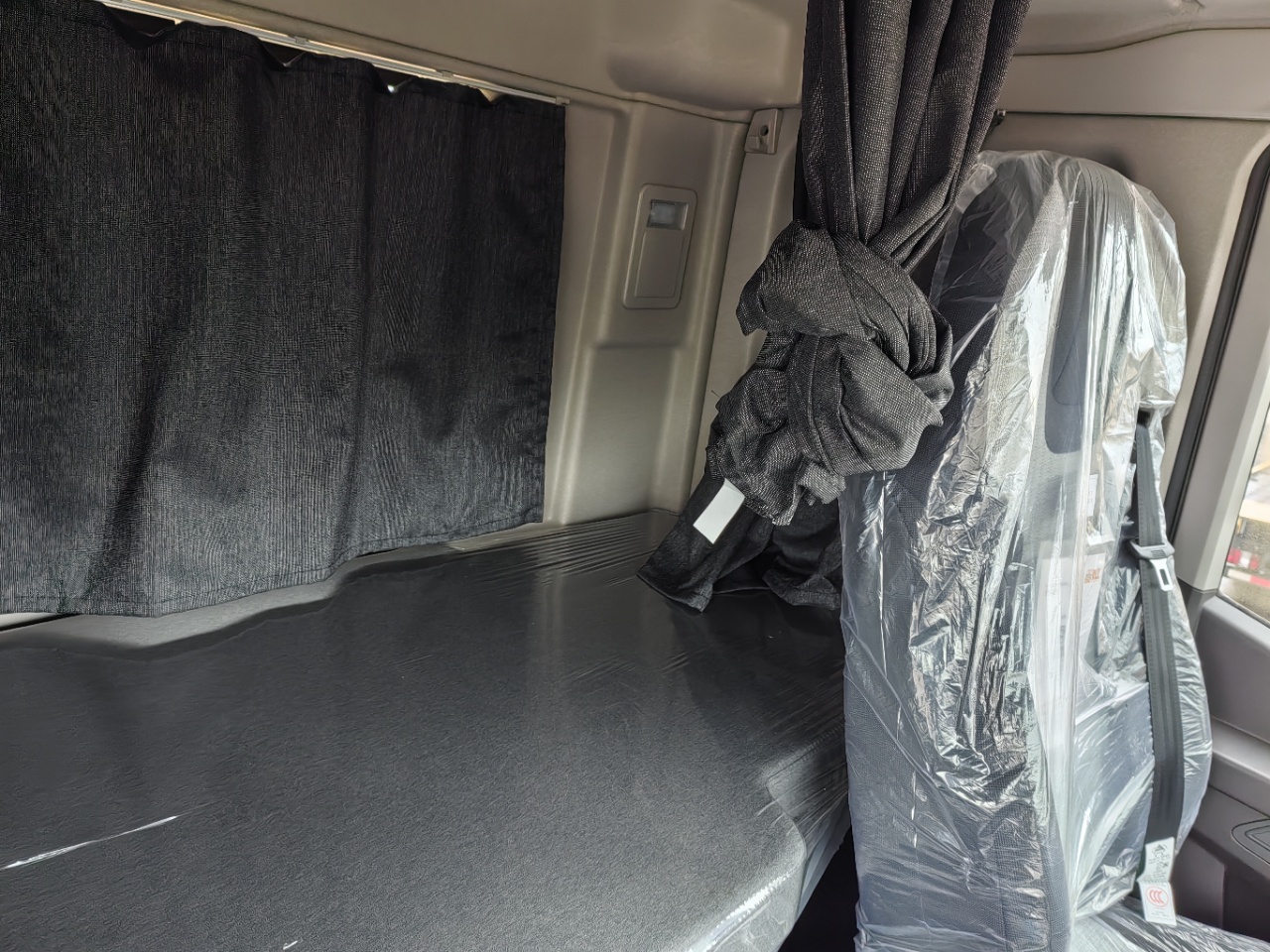

Flat top standard length cab, 2300mm ultra wide body, with single sleeper |
| Air conditioning |
Have |
| Performance parameter |
|
| Platform |
8mm patterned flat plate |
| Crane specification |
with crane |
| Standard configuration |
|
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Saic Hongyan Genpaw one tow two wrecker truck with crane
A tow truck (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
