Foton Ollin 6T 8T wrecker truck
2024-10-07 09:54:11 Source：chusheng
Foton Ollin 6T 8T wrecker truck
Chassis configuration:
1. Engine: 4F25TC
2.Transmission type: 6-speed gearbox
3.Tyre:700 steel wire tire
4.Wheelbase: 3600mm
5 Other: The 24V power supply comes with an original power switch, allowing the vehicle to withstand unstable voltage even in cold regions. It features a multifunctional steering wheel, electric glass, remote key, ABS, and air brake,
Installation configuration:
6-ton plate heavy-duty configuration
(1) The chassis adopts Foton Aoling, with a wheelbase of 3600mm.
(2) Obstacle clearing vehicle: Integrated board with hydraulic flip, main board 4.1 meters, hydraulic flip 1.5 meters, through axis hinge, flat plate made of 5MM thick patterned plate, flat plate frame made of 16MM thick steel plate, crossbeam encrypted, triangle iron support encrypted, auxiliary beam made of 60 * 120 * 5 square tube double splicing, slide rail 8mm thick, one four ton planetary winch.
(3) Use Suizhou oil cylinder and domestically produced valve. The flat telescopic oil cylinder adopts 90, and the flat lifting oil cylinder adopts 80.
(4) The inner wall of the trailing arm is 8mm thick.
(5) One trailer two type, 2 rear work lights, 1 toolbox, 1 wash basin, 4 binding straps, with rear support arm, 1 pair of L-shaped tire racks, equipped with 2 small cars, 1 chain hook, and the rest are standard.
| Product Name |
Foton Ollin 6T 8T wrecker truck |
| Driving Type |
4×2 |
| Weight /Classification |
|
| Type |
one pull two wrecker truck |
| Capable of carrying weight(kg) |
60000/80000 |
| Dimensions |
|
| Wheelbase(mm) |
3600 |
| Overall Dimension(mm) |
5995×2300,2500,2525,2450,2400×2250,2300,2550,2520,2480 |
| Engine |
|
| Engine brand & model |
4F25TC |
| Displacement(L)/Power(kw) |
2.5L/116KW |
| Chassis |
|
| Axle Quantity |
2 |
| Transmission Type |
6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
700 steel wire tire, 6 with a spare |
| Cab |
Wide body three person cab |
| Standard configuration |
The 24V power supply comes with an original power switch, allowing the vehicle to withstand unstable voltage even in cold regions. It features a multifunctional steering wheel, electric glass, remote key, ABS, and air brake, |
| Air conditioning |
Have |
| Performance parameter |
|
| Platform size |

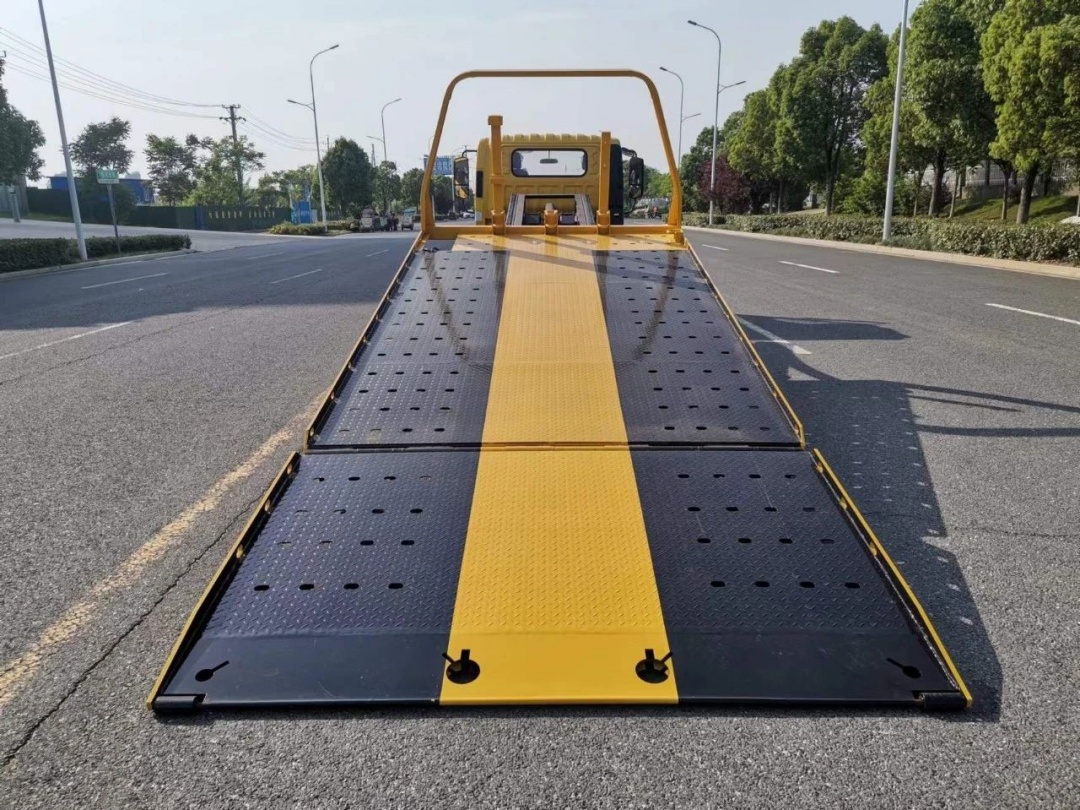

Using high-quality patterned board with a thickness of 6MM, the flat plate is 5.6 meters or 5.8 meters long |
| Crane specification |
without crane |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Foton Ollin 6T 8T wrecker truck
A tow truck (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
