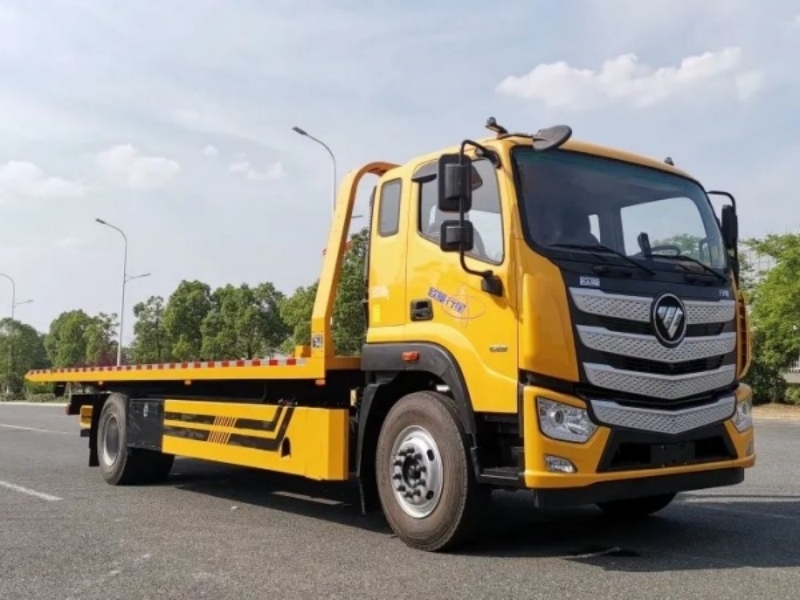

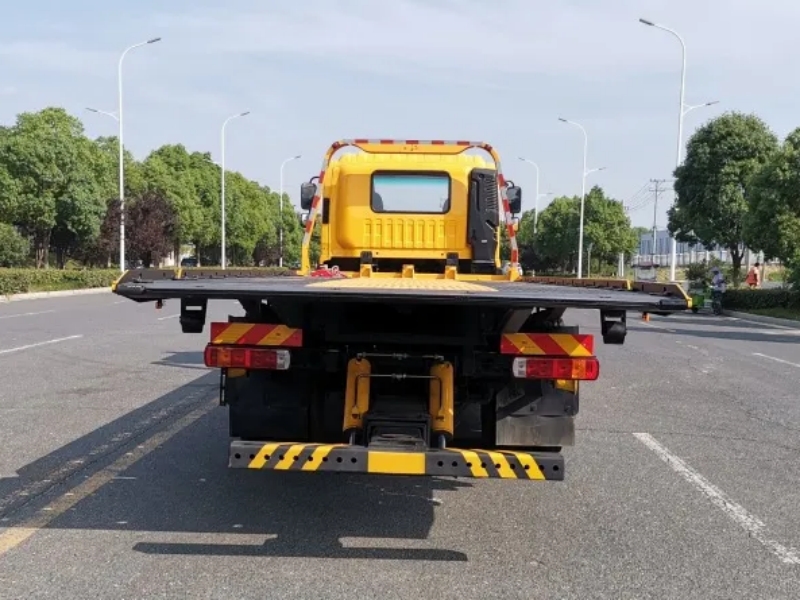

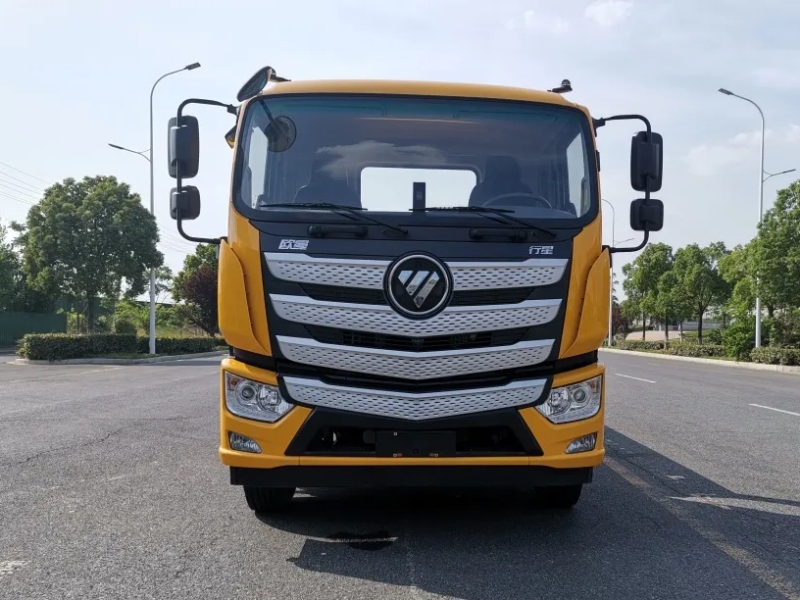

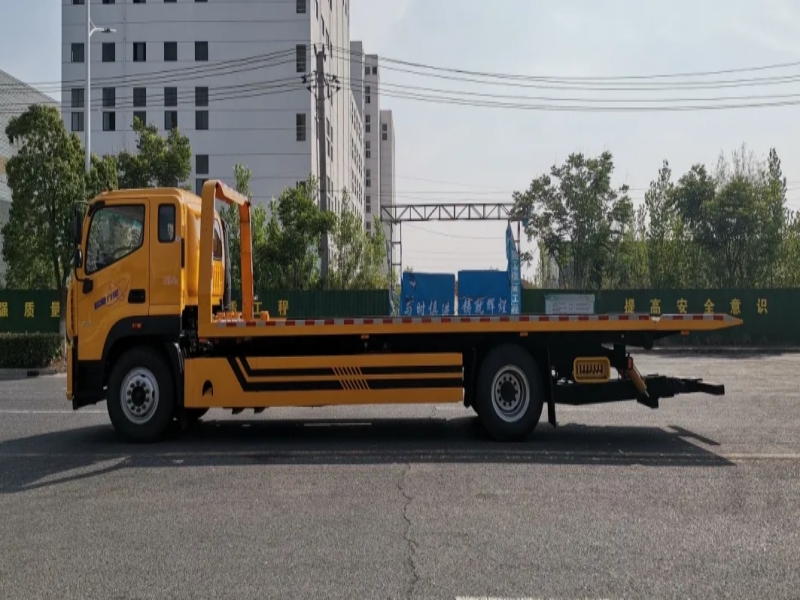

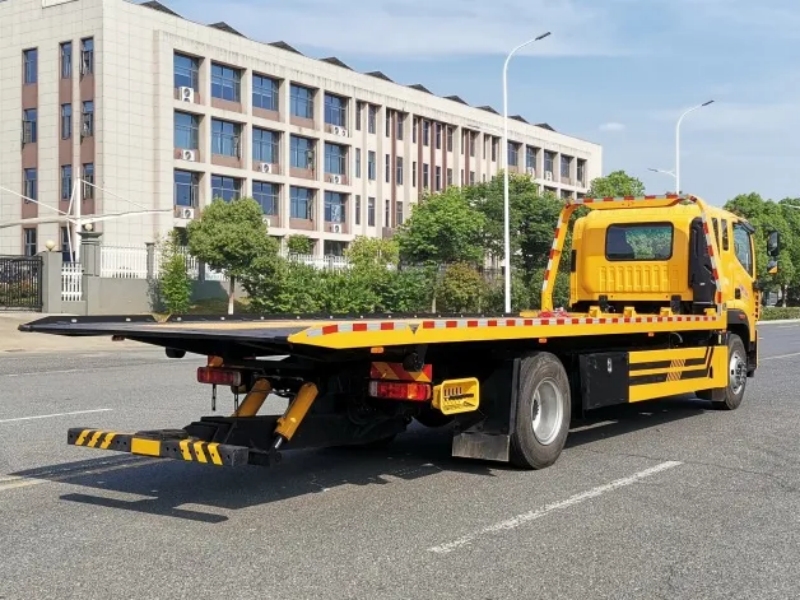

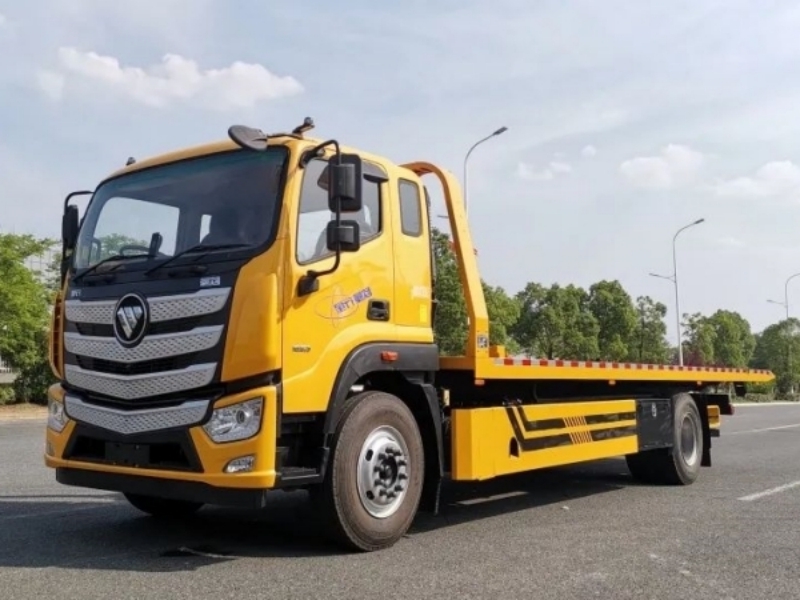

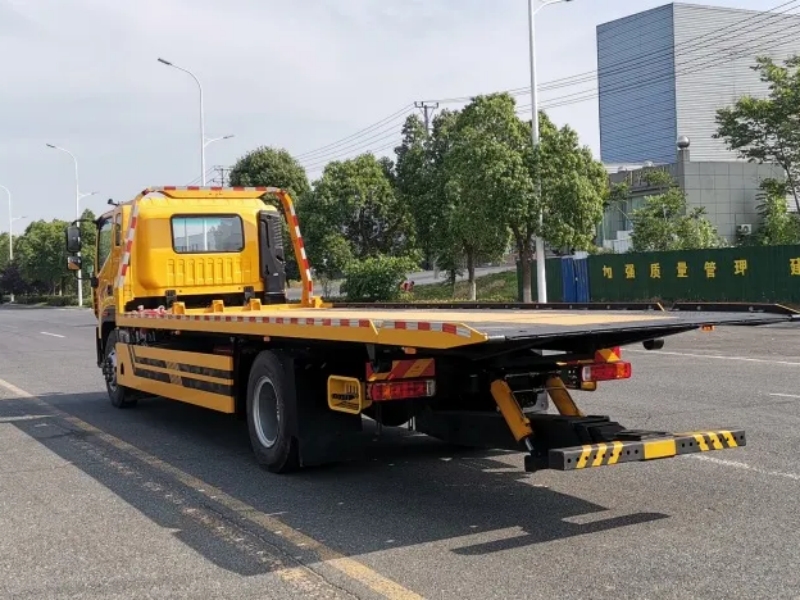

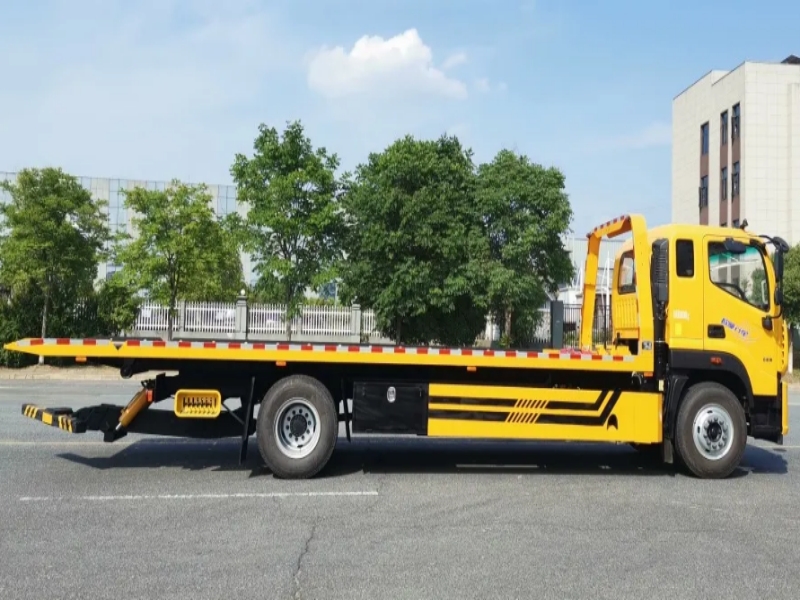

Mercedes Benz Ouman 4X2 one to two flatbed obstacle clearing vehicle
2024-10-07 09:54:11 Source：chusheng
Mercedes Benz Ouman 4X2 one to two flatbed obstacle clearing vehicle
Chassis configuration:
Driver's cabin: Mercedes Benz Ouman 2350mm wide body driver's cabin, luxurious interior, airbag seats
Wheelbase: 5750mm
Engine: Cummins 220 horsepower
Transmission: Fast 8-speed with synchronizer and power take-off
Rear axle: 10 ton level rear axle
Frame: Double layered I-beam
Leaf spring: 10/10+8 reinforced and thickened leaf spring
Tires; 10.00R20 steel wire tire
Other configurations: Four point suspension, airbag seats, air conditioning, cruise control, multifunction steering wheel, central locking system, electric doors and windows, remote key, air brake, cut-off air brake, power steering, ABS
Installation configuration:
One to two type, double-sided linkage operation device, using flat sinking technology, 10 ton upper loading, 8 ton hydraulic winch, 10 ton three section rear trailing arm, plate length of 8.3 meters (including 1.3 meter hydraulic flip tail plate), width of 2.55 meters, 8mm thick patterned plate, innovative and unique double vertical and horizontal cross brace, 16mm thick manganese plate slide track, reinforced double secondary beam, flat electrophoretic anti rust paint, 2 rear work lights, 1 toolbox, Foshan HZL oil cylinder.
| Product Name |
Mercedes Benz Ouman 4X2 one to two flatbed obstacle clearing vehicle |
| Driving Type |
4X2 |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
10650,10150(Kg) |
| Lift weight(kg) |
7655kg(Kg) |
| Cab |
Mercedes Benz Ouman 2350mm wide body cabin, luxurious interior, airbag seats |
| Engine brand & model |
F4.5NS6B220,Cummins 220 horsepower |
| Displacement(L)/Power(kw) |
4.5L/162KW |
| Wheelbase(mm) |
5750mm |
| Axle Quantity |
2 |
| Transmission Type |
Fast 8-speed with synchronizer and power take-off |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
10.00R20 steel wire tire, 6+1 spare |
| Overall Dimension(mm) |
10570,10520,9765×2550,2500×2820,2790,3150(mm) |
| Platform |
Board length 8.3 meters (including 1.3 meters hydraulic flip tail board), width 2.55 meters |
| Crane specification |
without crane |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Mercedes Benz Ouman 4X2 one to two flatbed obstacle clearing vehicle
An obstacle clearing vehicle (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a vehicle used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
