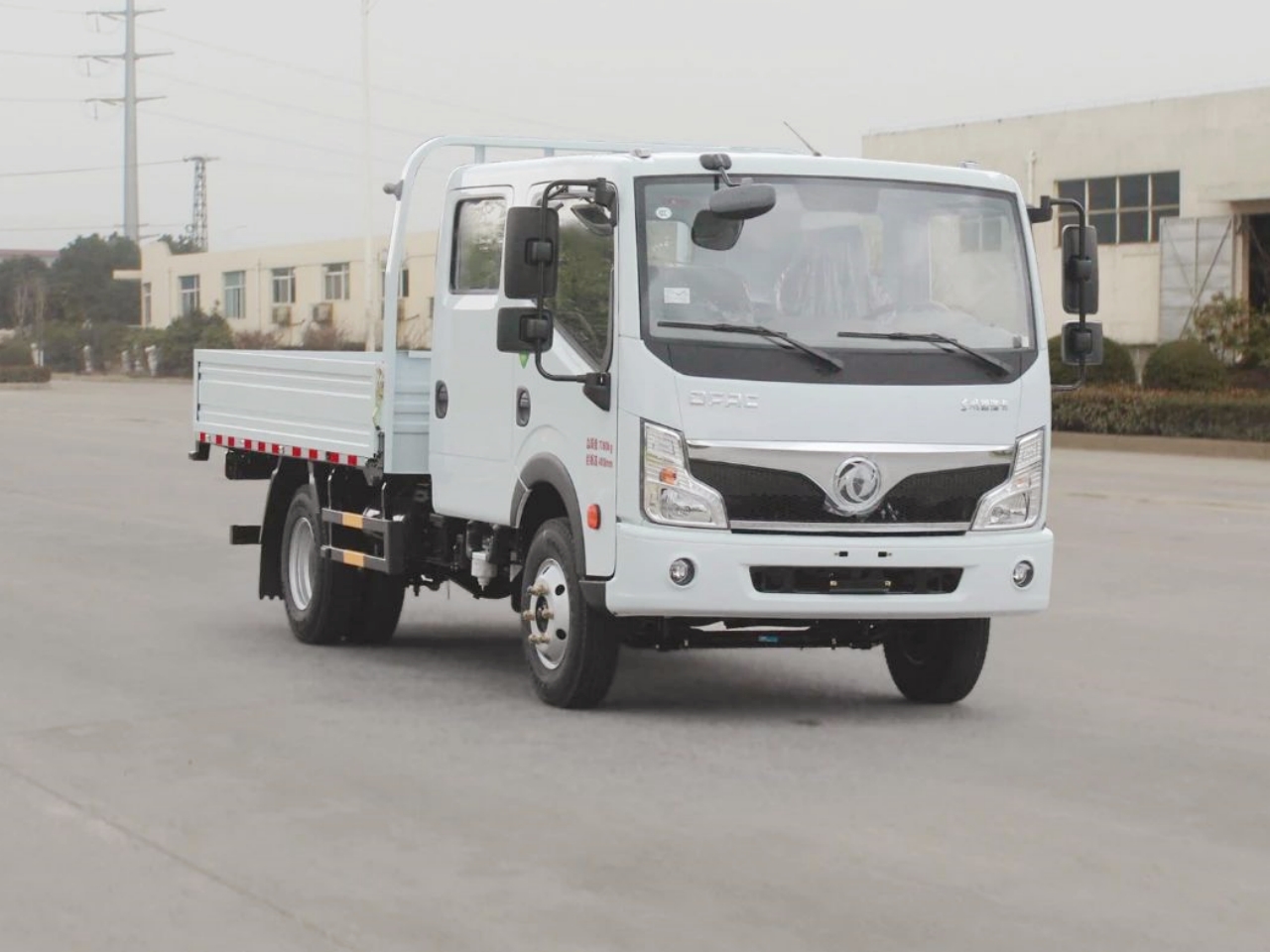

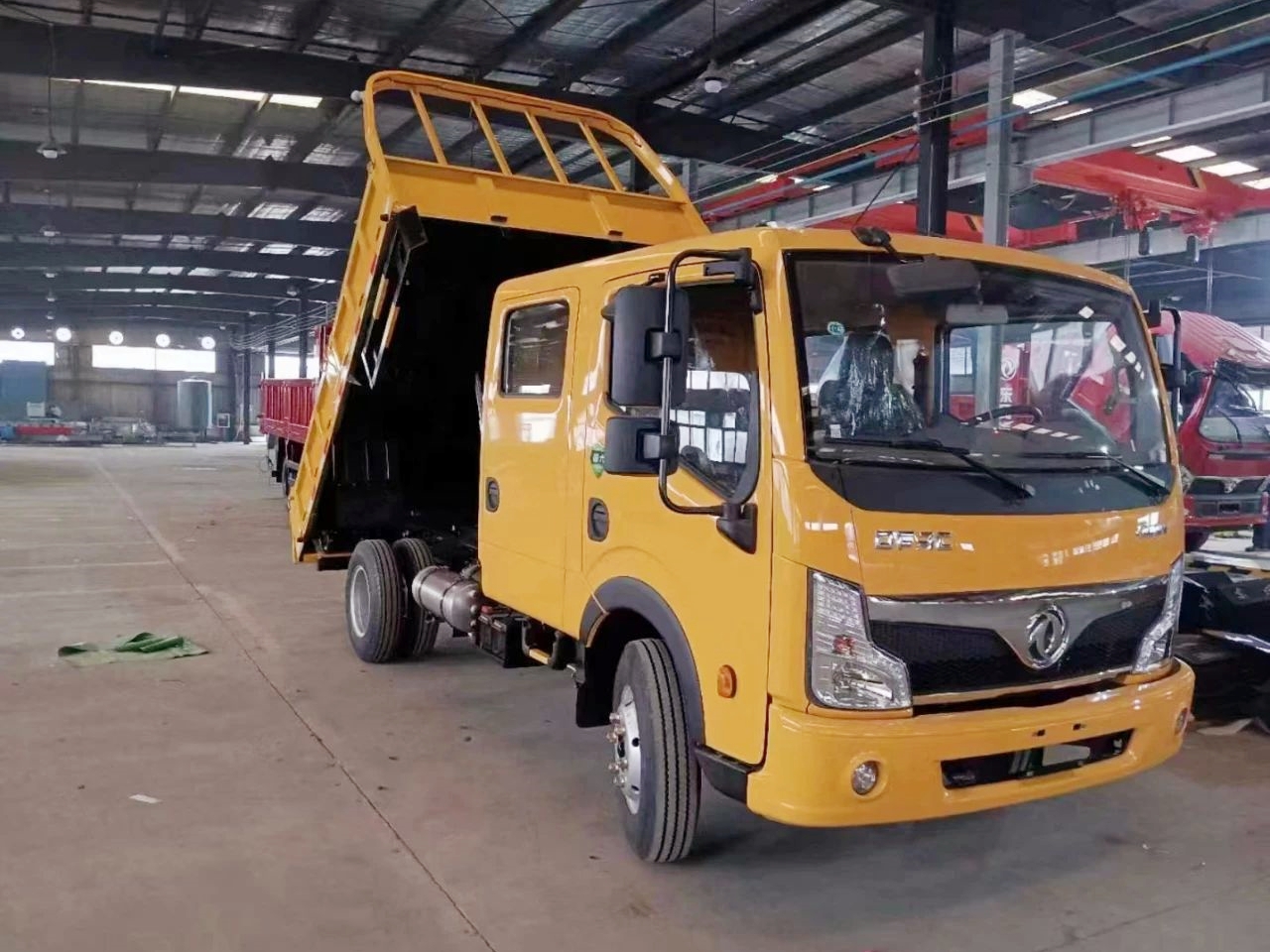

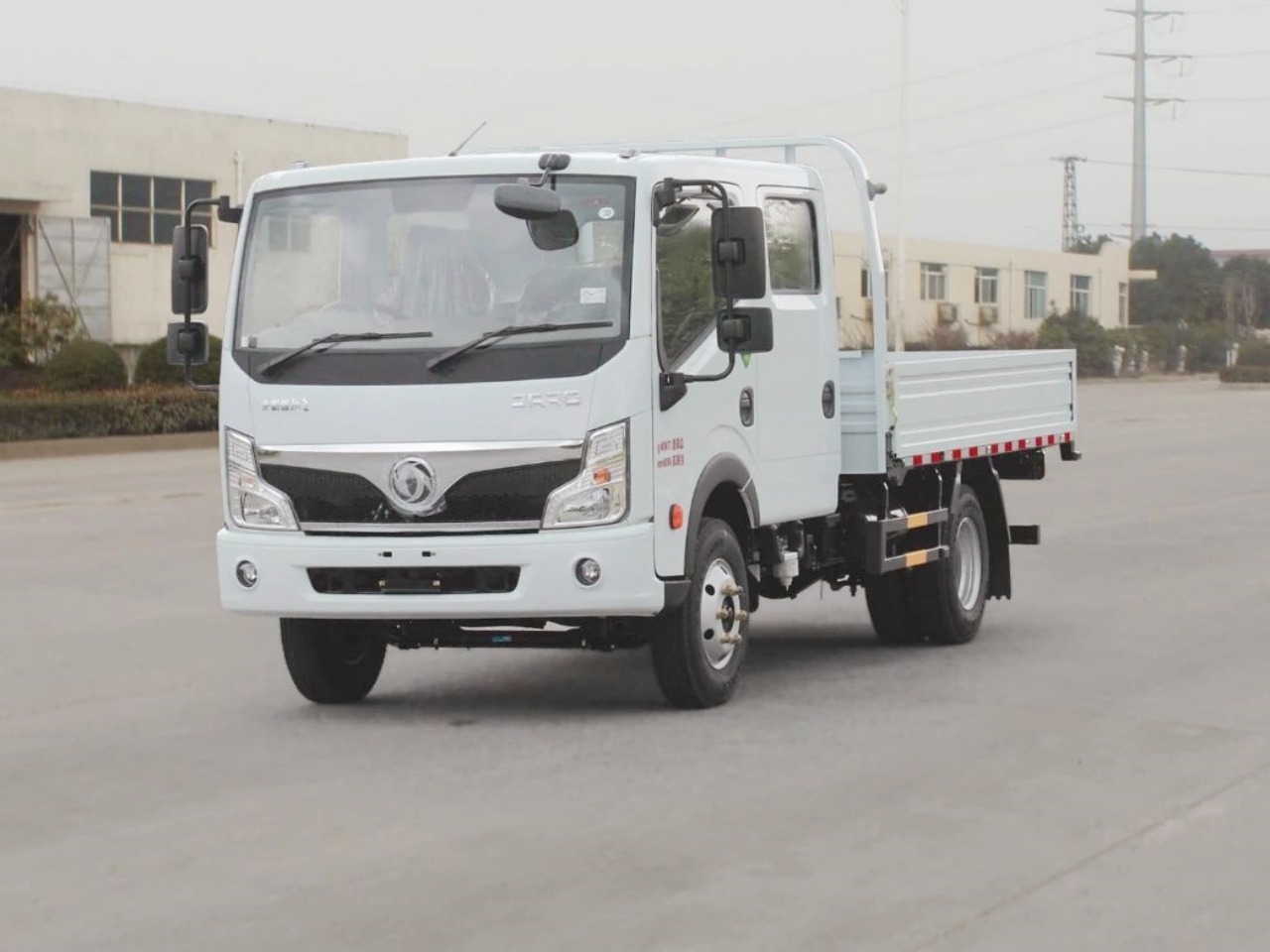

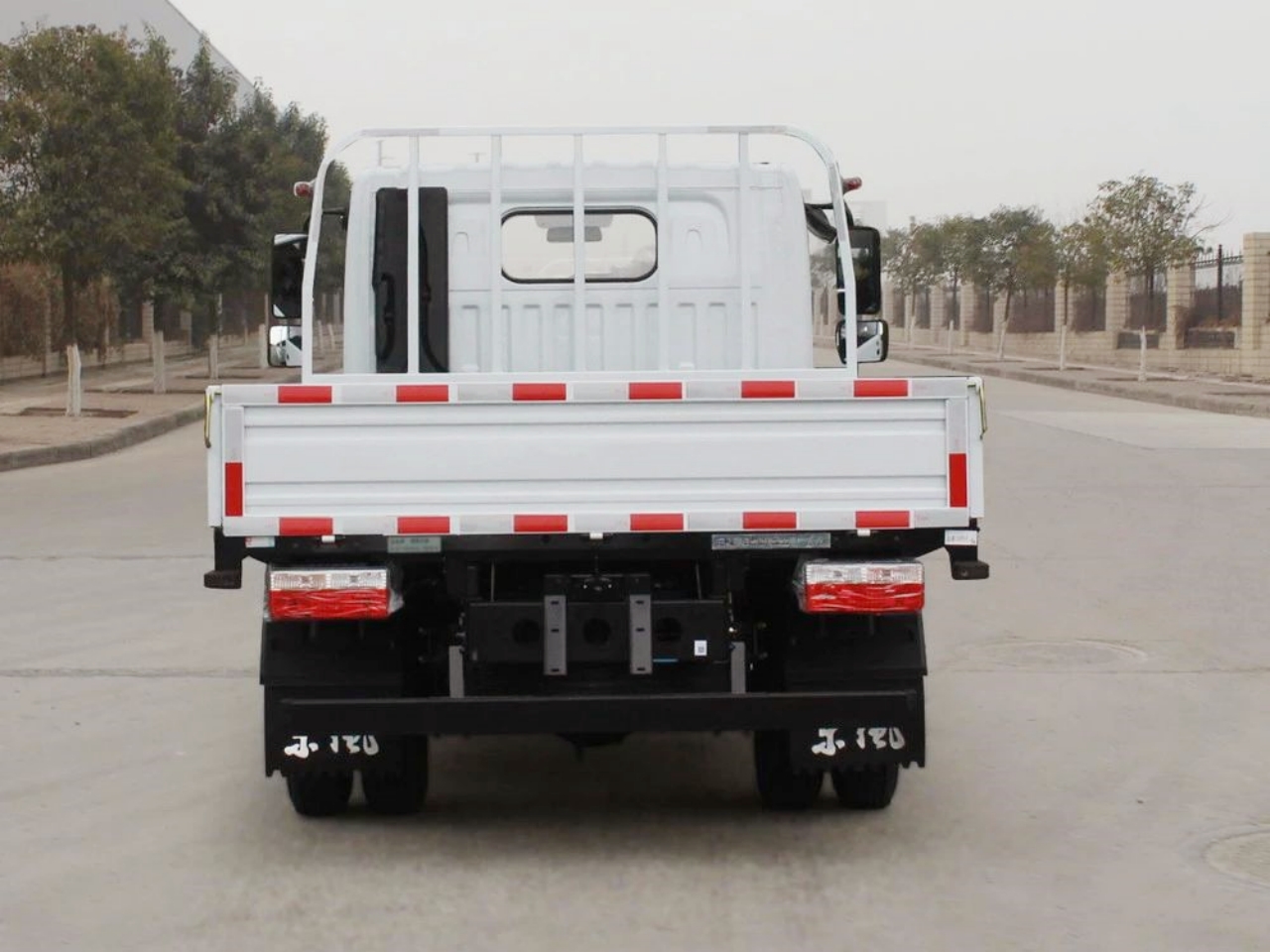

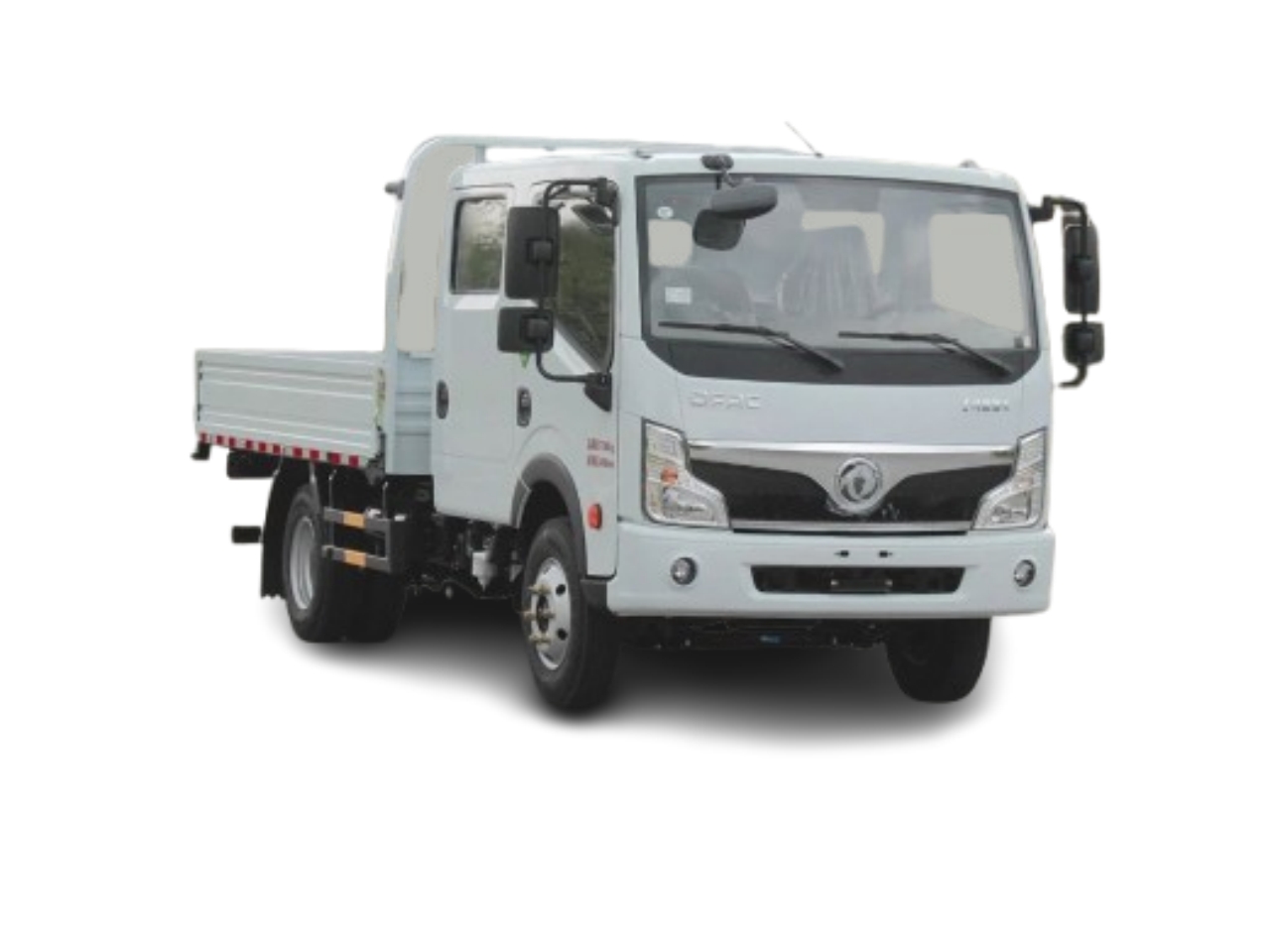

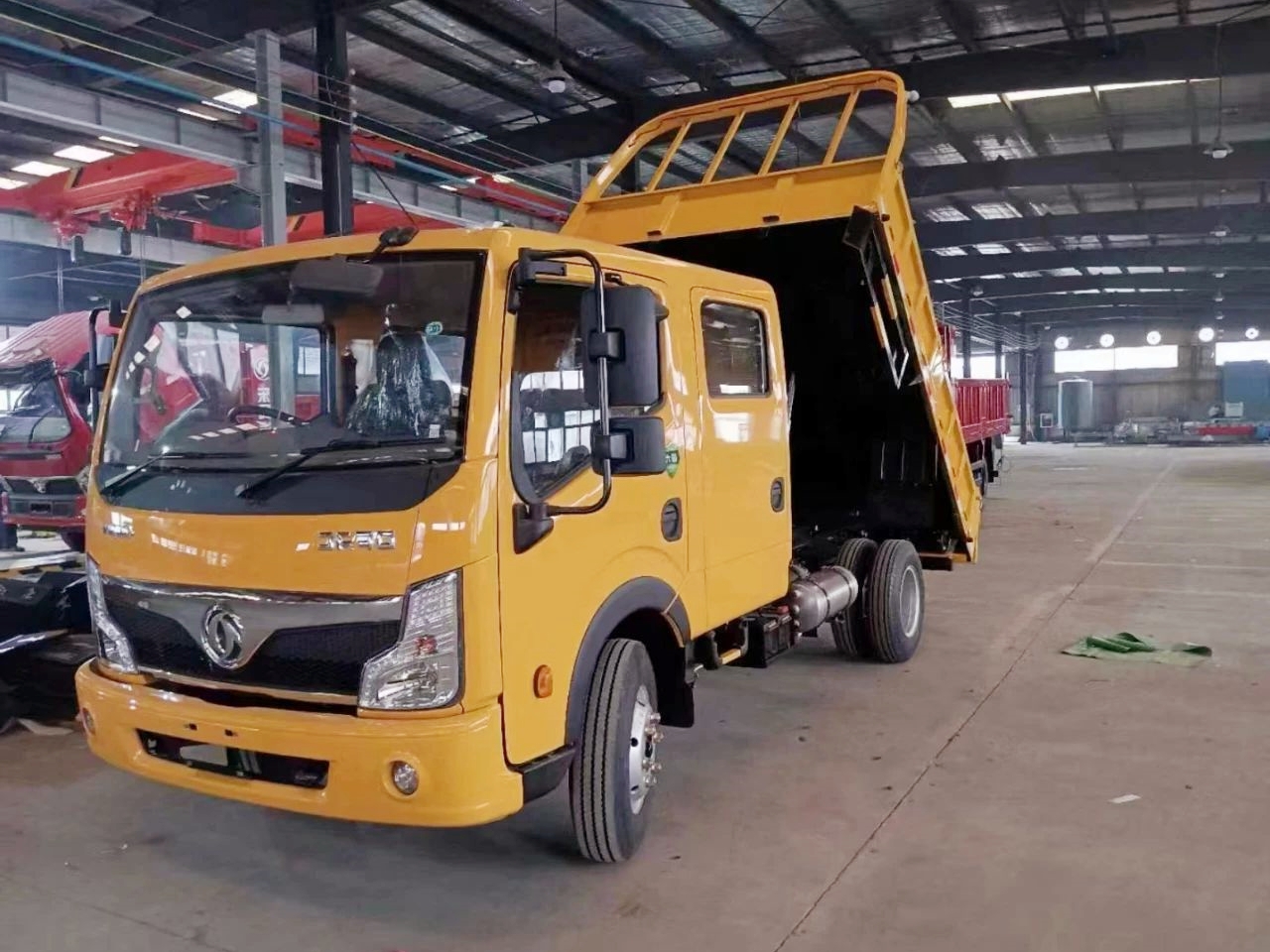

Dongfeng 4X2 4-Ton Tipper Truck
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
1.Engine: CA4DB1-14E68 140, Xichai 140hp
2.Transmission type:
Wanliyang 6-speed gearbox
3.Wheelbase: 3308(mm)
4.Tyre: 7.00R16LT 14PR, 6+1 spare
5.Other: Dongfeng Furuika N300/1850 double row cab, original air conditioning, electric doors and windows, central locking, dynamic rotation, air brake, air brake cut-off, ABS
| Product Name |
Dongfeng 4X2 4-Ton Tipper Truck |
| Driving Type |
4X2 |
| Dump body Volume(cbm) |
4 |
| Rated payload weight(kg) |
4000 |
| Overall Dimension(mm) |
5976,5990×2150,2200×2328,2355(mm) |
| Dump body size(mm) |
3130,3170×2050,2100×400,450,500,550,600,800(mm) |
| Engine brand & model |
CA4DB1-14E68 140, Xichai 140hp |
| Engine type |
4 stroke,water-cooled, straight line 4 cylinders, diesel |
| Axle Quantity |
2 |
| Transmission Type |
Wanliyang 6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
7.00R16LT 14PR, 6+1 spare |
| Cab |
Dongfeng Furuika N300/1850 double row cab, original air conditioning, electric doors and windows, central locking, dynamic rotation, air brake, air brake cut-off, ABS |
| Dump body material |
High strength manganese steel |
| Main configuration |
1.Side plate 6mm, floor plate 8mm 2. Front mounted hydraulic lifting cylinder. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 6X4 25 Ton Tipper Truck
A tipper truck, also known as a dump truck, refers to a vehicle that unloads goods on its own by hydraulic or mechanical lifting. Also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.
The compartments of dump trucks are divided into two types: backward tilting and lateral tilting. The piston rod movement is controlled by the control system, and backward tilting is more common. Pushing the piston rod causes the compartment to tilt, while a few tilt in both directions.
Product parameters
