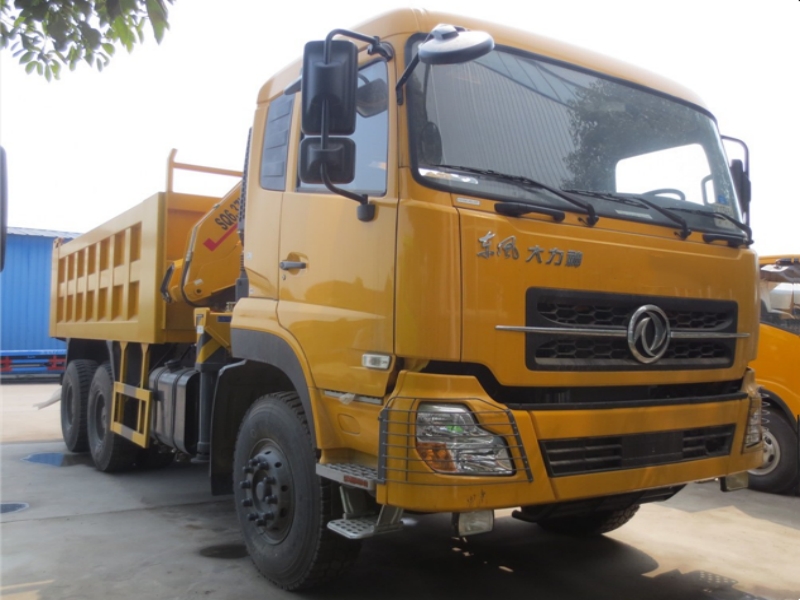

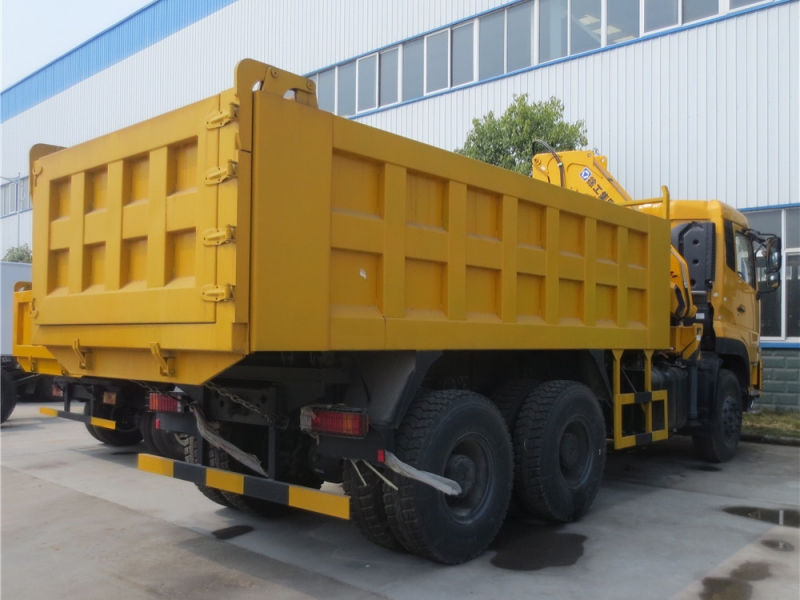

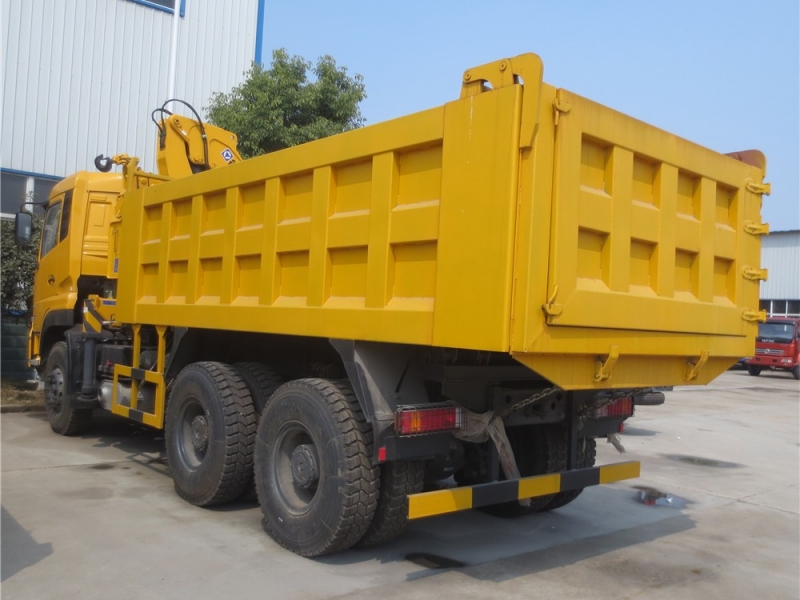

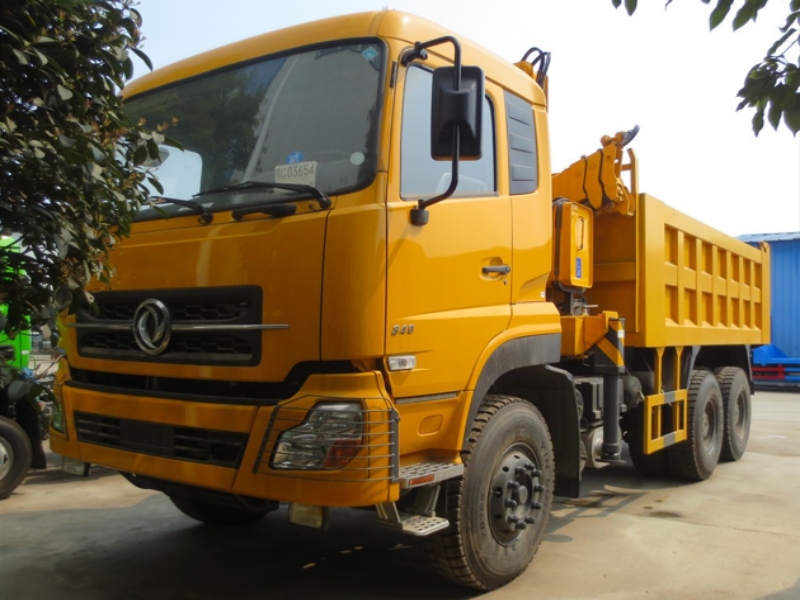

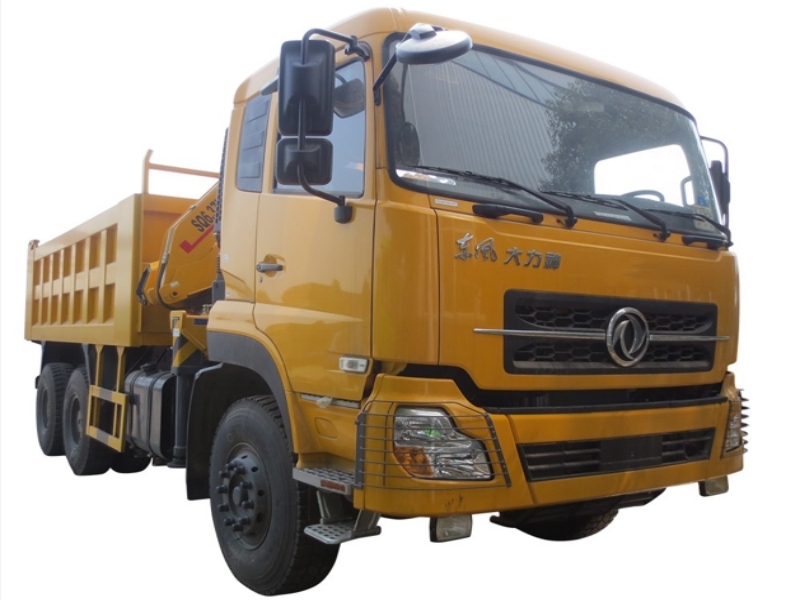

Dongfeng 30 Ton Dump Truck With Crane

Dongfeng 30 Ton Dump Truck With Crane

2024-10-07 09:54:11 Source：chusheng

Chassis brand dongfeng

Product origin China, Hubei
Delivery time around 10 working days

Supply capacity 1500 units one year
Dump truck with crane is mainly used for loading and unloading by hydraulic crane assistance. Dump truck with crane combine the advantage of dump truck and truck with crane.
Dongfeng dump truck with crane can automatically tip over to unload at a certain angle, greatly saves unloading time and labor, and reducestransportation costs

Product Name

Dongfeng 30 Ton Dump Truck With Crane

Driving Type

6X4

Dump body Volume(cbm)

Rated payload weight(kg)

30000

Overall Dimension(mm)

8800x2400x3600

Dump body size(mm)

5400x2300x1400

Engine brand & model

Dongfeng Cummins

Engine type

4 stroke,water-cooled, straight line 6 cylinders, diesel

Axle Quantity

Transmission Type

FAST 9 forwards,1 reverse gear, manual

Steering Type

LHD or RHD with power steering

Brake system

Air brake

Tire Spec. & size

11.00R20, 10+1 spare

Cab

Flat proof, single sleeper, radio, AC

Dump body material

High strength manganese steel

Crane

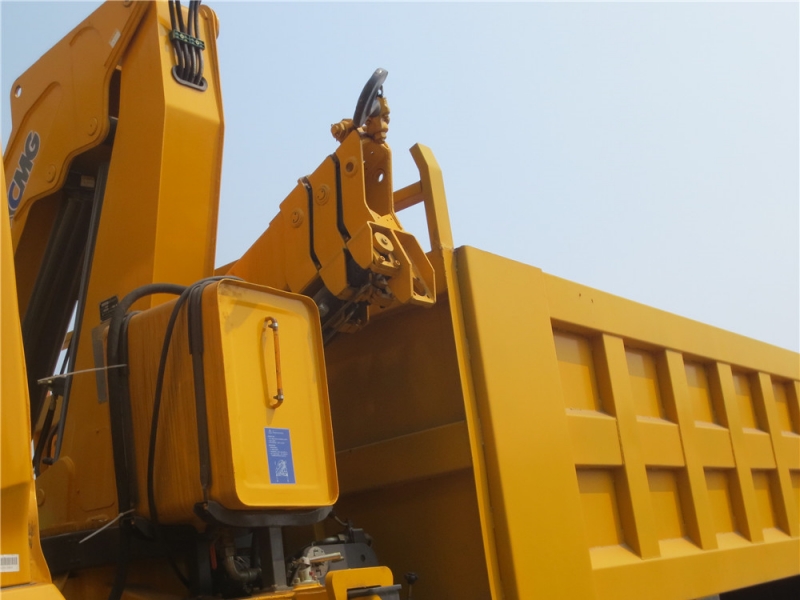

XCMG 6.3 ton folded arm crane

Main configuration

1. Side plate 6mm, floor plate 8mm. 2.Middle mounted hydraulic lifting cylinder

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Dongfeng 30 Ton Dump Truck With Crane

A dump truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting. Also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.

The compartments of dump trucks are divided into two types: backward tilting and lateral tilting. The piston rod movement is controlled by the control system, and backward tilting is more common. Pushing the piston rod causes the compartment to tilt, while a few tilt in both directions.

Product feature

1-Dongfeng 10 wheel dump truck with Dongfeng Cummins engine

2-Dump box made of China high strength manganese steel, strong and sturdy;

3-30 ton loading capacity
4-XCMG 6.3 ton crane
5-Factory direct sale

Product parameters
