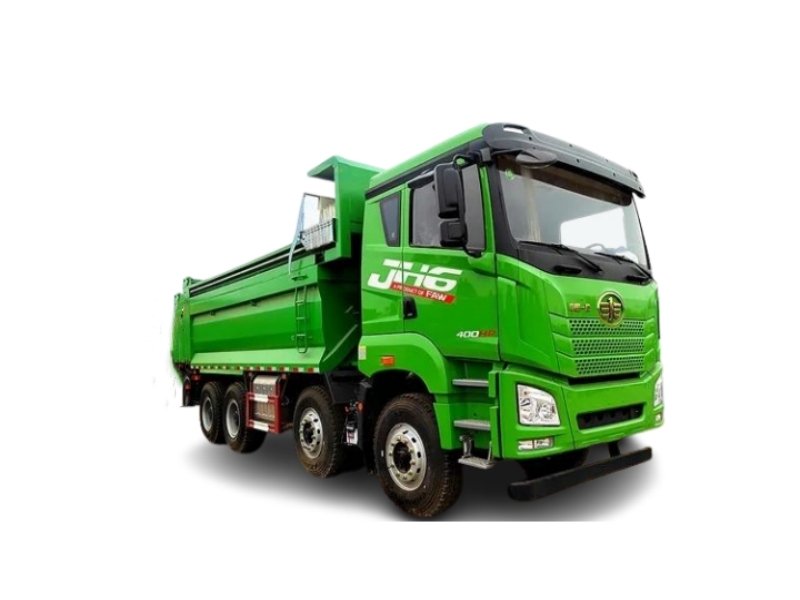

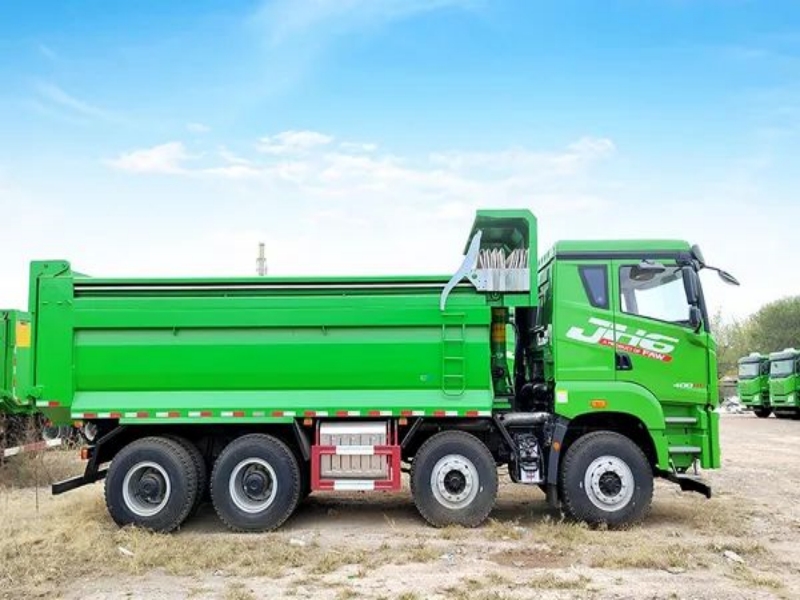

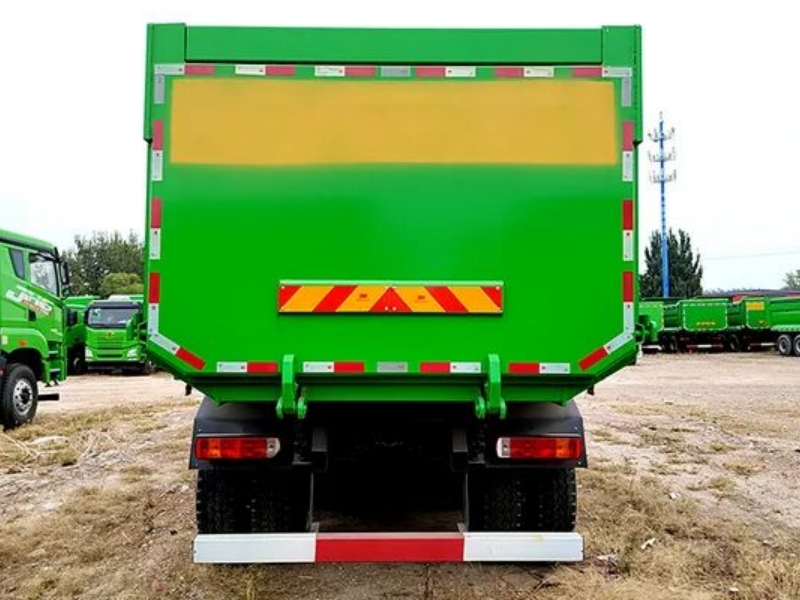

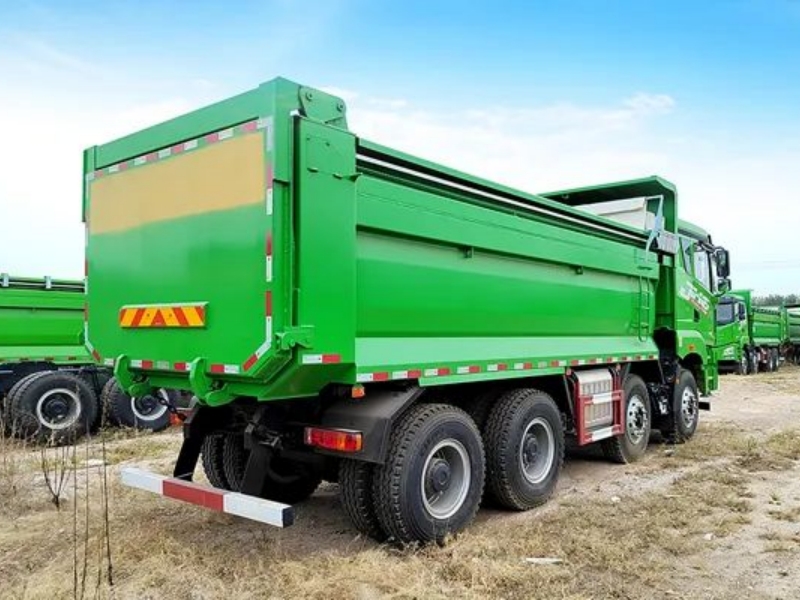

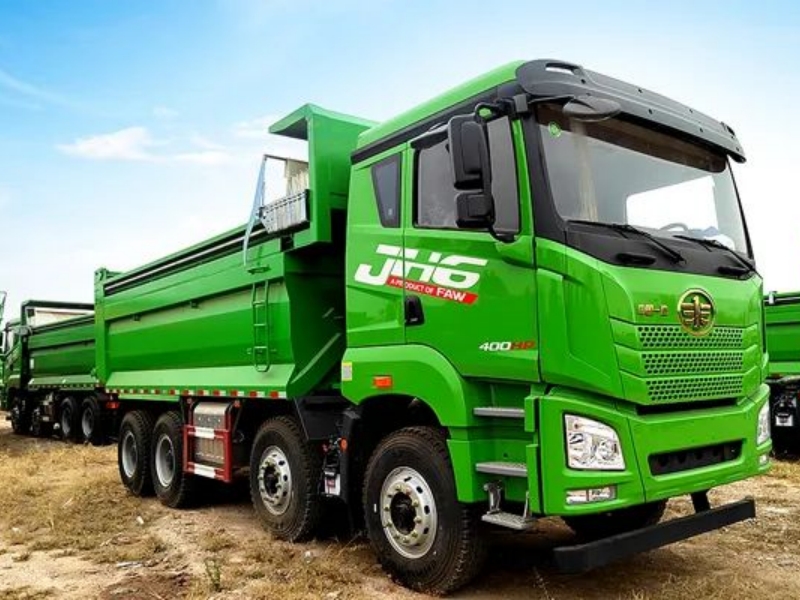

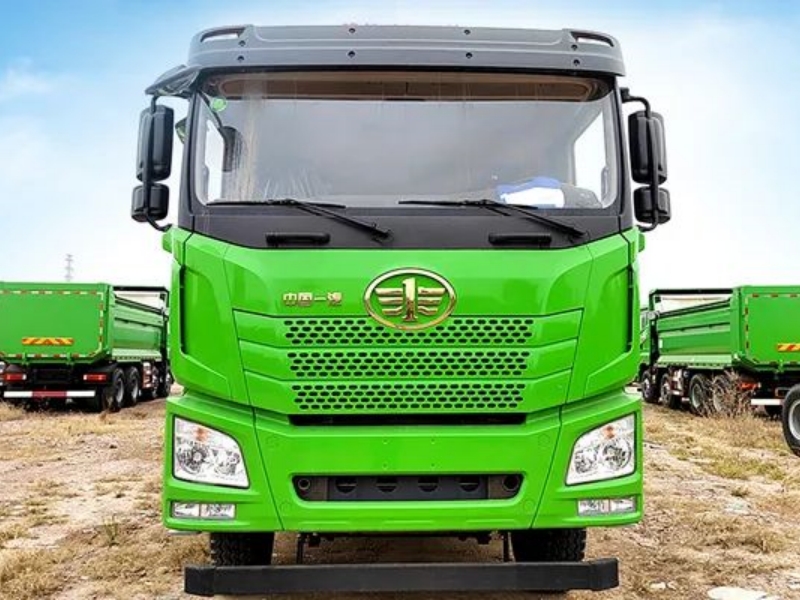

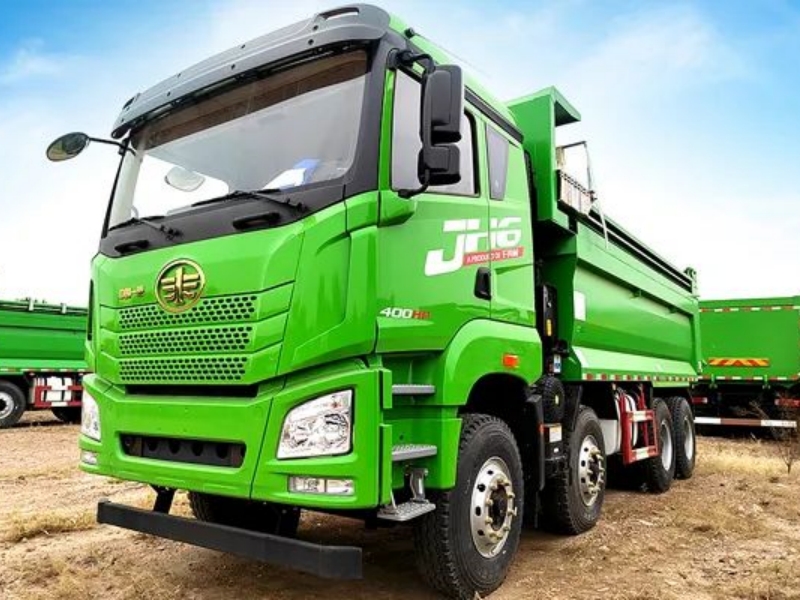

Jiefang JH6 8x4 dumper truck
2024-10-07 09:54:11 Source：chusheng
Jiefang JH6 8x4 dumper truck
Chassis configuration:
1. Engine: WP10H400E62, Weichai 400 hp
2.Transmission type: 12-speed gearbox
3.Tyre: 12.00R20 18pr, 12+1 spare
4.Wheelbase: 1900+2500+1350(mm)
5 Other: Air damping seat with sleeping berth
Installation configuration:
Edge plate thickness 5mm, bottom plate thickness 8mm
| Product Name |
Jiefang JH6 8x4 dumper truck |
| Driving Type |
8X4 |
| Total weight(kg) |
4495(Kg) |
| Curb weight(kg) |
31000(Kg) |
| Rated weight(kg) |
15370,15305(Kg) |
| Wheel base(mm) |
1900+2500+1350(mm) |
| Overall Dimension(mm) |
8645,8845,9145,9395,8895,9095,9695×2550×3325,3450,3600(mm) |
| Cargo box size(mm) |
5800x2350x1500mm |
| Engine brand & model |
WP10H400E62, Weichai 400 hp |
| Displacement(L)/Power(kw) |
10L/294KW |
| Axle Quantity |
4 |
| Transmission Type |
12-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
12.00R20 18pr, 12+1 spare |
| Cab |
Air damping seat with sleeping berth |
| Cargo box configuration |
Edge plate thickness 5mm, bottom plate thickness 8mm |
| Cargo box volume |
20.44cbm |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Jiefang JH6 8x4 dumper truck
A dump truck refers to a vehicle that unloads
goods on its own through hydraulic or mechanical lifting. Also known as a dump
truck. It consists of components such as car chassis, hydraulic lifting
mechanism, cargo compartment, and power take-off device.
The
compartments of dump trucks are divided into two types: backward tilting and
lateral tilting. The piston rod movement is controlled by the control system,
and backward tilting is more common. Pushing the piston rod causes the
compartment to tilt, while a few tilt in both directions.
