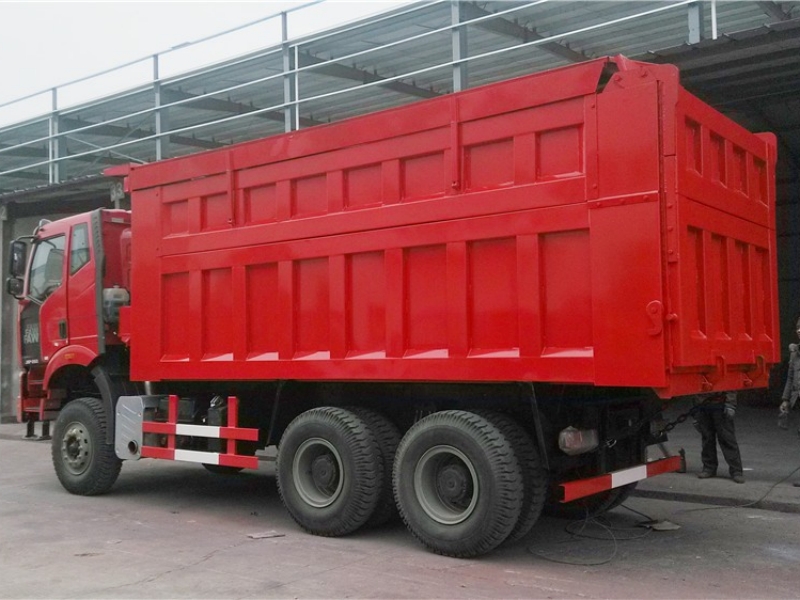

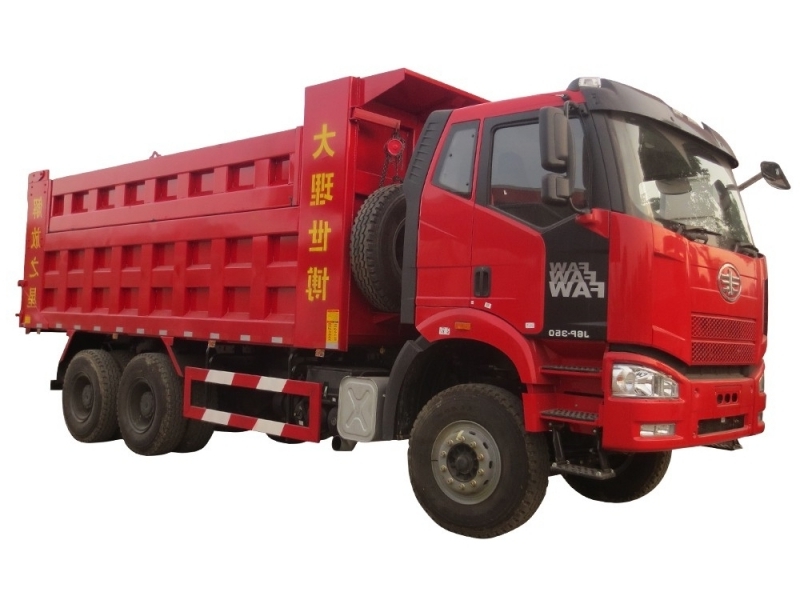

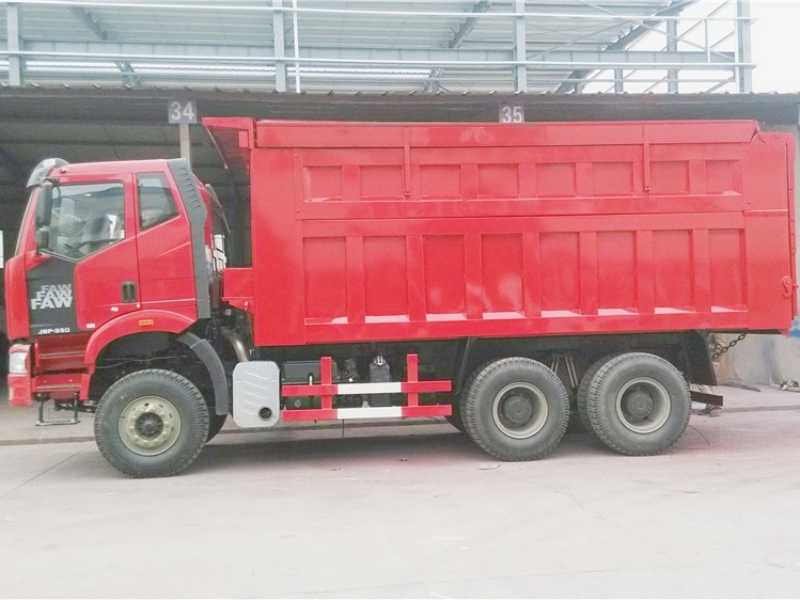

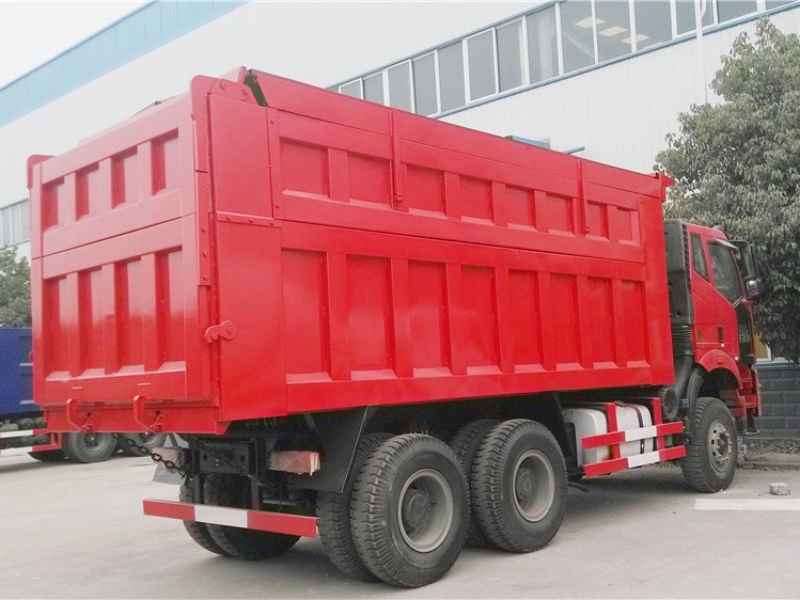

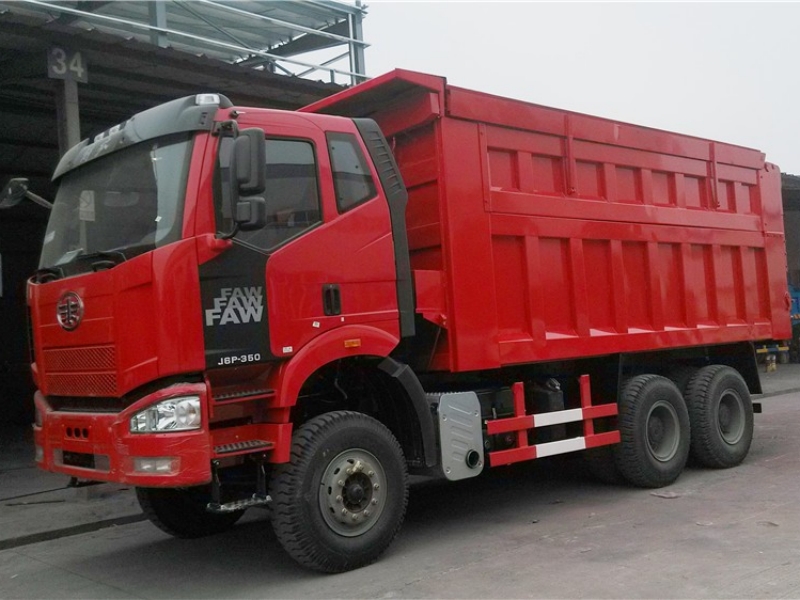

FAW 30 Ton Tipper Truck
2024-10-07 09:54:11 Source：chusheng
FAW 30 Ton Tipper Truck
Chassis brand FAW
Product origin China, Hubei
Delivery time around 10 working days
Supply capacity 1,500 units one year
Tipper truck is often operated in
conjunction with excavators, loaders, belt conveyors, etc. to form a loading,
transporting, and unloading production line for loading and unloading soil,
sand, and loose materials.
Faw tipper truck can automatically tip
backward to unload at a certain angle.
FAW tipper truck greatly saves unloading
time and labor, shortens the transportation cycle, improves production
efficiency, and reduces transportation costs.
| Product Name |
FAW 30 Ton Tipper Truck |
| Driving Type |
6X4 |
| Dump body Volume(cbm) |
18 |
| Rated payload weight(kg) |
30000 |
| Overall Dimension(mm) |
8700x2480x3500 |
| Dump body size(mm) |
5600x2300x1400 |
| Engine brand & model |
FAW |
| Engine type |
4 stroke,water-cooled, straight line 6 cylinders, diesel |
| Axle Quantity |
3 |
| Transmission Type |
CA 9 forwards,1 reverse gear, manul |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
11.00R20, 10+1 spare |
| Cab |
FAW J6P Flat proof, single sleepr, radio, air seat, A/C |
| Dump body material |
High strength manganese steel |
| Main configuration |
1. Side plate 6mm, floor plate 8mm. 2.Front mounted hydraulic lifting cylinder |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
FAW 30 Ton Tipper Truck
A tipper truck refers to a vehicle that unloads
goods on its own through hydraulic or mechanical lifting, also known as a dump
truck. It consists of components such as car chassis, hydraulic lifting
mechanism, cargo compartment, and power take-off device.
Tipper truck, is basically used to transport kinds of
sand, soil, rock, ore, etc material.
Product feature
Faw 10 wheel dump chassis
High strength manganese steel dump box
30 ton payload capacity
Factory direct sale
Product parameters
