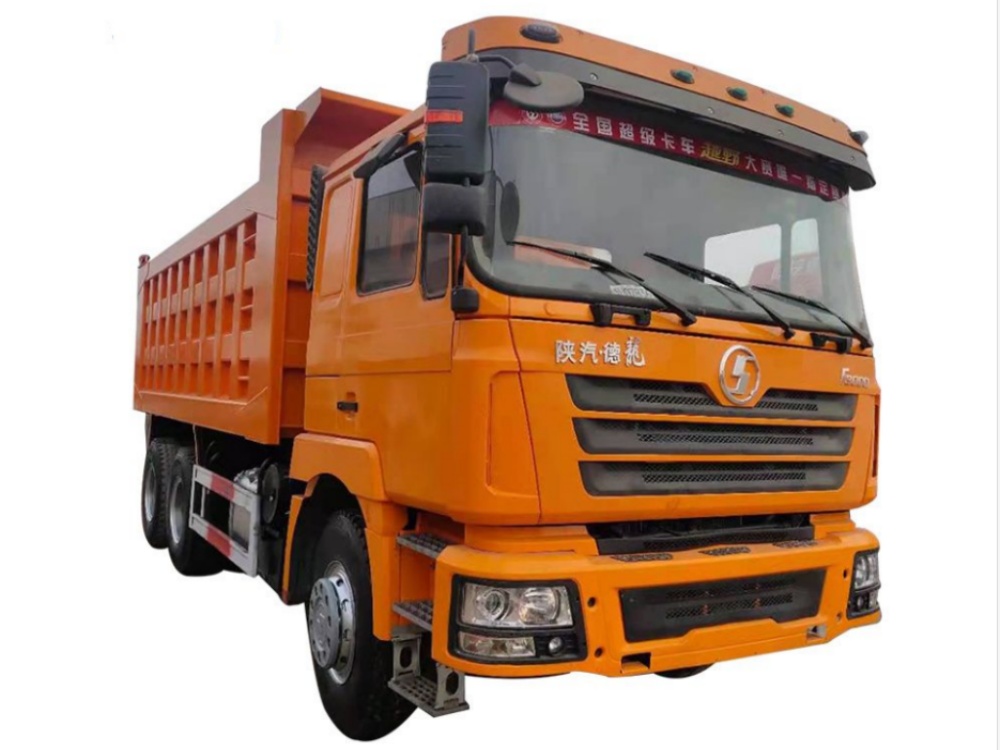

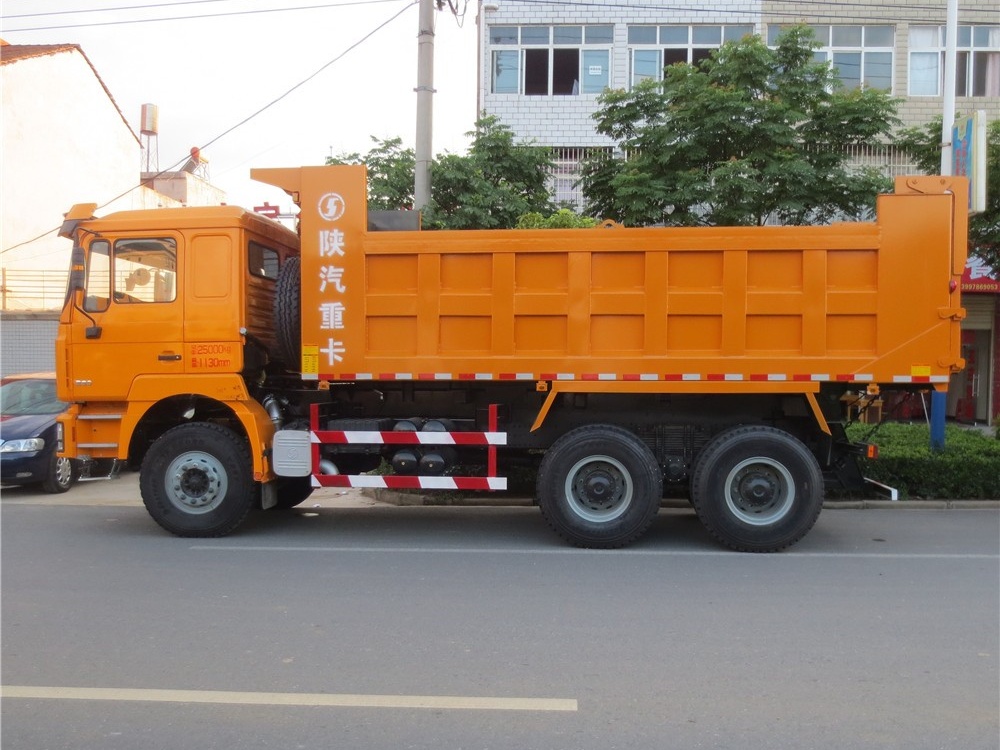

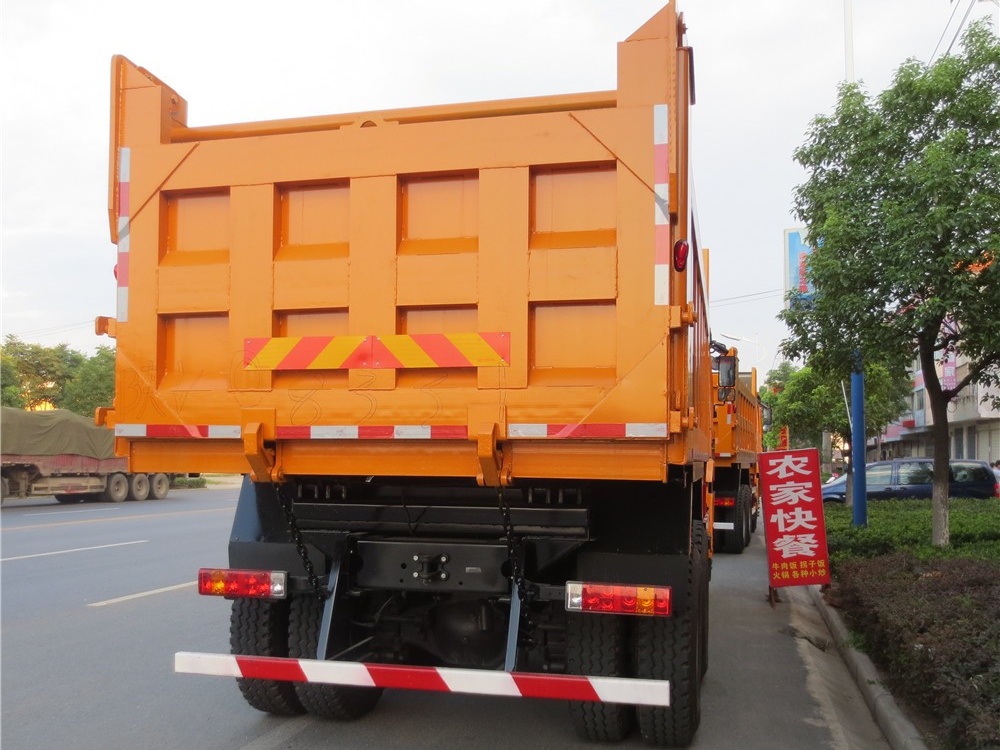

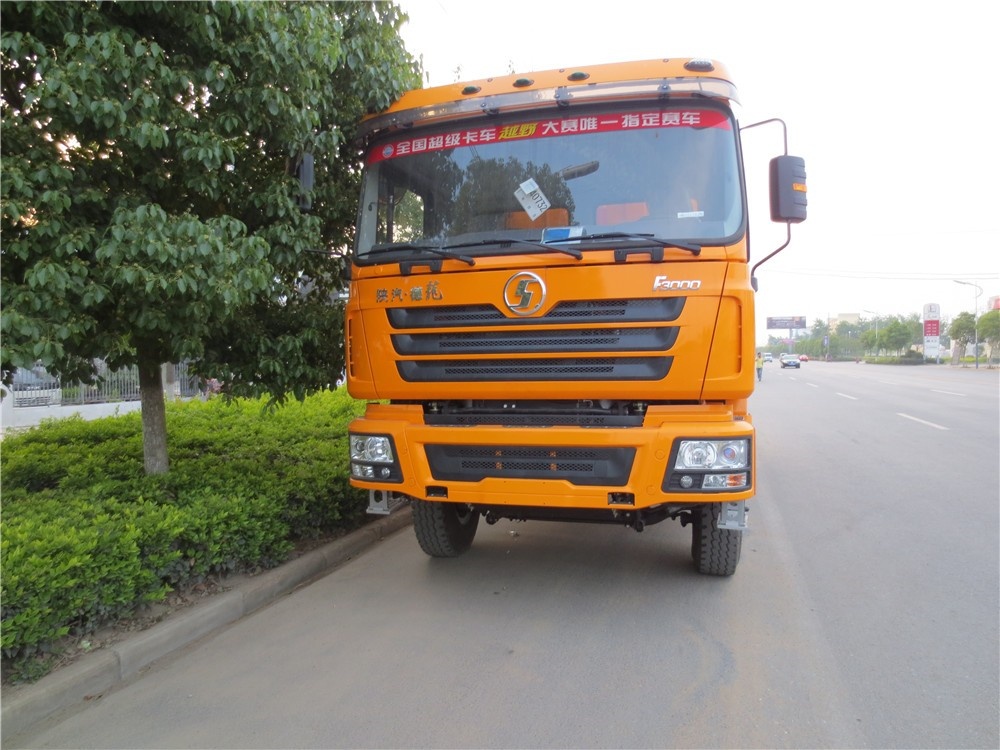

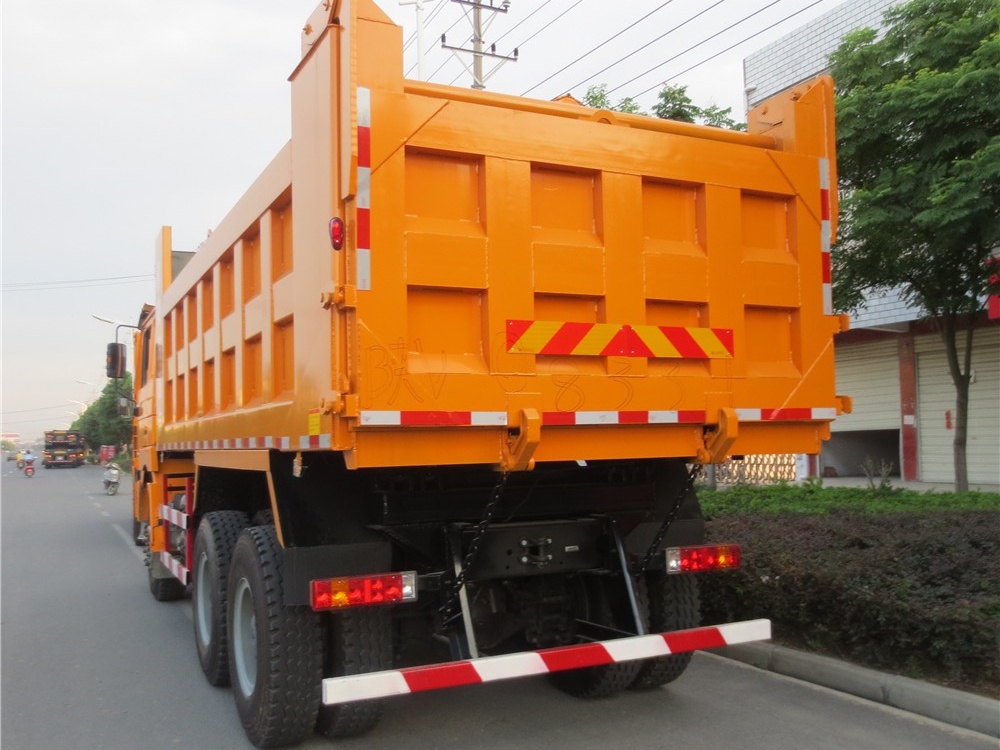

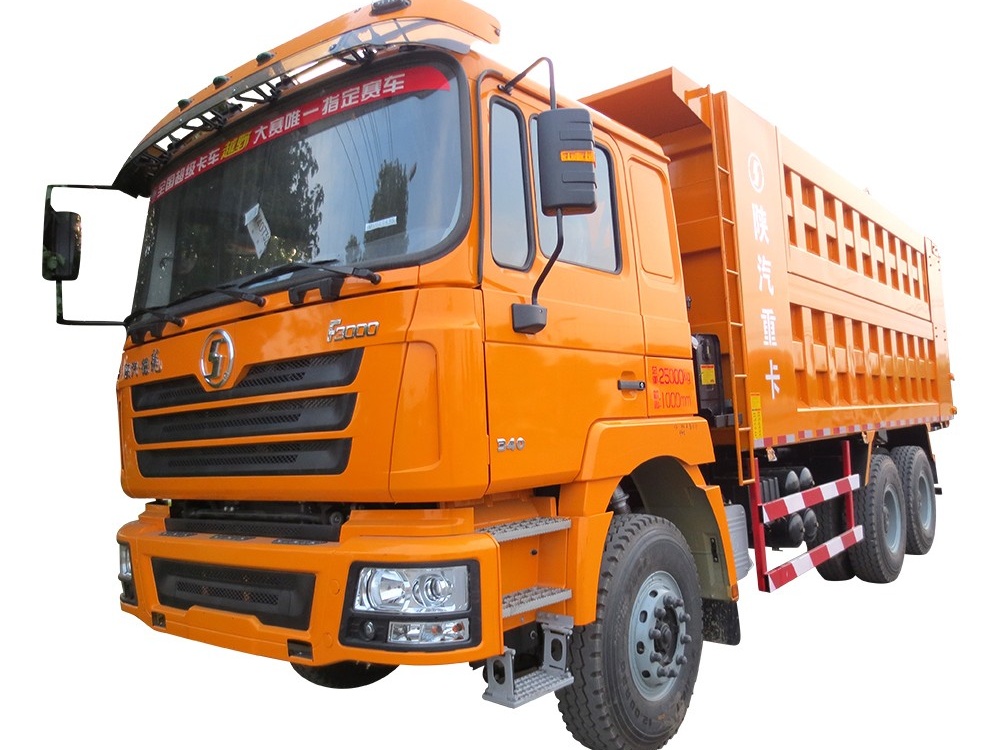

Shacman 35 Ton Dump Truck
2024-10-07 09:54:11 Source：chusheng
Shacman
35 Ton Dump Truck
Chassis
brand shacman
Product
origin China, Hubei
Delivery
time around 10 working days
Supply
capacity 1,500 units one year
In
civil engineering, 35 ton dump truck is often operated in conjunction with excavators,
loaders, belt conveyors, etc.to form a loading, transporting, and unloading
production line for loading and unloading soil, sand, and loose materials.
35
ton dump truck is composed of shacman dump truck chassis, 35 ton dump body and
Hyva hydraulic system, Shacman 35 ton dump truck is very popular in Middle-Asia
countries.
| Product Name |
Shacman 35 Ton Dump Truck |
| Driving Type |
6X4 |
| Dump body Volume(cbm) |
25 |
| Rated payload weight(kg) |
35000 |
| Overall Dimension(mm) |
9800x2470x3500 |
| Dump body size(mm) |
6800x2300x1600 |
| Engine brand & model |
Weichai Power & WP12.375 |
| Engine type |
4 stroke,water-cooled, straight line 6 cylinders, diesel |
| Axle Quantity |
3 |
| Transmission Type |
FAST 9 forwards,1 reverse gear, manul |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
12.00R20, 10+1 spare |
| Cab |
Shacman F3000 flat proof, air seat, single sleeper,radio, AC |
| Dump body material |
High strength manganese steel |
| Main configuration |
1.Side plate 6mm, floor plate 8mm(optional side 8mm ,floor 10mm). 2. Front mounted Hyva or China top hydraulic lifting cylinder |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Shacman
35 Ton Dump Truck
A tipper truck refers to a vehicle that unloads
goods on its own through hydraulic or mechanical lifting, also known as a dump
truck. It consists of components such as car chassis, hydraulic lifting
mechanism, cargo compartment, and power take-off device.
Tipper truck, is basically used to transport kinds of
sand, soil, rock, ore, etc material.
35
ton dump truck is also called 35 ton tipper truck, 35 ton dumper truck, Shacman
35 ton dump truck is mainly used to transport kinds of sand soil,
rock. ore, etc material.
Product
feature
1-Shacman
10 wheel dump truck chassis with Weichai 375hp engine
2-Adopt
China high strength manganese steel, strong and sturdy;
3-35
ton loading capacity
Product parameters
