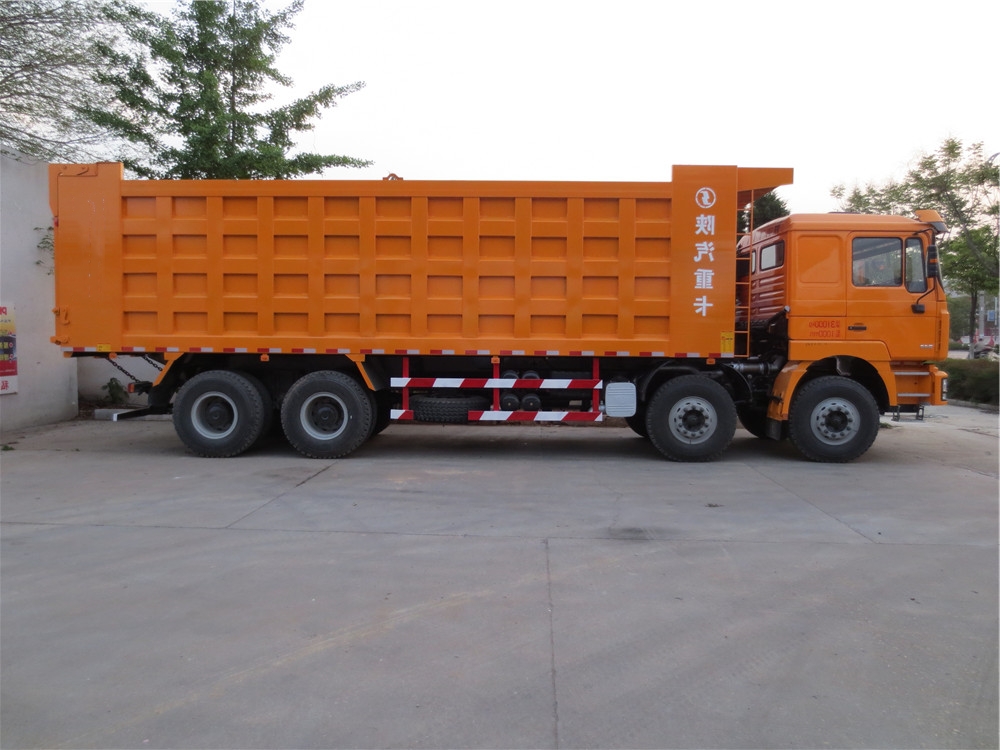

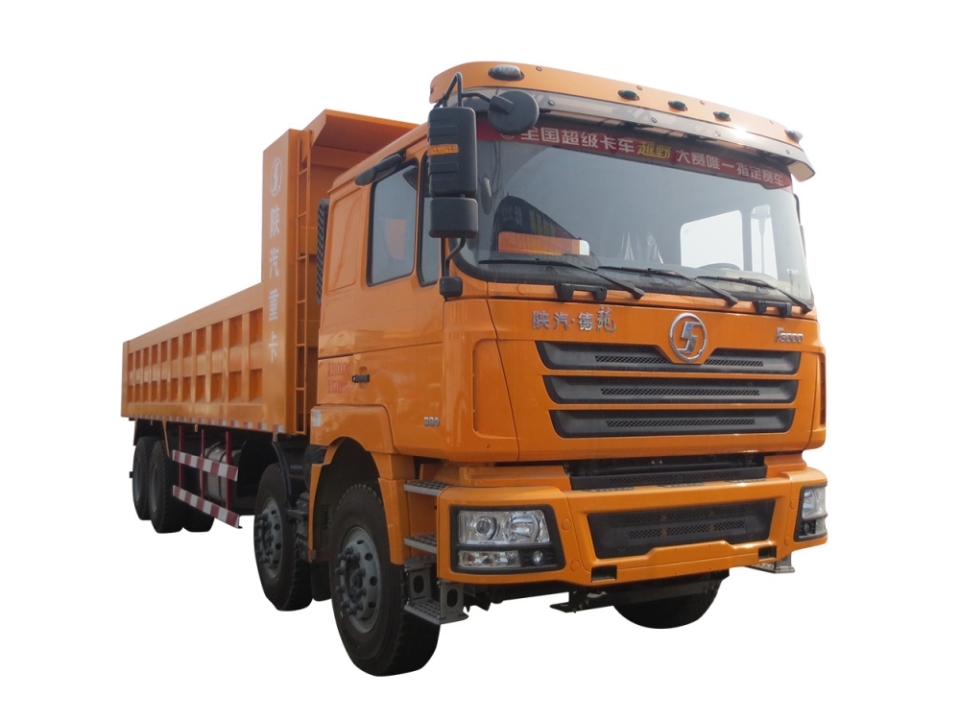

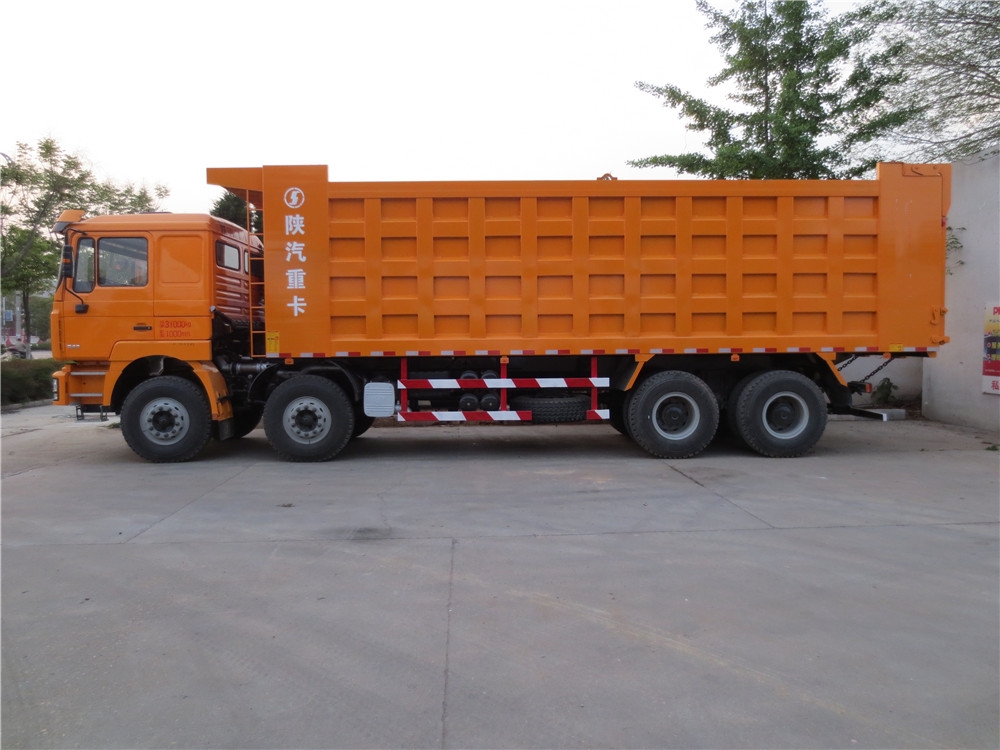

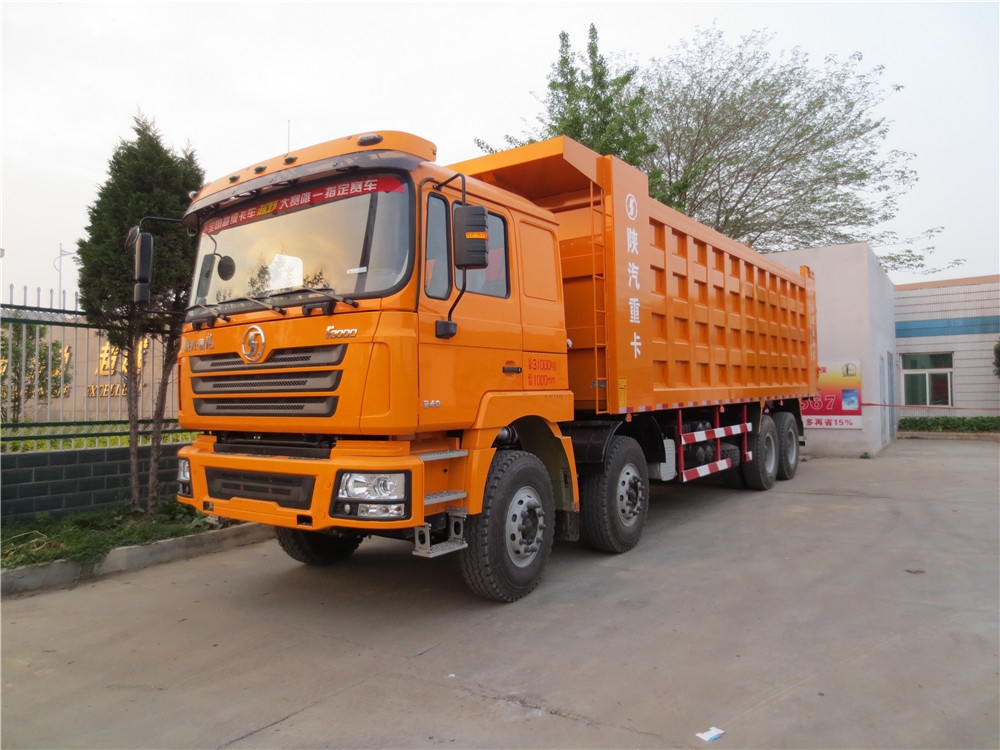

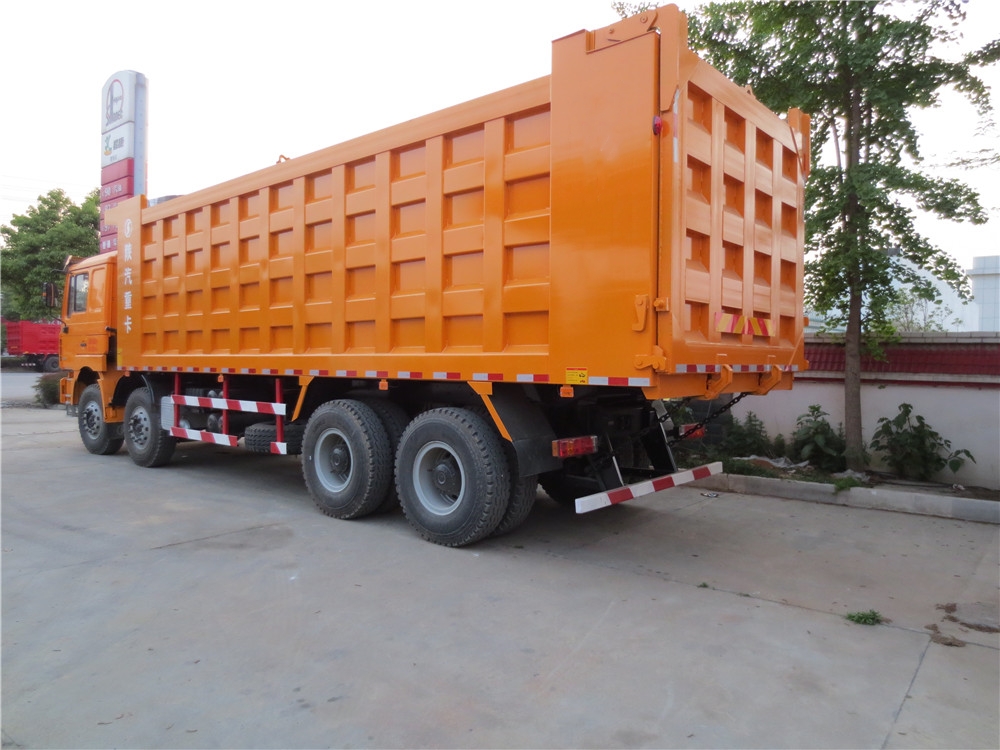

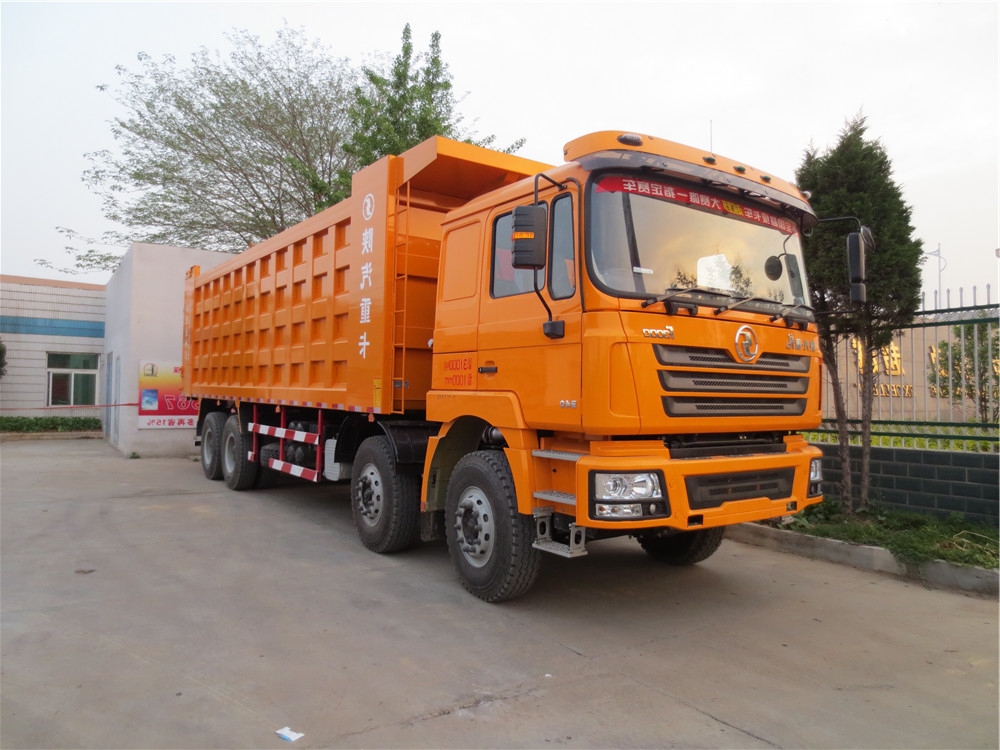

Shacman Delong 8x4 50 Ton Dump Truck
2024-10-07 09:54:11 Source：chusheng
Shacman Delong 8x4 50 Ton Dump Truck
Chassis brand Shacman
Product origin China, Hubei
Delivery time around 10 working days
Supply capacity 1,500 units one year
Shacman dump truck is often operated in
conjunction with excavators, loaders, belt conveyors, etc. to form a loading,
transporting, and unloading production line for loading and unloading soil,
sand, and loose materials
50 ton Shacman dump truck can automatically
backward tip to unload at acertain angle, greatly saves unloading time and
labor, shortens the transportation cycle, improves production efficiency, and
reduces transportation costs.
| Product Name |
Shacman Delong 8x4 50 Ton Dump Truck |
| Driving Type |
8x4 |
| Dump body Volume(cbm) |
30 |
| Rated payload weight(kg) |
50000 |
| Overall Dimension(mm) |
11900x2500x3500 |
| Dump body size(mm) |
7800x2300x1600 |
| Engine brand & model |
Weichai Power |
| Engine type |
4 stroke,water-cooled, straight line 6 cylinders, diesel |
| Axle Quantity |
4 |
| Transmission Type |
FAST 10 forwards, 2 reverse gear, manual |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
12.00R20, 12+1 spare |
| Cab |
Flat proof, single sleeper, air seat, radio, automatic air conditioning |
| Dump body material |
High strength manganese steel |
| Main configuration |
1.Side plate 8mm, floor plate 10mm 2. Front mounted hydraulic lifting cylinder. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Shacman Delong 8x4 50 Ton Dump Truck
Application and Introduction
Shacman dump truck refers to a vehicle that
unloads goods by hydraulic or mechanical lifting. Also known as tipper truck.
50 ton Shacman dump truck is composed of automobile chassis. hydraulic lifting
mechanism, dump box and power take-of device. Shacman dump tuck is mainly used
to transport kinds of sand, soil, rock, ore, etc material.
Product feature
Shacman 12 wheel dump truck chassis
Made of China high strength manganese
steel. strong and sturdy.
50 ton payload capacity
Factory direct sale
Product parameters
