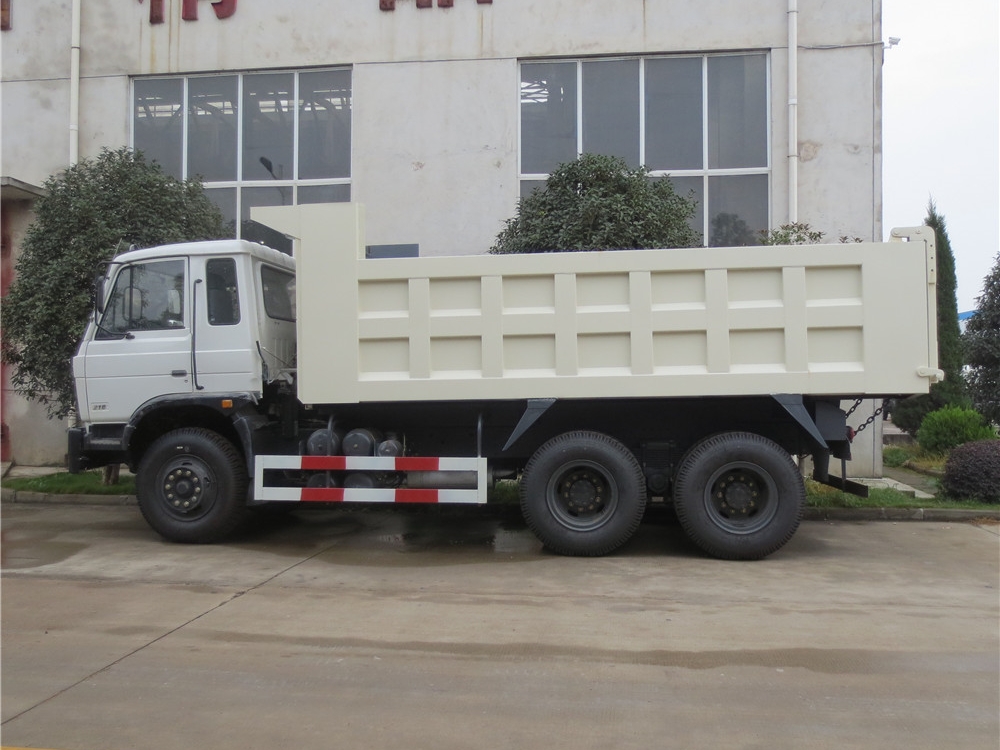

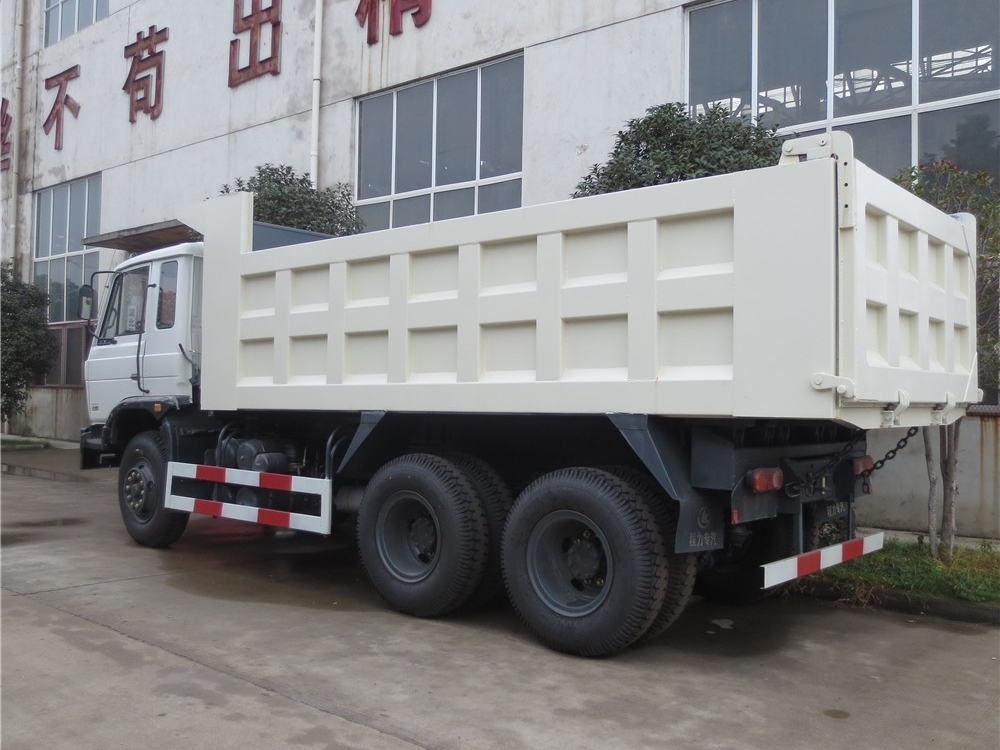

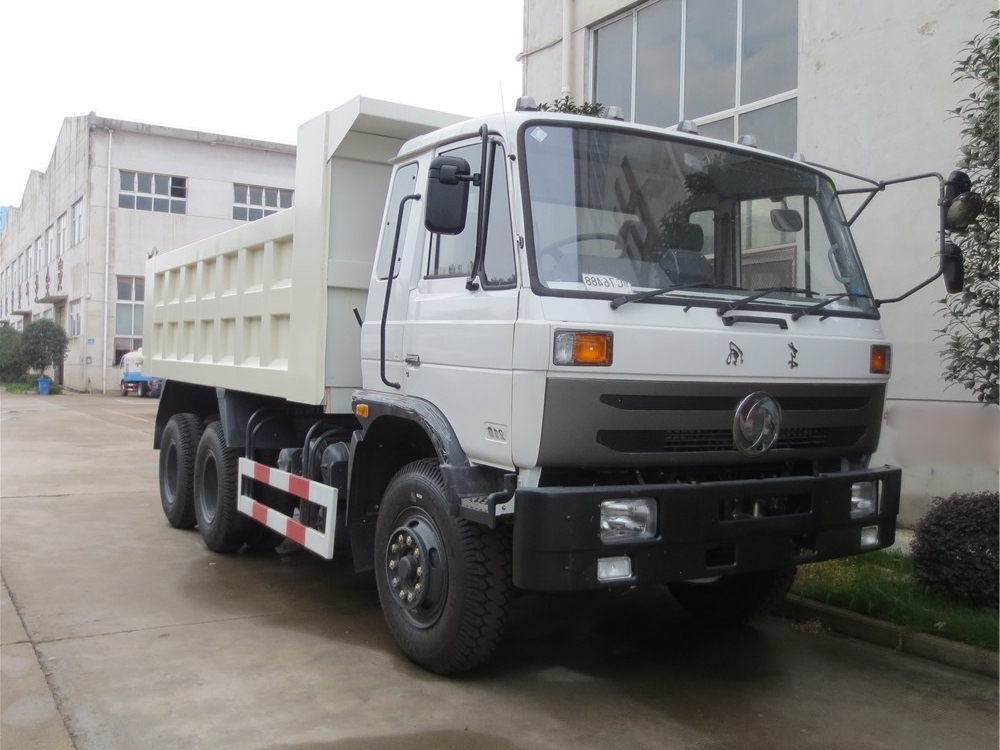

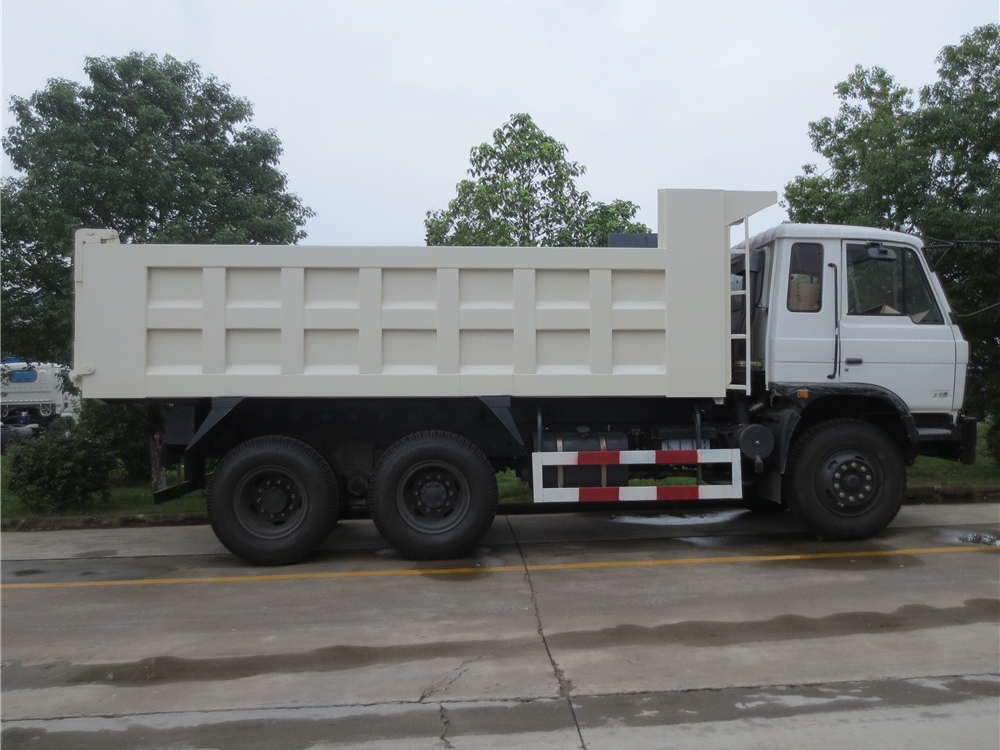

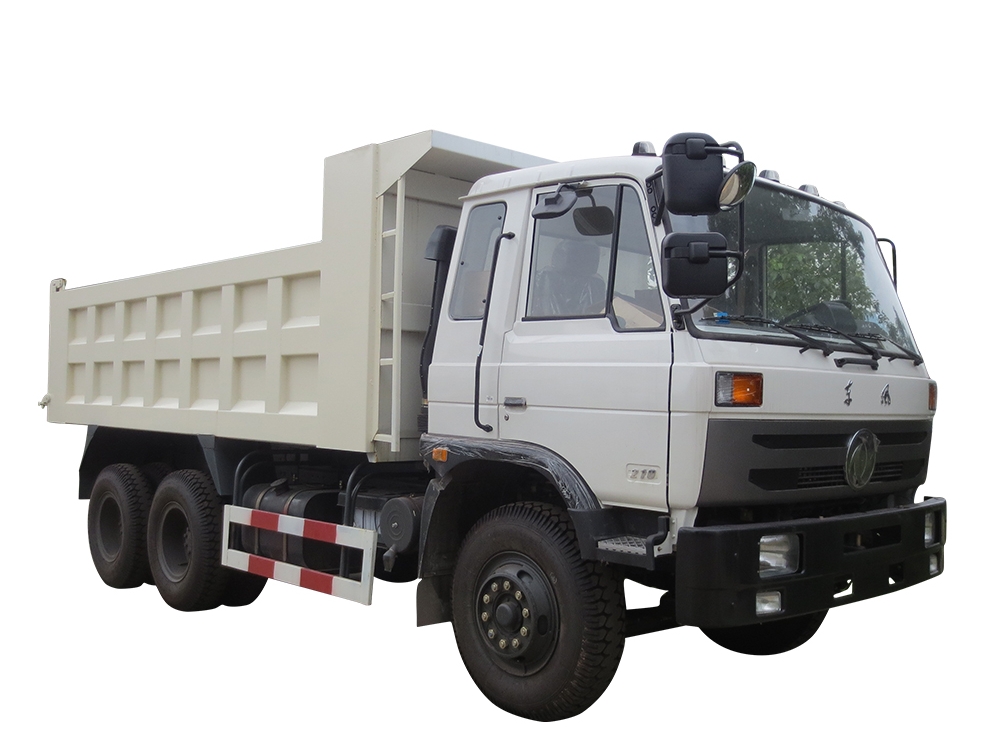

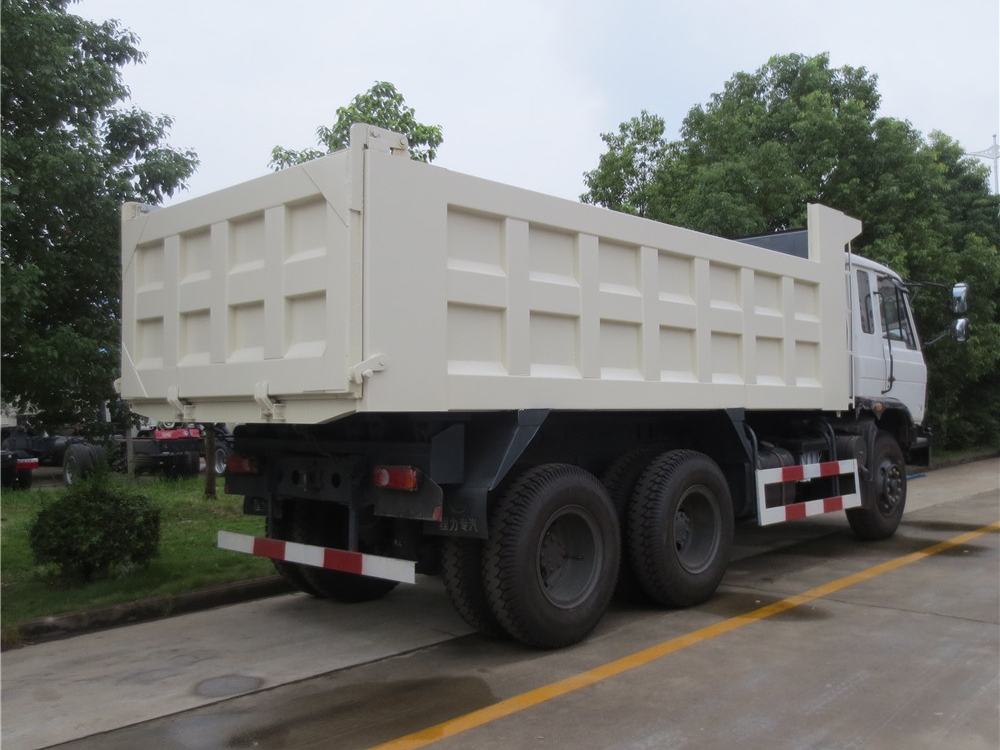

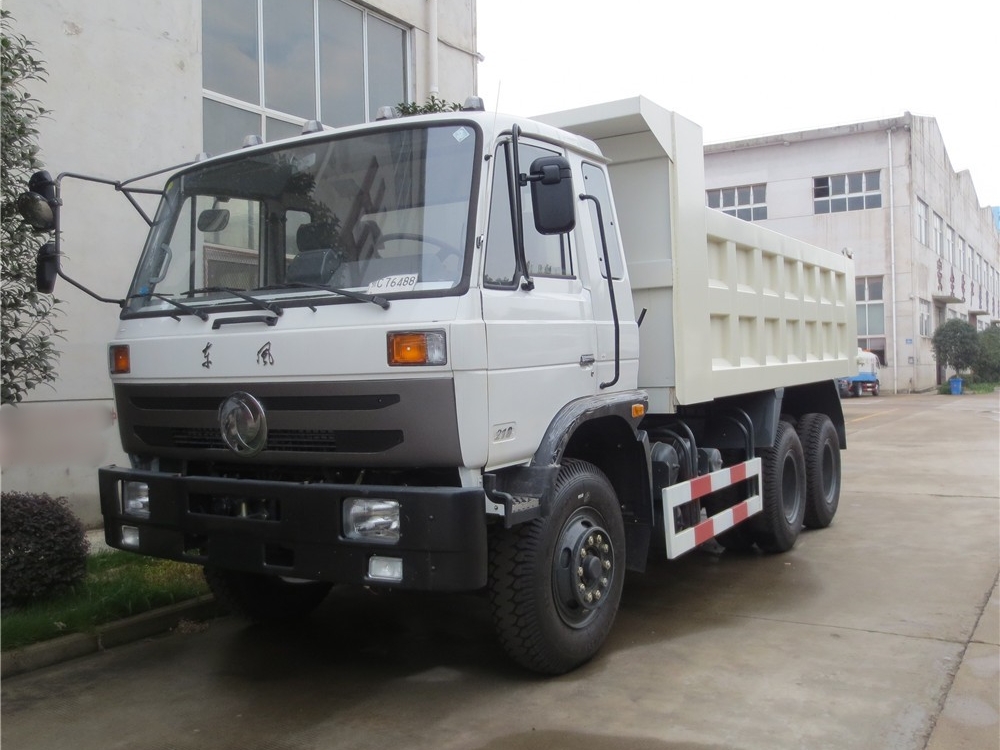

Dongfeng 6X4 25 Ton Tipper Truck
Chassis brand Dongfeng
Product origin China, Hubei
Delivery time around 10 working days
Supply capacity 1,500 units one year
25 ton tipper truck is often operated in conjunction with excavators, loaders belt conveyors, etc.to form a loading, transporting, and unloading production line for loading and unloading soil, sand, and loose materials.
Dongfeng 25 ton tipper truck can automatically tip backward to unload at a certain angle, greatly saves unloading time and labor, shortens the transportation cycle, and reduces transportation costs.
| Product Name | Dongfeng 6X4 25 Ton Tipper Truck |
| Driving Type | 6X4 |
| Dump body Volume(cbm) | 15 |
| Rated payload weight(kg) | 20000 |
| Overall Dimension(mm) | 8600x2470x3360 |
| Dump body size(mm) | 5400x2300x1300 |
| Engine brand & model | DONGFENG Cummins |
| Engine type | 4 stroke,water-cooled, straight line 6 cylinders, diesel |
| Axle Quantity | 3 |
| Transmission Type | FAST 8 forwards,1 reverse gear, manual |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 10.00R20, 10+1 spare |
| Cab | Flat proof, single sleeper,radio,AC |
| Dump body material | High strength manganese steel |
| Main configuration | 1.Side plate 6mm, floor plate 8mm 2. Front mounted hydraulic lifting cylinder. |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 6X4 25 Ton Tipper Truck
25 ton tipper truck is also called 25 ton dump truck, 25 ton dumper truck, is mainly used to transport kinds of sand, sol, rock, ore, etc material.
Product feature
Dongfeng 10 wheel chassis with Dongfeng Cummins engine
High strength manganese steel dump box
25 ton payload capacity
Product parameters
