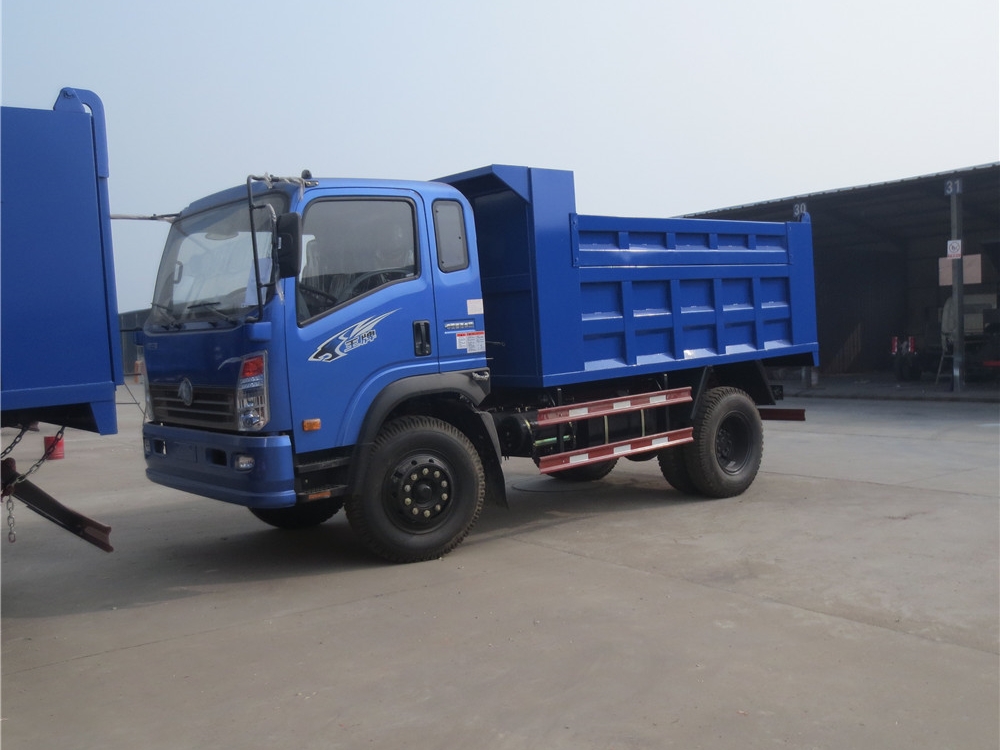

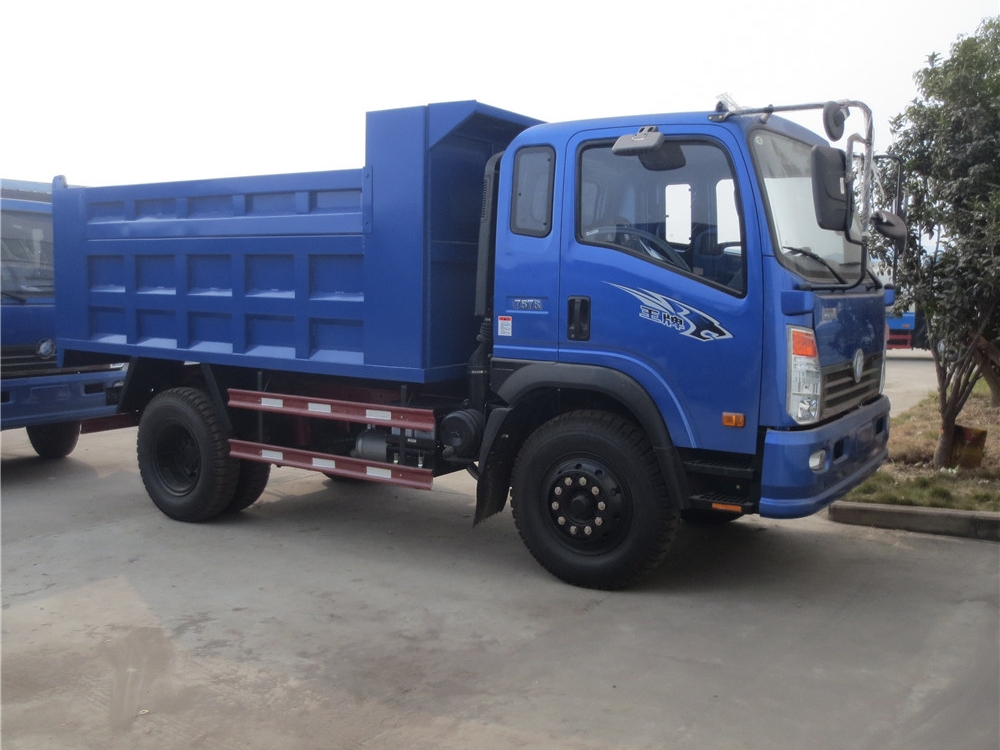

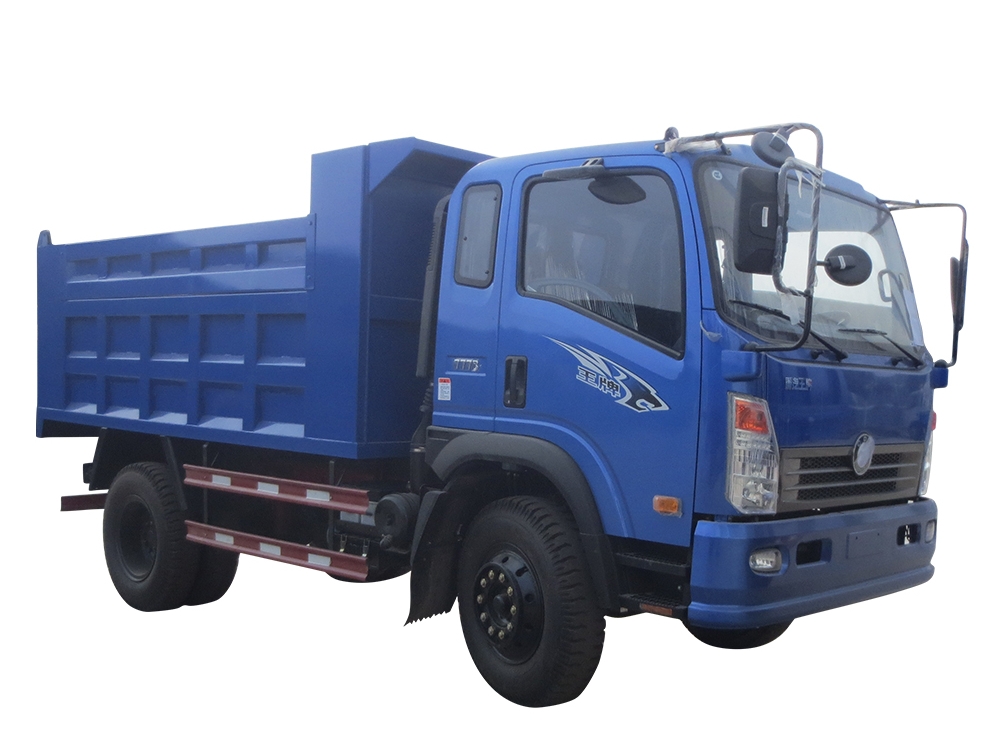

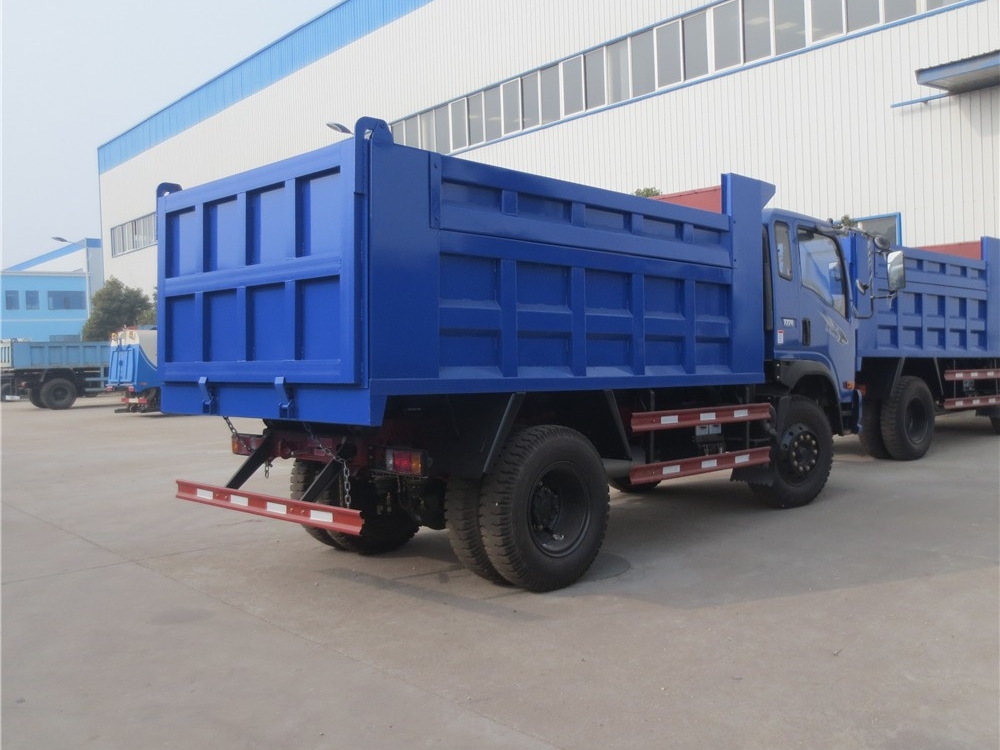

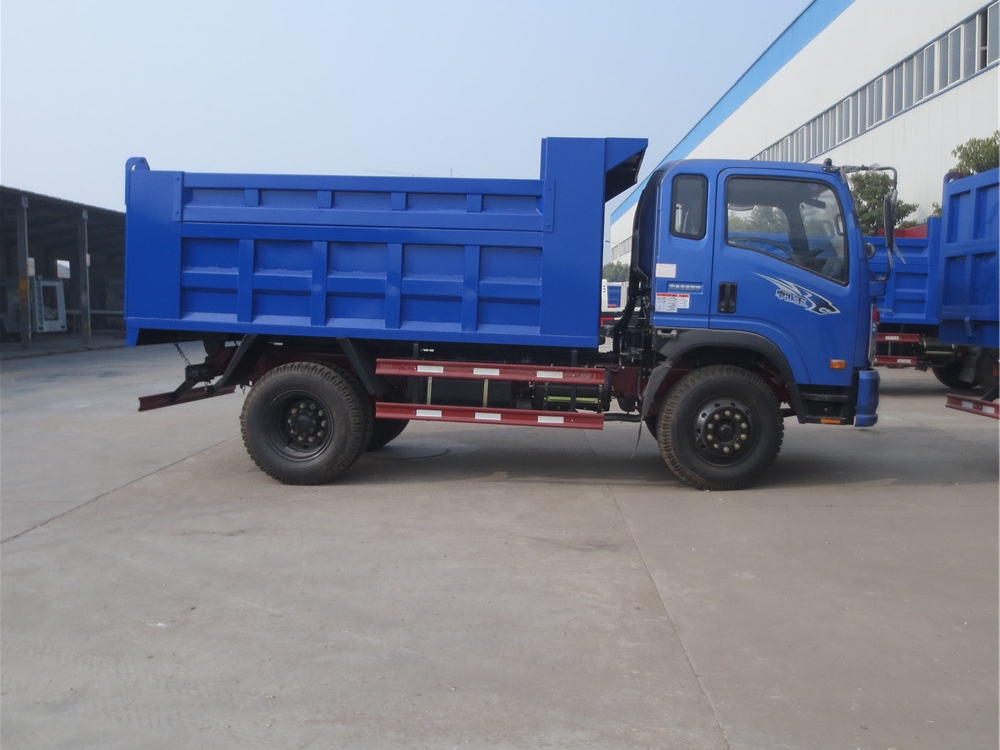

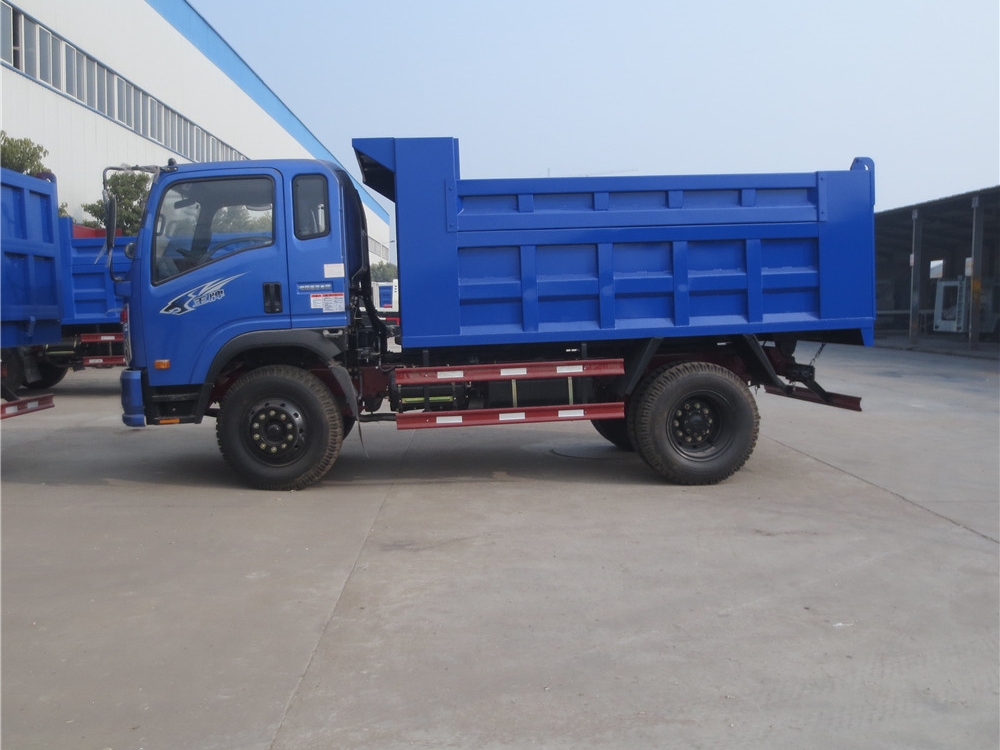

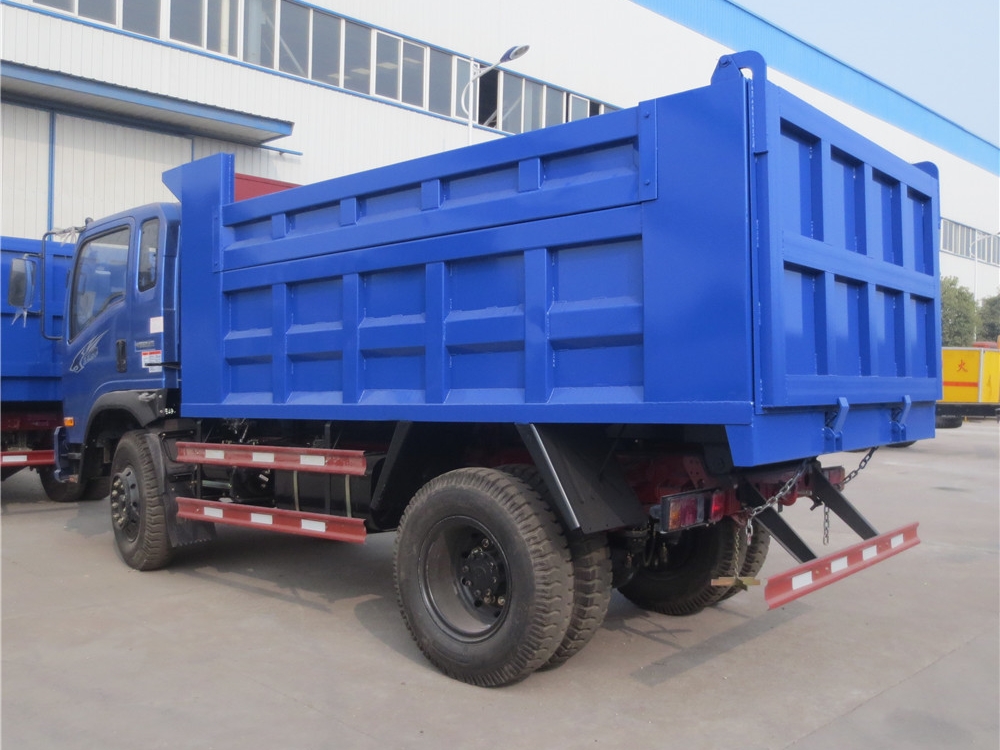

Sinotruk Wangpai 3 Ton dumper Truck
Chassis brand Sinotruk Wangpai
Product origin China, Hubei
Delivery time around 10 working days
Supply capacity 1,500 units one year
Dump truck 3 ton is often operated in conjunction with excavators, loaders etc., to form a loading, transporting, and unloading production line for loading and unloading soil, sand, and loose materials.
Dump body of dump truck 3 ton can automatically tip over to unload at a certain angle, greatly saves unloading time and labor, improves production efficiency, and reduces transportation cost
| Product Name | Sinotruk Wangpai 3 Ton dumper Truck |
| Driving Type | 4X2 |
| Dump body Volume(cbm) | 3 |
| Rated payload weight(kg) | 3000 |
| Overall Dimension(mm) | 5700x2300x2500 |
| Dump body size(mm) | 3760x2200x600 |
| Engine brand & model | Dongfeng Chaoyang or Yunnei |
| Engine type | 4 stroke,water-cooled, straight line 4 cylinders, diesel |
| Axle Quantity | 2 |
| Transmission Type | 5 forwards,1 reverse gear, manual |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 7.50R16, 6+1 spare |
| Cab | Flat proof, single sleeper, radio, AC |
| Dump body material | High strength manganese steel |
| Main configuration | 1. Side panel 3mm, bottom panel 4mm 2. Middle or front hydraulic lifting cylinder. |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Sinotruk Wangpai 3 Ton dumper Truck
Application and Introduction:
Dump Truck 3 ton also means tipper truck 3 ton, dump truck 3 ton, is mainly used to transport small duty sand, gravel, bulk asphalt, etc kinds of material.
Product feature:
Sinotruk Wangpai light duty dump truck chassis
China high strength manganese steel dump body
5 ton dump capacity
Factory direct sale
Product parameters
