Dongfeng Mini Dumper Truck
Chassis brand Dongfeng
Product origin China, Hubei
Delivery time around 10 working days
Supply capacity 1,500 units one year
Mini dumper truck is mainly used for road maintenance, Dongfeng mini dumper truck is mainly used for loading and transport soil, sand, crushed stone, asphalt mixture,etc.
In the road maintenance process, Dongfeng mini dumper truck can greatly save unloading time and labor, shorten the transportation cycle, improve production efficiency, and reduce transportation costs.
| Product Name | Dongfeng Mini Dumper Truck |
| Driving Type | 4X2 |
| Dump body Volume(cbm) | 3 |
| Rated payload weight(kg) | 3000 |
| Overall Dimension(mm) | 5800x2300x2500 |
| Dump body size(mm) | 2860x2200x600 |
| Engine brand & model | DONGFENG Chaoyang or Yunnei power |
| Engine type | 4 stroke,water-cooled, straight line 4 cylinders, diesel |
| Axle Quantity | 2 |
| Transmission Type | 5 forwards,1 reverse gear, manul |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 7.00R10, 6+1 spare |
| Cab | flat proof, double row, radio, AC |
| Dump body material | High strength manganese steel |
| Main configuration | 1.Side plate 3mm, floor plate 4mm. 2. Middle double hydraulic lifting cylinder |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

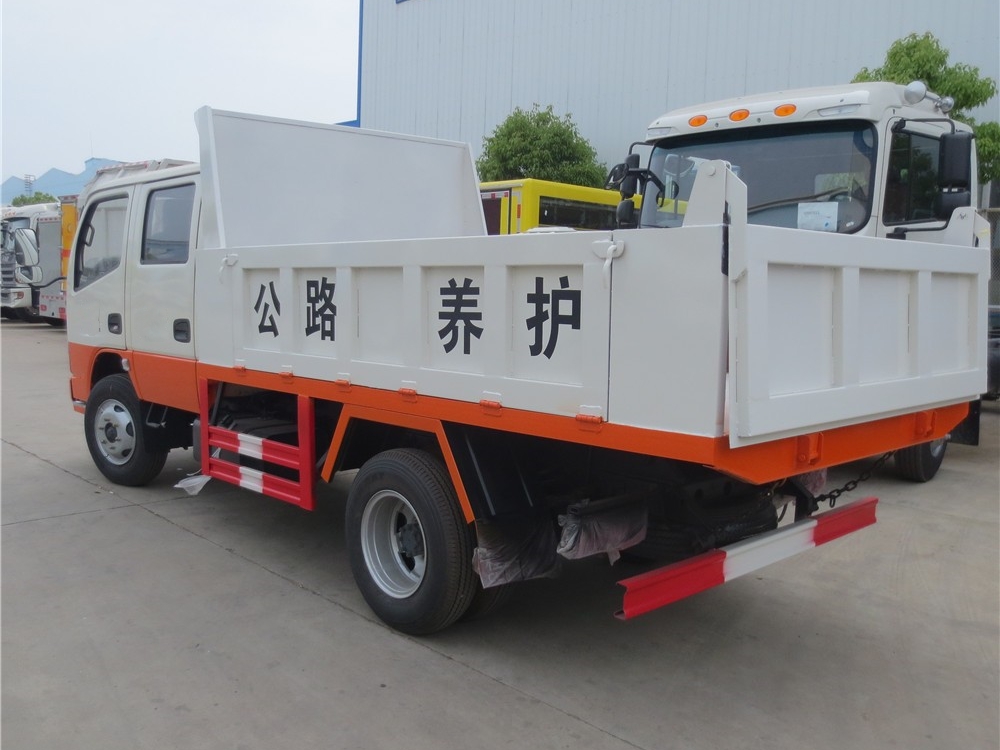

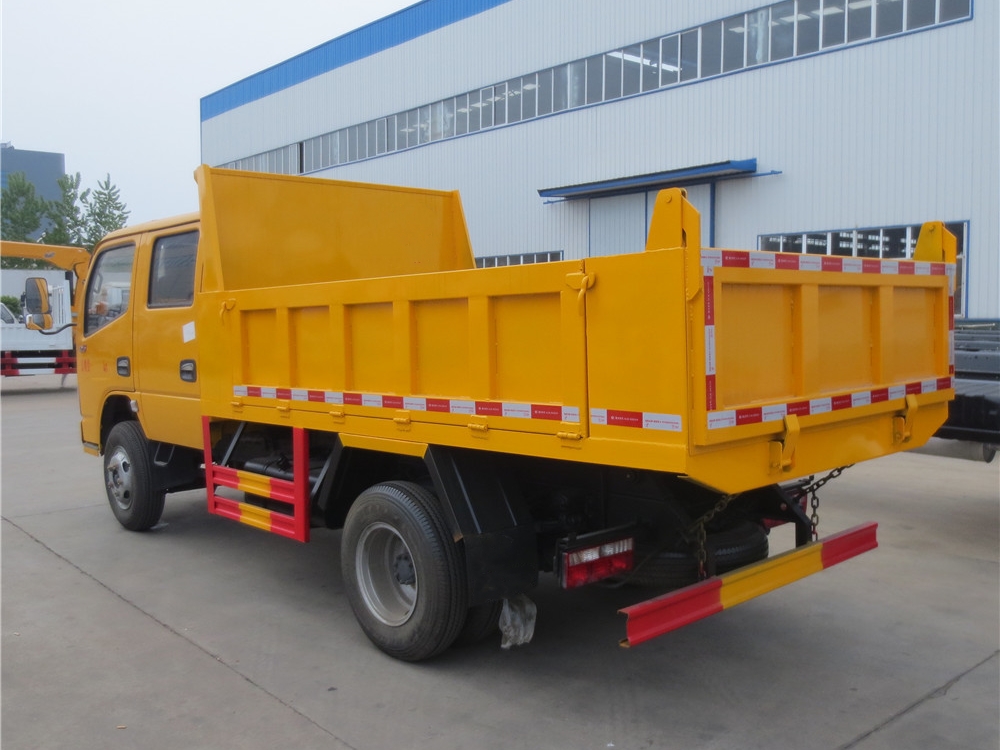

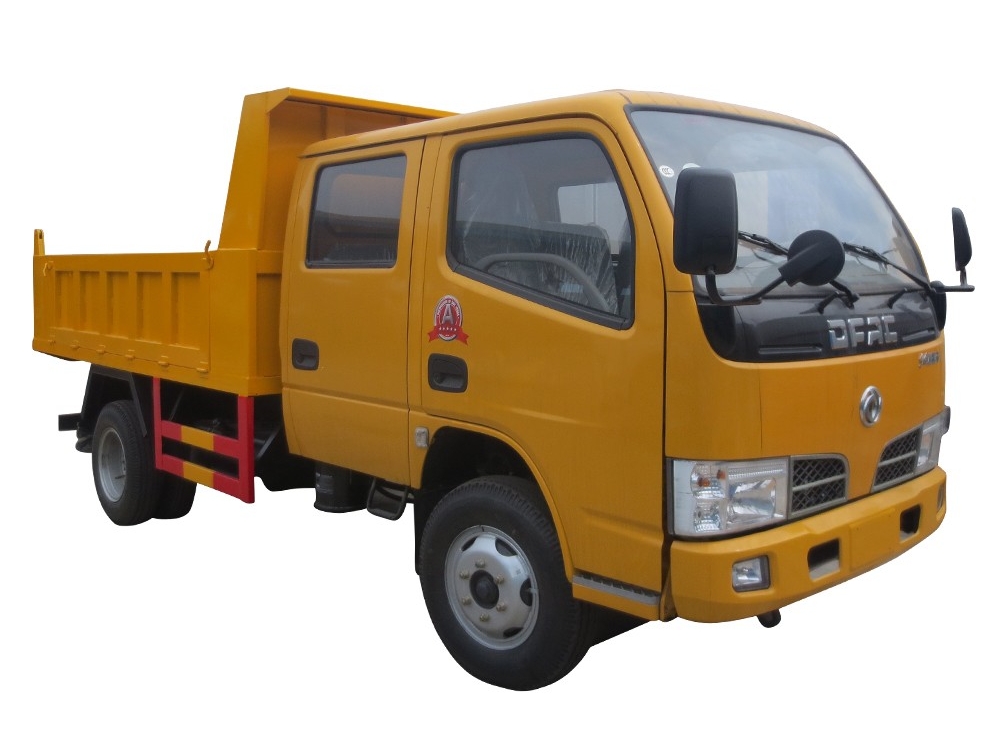

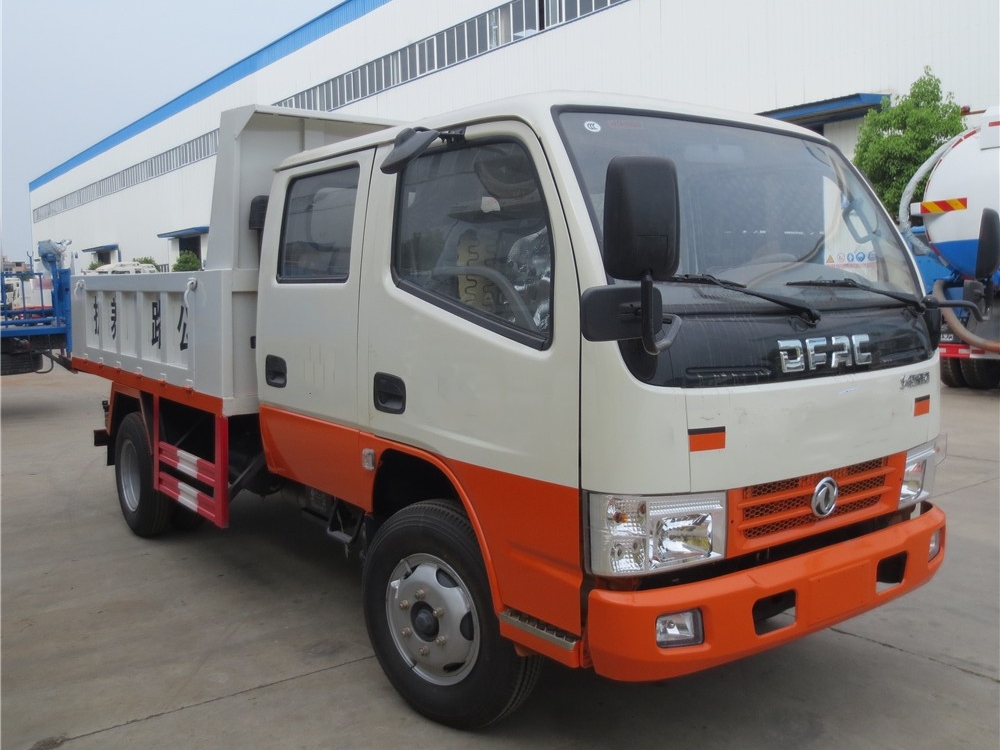

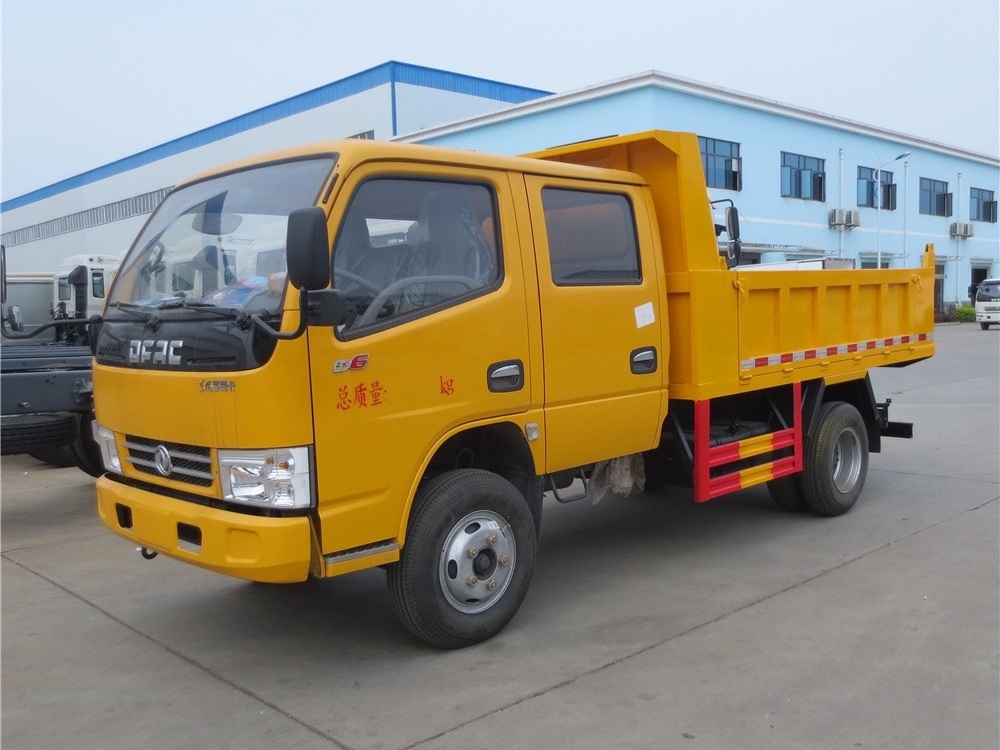

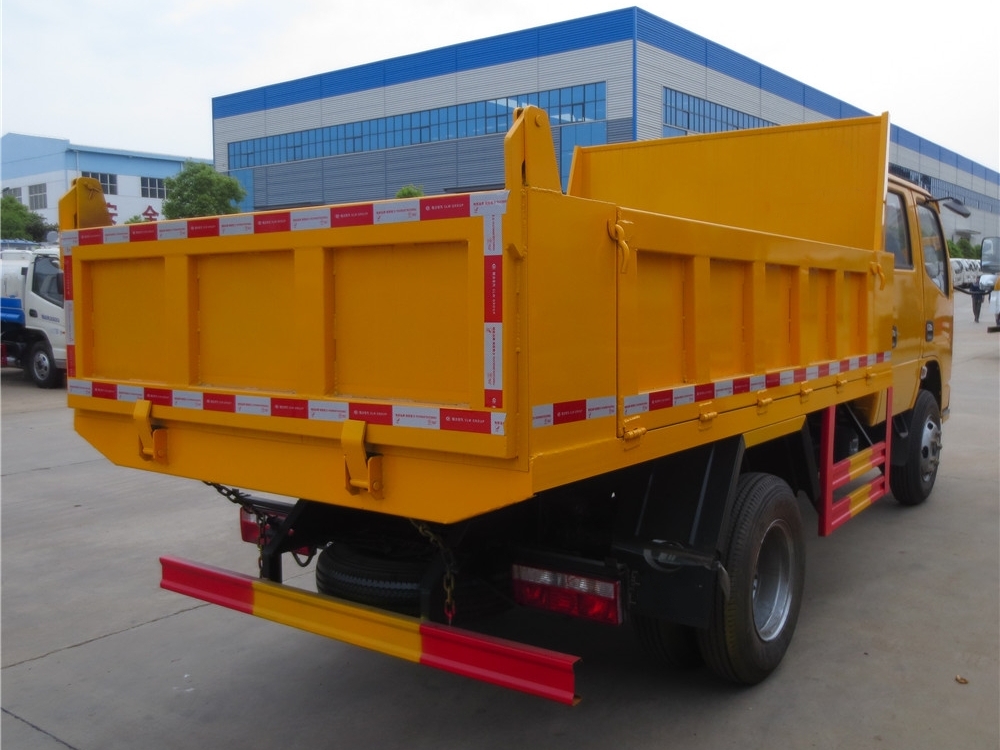

Dongfeng Mini Dumper Truck
Mini dumper truck is also called mini tipper truck, is mainly used to transport kinds of sand, soil, gravel, asphalt mixture, etc
Product feature
Dongfeng chassis with double row cab
3 ton payload capacity
High strength manganese steel dump box
Factory direct sale
Product parameters
