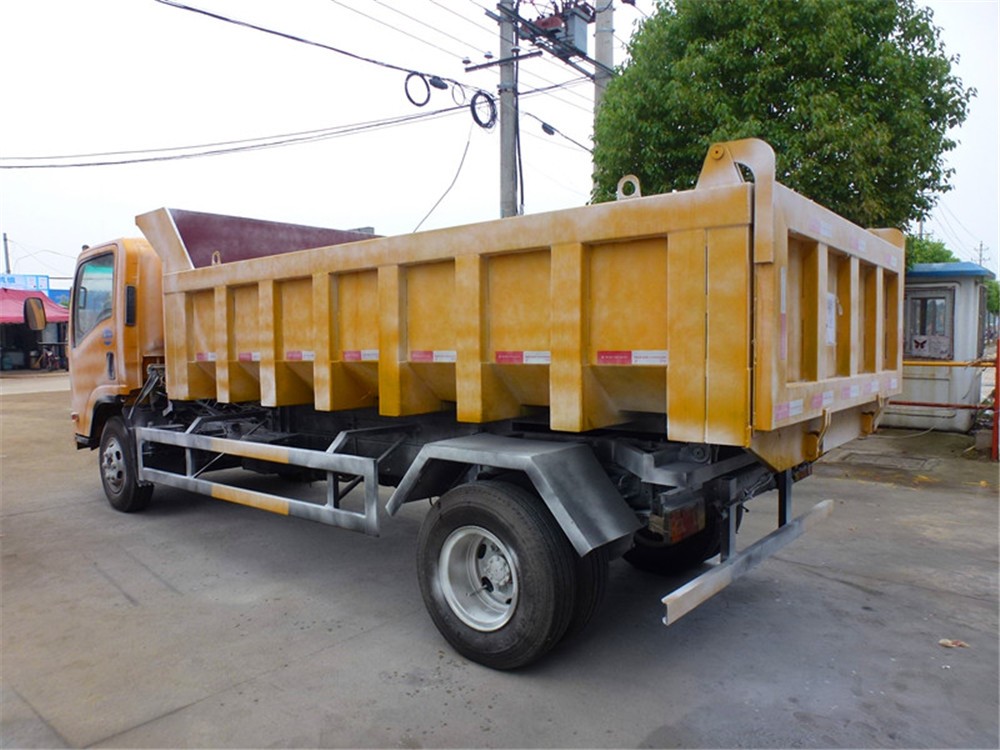

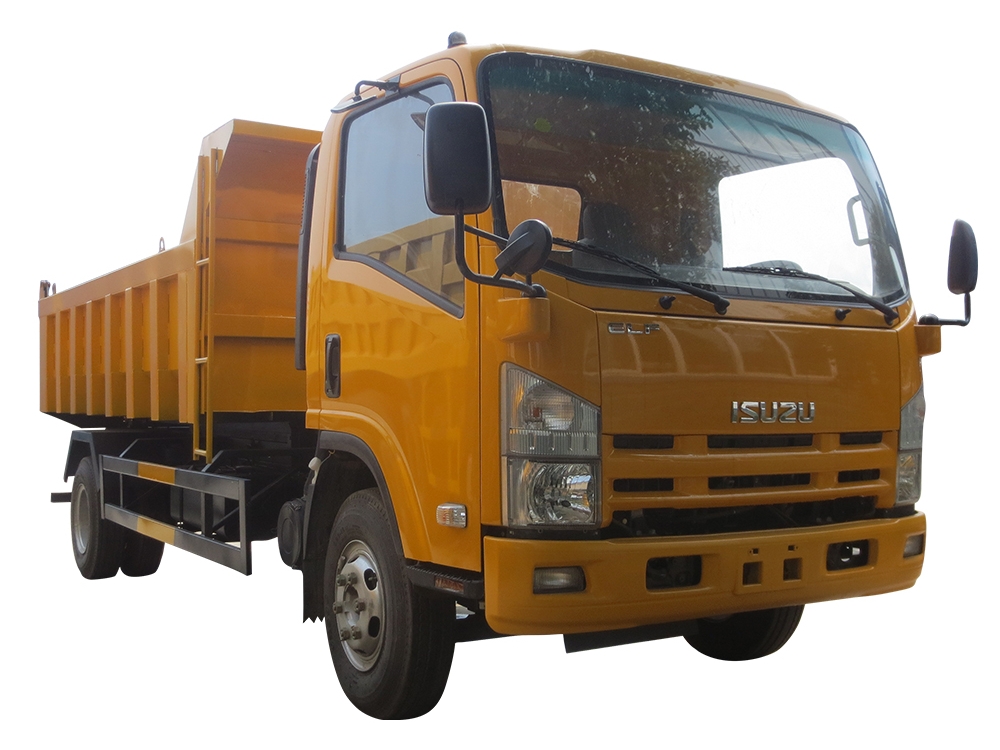

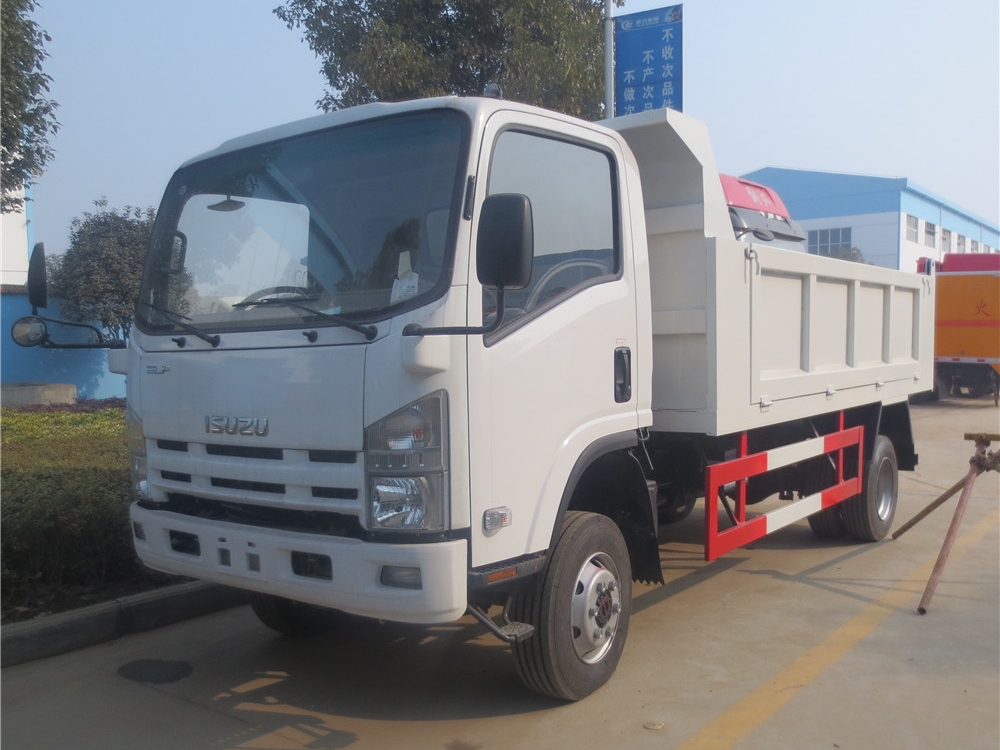

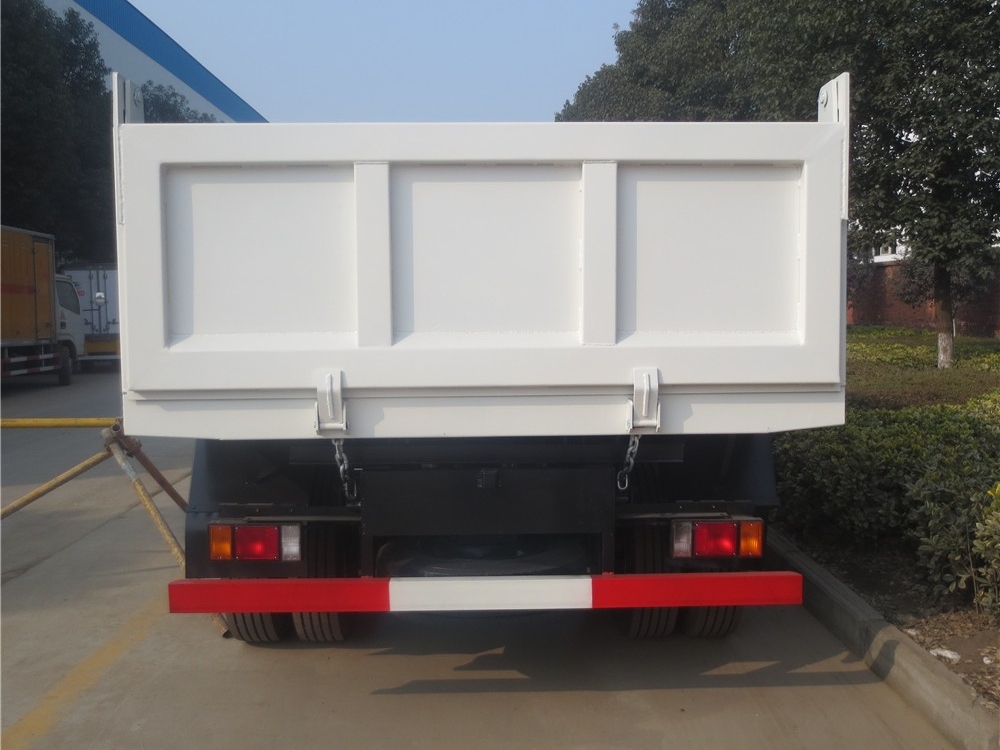

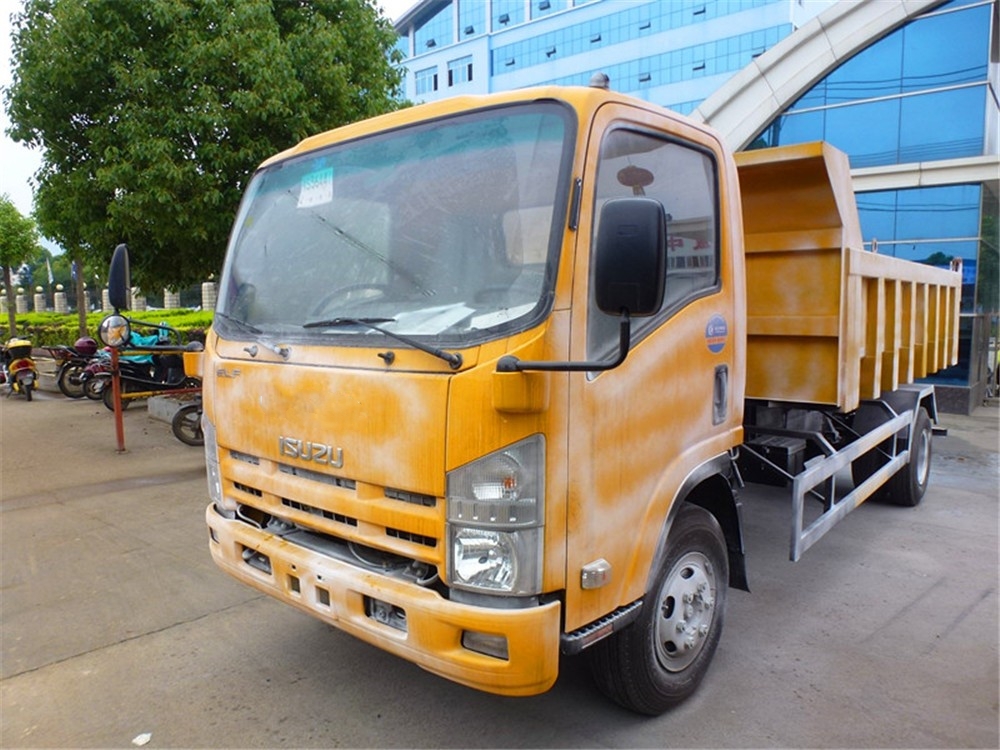

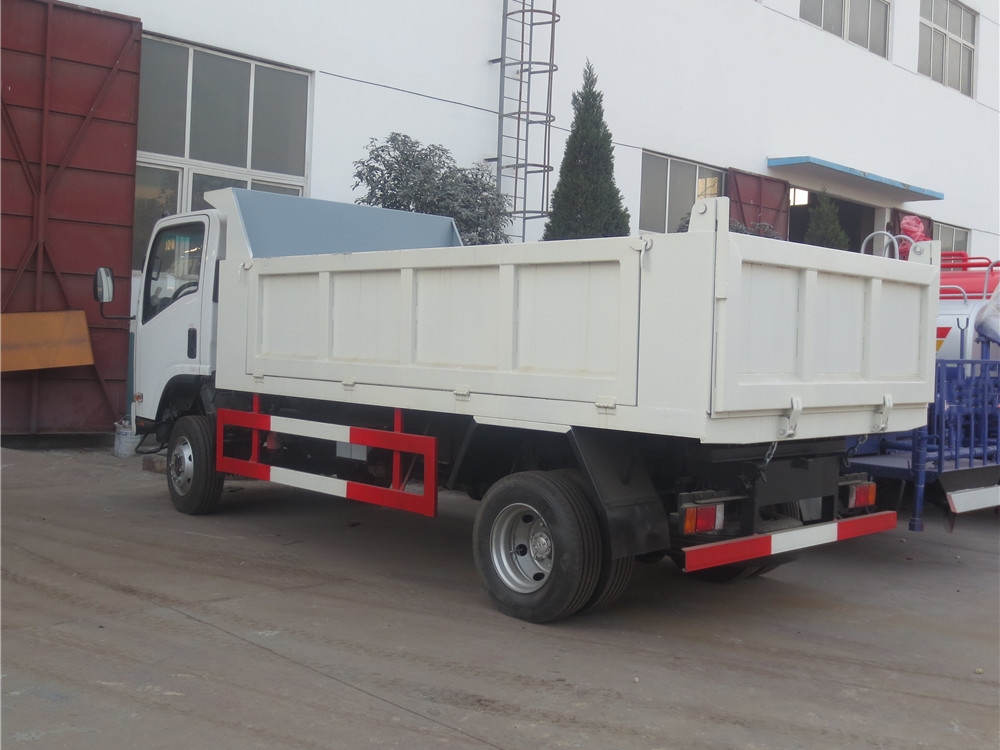

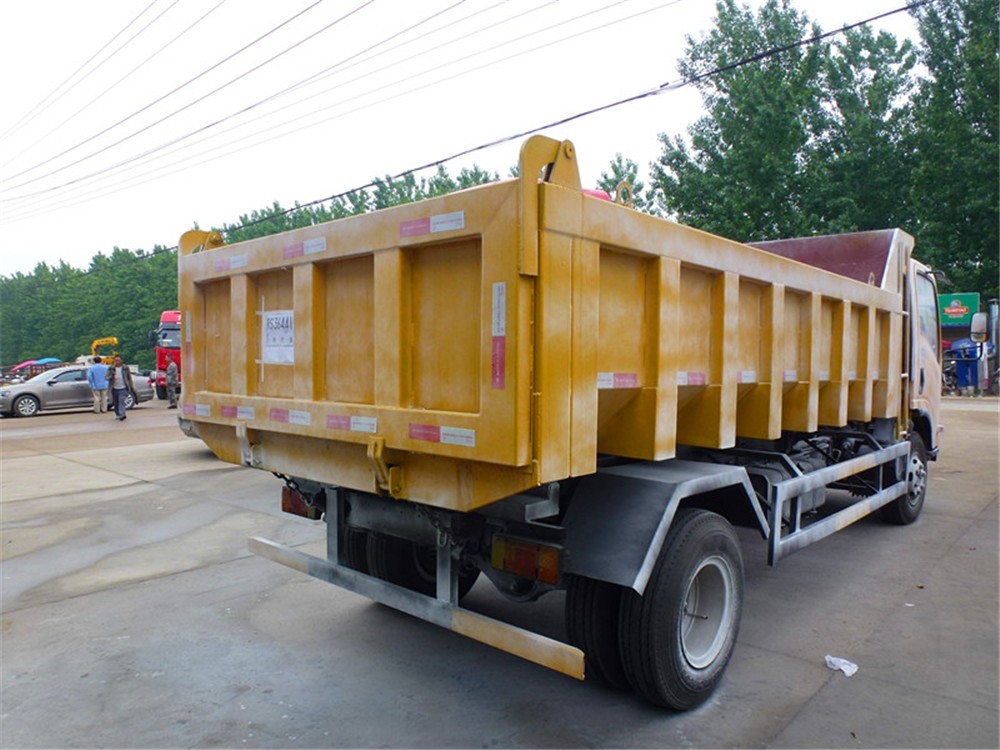

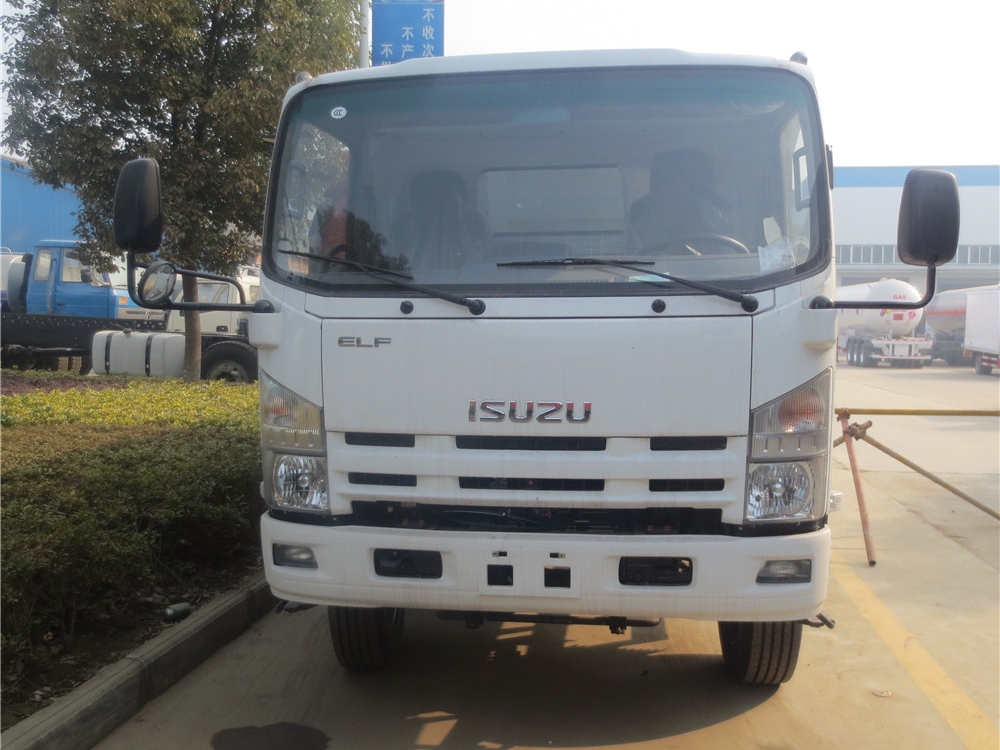

lsuzu 5 Ton Dump Truck
Chassis brand (Qingling) lsuzu
Product origin China, Hubei
Delivery time around 7 working days
Supply capacity around 1500 units one year
In civil engineering, dump truck is often operated in conjunction with excavators, loaders, belt conveyors, etc. to form a loading, transporting, and unloading production line for loading and unloading soil, sand, and loose materials
Dump body of dump truck can automatically tip over to unload at a certain angle, greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs
| Product Name | lsuzu 5 Ton Dump Truck |
| Driving Type | 4X2 |
| Dump body Volume(cbm) | 4 |
| Rated payload weight(kg) | 5000 |
| Overall Dimension(mm) | 5800x2300x2500 |
| Dump body size(mm) | 3760x2200x600 |
| Engine brand & model | lsuzu |
| Engine type | 4 stroke,water-cooled, straight line 4 cylinders, diesel |
| Axle Quantity | 2 |
| Transmission Type | Isuzu MSB 5 forwards,1 reverse gear, manual |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 7.50R16, 6+1 spare |
| Cab | Flat proof, single row, radio,eletric window, central lock, AC |
| Dump body material | High strength manganese steel |
| Main configuration | 1.Side plate 3mm, floor plate 4mm( optional side 4mm, floor 5mm) 2. Middle double hydraulic lifting cylinder. |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
lsuzu 5 Ton Dump Truck
5 ton dump truck isalso called tipper truck, dumper truck, is mainly used to transport kinds of sand, soil, rock, ore, etc material.
Product Feature
5 ton dump truck adopt China high strength manganese steel, strong and sturdy;
5 ton dump truck can be mounted on many brand chassis, such as ISUZU, Sinotruk, Foton, dongfeng, shacman, Faw, etc
Factory direct sale, high quality low price
Product parameters
