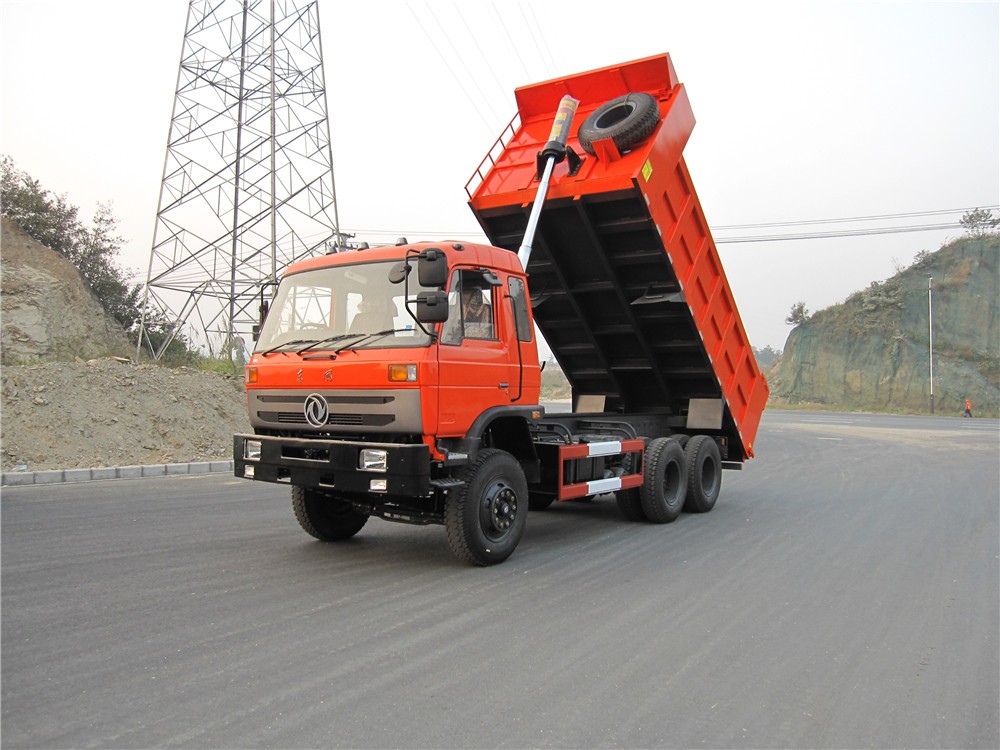

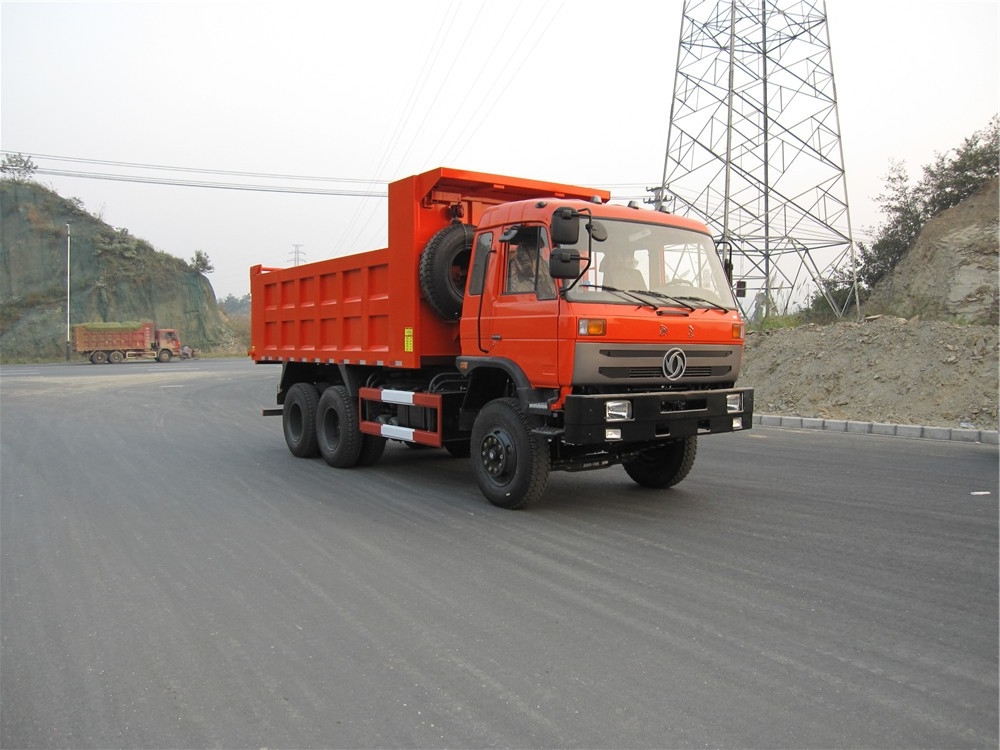

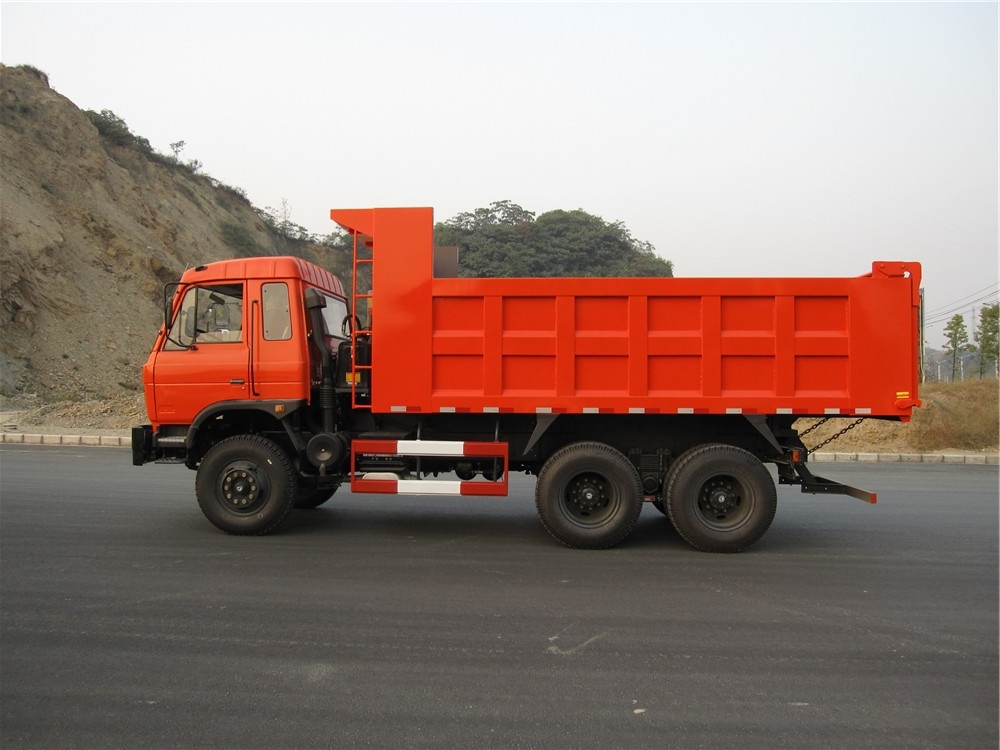

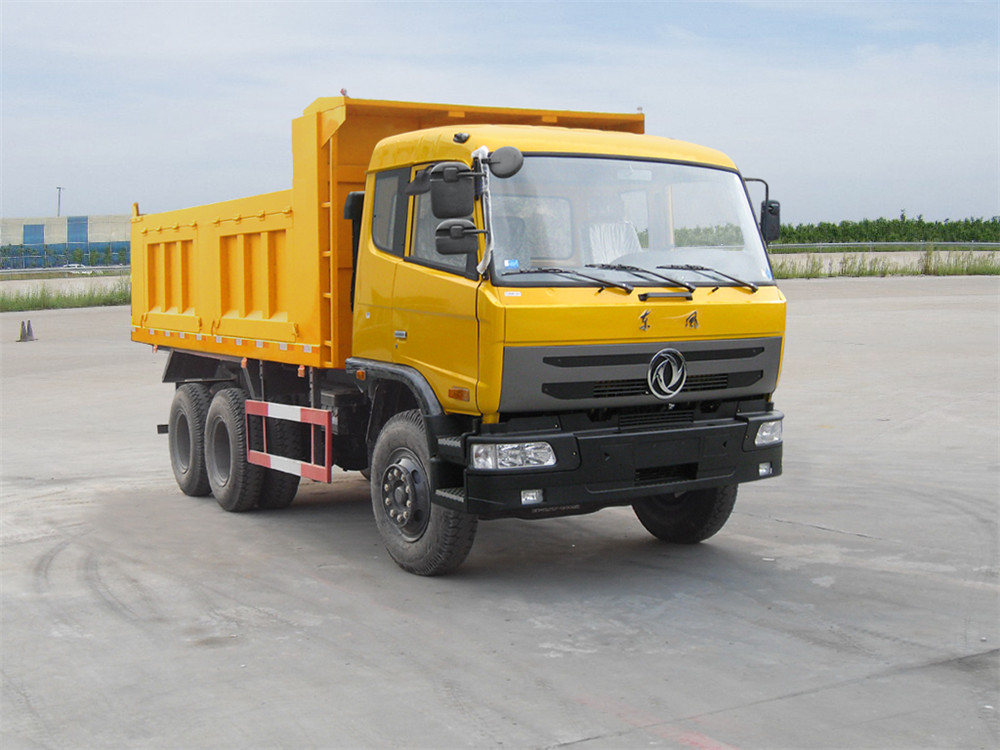

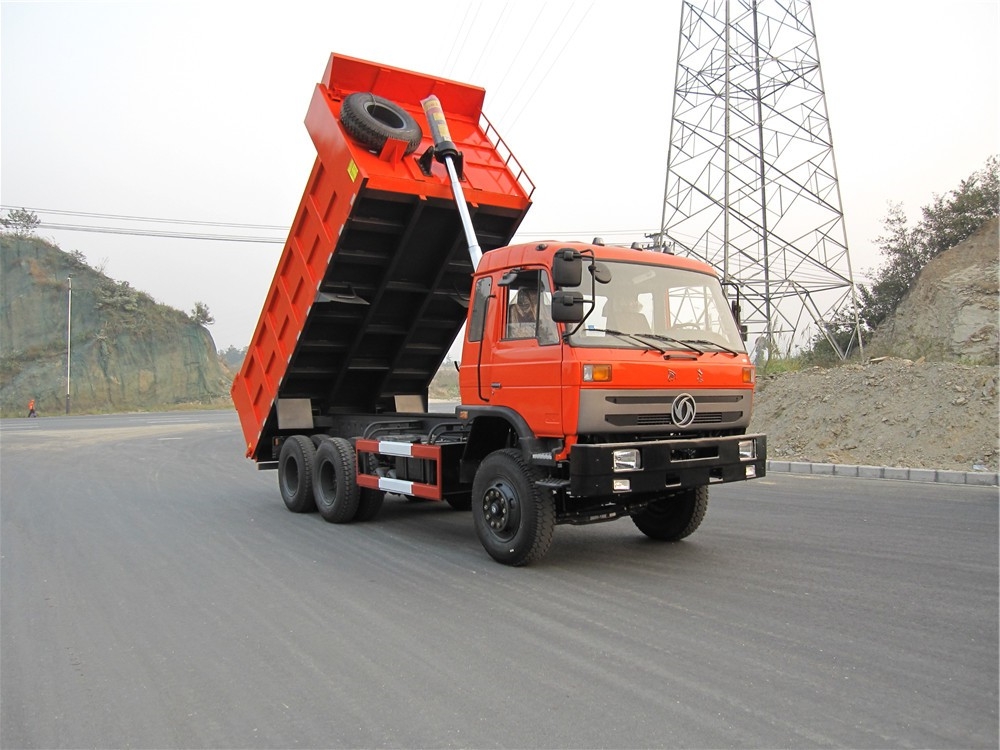

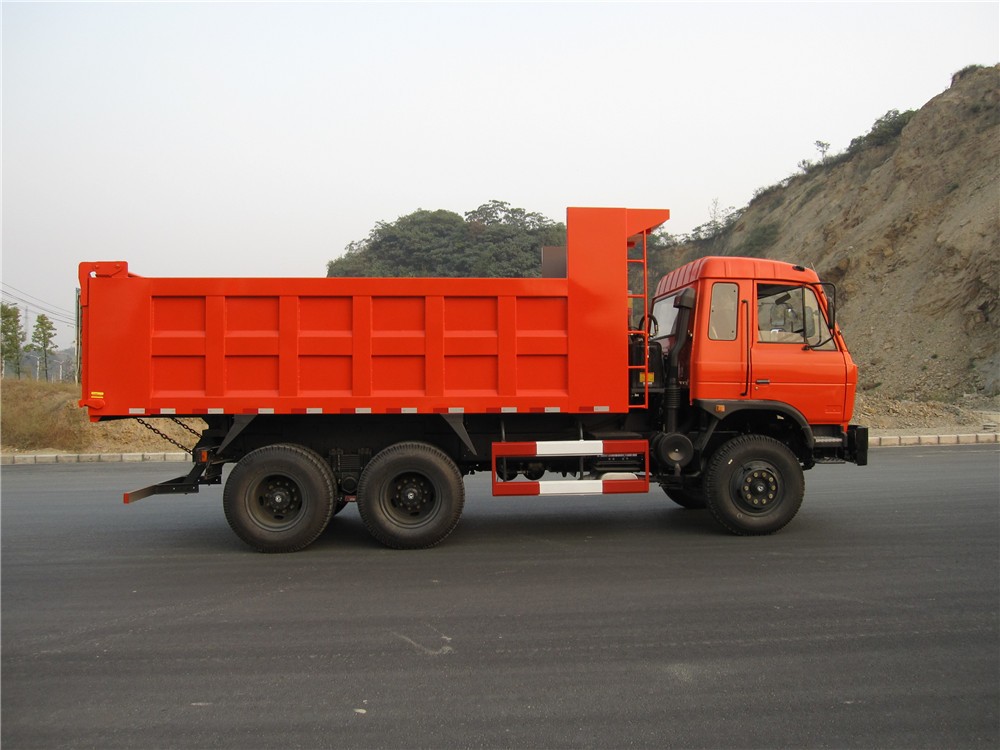

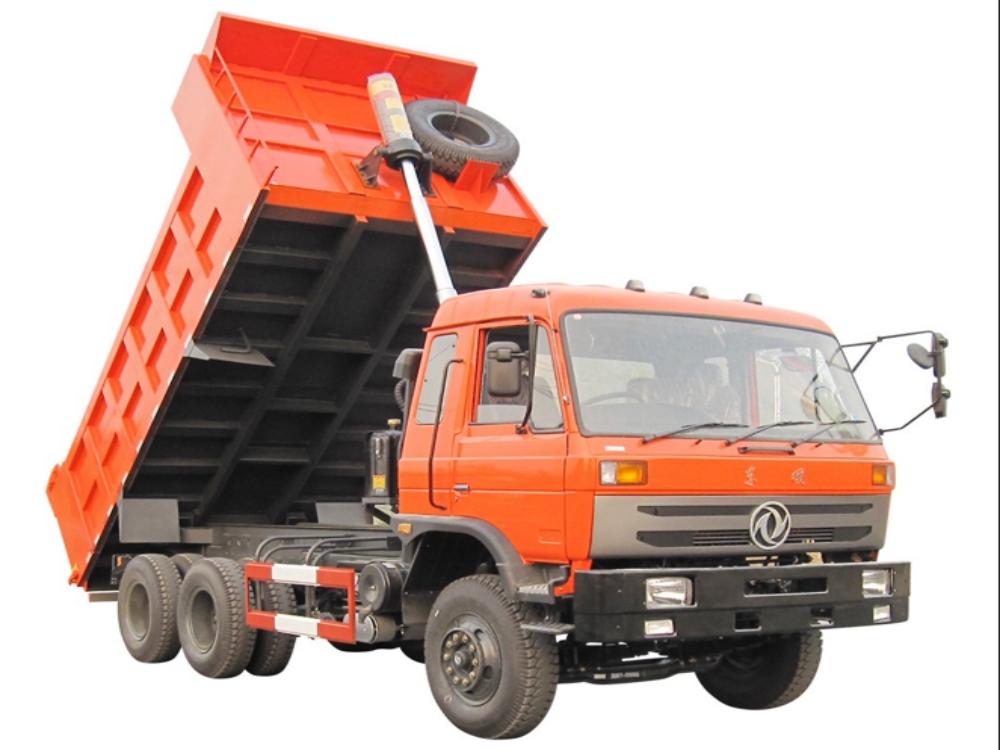

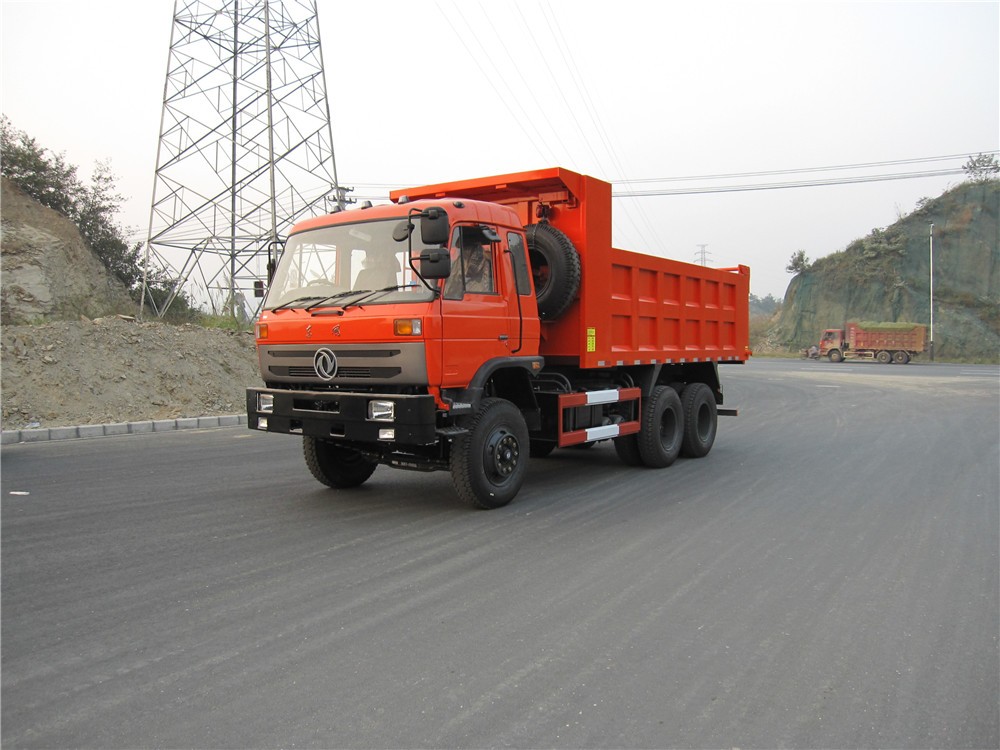

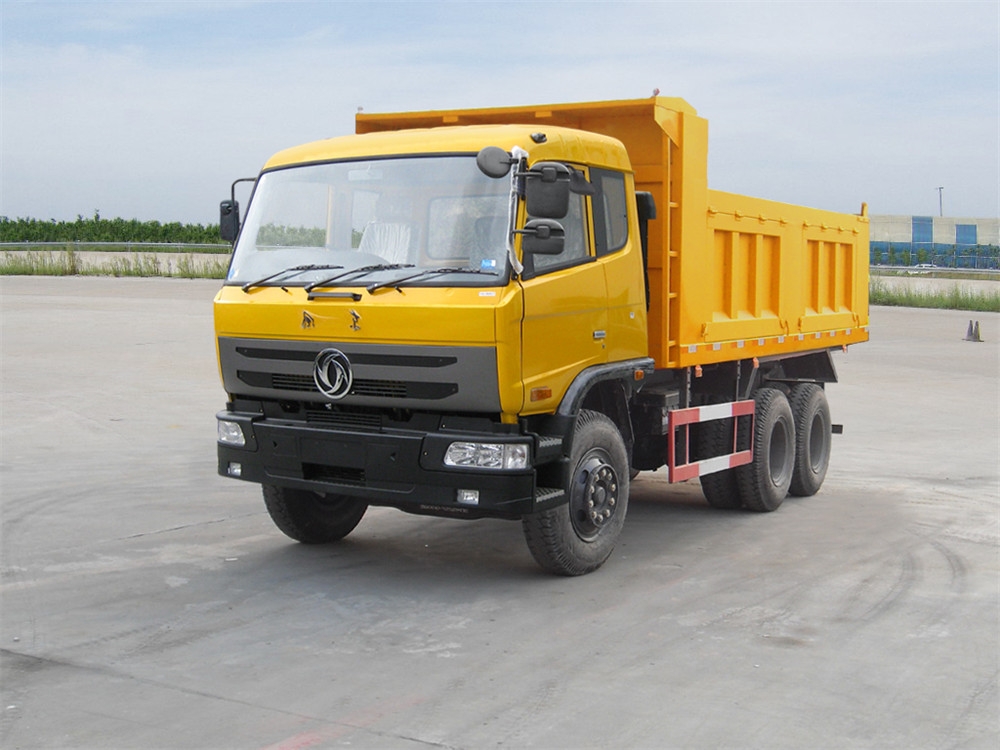

6X4 Dongfeng 20 Ton Dump Truck
Chassis brand Dongfeng
Product origin China, Hubei
Delivery time around 10 working days
Supply capacity 1,500 units one year
20 ton dump truck is mainly used for loading and unloading 20 ton soil, sand and loose materials. 20 ton dump truck is composed of 20 ton dump body dongfeng 10 wheel dump chassis, and hydraulic lifting system, etc.
Dump body of dongfeng 20 ton dump truck can automatically tip over to unload at a certain angle, greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs.
| Product Name | 6X4 Dongfeng 20 Ton Dump Truck |
| Driving Type | 6X4 |
| Dump body Volume(cbm) | 15 |
| Rated payload weight(kg) | 20000 |
| Overall Dimension(mm) | 8300x2400x3200 |
| Dump body size(mm) | 5400x2300x1200 |
| Engine brand & model | DONGFENG Cummins & B190 33 |
| Engine type | 4 stroke,water-cooled, straight line 6 cylinders, diesel |
| Axle Quantity | 3 |
| Transmission Type | FAST 8 forwards,1 reverse gear, manual |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 10.00R20, 10+1 spare |
| Cab | Flat proof, single sleeper,radio,AC |
| Dump body material | High strength manganese steel |
| Main configuration | 1.Side plate 6mm, floor plate 8mm 2. Front mounted hydraulic lifting cylinder. |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
6X4 Dongfeng 20 Ton Dump Truck
20 ton dump truck is also called 20ton tipper truck,20 ton dumper truck, dongfeng 20 ton dump truck apply to transport kinds of sand, sol, rock ore etc material.
Product feature
Dongfeng 10 wheel dump truck chassis with Dongfeng Cummins engine
Dump body made of China high strength manganese steel, strong and sturdy;
20 ton payload capacity
Worry -free after-sale
Product parameters
