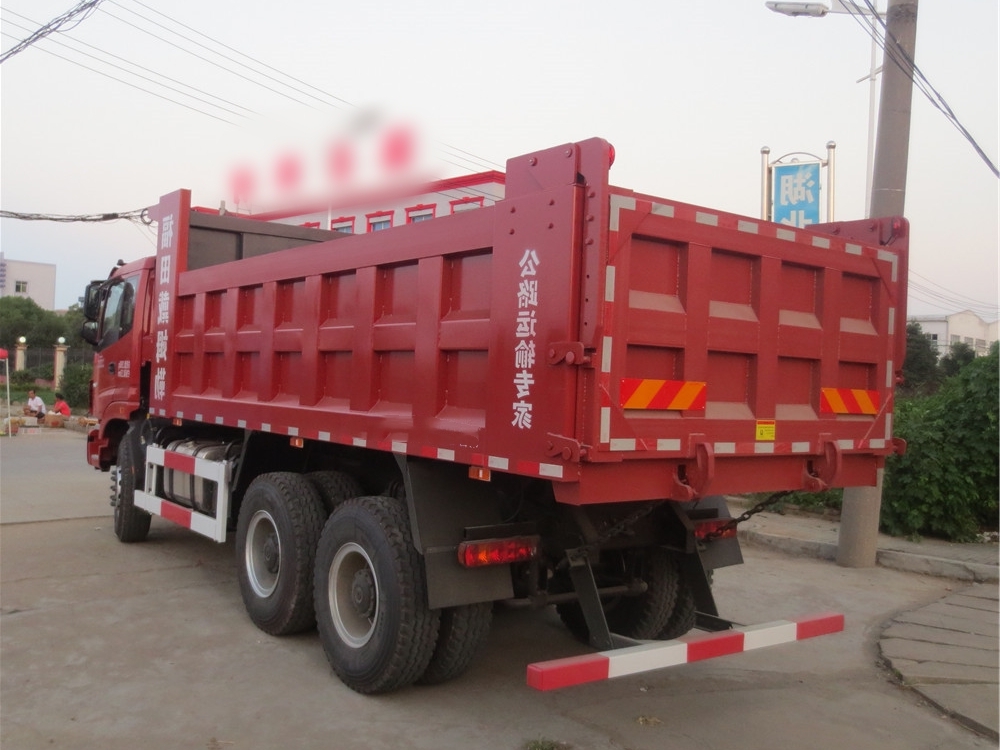

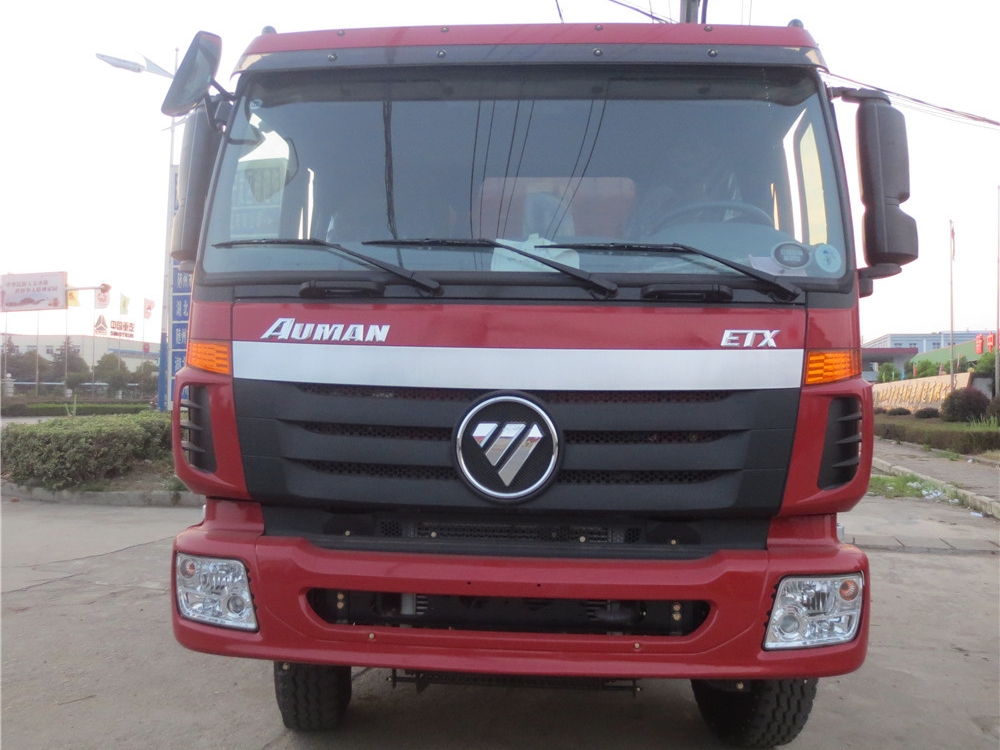

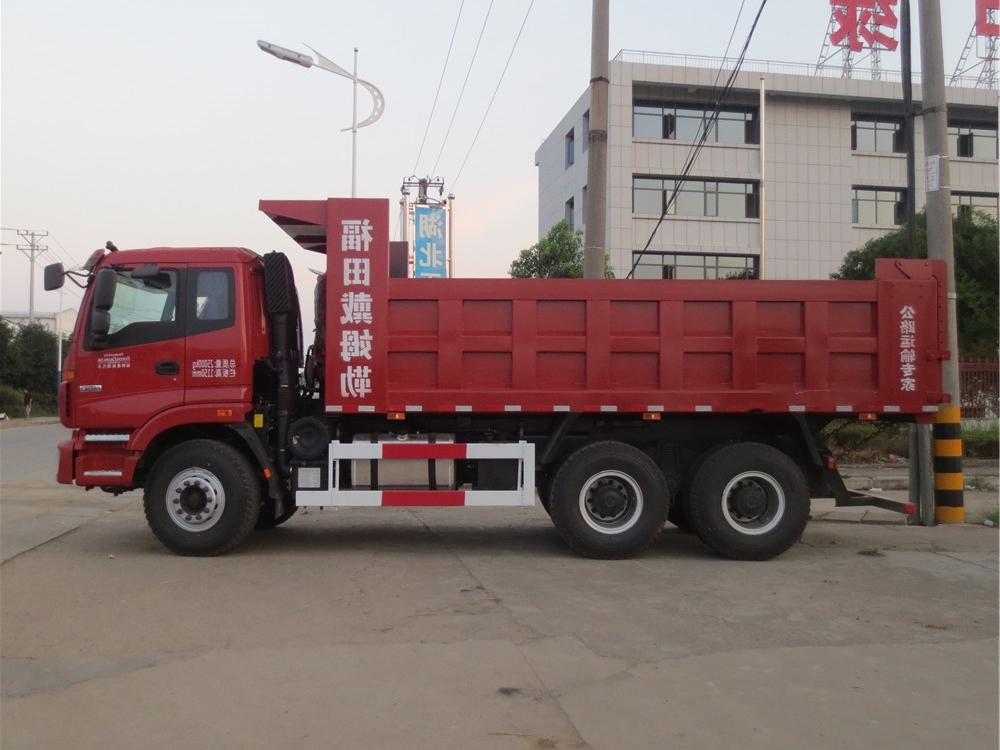

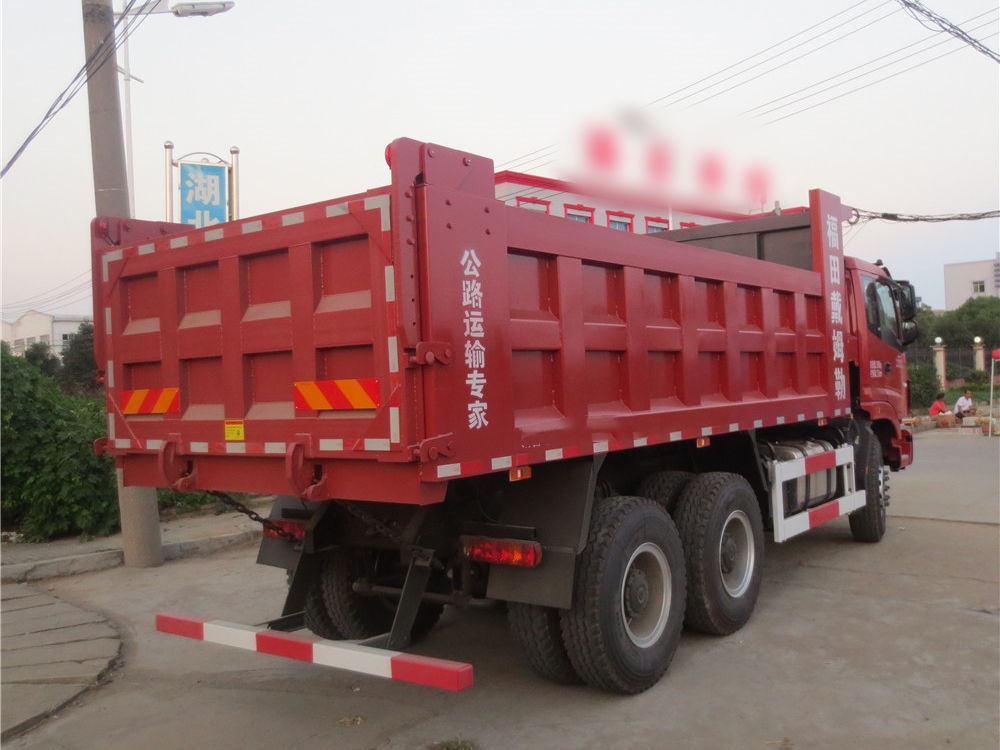

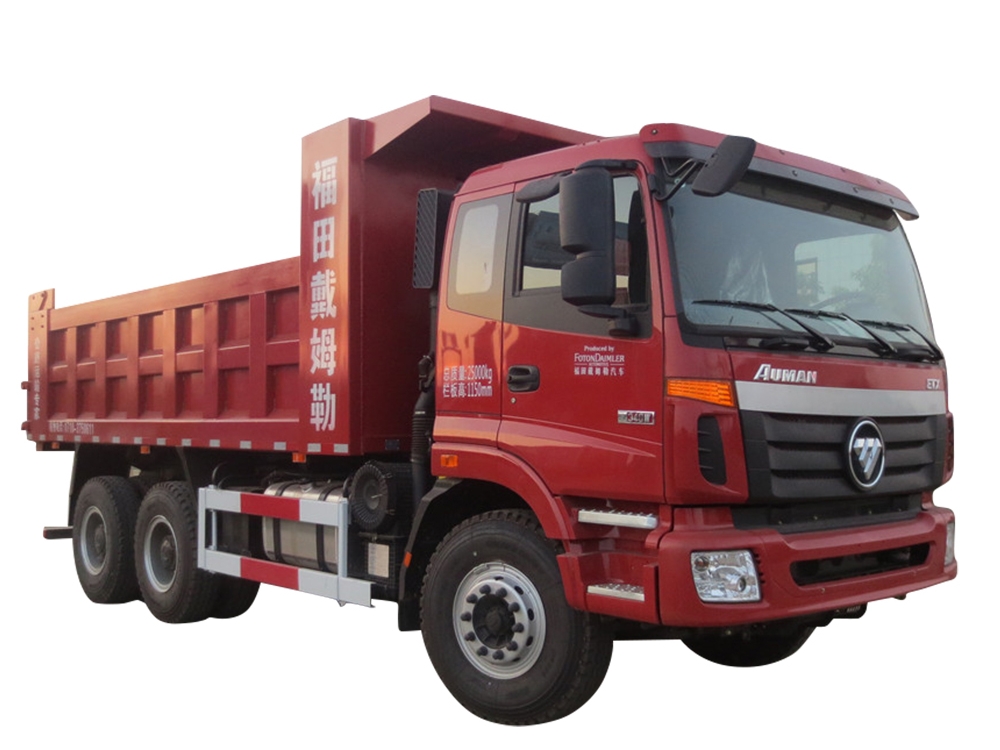

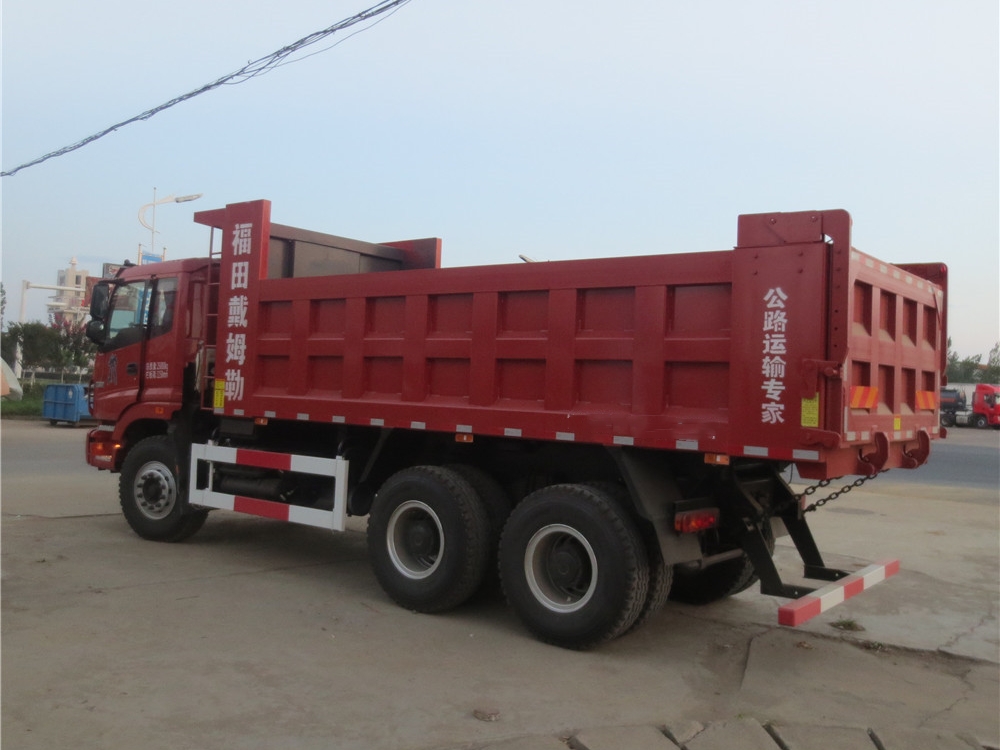

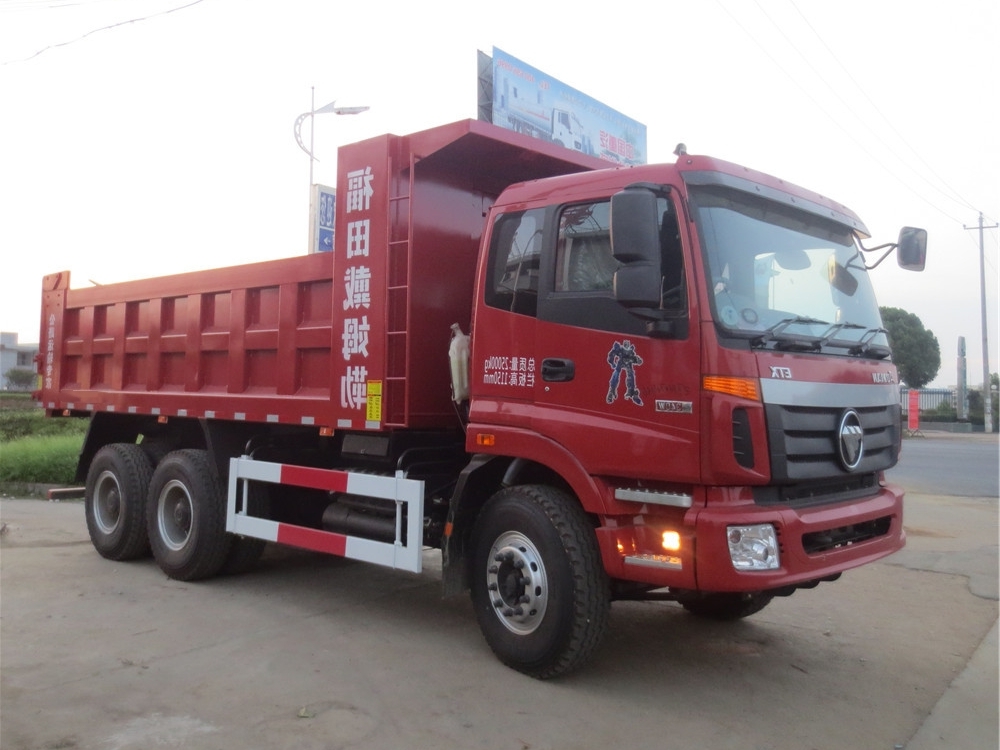

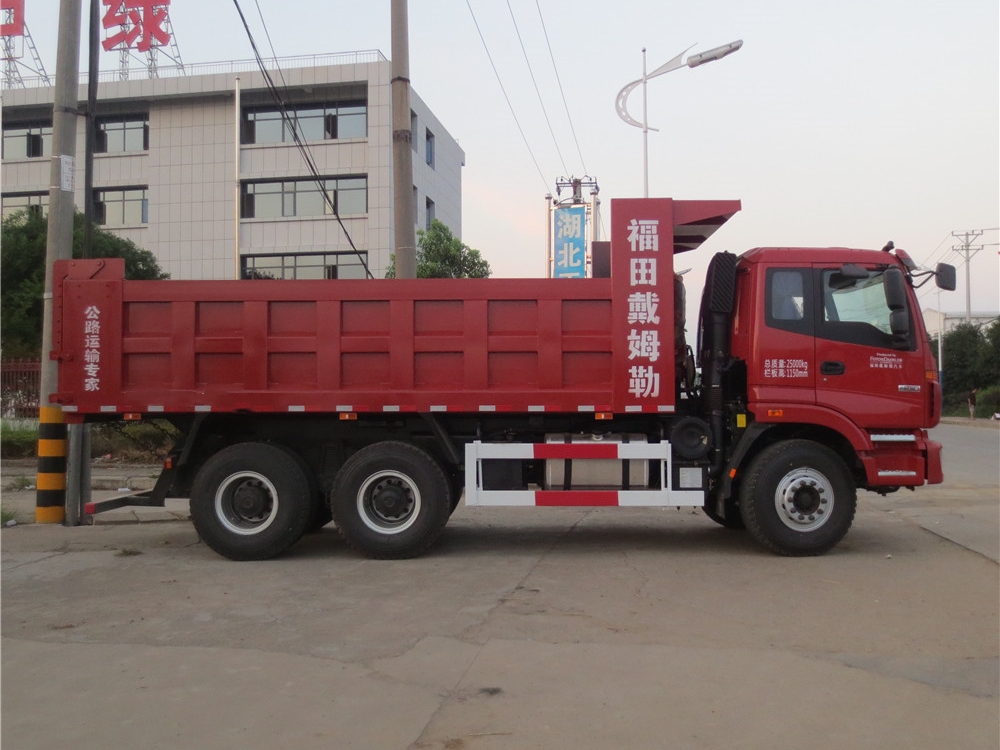

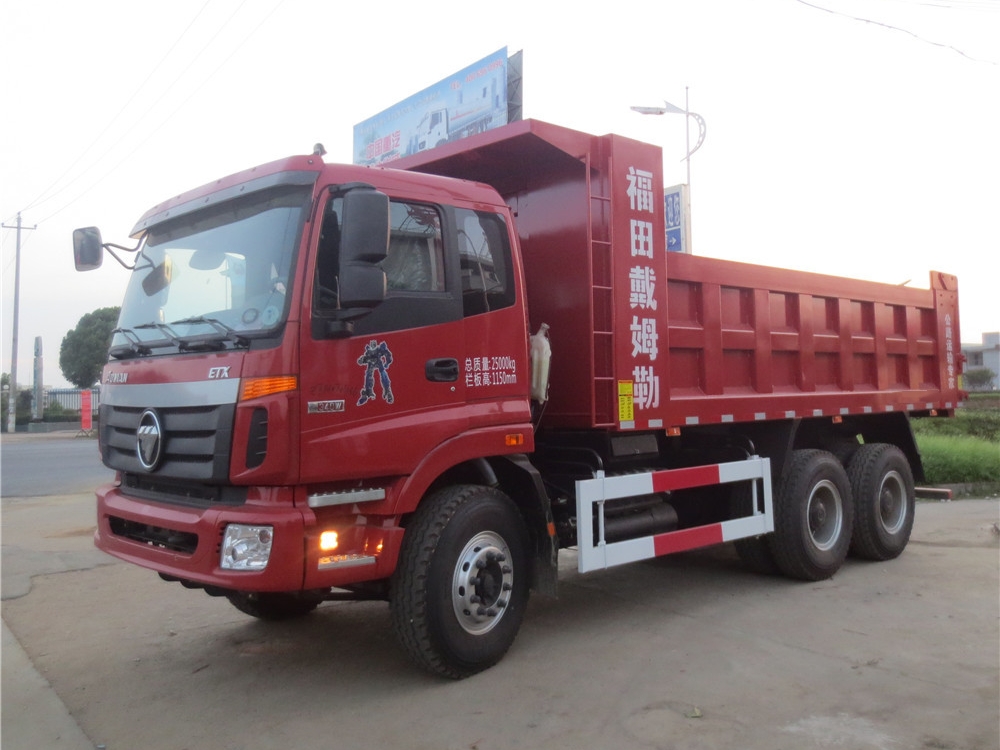

Foton 6X4 40 Ton Dump Truck
2024-10-07 09:54:11 Source：chusheng
Foton 6X4 40 Ton Dump Truck
40 ton dump truck is also called 40 ton
tipper truck, 40 ton dumper truck, is basically used to transport kinds of
sand, soi. rock, ore, etc material.
Product feature
Foton 10 wheel dump truck chassis with
Foton Cummins engine
China high strength manganese steel dump
body
40 ton payload capacity
Factory direct sale
| Product Name |
Foton 6X4 40 Ton Dump Truck |
| Driving Type |
6X4 |
| Dump body Volume(cbm) |
25 |
| Rated payload weight(kg) |
40000 |
| Overall Dimension(mm) |
9900x2480x3500 |
| Dump body size(mm) |
6800x2300x1600 |
| Engine brand & model |
DONGFENG Cummins |
| Engine type |
4 stroke,water-cooled, straight line 6 cylinders, diesel |
| Axle Quantity |
3 |
| Transmission Type |
FAST 8 forwards,1 reverse gear, manual |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake, exhaust brake |
| Tire Spec. & size |
12.00R20, 10+1 spare |
| Cab |
Flat proof, Auman single sleeper,radio, air seat, air conditioner |
| Dump body material |
High strength manganese steel |
| Main configuration |
1.Side plate 6mm, floor plate 8mm 2. Front mounted hydraulic lifting cylinder. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Foton 6X4 40 Ton Dump Truck
Chassis brand Foton
Product origin China, Hubei
Delivery time around 10 working days
Supply capacity 1500 units one year
40 ton dump truck refers to a vehicle that
unloads goods by hydraulic or mechanical lifting. Dump truck is often operated
in conjunction with excavators, loaders, belt conveyors, etc to form a loading,
transporting, and unloading production line for loading and unloading soil,
sand, and loose materials
Foton 40 ton dump truck can load 40 ton
material and can automatically tip over to unload at a certain angle, greatly
saves unloading time and labor improves production efficiency, and reduces transportation
costs.
Product parameters
