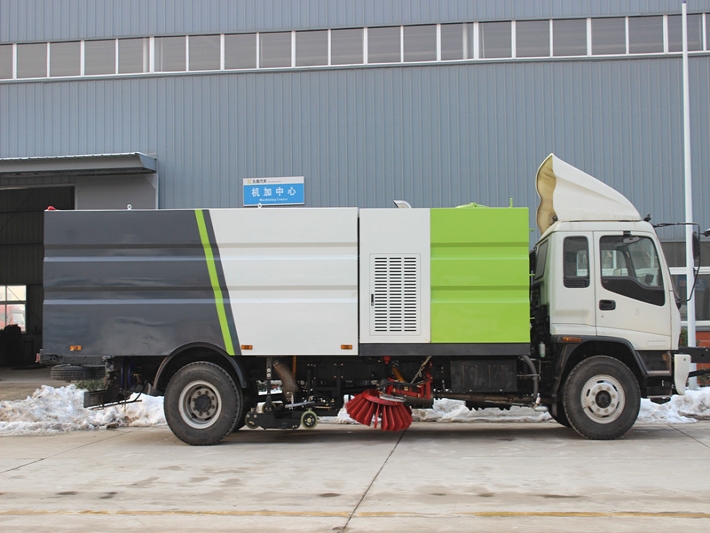

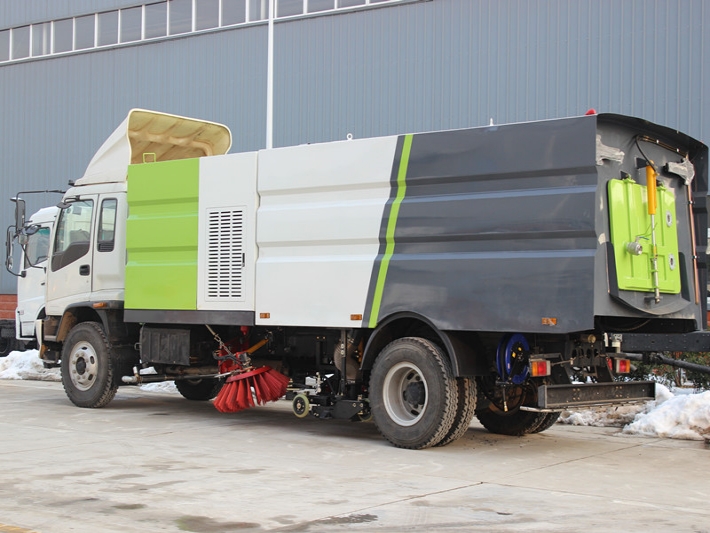

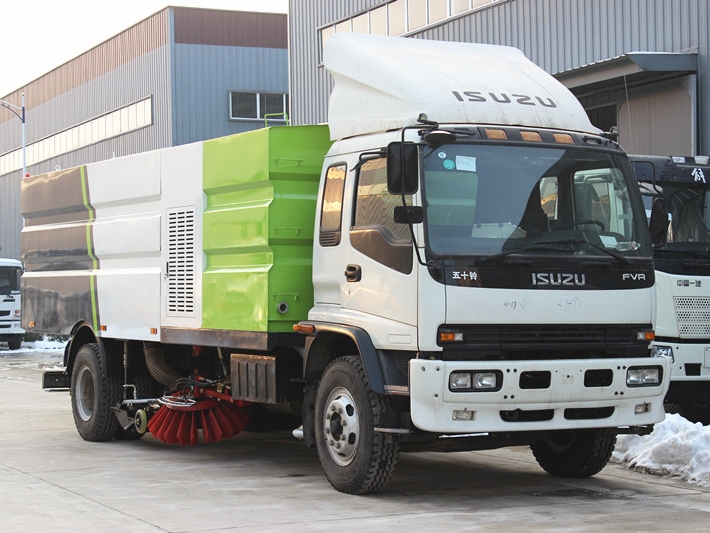

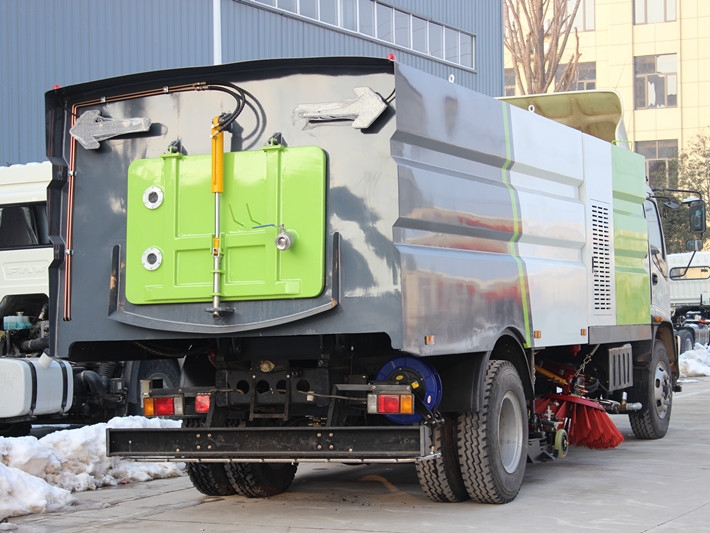

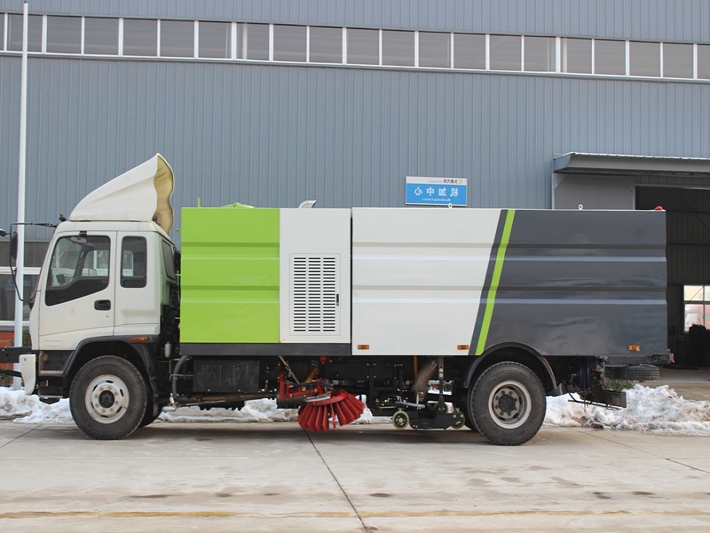

Qingling Isuzu 4X2 cleaning and sweeping vehicle
A cleaning and sweeping vehicle is a new and efficient cleaning equipment that integrates road surface cleaning, garbage recycling, and transportation. It is widely used in various occasions such as urban roads, highways, squares, airports, etc. The cleaning and sweeping vehicle has multiple operating modes, including full cleaning, left cleaning, right cleaning, and full cleaning, which can effectively clean squares and roads with a cleaning rate of over 95%. It can not only be used as a road sweeping vehicle for road surface cleaning and suction operations, but also as a high-pressure washing vehicle for road surface washing and suction operations, or combined with both to achieve multiple combination options for cleaning, washing, and suction washing.
Installation configuration:
① Stainless steel water tank, stainless steel garbage bin, and discharge door opening speed of 45 degrees. The garbage bin is equipped with anti overflow alarm device and high-pressure spray cleaning device, and the water tank is equipped with a low water level sensing alarm system to reduce the labor intensity of operators. The cleaning operation width is 2.8-3.0m.
② Equipped with 2 sweeping discs and Jiangling auxiliary engine; Italian motor, French Schneider control switch, Taiwanese solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Manual pump emergency system. The rotating mechanism of the front sweeping brush arm uses a high-tech wear-resistant engineering spacer sleeve, which does not require oiling; Precision cold-formed seamless hydraulic oil pipe.
Main Parameter
