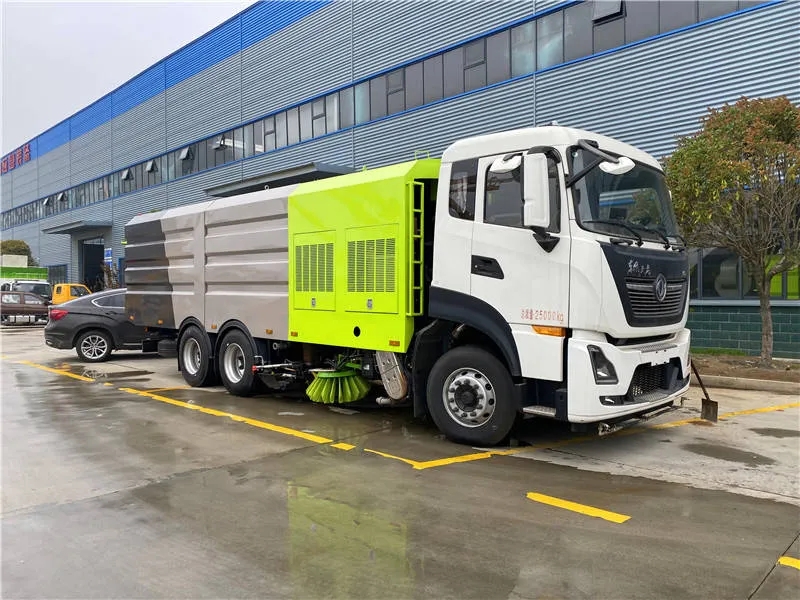

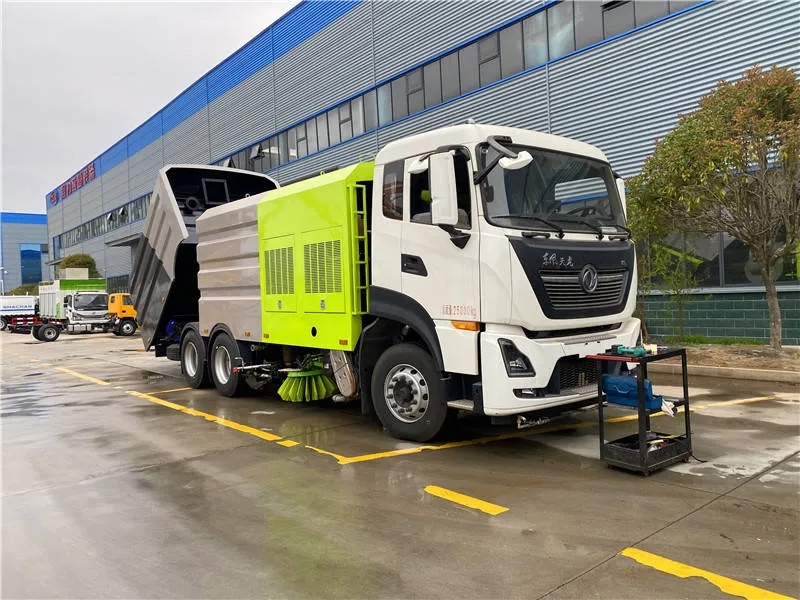

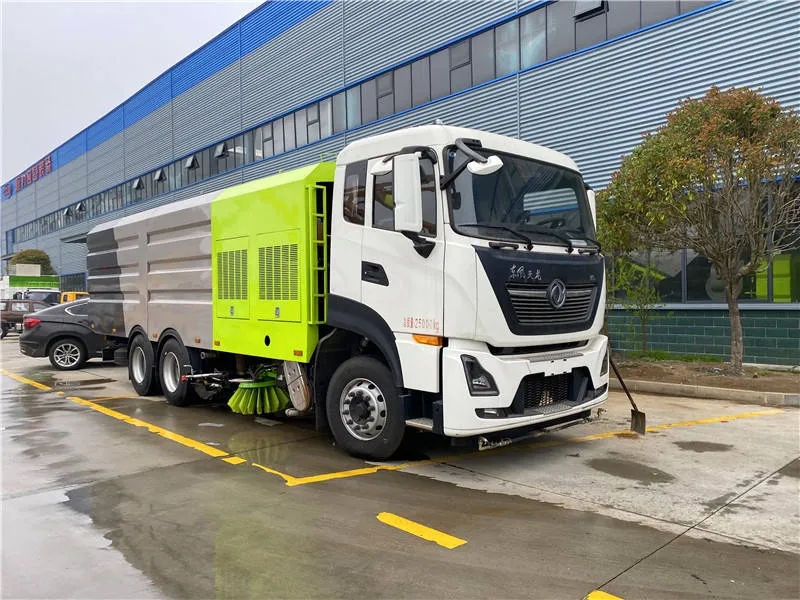

Dongfeng 6X4 road cleaning truck
2024-09-18 10:36:10 Source：chusheng
Advantage
The high-pressure water pump is driven by the auxiliary engine, transmission shaft, belt drive, electromagnetic clutch, and coupling; The low-pressure water system adopts a two-stage impeller centrifugal pump, which has high efficiency, large sprinkler width, and long water gun range. The low-pressure water pump is directly driven by the chassis gearbox power take-off through the transmission shaft.
We have many different brands of road sweep trucks, please feel free to inquire.
| Product Name |
Dongfeng 6X4 road cleaning truck |
| Cab |
Dongfeng |
| Drive wheel |
6X4 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine Model |
ISD245 50/ISD270 50 |
| Gearbox |
9 forward gears and 1 reverse gear |
| Wheel base |
4350+1350,5350+1350,5700+1350,3800+1350(mm) |
| Front wheel track |
2040(mm) |
| Rear wheel track |
1860/1860(mm) |
| Approach angle/departure angle |
17/15(°) |
| Front/rear suspension |
1480/2420(mm) |
| Axle numbers |
3 |
| F/R axle load |
4350/7645 |
| Tire sepcification and quantity |
11.00-20 18PR,11.00R20 16PR,295/80R22.5 16PR, 10 with 1 spare tire |
| Vehicle dimension |
10600×2500×3350(mm) |
| Gross vehicle weight(Kg) |
25000(Kg) |
| Curb weight(Kg) |
17660,16550(Kg) |
| Rated weight(Kg) |
7145,8255,7210,8320(Kg) |
| Water tank capacity |
2m³ |

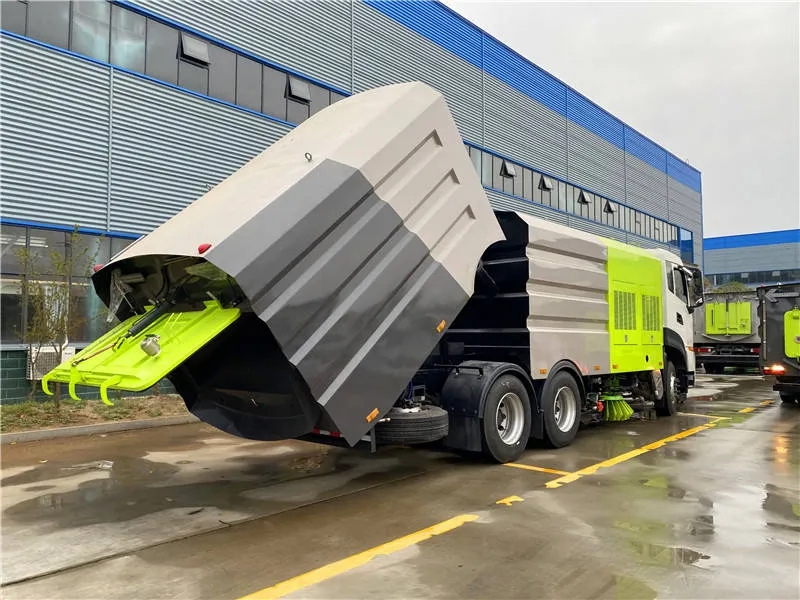

| Garbage bin capacity |
5m³ |
| Working width |
3m |
| Upper configuration |

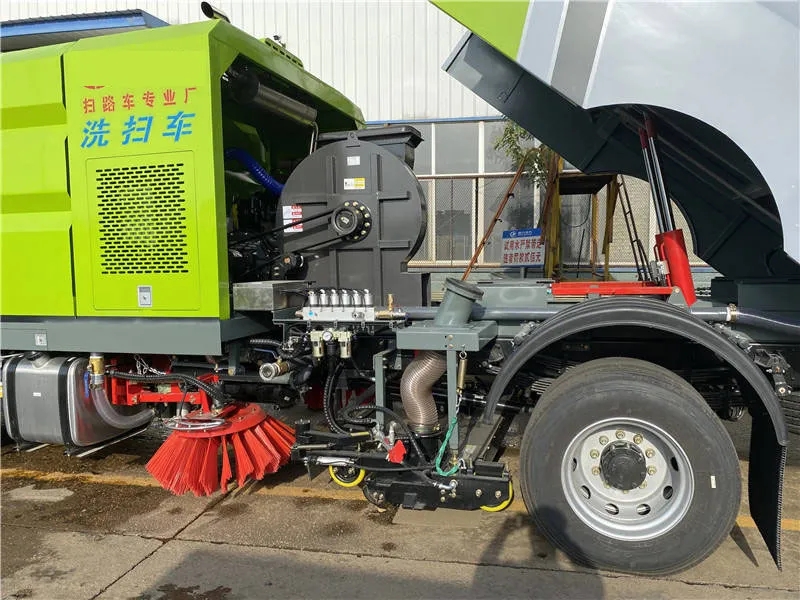

Equipped with 2 mid mounted sweeping discs and a Cummins 170 horsepower auxiliary engine; Powerful motor; German high-pressure water pump (front flushing/side spraying/medium spraying/rear spray (stainless steel nozzle)/side flushing water gun/dustbin self-cleaning device); Wanxiang high-pressure roadside cleaning; Taiwan hydraulic valve group; Weilong low-pressure pump (front flushing); 4mm stainless steel garbage bin; Stainless steel water tank; Stainless steel high-pressure pipeline; German controller; American sensors; Tail arrow light; Oil, garbage bins, and water tanks are all equipped with anti overflow or low-level alarm devices; Indoor monitor for reversing and cleaning status; Automatic reverse collision protection device; Maintenance of safety protection devices; The rotating mechanism of the sweeping arm uses a high-tech wear-resistant engineering spacer, which does not require oiling; 20m high-pressure flushing reel. Integrated motion controller, one click computer control. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Product Introduction
The Dongfeng high-pressure cleaning vehicle
is a dual engine, dual water pump cleaning vehicle. It is a specialized
cleaning operation vehicle that integrates mechanical, hydraulic (pneumatic),
and electrical components by adding a high-pressure flushing system and a
low-pressure flushing system on the basis of a standard Class II chassis. This
vehicle has independent high and low pressure water systems, providing a
pressure water source for cleaning the vehicle. Its working principle is to use
high-pressure water generated by a high-pressure water pump, which is sprayed
out through the high-pressure nozzle of the spray rack, and use the kinetic
energy of the high-pressure water flow to clean in a high-pressure and low flow
manner, effectively removing dirt and saving water, and cleaning old stains on
the road surface; Or high-pressure water can be sprayed from the left (right)
corner to clean the roadside, sidewalk, and guardrail isolation area; High
pressure spray guns can also be used to clean road signs, billboards, elevated
roads, etc; The spray system has powerful functions of spray to reduce dust,
spray air disinfectant and adjust air humidity.
The high-pressure water pump, nozzle, high-pressure spray gun, and key hydraulic and electrical components of this vehicle are all made of internationally renowned products, with excellent performance and reliable operation.
Main Parameter
