Dongfeng 4X2 Road Pollution Removal Vehicle
2024-09-18 10:36:10 Source：chusheng

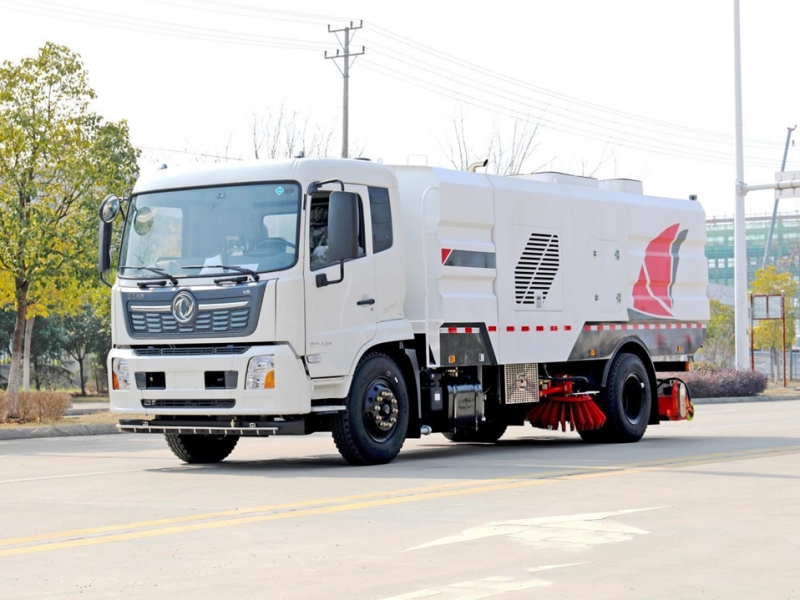

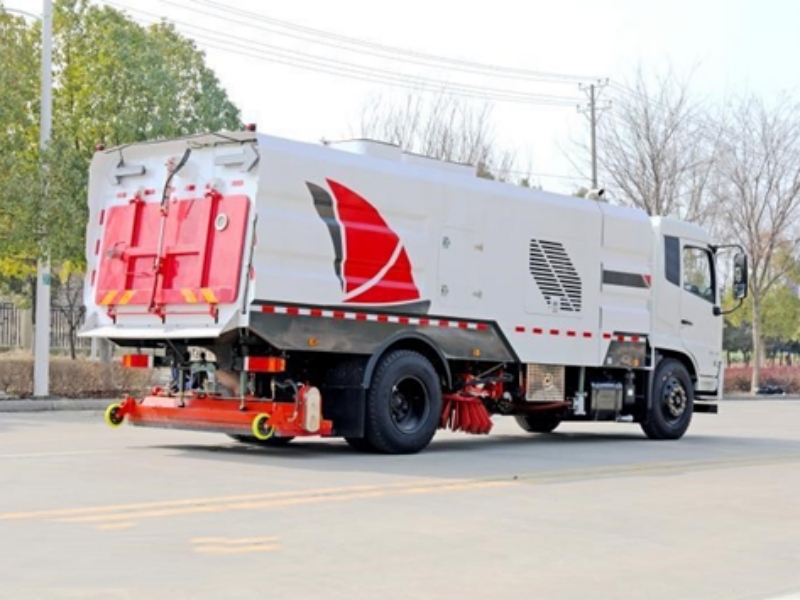

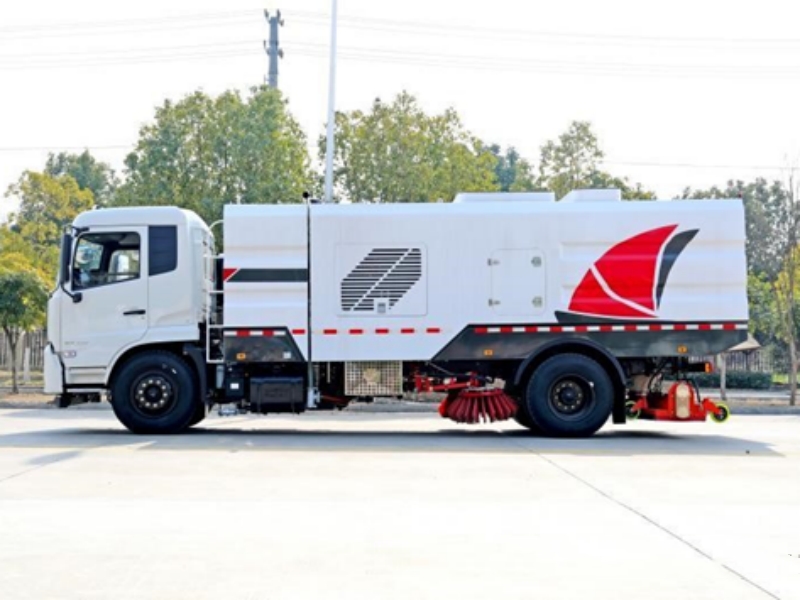

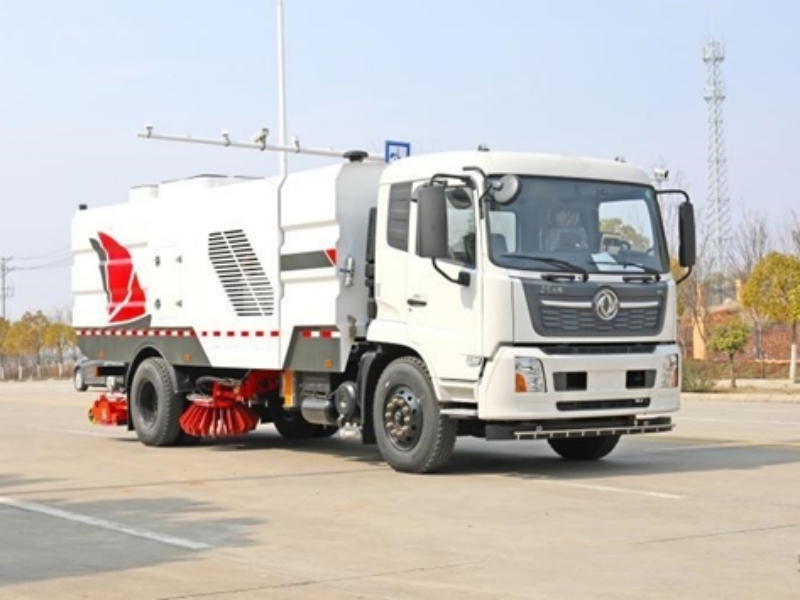

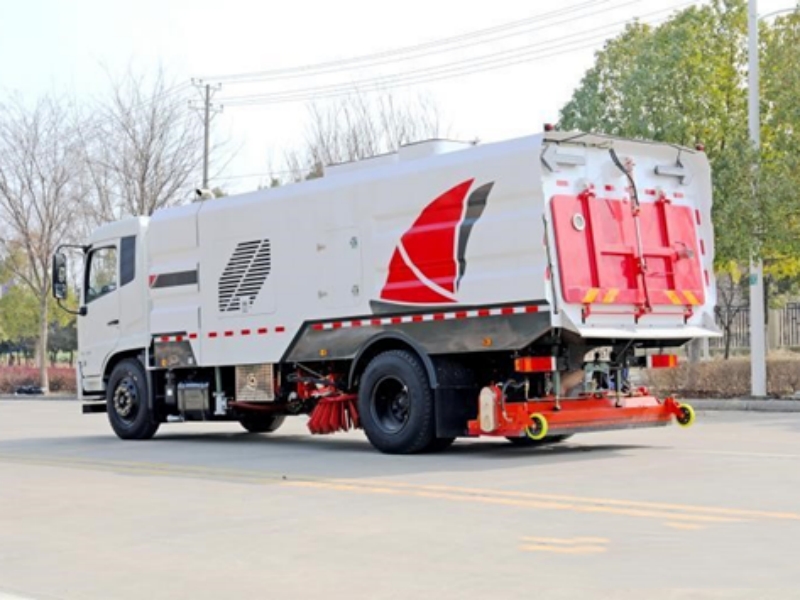

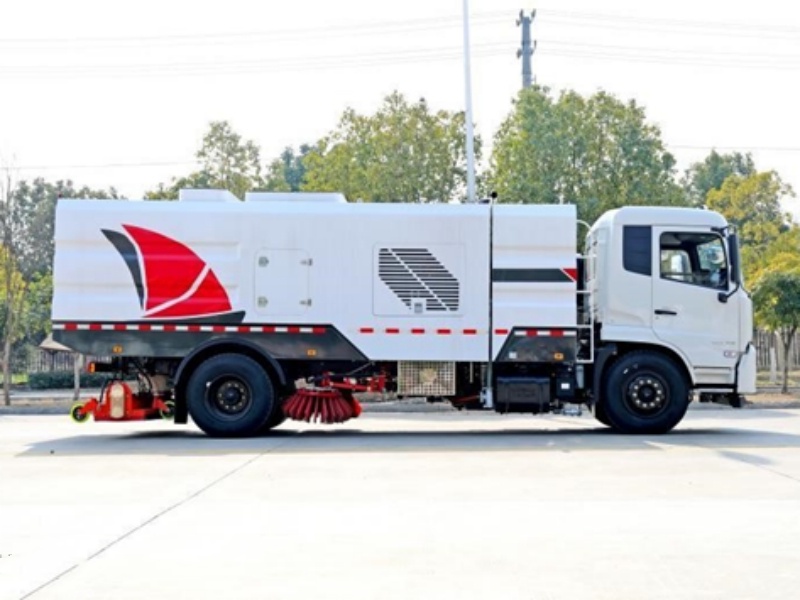

Dongfeng 4X2 Road Pollution Removal Vehicle
Main chassis configuration: D530 Tianjin VR cab, Longqing DDi47E210-60 engine, 5100mm wheelbase, 4.5T front axle, 9T rear axle, Fast 8JS75E-C gearbox, electric glass lifter, central door control door lock, 10.00R20 steel wire tire, original air conditioning, driving recorder.
Main configuration of the upper part: 3.5 cubic meters of clean water tank/8 cubic meters of garbage bin, Cummins 170 horsepower auxiliary engine, GTM high-pressure pump, two sweepers in the middle, wide suction cups in the rear, roller brush and high-pressure spray bar in the suction cup, with high-pressure side spray bar, high-pressure front spray, garbage bin self-cleaning spray, optional pneumatic hedge sprinkler, 15 meters of high-pressure winch, can be connected to high-pressure gun for use, CAN bus control+rear electric control, automatic fan, automatic clutch, 15 vertical filter cartridges, HEPRIS solenoid valve group, HEPRIS oil cylinder, with independent air pump, independent air cooling radiator, dust removal pulse valve, manual pump emergency system, operation image, LED arrow light. The upper part has two switchable work modes: washing and sweeping mode/vacuuming mode.
We have many different brands of road sweep trucks, please feel free to inquire.
| Product Name |
Dongfeng 4X2 Road Pollution Removal Vehicle |
| Cab |
D530 Tianjin VR cab, electric glass lifter, central door control door lock, original air conditioning, driving recorder. |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine Model |
DDi47E210-60 |
| Gearbox |
FAST 8-speed gearbox |
| Wheel base |
5100(mm) |
| Axle numbers |
2 |
| Tire sepcification and quantity |
10.00R20 steel wire tire, 6 + 1 spare tire |
| Vehicle dimension |
8760,9060×2500×3300(mm) |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
11700(Kg) |
| Rated weight(Kg) |
6170,6105(Kg) |
| Water tank capacity |
3.5m³ |
| Garbage bin capacity |
8m³ |
| Upper configuration |
Cummins 170 hp auxiliary engine, GTM high-pressure pump, 2 sweepers in the middle, wide suction cups in the rear, roller brush and high-pressure spray bar in the suction cups, high-pressure side spray bar, high-pressure front spray, garbage container self-cleaning spray, optional pneumatic counter watering, 15m high-pressure winch, |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 4X2 Road Pollution Removal Vehicle
Dongfeng VR Road Pollution Removal Vehicle can be used for milling and planing road surfaces or water stable layers, and the cleanliness of the road surface after suction and sweeping fully meets the construction requirements for cleaning the road base before asphalt spraying. In addition, it can also be applied to places with severe dust pollution such as ports, docks, coal mines, steel mills, cement plants, etc. It can also be used for daily cleaning and sanitation of municipal road surfaces.
Main Parameter
