Dongfeng D9 4X2 road sweep truck, 11m³ road cleaning vehicle
2024-09-18 10:36:10 Source：chusheng
Advantage
The high-pressure water pump is driven by the auxiliary engine, transmission shaft, belt drive, electromagnetic clutch, and coupling; The low-pressure water system adopts a two-stage impeller centrifugal pump, which has high efficiency, large sprinkler width, and long water gun range. The low-pressure water pump is directly driven by the chassis gearbox power take-off through the transmission shaft.
We have many different brands of road sweep trucks, please feel free to inquire.
| Product Name |
Dongfeng D9 4X2 road sweep truck, 11m³ road cleaning vehicle |
| Cab |
Dongfeng D9 |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine Model |
B6.2NS6B210/YCS04200-68 |
| Gearbox |
6 forward gears and 1 reverse gear |
| Wheel base |
4500(mm) |
| Front wheel track |
1862,1933,1949,1904,1960(mm) |
| Rear wheel track |
1806,1865(mm) |
| Approach angle/departure angle |
19/12(°) |
| Front/rear suspension |
1260/2240(mm) |
| Axle numbers |
2 |
| F/R axle load |
6500/11500 |
| Tire sepcification and quantity |
10.00R20 18PR, 6 with 1 spare tire |
| Vehicle dimension |
9000×2550×3200(mm) |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
8280(Kg) |
| Rated weight(Kg) |
9525,9590(Kg) |
| Water tank capacity |
9.3m³ |
| Garbage bin capacity |
11m³ |
| Spray rack cleaning width |
2.5-3.5m |
| Spray rack angle |
30° on each side |
| High pressure cleaning capability |
25000 ㎡/h |
| Cleaning water flow rate |
134L/min |
| Spray water flow |
134L/min |
| Low pressure sprinkler flow rate |
600~800L/min |
| Low pressure flushing width |
≥24m |
| Watering width |
≥16m |
| Water gun range |
38m |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Product Introduction

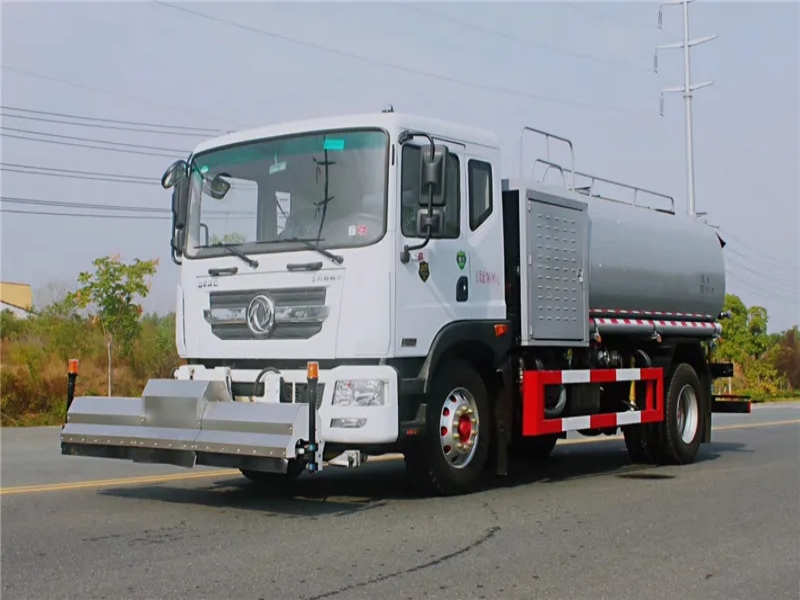

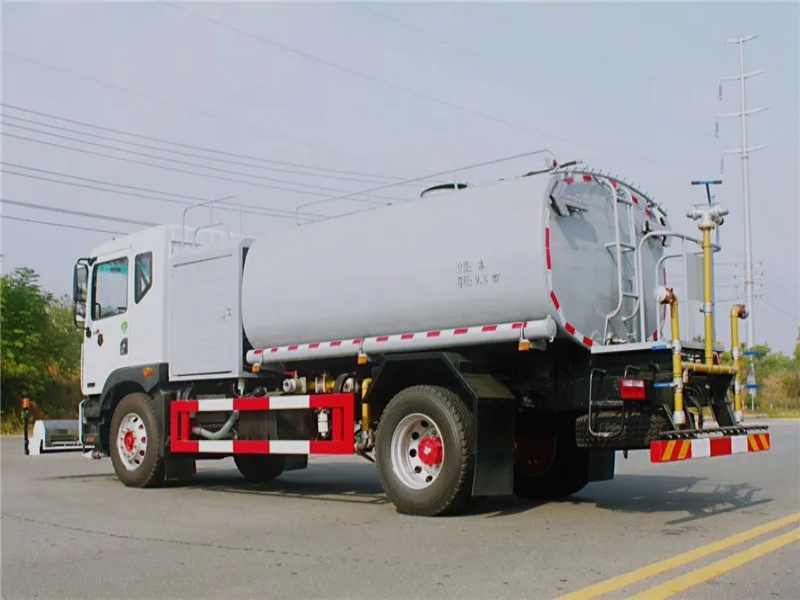

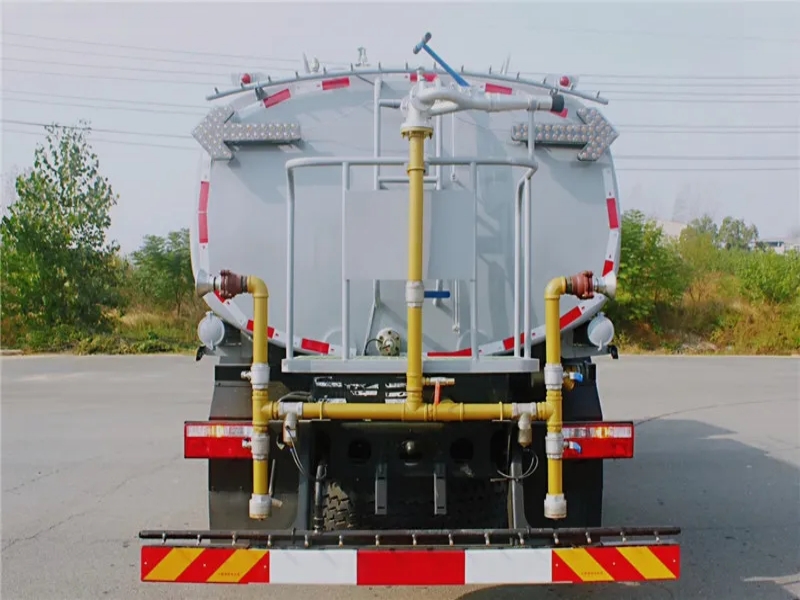

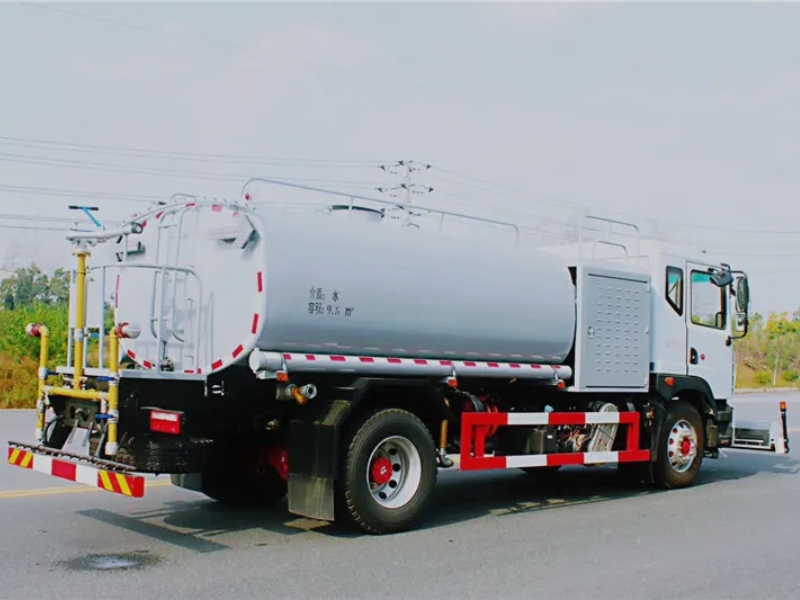

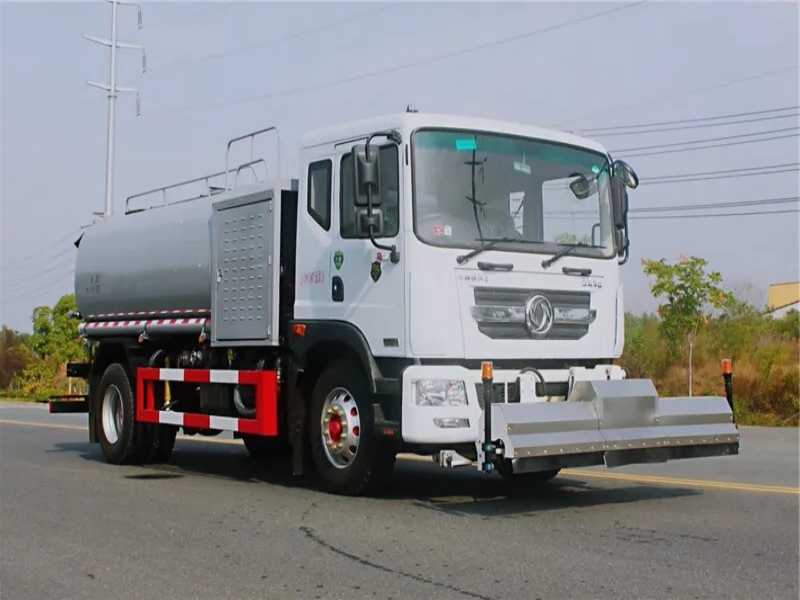

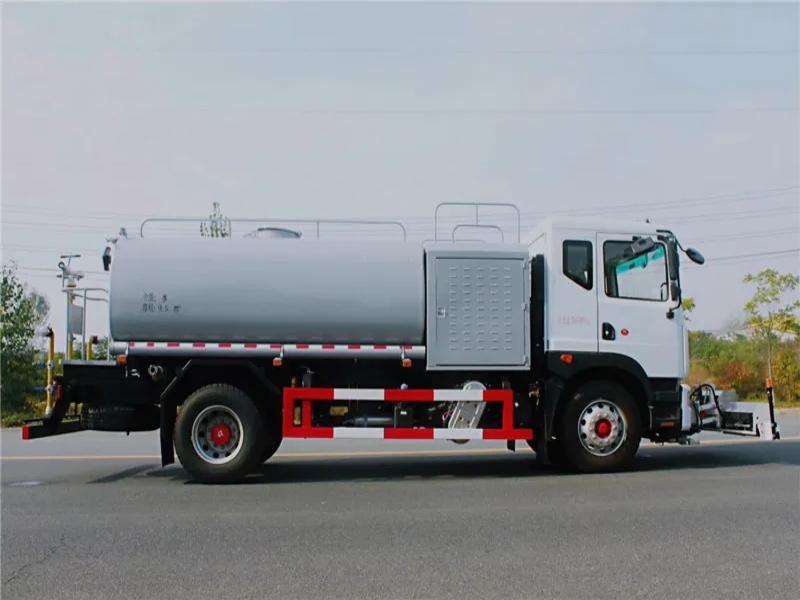

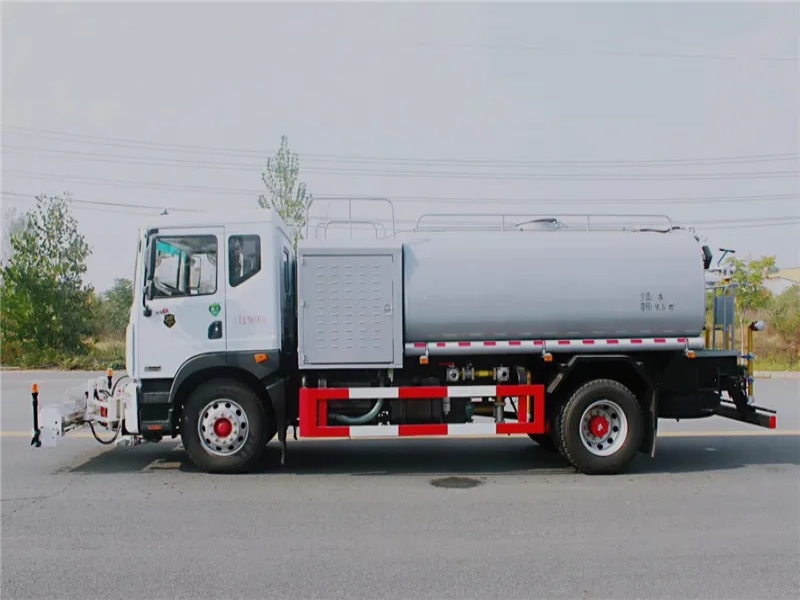

The Dongfeng high-pressure cleaning vehicle
is a dual engine, dual water pump cleaning vehicle. It is a specialized
cleaning operation vehicle that integrates mechanical, hydraulic (pneumatic),
and electrical components by adding a high-pressure flushing system and a
low-pressure flushing system on the basis of a standard Class II chassis. This
vehicle has independent high and low pressure water systems, providing a
pressure water source for cleaning the vehicle. Its working principle is to use
high-pressure water generated by a high-pressure water pump, which is sprayed
out through the high-pressure nozzle of the spray rack, and use the kinetic
energy of the high-pressure water flow to clean in a high-pressure and low flow
manner, effectively removing dirt and saving water, and cleaning old stains on
the road surface; Or high-pressure water can be sprayed from the left (right)
corner to clean the roadside, sidewalk, and guardrail isolation area; High
pressure spray guns can also be used to clean road signs, billboards, elevated
roads, etc; The spray system has powerful functions of spray to reduce dust,
spray air disinfectant and adjust air humidity.
The high-pressure water pump, nozzle, high-pressure spray gun, and key hydraulic and electrical components of this vehicle are all made of internationally renowned products, with excellent performance and reliable operation.
Main Parameter
