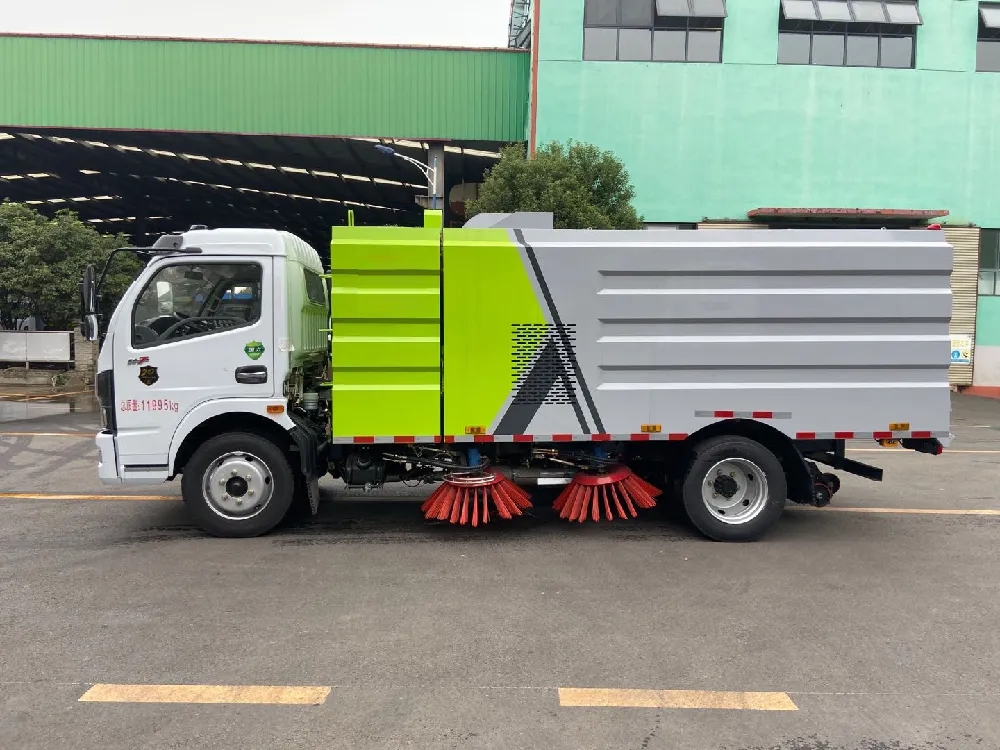

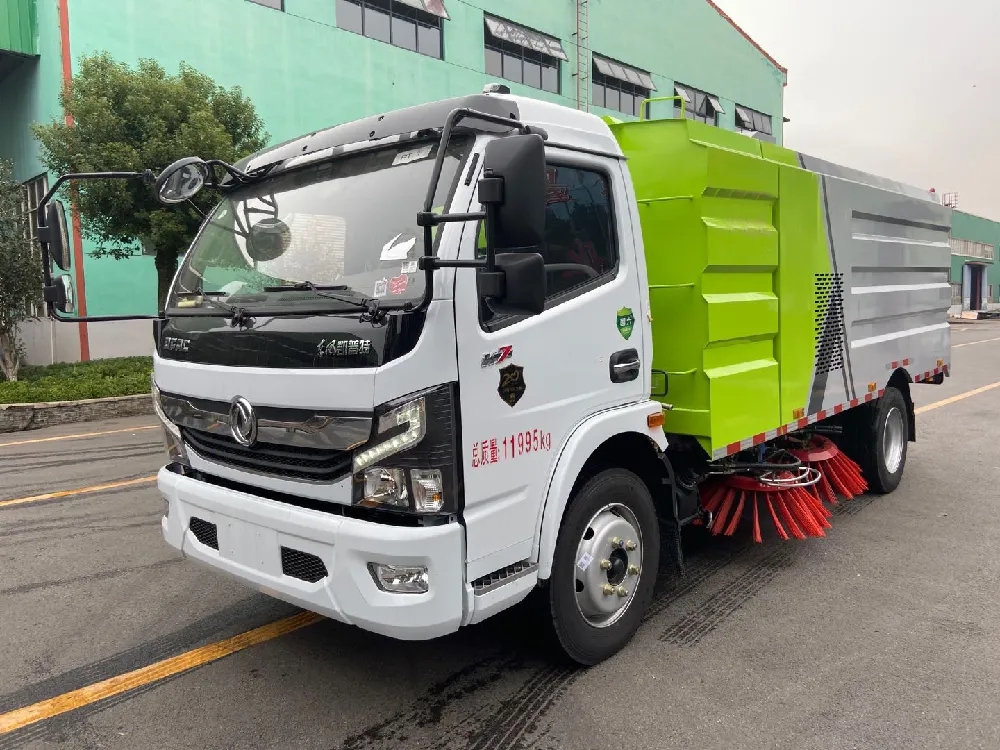

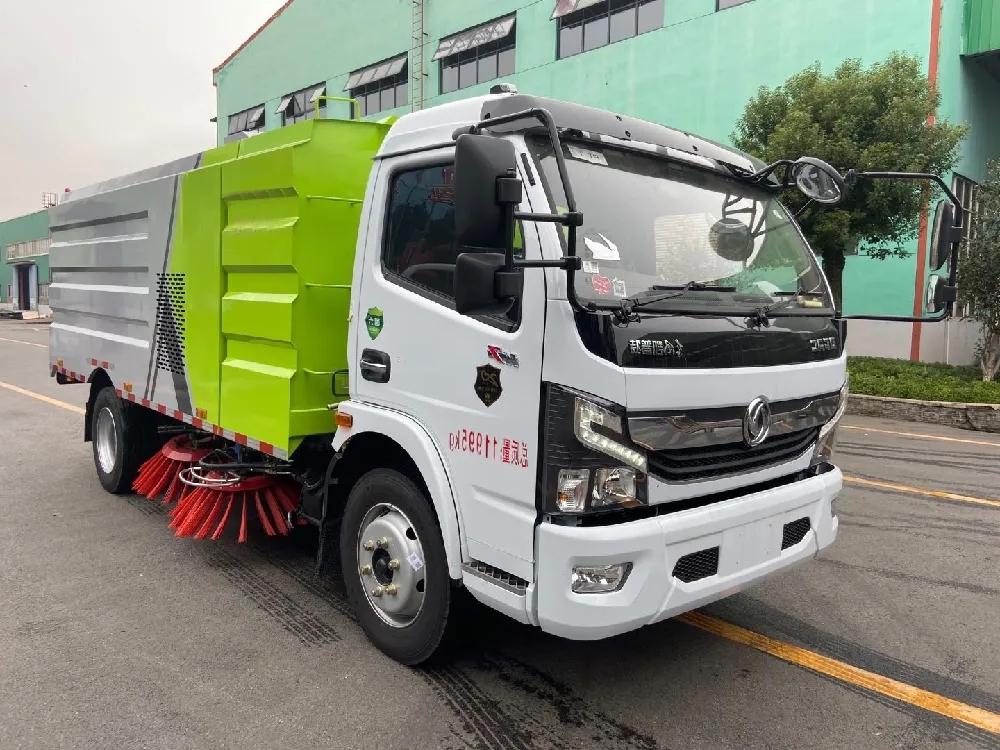

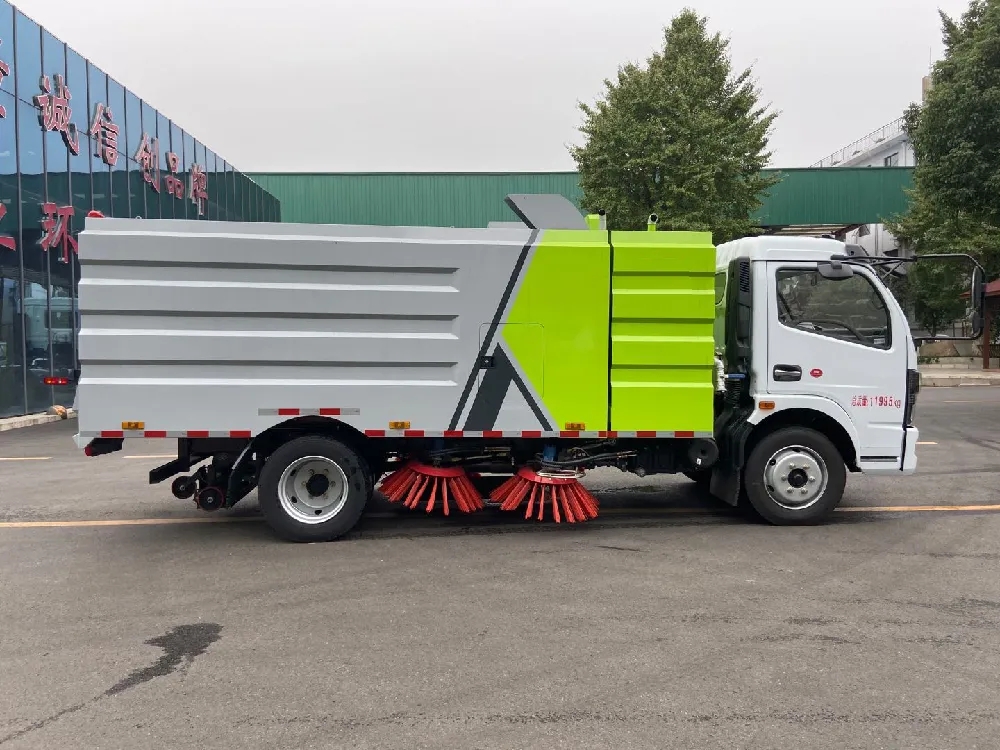

Dongfeng D7 4X2 road sweep truck
2024-09-18 10:36:10 Source：chusheng
Advantage
The high-pressure water pump is driven by the auxiliary engine, transmission shaft, belt drive, electromagnetic clutch, and coupling; The low-pressure water system adopts a two-stage impeller centrifugal pump, which has high efficiency, large sprinkler width, and long water gun range. The low-pressure water pump is directly driven by the chassis gearbox power take-off through the transmission shaft.
We have many different brands of road sweep trucks, please feel free to inquire.
| Product Name |
Dongfeng D7 4X2 road sweep truck |
| Cab |
Dongfeng D7 |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine Model |
CY4SK361 |
| Gearbox |
6 forward gears and 1 reverse gear |
| Wheel base |
3800(mm) |
| Front wheel track |
1745,1802,1820,1842,1765,1890(mm) |
| Rear wheel track |
1630,1650,1800,1720(mm) |
| Approach angle/departure angle |
21/12(°) |
| Front/rear suspension |
1130/1770,1130/2200(mm) |
| Axle numbers |
2 |
| F/R axle load |
4350/7645 |
| Tire sepcification and quantity |
245/70R19.5,8.25R20, 6 with 1 spare tire |
| Vehicle dimension |
6700,7130×2230,2350×2650,2750(mm) |
| Gross vehicle weight(Kg) |
11995(Kg) |
| Curb weight(Kg) |
6300(Kg) |
| Rated weight(Kg) |
5500(Kg) |
| Water tank capacity |
2m³ |
| Garbage bin capacity |
5m³ |
| Working width |
3m |
| Diameter of inhaled dust particles |
φ120mm |
| Upper configuration |

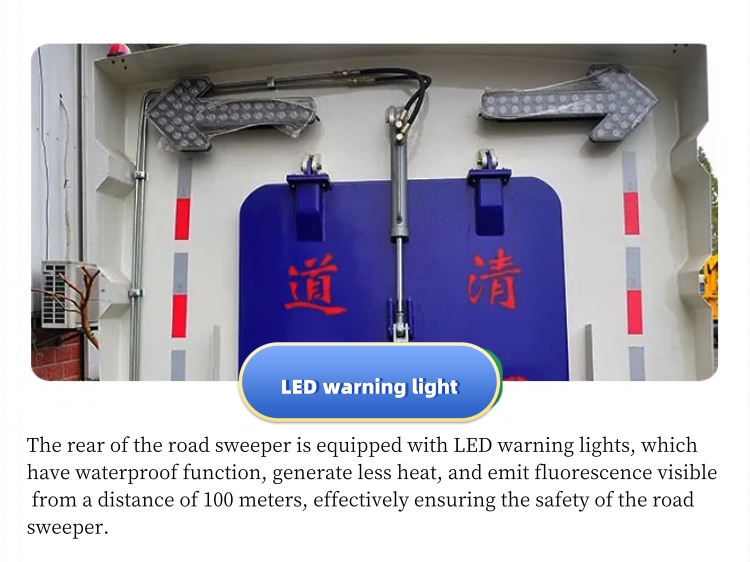

4 mid mounted scanning disks with 3-speed speed regulation; Jiangling 78 horsepower auxiliary engine; Powerful motor; Schneider control switch; Taiwan solenoid valve group; Maintenance free self separating clutch; Beibotai Information Maintenance Fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system; The brush arm rotating mechanism uses a high-tech wear-resistant engineering spacer, which does not require oiling; Precision cold-formed seamless hydraulic oil pipe. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Product Introduction
The Dongfeng high-pressure cleaning vehicle
is a dual engine, dual water pump cleaning vehicle. It is a specialized
cleaning operation vehicle that integrates mechanical, hydraulic (pneumatic),
and electrical components by adding a high-pressure flushing system and a
low-pressure flushing system on the basis of a standard Class II chassis. This
vehicle has independent high and low pressure water systems, providing a
pressure water source for cleaning the vehicle. Its working principle is to use
high-pressure water generated by a high-pressure water pump, which is sprayed
out through the high-pressure nozzle of the spray rack, and use the kinetic
energy of the high-pressure water flow to clean in a high-pressure and low flow
manner, effectively removing dirt and saving water, and cleaning old stains on
the road surface; Or high-pressure water can be sprayed from the left (right)
corner to clean the roadside, sidewalk, and guardrail isolation area; High
pressure spray guns can also be used to clean road signs, billboards, elevated
roads, etc; The spray system has powerful functions of spray to reduce dust,
spray air disinfectant and adjust air humidity.
The high-pressure water pump, nozzle, high-pressure spray gun, and key hydraulic and electrical components of this vehicle are all made of internationally renowned products, with excellent performance and reliable operation.
Main Parameter
