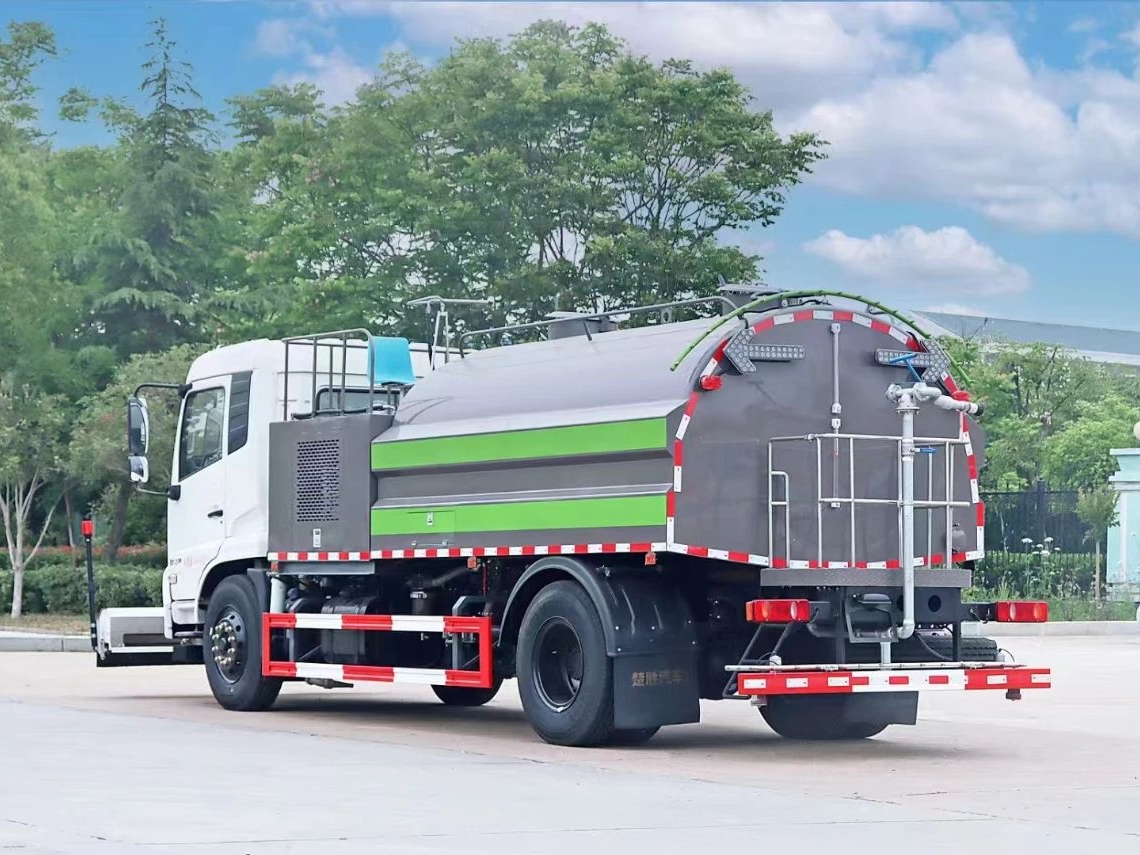

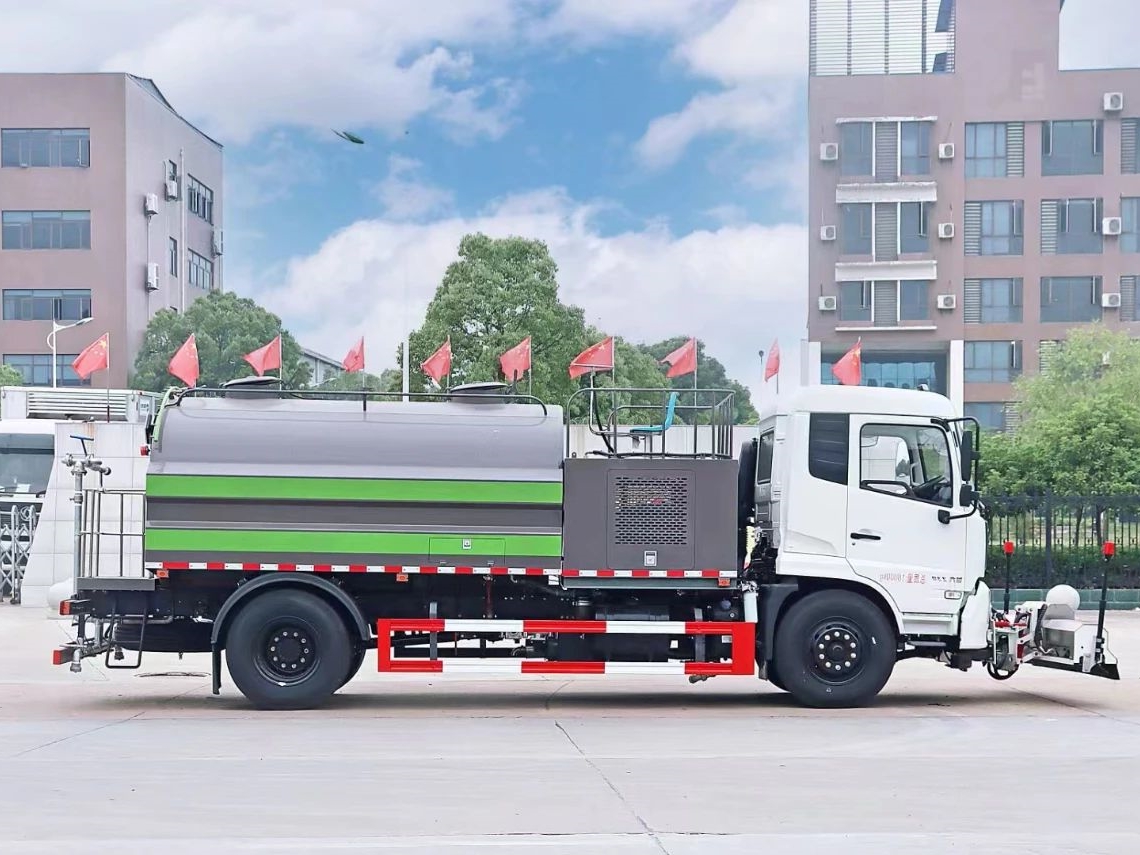

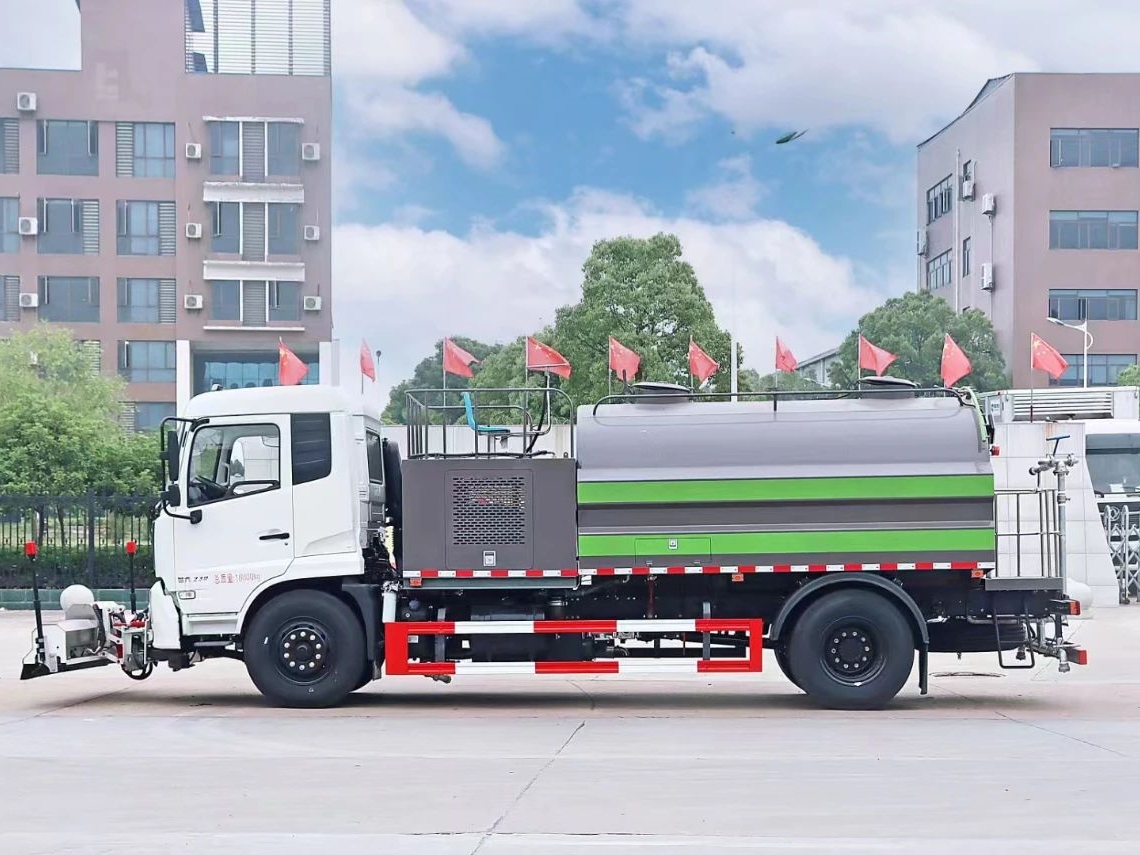

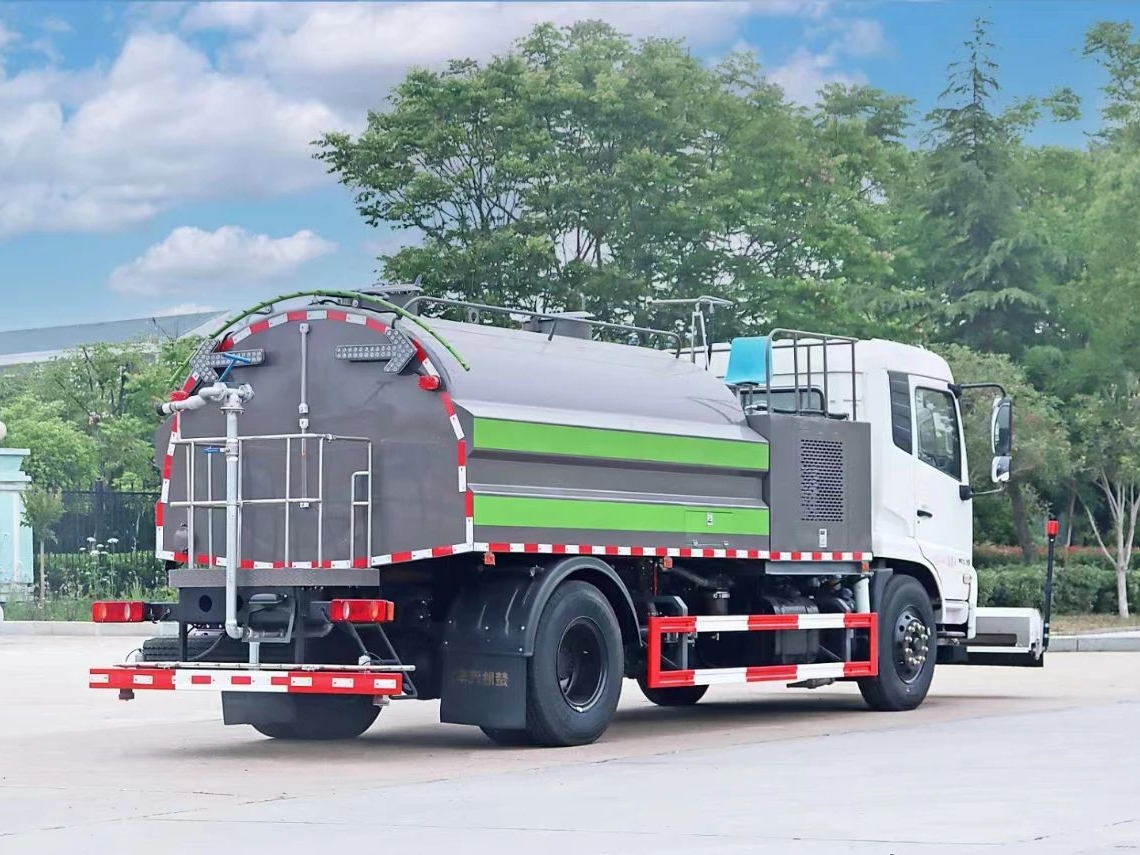

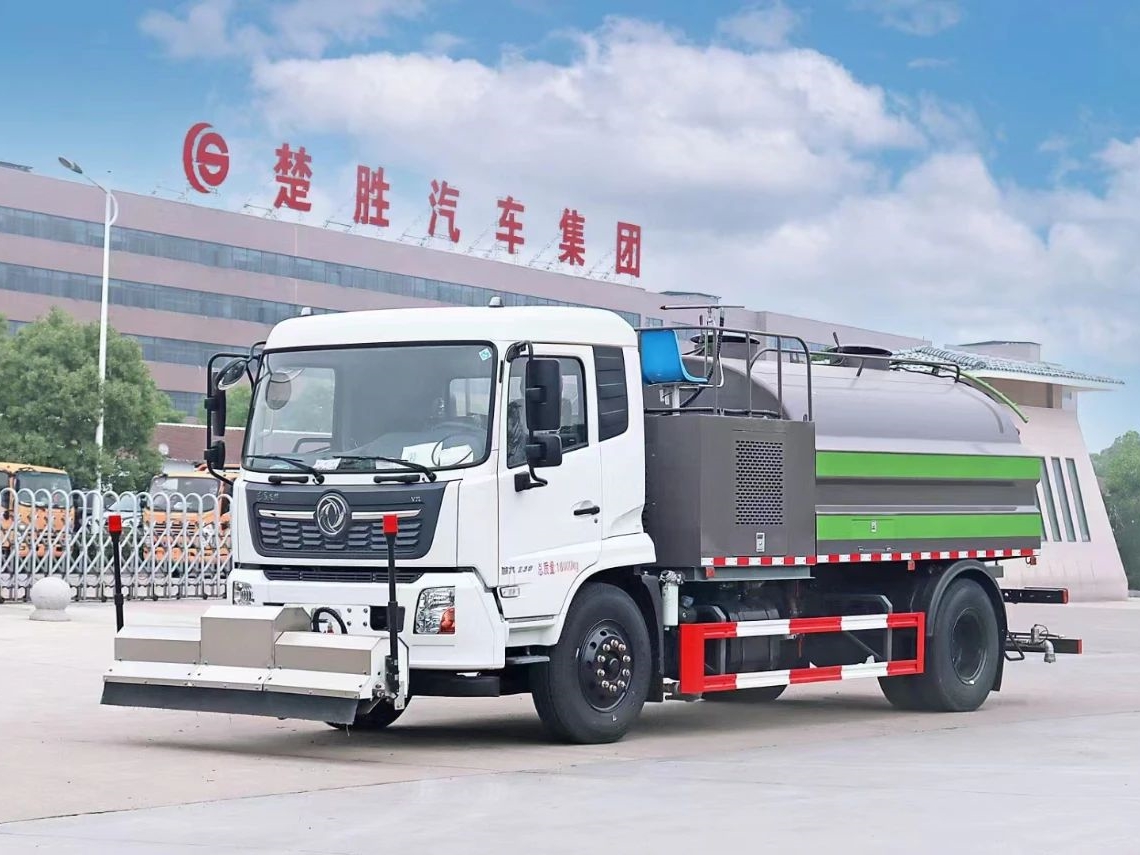

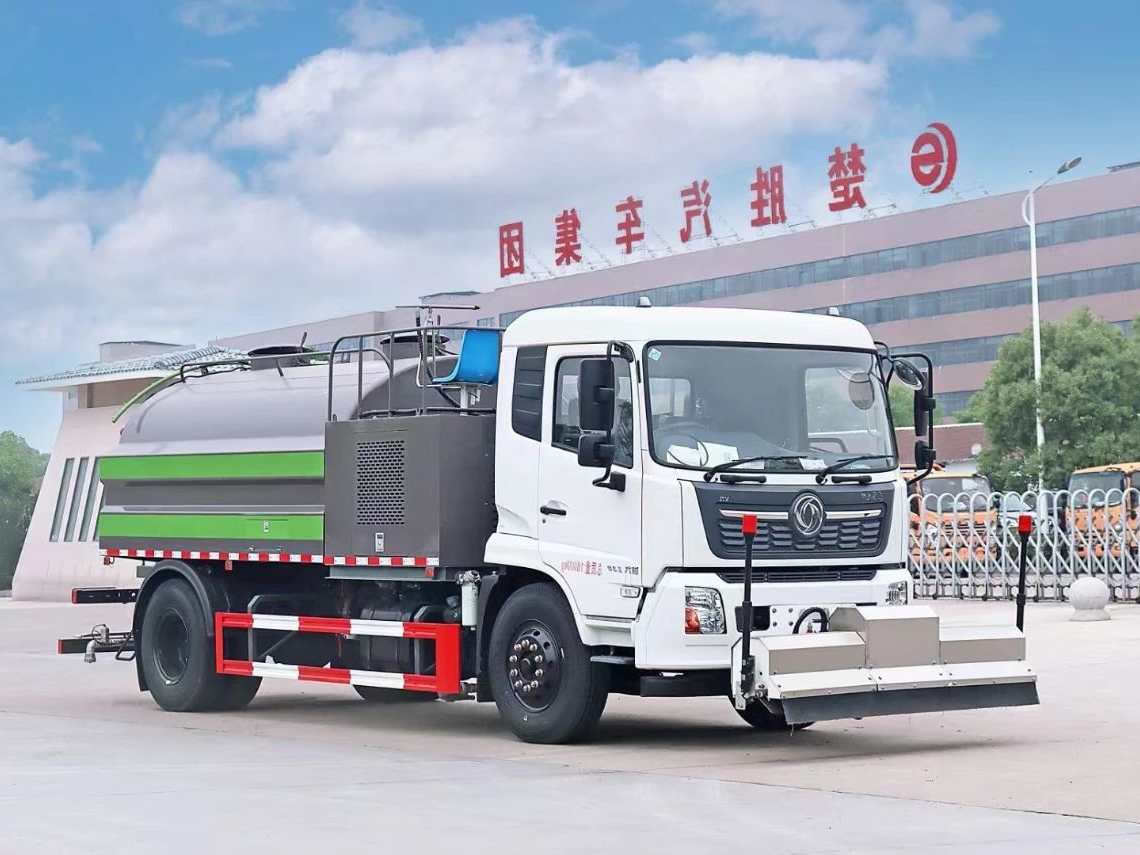

Dongfeng 4X2 Road High Pressure Cleaning Vehicle
2024-09-18 10:36:10 Source：chusheng
Dongfeng 4X2 Road High Pressure Cleaning Vehicle
Main chassis configuration: D530 semi standard roof cab, B6.2NS6B230 engine, 8JS95E-C (Shaanxi 8-speed) gearbox, 10.00R20 18PR steel wire tires.
The main configuration of the upper deck: the water tank has a volume of about 10 cubic meters, Dongfeng Light Engine 88 horsepower auxiliary engine, high-pressure water pump, low-pressure water pump, front high-pressure cleaning spray rack, high-pressure reel, rear high-pressure spray, pneumatic counter and rear spray, sprinkler, cab operation box, LED arrow light, visual image.
We have many different brands of road sweep trucks, please feel free to inquire.
| Product Name |
Dongfeng 4X2 Road High Pressure Cleaning Vehicle |
| Cab |
D530 Tianjin VR cab, electric glass lifter, central door control door lock, original air conditioning, driving recorder. |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine Model |
B6.2NS6B230 |
| Gearbox |
8-speed gearbox |
| Wheel base |
5100(mm) |
| Axle numbers |
2 |
| Tire sepcification and quantity |
10.00R20 18PR steel wire tire, 6 + 1 spare tire |
| Vehicle dimension |
8150,9000×2500×2980(mm) |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
8570(Kg) |
| Rated weight(Kg) |
9300,9235(Kg) |
| Water tank capacity |
10m³ |
| Garbage bin capacity |
/ |
| Upper configuration |
Cummins 170 hp auxiliary engine, GTM high-pressure pump, 2 sweepers in the middle, wide suction cups in the rear, roller brush and high-pressure spray bar in the suction cups, high-pressure side spray bar, high-pressure front spray, garbage container self-cleaning spray, optional pneumatic counter watering, 15m high-pressure winch, |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 4X2 Road High Pressure Cleaning Vehicle
High pressure cleaning vehicles, also known as pipeline dredging vehicles, use the strong pressure generated by high-pressure water flow to flush open blocked pipelines. The main components are the tank body, high-pressure pump, hydraulic system, etc. High pressure cleaning vehicles are mainly used to clean sediments and dredge dead corners of urban sewers and pipelines. They can also be used to clean industrial drainage pipelines, walls, etc., and to clean roads and square floors.
The high-pressure washing vehicle can also be equipped with sprinklers, including greening sprinklers, forward flushing, rear spraying and side spraying, which can be used for greening watering, spray, dust suppression, high-pressure road flushing, etc., and can be used for fire fighting in an emergency.
Main Parameter
