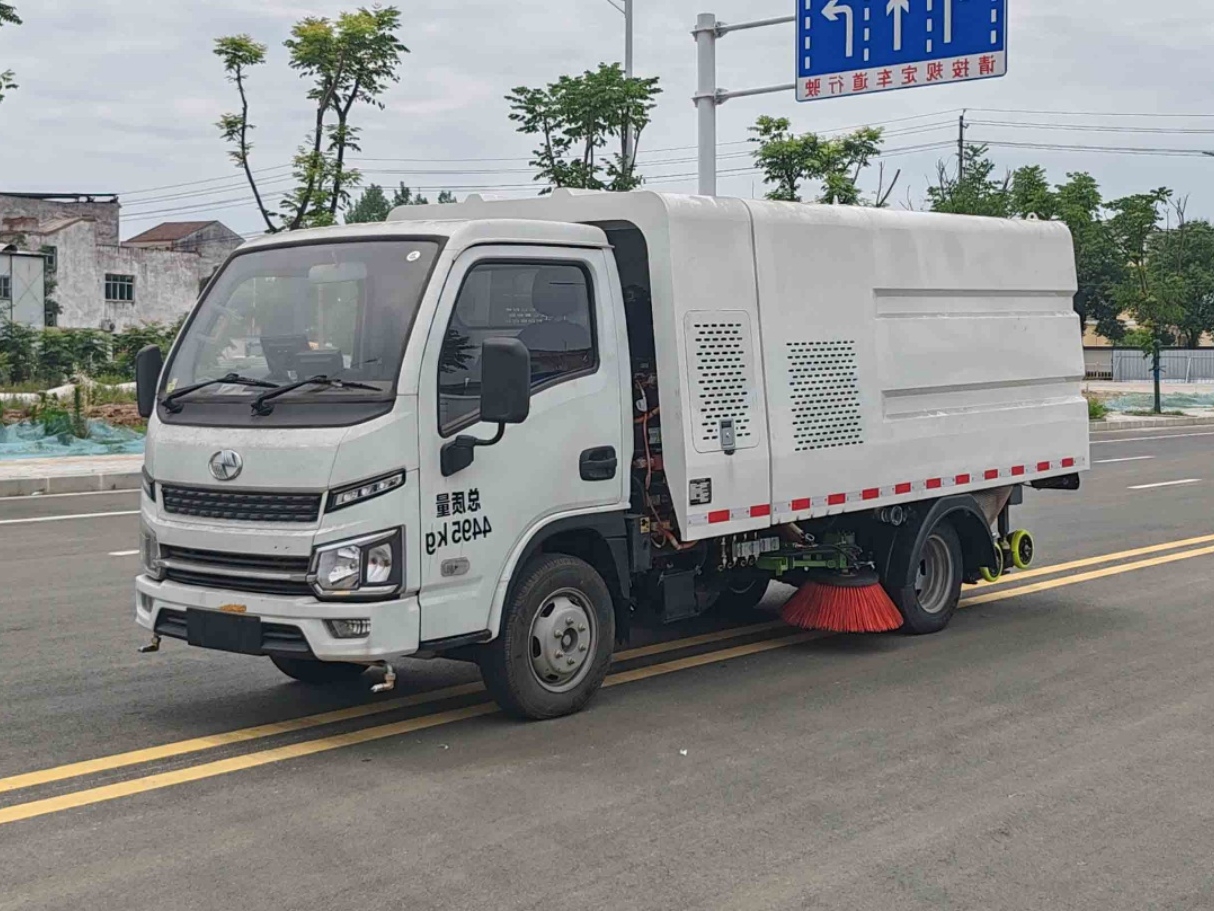

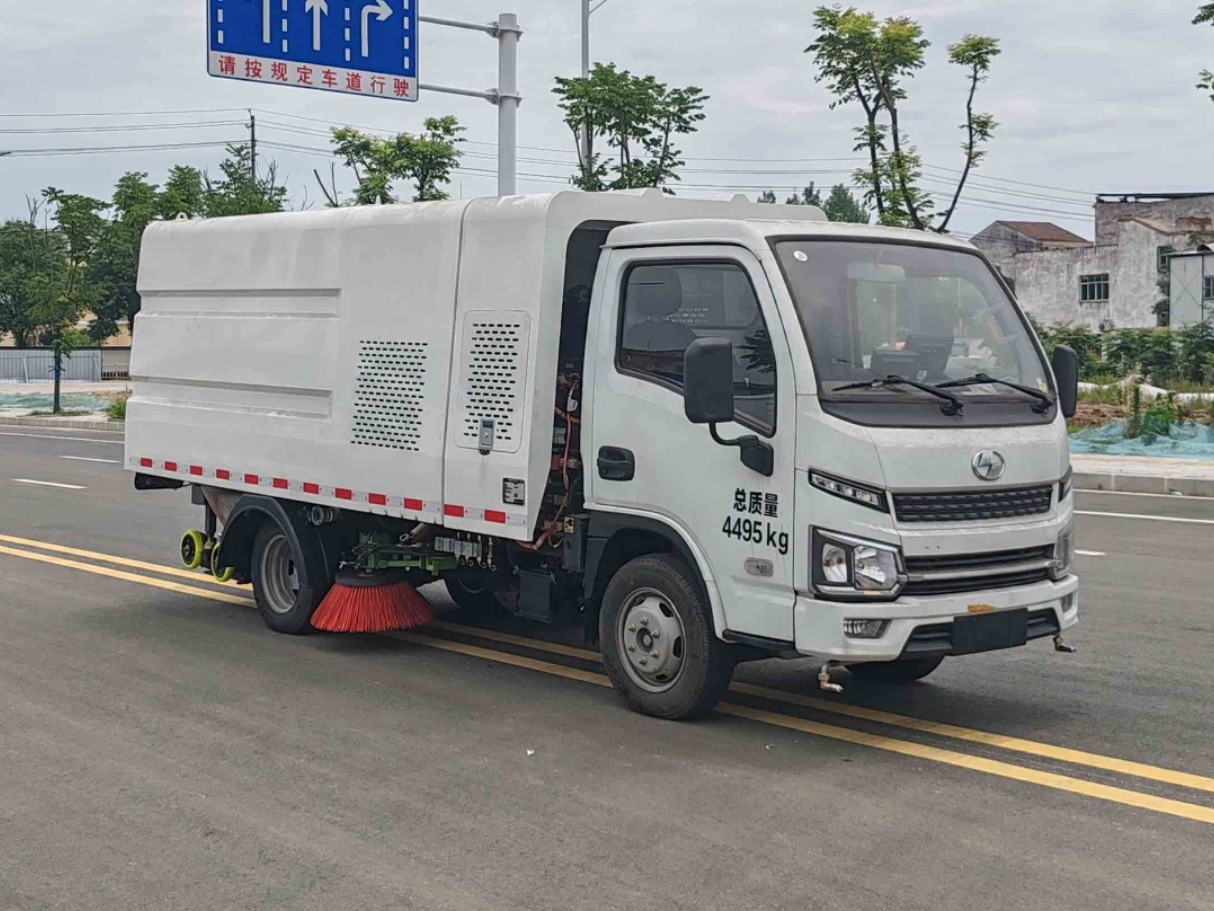

SAIC Light Truck 4.5m³ Electric Cleaning and Sweeping Vehicle
2024-09-18 10:36:10 Source：chusheng
Chassis configuration:
1. Cab: SAIC Light Truck ES Series 6th Generation New Cab
2. Total weight: 4495kg (curb weight: 3750kg)
3. Wheelbase: 2850mm
4. Drive motor: CRRC Era permanent magnet synchronous motor
5. Electricity consumption: 55.7kwh, optional 66.84kwh
6. Battery Brand: CATL (Back Battery) Industry Leading Battery Brand
7. Range: 250km ultra long range, meeting the requirements of 4-6 hours of operation
8. Gear on: 720mm
9. Frame: 144mmx50mmx4mm reinforced beam
10. Front/rear axle: 1.5T/3T
11. Tire: 185R15LT 8PR
Standard configuration: RADIO+dual USB+Bluetooth, electric air conditioning, central locking, central electric shake, front fog lights, cruise control, multifunction steering wheel, with transmission power take-off (flange power take-off), T-BOX, pedestrian reminder, ABS+EBD， Self adjusting clearance, LCD instrument display system (7-inch color driving computer), slow charging+fast charging (front), brake energy recovery, intelligent energy management system interface.
| Product Name |
SAIC Light Truck 4.5m³ Electric Cleaning and Sweeping Vehicle |
| Cab |
SAIC Light Truck ES Series 6th Generation New Cab |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Drive motor |
4HK1-TC50, 205hp |
| Electricity consumption |
55.7kwh, optional 66.84kwh |
| Battery Brand |
CATL (Back Battery) Industry Leading Battery Brand |
| Range |
250km ultra long range, meeting the requirements of 4-6 hours of operation |
| Gearbox |
/ |
| Wheel base |
2850(mm) |
| Axle numbers |
2 |
| Tire sepcification and quantity |
185R15LT 8PR , 6+1 spare tire |
| Vehicle dimension |
5470,5520×1750×2400,2450(mm) |
| Gross vehicle weight(Kg) |
4495(Kg) |
| Curb weight(Kg) |
3750,3850(Kg) |
| Rated weight(Kg) |
615,515(Kg) |
| Water tank capacity |
/ |
| Garbage bin capacity |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
SAIC Light Truck 4.5m³ Electric Cleaning and Sweeping Vehicle
A cleaning and sweeping vehicle is a new and efficient cleaning equipment that integrates road surface cleaning, garbage recycling, and transportation. It is widely used in various occasions such as urban roads, highways, squares, airports, etc. The cleaning and sweeping vehicle has multiple operating modes, including full cleaning, left cleaning, right cleaning, and full cleaning, which can effectively clean squares and roads with a cleaning rate of over 95%. It can not only be used as a road sweeping vehicle for road surface cleaning and suction operations, but also as a high-pressure washing vehicle for road surface washing and suction operations, or combined with both to achieve multiple combination options for cleaning, washing, and suction washing.
Main Parameter
