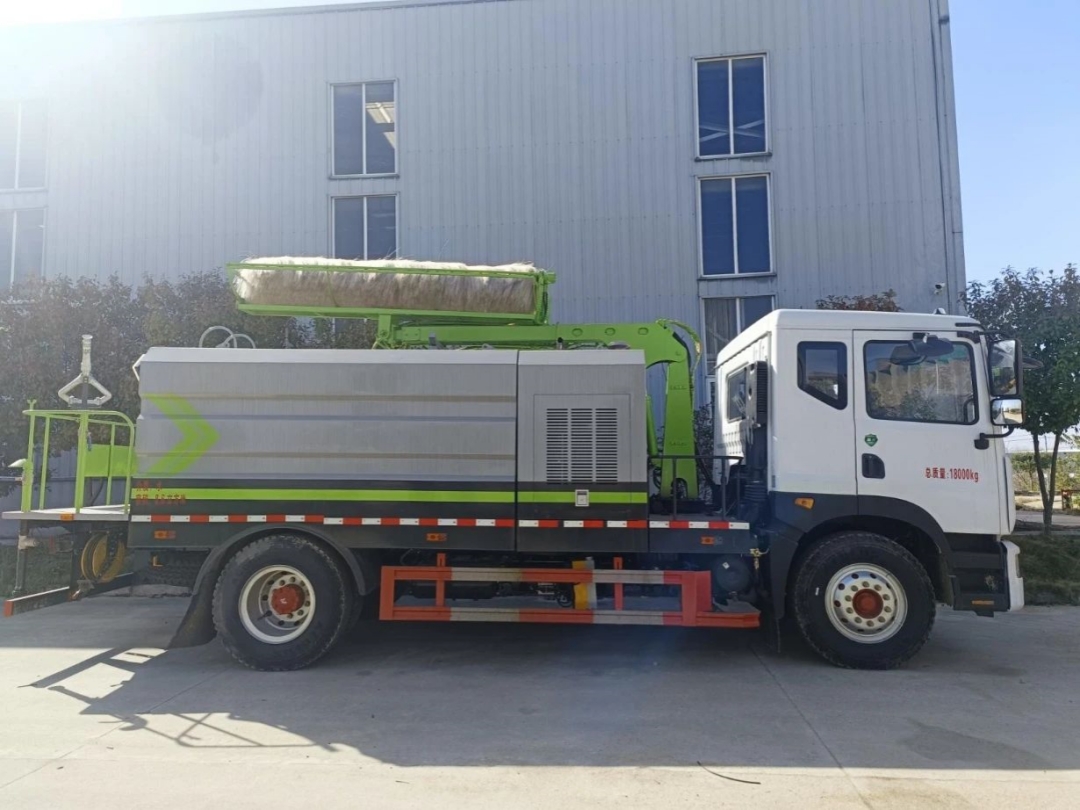

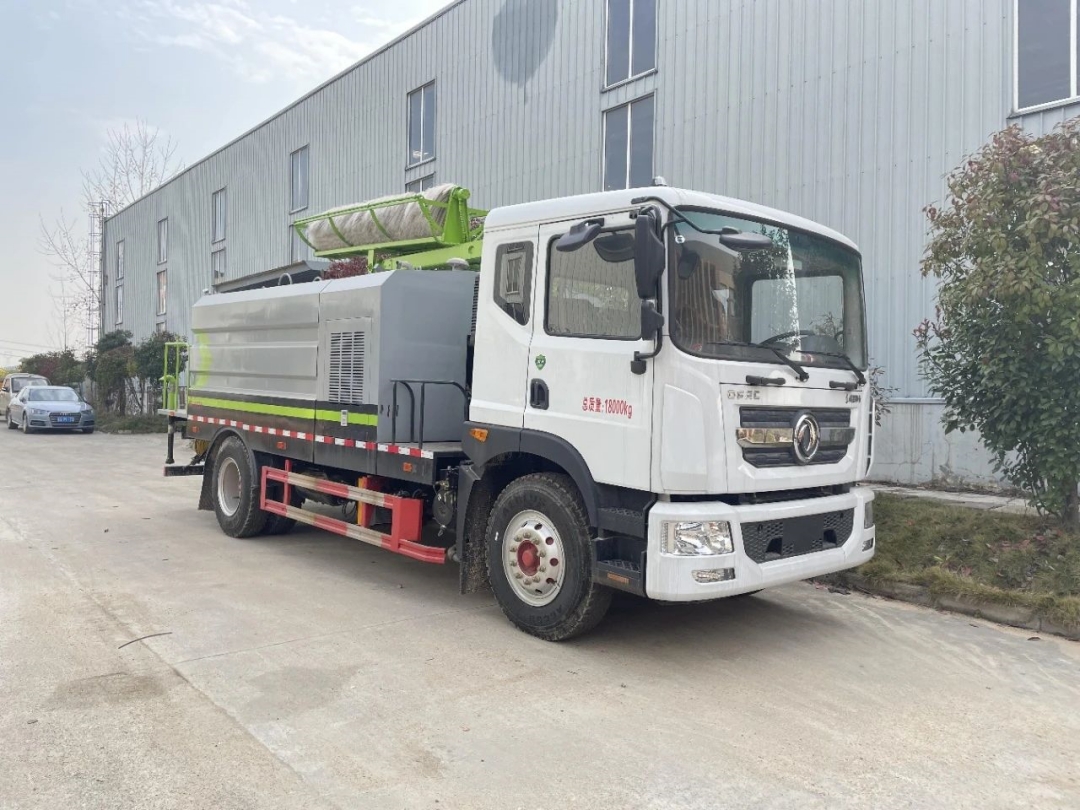

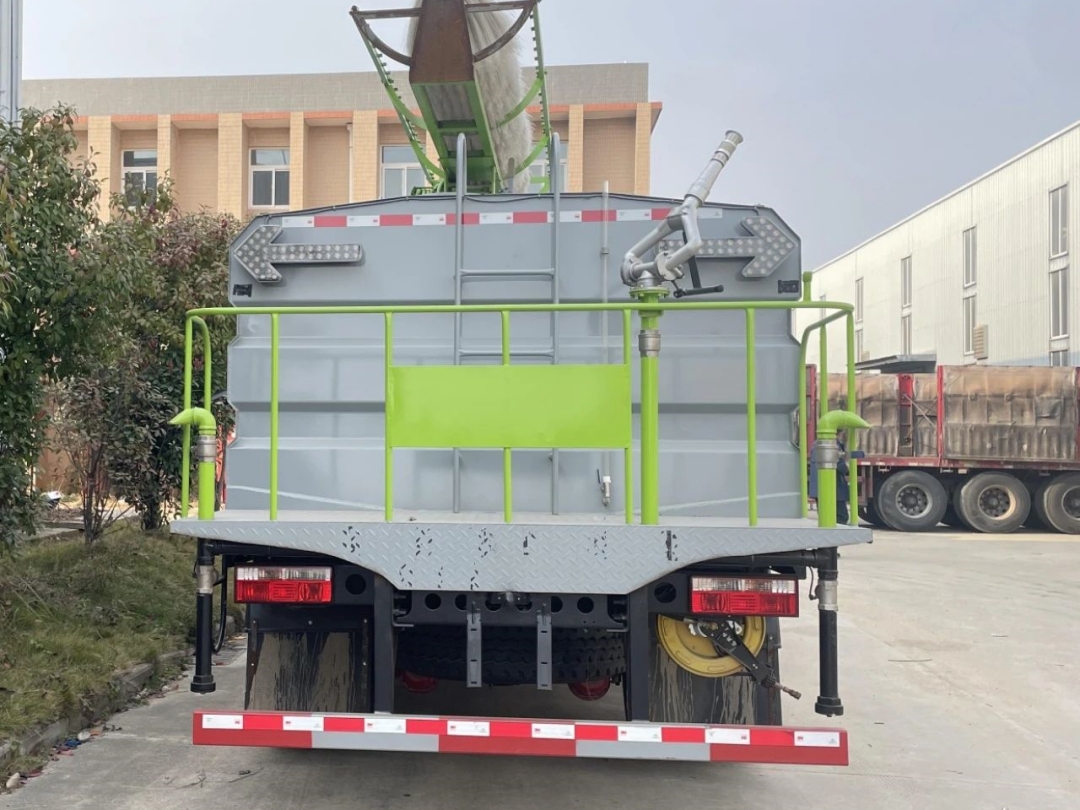

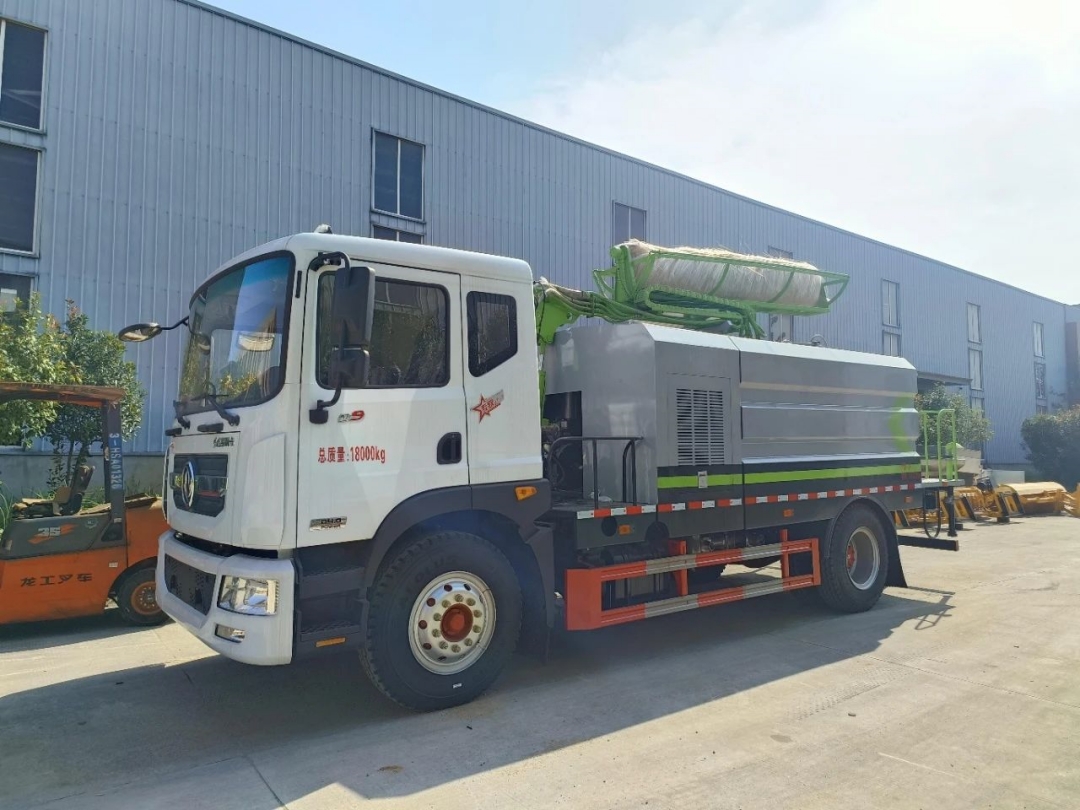

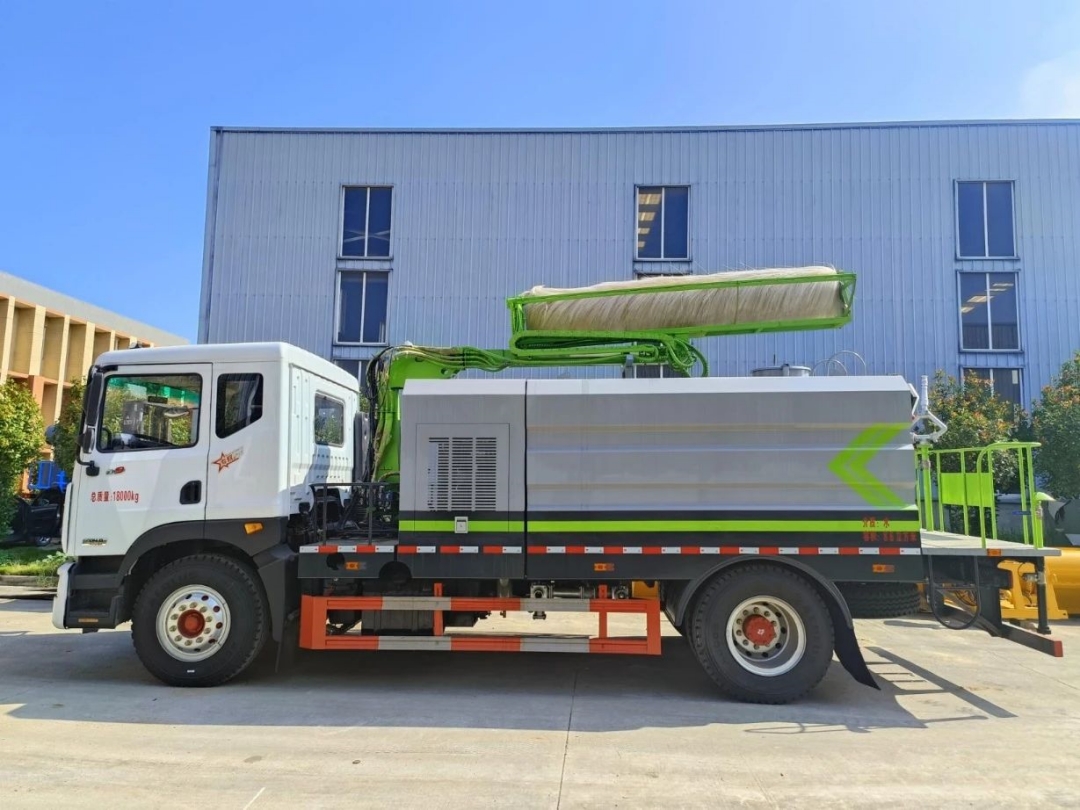

Dongfeng D9 4X2 photovoltaic panel cleaning vehicle
2024-09-18 10:36:10 Source：chusheng
Dongfeng D9 4X2 photovoltaic panel cleaning vehicle
Chassis
configuration:
1.
Engine: D4.0NS6B195,Cummins 195 horsepower.
2.Transmission
type: FAST 8-speed gearbox
3.Wheelbase:
3600,3950,4500,4700,5000,5300,5600(mm)
4.Tyre: 10.00R20 18PR steel wire tire, 6 + 1 spare tire
5
Other: Dongfrng D9 cab,Air conditioning, electric doors and windows, central locking system, ABS exhaust brake.
Installation configuration:
1. The upper part uses a secondary generator to provide power to the robotic arm (with a limiter to avoid pipeline entanglement), driving the roller brush for photovoltaic panel cleaning operations.
2. In addition, it is equipped with a Pinfu high-pressure pump with a maximum flow rate of 115 liters/minute, which is fully compatible with high-pressure cleaning function.
3. Equipped with a 20 meter automatic return reel, it can clean small wall advertisements, stubborn mud stains on the ground, and also wash vehicles.
4-Video display in the driver's cabin, used for reversing camera and displaying cameras above the rear platform and cleaning arm.
We have many different brands of road sweep trucks, please feel free to inquire.
| Product Name |
Dongfeng D9 4X2 photovoltaic panel cleaning vehicle |
| Cab |
Dongfrng D9 cab,Air conditioning, electric doors and windows, central locking system, ABS exhaust brake. |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine Model |
D4.0NS6B195,Cummins 195 horsepower. |
| Gearbox |
FAST 8-speed gearbox |
| Wheel base |
3600,3950,4500,4700,5000,5300,5600(mm) |
| Axle numbers |
2 |
| Tire sepcification and quantity |
10.00R20 18PR steel wire tire, 6 + 1 spare tire |
| Vehicle dimension |
9700,8900,8700,8500,7700,7500×2500×3250,3600(mm) |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
8000(Kg) |
| Rated weight(Kg) |
9870,9805(Kg) |
| Upper configuration |
The upper part uses a secondary engine to provide power to the robotic arm (with a limiter to avoid pipeline entanglement), driving the roller brush for photovoltaic panel cleaning operations. In addition, it is equipped with a Pinfu high-pressure pump, |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D9 4X2 photovoltaic panel cleaning vehicle
Thephotovoltaic panel cleaning car is also called the solar panel cleaning car. It is suitable for watering, spray, cooling, dedusting and washing of various roads. It is mainly used for cleaning PV panels and tunnel walls. It can also be used for road maintenance, landscaping, emergency fire fighting, transportation of drinking water, etc.
The solar panel cleaning vehicle adopts the Dongfeng D9 chassis and is equipped with a high-pressure flushing system and a low-pressure flushing system. It is a solar photovoltaic panel flushing operation vehicle that integrates mechanical, hydraulic, and electrical parts.
Main Parameter
