Multifunctional high-pressure cleaning electric tricycle

Multifunctional high-pressure cleaning electric tricycle

2024-09-18 10:36:10 Source：chusheng

The multifunctional high-pressure cleaning electric tricycle has the characteristics of multiple functions and wide application fields. It can play a role in different scenarios such as municipal roads, factory parks, scenic squares, back alleys and rural streets, campuses, and residential areas. For example, on municipal roads, it can quickly flush auxiliary roads, curbstones, and sidewalks; In the factory park, it can focus on cleaning heavy oil contaminated floors; In the scenic square, it travels flexibly and will not crush the floor tiles; In rural streets, it has strong passability and can operate normally; In campuses and residential areas, it can choose the pure electric version, which has zero emissions and low noise, and will not interfere with normal daily activities.

We have many different brands of

road sweep

trucks, please feel free to inquire.

Product Name

Multifunctional high-pressure cleaning electric tricycle

Chassis

As below

Function

Cleaning+front flushing+rear flushing+rear upward rotary spray

Drive motor

1500W high-power heavy-duty motor with high power matching and strong power output

Rear axle

Enlarged and weighted integrated, automotive grade suspended rear axle

Battery power supply

Rated voltage 48V45A, maintenance free lead-acid battery from Chaowei/Tianneng brand, stable performance, long lifespan, and stable working voltage

Climbing ability

<15°

Allowable passenger

1 person

Maximum speed

25km/h

Wheelbase

2100mm

Vehicle weight

430KG

Colour

Orange yellow

Frame structure

As below

Frame and body

High quality carbon structural steel, automotive grade electrophoretic coating, high-temperature baking paint anti fading, long-lasting rust resistant car. Frame beam 40X80 square tube, wall thickness 2mm

Rear axle

Customized heavy-duty rear axle for dedicated vehicles, with strong load-bearing capacity

Braking system

Front mechanical brake, parking brake device

Suspension

Front suspension thickened double simple shock absorption, rear suspension steel plate non independent shock absorption

Tire specifications

Front: 375-12 Rear: 400-12

Signal lights

Headlights, front turn signals, rear turn signals, brake lights, horn

vehicle size

Length: 3065mm, Width: 1100mm, Height: 1500mm

Chair

High density foam sponge

Carriage exterior cover

As below

Material

Concealed track sliding iron galvanized material

Size

Length: 1655mm, Width: 1070mm, Height: 715mm

Tank body

As below

Material

Rotational plastic water tank: it is an integral open mold injection type water tank, which is water tight, corrosion resistant and anti-aging. It is equipped with: water inlet Mouth, water outlet

Volume

700L

Cleaning system

As below

Engine

190 electric start 15HP high-performance air-cooled, four stroke OHV gasoline

Water pump

Domestic cleaning pump pressure 250Kg/cm2, flow rate 15L/min, adjustable pressure range

Pipe rolling device

13 meter heavy-duty dual arm automatic contraction, efficient and convenient, double-layer hydraulic pipe with protective cover, durable and long-lasting

Filter

80 mesh water filter, clearly located for easy cleaning

Kindly reminder

The above parameters are for reference only and vehicles can be customized according to customer needs.

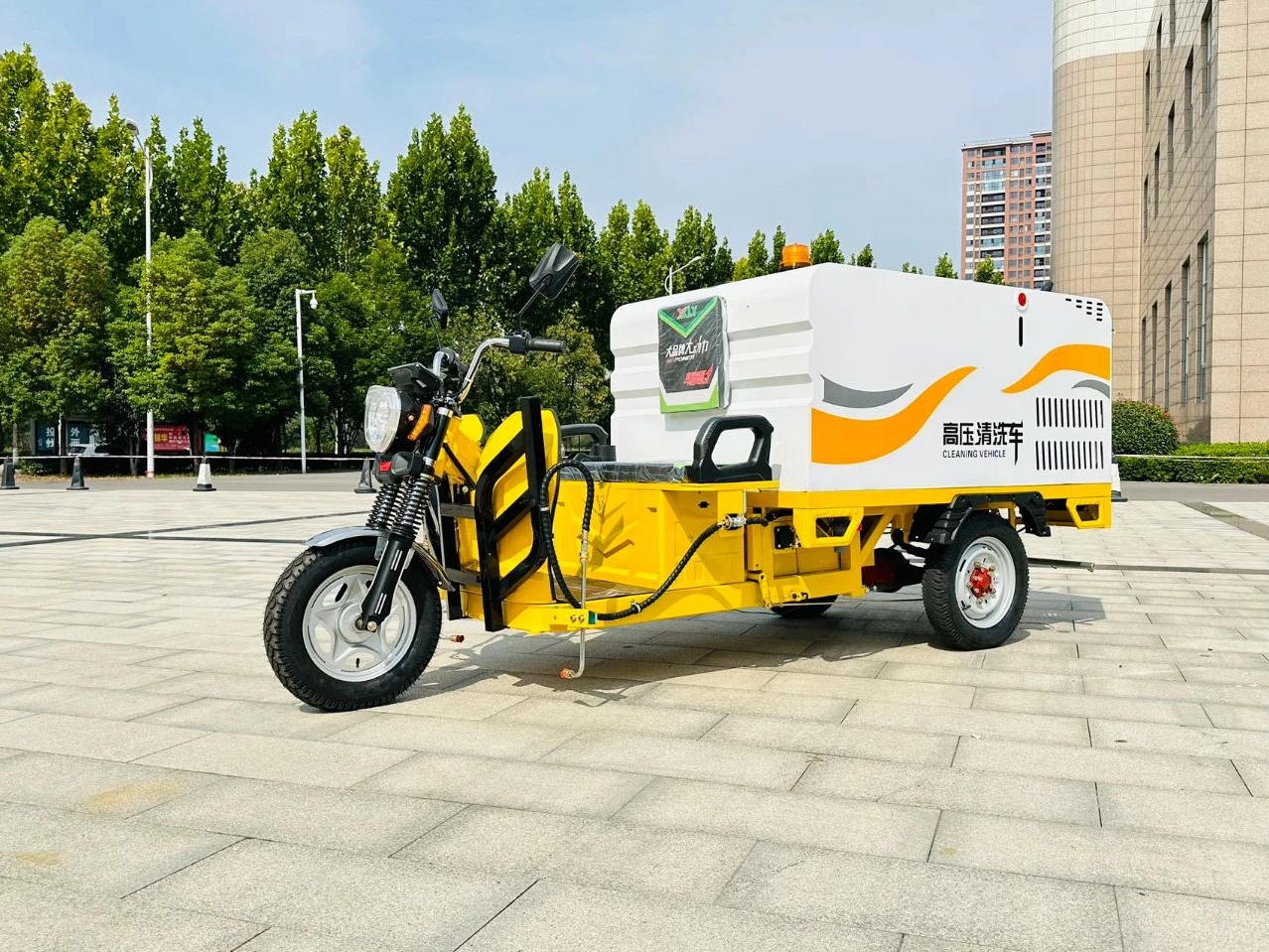

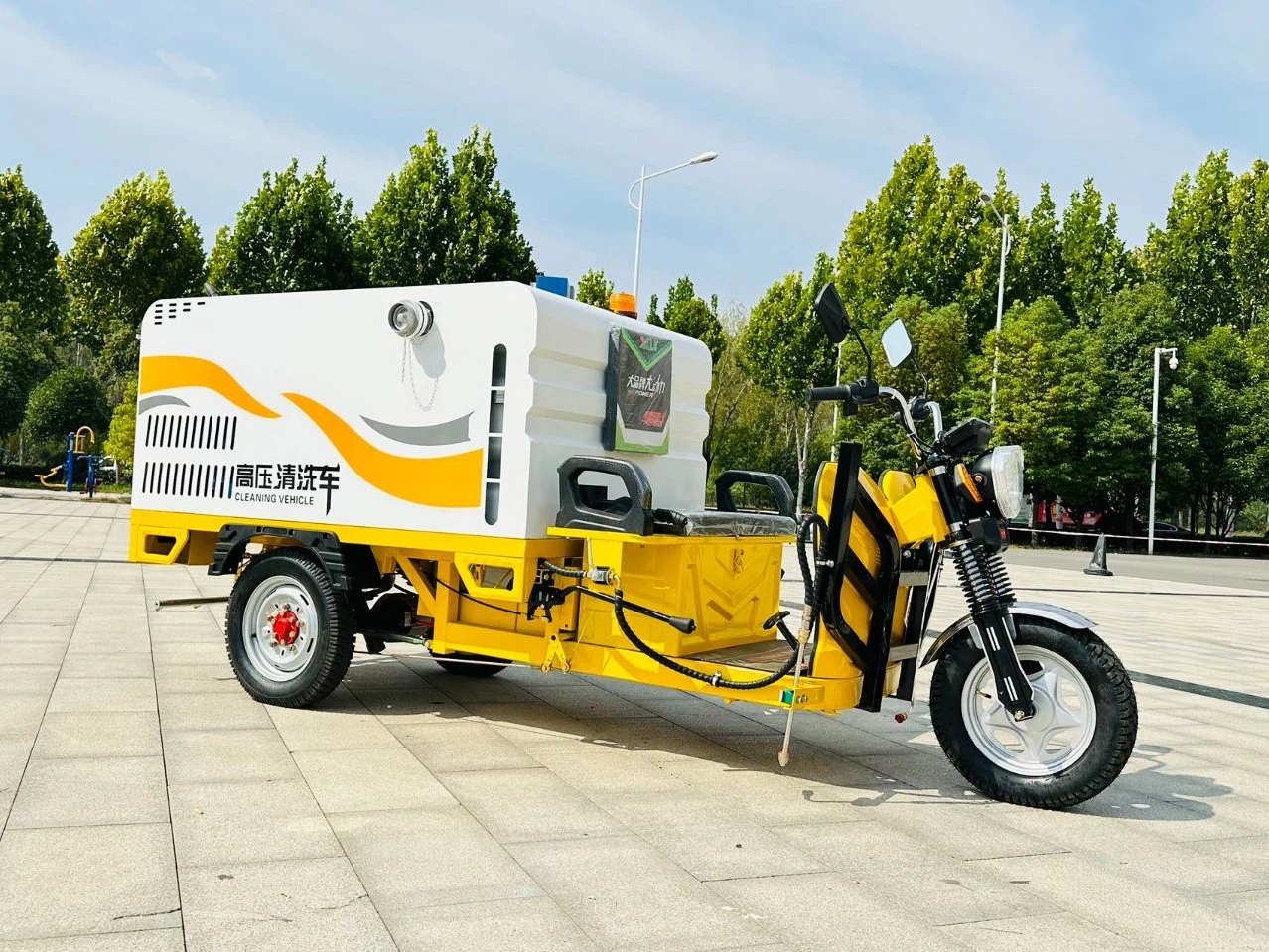

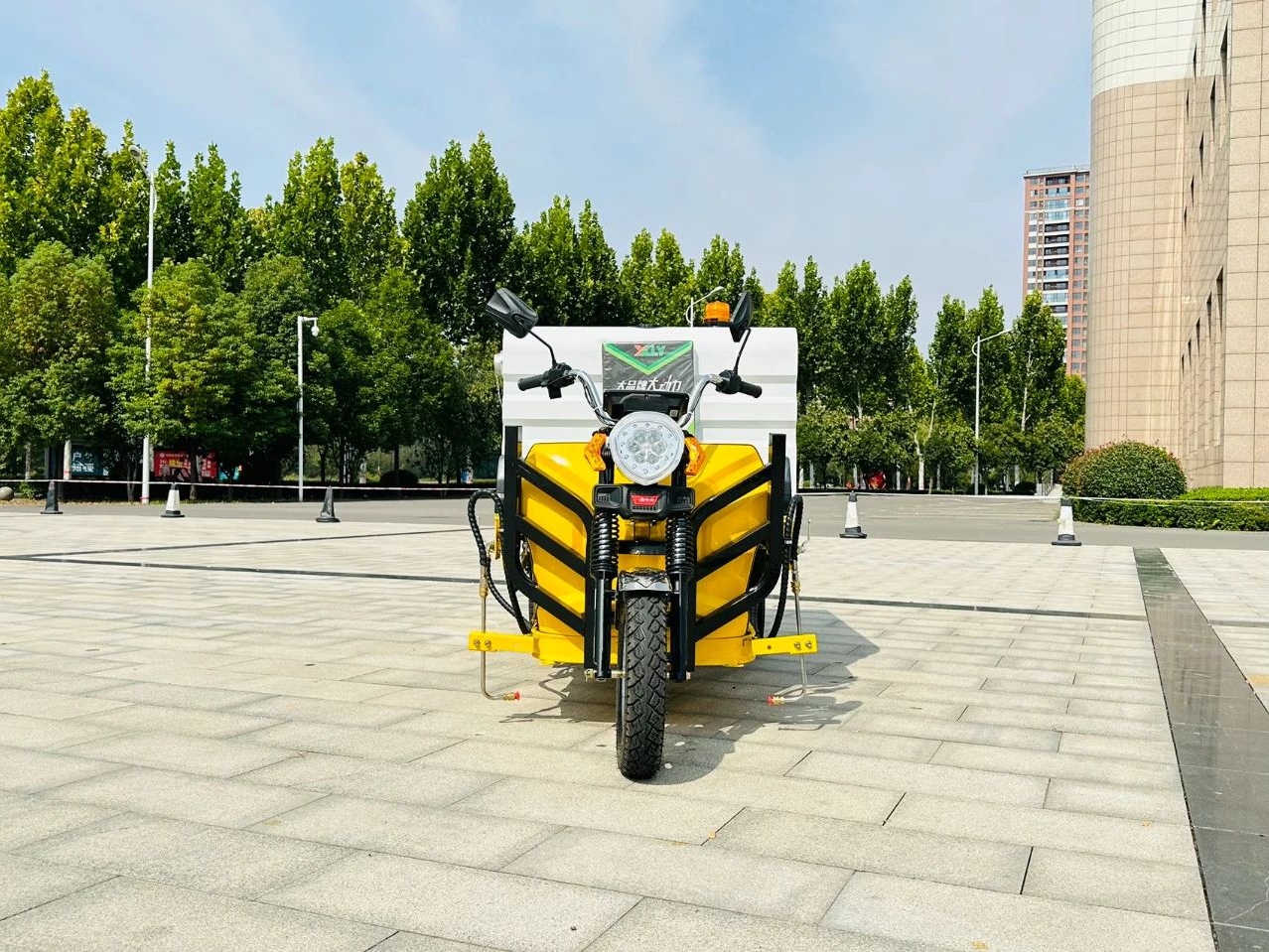

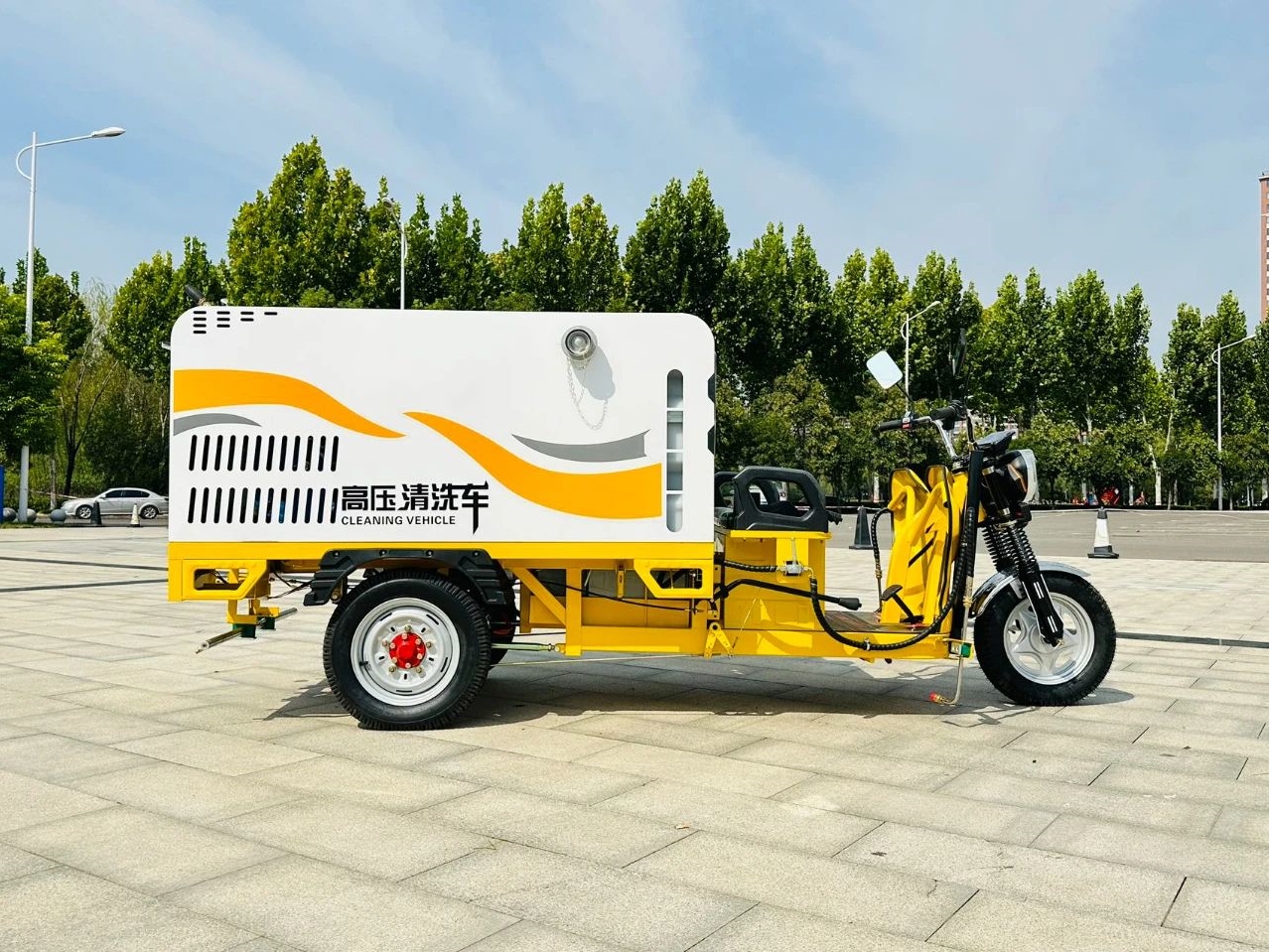

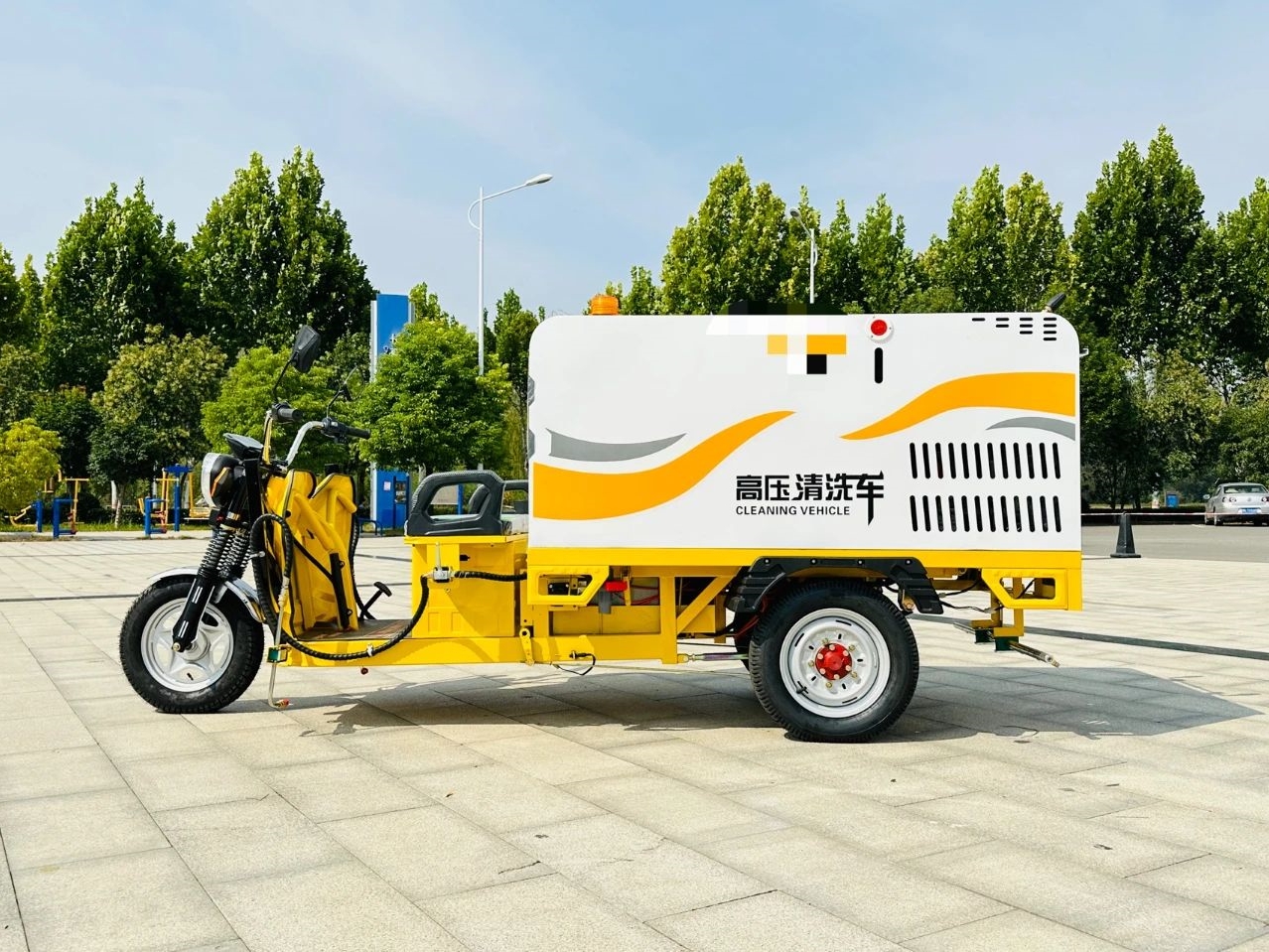

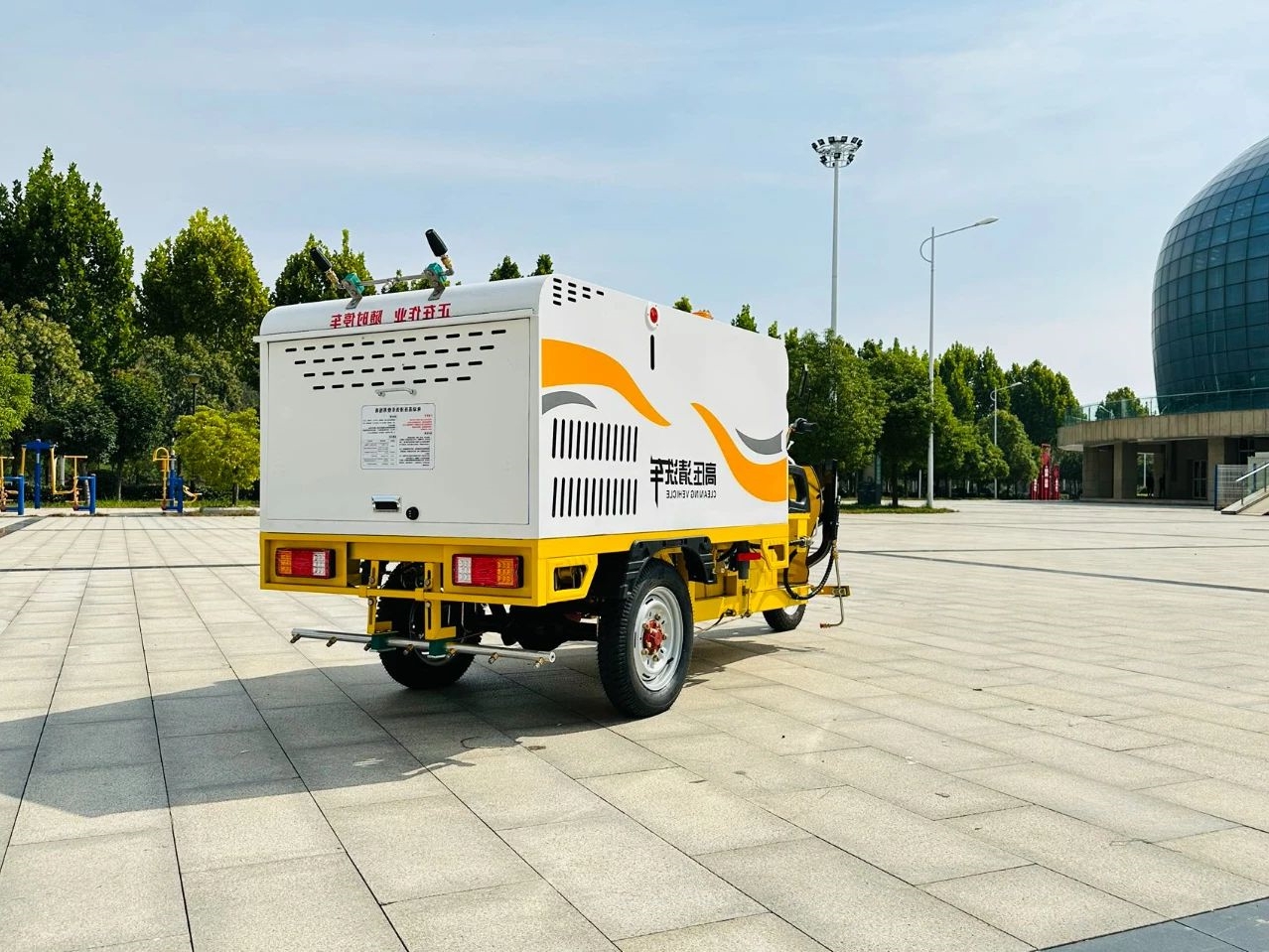

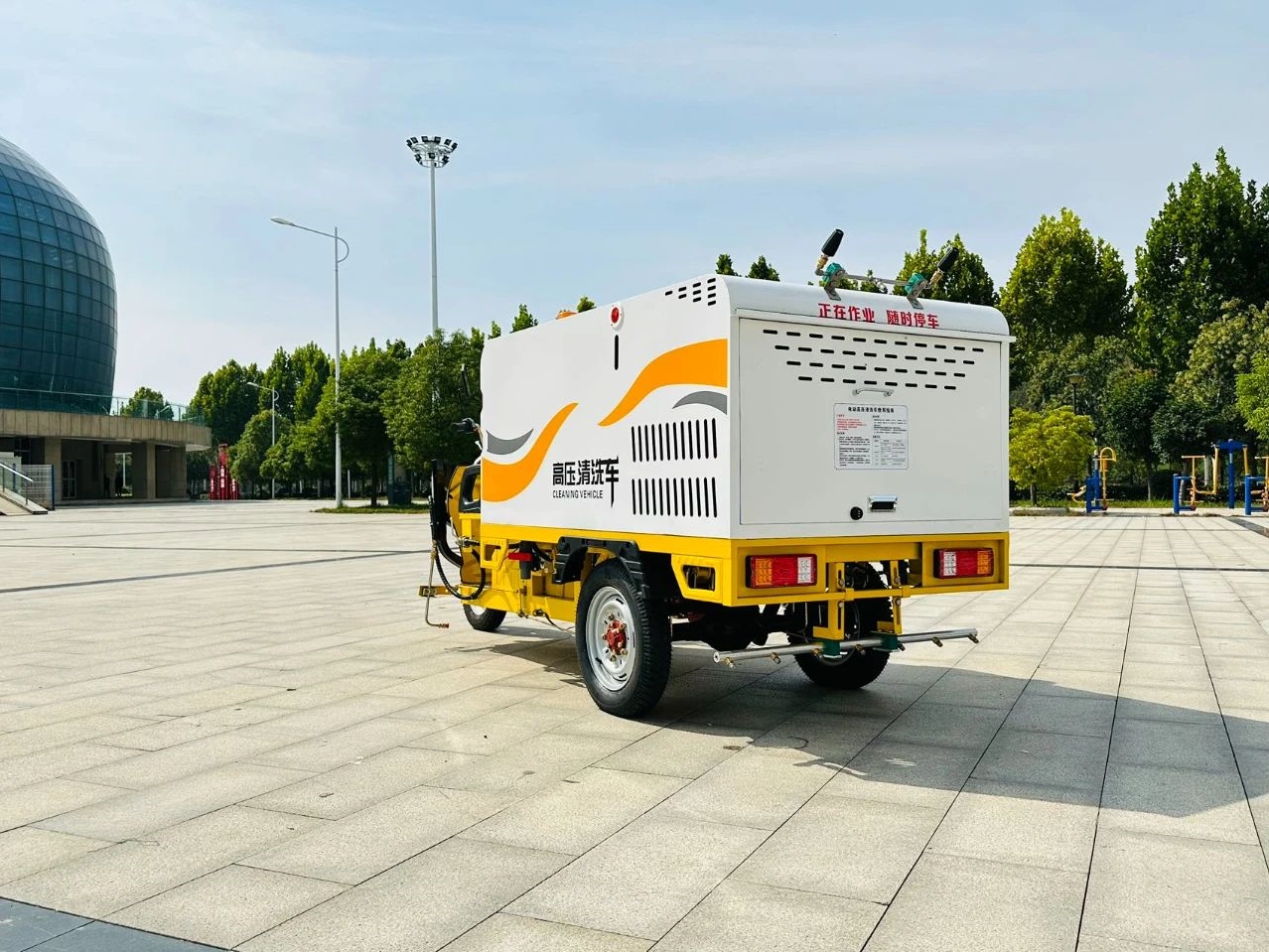

Multifunctional high-pressure cleaning electric tricycle

Multifunctional high-pressure cleaning vehicle usage scenarios and objects: walkways, curbs, streets, stations, residential alleys, sidewalks, urban streets, station guardrails, etc. in construction sites/municipal/school/park/hospital/office buildings/parking lots and other areas.
The multifunctional high-pressure cleaning electric tricycle is a sanitation equipment based on the chassis of the electric tricycle, equipped with a high-pressure cleaning machine and a water pump.
Main Parameter
