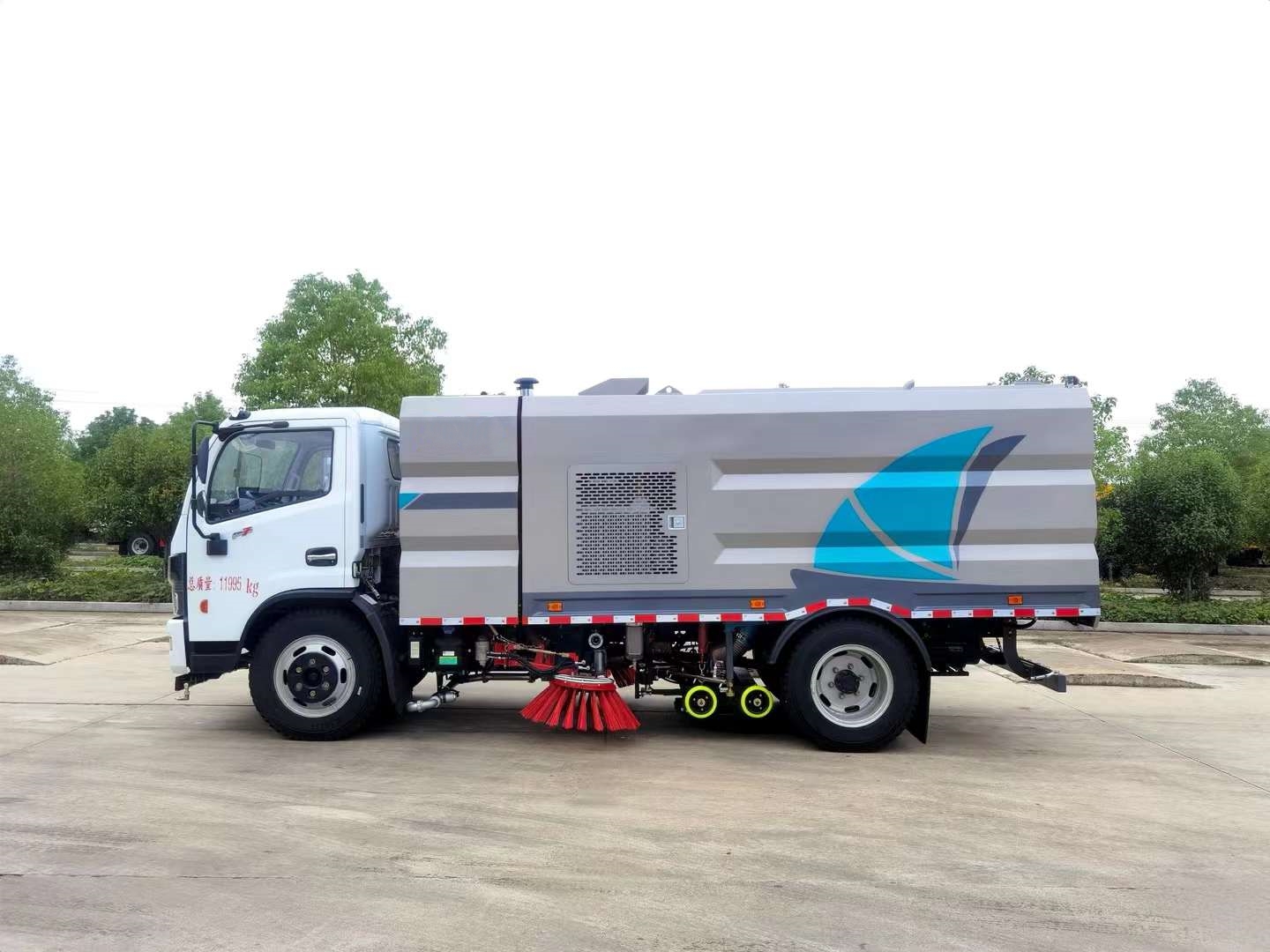

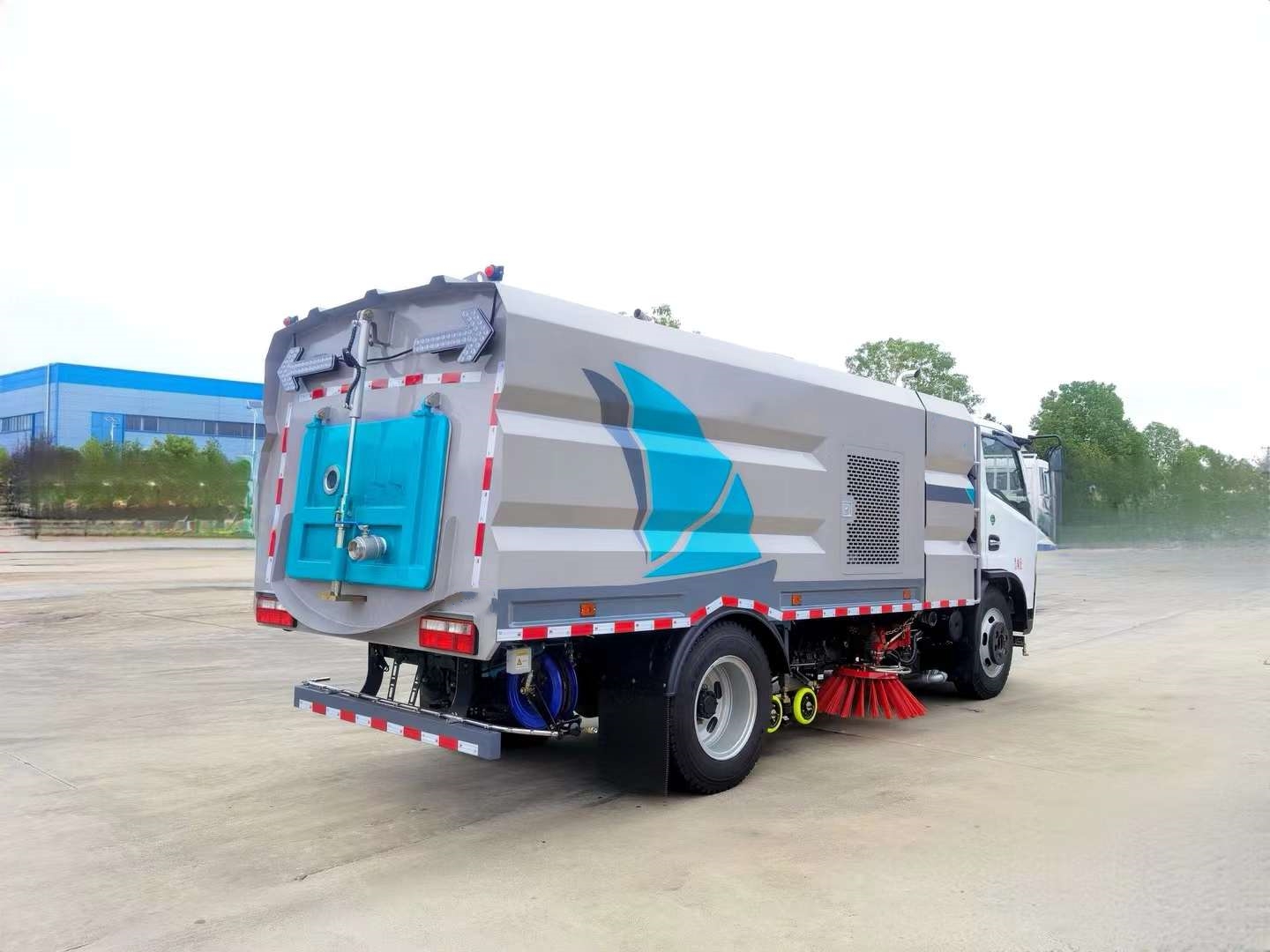

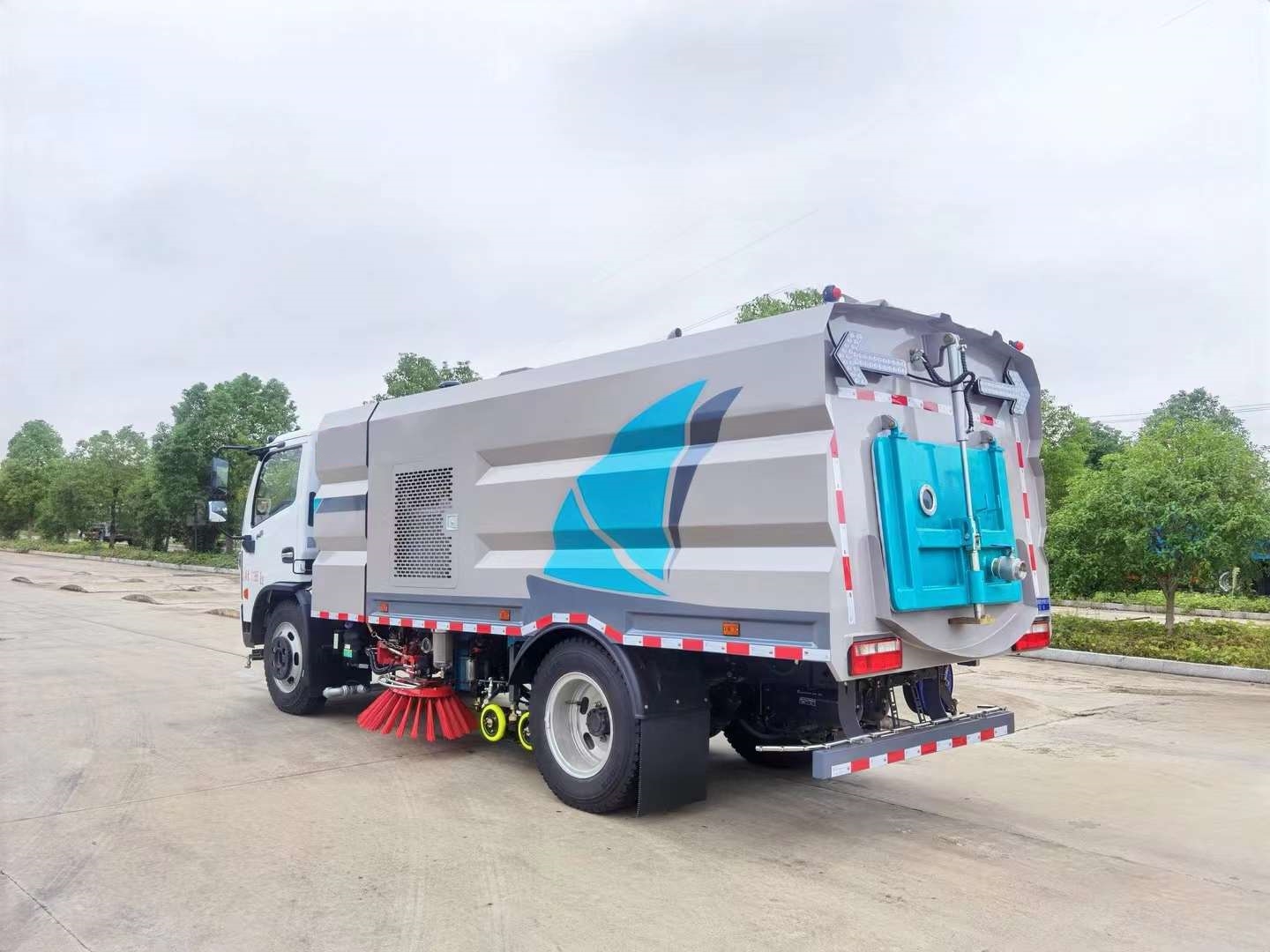

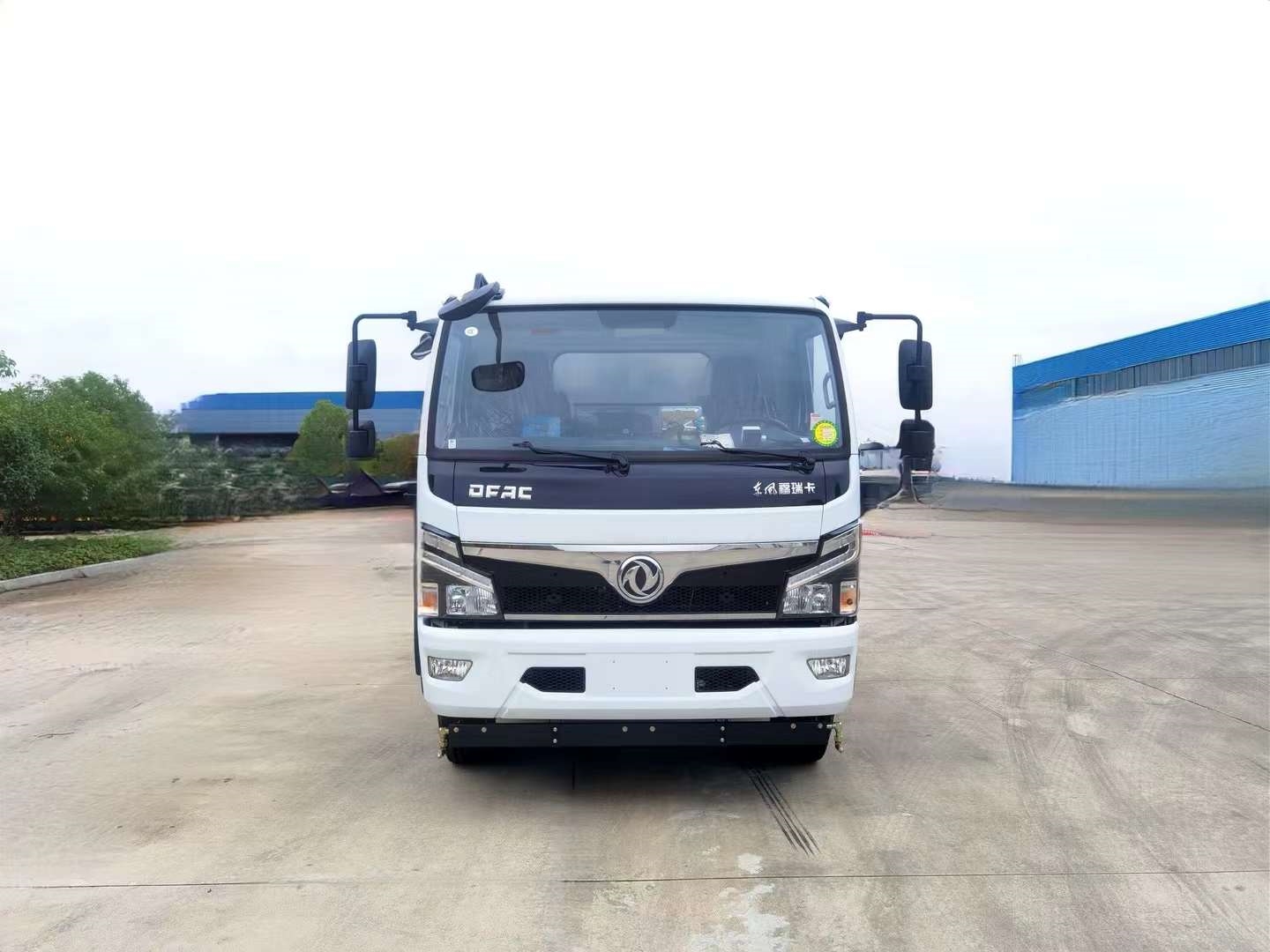

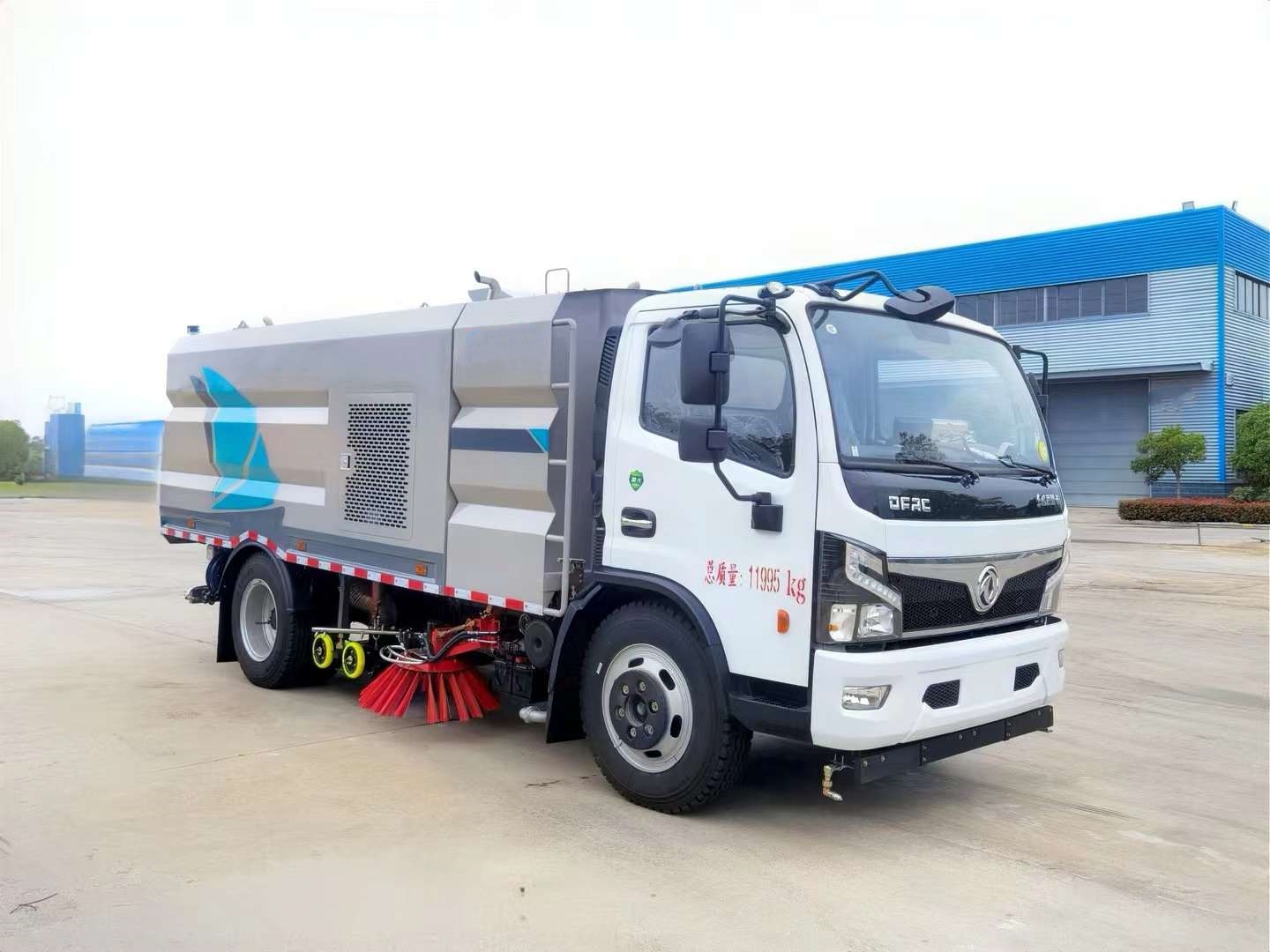

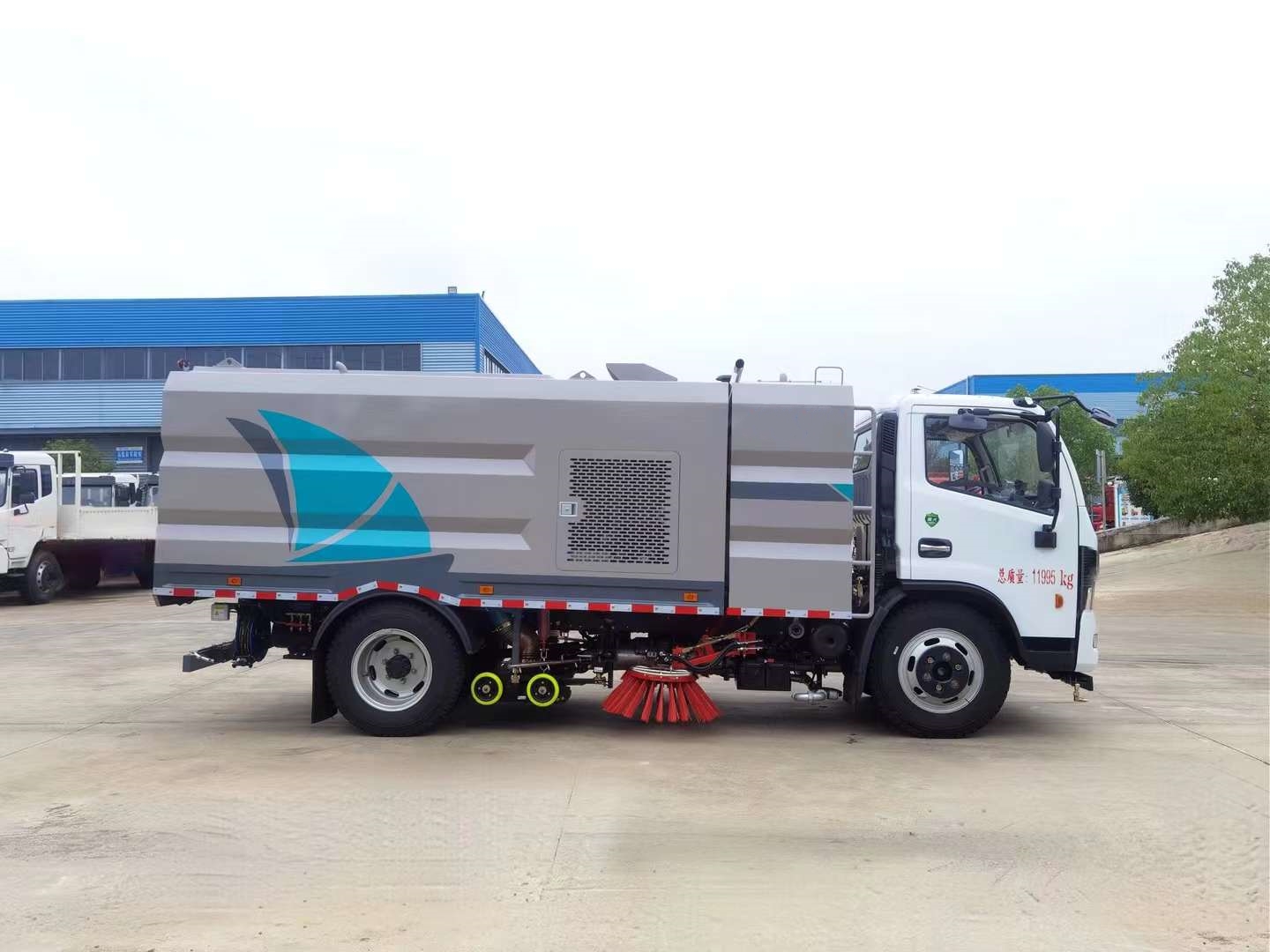

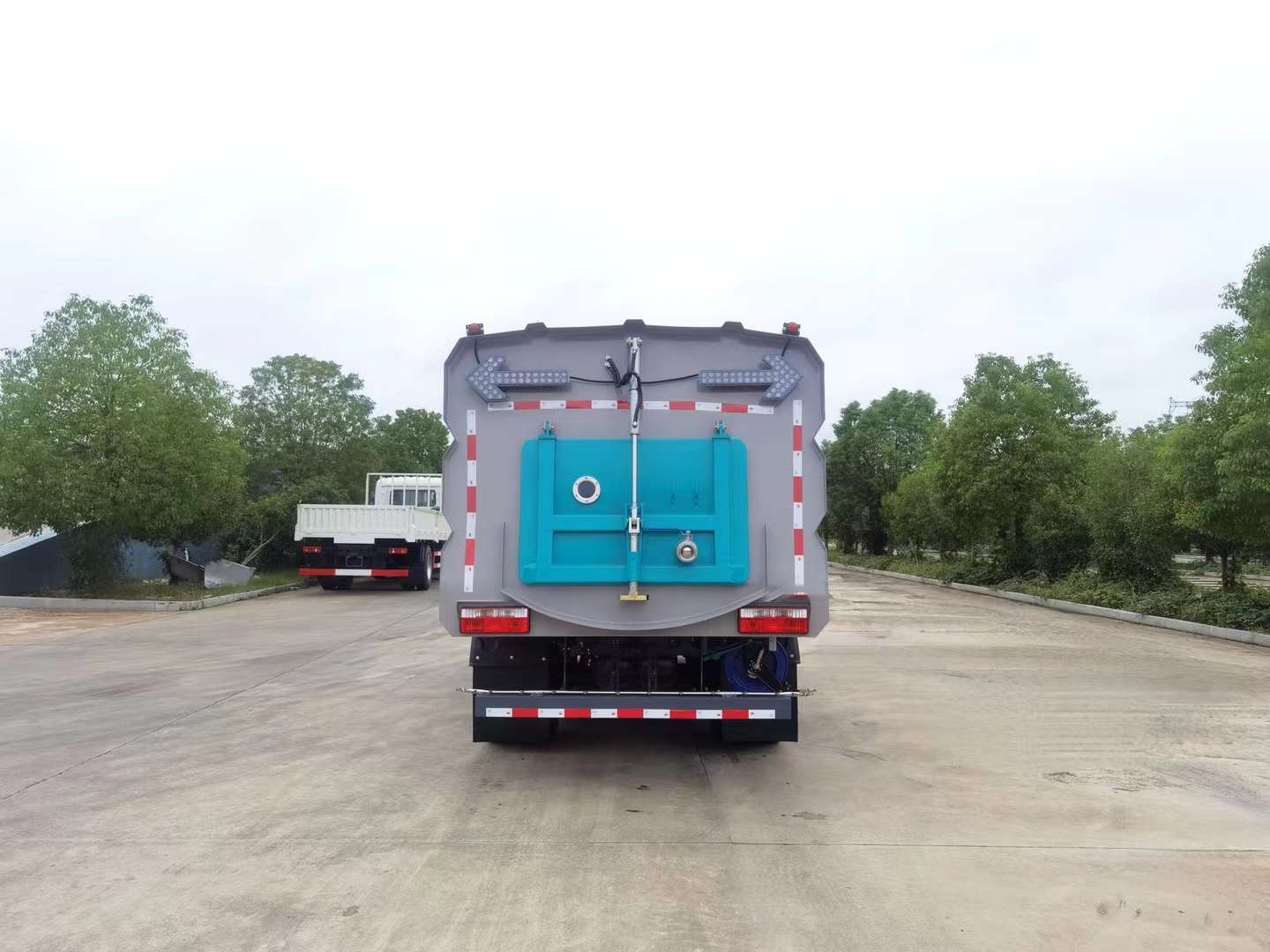

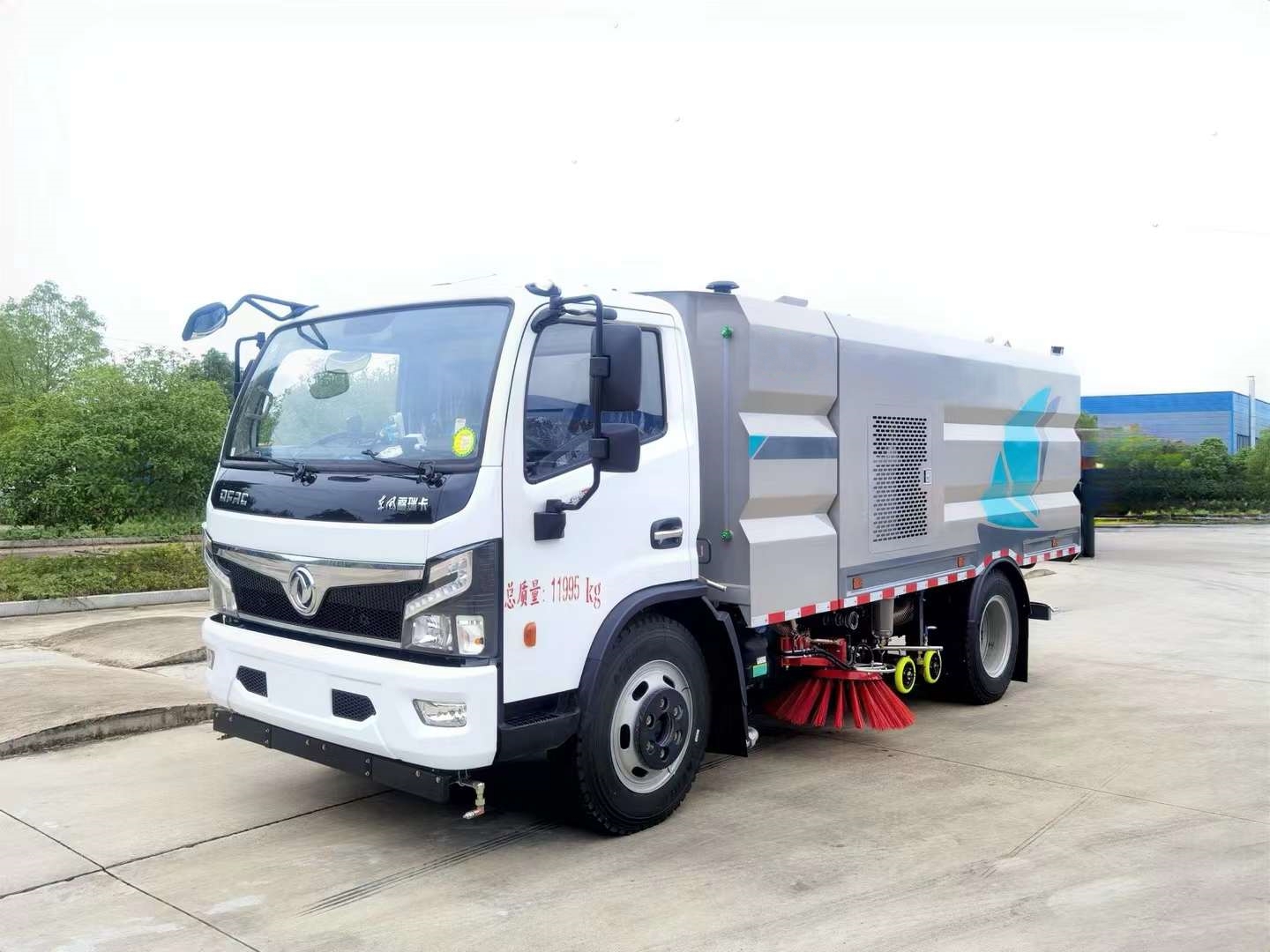

Dongfeng F7 4X2 Sweeper Truck
2024-09-18 10:36:10 Source：chusheng
Chassis configuration:
Dongfeng F7 cab, Yunnei 150 horsepower or Yuchai 165 horsepower engine, 3800 wheelbase, 10 wire tires or 245 vacuum tires, original air conditioning, electric glass.
Installation configuration:
Water tank 4m ³/5m ³, garbage bin 5m ³. The central two sweepers, Cummins 140 horsepower sub engine, GTM high-pressure water pump, maintenance free high-power fan, Polaris electronic water pump, Hiprecis solenoid valve group, with high-pressure front spray, can carry out fixed-point cleaning of road dirt, and can also cooperate with low-pressure cleaning operations on cleaner roads to carry out road drying reduction treatment, low-pressure front flushing, left and right high-pressure spray bars, high-pressure rear spray, high-pressure cleaning reel, which can suck, sweep and flush, equivalent to the simultaneous operation of road sweeper and road cleaning vehicle.
| Product Name |
Dongfeng F7 4X2 Sweeper Truck |
| Cab |
Dongfeng F7 Cab |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine |
Yunnei 150 horsepower/Yuchai 165 horsepower engine |
| Gearbox |
5-speed gearbox |
| Wheel base |
3800(mm) |
| Axle numbers |
2 |
| Tire sepcification and quantity |
10.00 steel wire tire/245 vacuum tire, 6 + 1 spare tire |
| Vehicle dimension |
7000,6950×2200,2360×2700,2790(mm) |
| Gross vehicle weight(Kg) |
11995(Kg) |
| Curb weight(Kg) |
7400,8050(Kg) |
| Rated weight(Kg) |
4400,3750(Kg) |
| Water tank capacity |
5m³ |
| Garbage bin capacity |
5m³ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng F7 4X2 Sweeper Truck
A sweeper truck is a new and efficient cleaning equipment that integrates road surface cleaning, garbage recycling, and transportation. It is widely used in various occasions such as urban roads, highways, squares, airports, etc. The cleaning and sweeping vehicle has multiple operating modes, including full cleaning, left cleaning, right cleaning, and full cleaning, which can effectively clean squares and roads with a cleaning rate of over 95%. It can not only be used as a road sweeping vehicle for road surface cleaning and suction operations, but also as a high-pressure washing vehicle for road surface washing and suction operations, or combined with both to achieve multiple combination options for cleaning, washing, and suction washing.
Main Parameter
