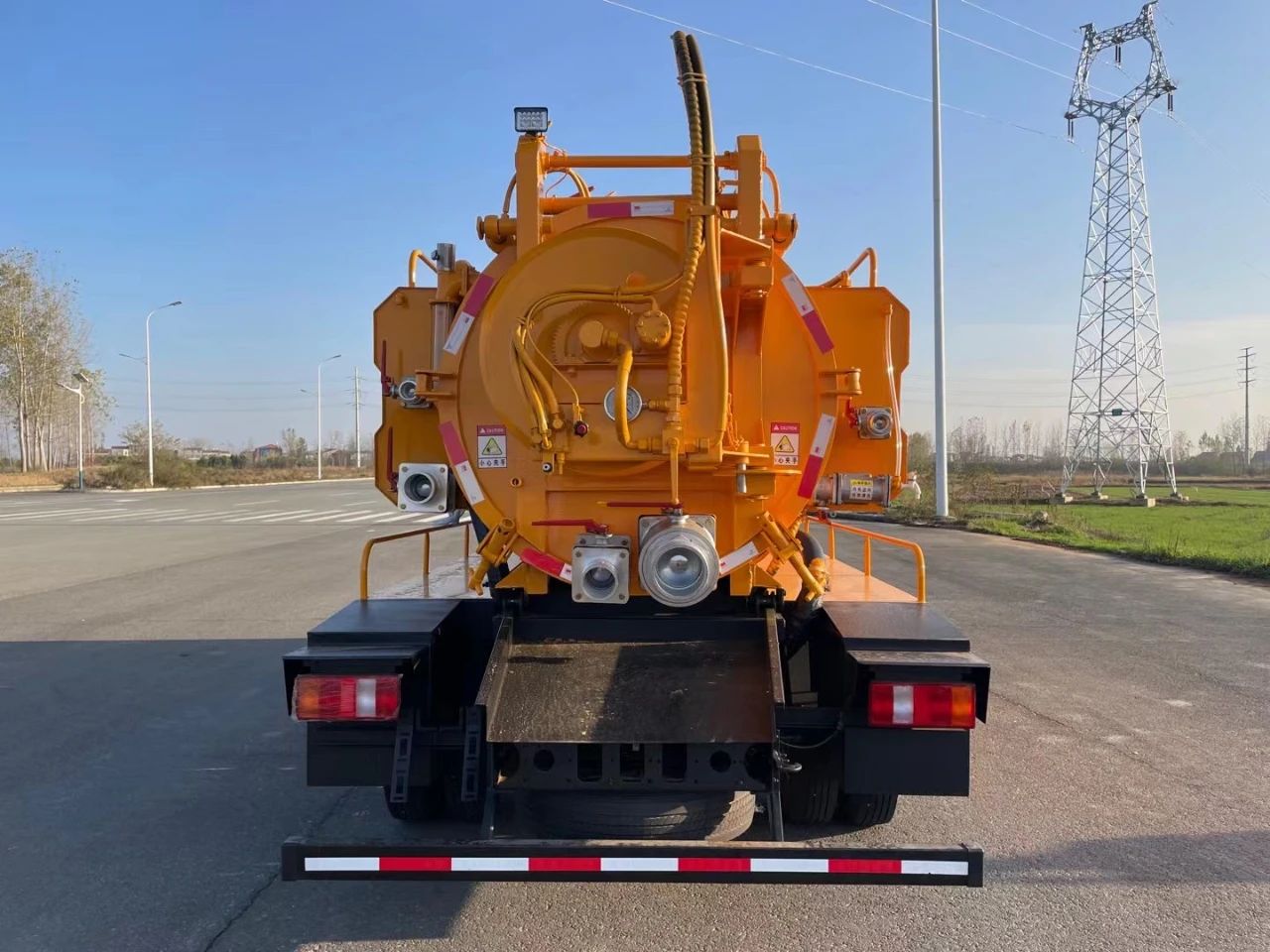

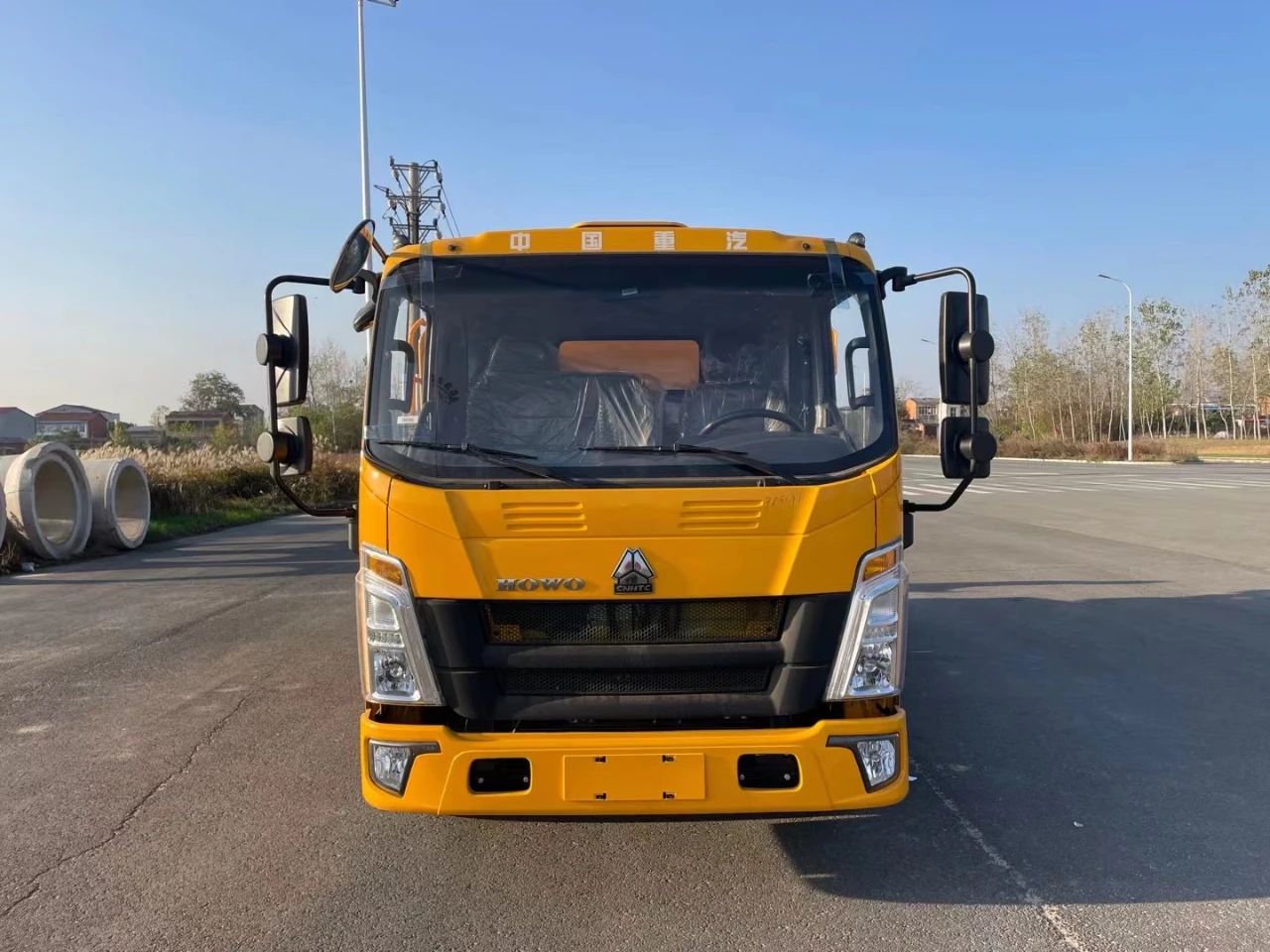

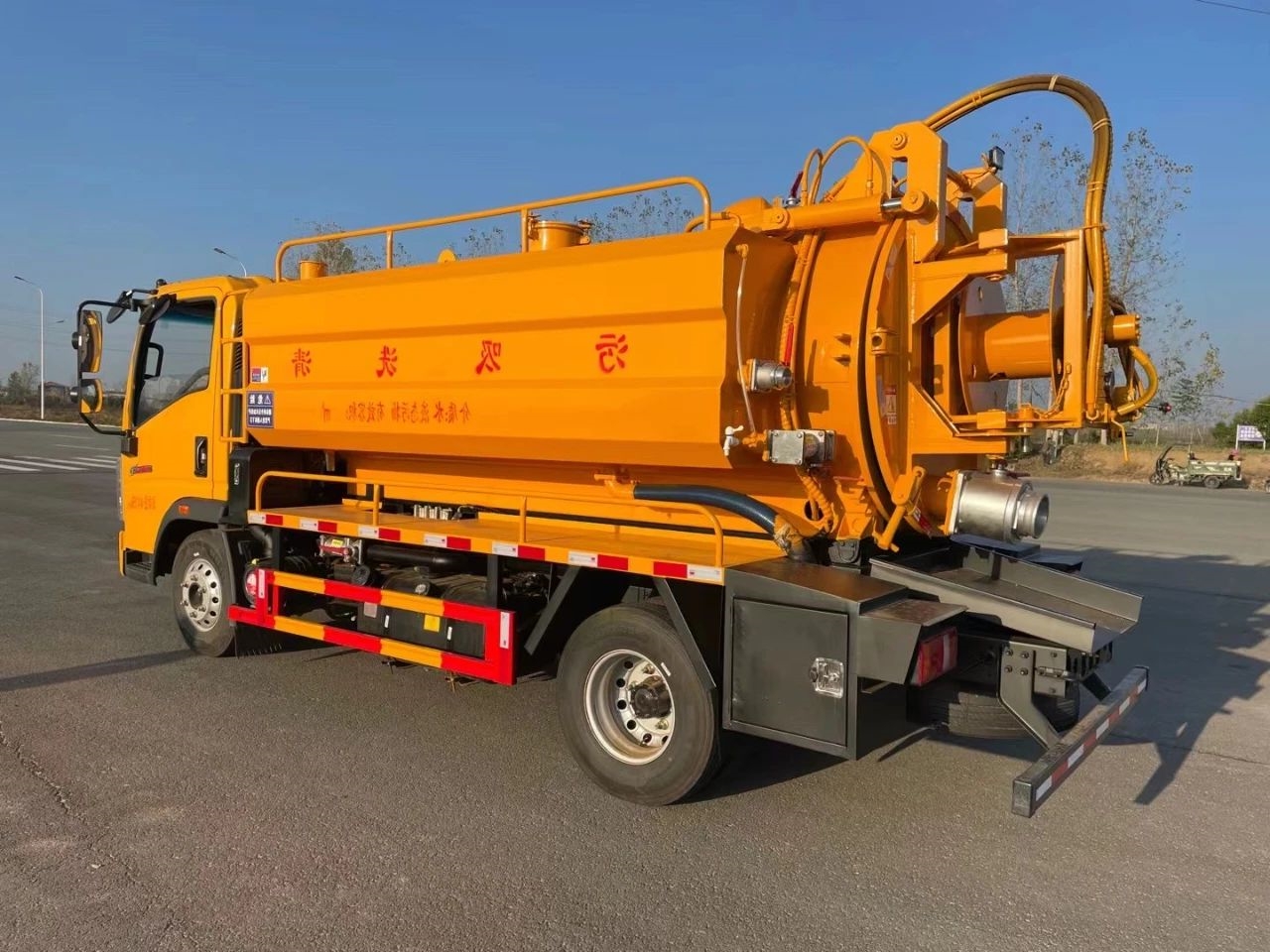

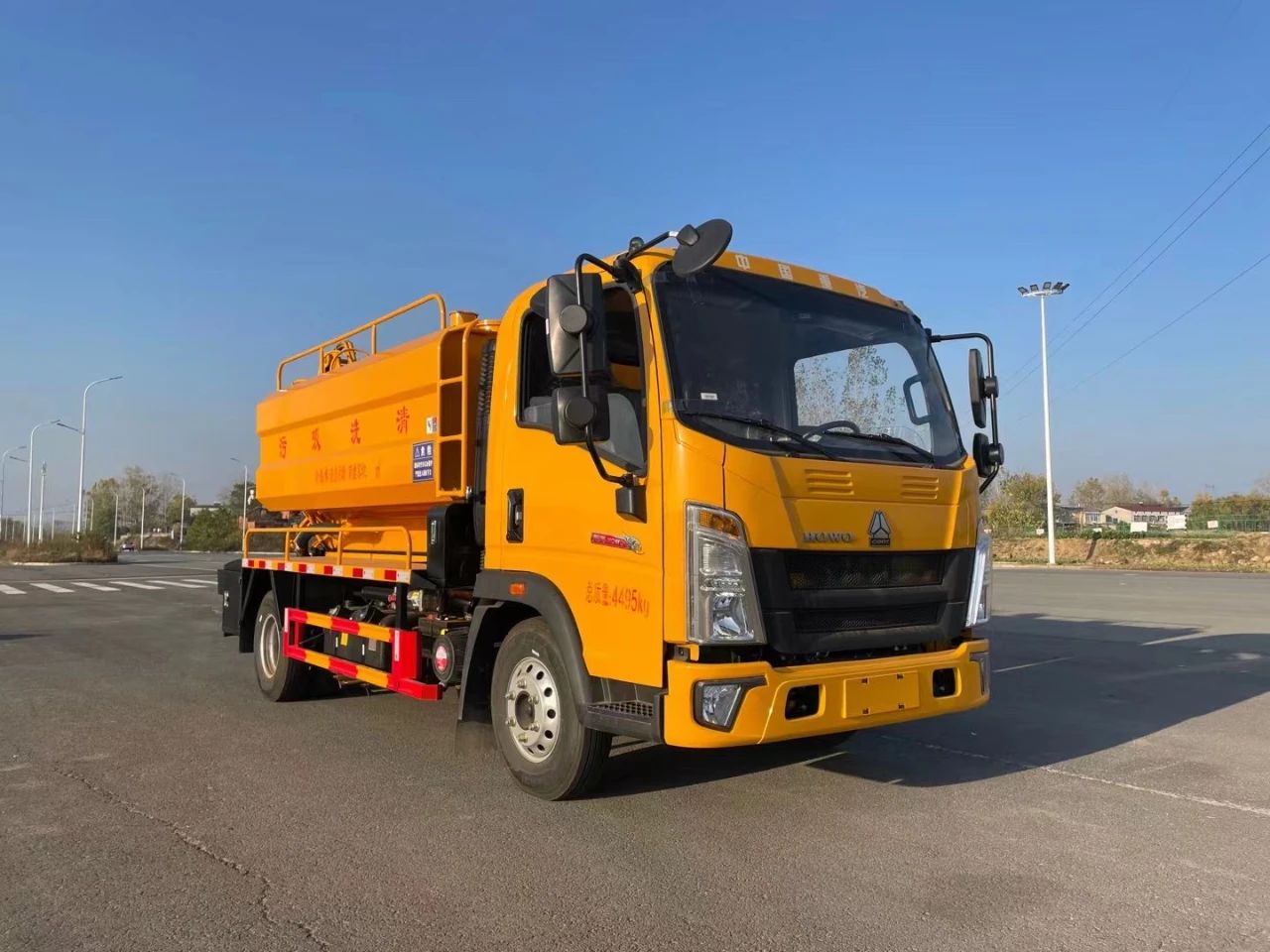

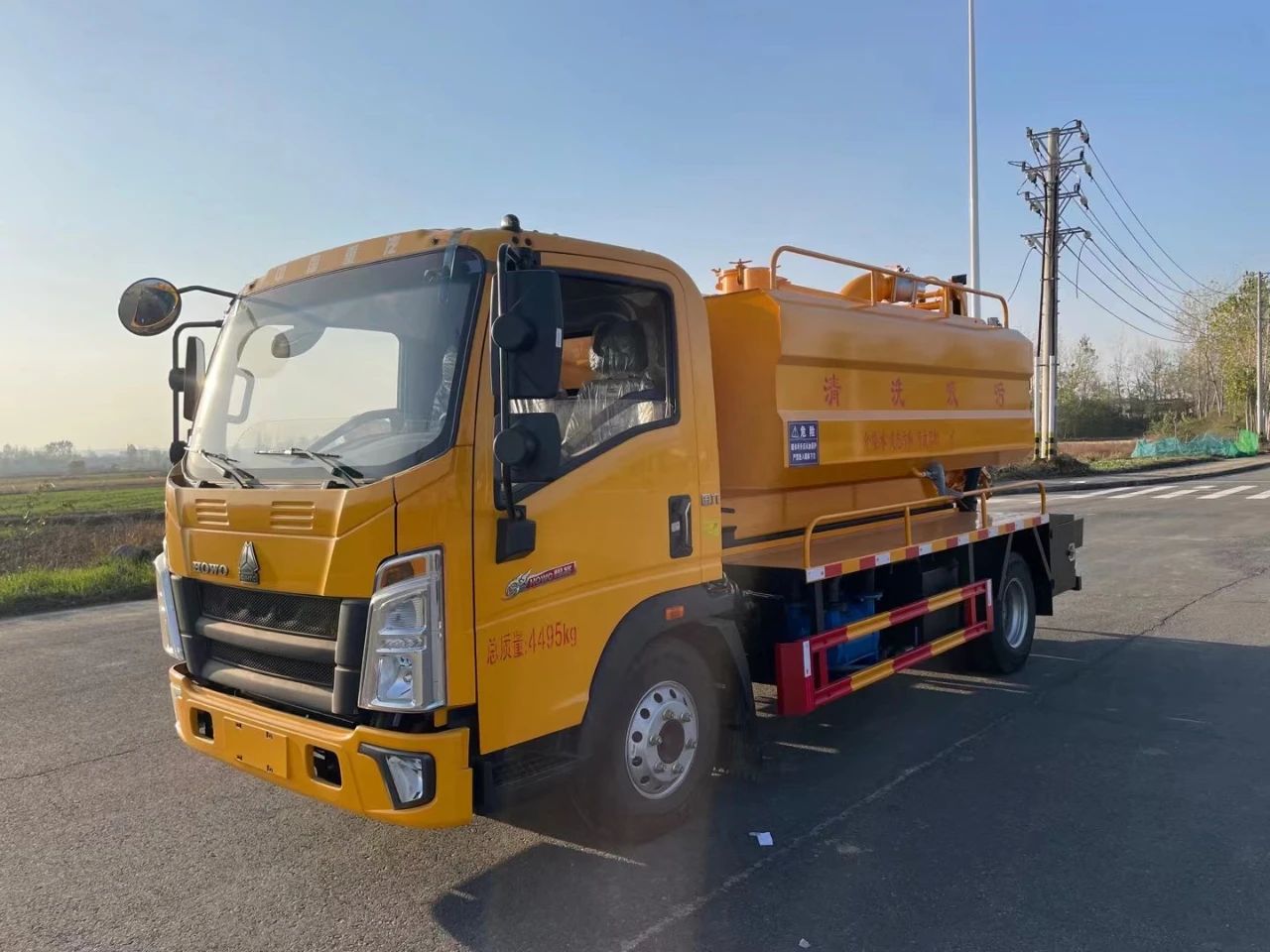

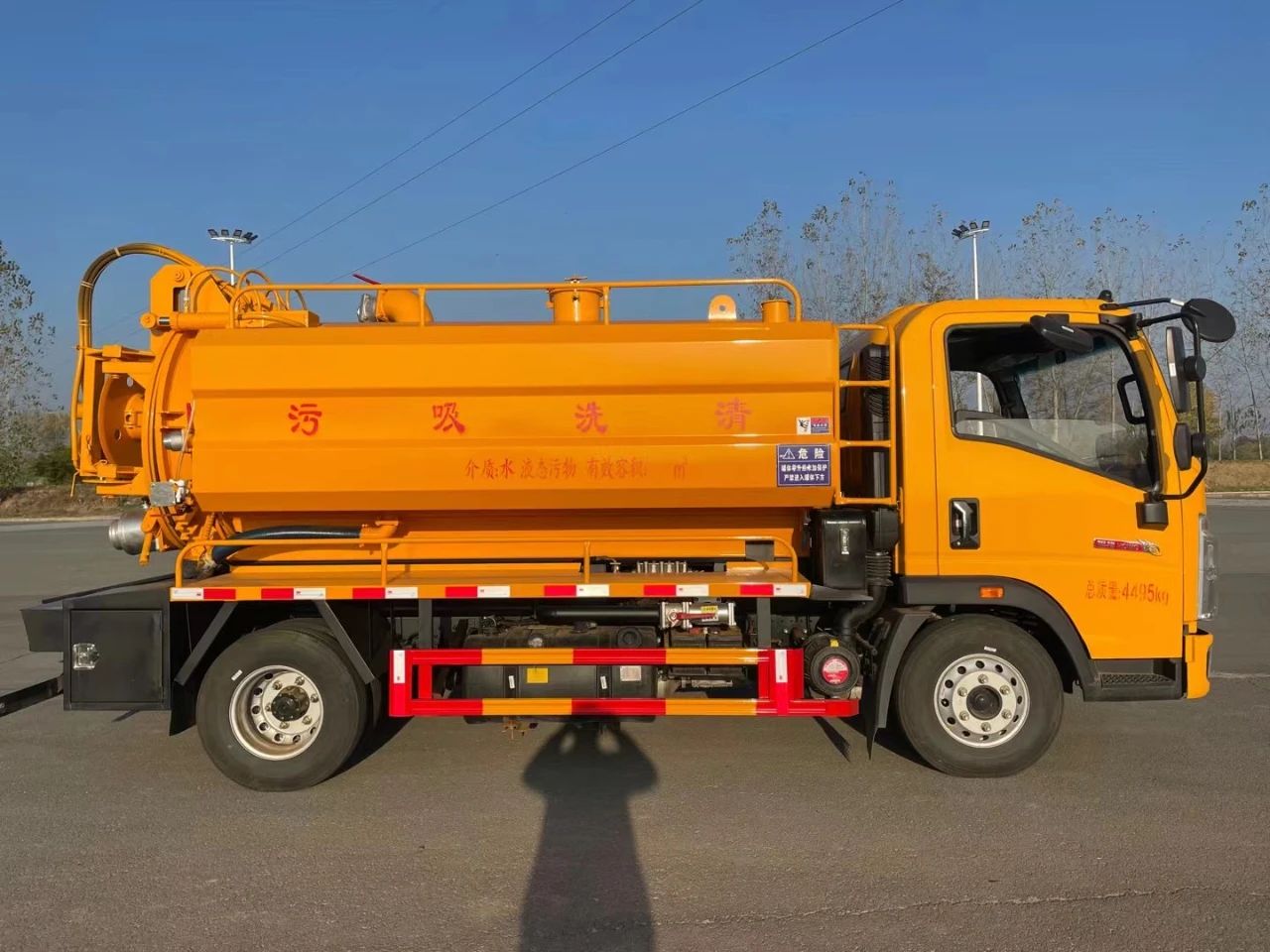

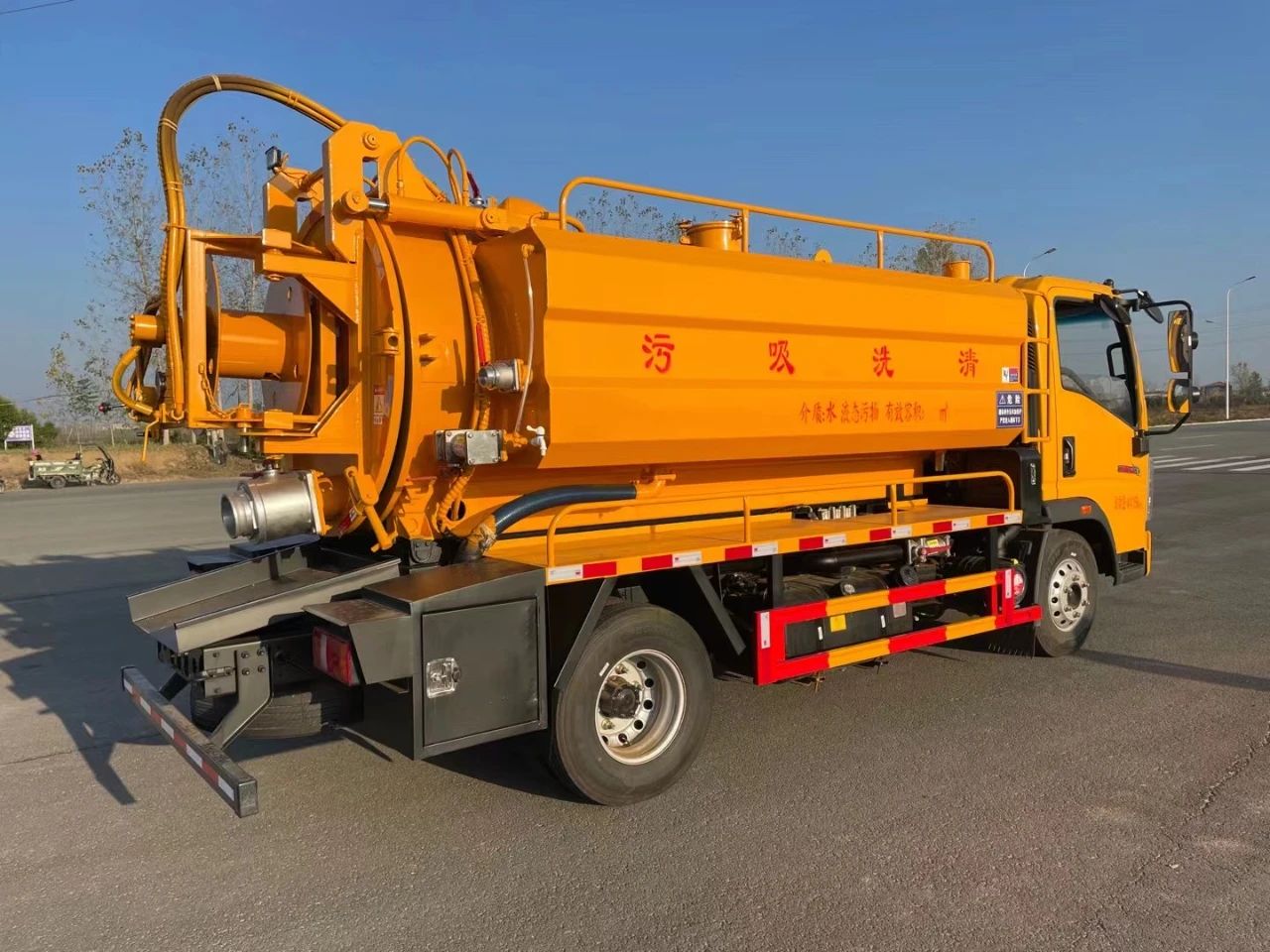

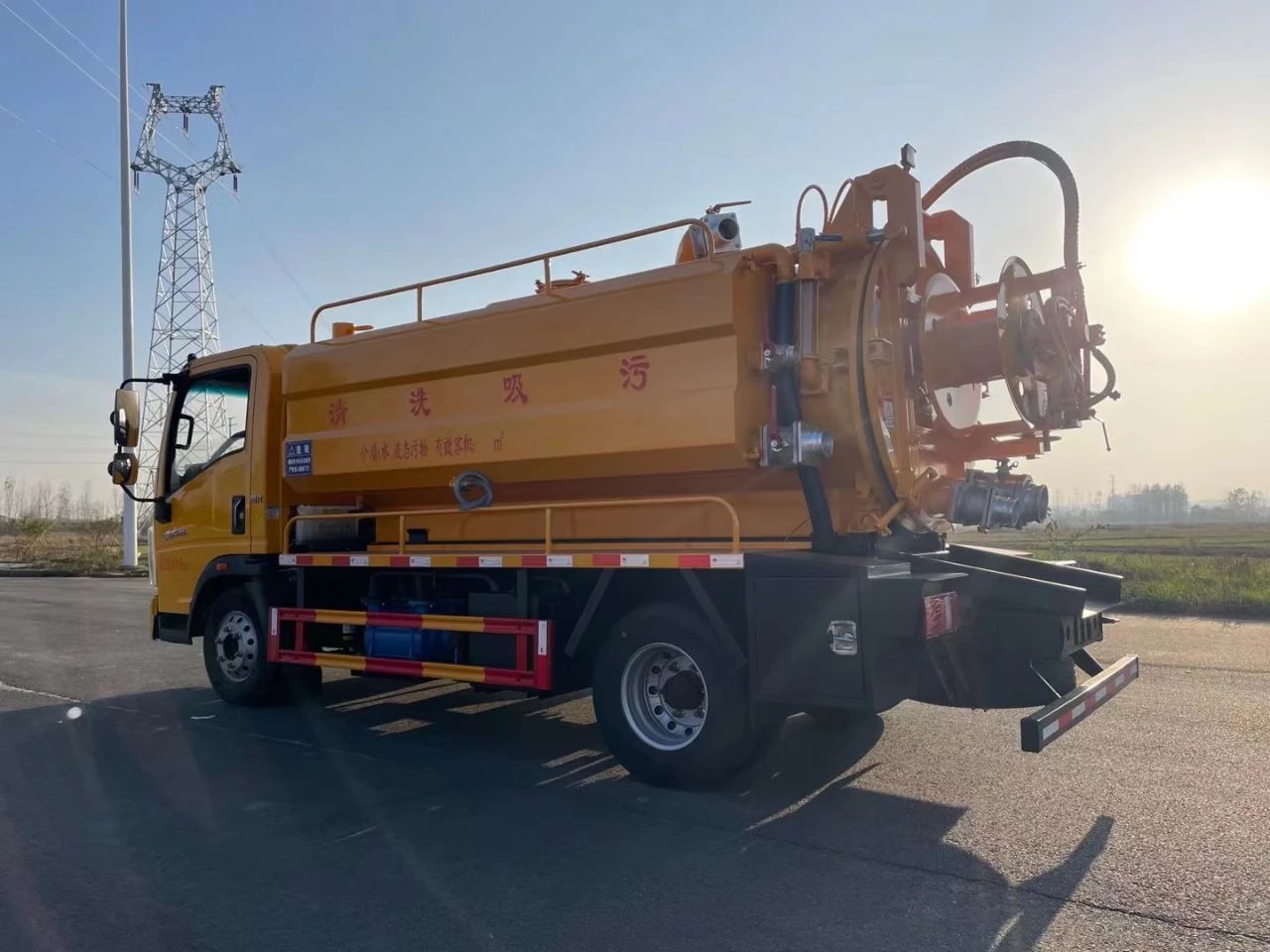

Sinotruk Howo 4x2 cleaning and suction truck
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
3280mm wheelbase, 1880 single row cab, standard equipped with Weichai 160 horsepower, Wanliyang 6-speed, 2.0T/5T, 700R16 steel wire tires, with central control, electric window, airbag seats, air horn, fully wrapped, remote control of car key for glass lifting. Original factory air conditioning, multifunctional steering wheel, cruise control!
| Product Name |
Sinotruk Howo 4x2 cleaning and suction truck |
| Driving Type |
4X2 |
| Gross vehicle weight(Kg) |
7360(Kg) |
| Curb weight(Kg) |
5385(Kg) |
| Rated weight(kg) |
1845,1780(Kg) |
| Wheelbase(mm) |
3280(mm) |
| Overall Dimension(mm) |
5995×2150×2650(mm) |
| Tank volume(cbm) |
4m³ clear water tank+2m³ sewage tank |
| Engine brand & model |
Weichai 160hp |
| Axle Quantity |
2 |
| Transmission Type |
Wanliyang 6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
700R16 steel wire tire, 6+1 spare |
| Cab |
Sinotruk Howo cab |
| Installation configuration |
The water tank is made of national standard 4mm thick carbon steel plate, and the high-pressure cleaning part adopts the new product Fuuv215 flow rate, 20MPa high-pressure pump, and 60 meter diameter 19 high-pressure pipe. The sewage tank is made of national standard 5mm thick carbon steel plate, equipped with Shandong SK-9 fully sealed water circulation pump, anti overflow valve, sight pipe, and an 8-meter suction pipe with a quick connector at the male and female ends. The tank head is formed by one-time die-casting, the tank body is lifted, and the back cover is opened by hydraulic pressure. The dirt inside the tank can be directly poured out through the back cover, which has the characteristics of high vacuum degree, large tonnage, high efficiency, and wider application. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Sinotruk Howo 4x2 cleaning and suction truck
Sewage suction truck, also called sewage tanker
truck, sewage truck, sewage suction tanker truck,vacuum sewage suction
truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc
.
Introduction
Suction sewage truck is a new type of environmental sanitation vehicle
that collects, transfers, cleans, and transports sludge and sewage to avoid
secondary pollution. The suction truck can self suction and discharge, with
fast working speed, large capacity, and convenient transportation. It is
suitable for collecting and transporting liquid substances such as feces, mud,
and crude oil. The suction truck adopts a domestically advanced vacuum pump
with high suction force and long suction distance, which is particularly
suitable for the suction, transportation, and discharge of sediment in sewers,
especially for large objects such as sewage mud, sludge, stones, bricks, etc.
Product parameters
