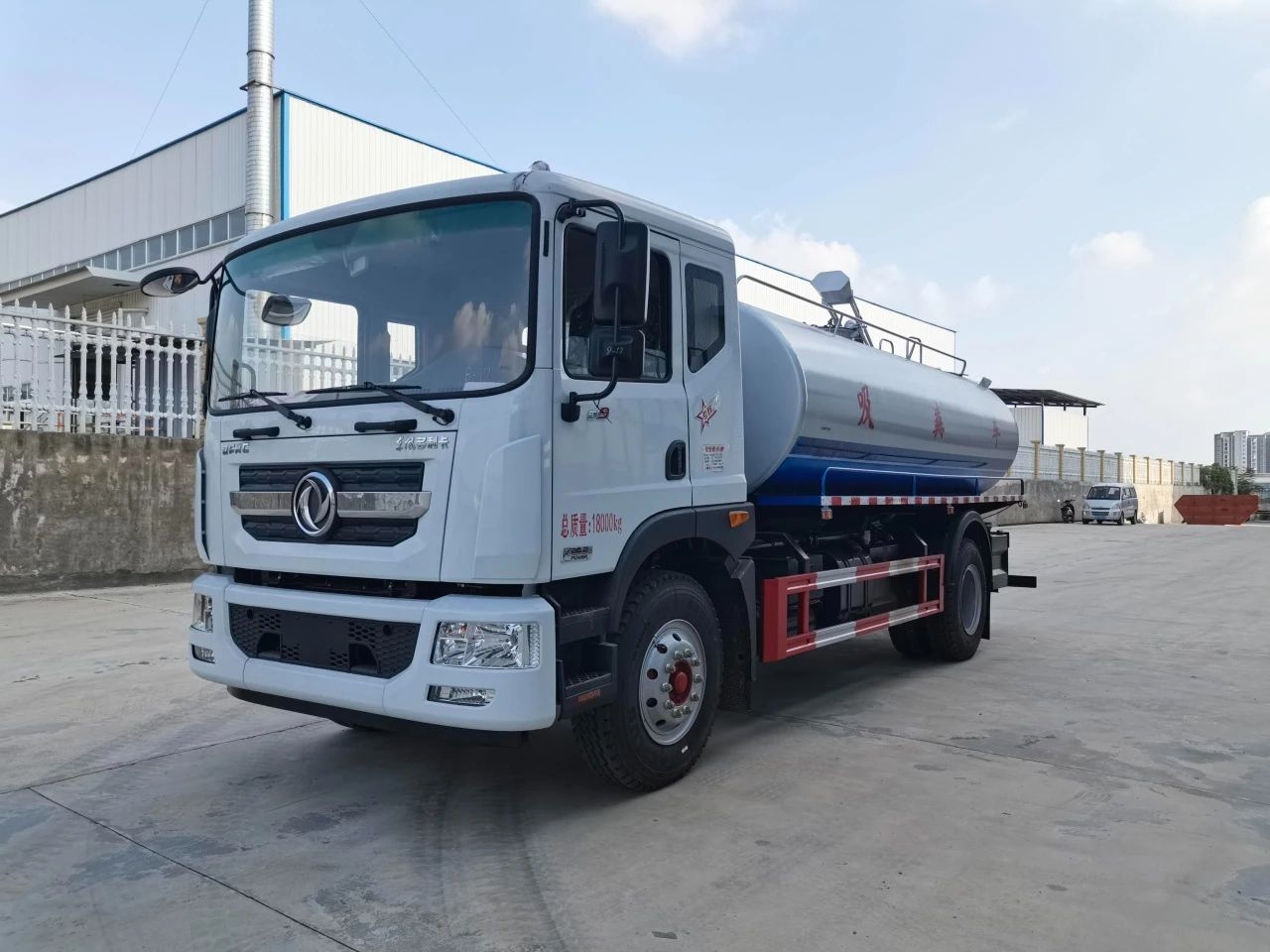

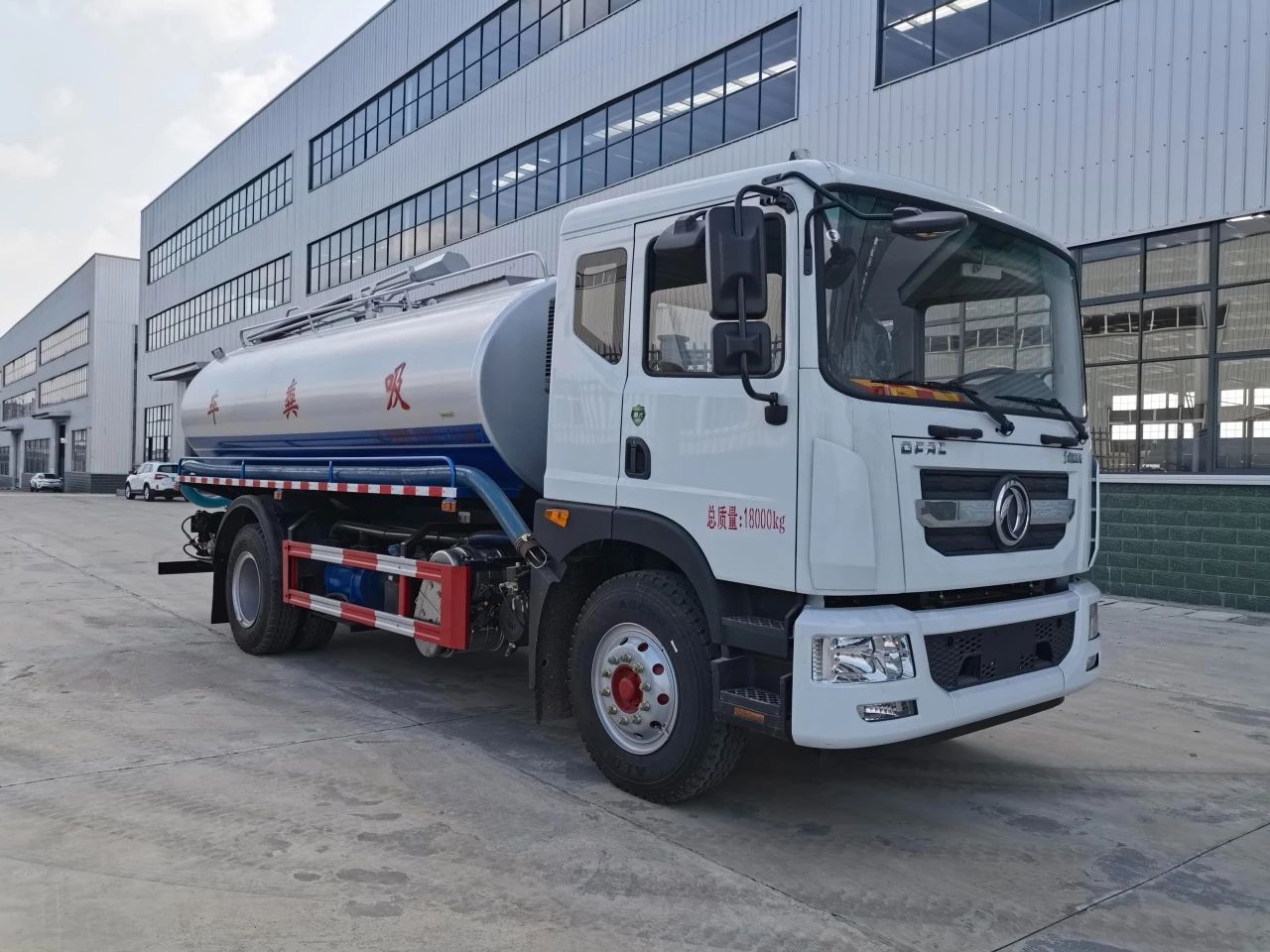

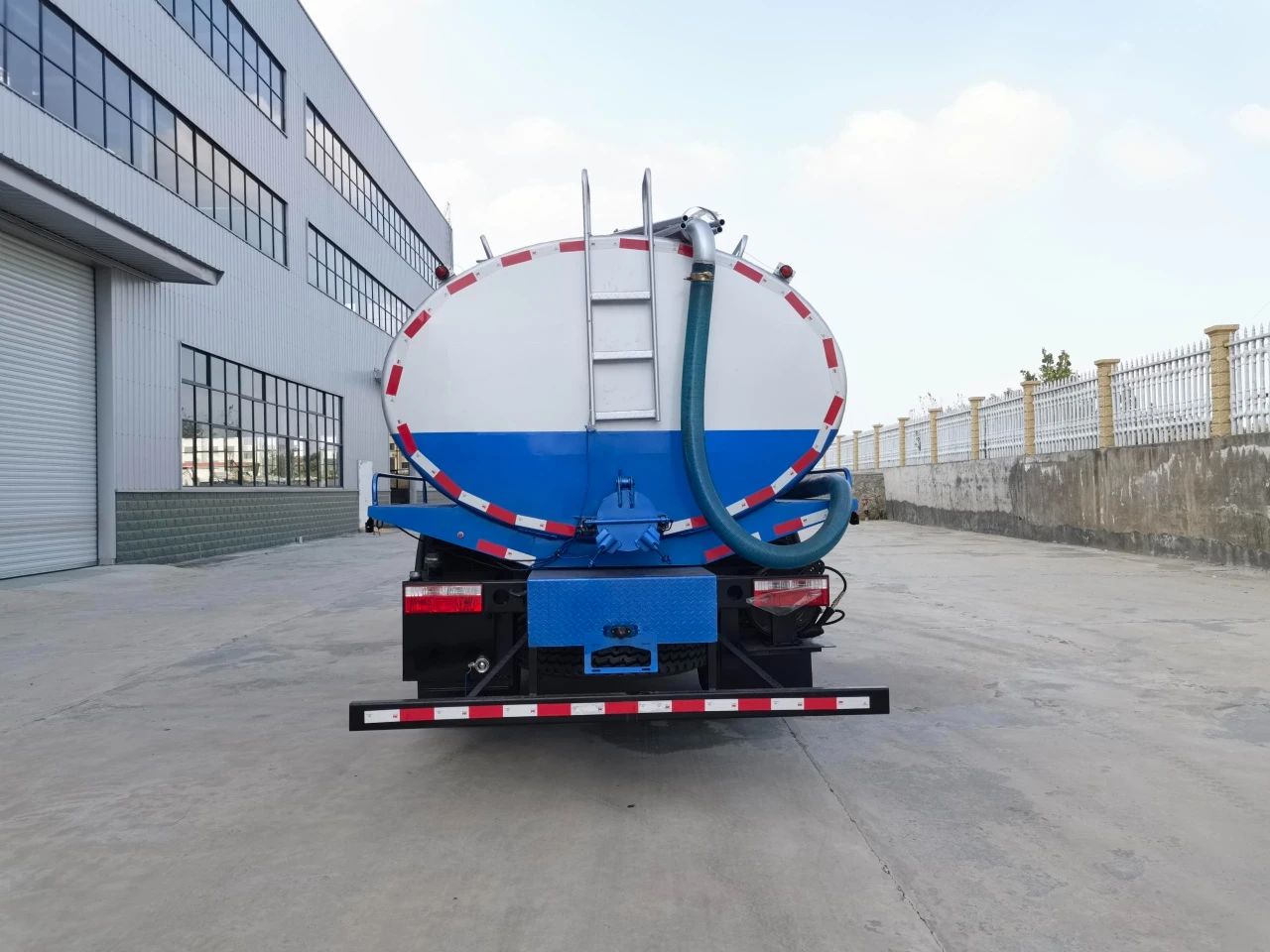

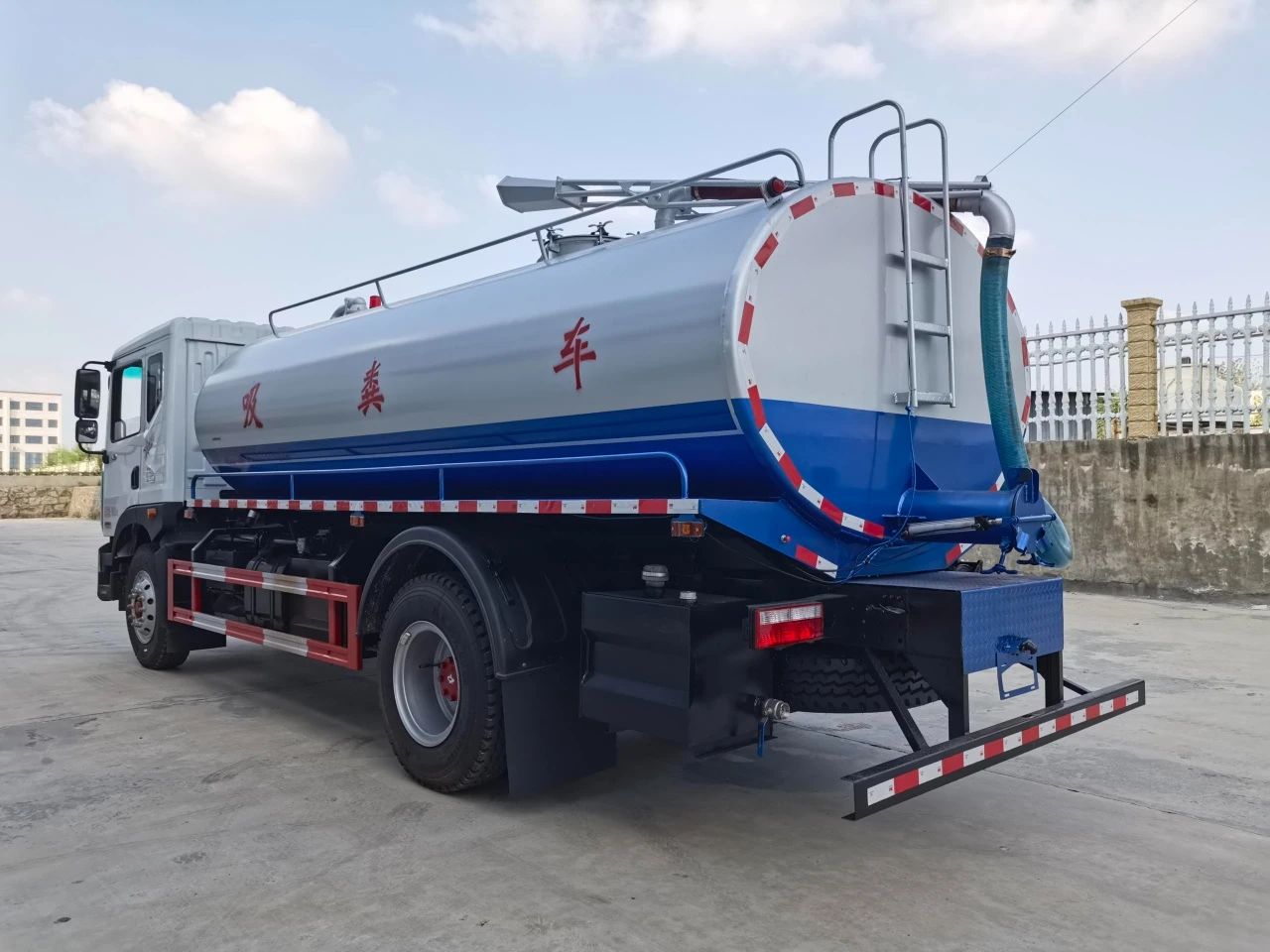

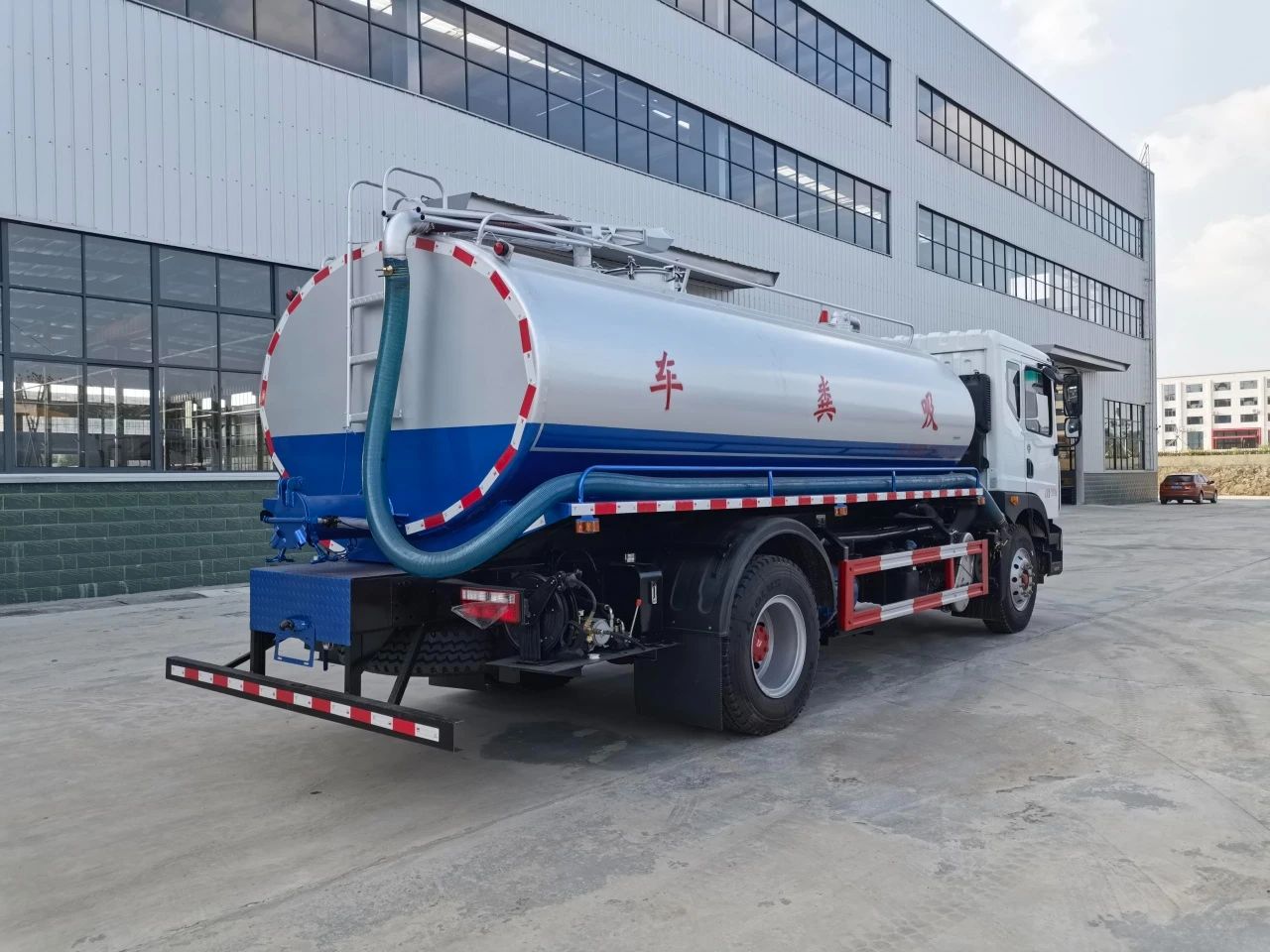

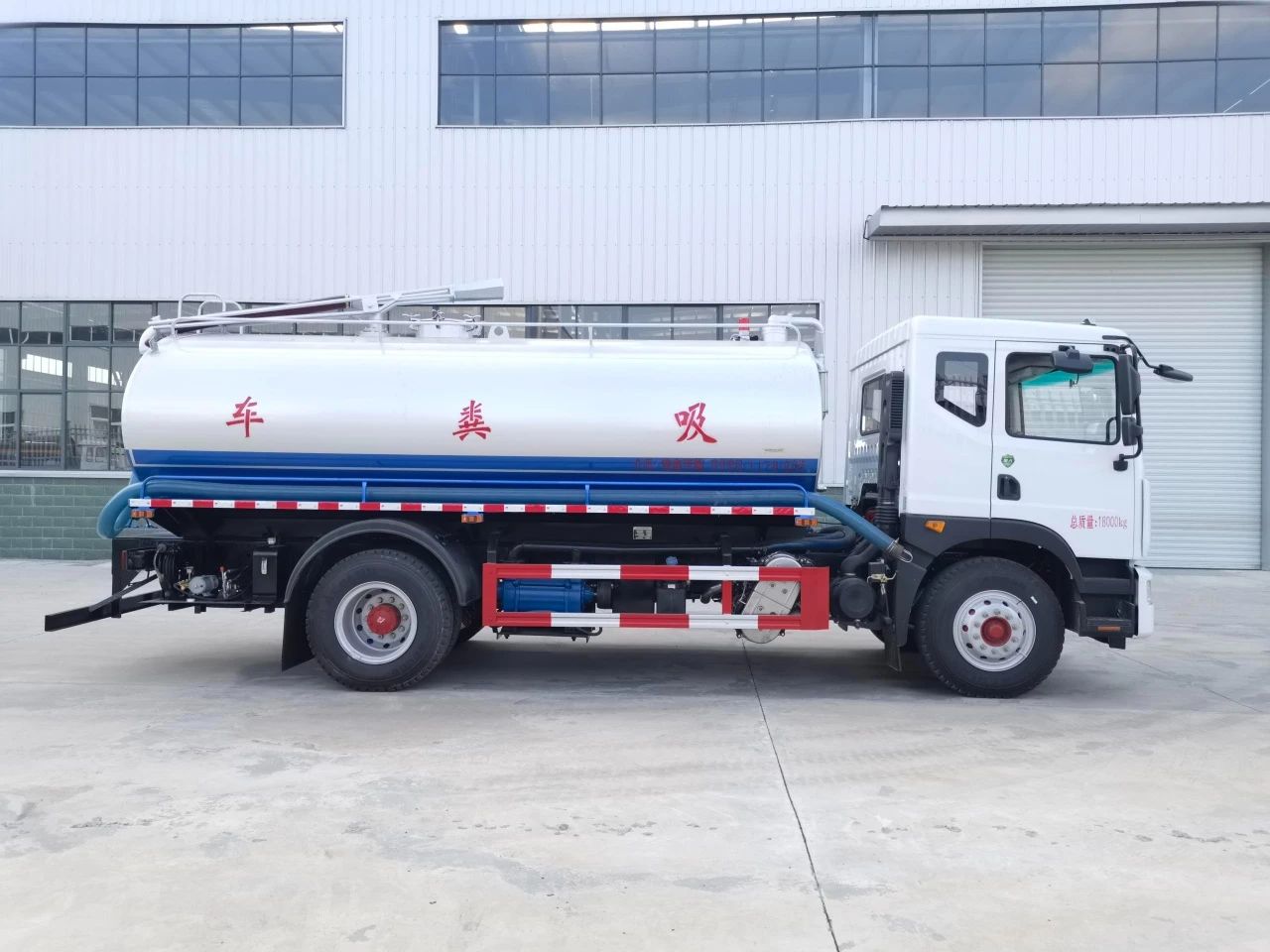

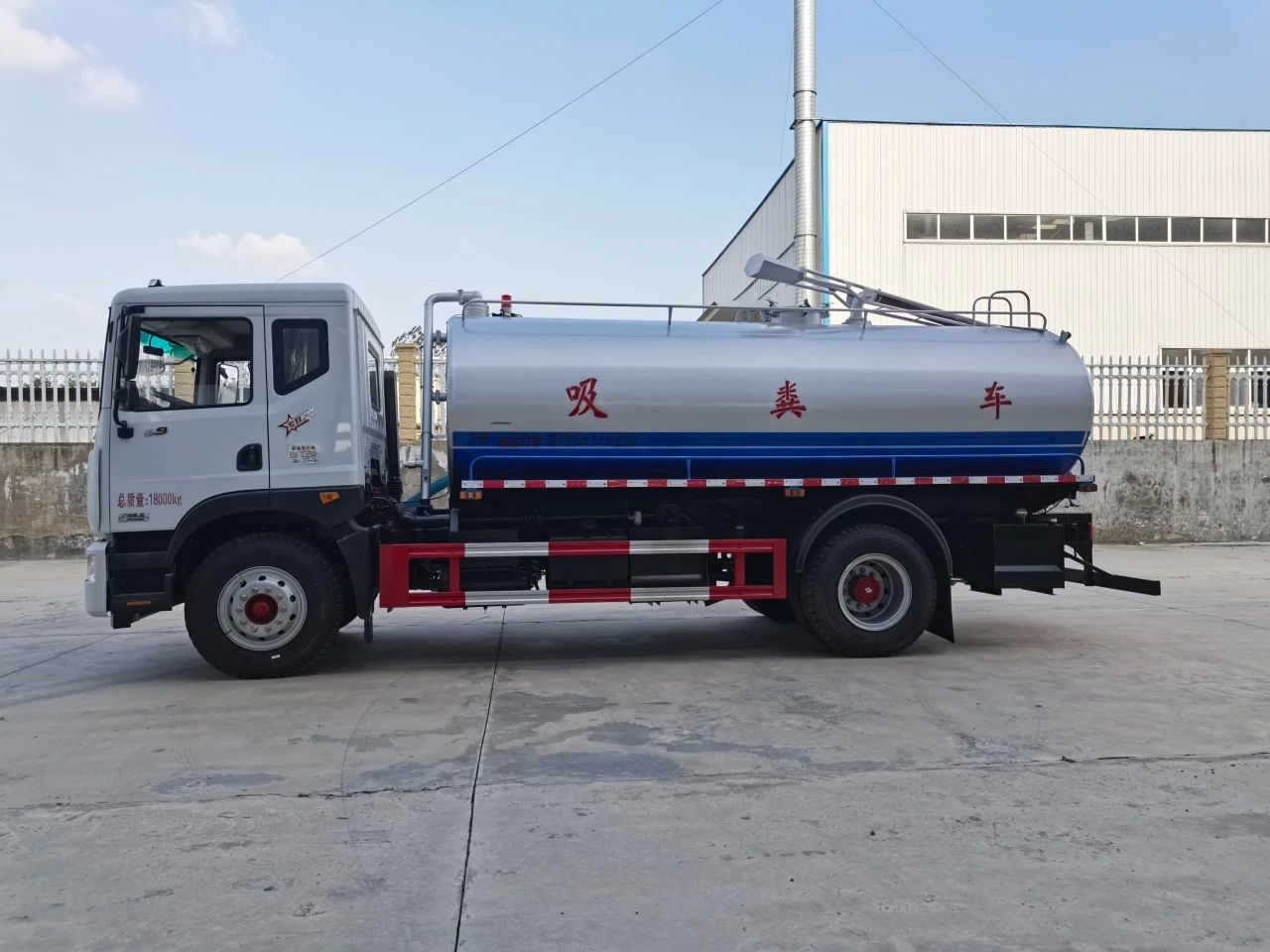

Dongfeng D9 4X2 15m³ fecal suction truck
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:Adopting Dongfeng Dorica chassis, 2315/one and a half driver's cab, 4500mm wheelbase, Cummins 230 horsepower (6.2NS6B230), Fast 8-speed transmission (Fast 8JS95), 10.00R20 tires, Dena axle, front axle 4.5T, rear axle 10T, 250mm double-layer frame, dynamic rotation, clutch assist, electric door and window hollow lock, air conditioning, air brake, exhaust brake, ABS。
Upper configuration:oil circulation vacuum pump/water circulation vacuum pump, with a sight window, a self flow port, hand washing device, 1 suction hose of 8 meters, with oil-water separator, vacuum pressure gauge, anti overflow valve, (suction truck with suspension rod seat, 1 6O suction pipe)
| Product Name |
Dongfeng D9 4X2 15m³ fecal suction truck |
| Driving Type |
4X2 |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
8500,8045(Kg) |
| Rated weight(kg) |
9370,9305,9825,9760(Kg) |
| Wheelbase(mm) |
4500(mm) |
| Overall Dimension(mm) |
7600,8000,7450,7050,7250,7800,7650,8200×2500,2550×3200,3300(mm) |
| Tank volume(cbm) |
15m³ |
| Engine brand & model |
6.2NS6B230, Cummins 230hp |
| Axle Quantity |
2 |
| Transmission Type |
Fast 8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
10.00R20 steel wire tire, 6+1 spare |
| Cab |
Dongfeng D9 cab |
| Installation configuration |
Oil circulation vacuum pump/or water circulation vacuum pump, equipped with a fecal observation window, a self flow port, hand washing device, 1 suction hose of 8 meters, with oil-water separator, vacuum pressure gauge, anti overflow valve, (suction truck with suspension rod seat, 1 6O suction pipe) |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D9 4X2 15m³ fecal suction truck
A fecal suction truck is a sanitation vehicle specifically designed for cleaning environments such as septic tanks, sewage ditches, and sewers. It belongs to the specialized vehicle sanitation vehicle series, mainly used for collecting, transferring, and cleaning transportation sludge, sewage, and feces to avoid secondary pollution. Suction trucks play an important role in urban hygiene and environmental protection, and are known as the "guardians of urban hygiene".
Product parameters
