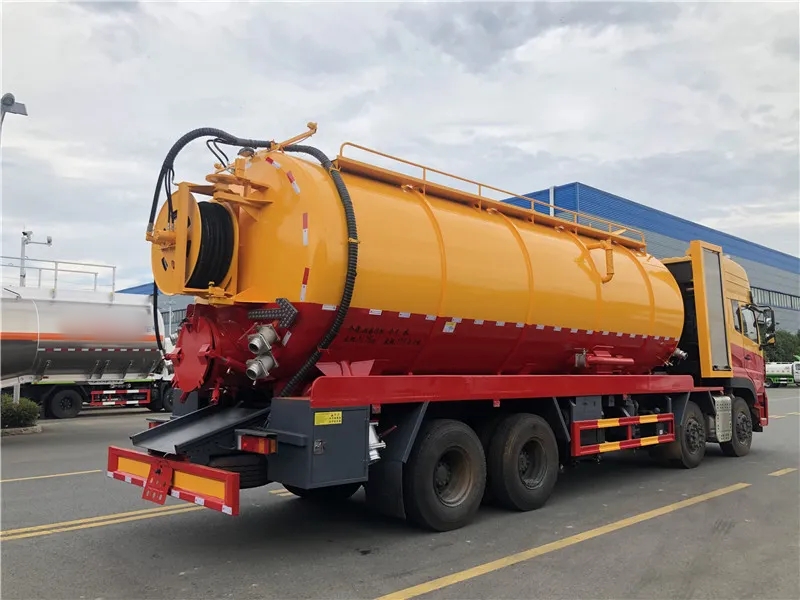

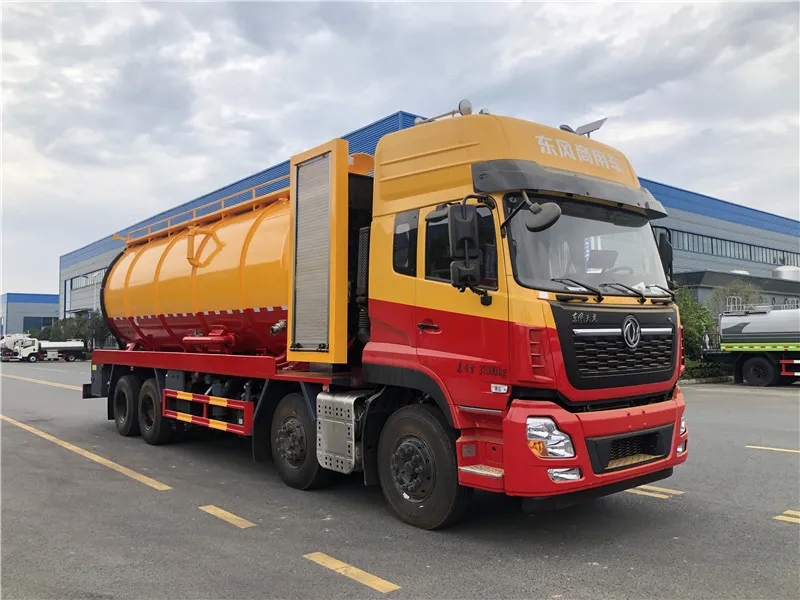

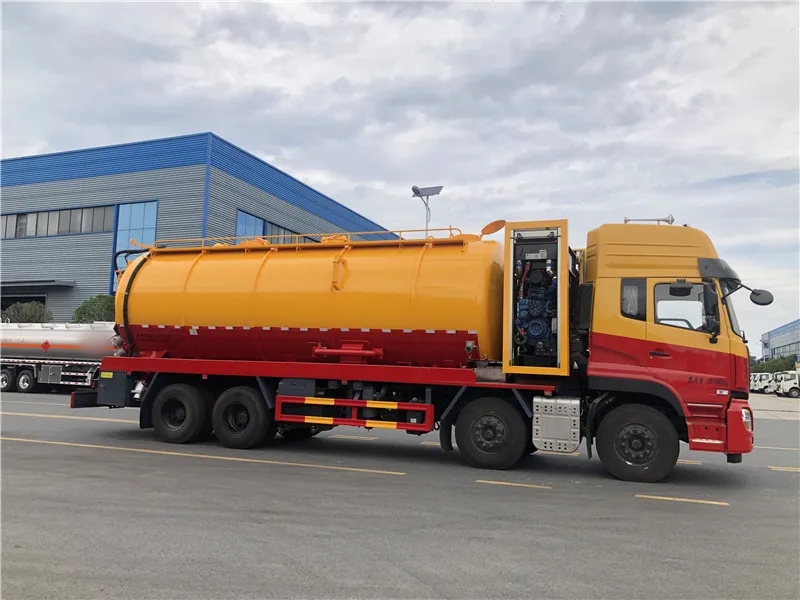

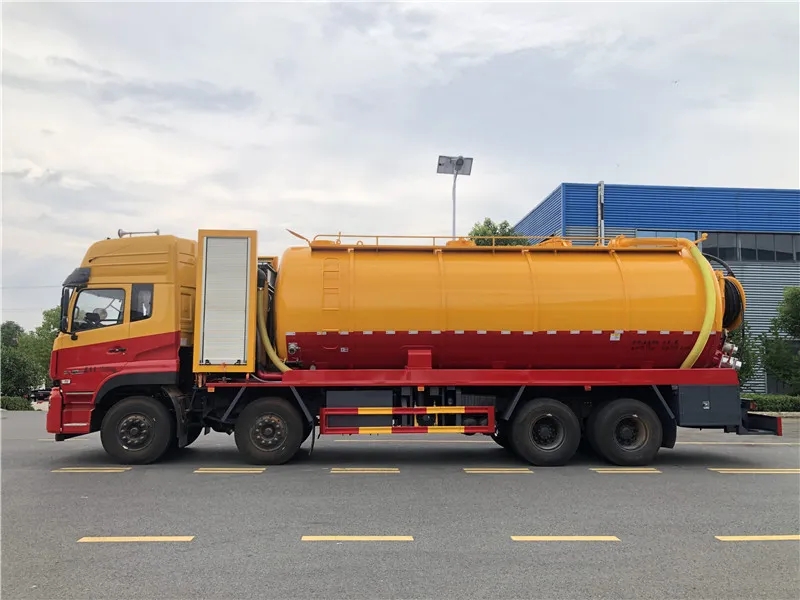

Dongfeng 8X4 suction cleaning truck, 33m³ sewage suction truck
2024-10-07 09:54:11 Source：chusheng
Dongfeng 6X4 sewage suction tanker truck, 22m³ sewage suction truck
Adopting Dongfeng 8X4 chassis, Longqing 465 horsepower engine, Fast 9-speed gearbox, vehicle size 12000X2550X3850MM, 8MM thickness, 10 cubic meters of clean water tank and 23 cubic meters of sewage tank. The left and right sides of the clean water tank are designed with fire hydrant water inlet for easy water intake, and the bottom is equipped with drainage outlet. The double Yao 600 flow high-pressure pump is equipped with air blowing water. The auxiliary engine adopts Weichai Power 460 horsepower engine, with a large filtration system, dual water inlet, two three claw filling ports for the sewage tank, self-made large anti overflow valve, hydraulic left and right winding discs at the rear, 600 hydraulic opening, equipped with arrow lights and LED lighting, internal drawing and internal binding steel plate, 150 side stealing drainage, raised top guardrail, thickened and reinforced rear bumper and winding disc, and external Tie steel plate
| Product Name |
Dongfeng 8X4 suction cleaning truck, 33m³ sewage suction truck |
| Driving Type |
8x4 |
| Weight /Volume |
|
| Tank volume(cbm) |
33m³ |
| Rated payload weight(kg) |
11300 |
| Dimensions |
|
| Wheelbase(mm) |
2050+4400+1350 |
| Overall Dimension(mm) |
12000x2550x3850 |
| Engine |
|
| Engine brand & model |
dongfeng, DDi11E465-60. |
| Displacement(L)/Power(kw) |
10.8L/343kW |
| Chassis |
|
| Axle Quantity |
4 |
| Transmission Type |
9 forward gears and 1 reverse gear |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
1100R20, 12 with a spare |
| Cab |
|
| Standard configuration |
with sleepling berth |
| Air conditioning |
YES |
| Performance parameter |
|
| Garbage container material |
8mm carbon steel plate |
| Standard configuration |
Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 6X4 sewage suction tanker truck, 22m³ sewage suction truck
Sewage suction truck, also called sewage tanker
truck, sewage truck, sewage suction tanker truck,vacuum sewage suction
truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc
.
Introduction
Suction sewage truck is a new type of environmental sanitation vehicle
that collects, transfers, cleans, and transports sludge and sewage to avoid
secondary pollution. The suction truck can self suction and discharge, with
fast working speed, large capacity, and convenient transportation. It is
suitable for collecting and transporting liquid substances such as feces, mud,
and crude oil. The suction truck adopts a domestically advanced vacuum pump
with high suction force and long suction distance, which is particularly
suitable for the suction, transportation, and discharge of sediment in sewers,
especially for large objects such as sewage mud, sludge, stones, bricks, etc.Product parameters
