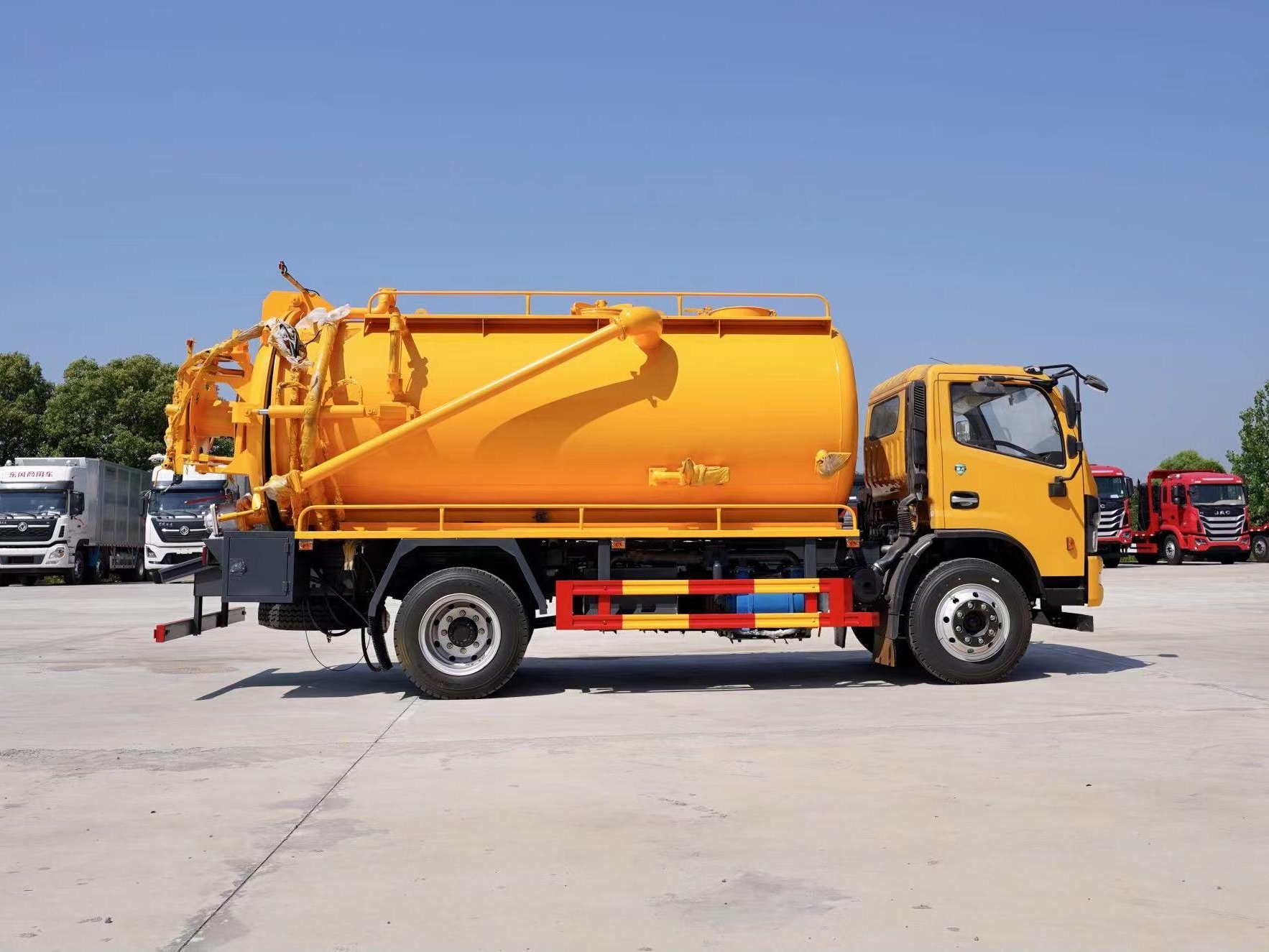

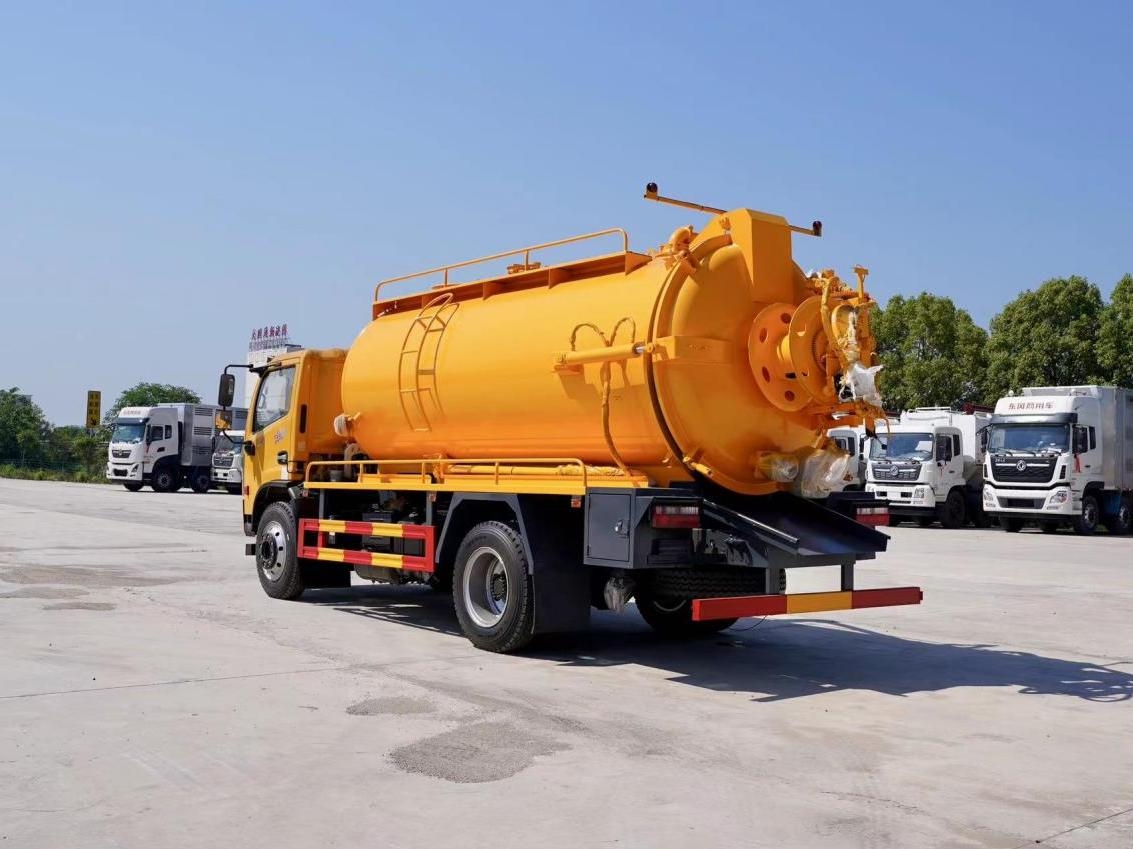

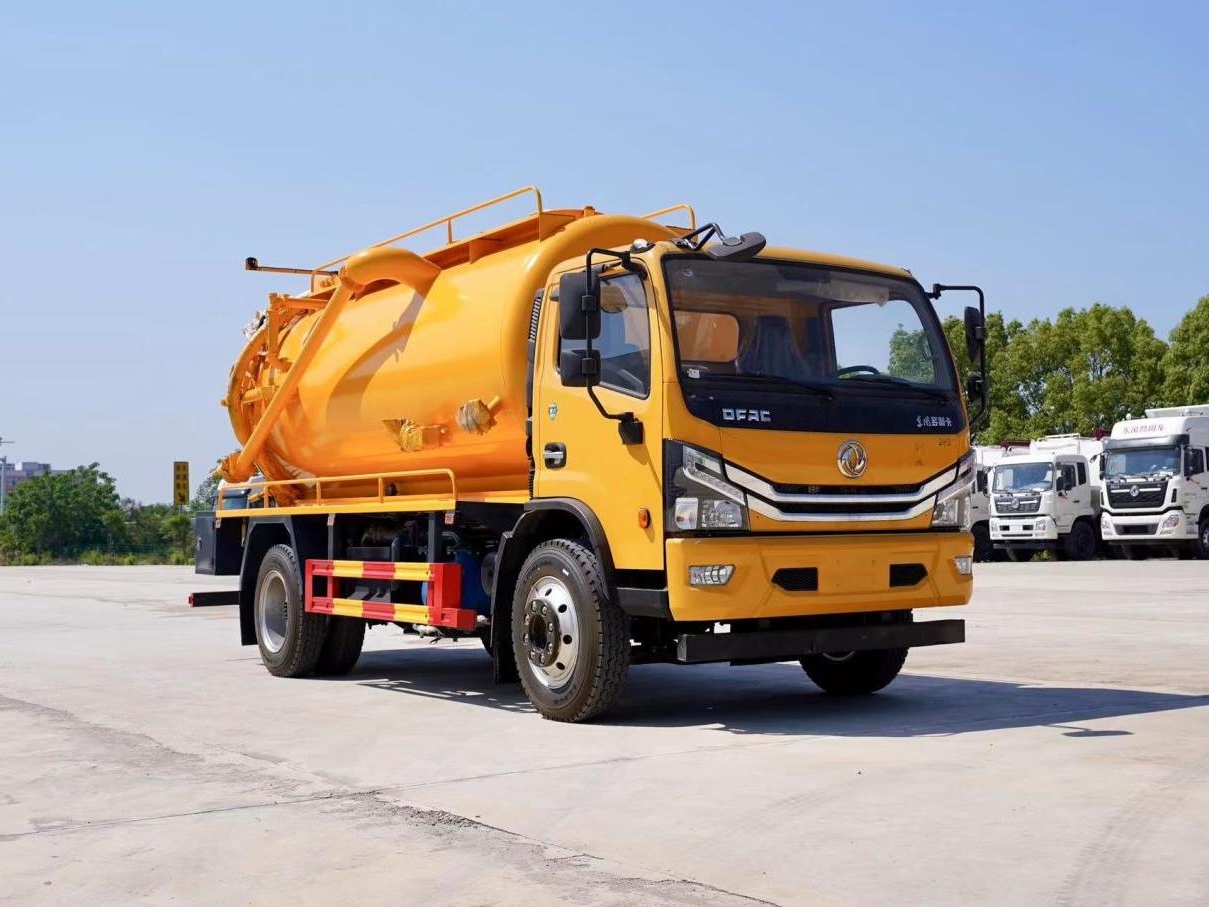

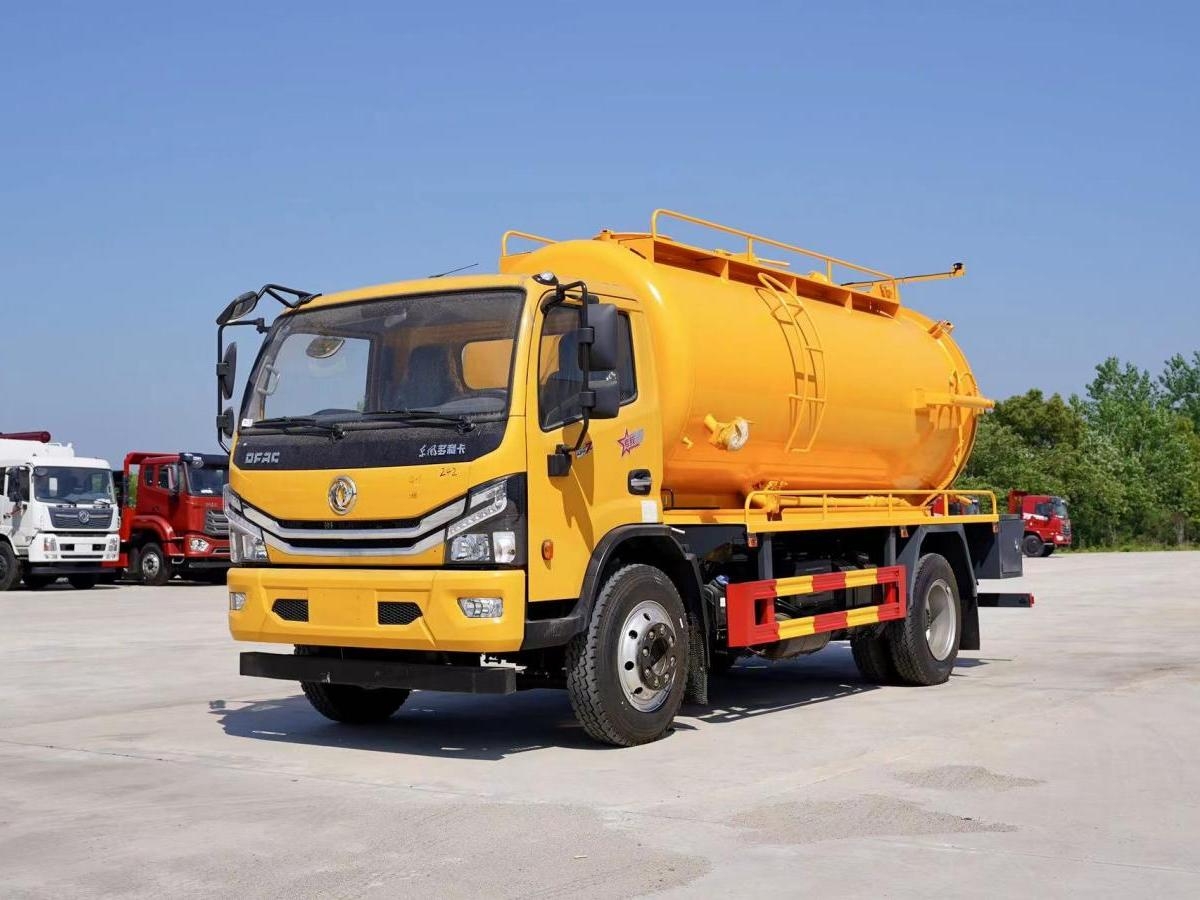

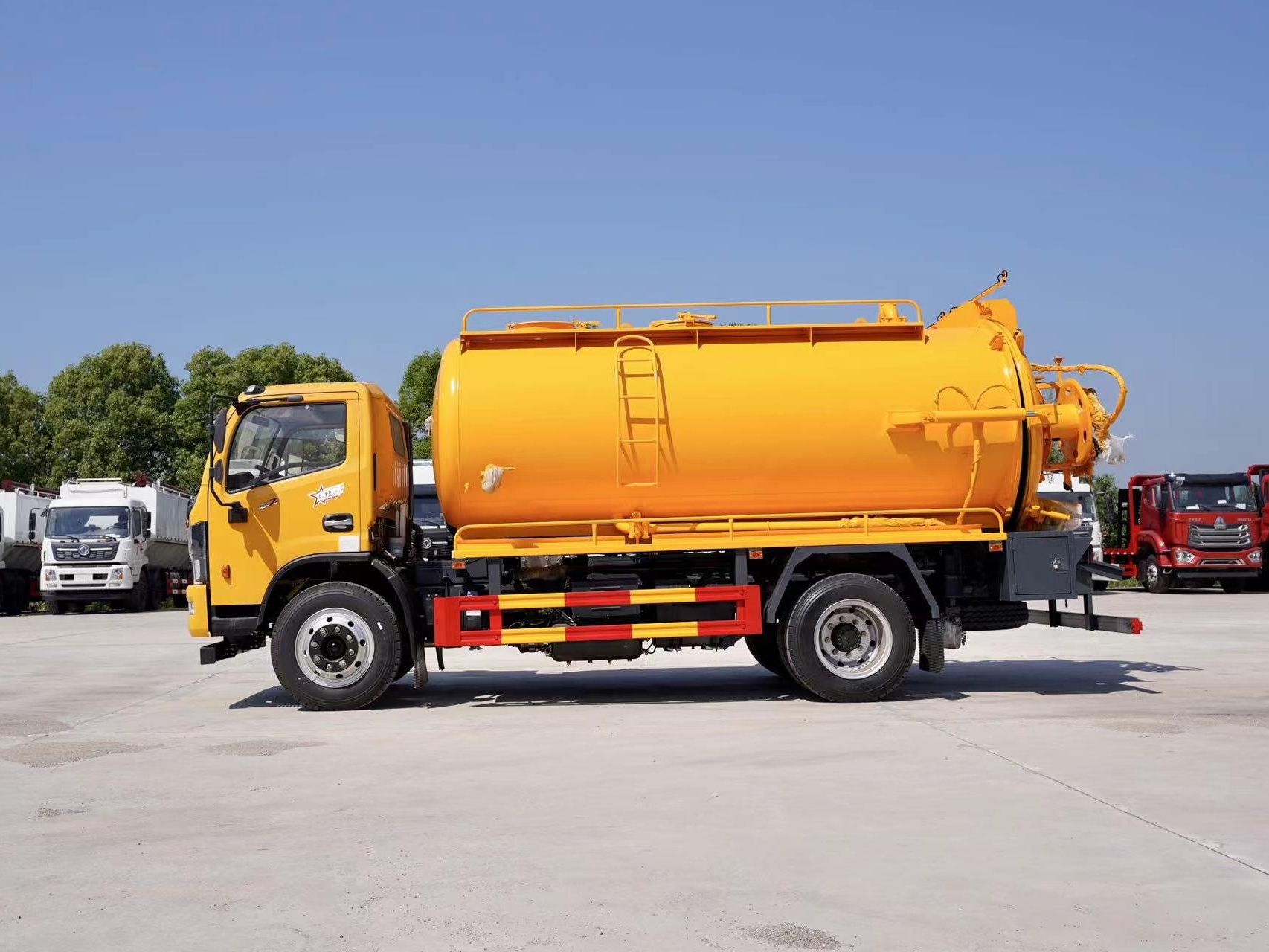

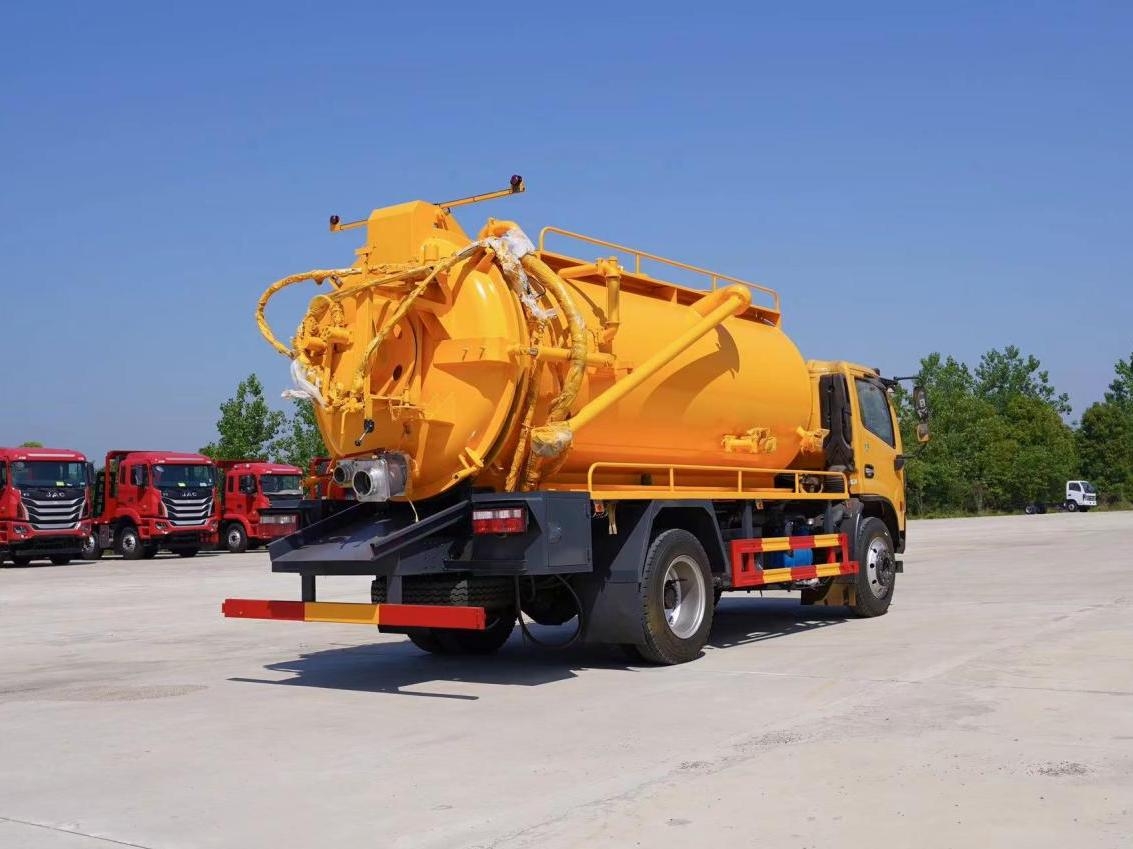

Dongfeng D7 4X2 suction cleaning truck
2024-10-07 09:54:11 Source：chusheng
Dongfeng D7 4X2 suction cleaning truck
Chassis configuration: Dongfeng Dorica D7, Yuchai 165 horsepower, National VI engine 3800 wheelbase, 6-speed gearbox, 8.25 steel wire tires, original power steering, air brake ABS, electric glass, central locking, original air conditioning.
Upper configuration: The suction tank is 6mm thick, equipped with a dual Yao 215 flow high-pressure pump, a Y-shaped filter, a 60m 19 diameter high-pressure pipe, and 10 high-pressure nozzles. The sewage suction adopts Shandong SK-12 water circulation pump, with hydraulic lifting function on the tank body, hydraulic opening on the back cover, and a 100 ball valve suction and a 150 ball valve discharge at the tail, equipped with 2 8-meter sewage suction pipes. The rest shall be strictly produced in accordance with the announcement style
| Product Name |
Dongfeng D7 4X2 suction cleaning truck |
| Driving Type |
4X2 |
| Gross vehicle weight(Kg) |
14060(Kg) |
| Curb weight(Kg) |
8200(Kg) |
| Rated weight(kg) |
5665(Kg) |
| Wheelbase(mm) |
3800(mm) |
| Overall Dimension(mm) |
7380x2380x3150(mm) |
| Tank volume(cbm) |
12m³ |
| Engine brand & model |
Yuchai, YCY30165-60 |
| Displacement(L)/Power(kw) |
10.8L/121W |
| Axle Quantity |
2 |
| Transmission Type |
6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
8.25 steel wire tire, 6+1 spare |
| Cab |
D7 cab, electric window, central locking, original air conditioning |
| Garbage container material |
The thickness of the suction tank is 6mm. |
| Standard configuration |
High pressure cleaning section: Double Yao 215 flow high-pressure pump. Suction part: Shandong SK-12 water circulation pump. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D7 4X2 suction cleaning truck
Sewage suction truck, also called sewage tanker
truck, sewage truck, sewage suction tanker truck,vacuum sewage suction
truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc
.
Introduction
Suction sewage truck is a new type of environmental sanitation vehicle
that collects, transfers, cleans, and transports sludge and sewage to avoid
secondary pollution. The suction truck can self suction and discharge, with
fast working speed, large capacity, and convenient transportation. It is
suitable for collecting and transporting liquid substances such as feces, mud,
and crude oil. The suction truck adopts a domestically advanced vacuum pump
with high suction force and long suction distance, which is particularly
suitable for the suction, transportation, and discharge of sediment in sewers,
especially for large objects such as sewage mud, sludge, stones, bricks, etc.Product parameters
