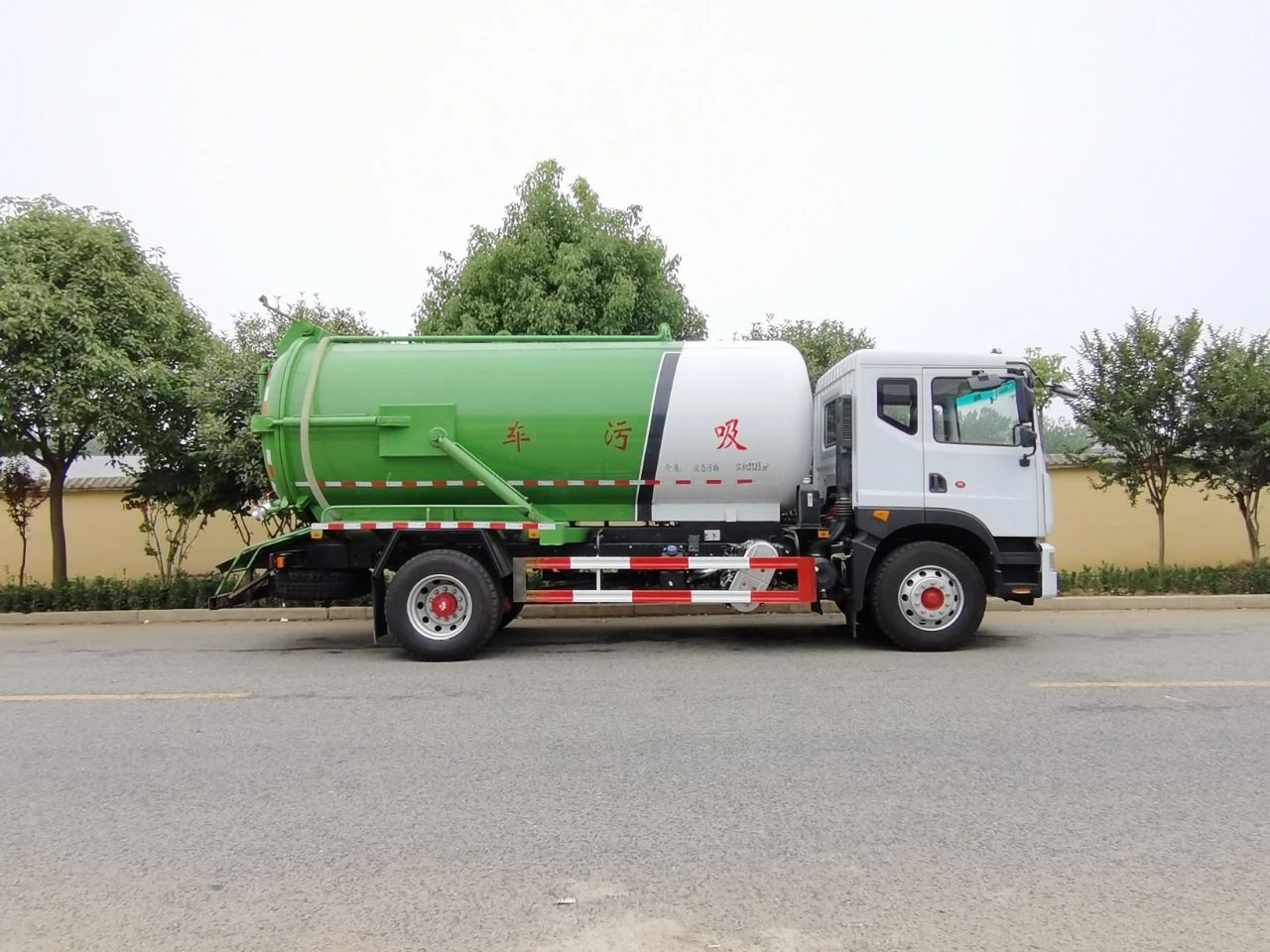

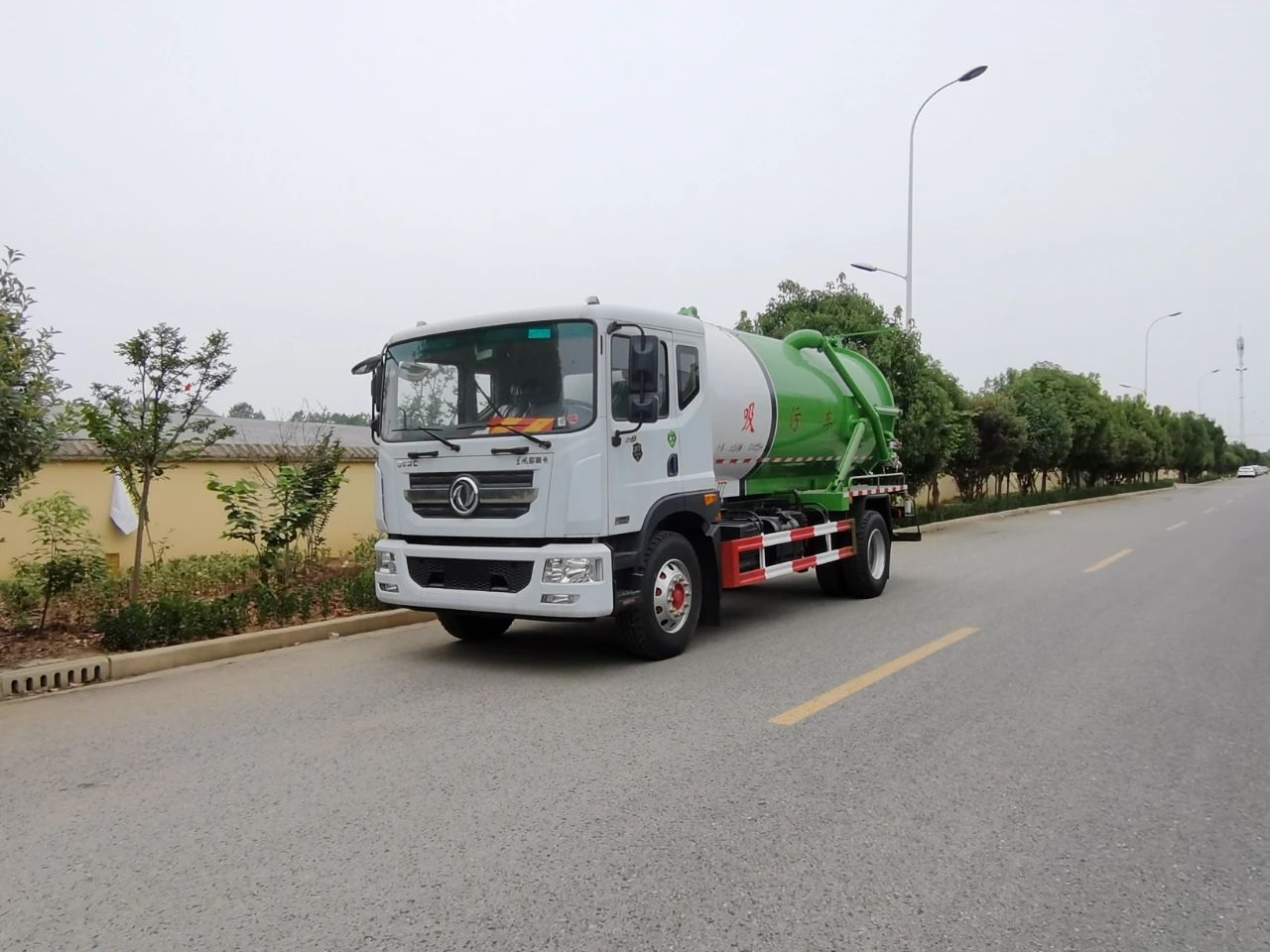

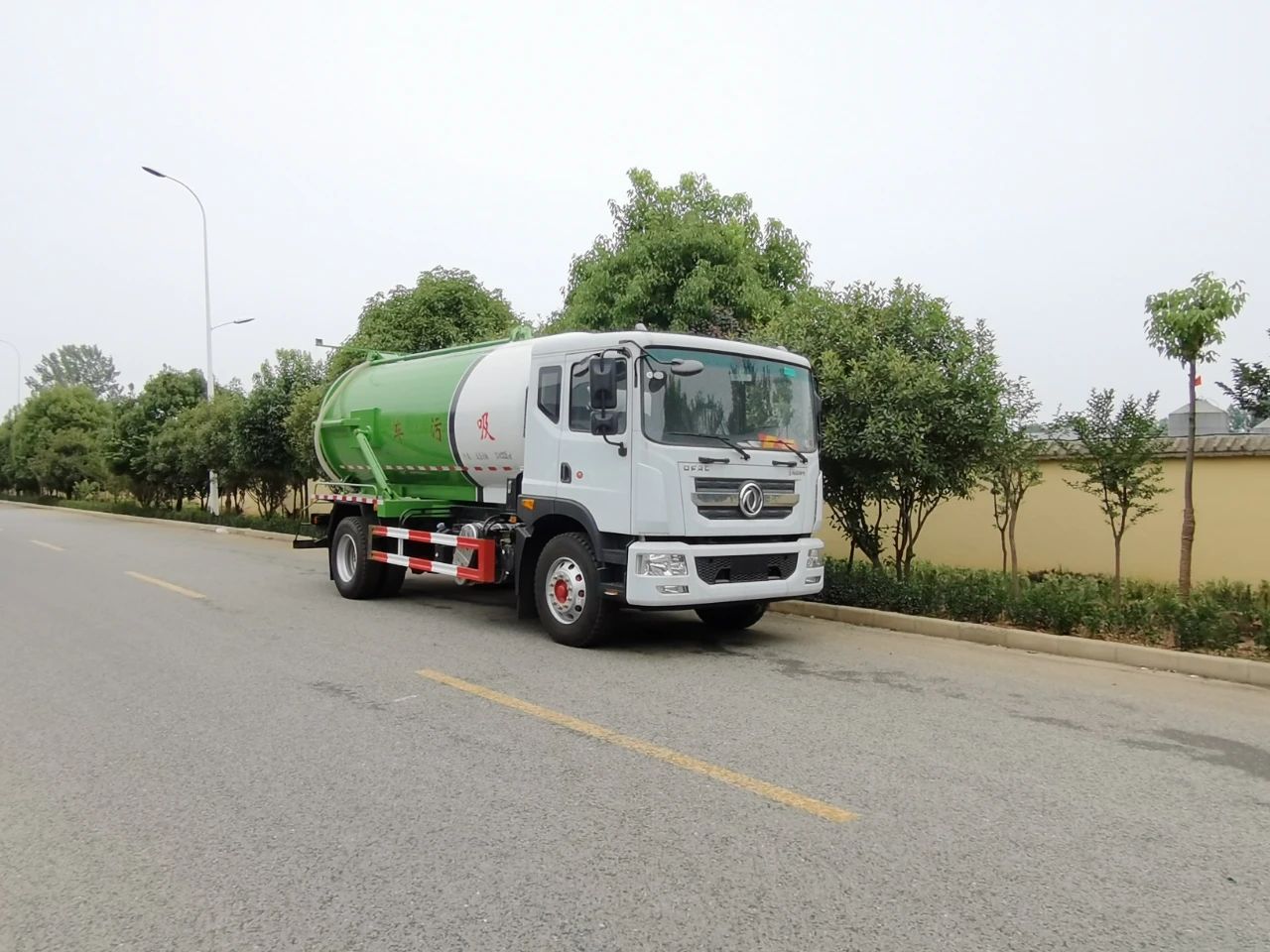

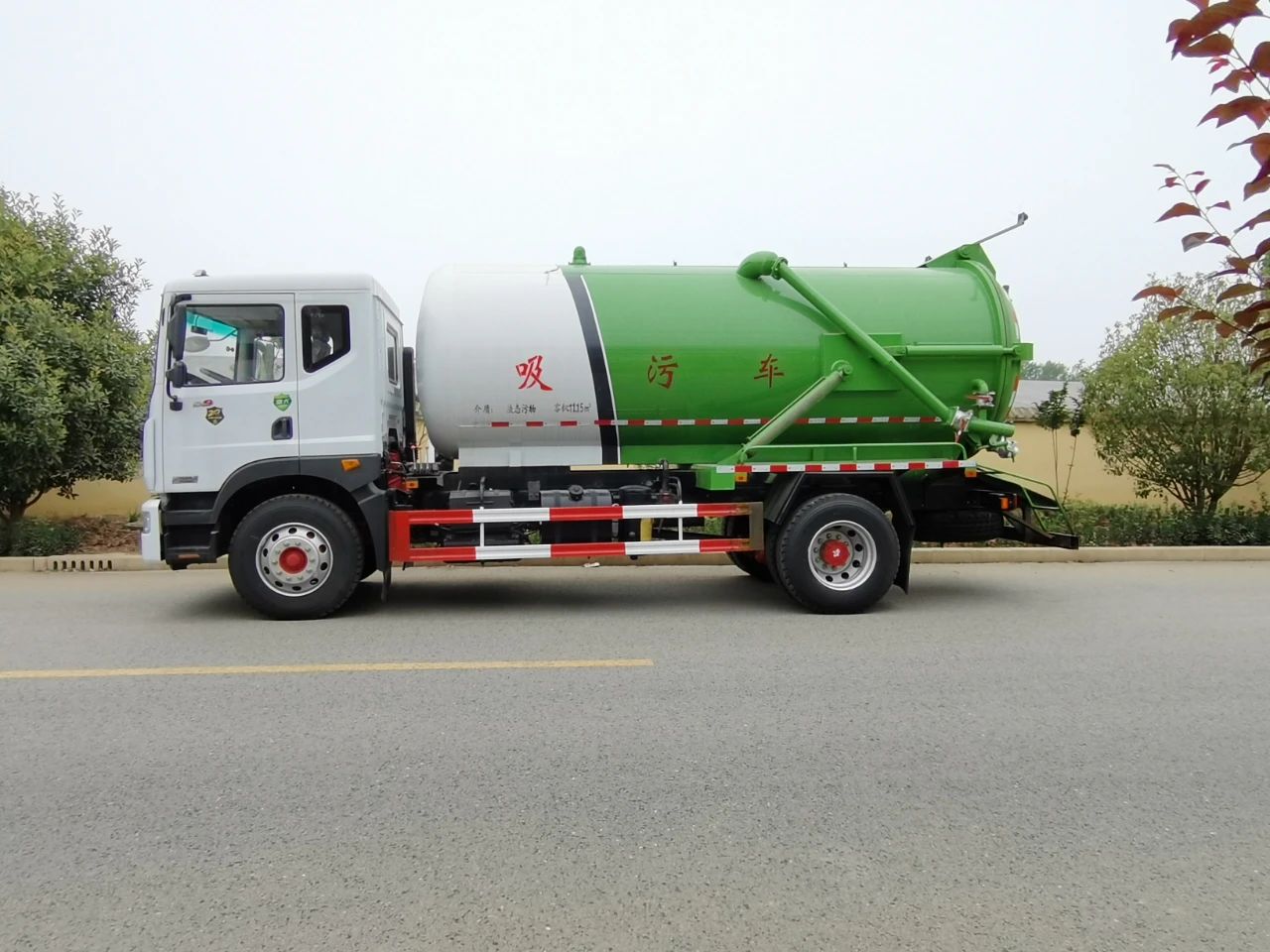

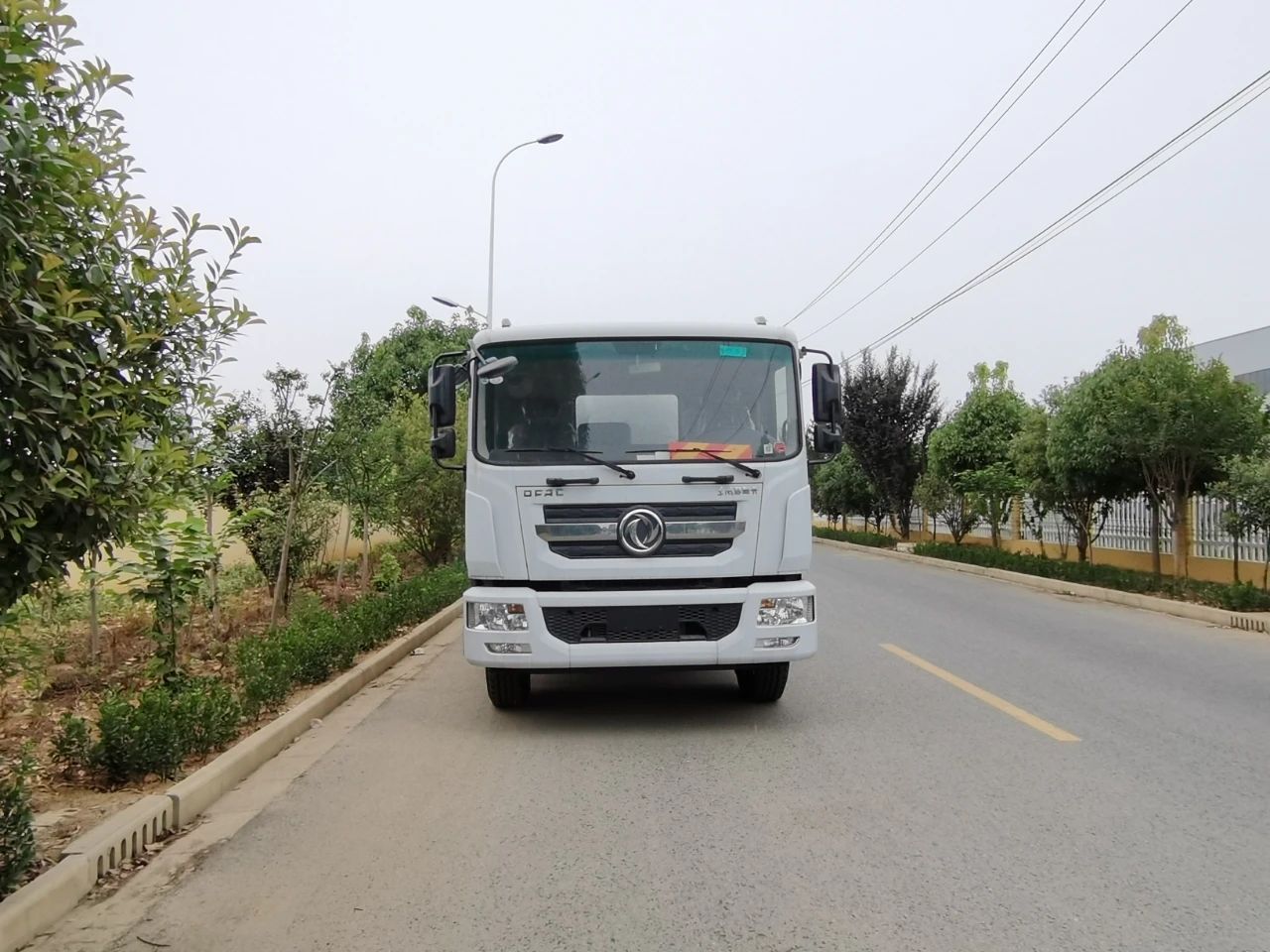

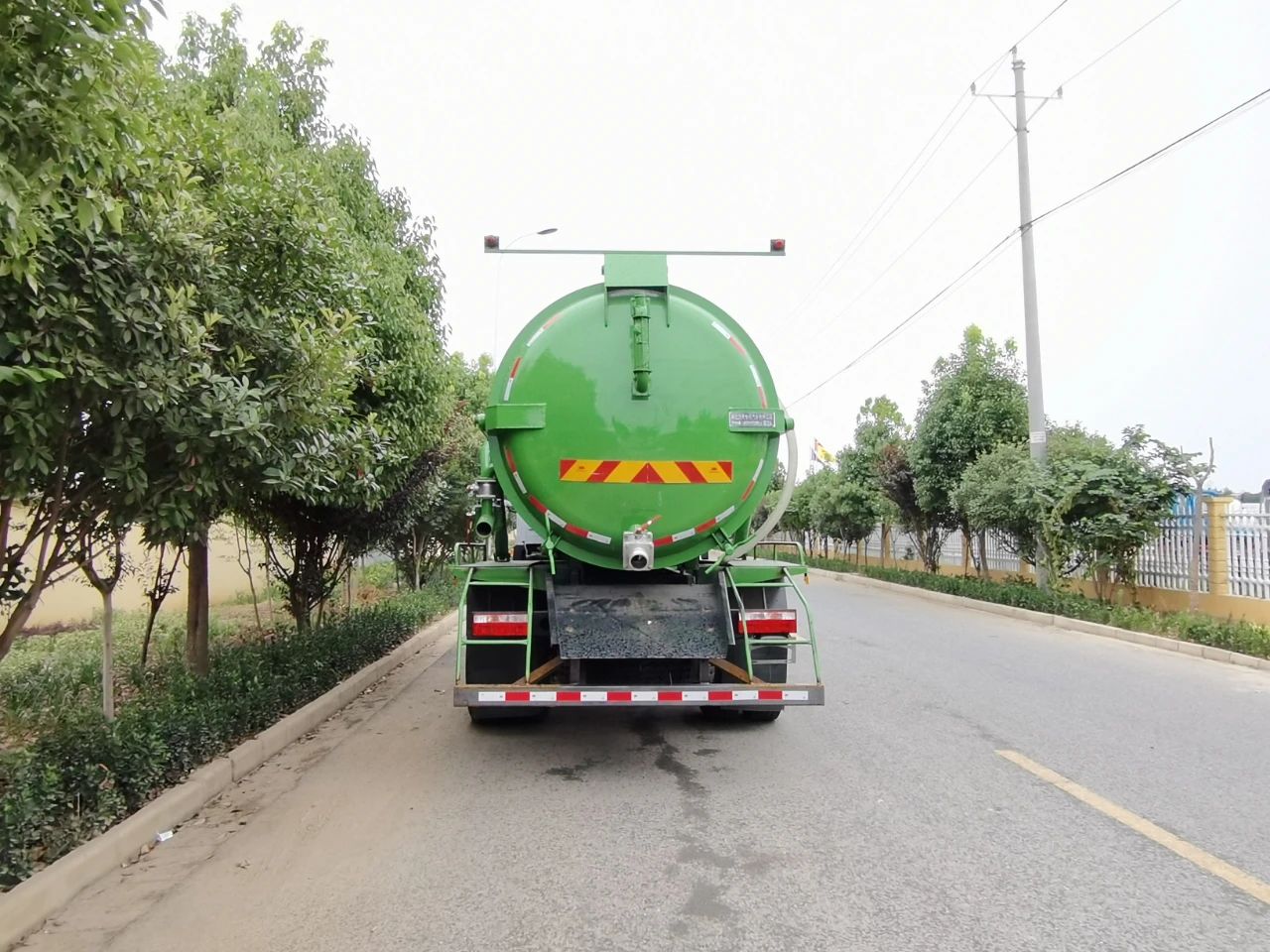

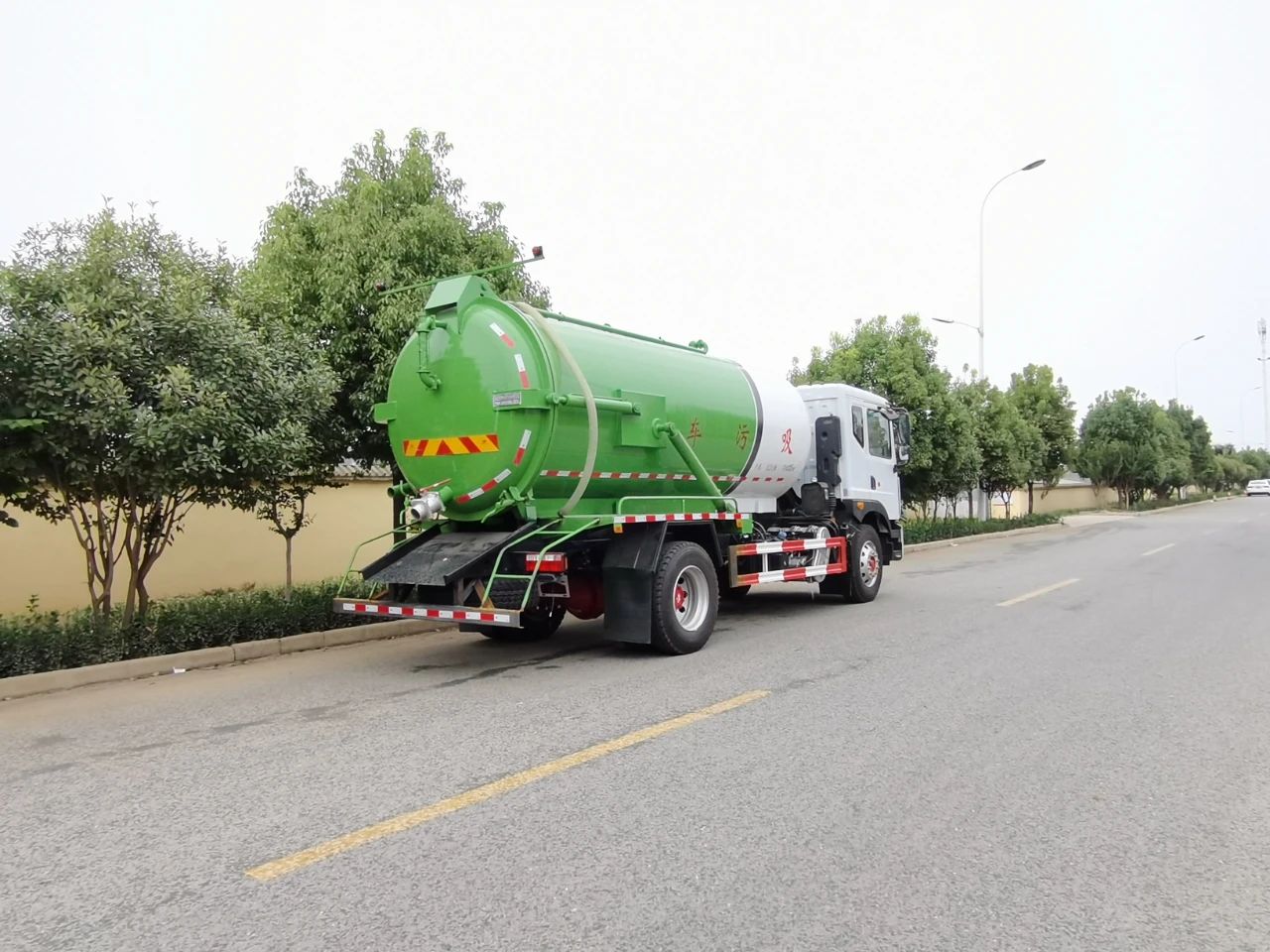

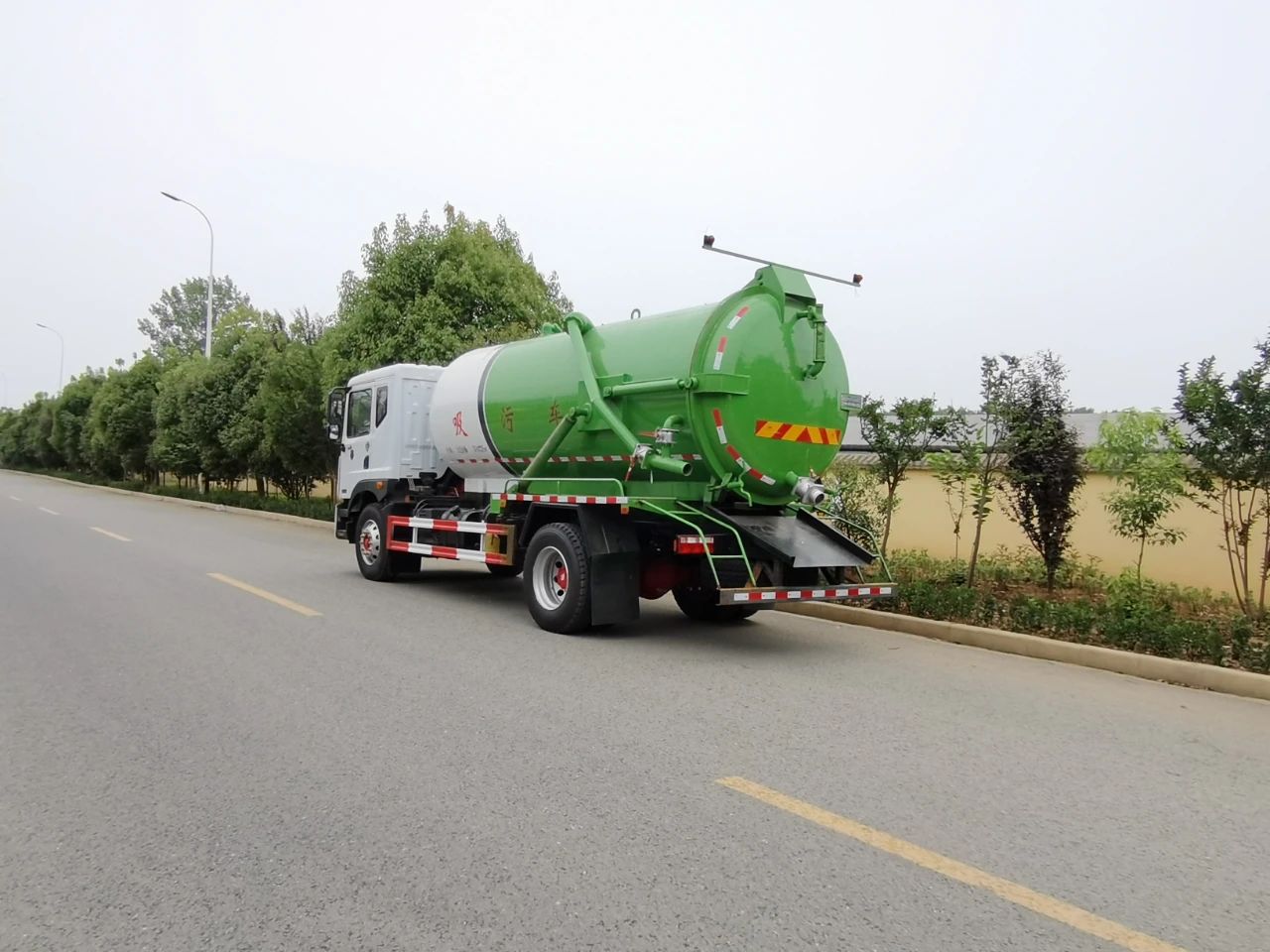

13m³ Dongfeng D9 sewage suction truck
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
The chassis adopts Dongfeng Dorica D9, 2315/half cab, Cummins 230 horsepower, 4500 wheelbase, Fast 8-speed, 295/80R22.5 vacuum tires, Dena axle, front axle 4.5T, rear axle 10T, 250 double-layer frame, dynamic rotation, clutch assist, electric door and window hollow lock, air conditioning, air brake, exhaust brake
| Product Name |
13m³ Dongfeng D9 sewage suction truck |
| Driving Type |
4X2 |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
7880,8650(Kg) |
| Rated weight(kg) |
9990,9925,9220,9155(Kg) |
| Wheelbase(mm) |
4500(mm) |
| Overall Dimension(mm) |
7880,7680,7480×2500×3600(mm) |
| Tank volume(cbm) |
13m³ |
| Engine brand & model |
B6.2NS6B230, Cummins 230hp |
| Axle Quantity |
2 |
| Transmission Type |
FAST 8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
295/80R22.5 vacuum tire , 6+1 spare |
| Cab |
Dongfeng D9 cab |
| Installation configuration |
SK-15 water circulation pump, equipped with a fecal observation window, hand washing device, suction hose of 8 meters each, with oil-water separator, vacuum pressure gauge, anti overflow valve, hydraulic lifting of the tank body, hydraulic opening of the back cover, one DN100 feeding port, one DN150 discharging port, and one suction tank port |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
13m³ Dongfeng D9 sewage suction truck
Sewage suction truck, also called sewage tanker
truck, sewage truck, sewage suction tanker truck,vacuum sewage suction
truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc
.
Introduction
Suction sewage truck is a new type of environmental sanitation vehicle
that collects, transfers, cleans, and transports sludge and sewage to avoid
secondary pollution. The suction truck can self suction and discharge, with
fast working speed, large capacity, and convenient transportation. It is
suitable for collecting and transporting liquid substances such as feces, mud,
and crude oil. The suction truck adopts a domestically advanced vacuum pump
with high suction force and long suction distance, which is particularly
suitable for the suction, transportation, and discharge of sediment in sewers,
especially for large objects such as sewage mud, sludge, stones, bricks, etc.
Product parameters
