Liuqi 6m³ cleaning and suction truck - Suction sewage truck -

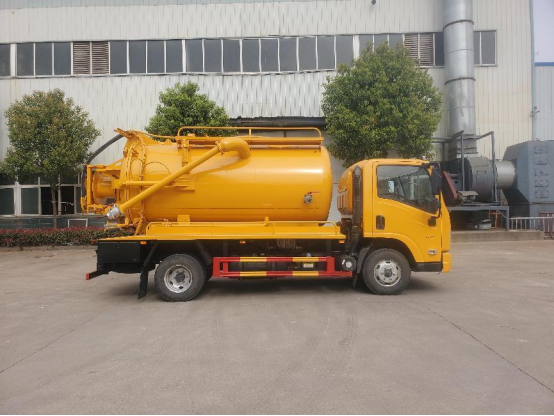

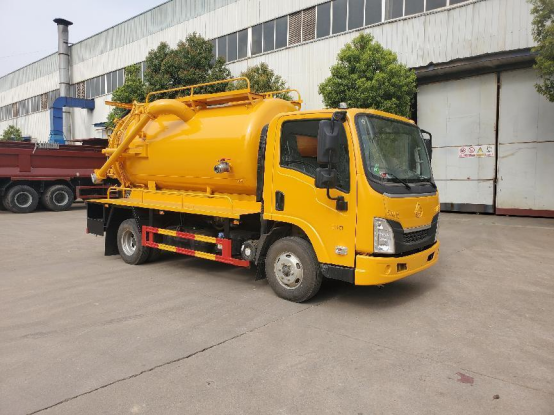

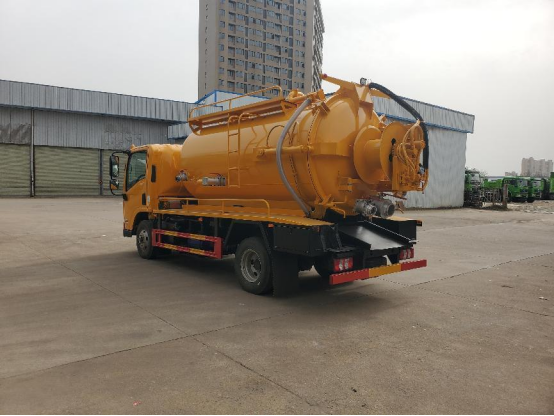

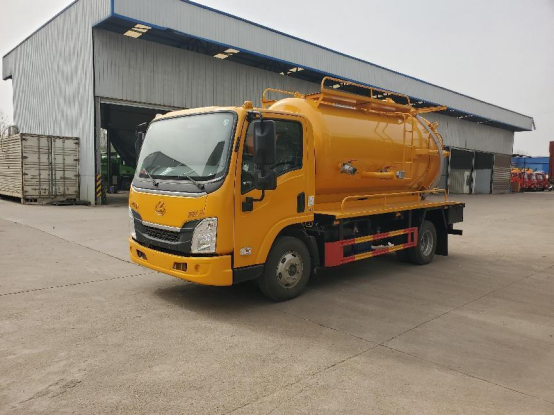

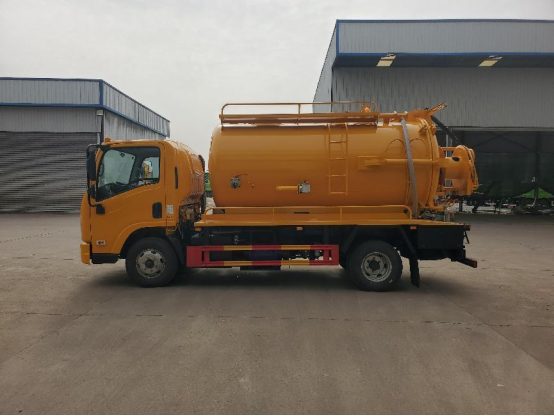

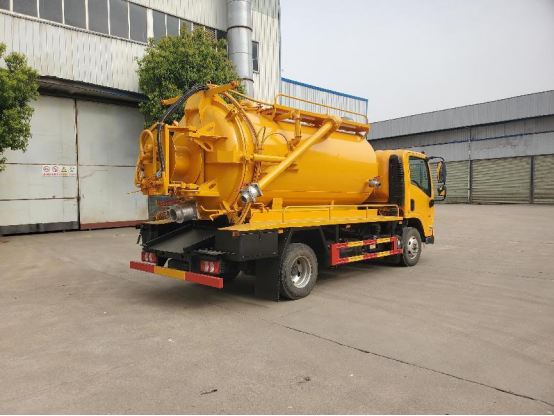

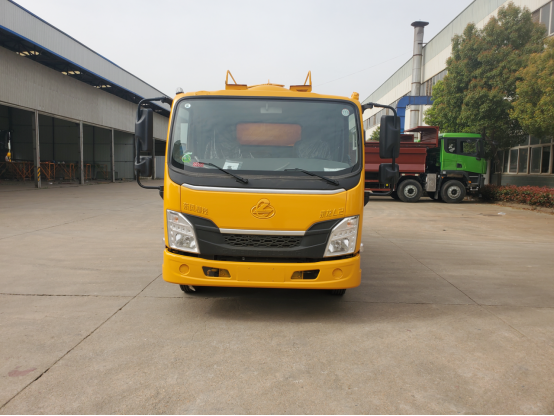

Liuqi 6m³ cleaning and suction truck

2024-10-07 09:54:11 Source：chusheng

Chassis configuration:

1. Genuine Yuchai 140 horsepower engine (optional 165 horsepower),
2. Luxury (2040 meters) wide body cab, all inclusive interior, comfortable three seater
3. Widen the wheelbase to 1721mm in the front and 1800mm in the back for better vehicle stability and stronger load-bearing capacity
4. Original factory air conditioning, high-power cooling, fast and stable, integrated AC 210A high-power generator
5. Front laminated glass can better protect drivers and passengers
6. PU multifunctional steering wheel, heated rearview mirror
7. Front and rear axles 2.5/6T, rear axle speed ratio 4.875 (optional 4.33 speed ratio), 192 reinforced beam, 7.00R16 steel wire tire (optional 7.50R16 steel wire tire)
8. Four way multifunctional air brake, ABS， Brake belt with automatic adjustment arm
9. Cruise control, remote key central locking (four in one), electric glass, LCD instrument panel
10. Aluminum alloy gas cylinder, 120L anti-static fuel tank, standardized accessories for the whole vehicle, easier assembly, maintenance and upkeep

Product Name

Liuqi 6m³ cleaning and suction truck

Driving Type

4X2

Gross vehicle weight(Kg)

7360(Kg)

Curb weight(Kg)

5035(Kg)

Rated weight(kg)

2130(Kg)

Wheelbase(mm)

3360(mm)

Overall Dimension(mm)

6360,5995×2200,2300×2950,2850(mm)

Tank volume(cbm)

6m³

Engine brand & model

Yuchai 140 horsepower engine (optional 165 horsepower)

Axle Quantity

Transmission Type

6-speed gearbox

Steering Type

LHD or RHD with power steering

Brake system

air brake

Tire Spec. & size

7.00R16LT 14PR, 7.50R16LT 14PR,8.25R16LT 14PR , 6+1 spare

Cab

Liuqi cab, Cruise control, remote key central locking (four in one), electric glass, LCD instrument panel

Installation configuration

The tank has a capacity of 6 cubic meters, a clean water tank has a capacity of 2 cubic meters, and a suction tank has a capacity of 4 cubic meters. It can be divided into compartments according to user requirements. The external dimensions of the tank (length × diameter) (mm) are 3800 × 1450, and the tank is made of 6mm carbon steel plate. The sides of the tank are interconnected with ball valves.

High pressure section

The Pinfu 215 flow high-pressure pump is used, and the reel is installed at the rear of the tank. The operating device is installed on the reel and can rotate 180 ° with a 60 meter 19 # high-pressure pipe. 10 combination nozzles.

Suction part

SK-9 water circulation suction pump is used, equipped with self-made anti overflow valve, four-way valve, with self suction and self unloading function, and two 8-meter suction pipes (with joints).

Details section

As follows

(1)

Platforms and guardrails shall be installed on both sides of the tank, and operation signs and reflective labels shall be installed on the operating parts;

(2)

Install a 150mm ball valve and a 100mm ball valve at the rear of the tank, a 130mm suction iron pipe on the side, and a 100mm ball valve at the bottom.

(3)

The bottom of the clear water tank is equipped with a drainage valve, a fire water inlet, and a hand washing valve.

(4)

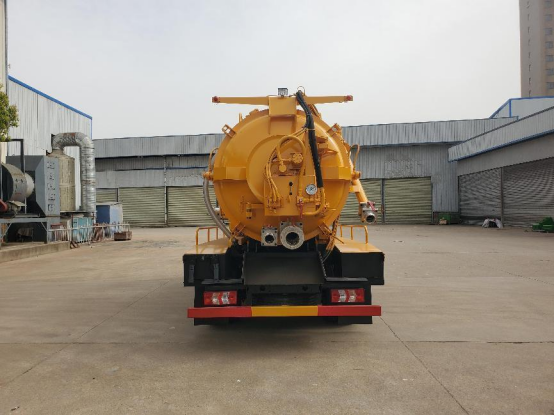

The tank can be lifted, the back cover can be hydraulically opened, and there are four locking bolts installed at the rear of the tank.

(5)

Make toolboxes on both sides of the rear of the tank and install an LED lighting fixture.

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Liuqi 6m³ cleaning and suction truck

Sewage suction truck, also called sewage tanker truck, sewage truck, sewage suction tanker truck,vacuum sewage suction truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc .

Introduction

Suction sewage truck is a new type of environmental sanitation vehicle that collects, transfers, cleans, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil. The suction truck adopts a domestically advanced vacuum pump with high suction force and long suction distance, which is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for large objects such as sewage mud, sludge, stones, bricks, etc.

Product parameters
