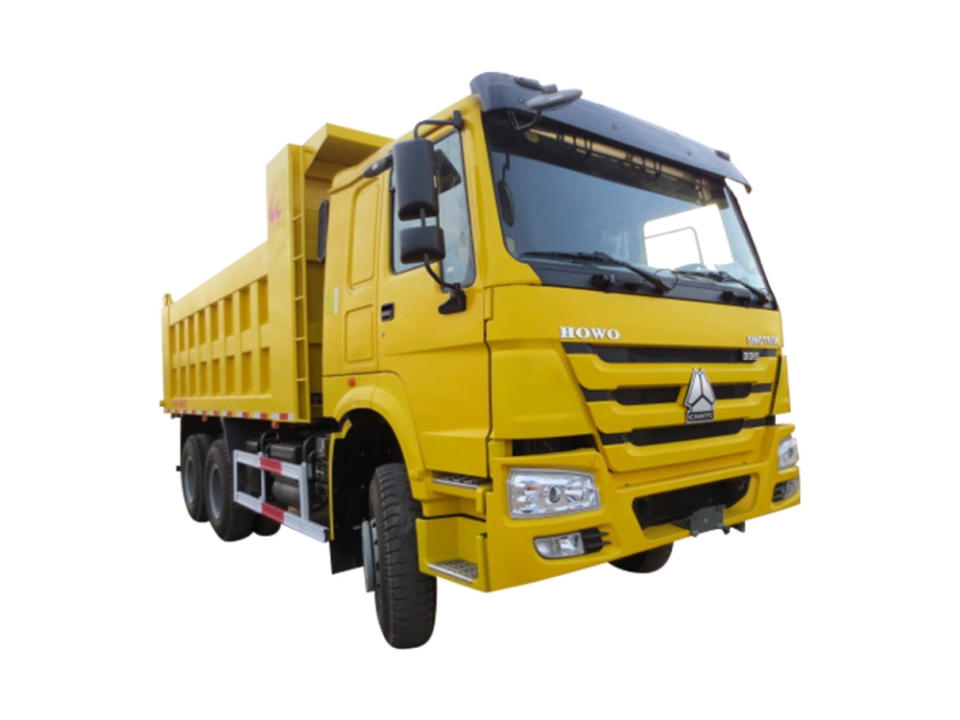

30 Ton Howo Dump Truck
2024-10-07 09:54:11 Source：chusheng
Howo dump truck is also called howo tipper
truck, howo dumper truck, is mainly used to transport kinds of sand, soil, rock.,ore. etc material.
Product feature
10 wheel howo dump chassis and CNHTC large
power engine
Adopt China high strength manganese steel,
strong and sturdy;
30 ton payload capacity
Factory direct sale
| Product Name |
30 Ton Howo Dump Truck |
| Driving Type |
6x4 |
| Dump body Volume(cbm) |
16 |
| Rated payload weight(kg) |
30000 |
| Overall Dimension(mm) |
8800x2450x3500 |
| Dump body size(mm) |
5600X2300X1400 |
| Engine brand & model |
CNHTC |
| Engine type |
4 stroke,water-cooled, straight line 6 cylinders, diesel |
| Axle Quantity |
3 |
| Transmission Type |
HOWO 10-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
12.00R20, 10+1 spare |
| Cab |
Howo HV76 flat proof, single sleeper, radio, AC |
| Dump body material |
High strength manganese steel |
| Main configuration |
1.Side plate 6mm, floor plate 8mm 2. Front mounted hydraulic lifting cylinder. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
30 Ton Howo Dump Truck
A dump truck, also known as atippertruck, refers to a vehicle that unloads goods on its own by hydraulic or mechanical lifting. Also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.
The compartments of dump trucks are divided into two types: backward tilting and lateral tilting. The piston rod movement is controlled by the control system, and backward tilting is more common. Pushing the piston rod causes the compartment to tilt, while a few tilt in both directions.
Product parameters
