Chassis configuration:
Cab: K5 luxury semi cab (with display screen)
Engine: YCS06245-60, Yuchai 245hp
Transmission: Fast eight speed (8JS95E-C) high/low speed/with flange type power take-off
Frame: 4750+1250,4350+1250(mm)
Tire: 11.00R2018PR, 8+1 spare
Wheelbase: 4750+1250,4350+1250(mm)
Frame: 300mm straight through three-layer local wing plate
Front/Rear Axle: Dongfeng Original Dena Bridge 5.5T/13t
Lift Bridge: Second Axis Lift 5T (Conversion Lift)
Other configurations: 280L aluminum alloy fuel tank, original air conditioning, multi lock in one, remote control center console, airbag seats, driving recorder, sunshade, LED daytime running lights, multifunctional steering wheel
Install a 12 ton 4-section straight arm crane from Zoomlion Heavy Industry, with a lifting height of 17.5 meters and an arm length of 15.88 meters. Equipped with dual pumps, one key start stop, automatic hook retraction, original radiator, and auxiliary beam.
| Product Name | Dongfeng A8 Truck With Crane |
| Driving Type | 6X2 |
| Gross vehicle weight(Kg) | 25000(Kg) |
| Curb weight(kg) | 14565,13565(Kg) |
| Rated weight(kg) | 10305,10240,11305,11240(Kg) |
| Wheel base(mm) | 4750+1250,4350+1250(mm) |
| Overall dimension(mm) | 10650,10150×2550,2500×3920,3850,3750(mm) |
| Cargo box dimension(mm) | 7200,7100,6700,6600,6100,5600×2450,2350,2400×550,600,800(mm) |
| Engine | YCS06245-60, Yuchai 245hp |
| Axle Quantity | 3 |
| Transmission Type | Fast eight speed (8JS95E-C) high/low speed/with flange type power take-off |
| Steering Type | LHD or RHD with power steering |
| Tire Spec. & size | 11.00R2018PR, 8+1 spare |
| Cab | K5 luxury semi cab (with display screen) |
| Crane configuration | Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc. |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

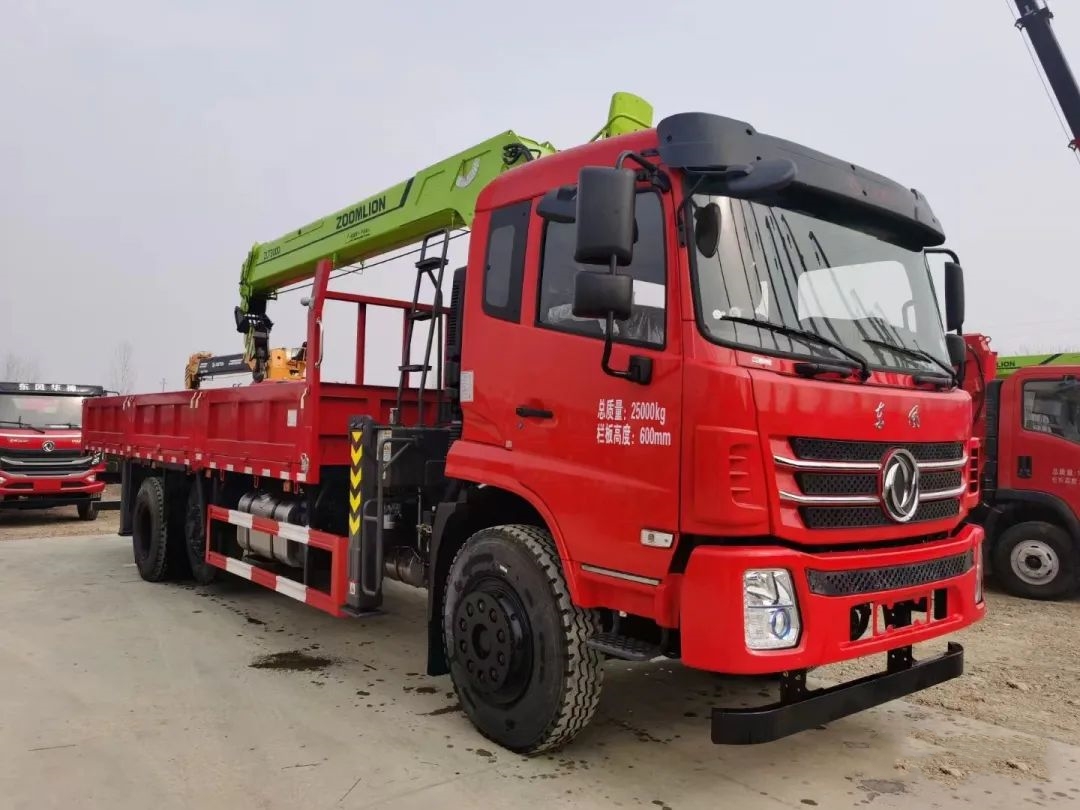

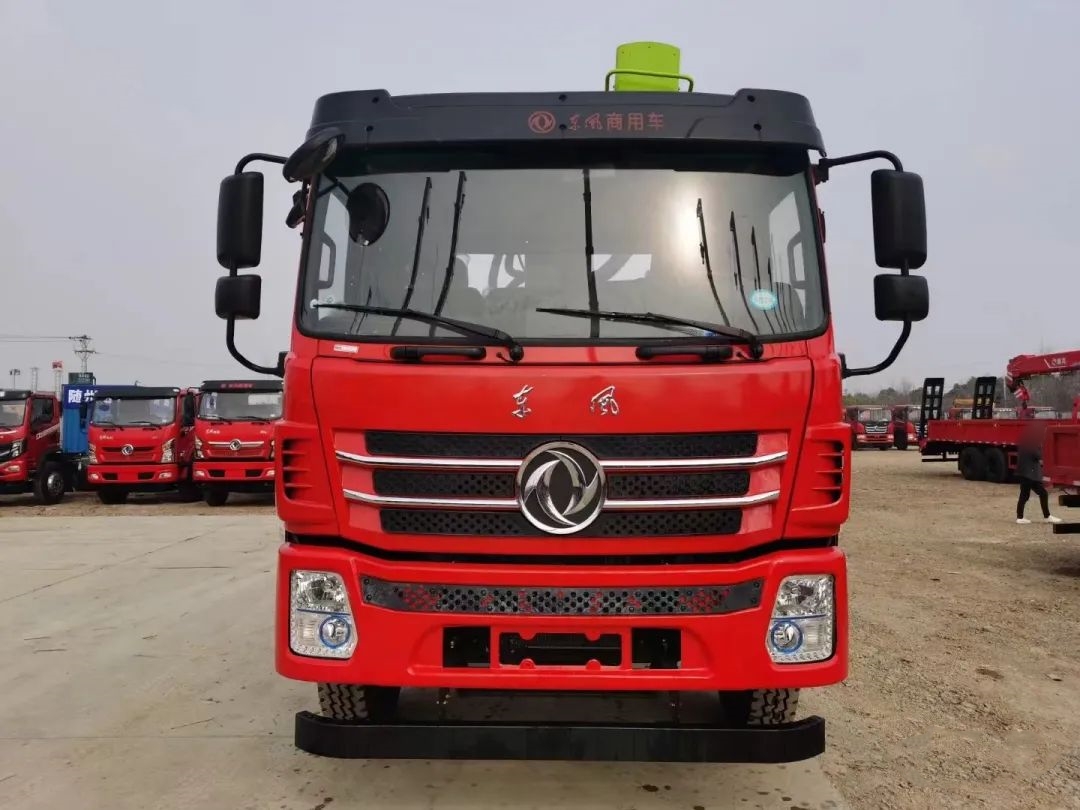

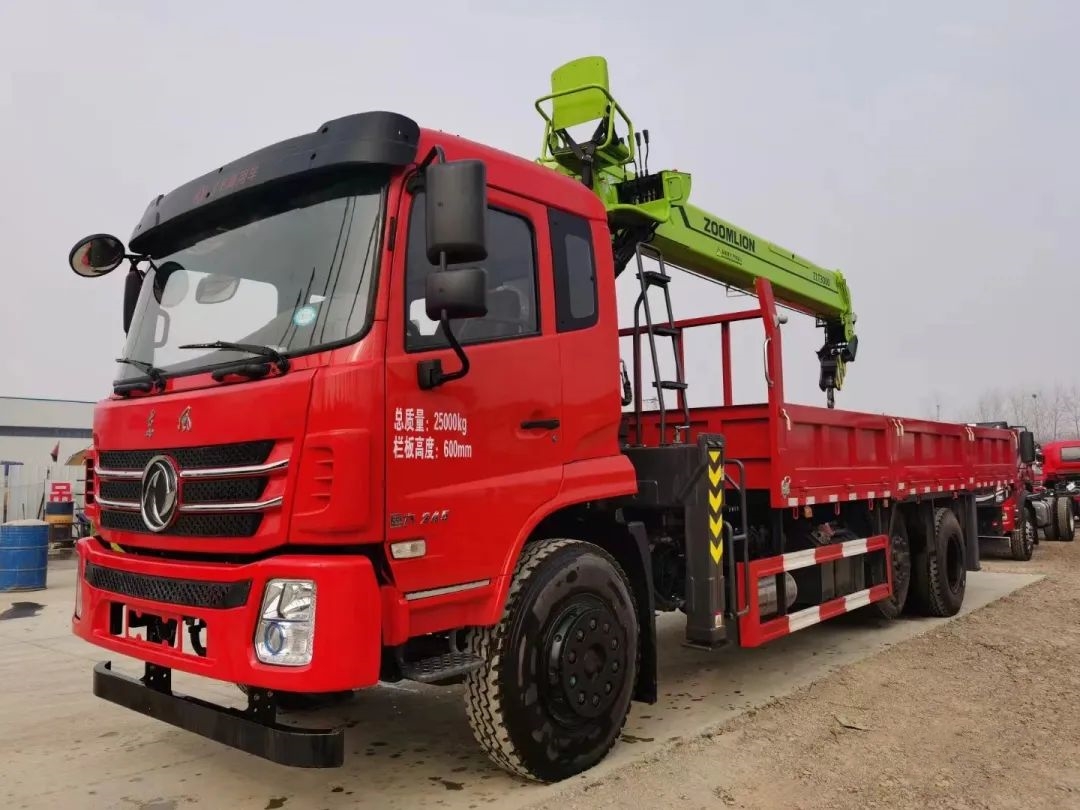

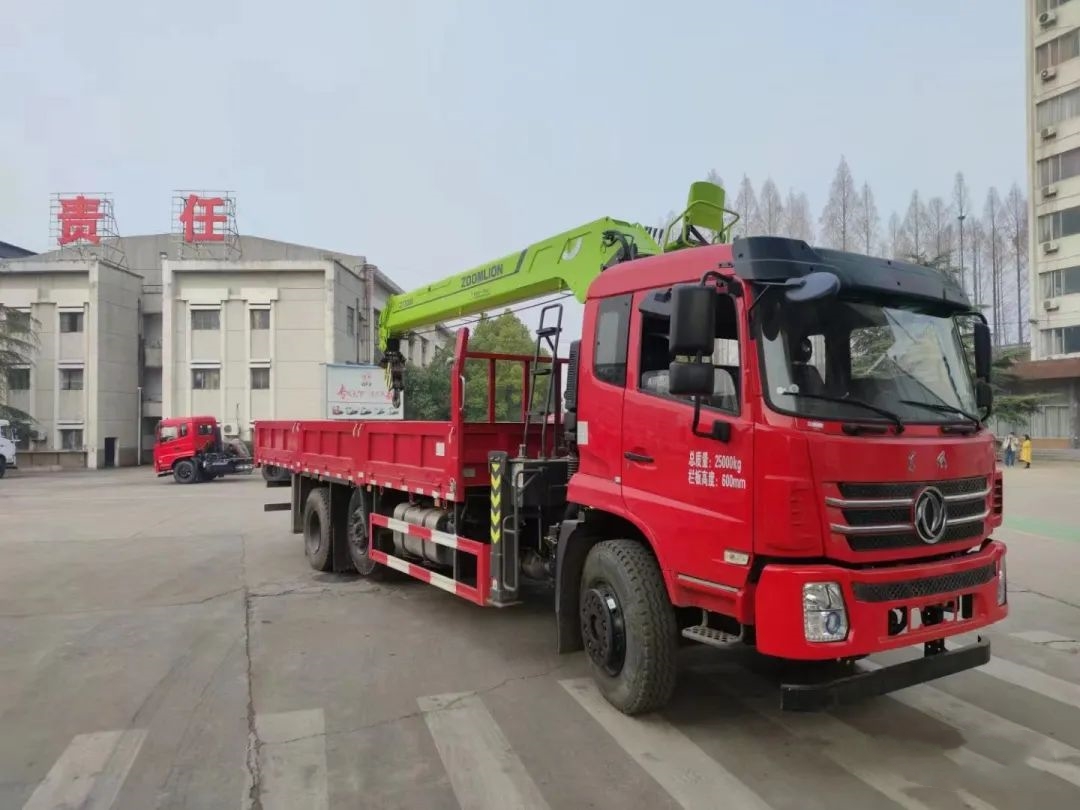

Dongfeng A8 Truck With Crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
