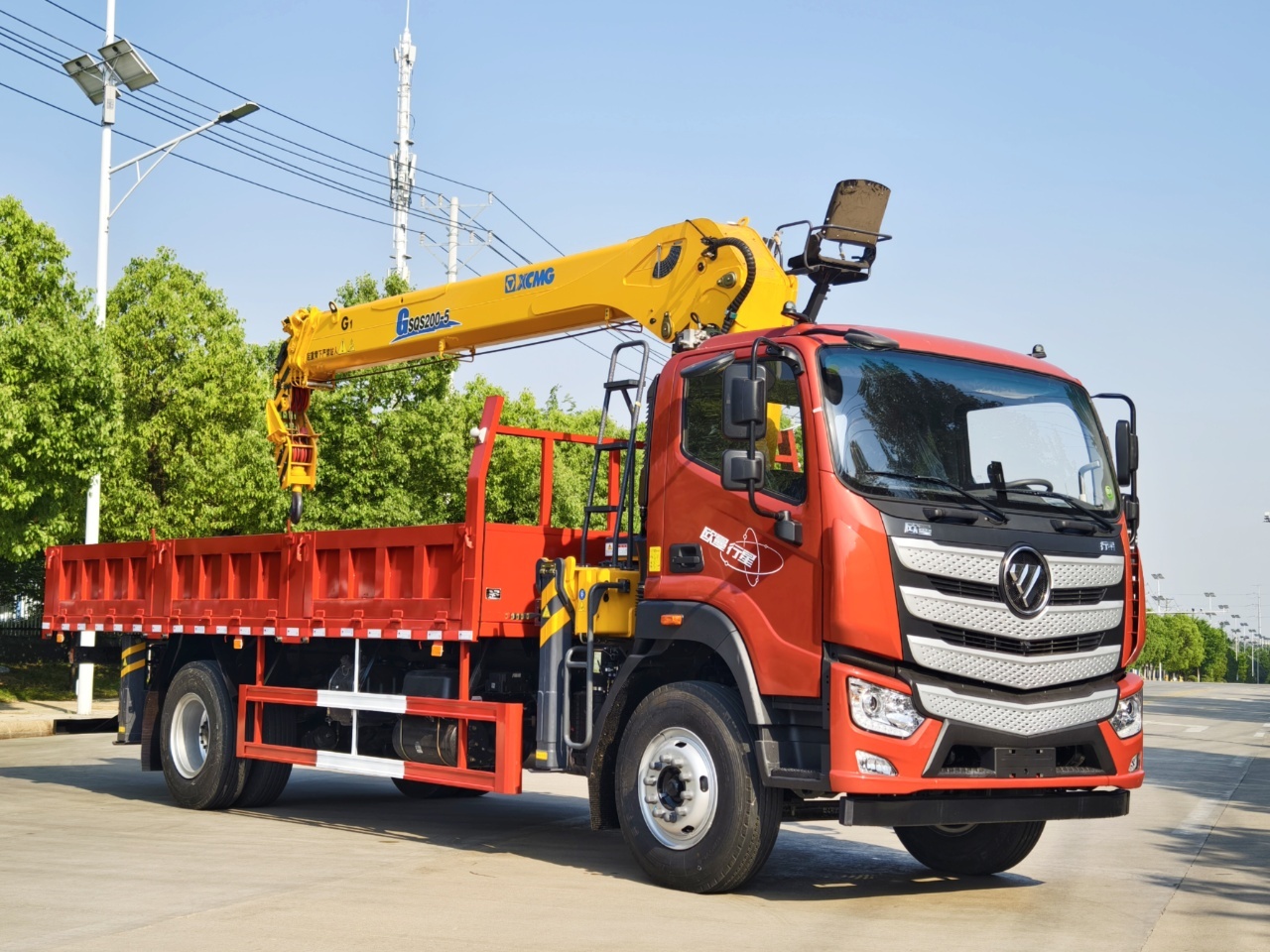

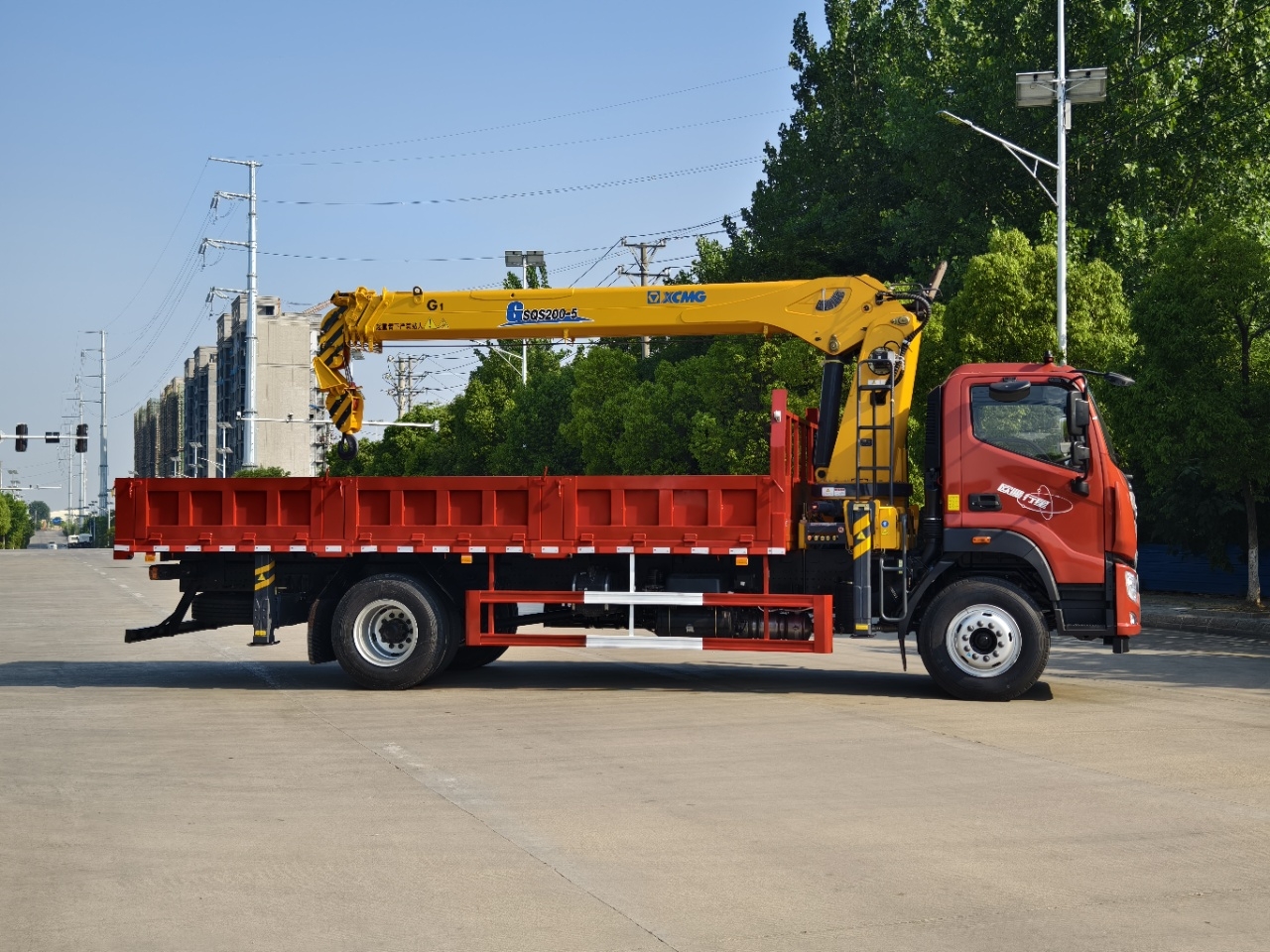

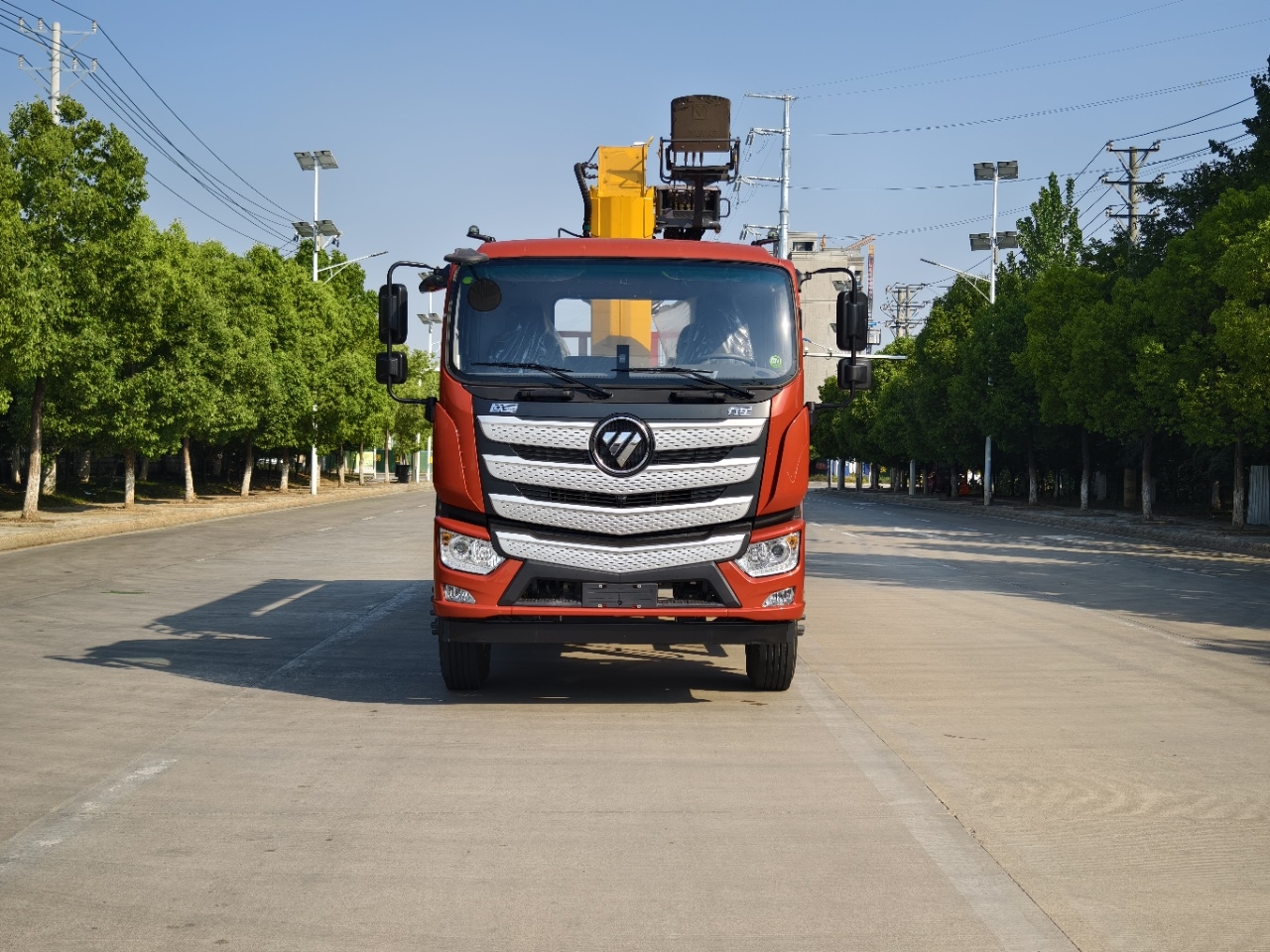

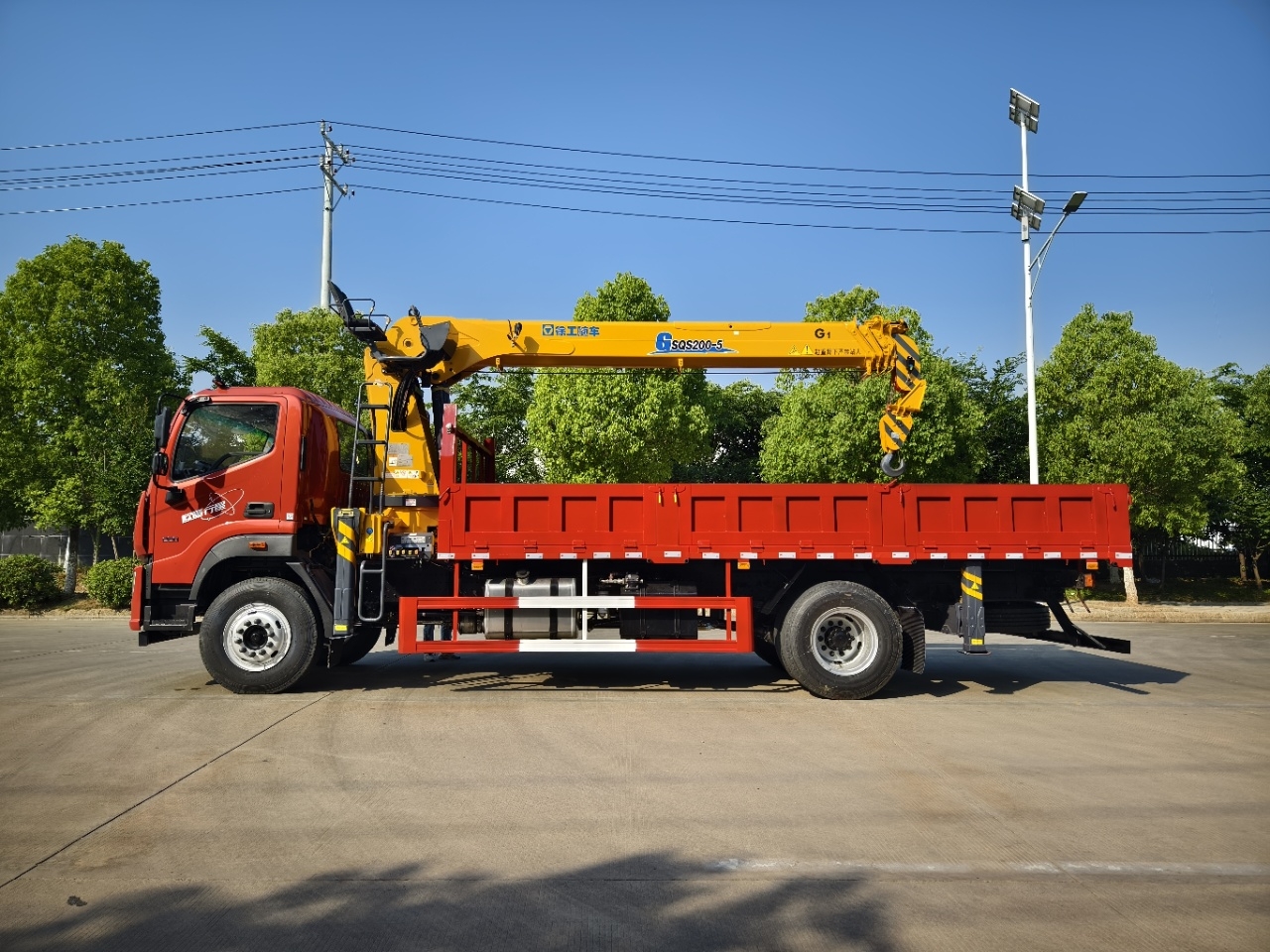

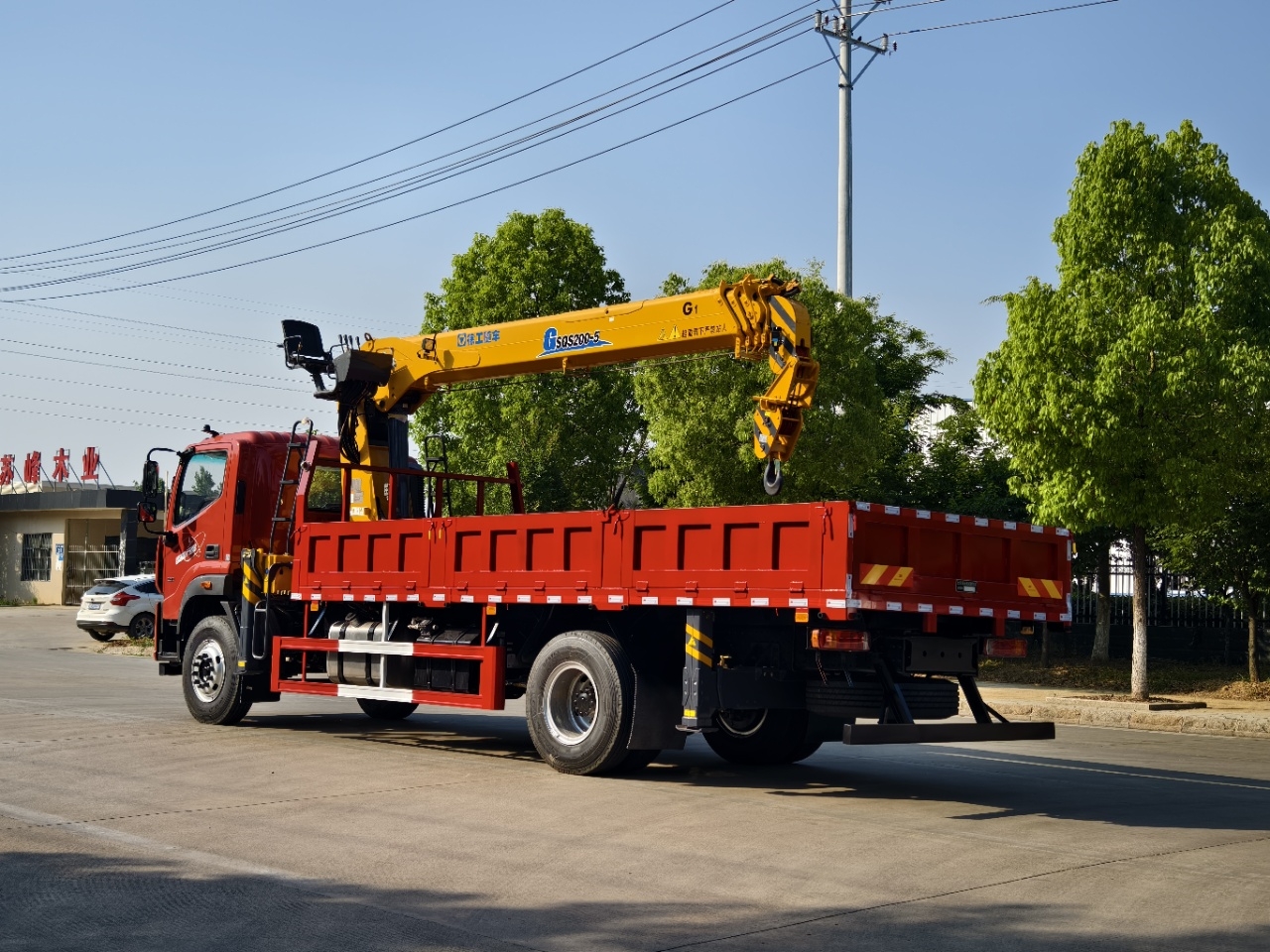

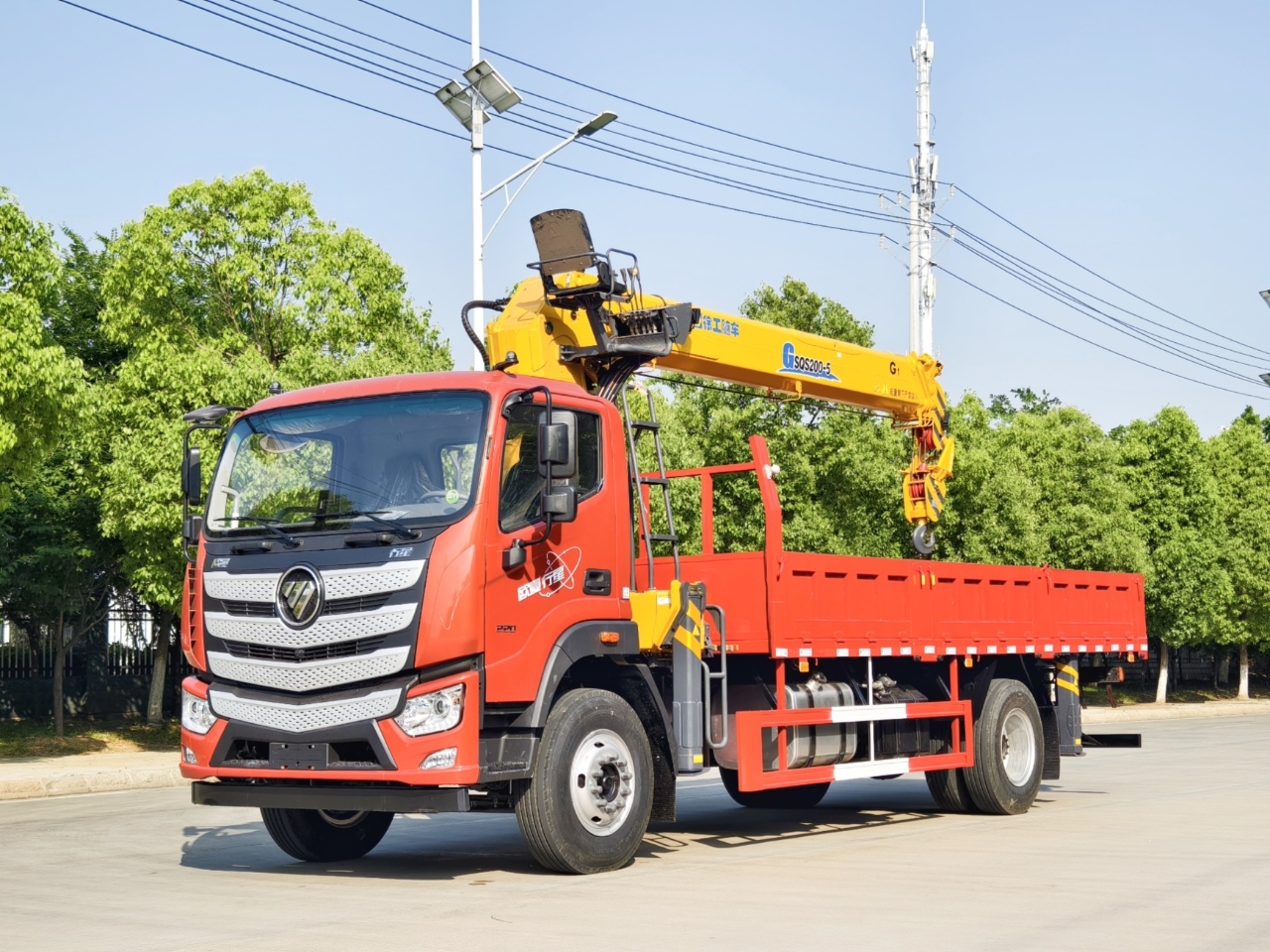

Auman 4X2 8 ton truck mounted crane
Chassis configuration:
1. Engine: YCS04220-61A,Yuchai220HP
2.Transmission type: 8-speed gearbox

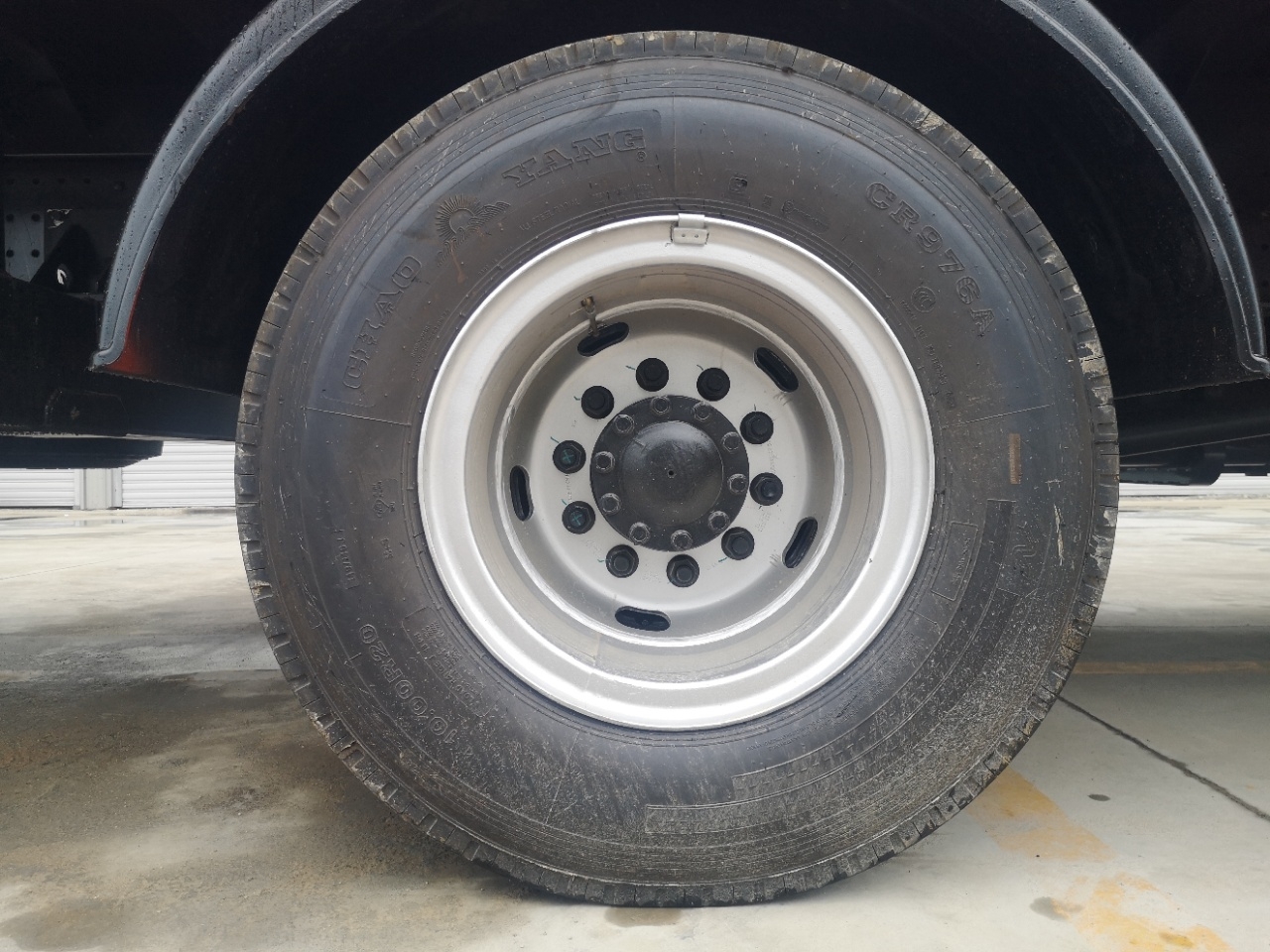

3.Tyre: 10.00R20 steel wire tire,6 with a spare
4.Wheelbase:5150mm
5.Other:Airbag seats, multifunctional steering wheel, air conditioning, electric doors and windows, cruise control
Installation configuration:
Equipped with XCMG 8-ton 5-section arm, arm length 18.6 meters, lifting height 20.6 meters.
| Product Name | Auman 4X2 8 ton truck mounted crane |
| Driving Type | 4X2 |
| Curb weight(kg) | 12000,11500(Kg) |
| Rated weight(kg) | 8670,10670,9670(Kg) |
| Wheel base(mm) | 5150mm |
| Overall dimension(mm) | 9000×2550,2500×3780,3850,3950(mm) |
| Cargo box dimension(mm) | 6100×2450,2400×550,600(mm) |
| Engine brand & model | YCS04220-61A,Yuchai220HP |
| Displacement(L)/Power(kw) | 4.3L/162KW |
| Axle Quantity | 2 |
| Transmission Type | 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | air brake |
| Tire Spec. & size | 10.00R20 steel wire tire,6 with a spare |
| Cab | Airbag seats, multifunctional steering wheel, air conditioning, electric doors and windows, cruise control |
| Crane configuration | XCMG 8-ton 5-section arm, arm length 18.6 meters, lifting height 20.6 meters |
| Cargo box material | Channel steel, square tube, corrugated board |

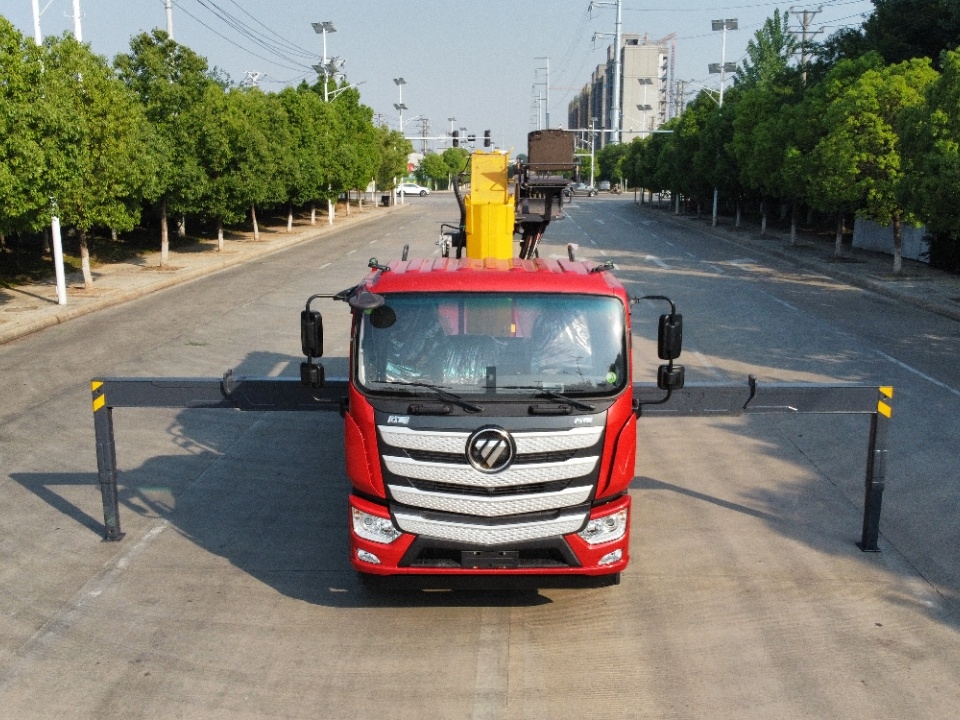

| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Auman 4X2 8 ton truck mounted crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
