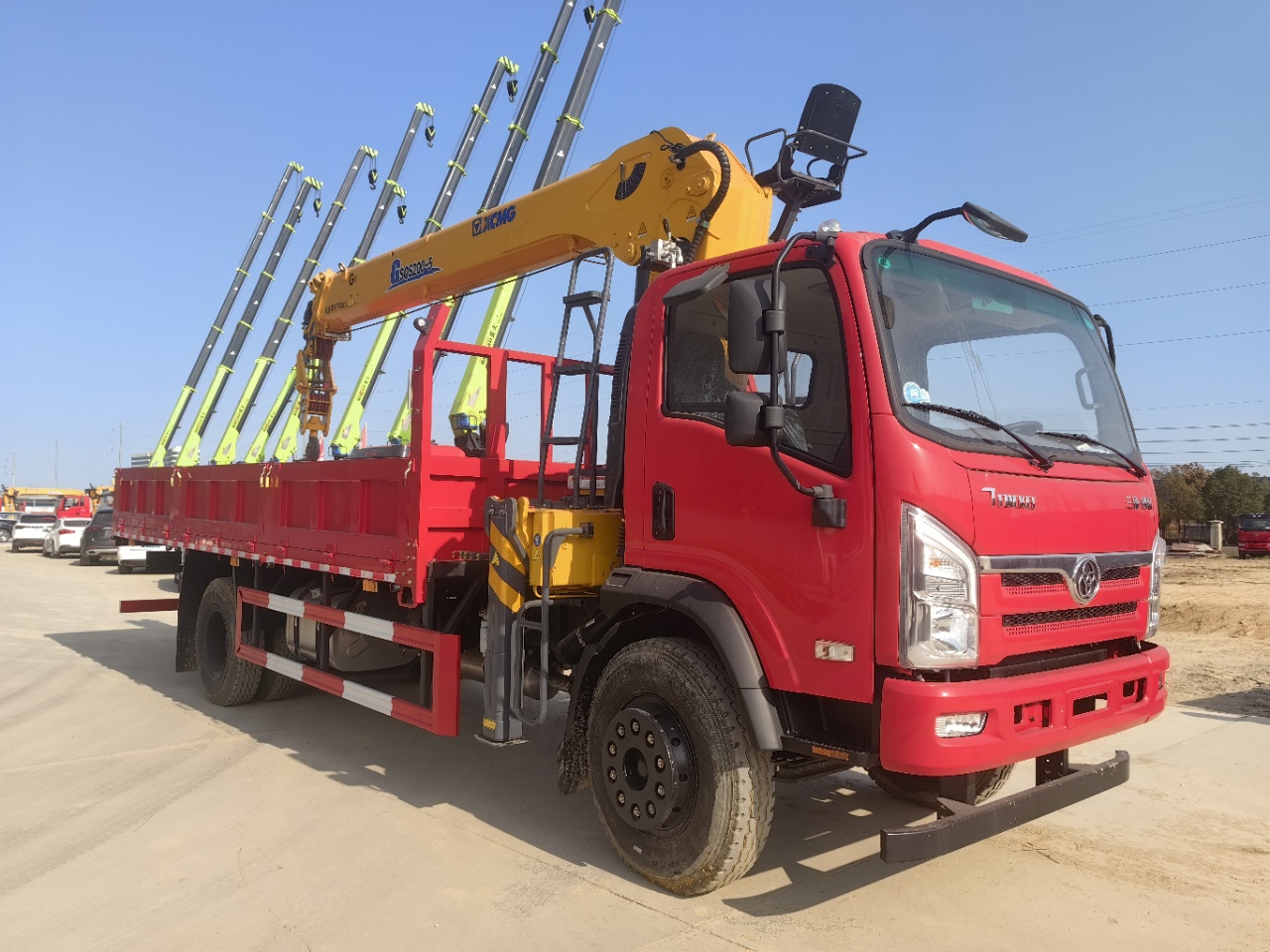

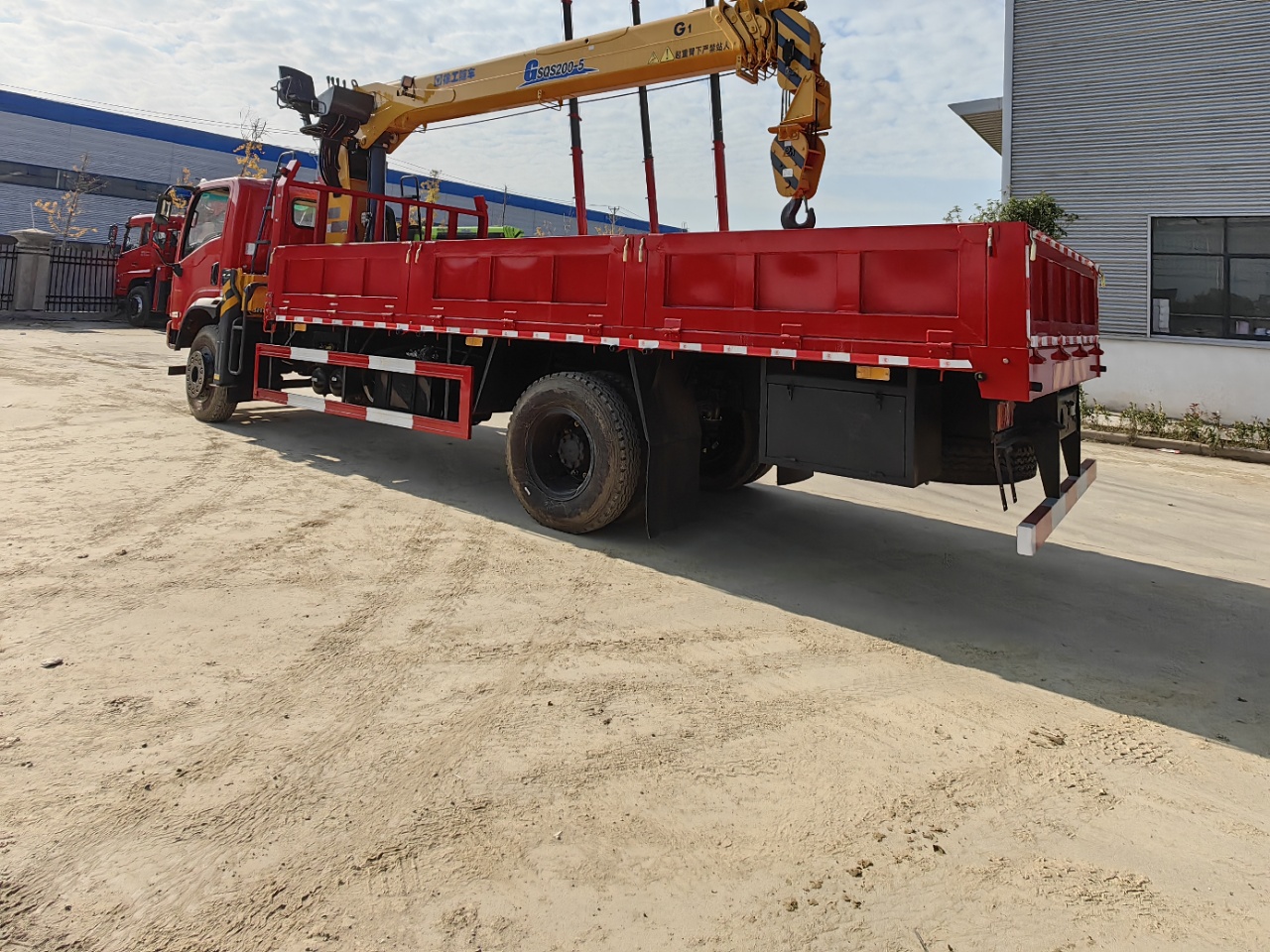

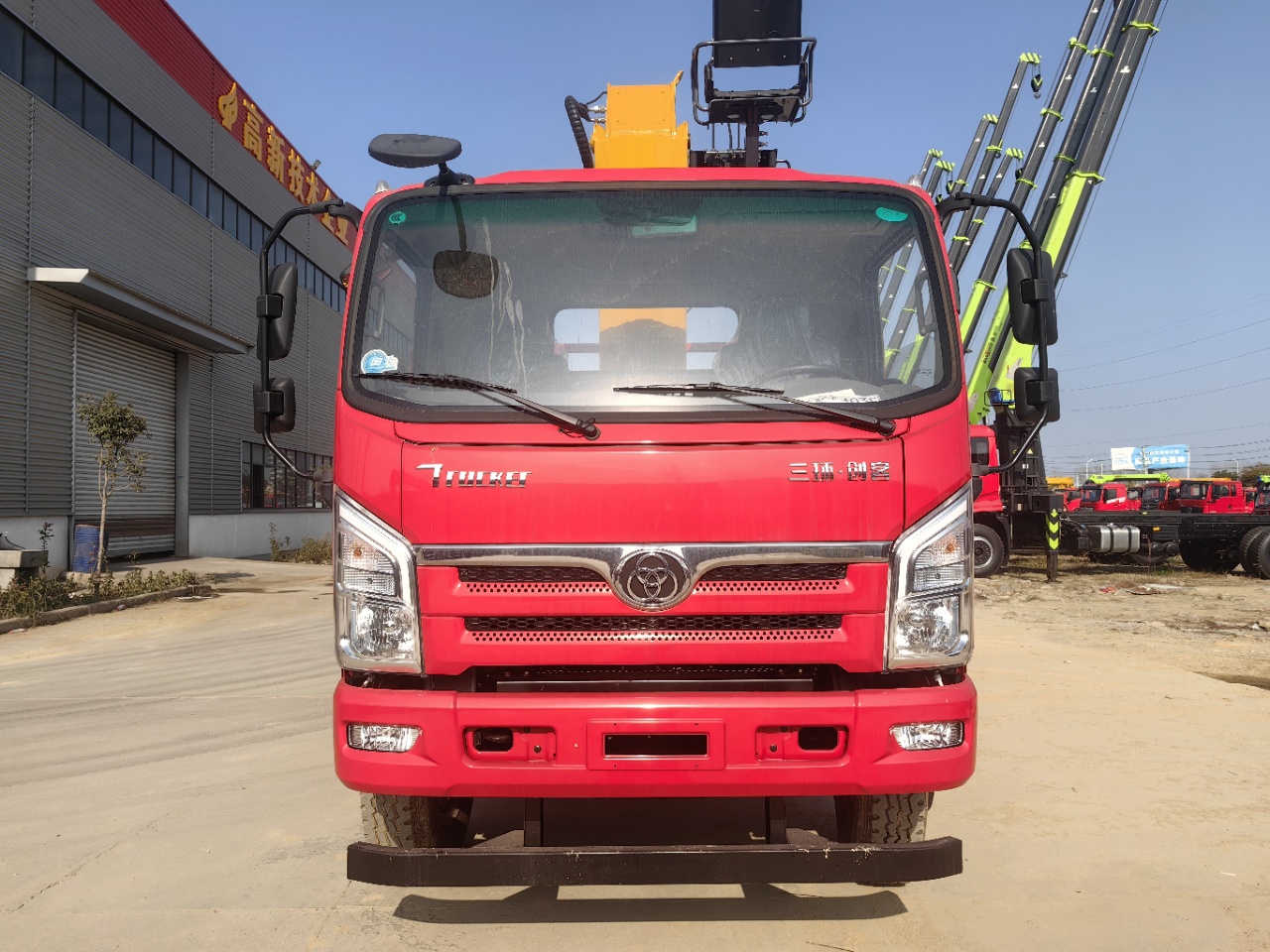

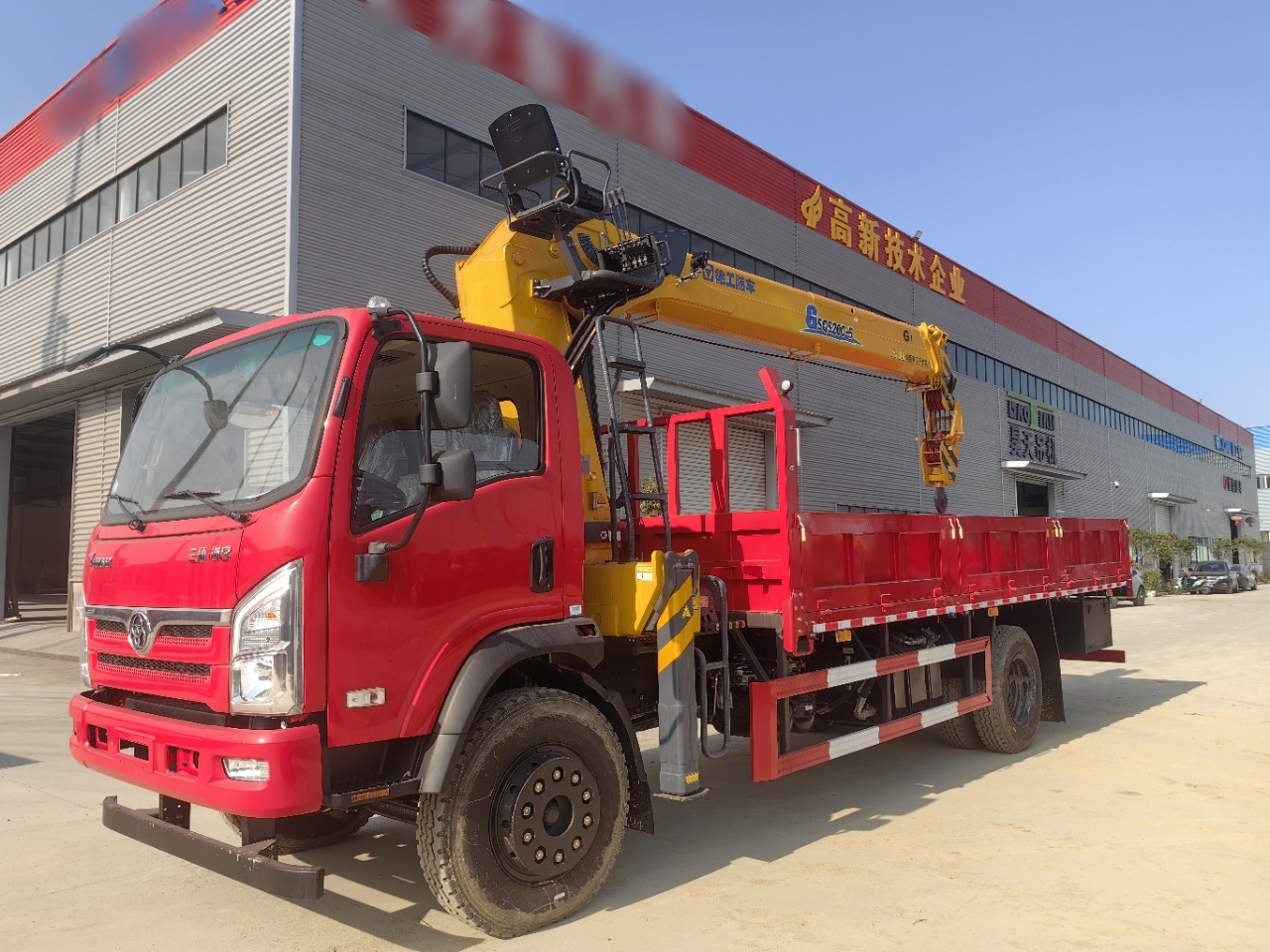

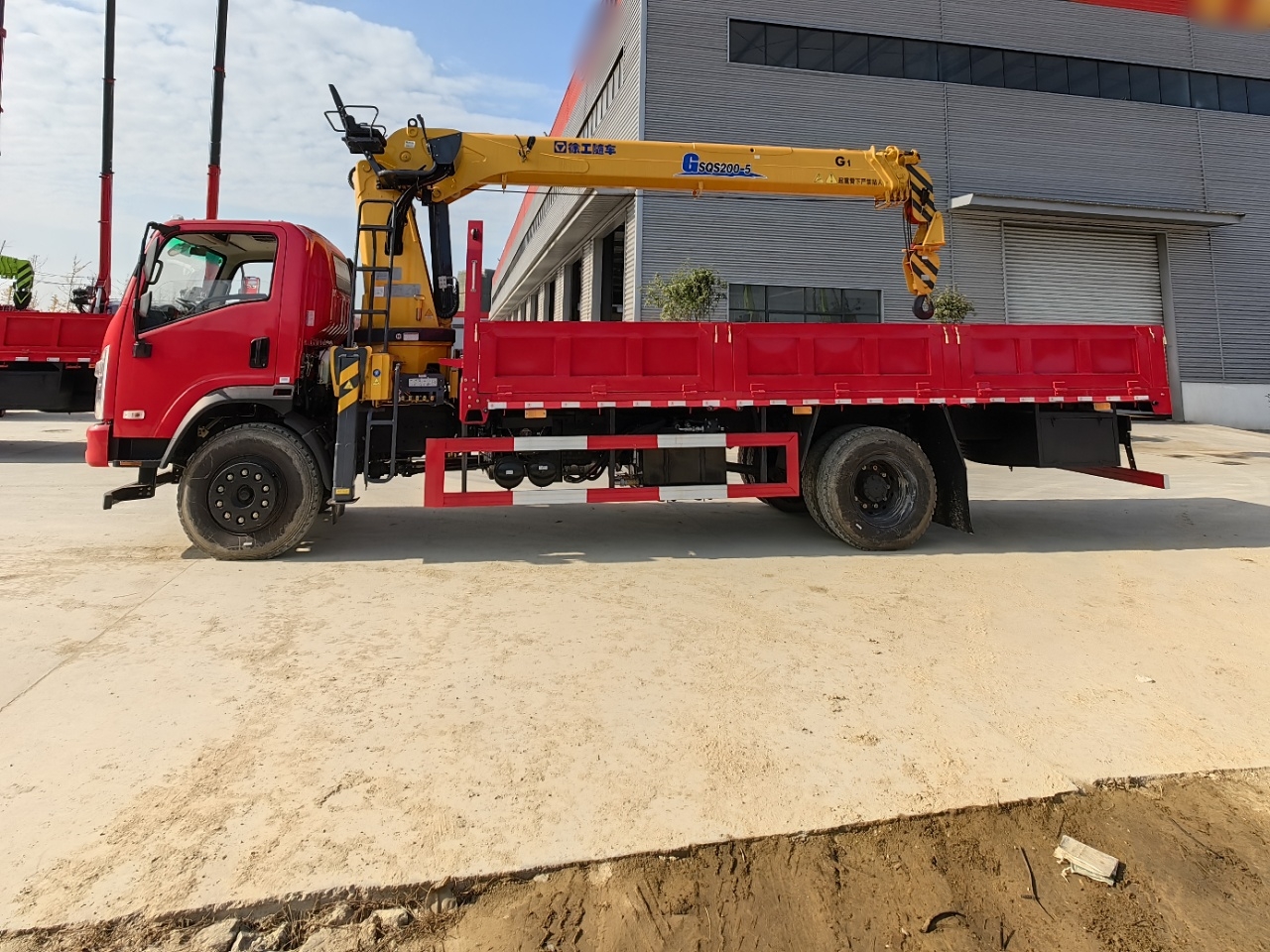

4X2 Tri-Ring truck with XCMG crane
Chassis configuration:
1. Engine: YCS04200-68,Yuchai 200HP
2.Transmission type: 8-speed gearbox
3.Tyre: 9.00R20 steel wire tire,6 with a spare
4.Wheelbase:3800,3950,4200,4500(mm)

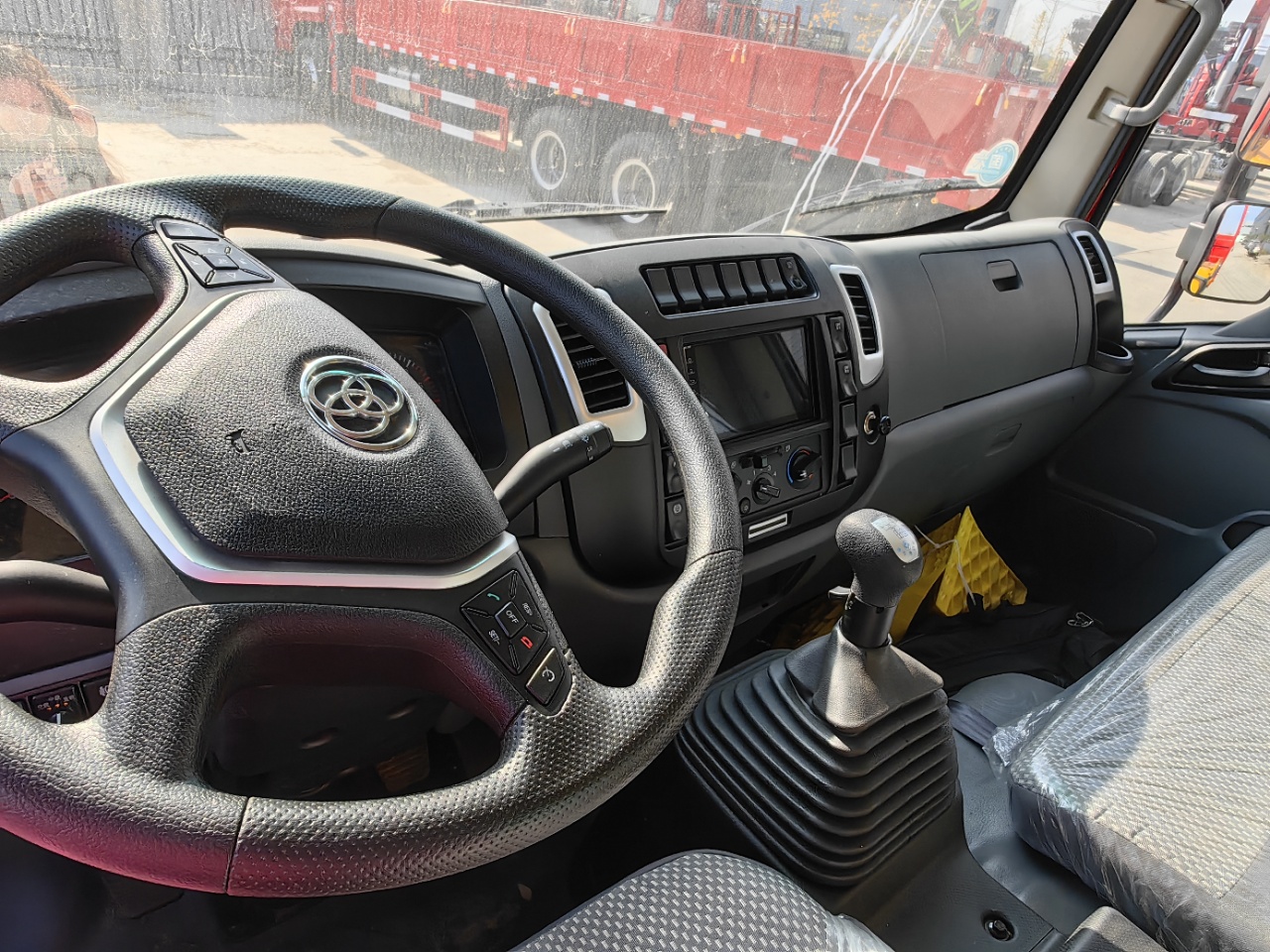

5.Other:Multimedia color screen, electric doors and windows, multifunctional steering wheel, reverse image, air conditioning
Installation configuration:

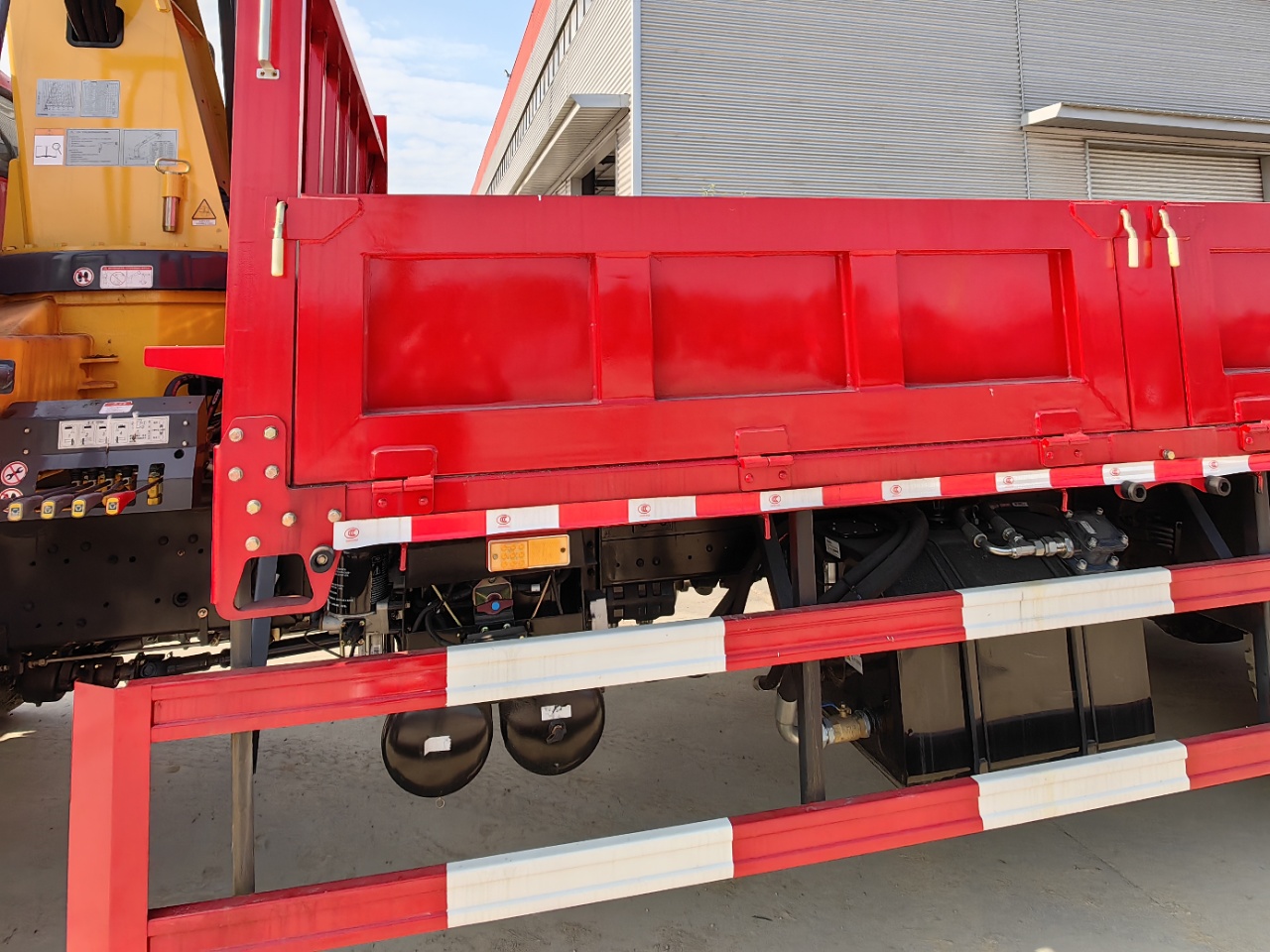

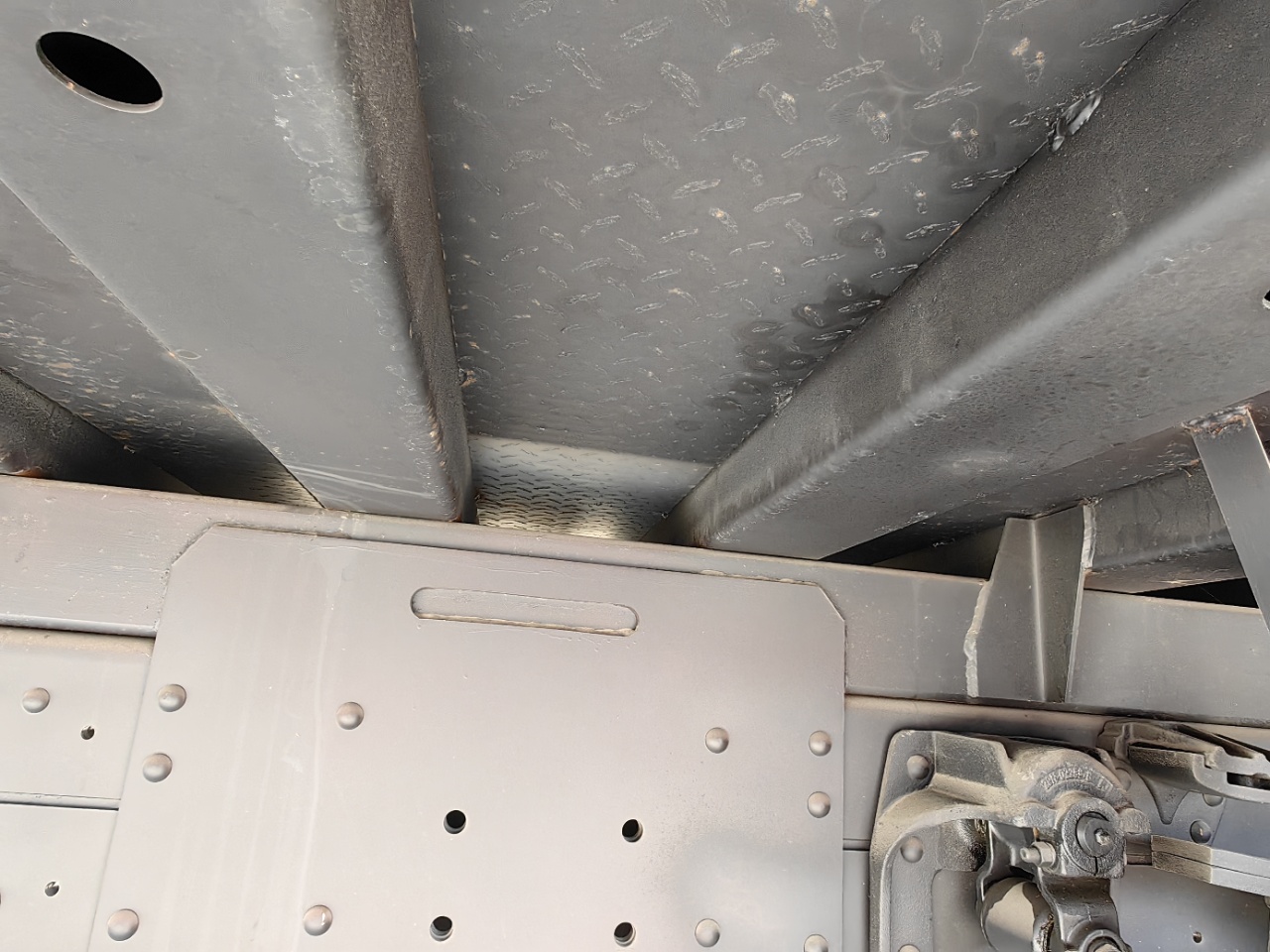

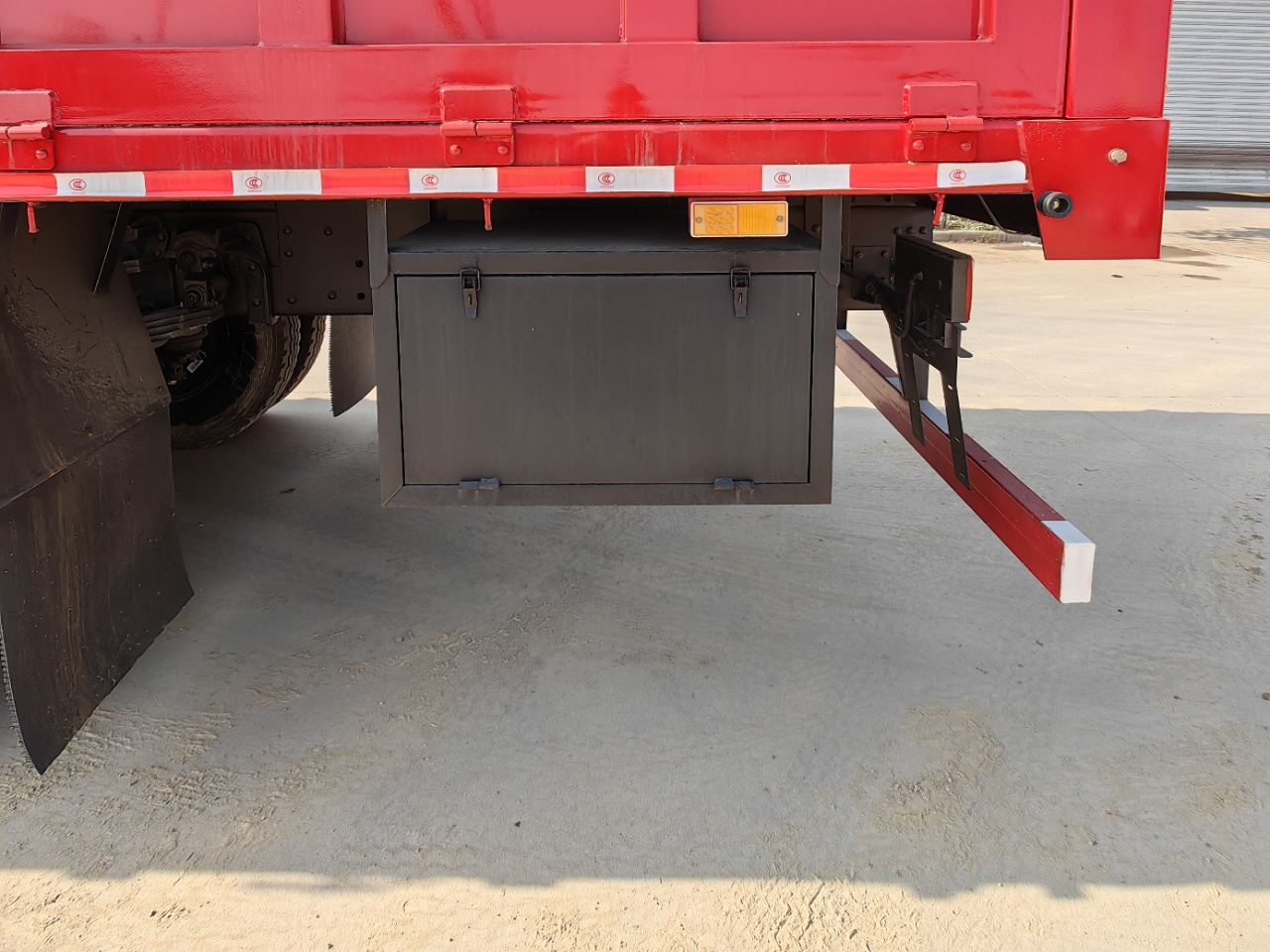

Equipped with XCMG G series 8-ton five section straight arm crane, with upward operation, dual pumps, working radius of 18.7 meters, fully hydraulic, fully rotating, with one click start stop, composite double section front leg span of 7.6 meters. The side of the cargo box is 3mm and the bottom is 5mm channel steel with inverted buckles. Install a toolbox
| Product Name | 4X2 Tri-Ring truck with XCMG crane |
| Driving Type | 4X2 |
| Curb weight(kg) | 10030(Kg) |
| Rated weight(kg) | 7840,7775(Kg) |
| Wheel base(mm) | 3800,3950,4200,4500(mm) |
| Overall dimension(mm) | 8270×2550×3550(mm) |
| Cargo box dimension(mm) | 5100×2450×550,600(mm) |
| Engine brand & model | YCS04200-68,Yuchai 200HP |
| Displacement(L)/Power(kw) | 4.2L/147KW |
| Axle Quantity | 2 |
| Transmission Type | 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | air brake |
| Tire Spec. & size | 9.00R20 steel wire tire,6 with a spare |
| Cab | Multimedia color screen, electric doors and windows, multifunctional steering wheel, reverse image, air conditioning |
| Crane configuration | XCMG G series 8-ton five section straight arm crane, with upward operation, dual pumps, working radius of 18.7 meters, fully hydraulic, fully rotating, with one click start stop, composite double section front leg span of 7.6 meters. |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
4X2 Tri-Ring truck with XCMG crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
