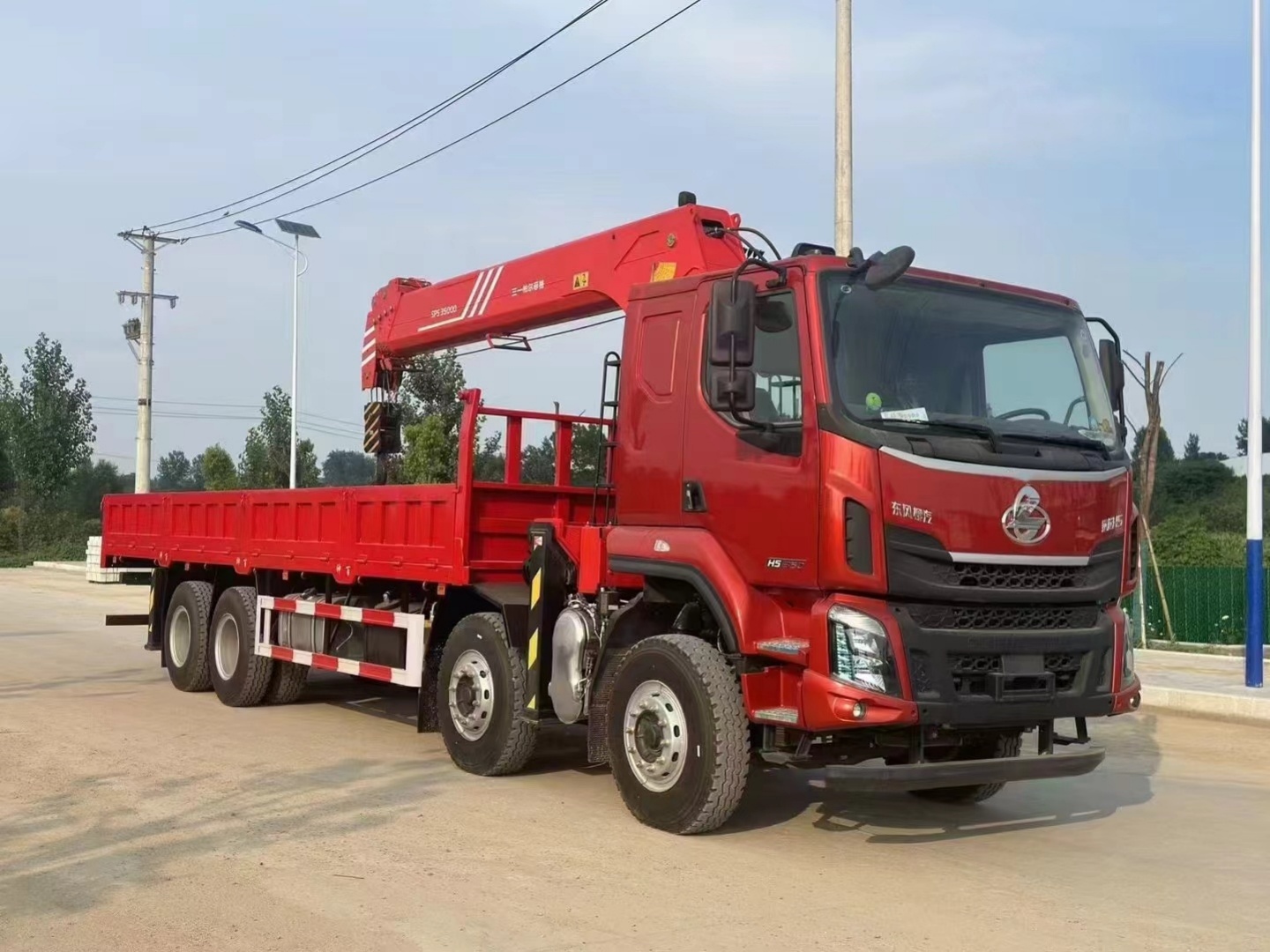

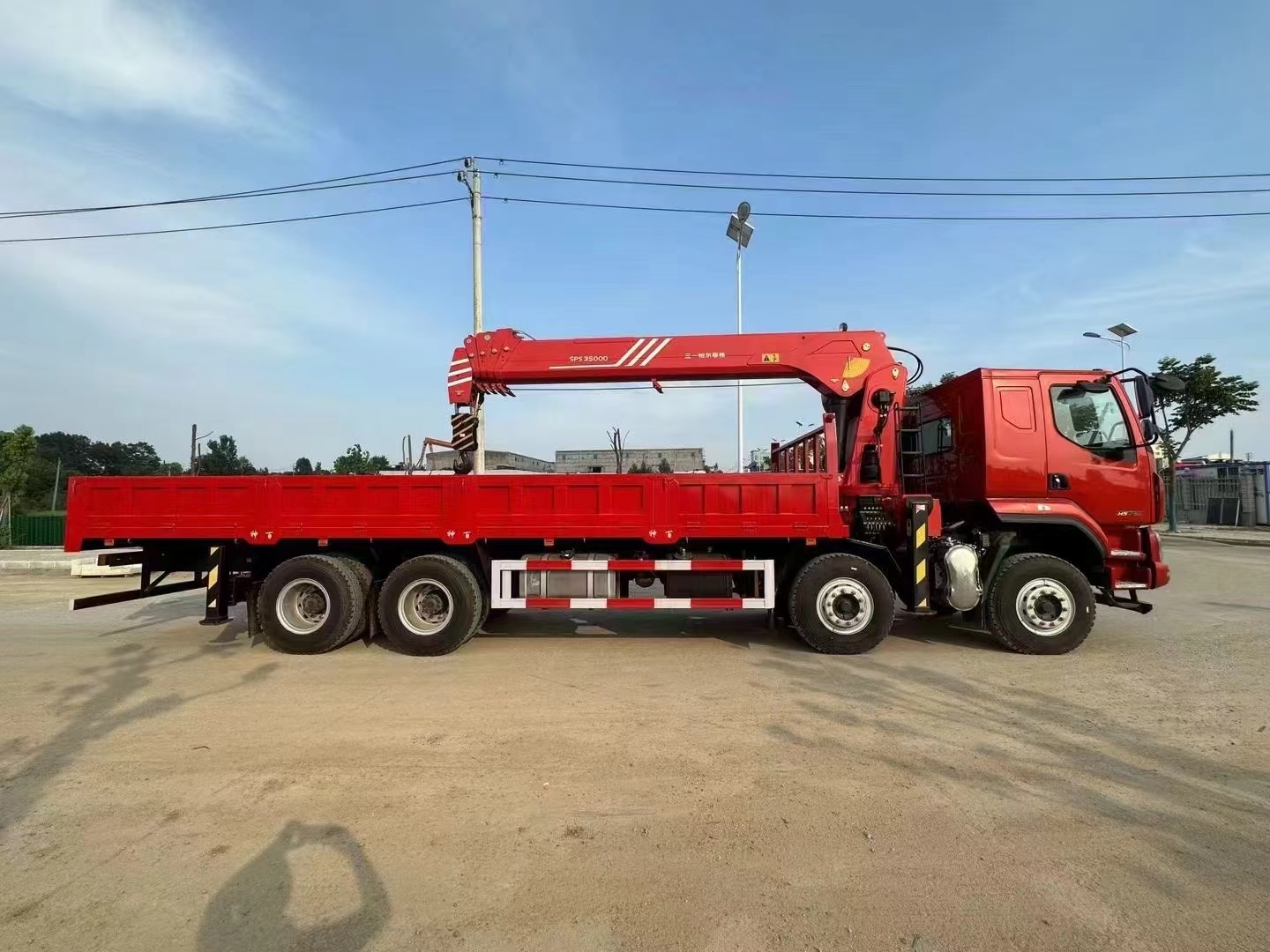

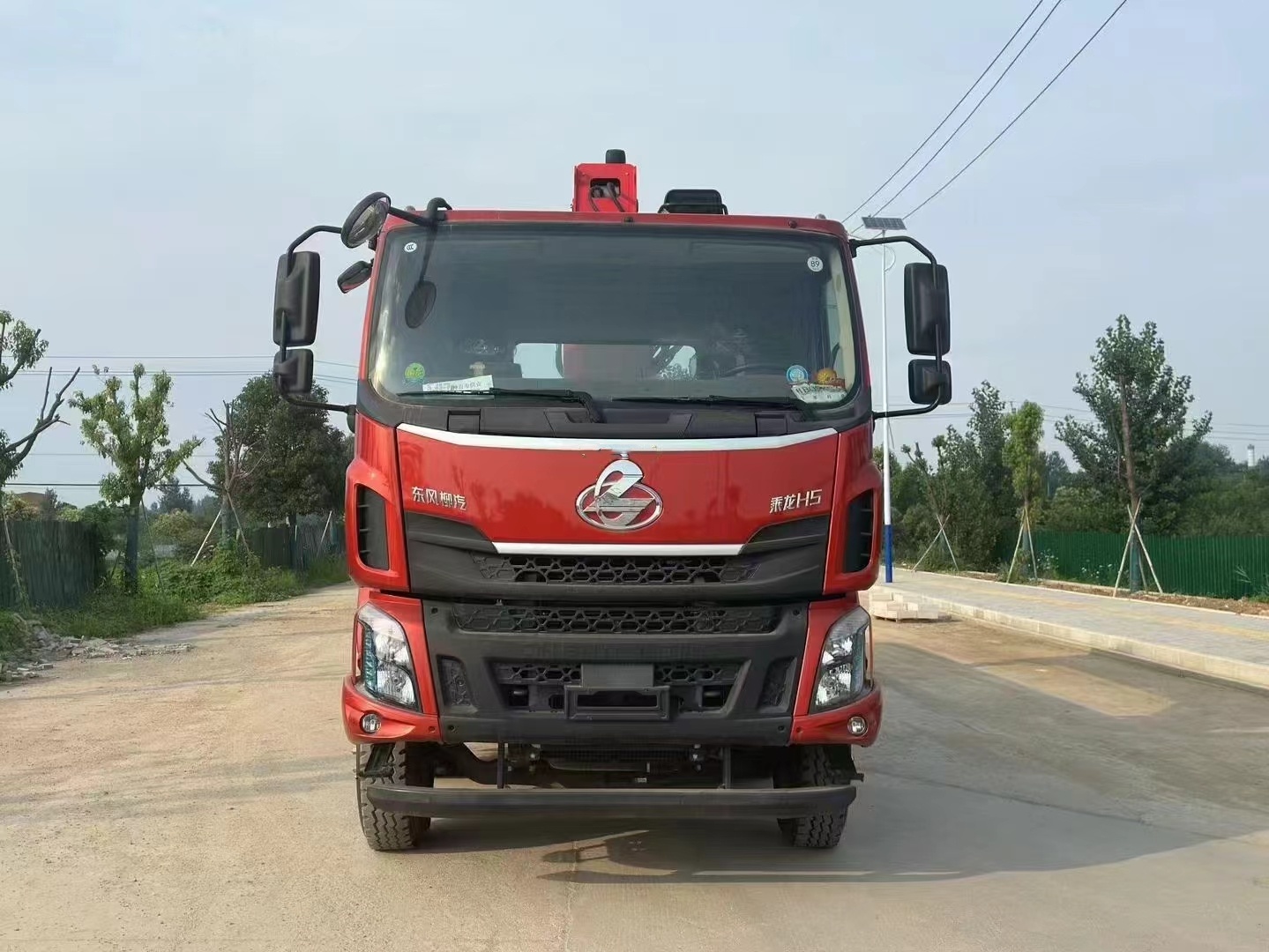

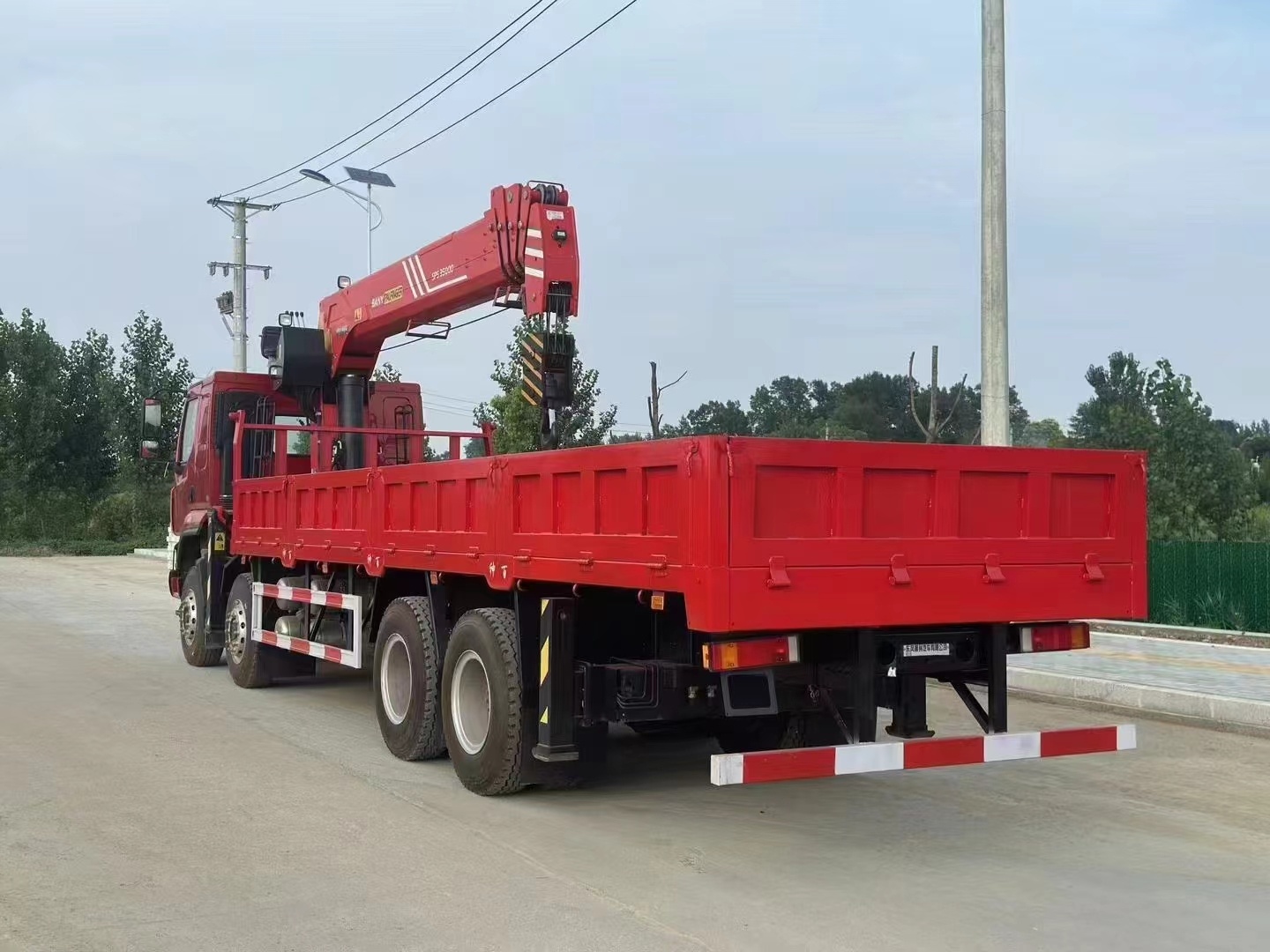

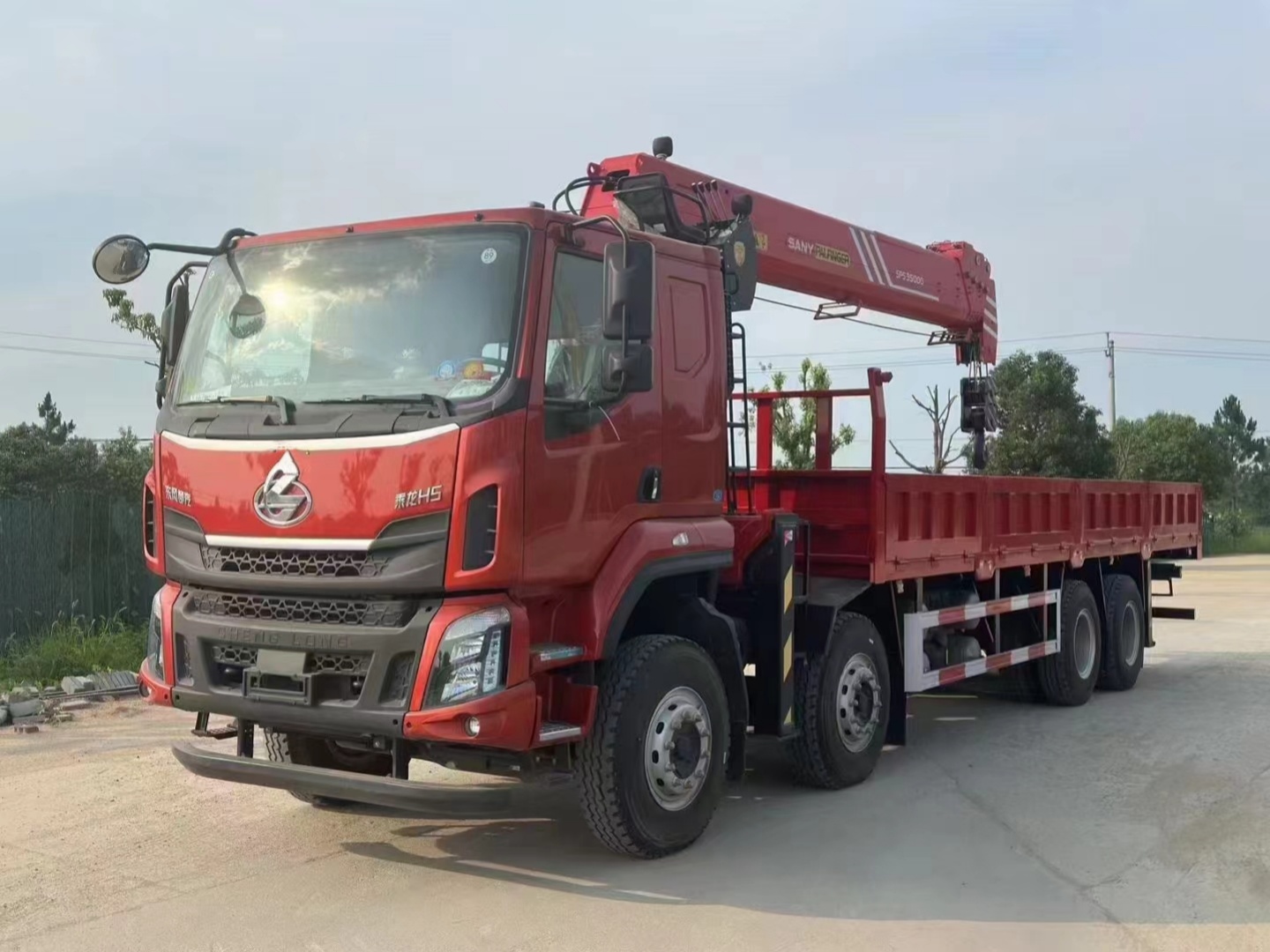

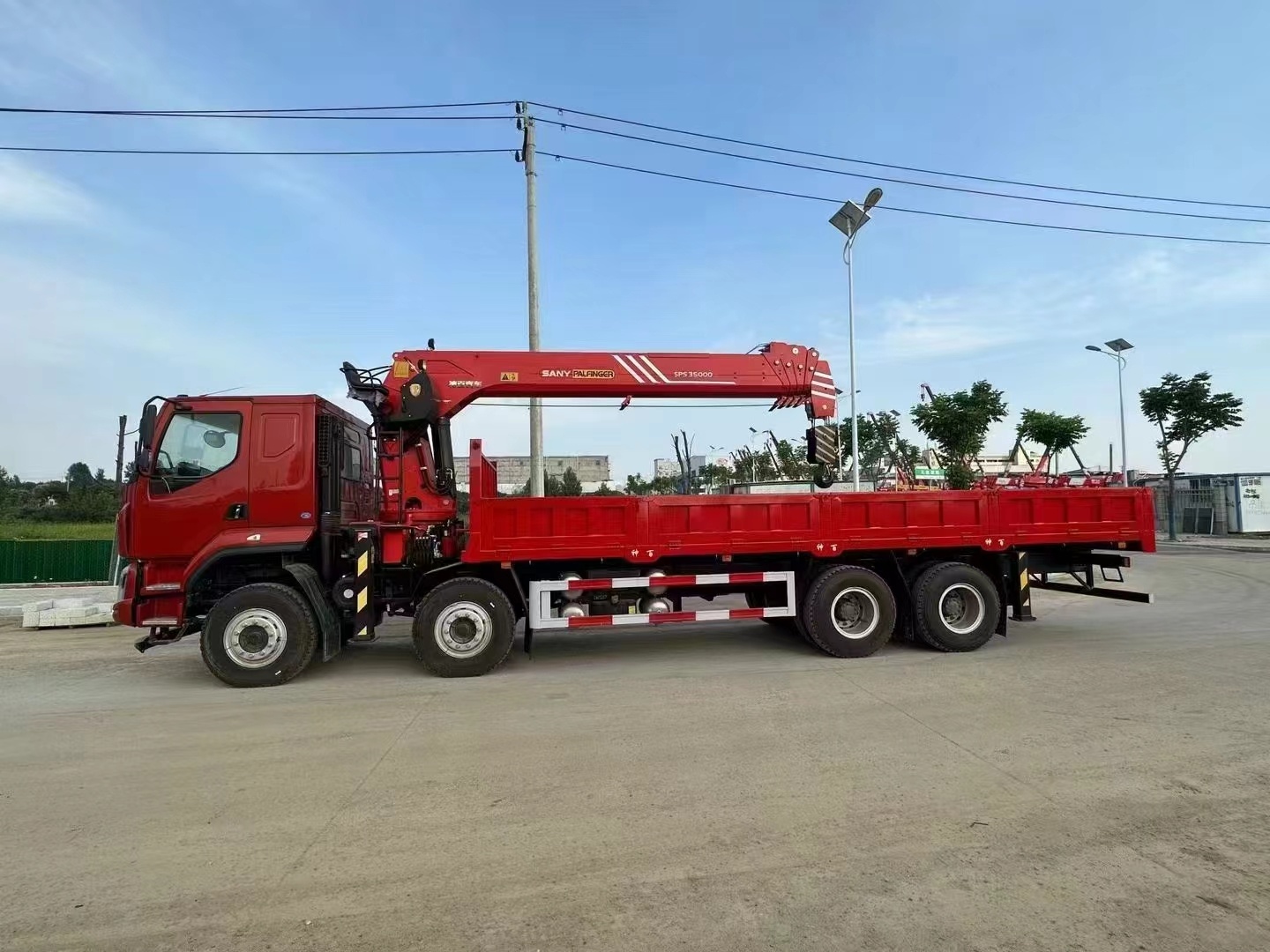

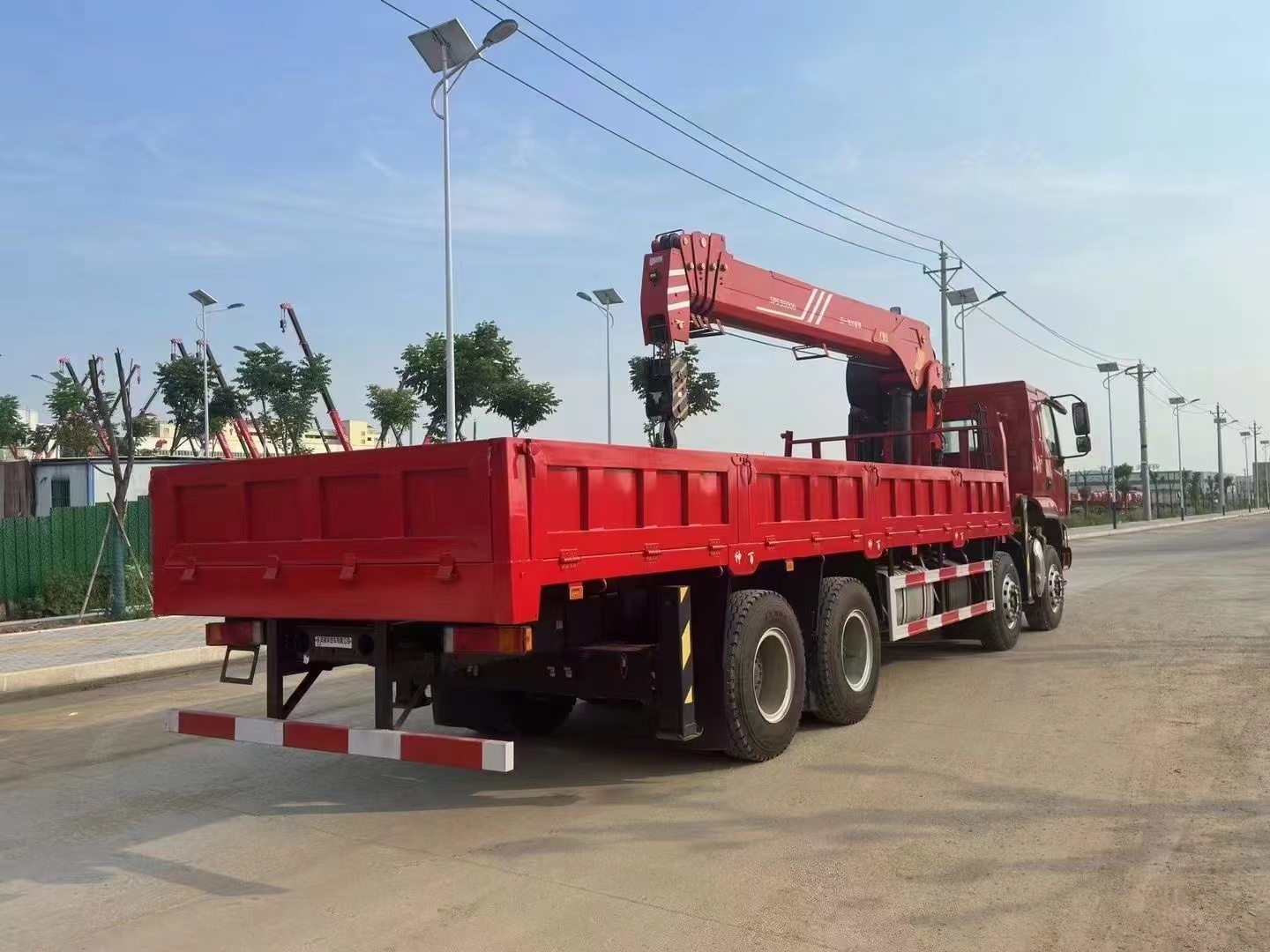

Liuqi H5 8X4 14 ton truck with crane
Chassis configuration:
1. Engine: YCK08350-60,Yuchai350HP
2.Transmission type: 10-speed gearbox
3.Tyre: 11.00R20 18PR,12 with a spare
4.Wheelbase:2050+4400+1350,2100+4350+1350(mm)
5 Other:H5 fully floating cab, electric doors and windows, remote control central locking, air conditioning, driving recorder
Installation configuration:
Equipped with a Sany 14 ton five section arm crane, double winch, standard high-altitude seats, one key start stop, dual stage composite front support legs, with two section arm single output, original factory double chamber rear support legs, integral secondary beam, radiator, and cargo box clearance of 8300 × 2450 × 550mm.
| Product Name | Liuqi H5 8X4 14 ton truck with crane |
| Driving Type | 8X4 |
| Curb weight(kg) | 22200,20200,21200(Kg) |
| Rated weight(kg) | 8670,10670,9670(Kg) |
| Wheel base(mm) | 2050+4400+1350,2100+4350+1350(mm) |
| Overall dimension(mm) | 12000,10900×2550,2500×3650,3750,3850,3950(mm) |
| Cargo box dimension(mm) | 8300×2450×550mm |
| Engine brand & model | YCK08350-60,Yuchai350HP |
| Displacement(L)/Power(kw) | 36.9L/257KW |
| Axle Quantity | 4 |
| Transmission Type | 10-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | air brake |
| Tire Spec. & size | 11.00R20 18PR,12 with a spare |

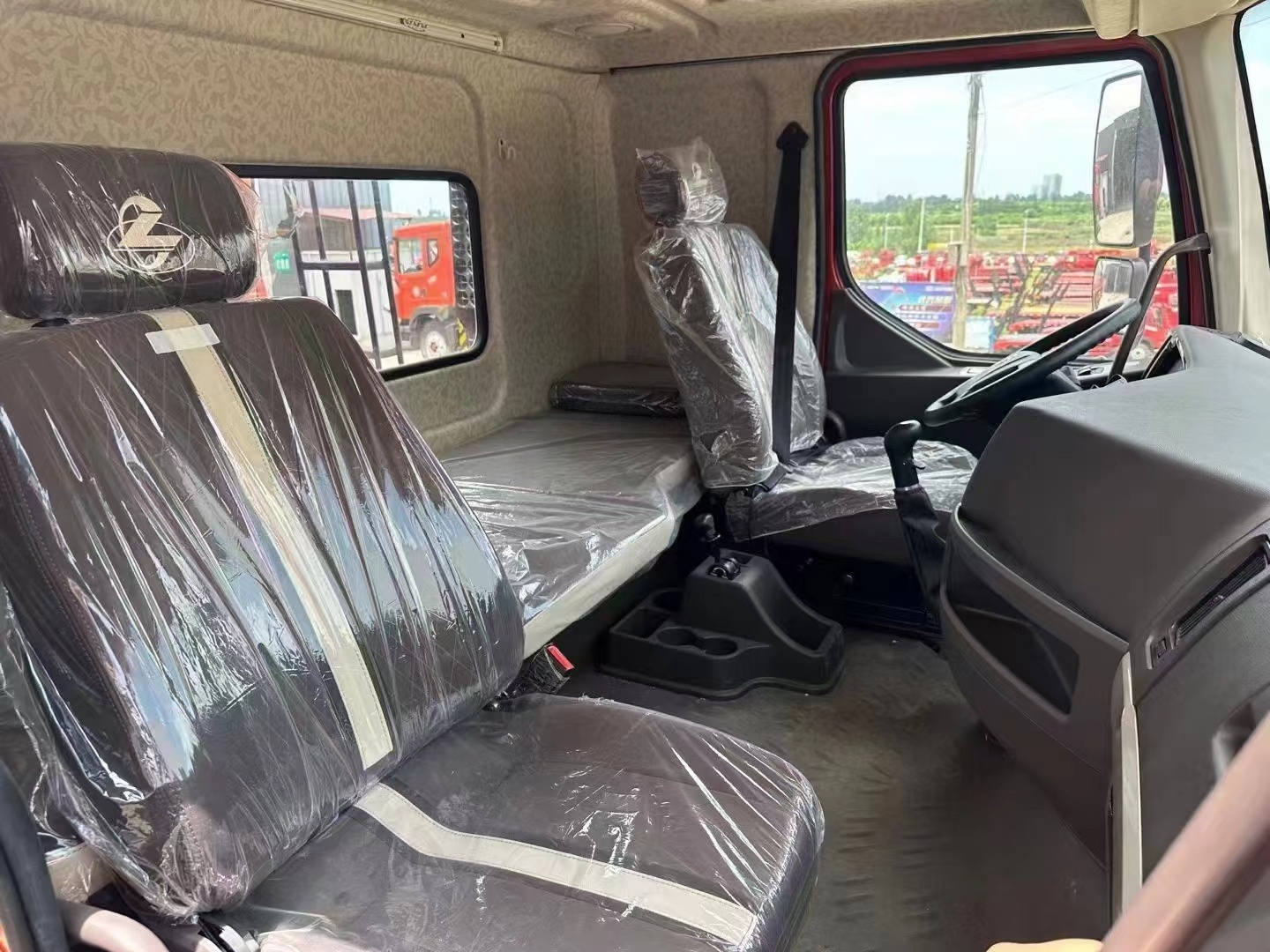

| Cab | H5 fully floating cab, electric doors and windows, remote control central locking, air conditioning, driving recorder |
| Crane configuration | Sany 14 ton five section arm crane, double winch, standard high-altitude seat, one click start stop, dual stage composite front support legs, with two section arm single output, original dual chamber rear support legs, integral auxiliary beam, radiator |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Liuqi H5 8X4 14 ton truck with crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
