4X2 Sinotruk Homan truck with 12 ton crane
Chassis configuration:
1. Engine: WP4.1NQ190E61,Weichai 190hp
2.Transmission type: 5-speed gearbox
3.Tyre: 8.25R20 16PR,9.00R20 16PR,10R22.5 16PR,6 with a spare
4.Wheelbase:3900(mm)
5.Other: electric doors and windows, multifunctional steering wheel, reverse image, air conditioning
Installation configuration:
The crane can be equipped with 6.3 ton, 7 ton, 8 ton, 10 ton, 12 ton straight arm crane or folding arm crane.
| Product Name | 4X2 Sinotruk Homan truck with 12 ton crane |
| Driving Type | 4X2 |
| Curb weight(kg) | 11130,12090(Kg) |
| Rated weight(kg) | 6675,6740,5715,5780(Kg) |
| Wheel base(mm) | 5200(mm) |
| Overall dimension(mm) | 8200,9000,8400×2400,2450,2500,2550×3530,3680,3780,3850(mm) |
| Cargo box dimension(mm) | 5100,5300,5900,6100,4900×2300,2350,2400,2450×400,500,550,600(mm) |
| Engine brand & model | WP4.6NQ220E61A,Weichai 220hp |
| Displacement(L)/Power(kw) | 4.58L/162KW |
| Axle Quantity | 2 |
| Transmission Type | 6-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | air brake |
| Tire Spec. & size | 10.00R20 18PR,11R22.5 18PR,6 with a spare |
| Cab | electric doors and windows, multifunctional steering wheel, reverse image, air conditioning |
| Crane configuration | The crane can be equipped with 6.3 ton, 7 ton, 8 ton, 10 ton, 12 ton straight arm crane or folding arm crane. |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

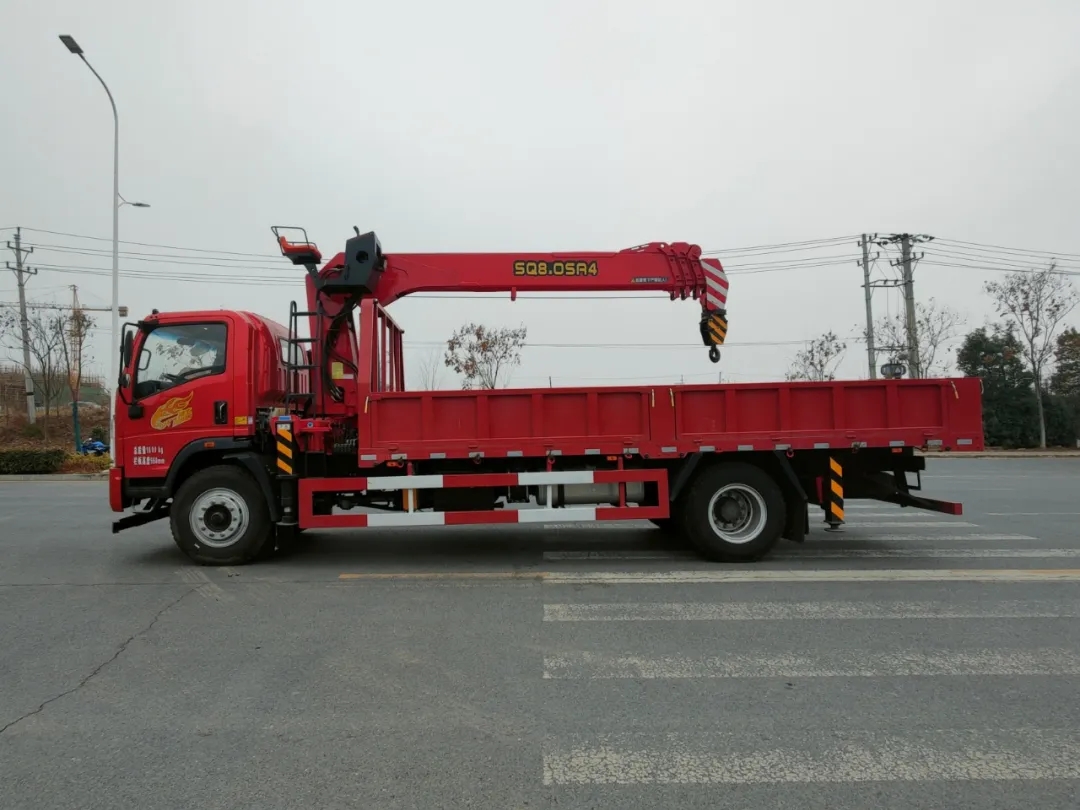

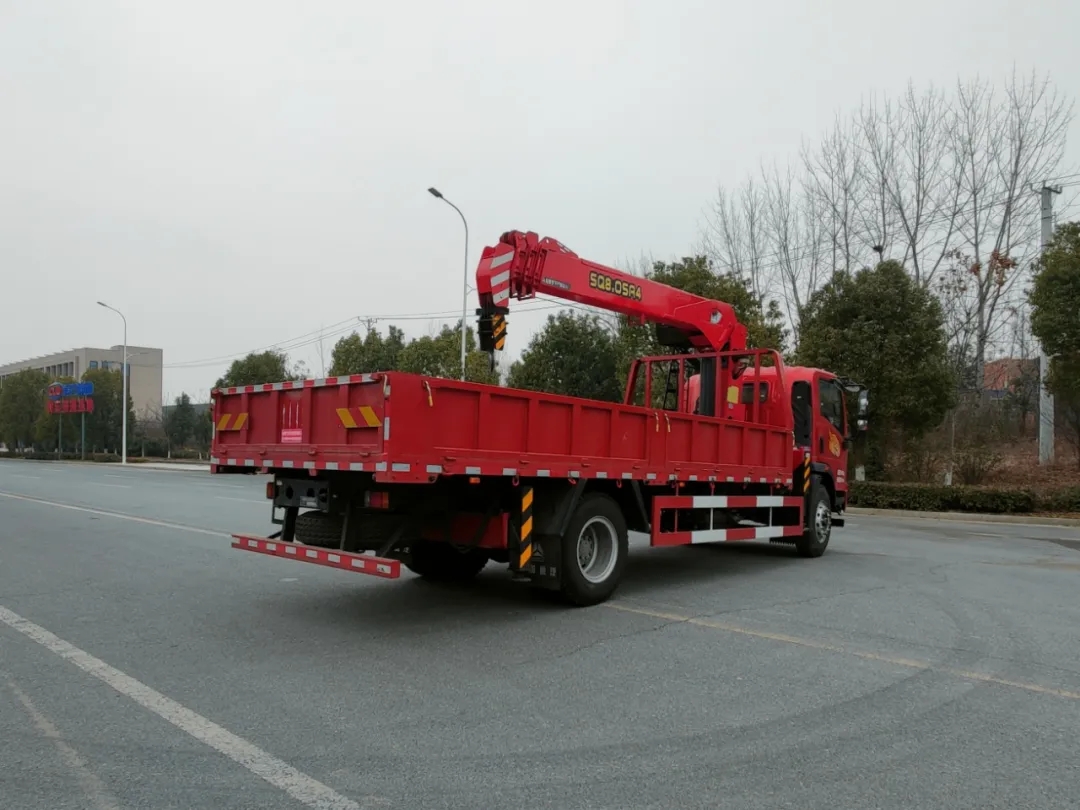

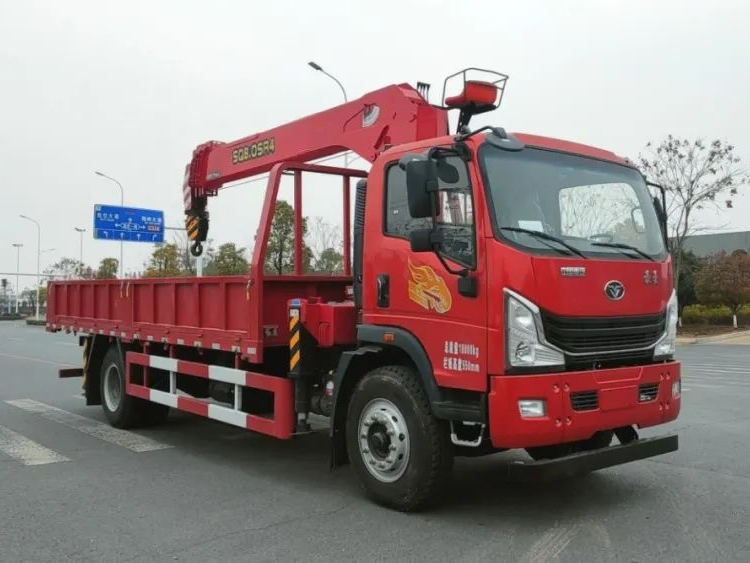

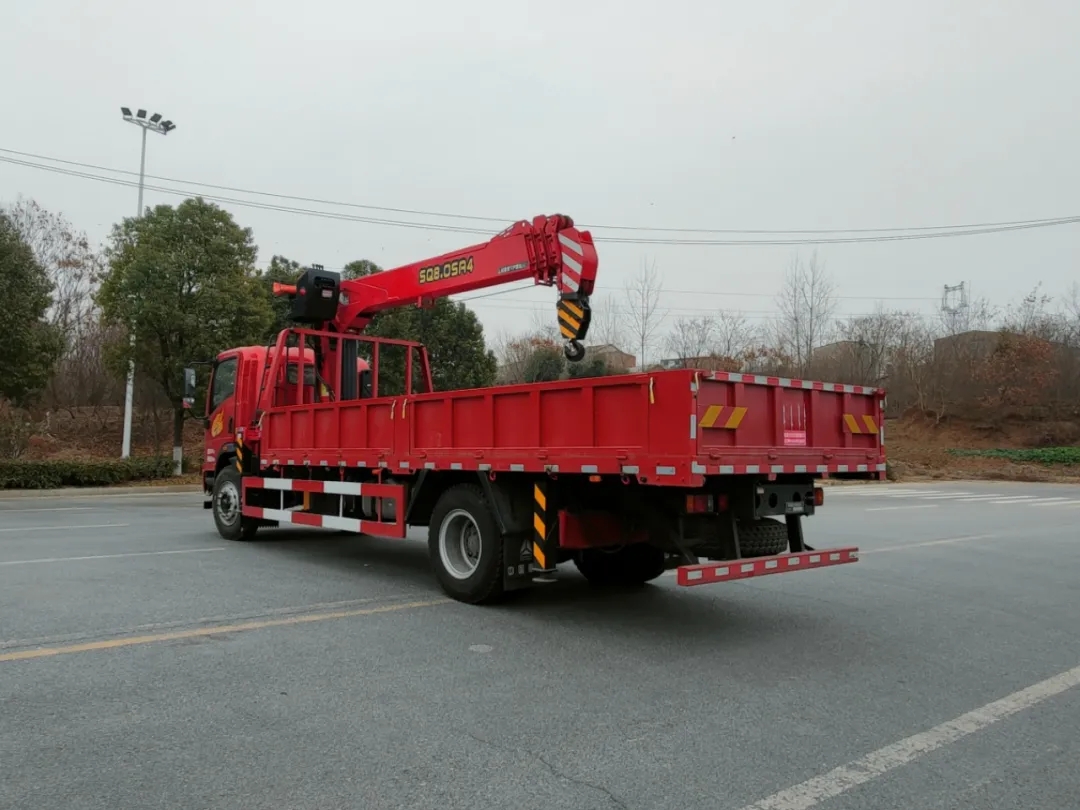

4X2 Sinotruk Homan truck with 12 ton crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
