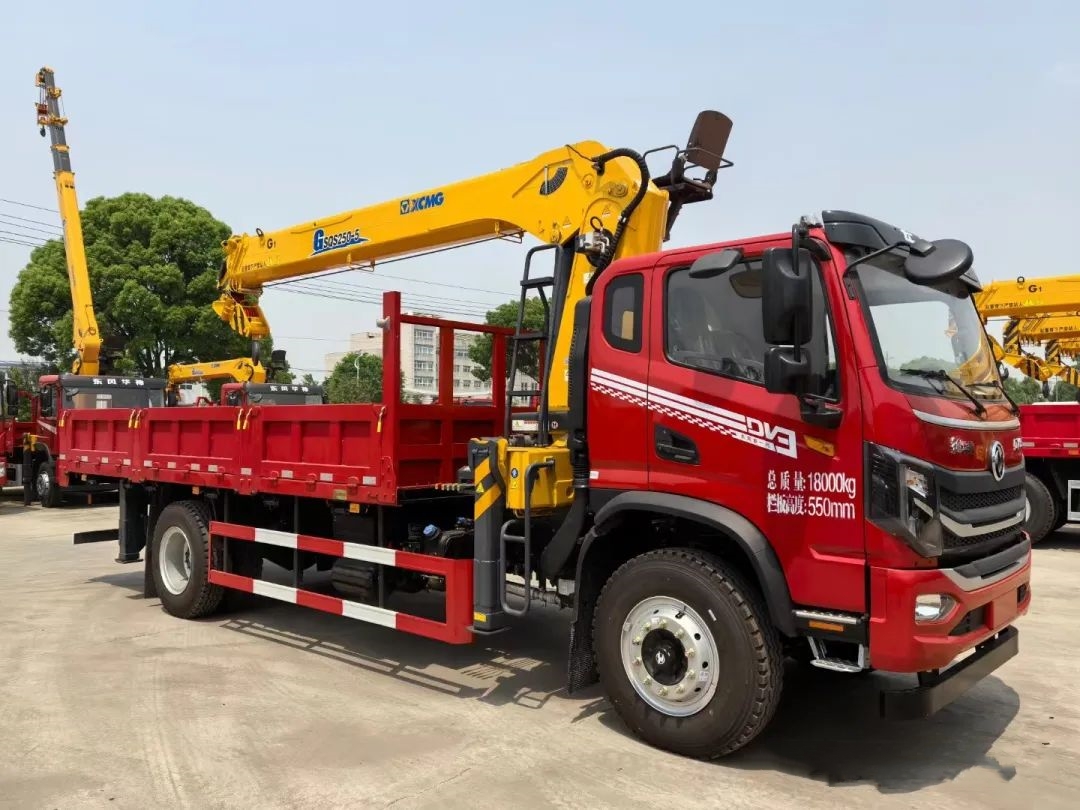

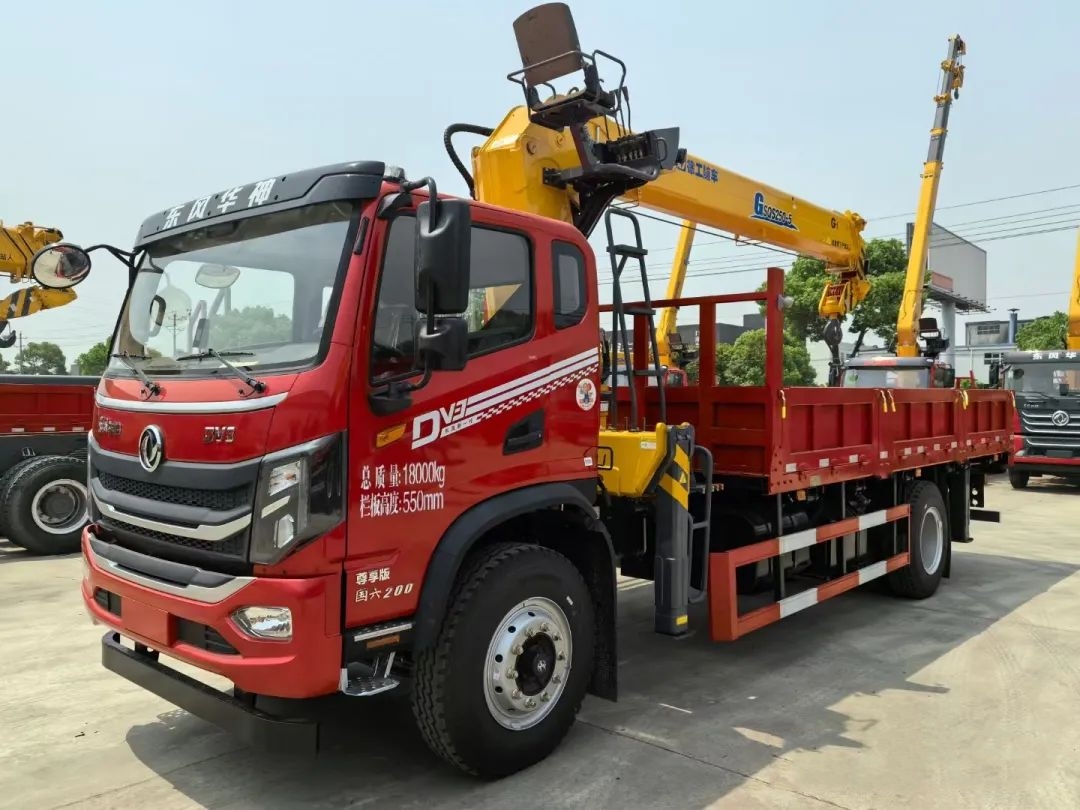

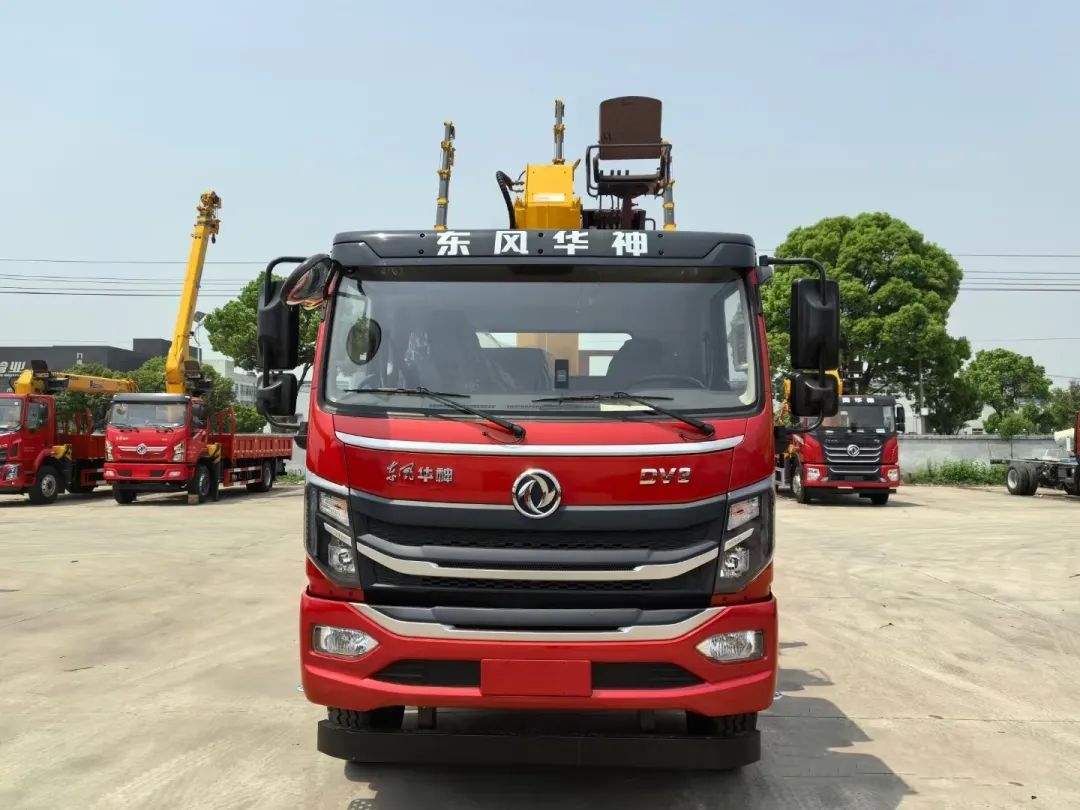

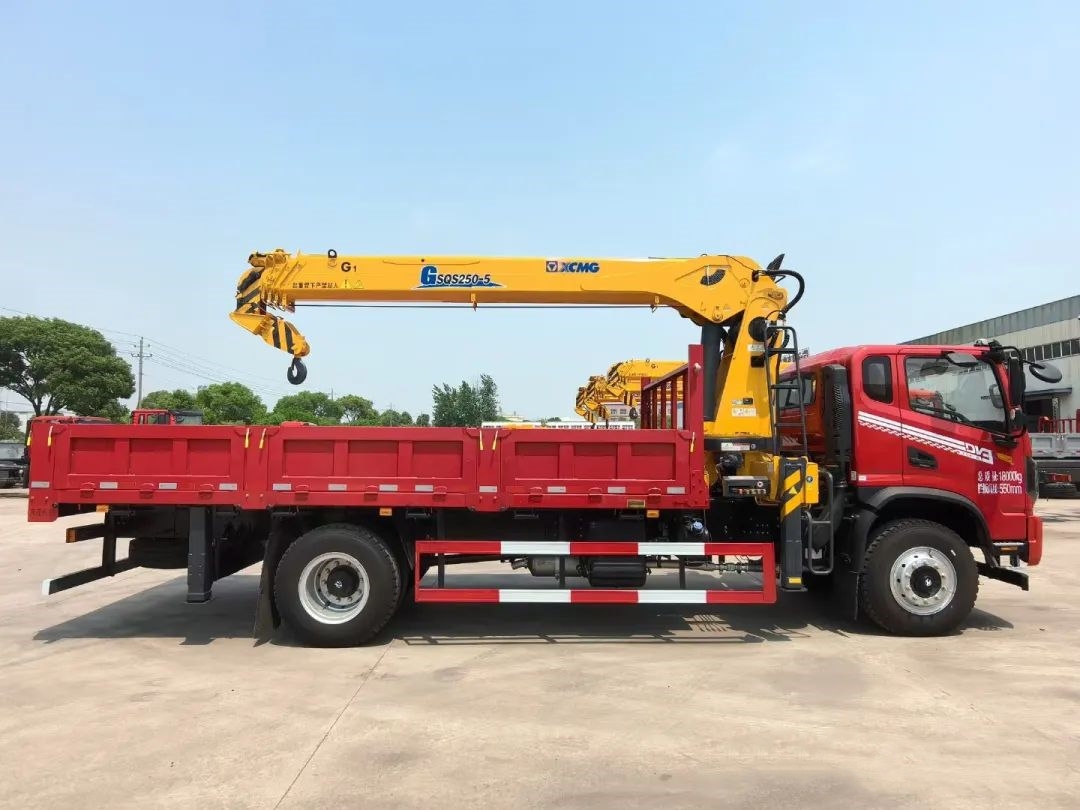

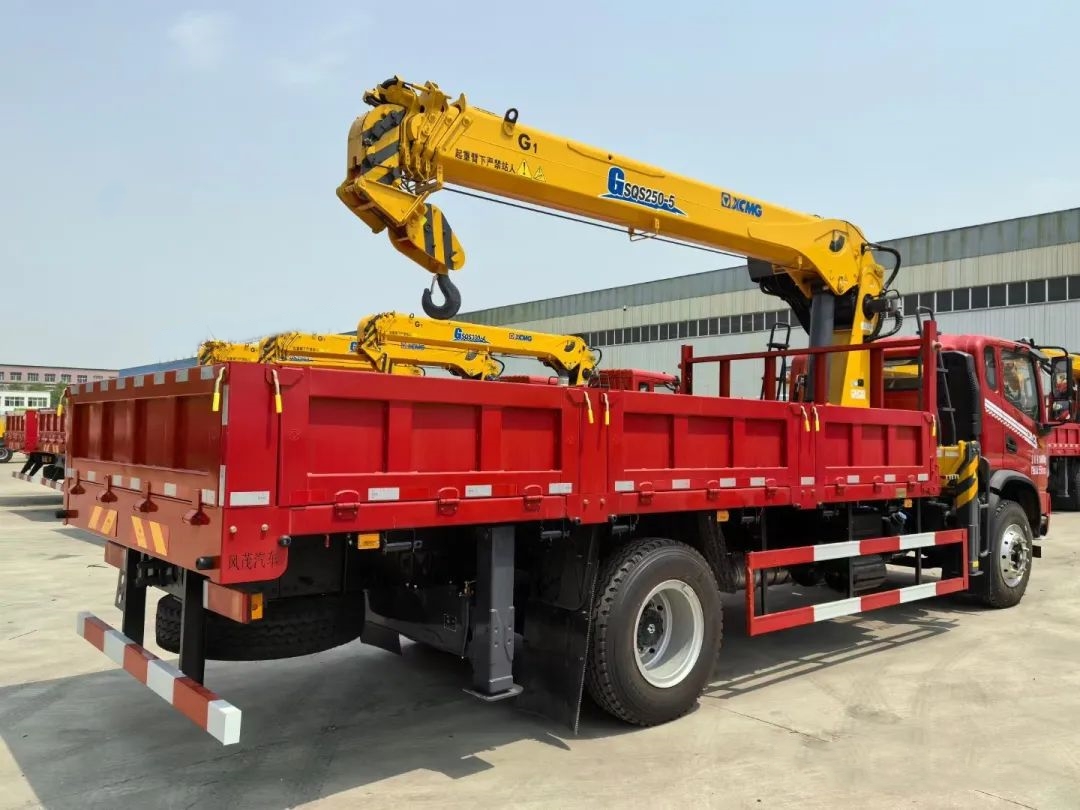

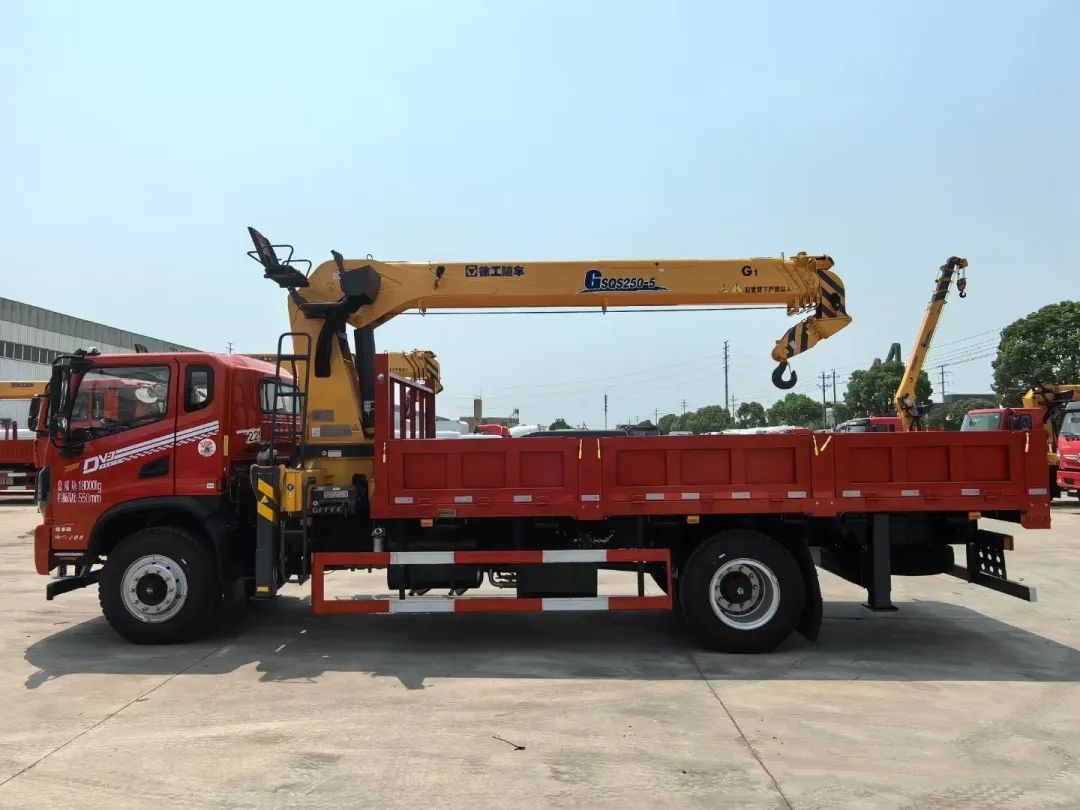

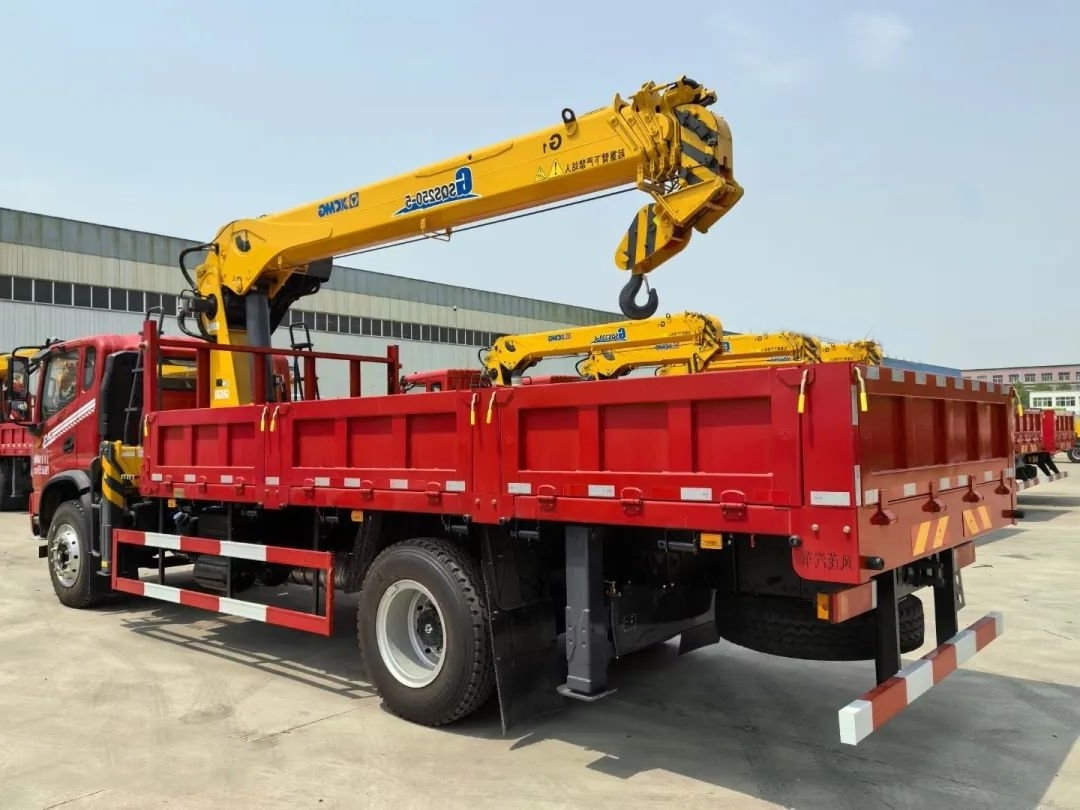

Dongfeng DV3 truck with XCMG 10 ton 5-section crane
Chassis configuration:
1. Engine: YCS04200-68, Yuchai 200hp
2.Transmission type: 6-speed gearbox
3.Tyre: 9.00R20 16PR,6 +1 spare
4.Wheelbase:5100(mm)
5.Other: electric doors and windows, multifunctional steering wheel, reverse image, air conditioning
Installation configuration:
Install the XCMG G series 10 ton five section straight arm crane GSQS250-5, with a working radius of 18.8 meters and a lifting height of 20.8 meters. It is equipped with dual pumps, dual stage composite front support legs, automatic hook retraction, one key start stop, and XCMG hydraulic single chamber rear support legs.
The cargo box is a Dongfeng original factory side 3 bottom 5 fully folded steel inverted buckle cargo box, with two pairs of buckles on the front and back of the secondary beam and crossbeam folded steel, reinforced with a gantry frame, and reinforced with vertical bars. The size of the cargo box is 5600X2450X550. And 12 original rope tighteners.
| Product Name | Dongfeng DV3 truck with XCMG 10 ton 5-section crane |
| Driving Type | 4X2 |
| Gross vehicle weight(Kg) | 16200(Kg) |
| Curb weight(kg) | 11500,12000,11000(Kg) |
| Rated weight(kg) | 4570,4505,4070,4005,5070,5005(Kg) |
| Wheel base(mm) | 5100(mm) |
| Overall dimension(mm) | 9000,8570,8260,7795,7405×2550,2500×3650,3750,3850,3550(mm) |
| Cargo box dimension(mm) | 5600X2450X550(mm) |
| Engine brand & model | YCS04200-68, Yuchai 200hp |
| Displacement(L)/Power(kw) | 4.15L/147KW |
| Axle Quantity | 2 |
| Transmission Type | 6-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | air brake |
| Tire Spec. & size | 9.00R20 16PR,6 +1 spare |
| Cab | DV3 row half cab |
| Crane configuration | The XCMG G series 10 ton five section straight arm crane GSQS250-5 has a working radius of 18.8 meters and a lifting height of 20.8 meters. It is equipped with an upward operation, dual pumps, dual stage composite front support legs, automatic hook retraction, one key start stop, and XCMG hydraulic single chamber rear support legs. |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng DV3 truck with XCMG 10 ton 5-section crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
Product parameters
