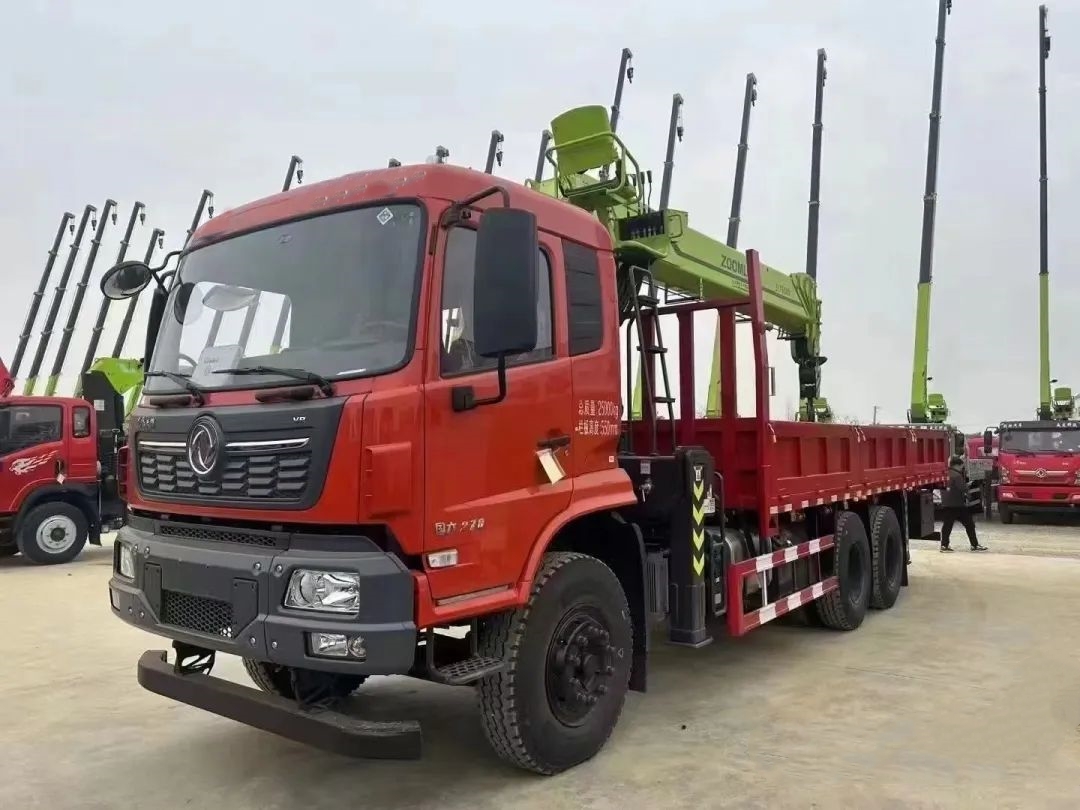

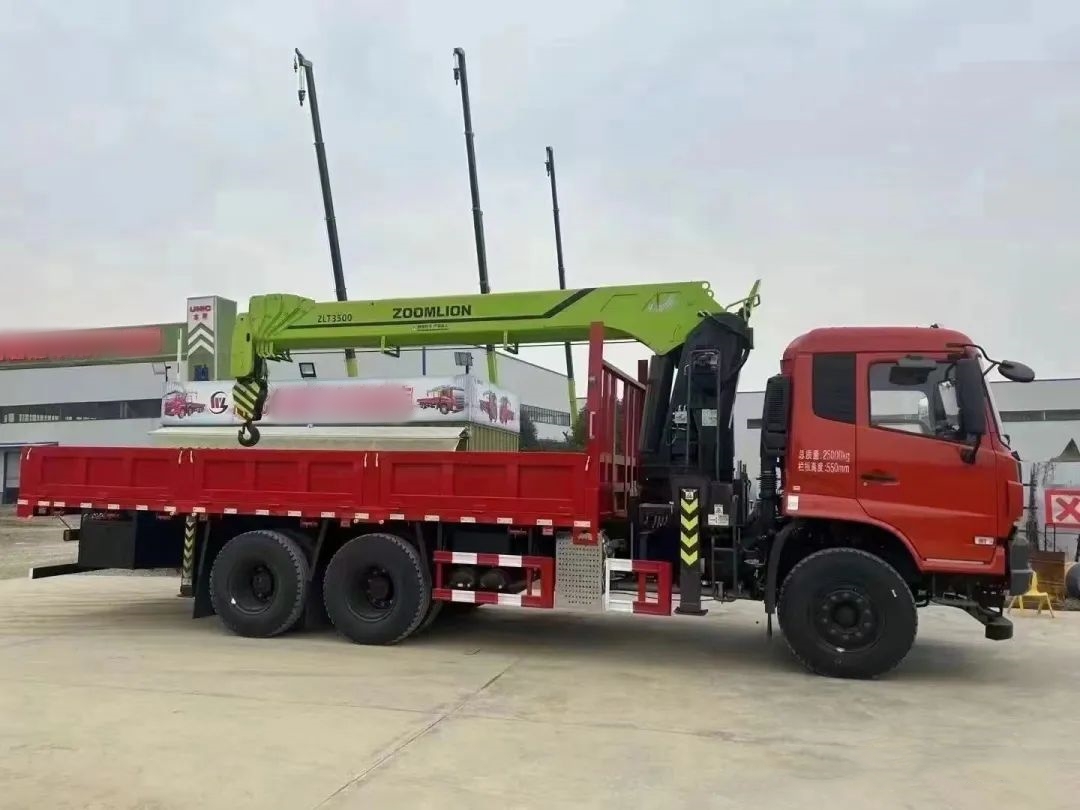

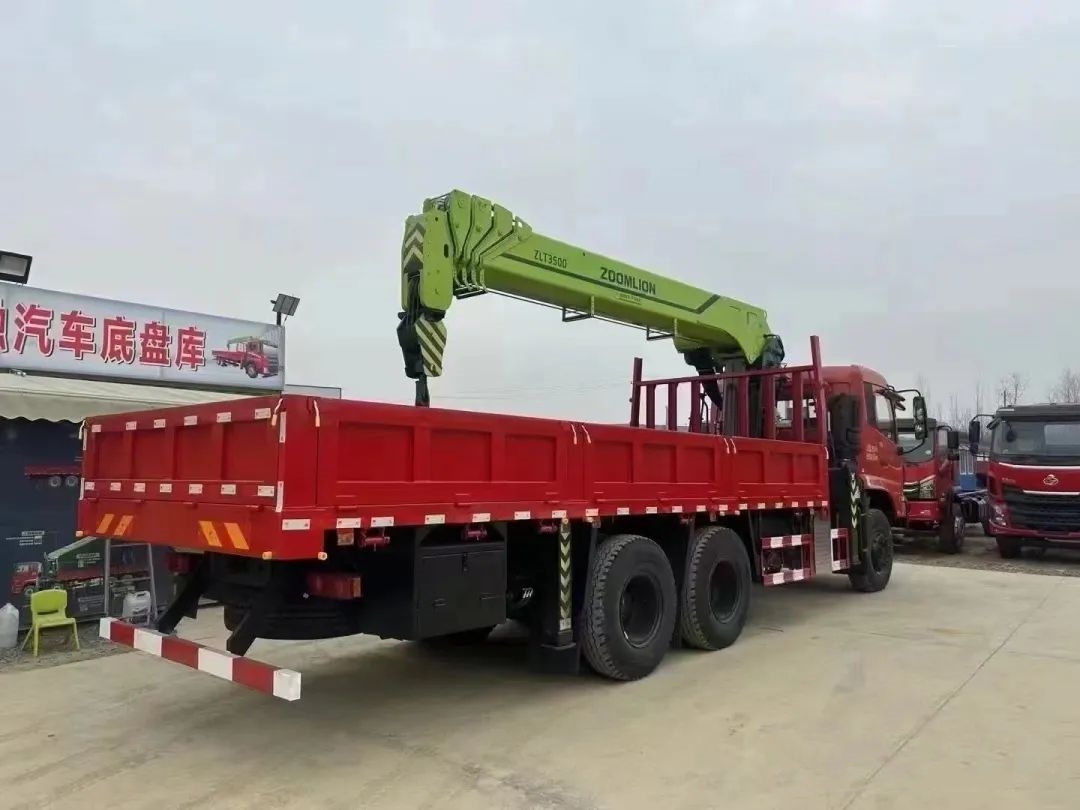

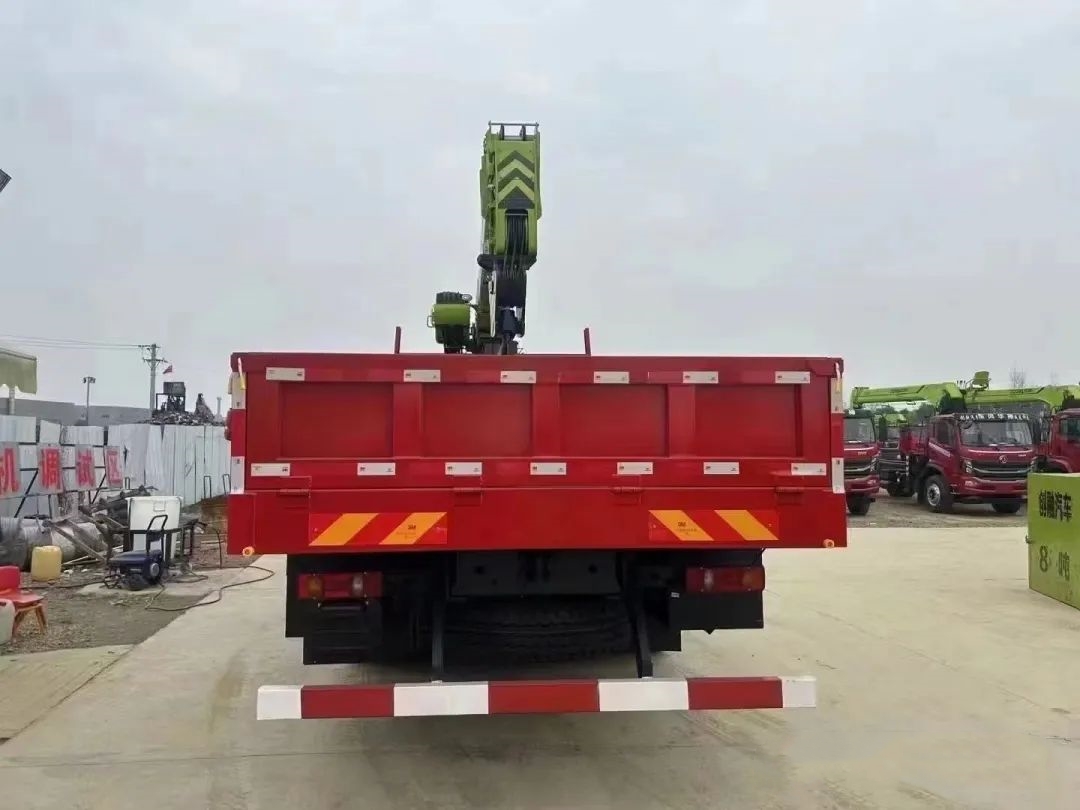

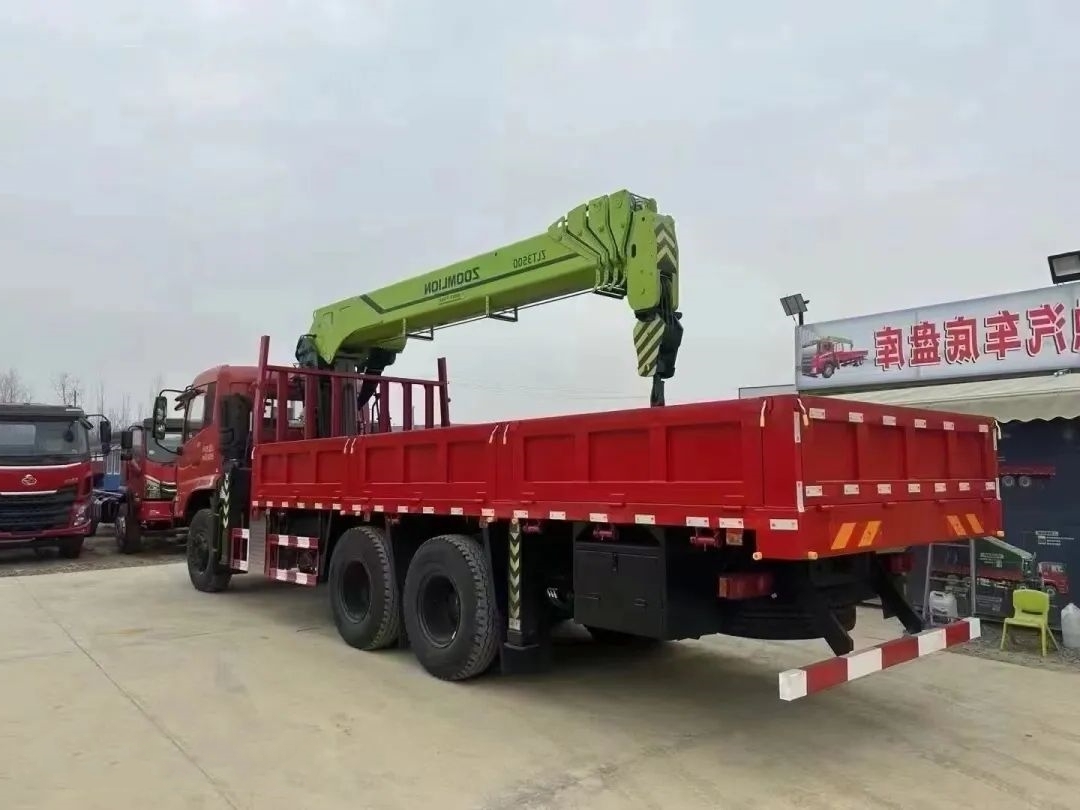

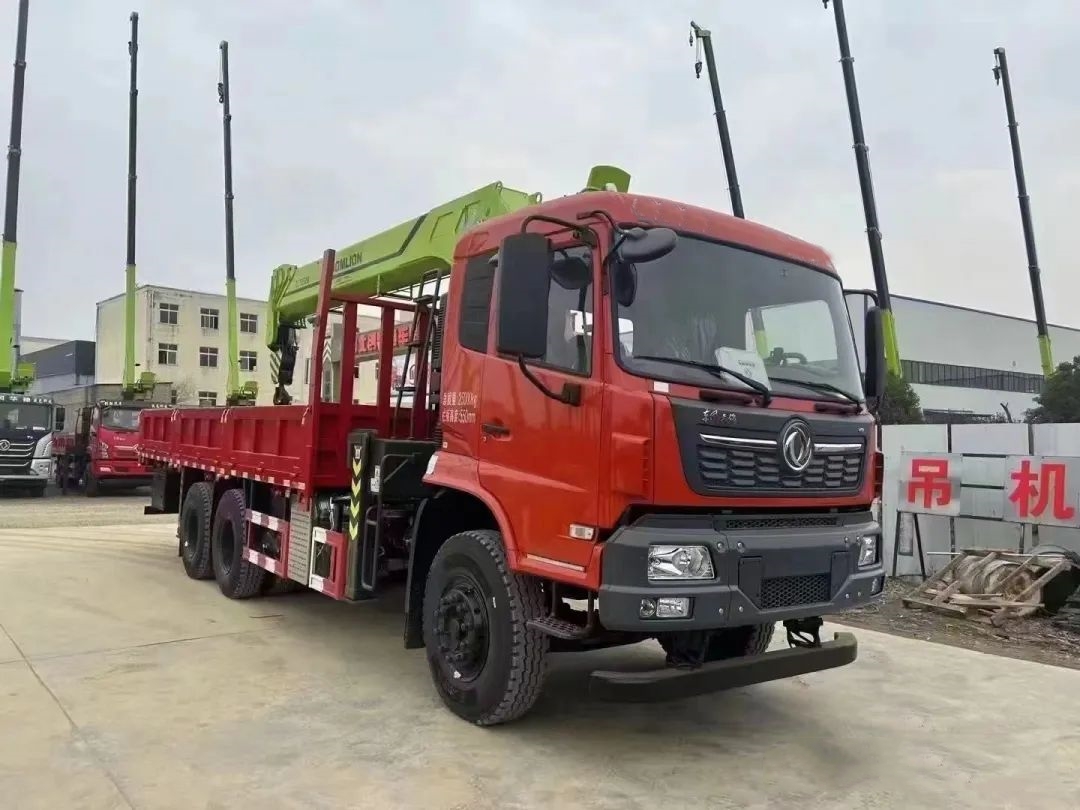

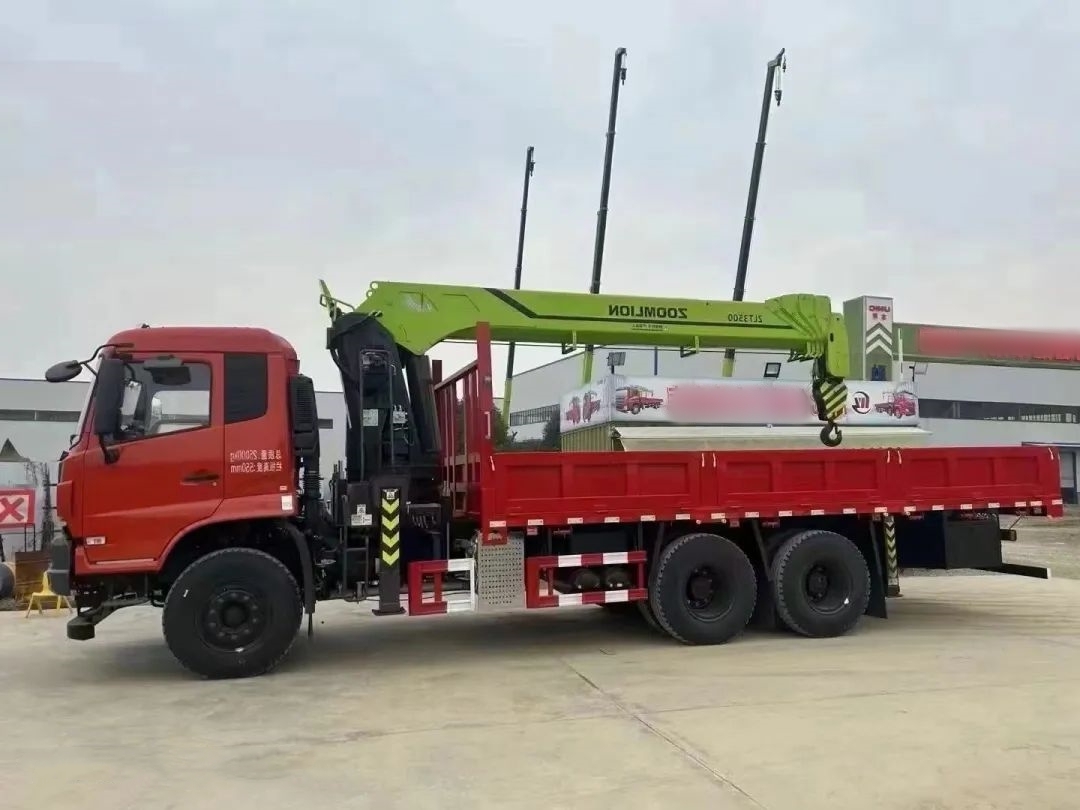

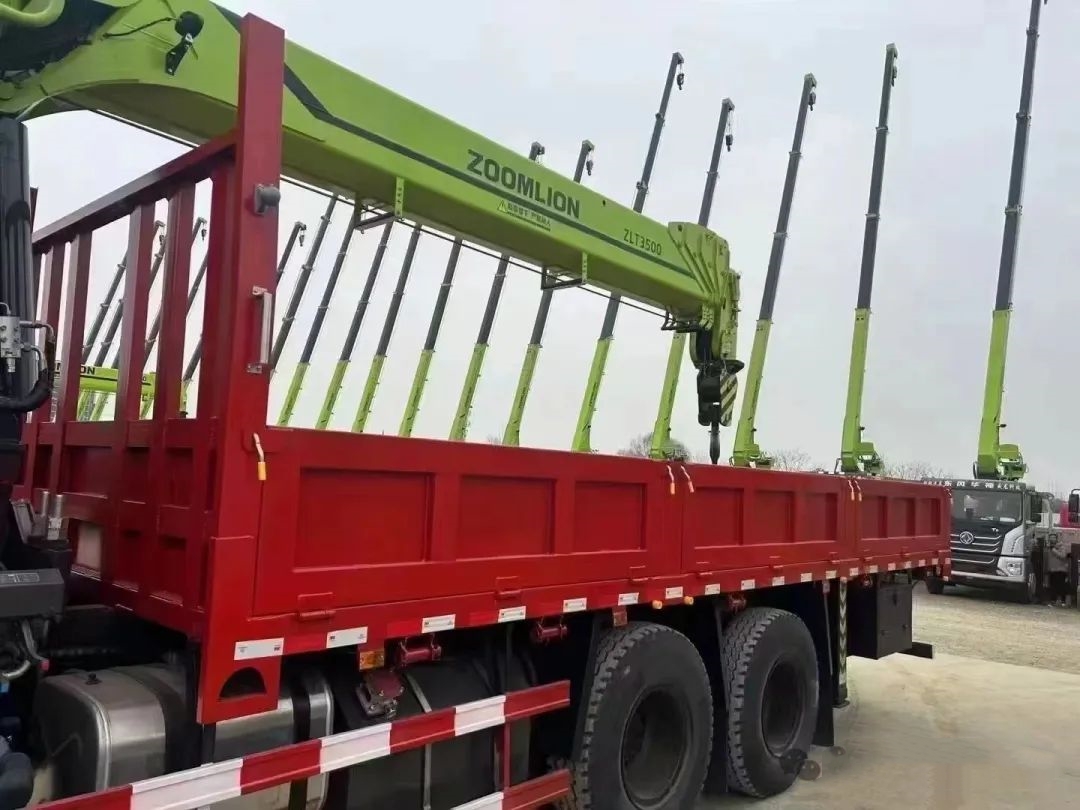

Dongfeng 6X4 truck with ZOOMLION 14 ton 5-section crane
Chassis configuration:
1. Engine: YCS06270-60, Yuchai 270hp
2.Transmission type: Fast 9-speed gearbox with high and low speeds
3.Tyre: 11.00R20 18PR,10 +1 spare
4.Wheelbase:5700+1350(mm)
5.Other: Tianjin new VR semi cab features original air conditioning, multi lock integration, remote control center console, airbag seats, driving recorder, and multifunctional steering wheel.
Installation configuration:
Advantages of crane:
1: 5-section arm, rated lifting capacity of 14 tons, fully extended arm length of 20M, maximum lifting height of 21.5M.
2: The double level telescopic front support legs have a maximum span of -7.7M in the same industry, providing better stability.
3: Double stage telescopic oil cylinder, dual arm single output, stronger lifting performance on the middle and long arms.
4: The octagonal crane arm is made of high-strength welded structural steel, with light weight and stronger bearing capacity.
5: Standard anti roll sound alarm, work light, and panel start/stop function, making operation more convenient and efficient.
6: Dual hydraulic pump drive, faster speed and higher efficiency.
| Product Name | Dongfeng 6X4 truck with ZOOMLION 14 ton 5-section crane |
| Driving Type | 6X4 |
| Gross vehicle weight(Kg) | 25000(Kg) |
| Curb weight(kg) | 18800,17200(Kg) |
| Rated weight(kg) | 6005,7605(Kg) |
| Wheel base(mm) | 5700+1350(mm) |
| Overall dimension(mm) | 10310/10900/12000×2550×3650/3750/3860/3990(mm) |
| Cargo box dimension(mm) | 7100/7200/8300/8400×2450×550/600/800(mm) |
| Engine brand & model | YCS06270-60, Yuchai 270hp |
| Displacement(L)/Power(kw) | 6.23L/199KW |
| Axle Quantity | 3 |
| Transmission Type | Fast 9-speed gearbox with high and low speeds |
| Steering Type | LHD or RHD with power steering |
| Brake system | air brake |
| Tire Spec. & size | 11.00R20 18PR,10 +1 spare |
| Cab | Tianjin new VR semi cab features original air conditioning, multi lock integration, remote control center console, airbag seats, driving recorder, and multifunctional steering wheel. |
| Crane configuration | 5-section arm, rated lifting capacity of 14 tons, fully extended arm length of 20M, maximum lifting height of 21.5M. (Other brands and other tonnage cranes can be matched) |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 6X4 truck with ZOOMLION 14 ton 5-section crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
