Chassis configuration:
Cab: Mercedes Benz Auman cab
Engine: YCS04220-61A, Yuchai 220hp
Transmission: Fast 8-speed transmission with power take-off and remote throttle
Frame: 305mm L-shaped reinforced three-layer beam
Tire: 10.00R20 steel wire tire, 6+1 spare
Wheelbase: 5150(mm)
Rear axle: Daimler 11 ton rear axle
Other configurations: Airbag seats, multifunctional steering wheel, cruise control, electronic control/air conditioning, central locking system, electric doors and windows, remote key, center seat, dash cam, 3.5-inch dash screen instrument panel, manual power switch, 24V power supply, all other original factory standard.
| Product Name | Mercedes Benz Auman truck with 8-ton 5-section boom crane |
| Driving Type | 4X2 |
| Gross vehicle weight(Kg) | 25000(Kg) |
| Curb weight(kg) | 12000,11500(Kg) |
| Rated weight(kg) | 5805,5870,6305,6370(Kg) |
| Wheel base(mm) | 5150(mm) |
| Overall dimension(mm) | 9000,8245×2550,2500×3780,3850,3950(mm) |
| Cargo box dimension(mm) | 6100×2450,2400×550,600(mm) |
| Engine | YCS04220-61A, Yuchai 220hp |
| Axle Quantity | 2 |
| Transmission Type | Fast 8-speed transmission with power take-off and remote throttle |
| Steering Type | LHD or RHD with power steering |
| Tire Spec. & size | 10.00R20 steel wire tire, 6+1 spare |
| Cab | Mercedes Benz Auman cab |
| Crane configuration | Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc. |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Upper configuration | An 8-ton 5-section straight arm crane with an arm length of 19.2 meters and a lifting height of 21 meters. The double chamber composite front support leg has a span of 7.6 meters and is stable for lifting. It is equipped with dual pumps, upward operation, one key start stop, fully hydraulic full rotation, and original single chamber rear support leg. |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

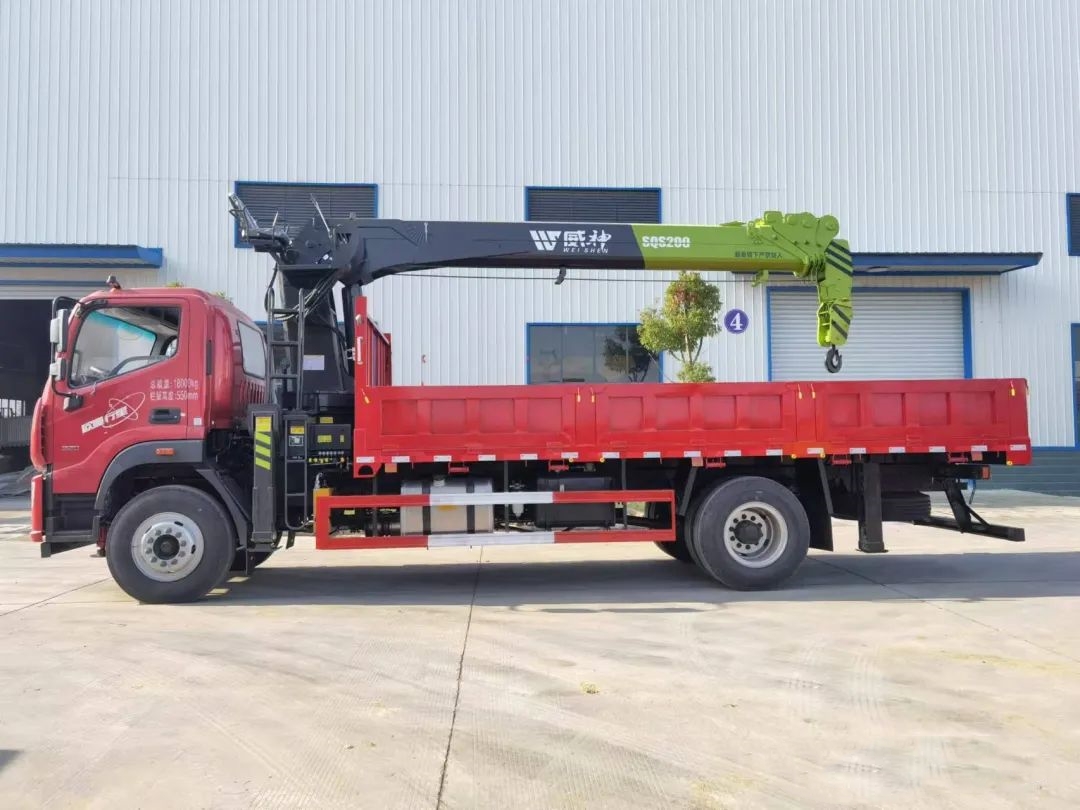

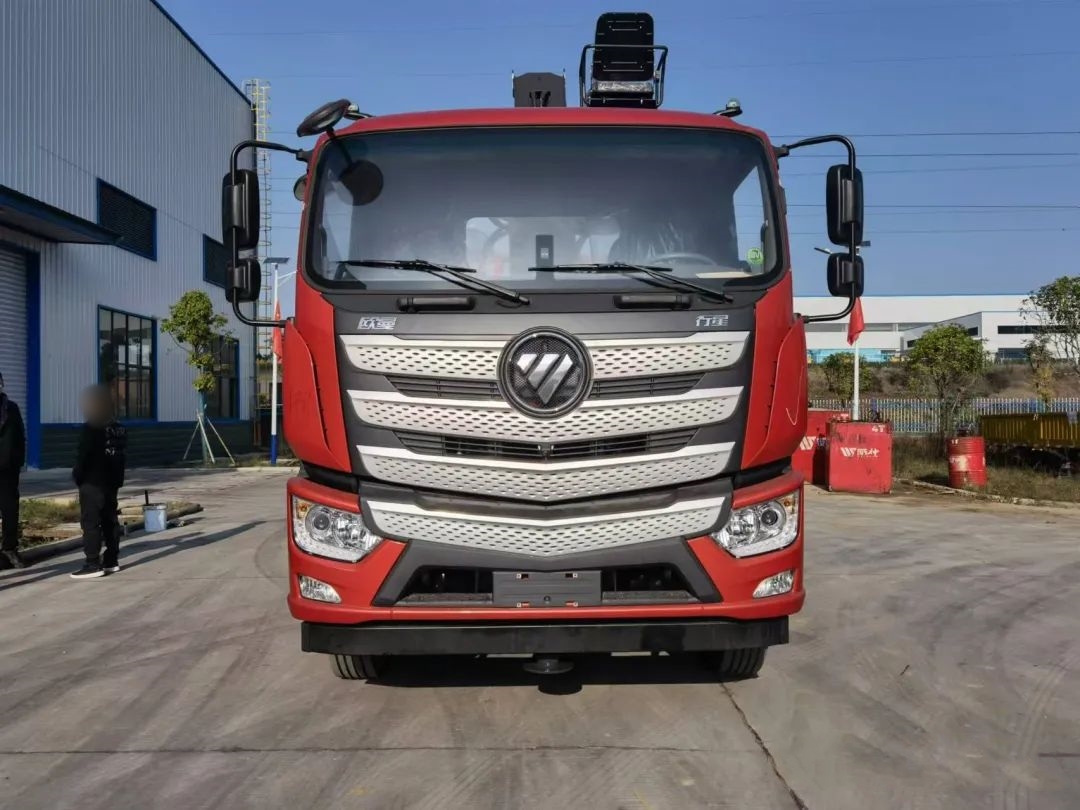

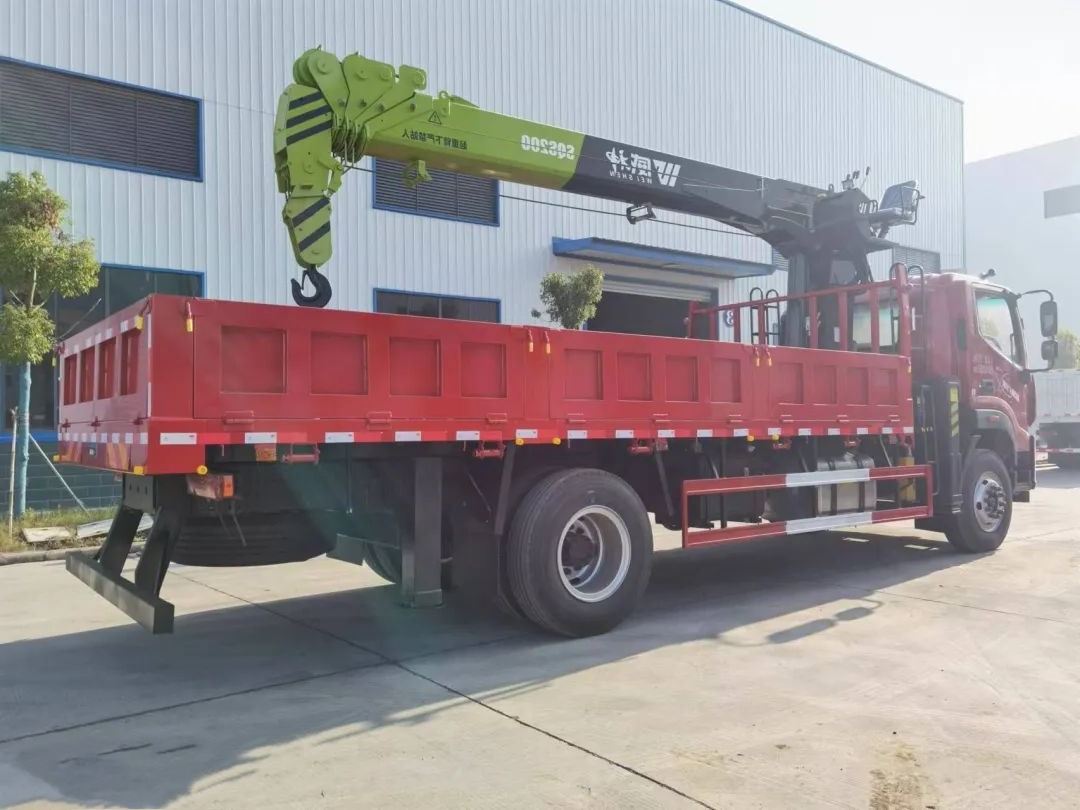

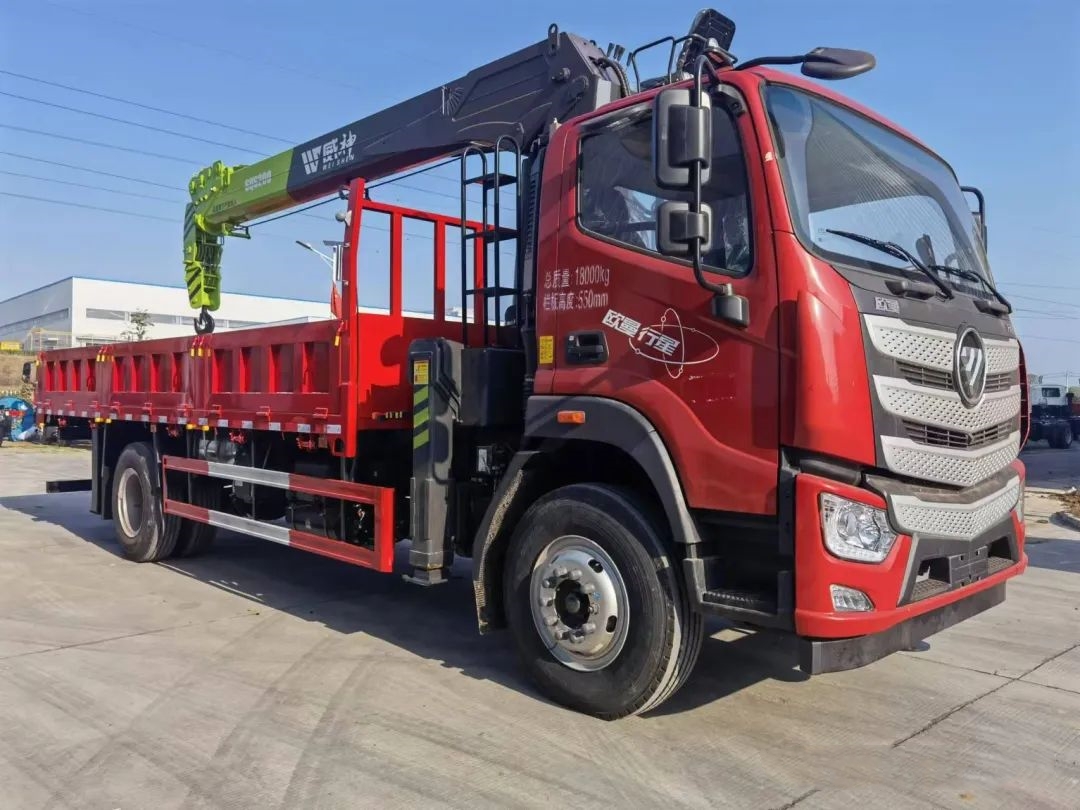

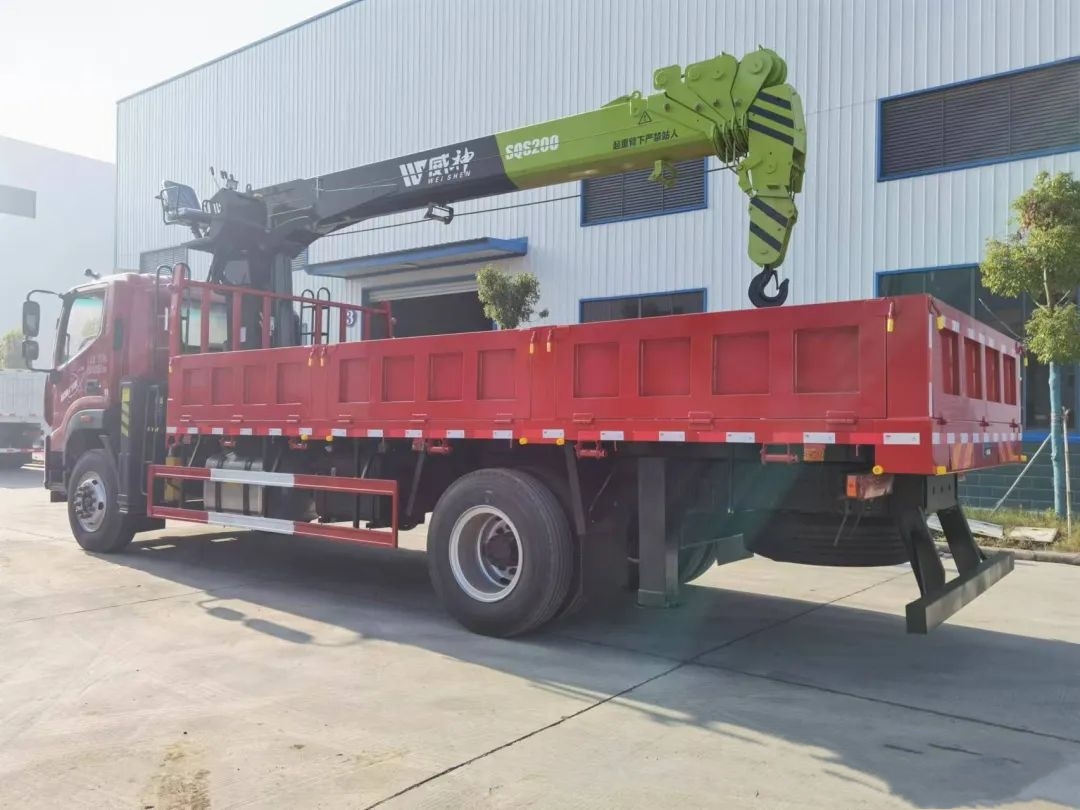

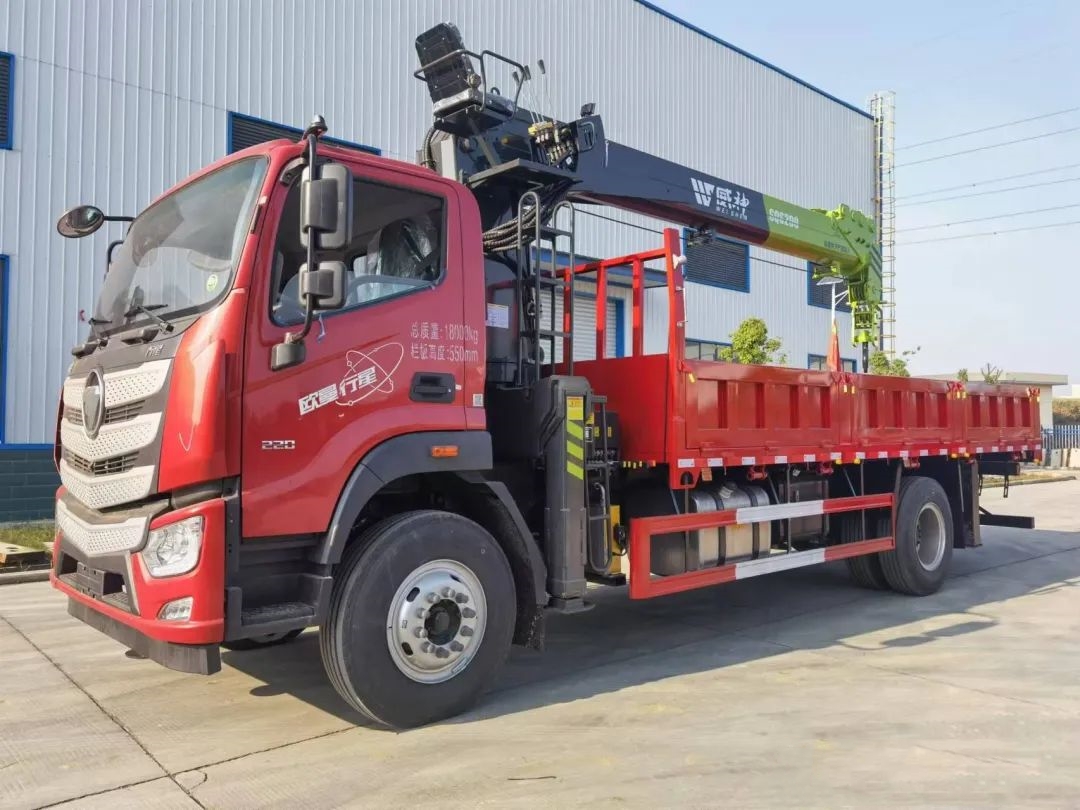

Mercedes Benz Auman truck with 8-ton 5-section boom crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
Product parameters
