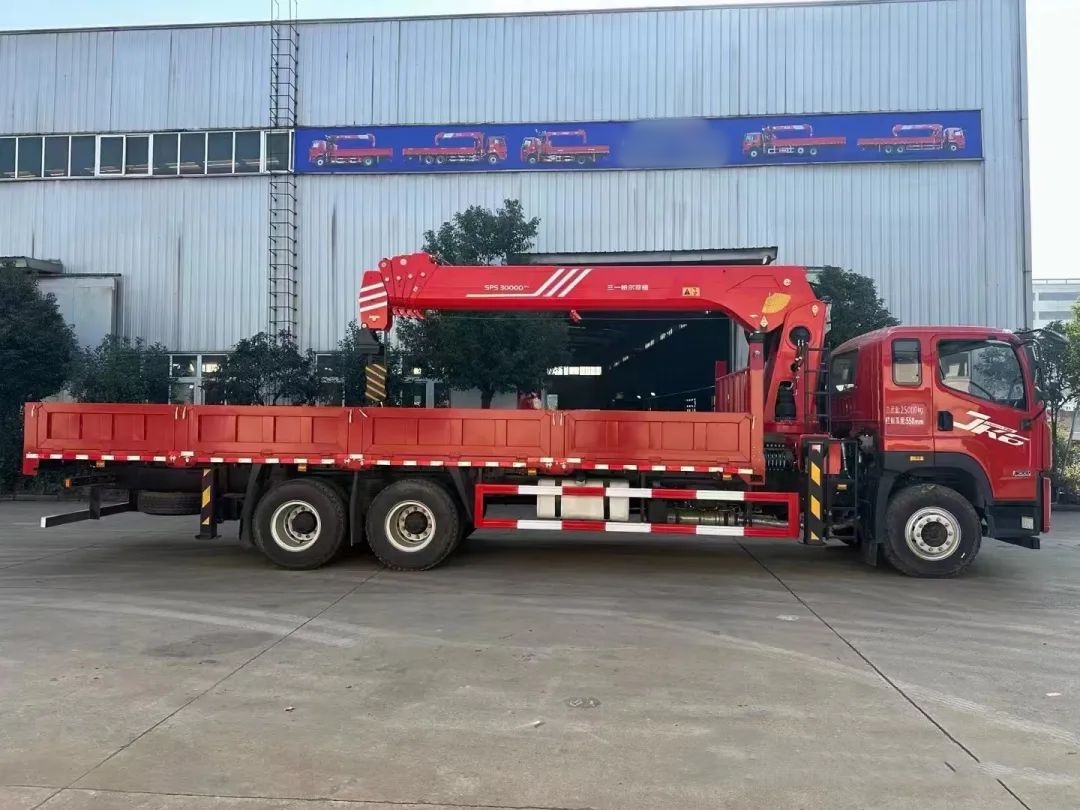

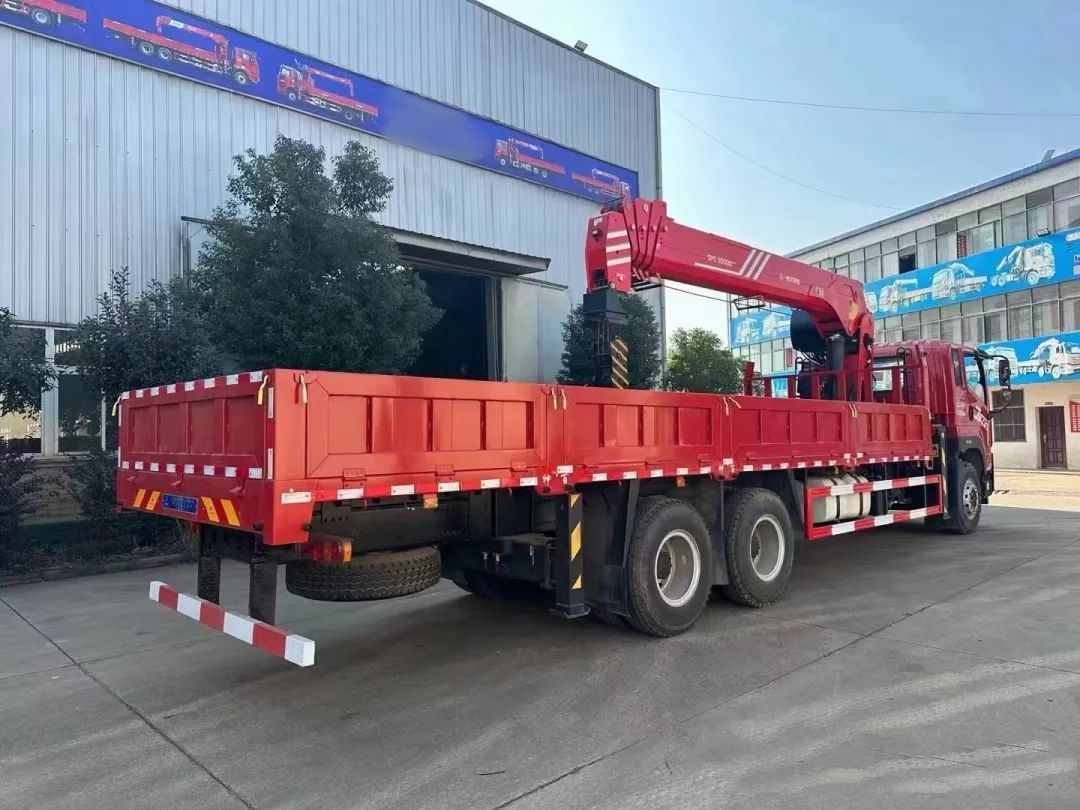

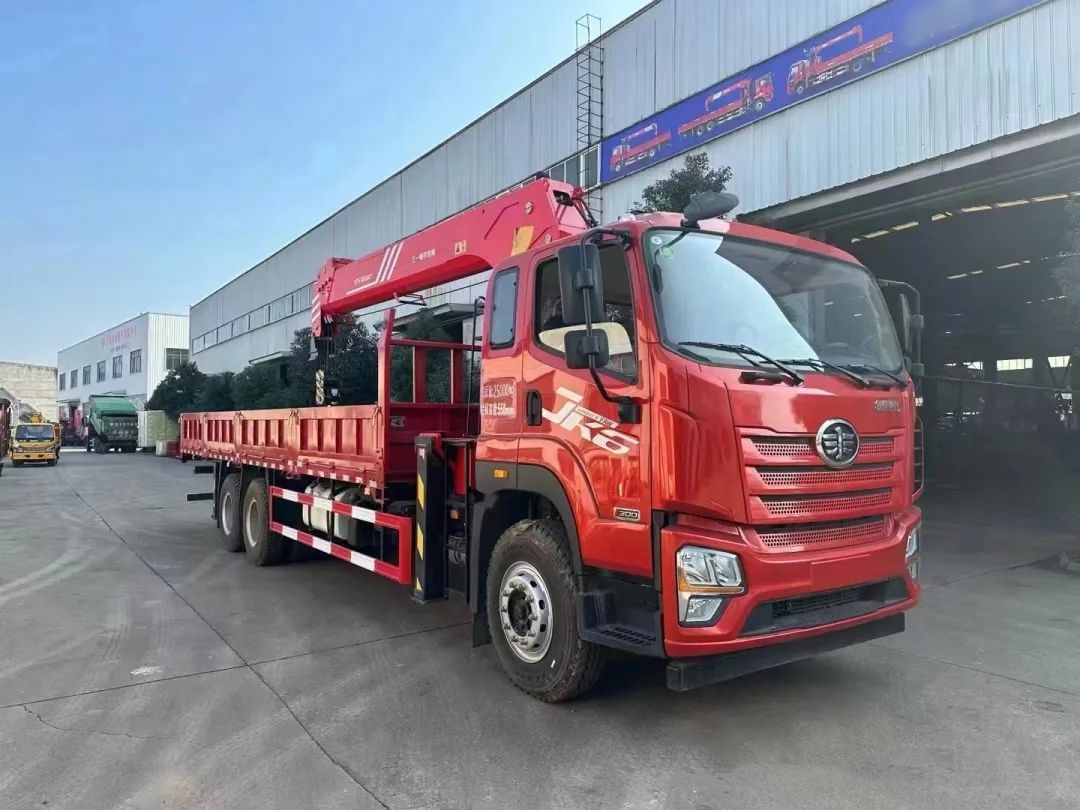

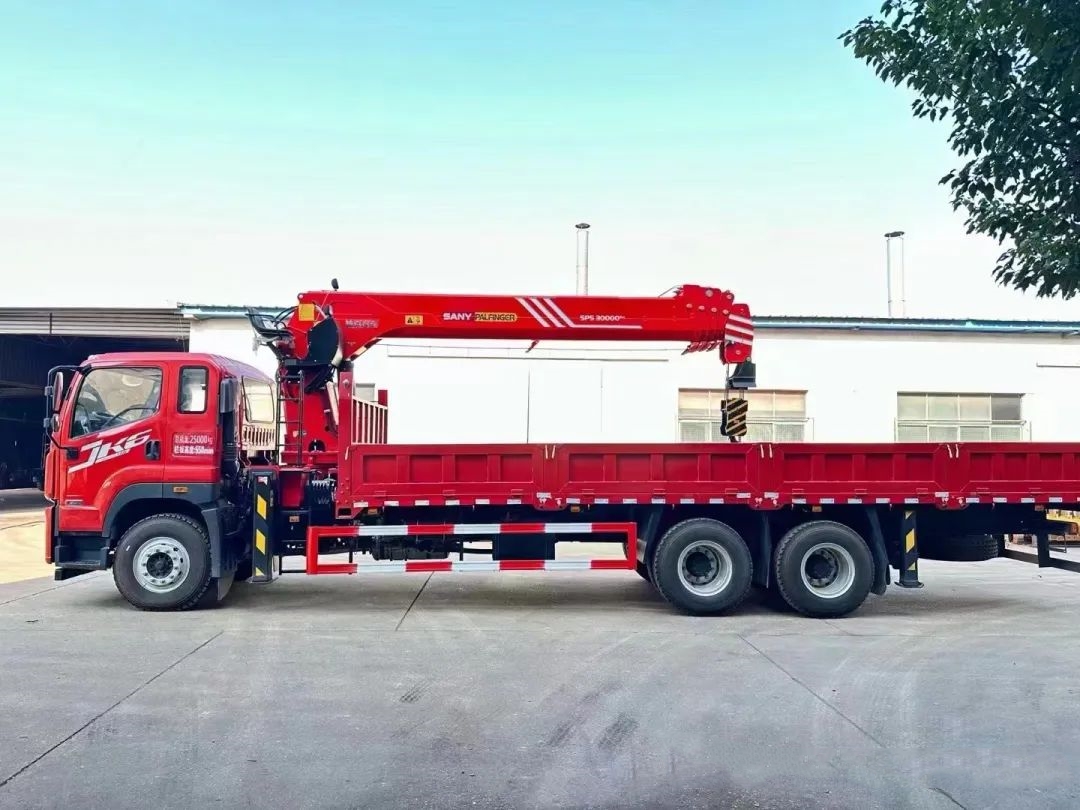

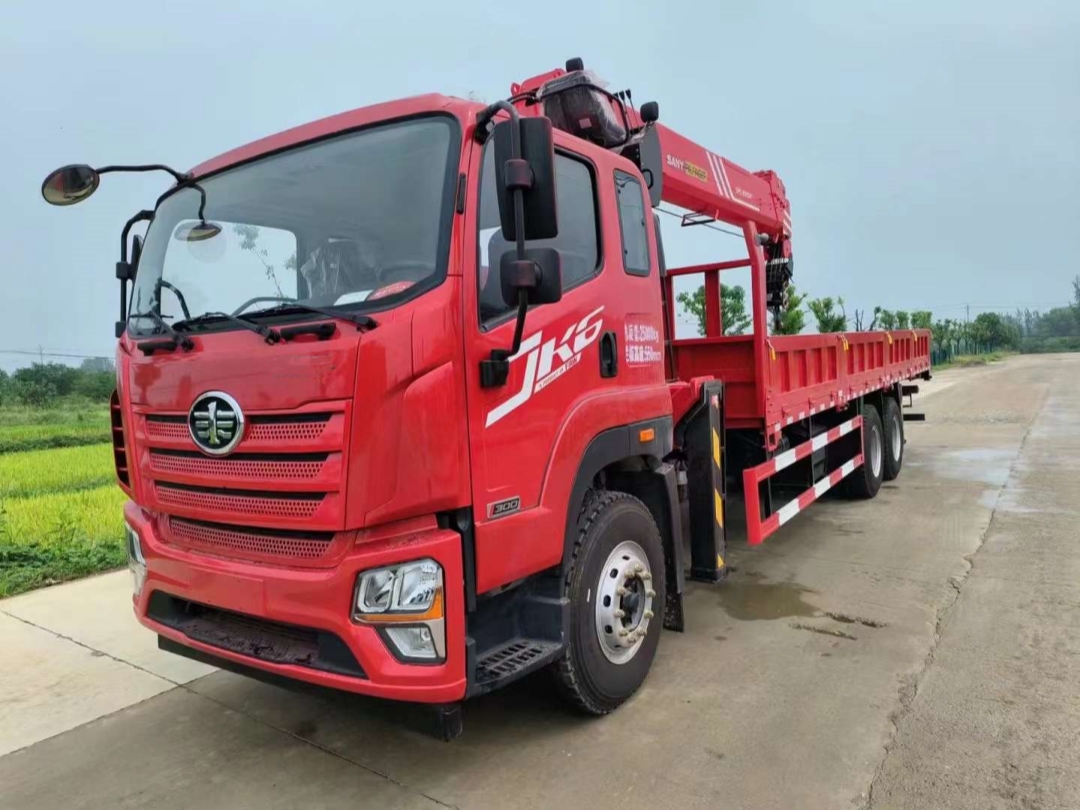

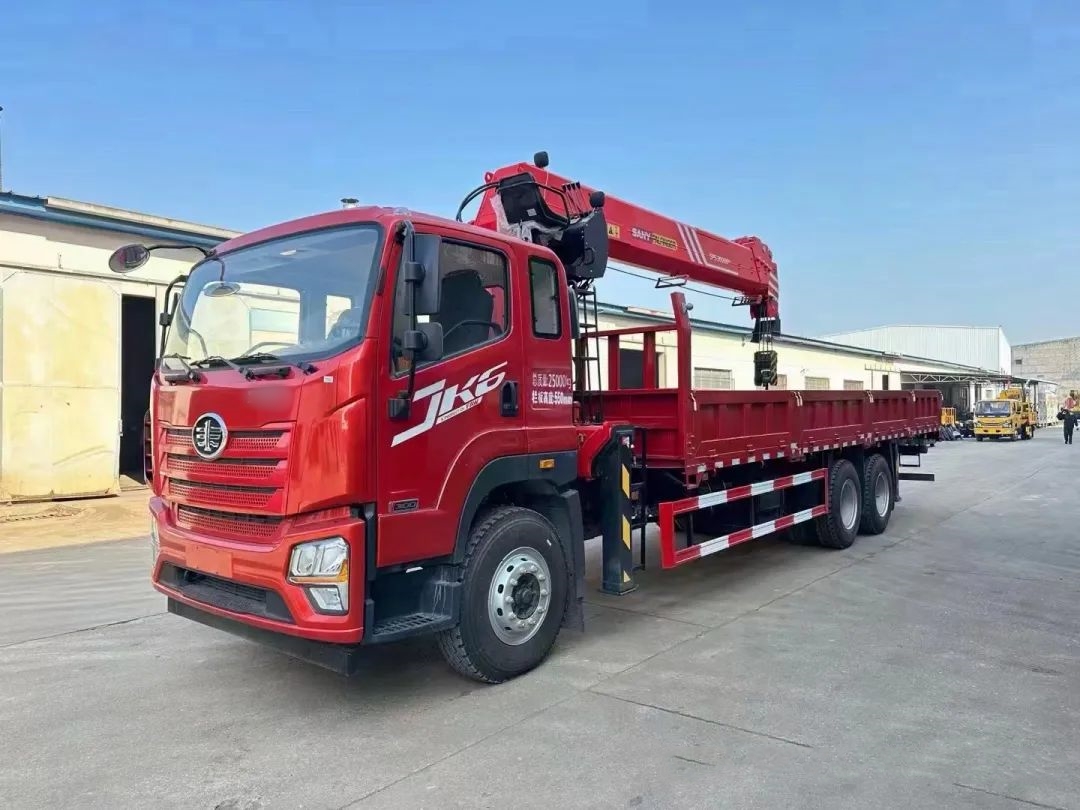

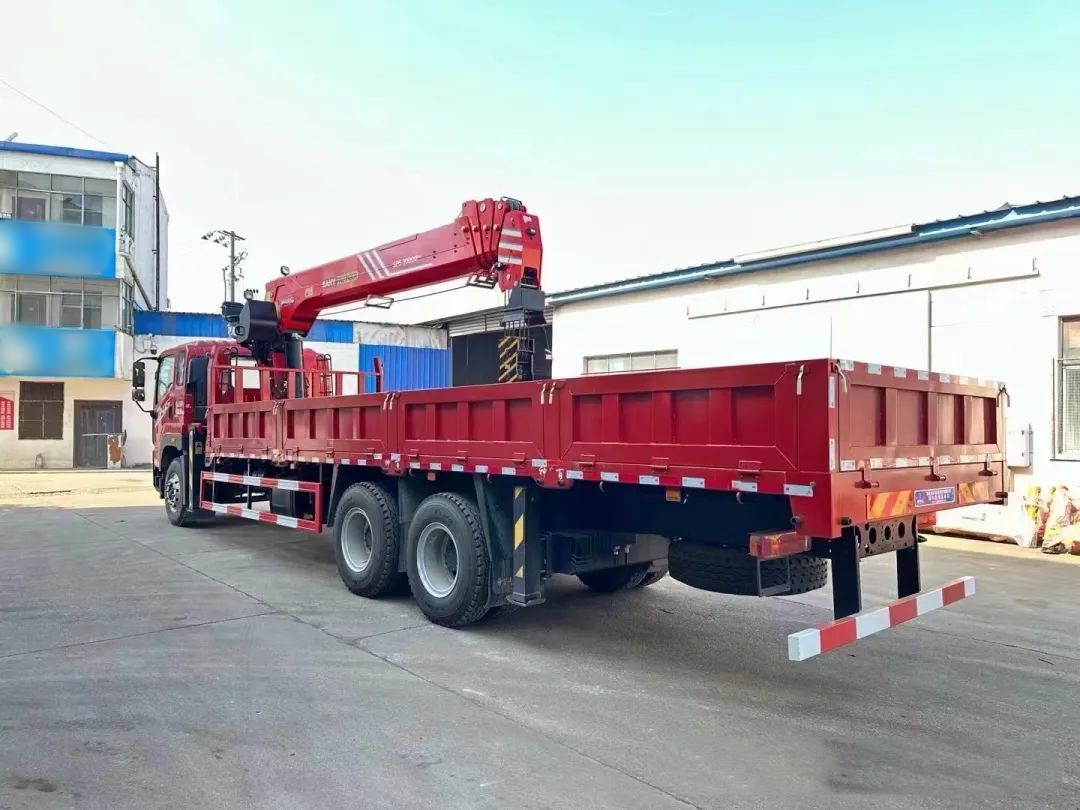

Jiefang JK6 6X4 Truck With Crane
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:

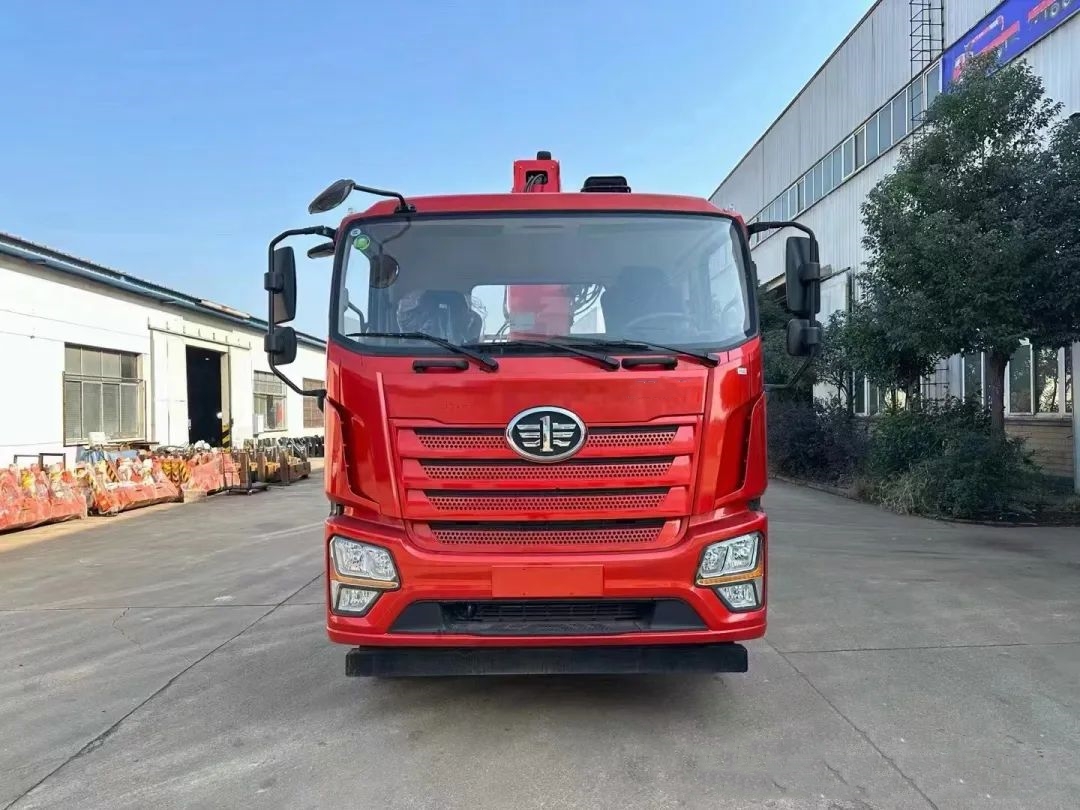

Cab: JK6 flat top fully floating cab
Engine: Yuchai 300
Transmission: Shaanxi Gear 9JS119TA
Frame: 300mm
Tire: 11.00R2018PR
Wheelbase: 5865+1350/4350+1350/4750+1350
Speed ratio: 4.875
Frame: 300x80x (8+5+8) mm
Rear axle: 10T
Dimensions: 12000X2550X3880
Container size: 8500X2450X550/600
Other configurations: special chassis for on-board crane, video recorder, air spring seats, central locking system, cruise control system, with manual throttle, plate spring 10/10300L iron fuel tank, iron air storage cylinder, cylinder rear processor, 120Ah battery, long-term maintenance coarse filter, with power take-off and control mechanism, with auxiliary start and auxiliary stall function, transmission oil change, 6/10/60000 kilometers, speed limit of 89KM/H, ABS, etc.
| Product Name |
Jiefang JK6 6X4 Truck With Crane |
| Driving Type |
6X4 |
| Gross vehicle weight(Kg) |
25000(Kg) |
| Curb weight(kg) |
18300,17500,16700(Kg) |
| Rated weight(kg) |
6570,6505,7370,7305,8170,8105(Kg) |
| Wheel base(mm) |
5865+1350,5500+1350,4350+1350,4750+1350(mm) |
| Overall dimension(mm) |
12000X2550X3880(mm) |
| Cargo box dimension(mm) |
8500X2450X550/600(mm) |
| Engine |
YCS06300-61A, Yuchai 300hp |
| Axle Quantity |
3 |
| Transmission Type |
Fast 9-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
11.00R20 steel wire tire, 10+1 spare |
| Cab |
JK6 flat top fully floating cab |
| Crane configuration |
Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc. |
| Cargo box material |
Channel steel, square tube, corrugated board |
| Optional |
1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Jiefang JK6 6X4 Truck With Crane
A
truck with crane is a type of transport vehicle that combines a crane with a
chassis. It is composed of a crane arm, a turntable, a frame, legs, and other
parts. The mechanical action of the crane is achieved through the actions of
mechanisms such as amplitude, expansion, rotation, and hoisting, and the
lifting operation is achieved through the combination of different actions.
Crane:It can accommodate cranes of different brands and tonnages. 12 ton 4-arm or 5-arm crane, 14 ton 4-arm or 5-arm crane.

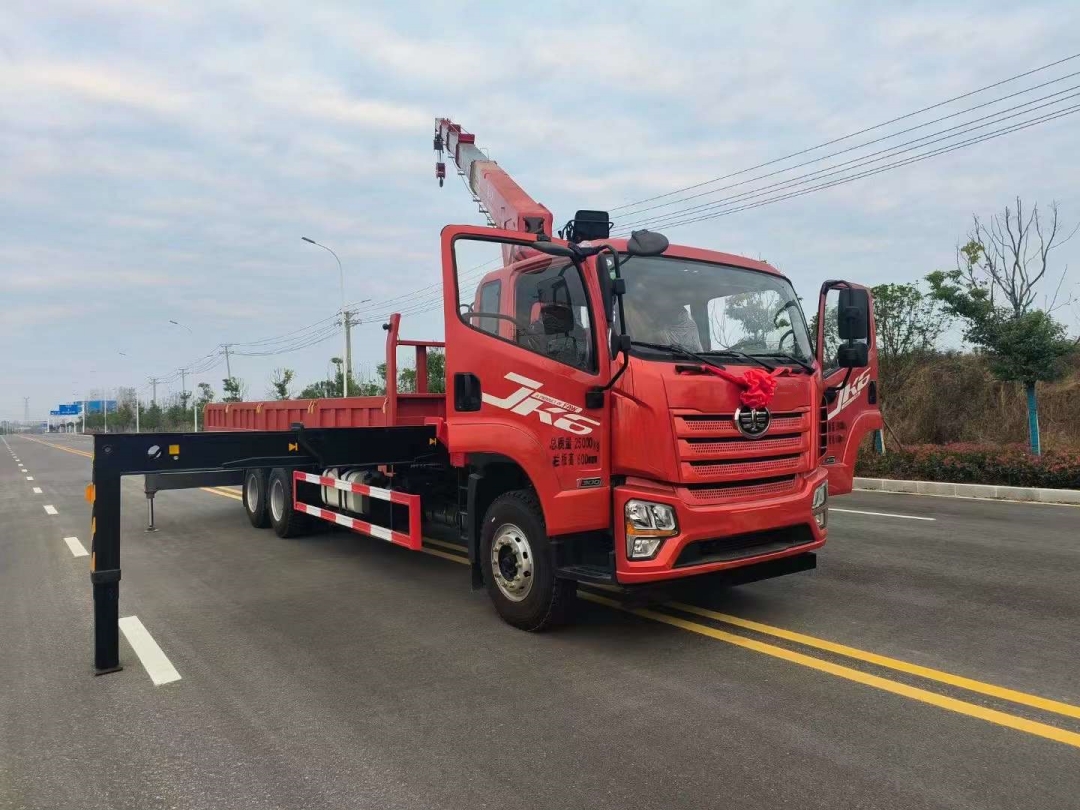

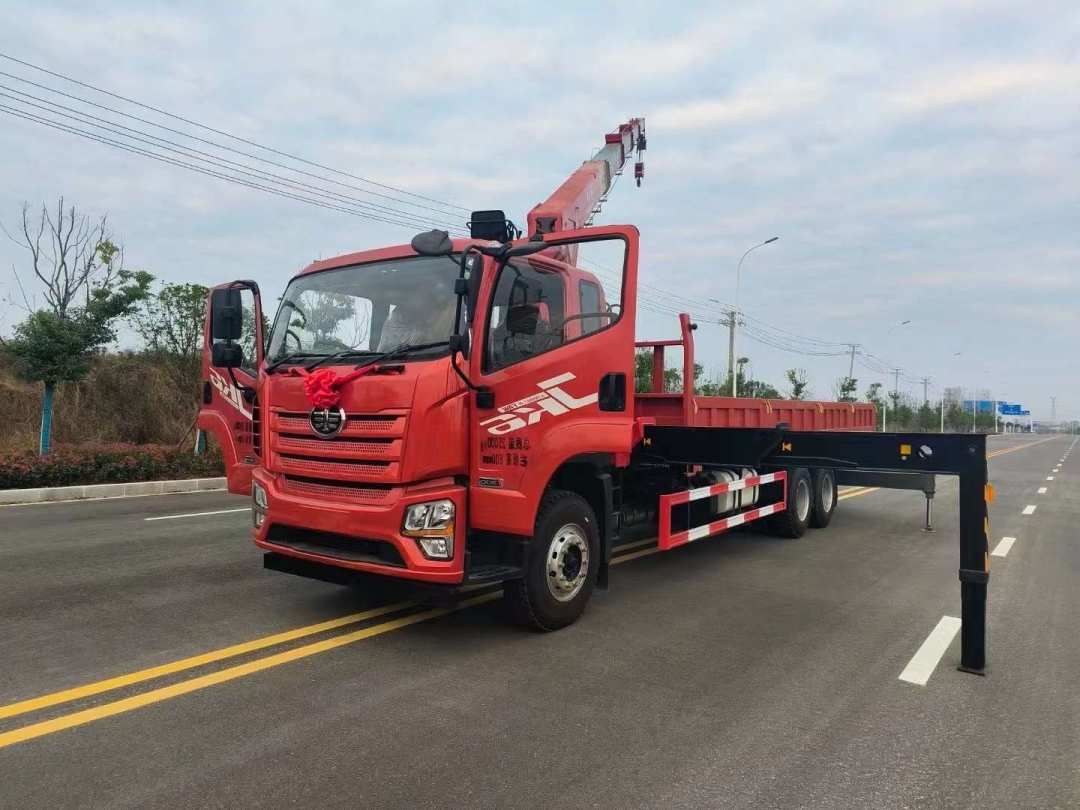

Rear support legs:can be equipped with fixed rear support legs, single chamber hydraulic rear support legs, or double chamber hydraulic rear support legs.
Product parameters
