Chassis configuration:

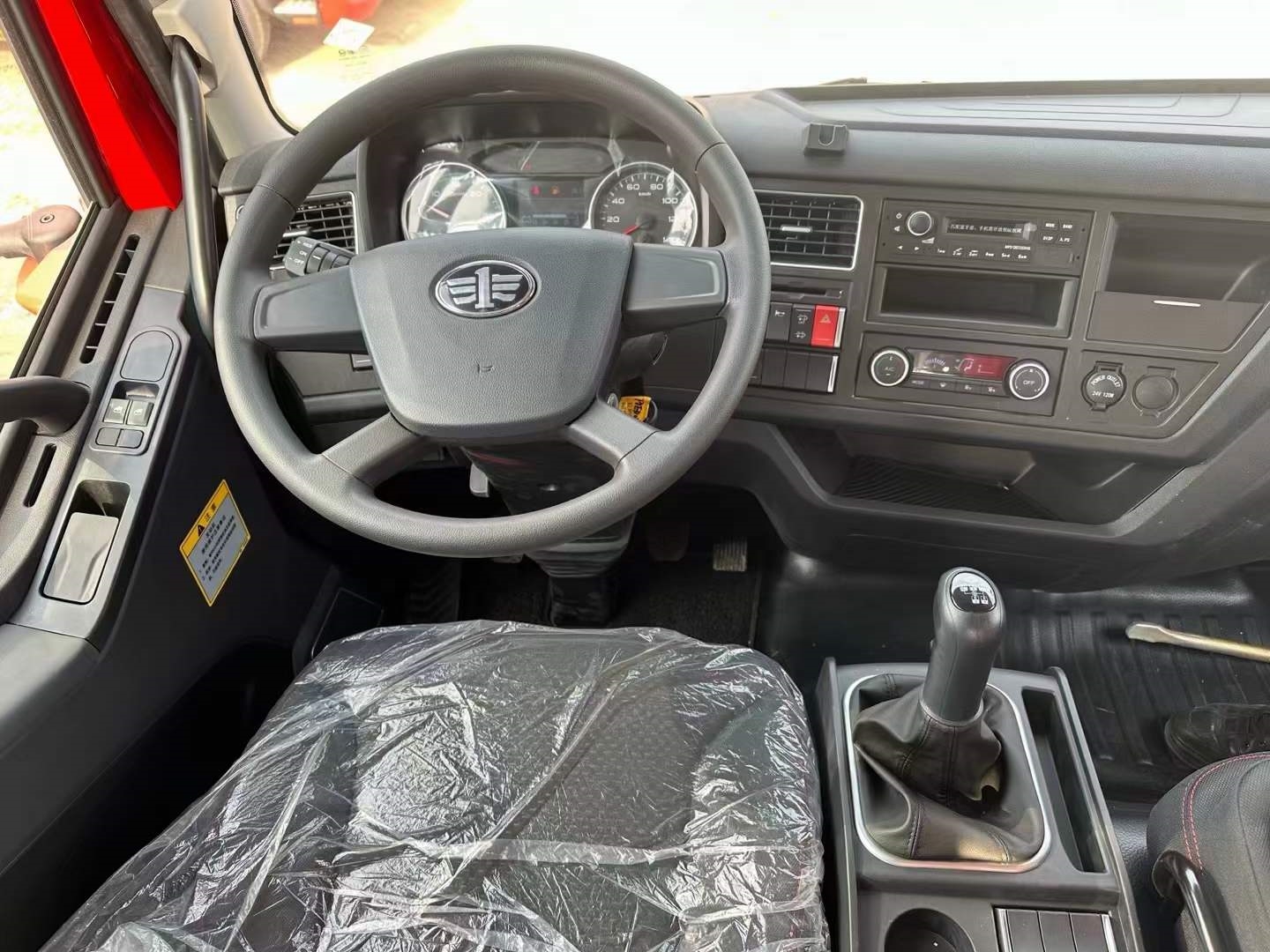

2020 J6L semi floating flat top single row cab, Dachai 220hp engine,Fast 8-speed gearbox, 255mm straight through three-layer beam, 9-ton rear axle, 10.00R20 steel wire tires. Standard electric doors and windows, remote control central locking, automatic air conditioning, driver's airbag seat, and driving recorder.
Installation configuration:
Install the Sany brand 8-ton four section arm crane, with a working radius of 14.3 meters and a lifting height of 16.3 meters. Equipped with high-altitude seats, one key start stop, auxiliary beams, original rear support legs, and radiator.
| Product Name | Jiefang J6L 4X2 Truck With Crane |
| Driving Type | 4X2 |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(kg) | 11000,10500,11500(Kg) |
| Rated weight(kg) | 6870,6805,7370,7305,6370,6305(Kg) |
| Wheel base(mm) | 5000(mm) |
| Overall dimension(mm) | 8350,8680,9000×2550,2500×3580,3680,3750,3880(mm) |
| Cargo box dimension(mm) | 5000,5200,5600,5650,5800,6100,6000,6050,5500,6200,6300,5100×2450,2400×550,600(mm) |
| Engine | CA6DH1-22E6, Dachai 220hp |
| Axle Quantity | 3 |
| Transmission Type | Shaanxi Gear 8JS85E Transmission (Flange Output Power Takeoff) |
| Steering Type | LHD or RHD with power steering |
| Tire Spec. & size | 10.00R2018PR, 8+1 spare |
| Cab | 2020 J6L semi floating flat top single row cab |
| Crane configuration | Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc. |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

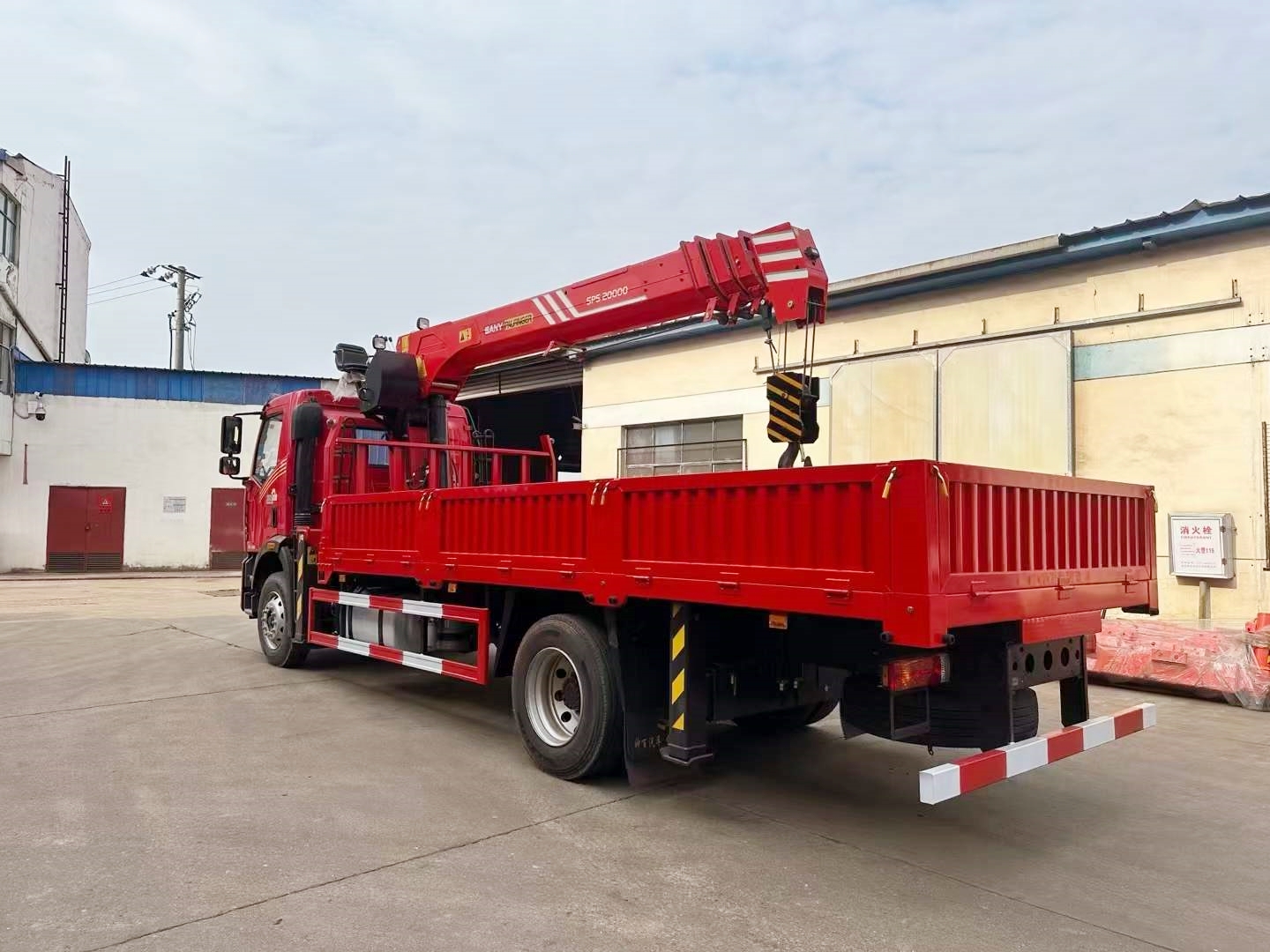

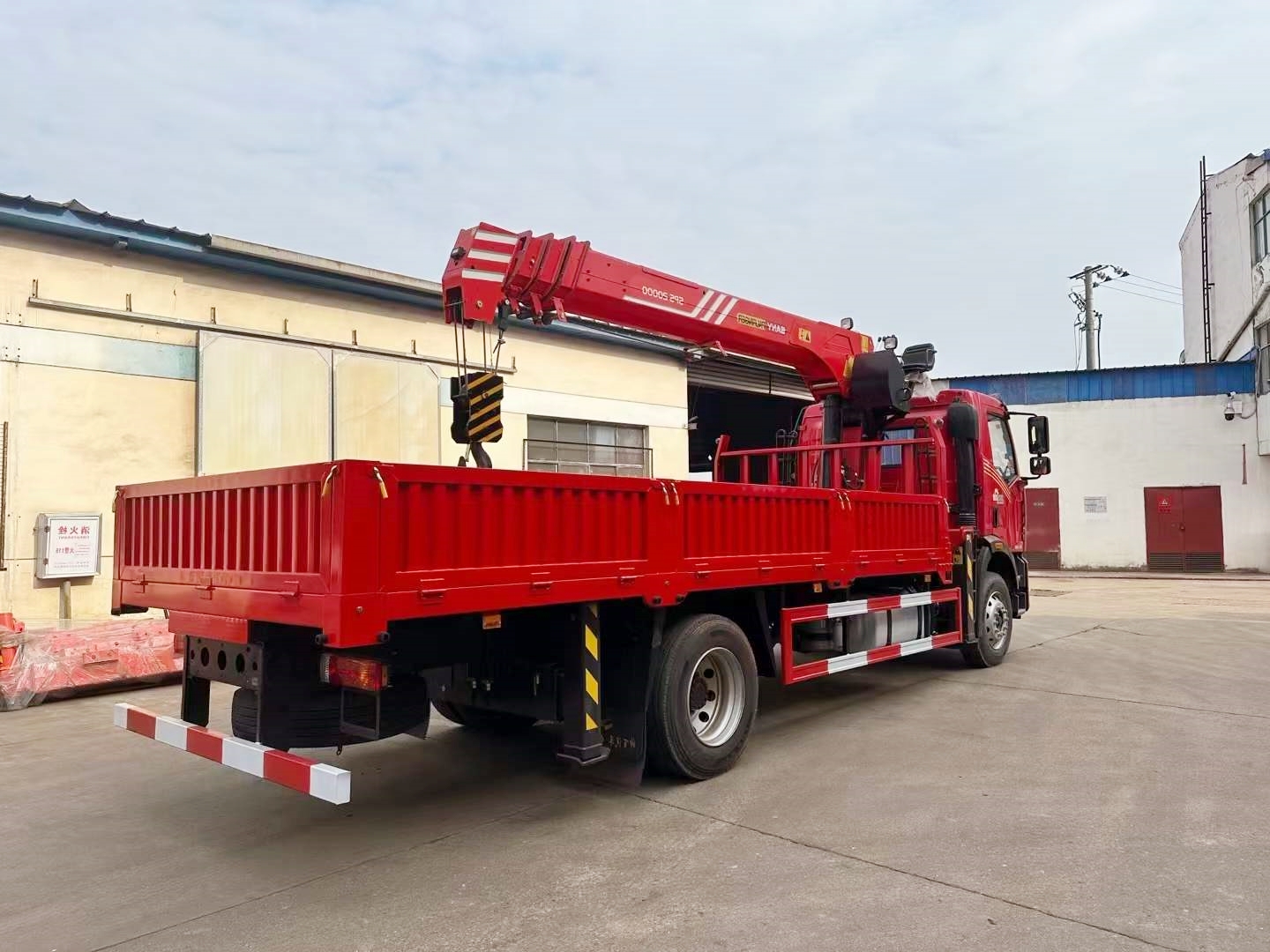

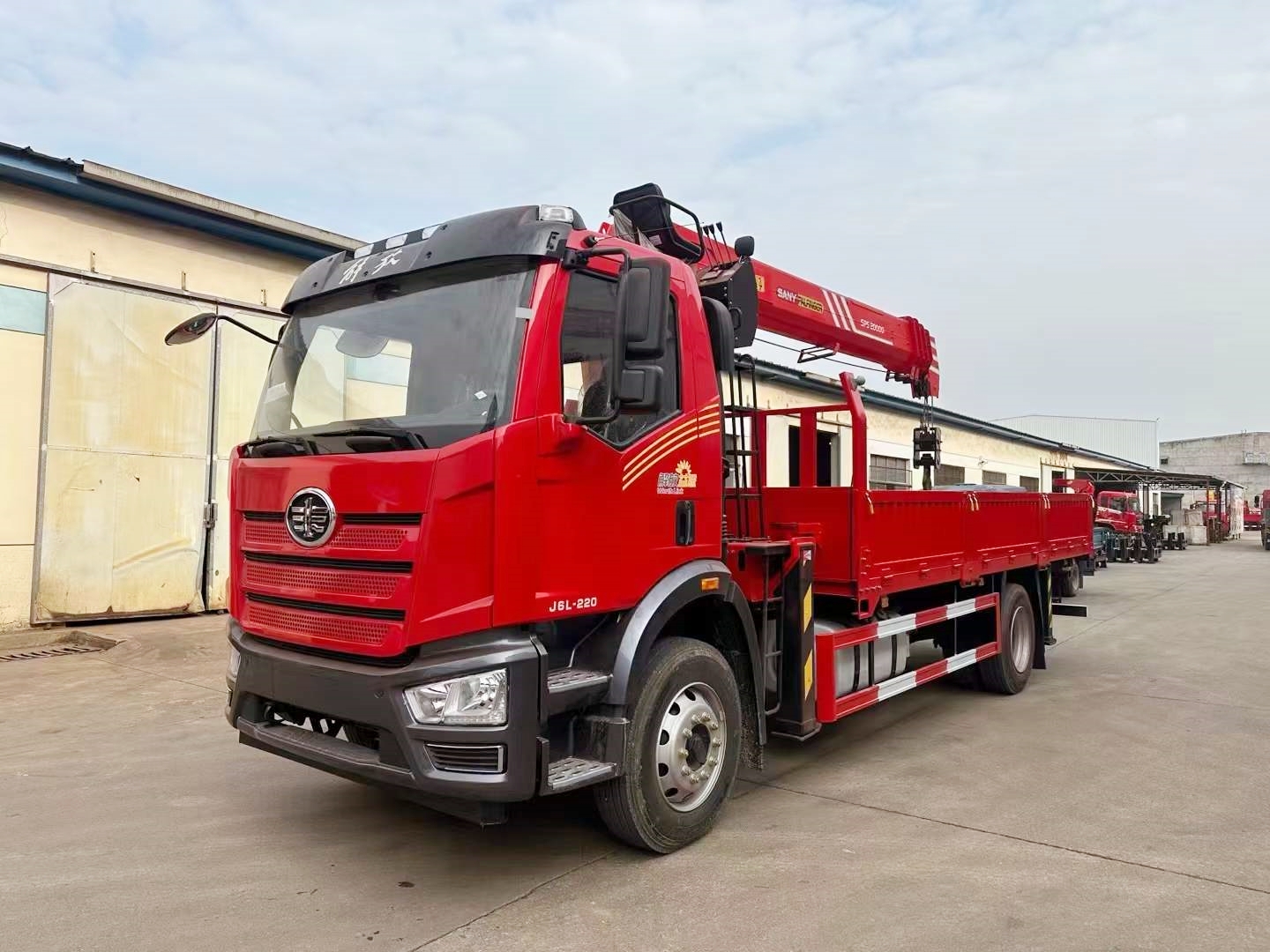

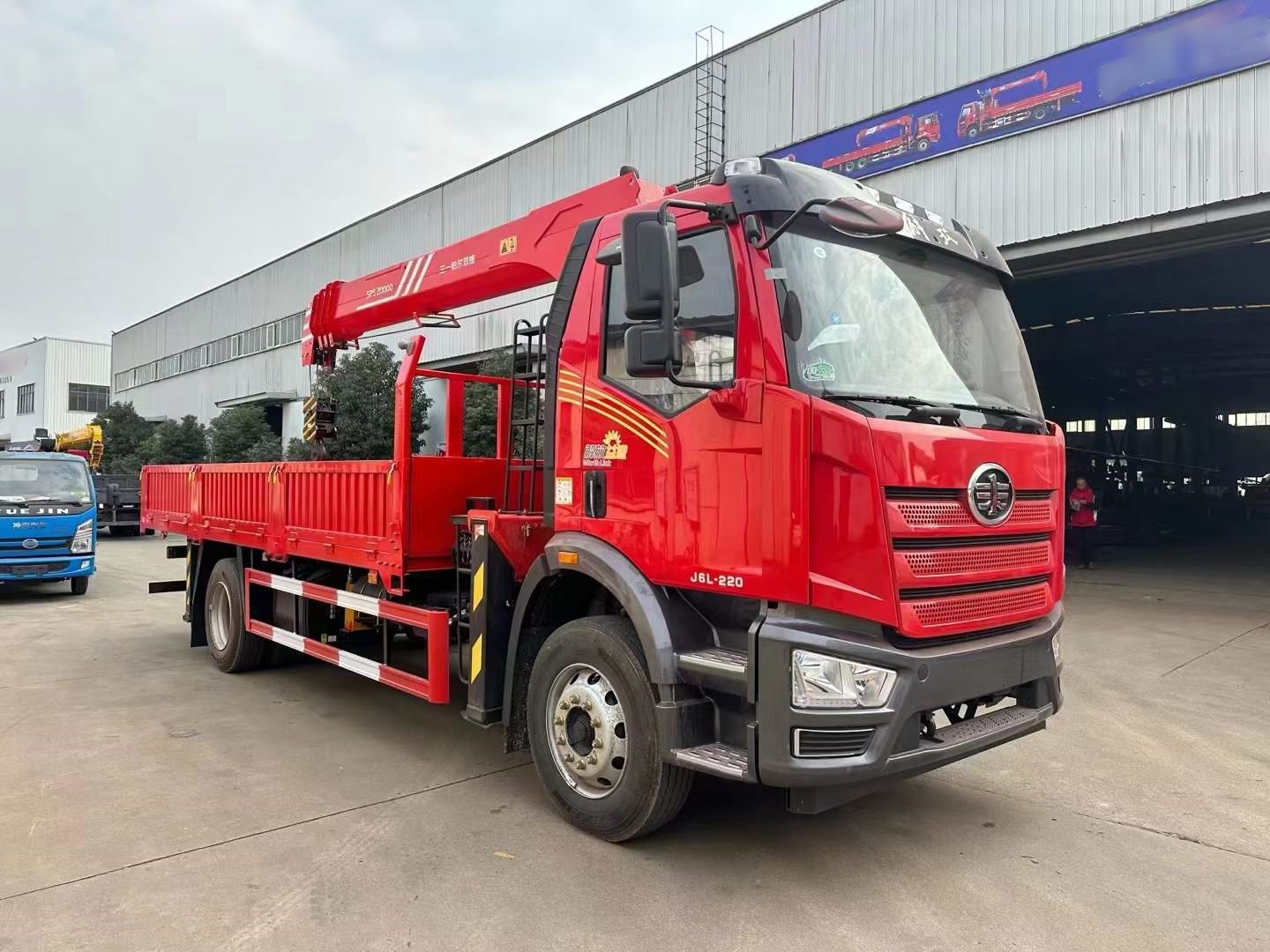

Jiefang J6L 4X2 Truck With Crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
