Aerospace Wanshan 8X4 Truck With Crane
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
1. Engine: WP8.350E61, Weichai 350 horsepower
2.Transmission type: 10-speed gearbox (high and low gears)
3.Wheelbase: 1800+3650+1350,2150+3800+1350,2150+4200+1350,2150+4400+1350(mm)
4.Tyre:10.00R20 18PR,11.00R20 18PR,11R22.5 18PR,12.00R20 18PR, 12+1 spare
5 Other: Dongfeng cab
Installation configuration:
Crane brands can be selected from Sany, XCMG, Changxing and other brands. Equipped with dual chamber hydraulic rear support legs, with a 3mm edge and a 5mm bottom cargo compartment.
| Product Name |
Aerospace Wanshan 8X4 Truck With Crane |
| Driving Type |
8X4 |
| Gross vehicle weight(Kg) |
31000(Kg) |
| Curb weight(kg) |
20800,19800(Kg) |
| Rated weight(kg) |
10070,10005,11070,11005(Kg) |
| Wheel base(mm) |
1800+3650+1350,2150+3800+1350,2150+4200+1350,2150+4400+1350(mm) |
| Overall dimension(mm) |
11750,12000×2550,2520×3750,3850,3980(mm) |
| Cargo box dimension(mm) |
8500,8400,8300,8200,8100,8000,7800×2450,2400×550,600(mm) |
| Engine |
WP8.350E61, Weichai 350 horsepower |
| Axle Quantity |
4 |
| Transmission Type |
10-speed gearbox (high and low gears) |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
10.00R20 18PR,11.00R20 18PR,11R22.5 18PR,12.00R20 18PR, 12+1 spare |
| Cab |
Dongfeng cab |
| Crane configuration |
Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc. |
| Cargo box material |
Channel steel, square tube, corrugated board |
| Optional |
1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

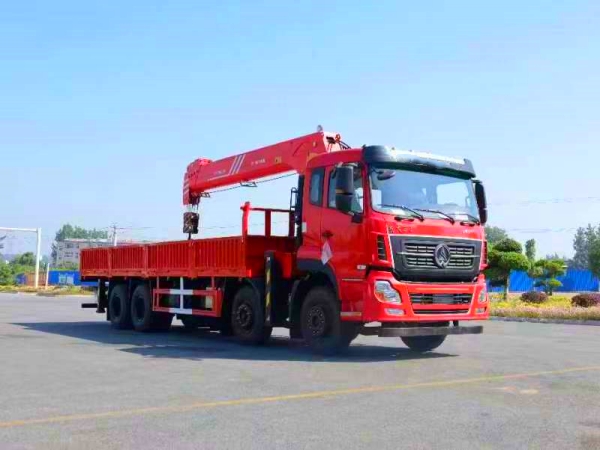

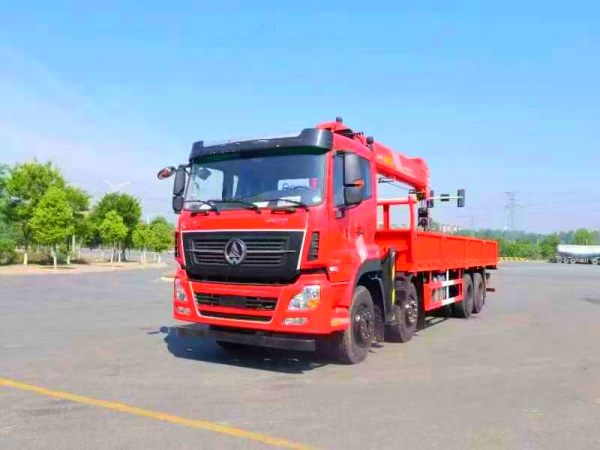

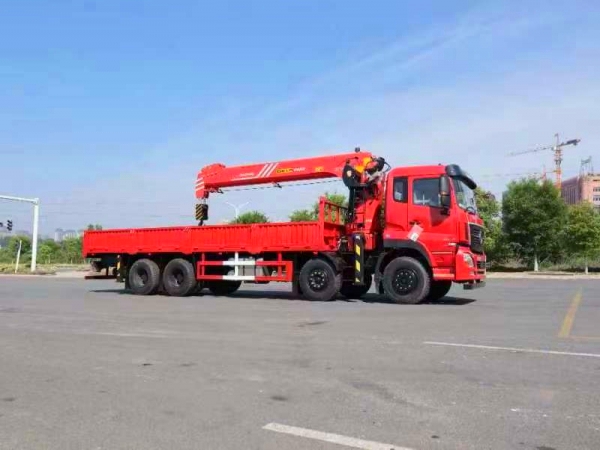

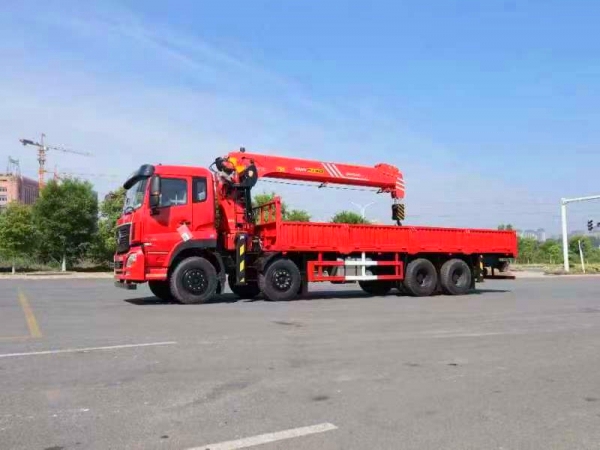

Aerospace Wanshan 8X4 Truck With Crane
A
truck with crane is a type of transport vehicle that combines a crane with a
chassis. It is composed of a crane arm, a turntable, a frame, legs, and other
parts. The mechanical action of the crane is achieved through the actions of
mechanisms such as amplitude, expansion, rotation, and hoisting, and the
lifting operation is achieved through the combination of different actions.
Crane:It can accommodate cranes of different brands and tonnages.

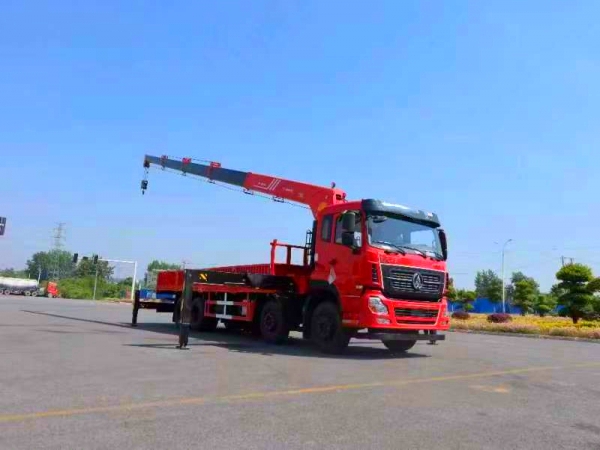

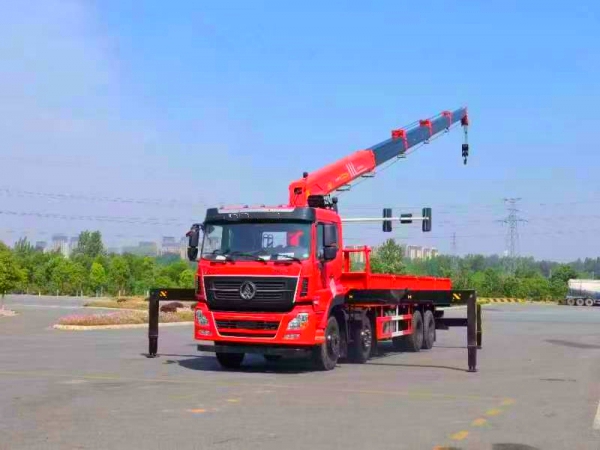

Rear support legs:can be equipped with fixed rear support legs, single chamber hydraulic rear support legs, or double chamber hydraulic rear support legs.
Product parameters
