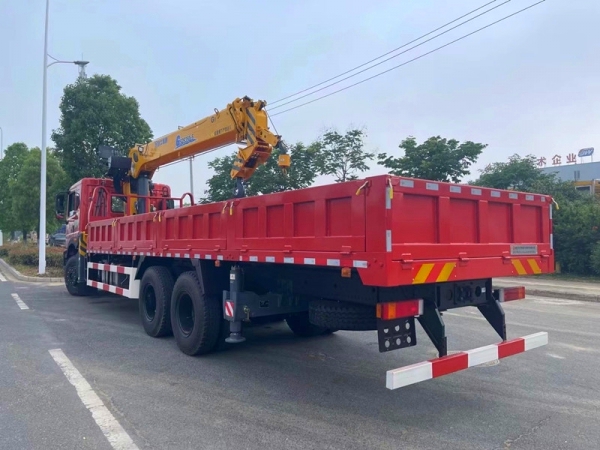

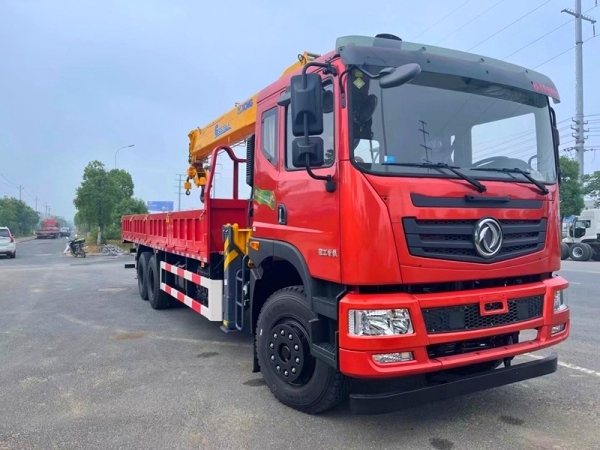

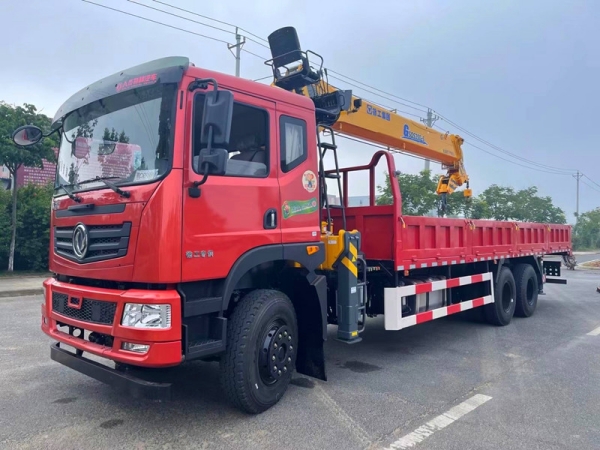

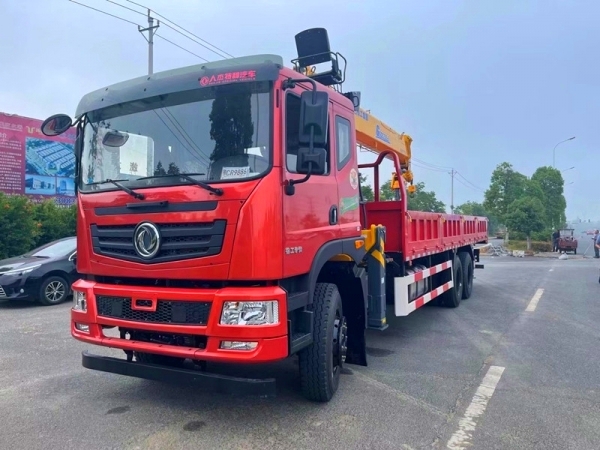

Dongfeng T5 6X4 Truck With Crane
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
Dongfeng T5 6X4 14 ton on-board crane, modified with a dedicated chassis for on-board cranes, Weichai 270 horsepower/Yuchai 270 horsepower, 9-speed gearbox (high and low gears), 300mm straight through three-layer beam, front axle 5.5 tons, rear axle 11.5 tons, 11.00 steel wire tires.
Installation configuration:
Install a 14 ton five section straight arm crane with a working radius of 19.5 meters and a lifting height of 21.5 meters. Rotating seat, easy to operate
| Product Name |
Dongfeng T5 6X4 Truck With Crane |
| Driving Type |
6X4 |
| Gross vehicle weight(Kg) |
24700(Kg) |
| Curb weight(kg) |
15650,17350(Kg) |
| Rated weight(kg) |
8855,8920,7155,7220(Kg) |
| Wheel base(mm) |
4350+1300,4750+1300,5350+1300,5850+1350(mm) |
| Overall dimension(mm) |
10000,10200,10620,10820,11000,11350,11950,12000×2500,2550×3750,3850,3950(mm) |
| Cargo box dimension(mm) |
6500,6800,7200,7500,7800,8000,8200,8500×2300,2400,2450×550,800(mm) |
| Engine |
Weichai 270 horsepower/Yuchai 270 horsepower |
| Axle Quantity |
3 |
| Transmission Type |
9-speed gearbox (high and low gears) |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
11.00R20, 10+1 spare |
| Cab |
Dongfeng T5 cab |
| Crane configuration |
Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc. |
| Cargo box material |
Channel steel, square tube, corrugated board |
| Optional |
1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng T5 6X4 Truck With Crane
A
truck with crane is a type of transport vehicle that combines a crane with a
chassis. It is composed of a crane arm, a turntable, a frame, legs, and other
parts. The mechanical action of the crane is achieved through the actions of
mechanisms such as amplitude, expansion, rotation, and hoisting, and the
lifting operation is achieved through the combination of different actions.
Crane:It can accommodate cranes of different brands and tonnages.
Rear support legs:can be equipped with fixed rear support legs, single chamber hydraulic rear support legs, or double chamber hydraulic rear support legs.
